Scanstrut SC-AOB-A2 Watersports Accessories

ATMOS 12V Integrated Air Station

Revolutionize your boating experience. Scanstrut's in-built air station is here to maximize quality time on the water.

ATMOS, by Scanstrut, will revolutionize your family’s boating experience. This beautifully designed, in-built air station is here to maximize quality time on the water.

At the push of a button, ATMOS is ready to inflate your paddleboards, towables, and more: simply set the target pressure and let ATMOS do all the hard work.

Utilizing Scanstrut’s outdoor technology DNA, this is waterproof on-board air that’s engineered to thrive in the harsh marine environment.

Innovative Two-Stage Pump

ATMOS with Brushless Technology - Unleash the power, efficiency, and reliability of our innovative two-stage pump system designed to meet the rugged demands of the marine environment. The first stage features a highly efficient fan motor, followed by a robust piston pump, both designed specifically for the rugged demands of the marine environment. ATMOS, combines both pumps into one waterproof, easy-to-use onboard air station, automatically switching at 1.1PSI from the HVLP to the HPLV pump.

Stage 1: High-volume, low-pressure (HVLP):


Designed to move large volumes of air with minimal pressure. They are typically used for inflating larger inflatable objects like kayaks, large tubes, and bathing platforms as they can quickly inflate the object to the desired pressure.

Stage 2: High-pressure, low-volume (HPLV):

Designed to generate a high level of pressure with a low volume of air. Perfect for inflating smaller toys like SUPs, inflatable kayaks, and tubes that require a higher level of pressure for optimum performance.

Installation:

  • How: Panel mounted using self-tapping screws or bolts (not included), foam gasket included.
  • Installation angle: + 10º to - 30º from vertical
  • Service: No end-user serviceable parts
  • Where: Fit into a wide variety of locations on board: seating, side panels, or consoles. Min cavity depth 110mm (4.33”)
  • Ignition Protection - ISO 8846 and SAE J1171.: ATMOS SC-AOB-A2 has successfully undergone all required tests and complies with the rigorous standard for Ignition Protection. This certification signifies that ATMOS can be safely installed in any location on a boat or vehicle.

The Design:

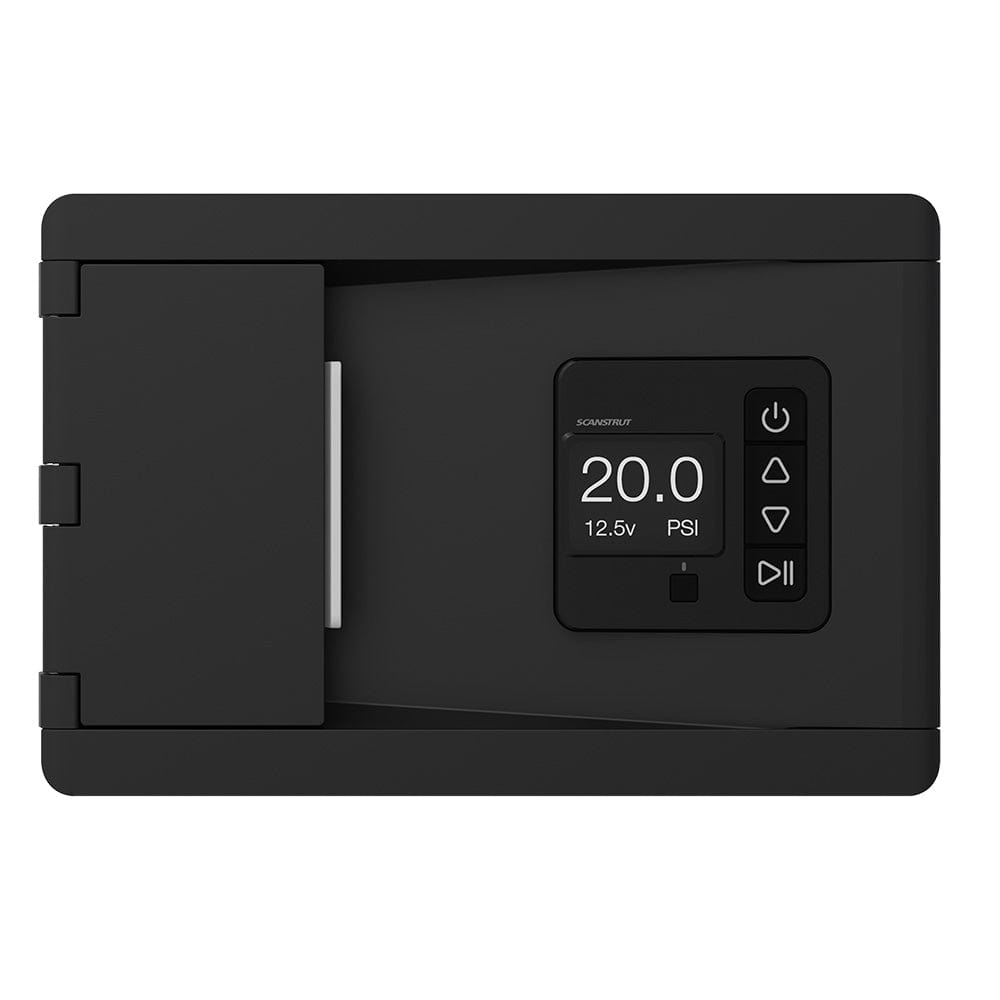

The Front

Take control with our Soft Touch TPE buttons and cutting-edge LCD display. Specially crafted for the challenging marine environment, the buttons feature a non-slip texture that provides a tactile surface, even with wet hands and the bright, wide viewing angle display means you can have a great view from any place on the boat, even on the brightest days. The display also features a helpful Live Voltage readout, so you can easily keep track of your boat's battery health.

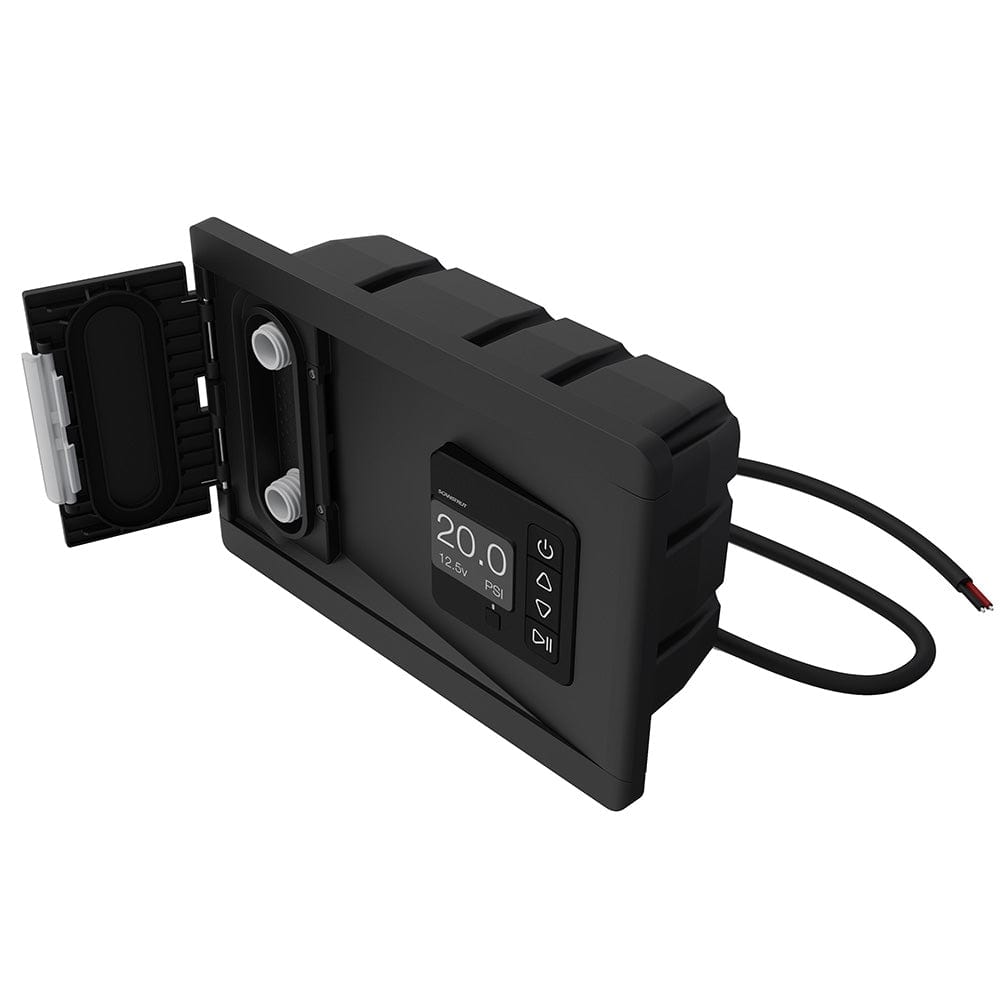

The Back

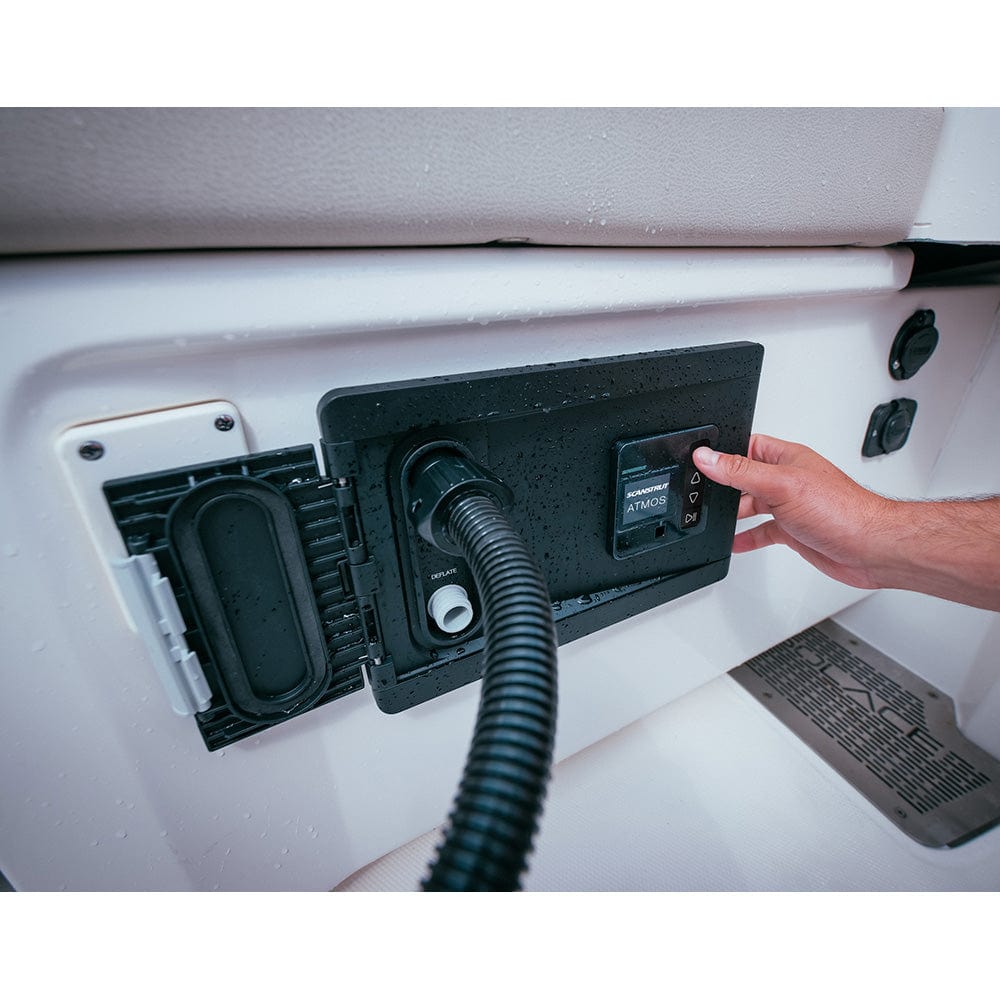

Easily integrate ATMOS into your boat with its compact and shallow design. The versatile AirStation can be installed in a variety of locations, including seating, consoles, or by the swim platform, making it convenient and accessible wherever it's needed. Easily installed into any panel using 10 self-tapping screws, with a foam gasket included to ensure a secure and waterproof fit.

The Side

The minimum cavity depth required is 110mm/4.33", and it can be installed at an angle ranging from +10º to -30º from vertical. The power cable length is 500mm (20”) with a wire gauge of 2.0mm2 (14 AWG), please note that there are no end-user serviceable parts.

Environment:

  • Environmental protection: Conformal coated electronics and PCB
  • Brushless Technology: Featuring high-performance brushless motors designed for the marine environment.
  • Protection: Reverse polarity, short-circuit, under voltage, overload, over temp.
  • Certifications: CE, ROHS, UN ECE R10, UKCA
  • Cable length: 500mm (20”) 1.5mm2 16 AWG
  • Waterproof rating: IPX6 front and rear (door closed)
  • Airflow: In and out of the front of the unit only. The rear of the unit sealed

Safety:

  • Max run time: 25 minutes (3 SUPs)
  • Under protection: Soft motor start
  • Standby mode: No activity auto shut off - 5 mins
  • Max pressure output: 20 PSI / 1.4 BAR
  • Warranty: 2 Year warranty
  • Auto shut-off: At target pressure
  • Ambient operating temp: -20º to +50 ºC
  • Ignition Protection: ATMOS SC-AOB-A2 meets the ISO 8846 and SAE J1171 test standards for Ignition Protection.

Technical Specifications:

  • Waterproof rating: IPX6 waterproof front and back
  • Max volume of airflow 0-1 PSI: 350 LPM/12.3 CFM
  • Max volume of airflow 1-20 PSI: 70 LPM/2.5 CFM
  • Standby power draw: 0.01W Max
  • Ambient operating temp: -20º to +50 ºC
  • Input voltage: 12V Battery system (10-14V)
  • Max Pressure output: 20 PSI / 1.37 BAR
  • Max current draw: 12A (140W)
  • Standby current draw: 0.02W Max
  • Two-stage pump: Stage 1 = 0 -1 PSI, Stage 2 = 1.1 - 20 PSI

What's In The Box?

  • Sun Cover: Supplied with a heavy-duty sun cover, it can help to protect it from the long-term damaging effects of the sun, salt, and other elements. With our sun cover you'll be able to keep ATMOS looking its best for longer.
  • 2.5M (8ft) hose: When inflating a paddleboard on a boat, the most stable location for the pump is usually on the deck or another flat surface. However, this location may not be close enough to the paddleboard to allow for easy inflation if the hose is too short. A longer hose can help to bridge this distance, allowing you to move the pump away.
  • 6x Hose attachments: Supplied with 6 different adapters including; Boston Valve, C7 Valve, H3/HR Valve, Pinch Valves, and 805 Valve. You have everything you need to inflate and deflate your toys with ease, no matter what type of valve it has.

Normalized SKU: SCAOBA2

Scanstrut SC-AOB-A2 Literature Download

Quick Reference Guide
Product Brochure
