Download LiteratureJabsco 82405-0092 WashdownHOT SHOT Series70 PSI High Pressure Washdown PumpWhat makes the New Hotshot Series washdown pumps the weapon of choice for fish box, scaling, boat and anchor chain cleaning, and idea for the harshest marine environments? A hard-fought reputation backed by over 35 years ofoperational excellence - proven with over 7 million Jabsco diaphragm pumps in service worldwide.The time for the next generation of Par-Max Series washdown pumps is now, and we didn't hold anything back.The new Hotshot Series robust five chamber, patented co-injected molded diaphragm and larger heavier dutymotor brushes significantly extend pump life up to 50% longer than existing Jabsco Par-Max Series diaphragmpumps. While other manufacturers claim extreme performance, Jabsco's Hotshot Series proves it with itsunmatched 6.0 GPM (22.7 lpm) model.Jabsco Hotshot Series washdown pumps are available in 4.0 (15.1 lpm), 5.0 (18.9 lpm) and 6.0 GPM (22.7 lpm)with pressures up to 70 PSI (4.8 bar) and are self-priming up to 10ft. (3m).Features and Benefits Jabsco now offers a complete range of 3-7 GPM washdown pumps Sealed switch and co-injected molded diaphragm, eliminate leak paths, extending the life of the pumps by up to 50% Ergonomically designed spray nozzle, provides powerful and accurate fire power with every shot Jabsco's robust electric diaphragm pump design, proven with over 7 million units in service Quick Disconnect Ports, allow for ease of installation in hard to reach places PumpGard Strainer, prevents over 99% of the finest particles from clogging the pump Improved Noise Dampening Rubber Feet, significantly minimizes vibration when mounted against hard surfaces IPX6 rated WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications:Gallons Per Minute = 5.0 PSI = 70 Volts = 12Normalized SKU: 824050092UPC Code: 671880623421Jabsco 82405-0092 Literature Download  Owners Manual

  Download LiteratureJabsco 82905-0092 WashdownHOT SHOT Series w/25' HoseCoil70 PSI high Pressure washdown PumpsWhat makes the New Hotshot Series washdown pumps the weapon of choice for fish box, scaling, boat and anchor chain cleaning, and idea for the harshest marine environments? A hard-fought reputation backed by over 35 years ofoperational excellence - proven with over 7 million Jabsco diaphragm pumps in service worldwide.The time for the next generation of Par-Max Series washdown pumps is now, and we didn't hold anything back.The new Hotshot Series robust five chamber, patented co-injected molded diaphragm and larger heavier dutymotor brushes significantly extend pump life up to 50% longer than existing Jabsco Par-Max Series diaphragmpumps. While other manufacturers claim extreme performance, Jabsco's Hotshot Series proves it with itsunmatched 6.0 GPM (22.7 lpm) model.Jabsco Hotshot Series washdown pumps are available in 4.0 (15.1 lpm), 5.0 (18.9 lpm) and 6.0 GPM (22.7 lpm)with pressures up to 70 PSI (4.8 bar) and are self-priming up to 10ft. (3m).Features and Benefits New 6.0 GPM (22.7 lpm) product offering! Jabsco now offers a complete range of 3-7 GPM washdown pumps Sealed switch and co-injected molded diaphragm, eliminate leak paths, extending the life of the pumps by up to 50% Ergonomically designed spray nozzle, provides powerful and accurate fire power with every shot Jabsco's robust electric diaphragm pump design, proven with over 7 million units in service Quick Disconnect Ports, allow for ease of installation in hard to reach places PumpGard Strainer, prevents over 99% of the finest particles from clogging the pump Improved Noise Dampening Rubber Feet, significantly minimizes vibration when mounted against hard surfaces IPX6 rated WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications:Gallons Per Minute = 5.0 PSI = 70 Volts = 12Normalized SKU: 829050092UPC Code: 671880623520Jabsco 82905-0092 Literature Download  Owners Manual

  Download LiteratureJabsco 82605-0092 WashdownHOT SHOT Series70 PSI high Pressure washdown PumpsWhat makes the New Hotshot Series washdown pumps the weapon of choice for fish box, scaling, boat and anchor chain cleaning, and idea for the harshest marine environments? A hard-fought reputation backed by over 35 years ofoperational excellence - proven with over 7 million Jabsco diaphragm pumps in service worldwide.The time for the next generation of Par-Max Series washdown pumps is now, and we didn't hold anything back.The new Hotshot Series robust five chamber, patented co-injected molded diaphragm and larger heavier dutymotor brushes significantly extend pump life up to 50% longer than existing Jabsco Par-Max Series diaphragmpumps. While other manufacturers claim extreme performance, Jabsco's Hotshot Series proves it with itsunmatched 6.0 GPM (22.7 lpm) model.Jabsco Hotshot Series washdown pumps are available in 4.0 (15.1 lpm), 5.0 (18.9 lpm) and 6.0 GPM (22.7 lpm)with pressures up to 70 PSI (4.8 bar) and are self-priming up to 10ft. (3m).Features and Benefits New 6.0 GPM (22.7 lpm) product offering! Jabsco now offers a complete range of 3-7 GPM washdown pumps Sealed switch and co-injected molded diaphragm, eliminate leak paths, extending the life of the pumps by up to 50% Ergonomically designed spray nozzle, provides powerful and accurate fire power with every shot Jabsco's robust electric diaphragm pump design, proven with over 7 million units in service Quick Disconnect Ports, allow for ease of installation in hard to reach places PumpGard Strainer, prevents over 99% of the finest particles from clogging the pump Improved Noise Dampening Rubber Feet, significantly minimizes vibration when mounted against hard surfaces IPX6 rated WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications:Gallons Per Minute = 6.0 PSI = 70 Volts = 12Normalized SKU: 826050092UPC Code: 671880623384Jabsco 82605-0092 Literature Download  Owners Manual

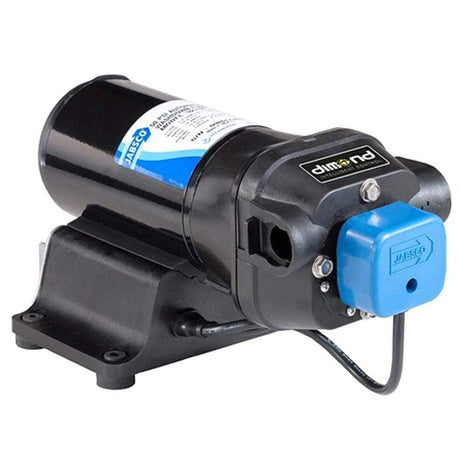

  Download LiteratureJabsco 42755-0092 WashdownVFLO 5.0 GPM (19 LPM) Water Pressure PumpsFlow rate: 19.0 Litres/min (5.0 gallons/min)Self-priming from dry up to 3m (10ft) DiMOND technology provides consistent water pressure Up to 50% less power consumption Learns the boat's water pressure system to improve pump performanceUniversal Use (Metric or US Customary Units)42755-0092 - V-Flo 5.0 Water Pressure Pump SpecificationsBody Materials Glass Filled PolypropyleneDiaphragm SantopreneValves EPDMPort Type 1/2" (13mm) Hose barb or ThreadVoltage 12/24 (Vdc)Motor Type Permanent magnet, double ball bearing armature. Electronic speed control built into rear endball.Flow Rate5 (gpm) 19 (lpm)Sensor Pressure 40 (psi) 2.75 (bar)Voltage 12 (Vdc)JABSCO's V-FLO variable flow, constant pressure water pumps now feature the revolutionary new DiMOND technology designed to automatically diagnose and monitor all aspects of your pump?s performance to prevent system failure.DiMOND incorporates 10 specific modules designed to Monitor, Protect and Prevent - allowing you to evaluate and respond to the problem before the pump or your boat are damaged. The DiMOND technology automatically runs diagnostics to detect common failures such as run dry,plumbing leaks, over current, under current, low voltage and over voltage. If the diagnostic discovers a problem, the pump will stop, identify the root cause, and provide the data you need to solve the problem.V-FLO is powered by a new variable speed drive that delivers the exact amount of water flow neededto perform a variety of onboard delivery tasks. Since the pump is constantly monitoring water flow and electrical current, it automatically adjusts itself as needed, ensuring that your systems are operating at peak efficiency. WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications:Volts = 12 PSI = 40 Gallons Per Minute = 5Normalized SKU: 427550092UPC Code: 671880595933WARNING: California Proposition 65 This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.Jabsco 42755-0092 Literature Download  Owners Manual  Product Brochure

  Download Literature  Watch VideoJohnson Pump 10-13407-08 Washdown5.2GPM Aqua Jet Wash Down PumpAs a wash down pump, the Aqua Jet offers much higher pressures than competitive models, making clean-up faster and easier than ever before.Comes complete with trigger nozzle, PUMProtector inlet strainer and hose connections for 1/2" hose. Both BSP and NPT connections included in package. Normalized SKU: 101340708UPC Code: 729321910965Johnson Pump 10-13407-08 Literature Download  Owners ManualJohnson Pump 10-13407-08 Video

  Download LiteratureJabsco 32605-0094 WashdownPAR-Max Washdown Pump - 4.0GPM - 60PSI - 24VWashdown pumps are ideal for cleaning decks, cockpits and anchors on yachts of a range of sizes and can be connected to sea or fresh water. Comes with an intake strainer, spray nozzle and quickconnect 3/4" hose barb fittings.Features Flow: 4.0 GPM Fitting: Connections for 3/4" ID hose Dimensions:7.8" long x 4.0 wide x 4.0 high - 5lb High pressure jet blasts mud and silt from anchor chain and decks Waterproof with sealed motor and sealed pressure switch for mounting inexposed positions Thermal overload protection automatically stops the motor if it overheats Dry Running Soft Rubber mounts Corrosion resistant Complies with USCG 183.410 and ISO 8846 MARINE (Ignition Protection) Supplied complete with Pumpgard? abd trigger nozzle Suitable for high pressure applications Self priming up to 10ft (3M) WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Normalized SKU: 326050094UPC Code: 671880589321Jabsco 32605-0094 Literature Download  Owners Manual

Jabsco 32700-0092 Washdown32700 Washdown & Baitwell PumpFeatures: High Pressure / High Capacity Suitable For Use With Salt Water Long Life Sealed Motor Dry Running Capability Corrosion Resistant Pump Body - Glass Filled Polypropylene Pump Design - 4 Chamber Diaphragm Suction Lift - Self Priming to 8 ft ISO 8846 Marine (Ignition Protection) 3 year Warranty Includes: Pumpgard Strainer, Snap-fit Port Fittings, Pressure Nozzle WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications:Volts = 12v PSI = 50 Gallons Per Minute = 5.0JABSCO PARMAX 4 WASHDOWN PUMP 4.5 GPM 12V 50 PSINormalized SKU: 327000092UPC Code: 671880595575

  Download LiteratureJabsco 32900-0092 Washdown32900 Washdown PumpFlow rate to 4.0 USgallons/minPressure up to 60 psiSelf-priming up to 6 ft.Features: New Compact 3 chamber design for greater pumping efficiency includes Pumpgard Intake Strainer, Pressure Nozzle, Port Fittings and 25' of hose coil Corrosion resistant Sealed motor ISO 8846 MARINE (Ignition Protection Standards) WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications:Volts = 12v PSI = 60 Gallons Per Minute = 4JABSCO 32900 WASHDOWN PUMP W/ STRAINER NOZZLE 25' HOSENormalized SKU: 329000092UPC Code: 671880589338Jabsco 32900-0092 Literature Download  Owners Manual  Product Brochure

Attwood Marine 11574-4 WashdownSelf-Priming Washdown PumpSelf-priming pump for cleaning boats, general use, or use as a shower pump. Threaded male inlet and outlet for standard garden hose attachment. Pumps 4 gallons per minute, produces up to 8.5 psi pressure. Corrosion-resistant ABS housing and impeller, heavy duty 8-amp 12-volt D.C. motor.Note: Do not run dry.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Attwood-Complete Wash Down Pump #11574-4Normalized SKU: 115744UPC Code: 048903115742

  Download LiteratureJabsco 31700-0092 Washdown Washdown & Baitwell PumpHigh velocity pump for anchor and general deck washdown. Compact size with matched hi-output spray nozzle. Corrosion resistant coated motor and sealed pressure switch for fresh or salt water use. Also great for continuous duty operation in livewell application at full flow.Flow rate: Nominal 16.3 Litres/min (4.3 US Gallons/min)Self-priming from dry up to 2.4M (7.8')Features: Run Dry Without Damage Smooth Flow Four Piston, Diaphragm Pump Powerful Heavy Duty Motor with Thermal Overload Protection Snap-in Ports Pressure Switch with Rubber Boot Meets EN 50081-1 Electro-magnetic Compatibility SpecificationsBody Materials: Glass Filled PolypropylenePort Type: 1/2" (13 mm) Hose BarbShut off Pressure: 3.5 (bar) 50 (psi)Voltage: 12 (Vdc)Motor Type: Permanent MagnetWeight: 3.0 (kg) 6.5 (lb)WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. JABSCO PARMAX 4 WASHDOWN PUMP 4.5 GPM 12V 50 PSI Normalized SKU: 317000092UPC Code: 671880533416Jabsco 31700-0092 Literature Download   Owners Manual
