Icom Qualifies for Free Shipping Icom M506 VHF Black N2K Front Mic #M506 11

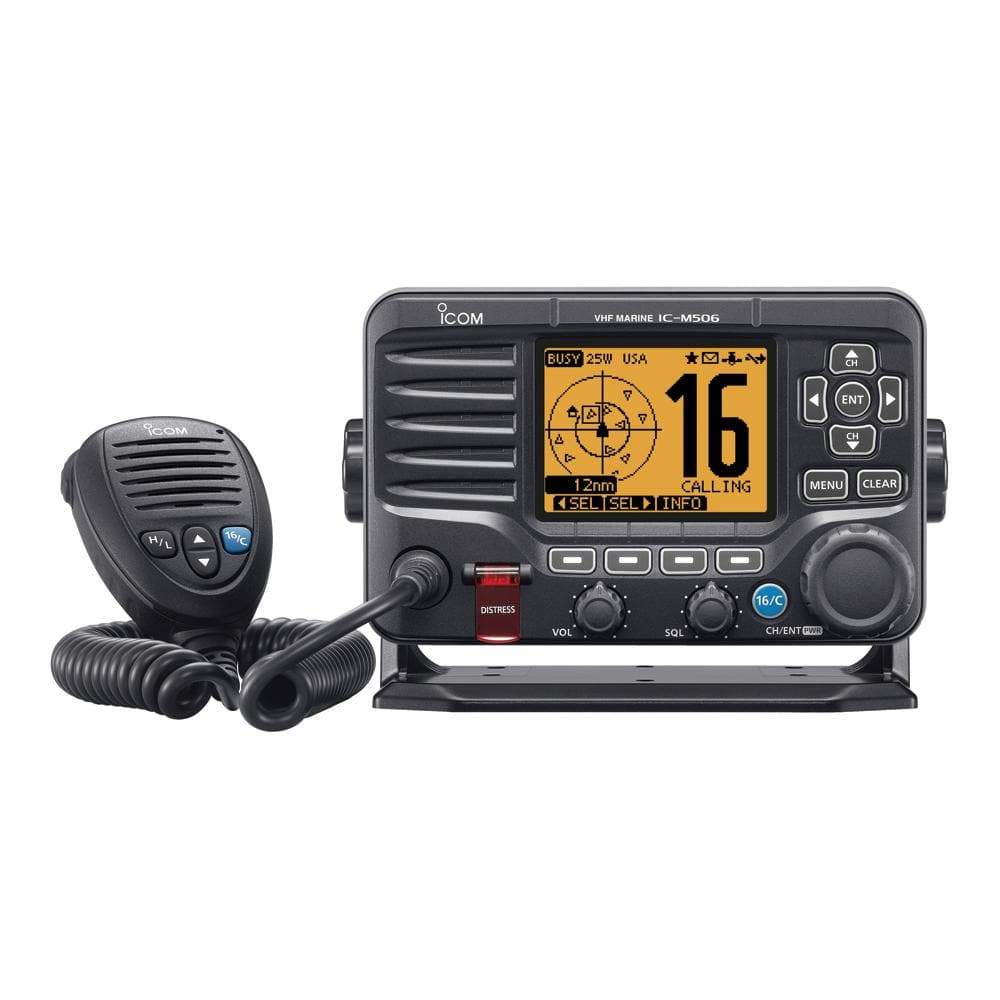

Icom M506 VHF Black N2K Front Mic #M506 11

$530.42 $662.02 -20% OFF

Icom M506 VHF Black N2K Front Mic #M506 11

$530.42 $662.02 -20% OFF

Icom M506 VHF Black N2K Front Mic #M506 11

$530.42 $662.02 -20% OFF
Brand: Icom

SKU: ICM-M506 11

UPC: 731797017673

More about this item
  Download Literature
  Watch Video

Icom M506 11 VHF Fixed Mount Radios

M506 VHF Fixed Mount with Front Mic & NMEA 0183/2000® - Black

One Platform - Five Real World Solutions. A Fit For Every Need. Simply
the Best.


The Front Mic model includes NMEA 0183/2000®. Other built-in M506 features include:
  • 2 minute last call voice recording
  • Active noice cancelling
  • 25W two-way hailer and foghorn
  • Large dot-matrix display
  • Intuitive user interface
  • Built-in Class D DSC
  • IPX8 (advance waterproof rating)
  • COMMANDMICIV™ compatible


NMEA 2000® & NMEA 0183 Connectivity
With the plug-and-play functionality of NMEA 2000, the IC-M506 can easily connect to a NMEA 2000 network and interconnect with other equipment. Also the NMEA 0183 input/output can be used for external GPS/NAV interface.

Last Call Voice Recording
The last call voice recording function automatically saves the last two
minutes of the last incoming call. You can also start recording manually.

Active Noise Cancelling
The built-in bidirectional active noise cancelling reduces background noise
to up to 90% and improves both your transmitted voice and incoming call.

25W Two-Way Hailer
When connected to an external hailer horn, you can talk to people on the deck or shore from the radio's microphone and can hear people's reply via the hailer horn. Foghorn and RX speaker functions are also available.

Optional COMMANDMIC™ HM-195B/SW
The optional COMMANDMIC, HM-195B/SW provides 2nd station capability for using the IC-M506 from a separate cabin or tower. Most functions including DSC and AIS functions can be controlled from the COMMANDMIC and can be used as an intercom between the IC-M506 and the COMMANDMIC.

Large LCD & Intuitive User Interface
The IC-M506 is equipped with 132x96 pixels dot-matrix display which is larger than the IC-M504 (132x64 pixels). Reading GPS, AIS, DSC and radio menus are easier than ever. The bottom line of the display shows the software key functions and the functions can be toggled with the left and right buttons.

Features:
  • 80dB (typical) IMD and channel selectivity
  • MA-500TR AIS transponder and Marine-CommanderT compatible
  • IPX8 submersible plus protection (1m depth for 60 minutes)
  • Front panel microphone version
  • Optional voice scrambler

Specifications:

Channels - Available = All US, Canadian, International
DSC Class = D
Hailer/Intercom = HAILER
Power - Output (Watts) = 25W/1W
Remote Mic Capable = Yes
Scrambler Capable = Yes
Waterproof Rating = Submersible
Weather Alert = Yes


Normalized SKU: M50611
UPC Code: 731797017673

Icom M506 11 Literature Download

  Quick Reference Guide
  Owners Manual
  Product Brochure

Icom M506 11 Video
