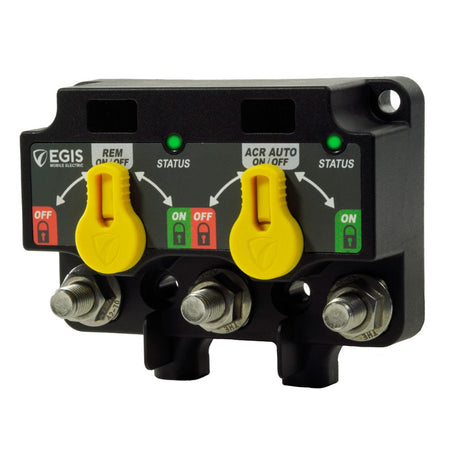

Download LiteratureEgis 8820-1530 RelaysDual XD Flex 2 - Relay - ACR with KnobsFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.  35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Plug & Play Compatible with Legacy Competitor Products:   Single, dual, and triple relays options available with DTM/ATM connectors, pin for pin compatible with ML Series Bi-stable Relays. 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality. Applications: Replaces Two Individual High Amp Relays with One Compact Module, reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear, unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into.. Designed to Replicate Common Multi-Battery Switching and Charge Management Functions:  Common dual battery load switching via the outer relays and a central automatic charging relay to share charge current is easily implemented. Multiple Automatic Charging Relay (ACR) Into One Device: For 2-3 Battery Systems that require 1 or 2 ACRs, a single three-relay ACR provides drastic improvement in off-state quiescent current draw, space used, and reduces unnecessary interconnection cables.. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories. Normalized SKU: 88201530UPC Code: 850035199626Egis 8820-1530 Literature Download Quick Reference Guide

Download LiteratureEgis 8820-1550 RelaysDual XD Flex 2 - Relay/Relay with KnobsFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.  35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Plug & Play Compatible with Legacy Competitor Products:   Single, dual, and triple relays options available with DTM/ATM connectors, pin for pin compatible with ML Series Bi-stable Relays. 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality. Applications: Replaces Two Individual High Amp Relays with One Compact Module, reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear, unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into.. Designed to Replicate Common Multi-Battery Switching and Charge Management Functions:  Common dual battery load switching via the outer relays and a central automatic charging relay to share charge current is easily implemented. Multiple Automatic Charging Relay (ACR) Into One Device: For 2-3 Battery Systems that require 1 or 2 ACRs, a single three-relay ACR provides drastic improvement in off-state quiescent current draw, space used, and reduces unnecessary interconnection cables.. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories. Normalized SKU: 88201550UPC Code: 850035199534Egis 8820-1550 Literature Download Quick Reference Guide

Download LiteratureEgis 8810-1600 Charger AccessoriesXD Series Single Flex 2 Relay-ACR - DTM ConnectorThis Egis relay provides a 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. The relay is expandable with link and cross-link busbars to additional dual, triple, or single XD relays. Also, the relay supports 2 or 3 battery systems with standard busbar interconnect accessories.Applications:  Improved replacement/alternative to legacy solenoids and remote battery switches; Wire-for-wire compatible with Blue Sea ML-solenoid and ML-remote battery switch products Forward-facing input studs make landing large wires easily, and a protective cover with integrated label recesses enables easy identification while providing anti-contact short protection Features: Bullet-proof construction, sealed to IP67/IP6K9K, and high temperature electronics and materials allow mounting anywhere; Stainless steel cable lug studs; Large mounting holes accept 1/4-20 / M6 attachment hardware Simple programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers Plug-and-play compatible with Legacy competitor products: Single, dual, and triple relay options are available with DTM/ATM connector pins for pin compatibility with ML Series bi-stable relays 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality Specifications: Total Continuous Current Amps: 500 Max Cranking Current (Amps): 1500 Mechanical Switching Life: 1,000,000 cycles Voltage Range (VDC): 8-36 Off-State Current Draw (mA): 1.3 State Change Current: 5A @ 12 VDC; 3A @ 24 VDC Focal Features:Led Status DisplayThe easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED. 40 Circuit Label Sheet IncludedConvenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications. Protective Cover IncludedProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.Integrated VentHigh-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.Stainless Hardware Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.ProgrammableVia dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications. Smaller FootprintXD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum. Normalized SKU: 88101600UPC Code: 850035199596Egis 8810-1600 Literature Download Quick Reference Guide Owners Manual

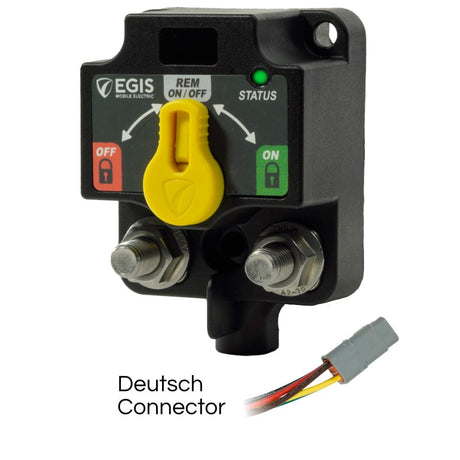

Download LiteratureEgis 8810-1500 Charger AccessoriesXD Series Single Flex 2 Relay-ACR with Knobs - DTM ConnectorThis Egis relay provides a 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. The relay is expandable with link and cross-link busbars to additional dual, triple, or single XD relays. Also, the relay supports 2 or 3 battery systems with standard busbar interconnect accessories.Applications:  Improved replacement/alternative to legacy solenoids and remote battery switches; Wire-for-wire compatible with Blue Sea ML-solenoid and ML-remote battery switch products Forward-facing input studs make landing large wires easily, and a protective cover with integrated label recesses enables easy identification while providing anti-contact short protection Features: Bullet-proof construction, sealed to IP67/IP6K9K, and high temperature electronics and materials allow mounting anywhere; Stainless steel cable lug studs; Large mounting holes accept 1/4-20 / M6 attachment hardware The intuitive manual control option simplifies operation and increases awareness of the state of the manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions) Simple programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers Plug-and-play compatible with Legacy competitor products: Single, dual, and triple relay options are available with DTM/ATM connector pins for pin compatibility with ML Series bi-stable relays 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality Specifications: Total Continuous Current Amps: 500 Max Cranking Current (Amps): 1500 Mechanical Switching Life: 1,000,000 cycles Voltage Range (VDC): 8-36 Off-State Current Draw (mA): 1.3 State Change Current: 5A @ 12 VDC; 3A @ 24 VDC Focal Features:Led Status DisplayThe easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED. 3-Position Manual OverrideForce each relay open or closed, and optionally leave the knob in either position to lock the relay in either condition. 40 Circuit Label Sheet IncludedConvenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications. Protective Cover IncludedProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. Stainless Hardware Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.ProgrammableVia dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications. Smaller FootprintXD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum. Integrated VentHigh-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments. Normalized SKU: 88101500UPC Code: 850035199985Egis 8810-1500 Literature Download Quick Reference Guide Owners Manual

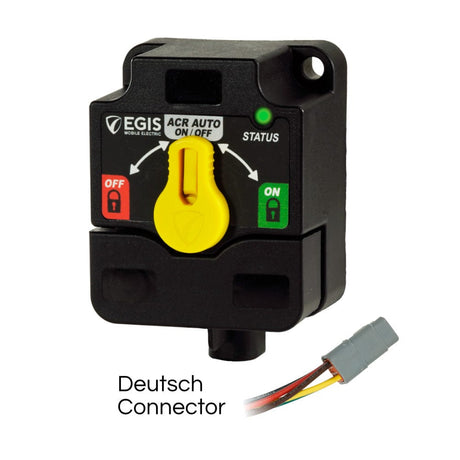

Download LiteratureEgis 8810-1300 Battery AccessoriesXD Series Single Flex 2 ACR-Relay with Knobs - DTM ConnThis Egis relay provides a 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Also, this relay eliminates dead-start batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.Applications:  Supports multiple engines or independent charge systems by incorporating two independent start or engine isolation inputs to allow isolation of charge sources when both are active to maximize charging performance.  Expandable with link and cross-link busbars to additional dual, triple, or single XD relays; supports 2 or 3 battery systems with standard busbar interconnect accessories. Features: Bullet-proof construction, sealed to IP67/IP6K9K, and high temperature electronics and materials allow mounting anywhere; Stainless steel cable lug studs; Large mounting holes accept 1/4-20 / M6 attachment hardware The intuitive manual control option simplifies operation and increases awareness of the state of the manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions) Simple programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers Plug-and-play compatible with Legacy competitor products: Single, dual, and triple relay options are available with DTM/ATM connector pins for pin compatibility with ML Series bi-stable relays 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality Specifications: Total Continuous Current Amps: 500 Max Cranking Current (Amps): 1500 Mechanical Switching Life: 1,000,000 Cycles Voltage Range (VDC): 8-36 Off-State Current Draw (mA): 1.3 State Change Current: 5A @ 12 VDC; 3A @ 24 VDC Focal Features:Led Status DisplayThe easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED. 3-Position Manual OverrideForce each relay open or closed, and optionally leave the knob in either position to lock the relay in either condition. 40 Circuit Label Sheet IncludedConvenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications. Protective Cover IncludedProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. Stainless Hardware Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.ProgrammableVia dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications. Smaller FootprintXD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum. Integrated VentHigh-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments. Normalized SKU: 88101300UPC Code: 850035199831Egis 8810-1300 Literature Download Quick Reference Guide Owners Manual

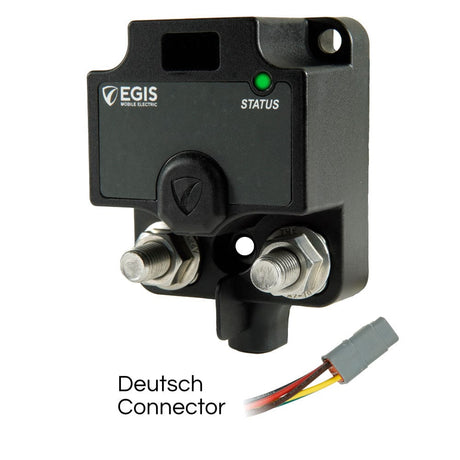

Download LiteratureEgis 8810-1400 Charger AccessoriesXD Series Single Flex 2 ACR-Relay - DTM ConnectorThis Egis relay provides a 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Also, this relay eliminates dead-start batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.Applications:  Supports multiple engines or independent charge systems by incorporating two independent start or engine isolation inputs to allow isolation of charge sources when both are active to maximize charging performance.  Expandable with link and cross-link busbars to additional dual, triple, or single XD relays; supports 2 or 3 battery systems with standard busbar interconnect accessories Features: Bullet-proof construction, sealed to IP67/IP6K9K, and high temperature electronics and materials allow mounting anywhere; Stainless steel cable lug studs; Large mounting holes accept 1/4-20 / M6 attachment hardware The intuitive manual control option simplifies operation and increases awareness of the state of the manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions) Simple programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers Plug-and-play compatible with Legacy competitor products: Single, dual, and triple relay options are available with DTM/ATM connector pins for pin compatibility with ML Series bi-stable relays 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality Specifications: Total Continuous Current Amps: 500 Max Cranking Current (Amps): 1500 Mechanical Switching Life: 1,000,000 cycles Voltage Range (VDC): 8-36 Off-State Current Draw (mA): 1.3 State Change Current: 5A @ 12 VDC; 3A @ 24 VDC Focal Features:Led Status DisplayThe easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED. 3-Position Manual OverrideForce each relay open or closed, and optionally leave the knob in either position to lock the relay in either condition. 40 Circuit Label Sheet IncludedConvenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications. Protective Cover IncludedProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. Stainless Hardware Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.ProgrammableVia dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications. Smaller FootprintXD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum. Integrated VentHigh-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments. Normalized SKU: 88101400UPC Code: 850035199848Egis 8810-1400 Literature Download Quick Reference Guide Owners Manual

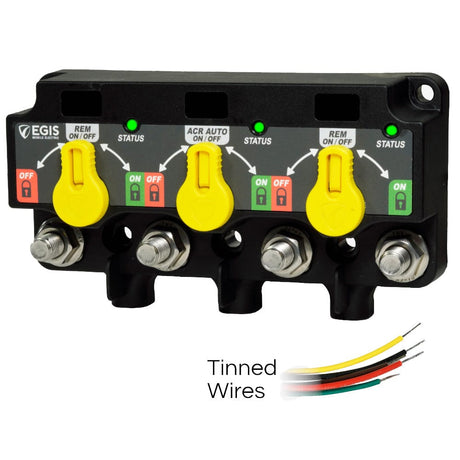

Download LiteratureEgis 8730-1535 Charger AccessoriesXD Series Triple Flex 2 Relay-ACR-Relay with Knobs & Tinned WiresThe Egis relay replaces three individual high-amp relays with one compact module, reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear, unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into.Applications:  Designed to replicate common multi-battery switching and charge management functions - common dual battery load switching via the outer relays and a central automatic charging relay to share charge current are easily implemented Multiple automatic charging relays (ACR) into one device - for 3-4 battery systems that require 2 or 3 ACRs, a single three-relay ACR provides drastic improvements in off-state quiescent current draw, space used, and reduces unnecessary interconnection cables.  Expandable with link and cross-link busbars to additional dual, triple, or single XD relays - supports 3 or 4 battery systems with standard busbar interconnect accessories. Features: Bullet-proof construction - sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere; stainless steel cable lug studs; large mounting holes accept 1/4-20 / M6 attachment hardware Intuitive manual control option simplifies operation and increases awareness of the state of the manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions) Simple programming via simple dip switches allows each relay function significant flexibility for OEMs and installers. 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts Plug and play compatible with legacy competitor products - single, dual, and triple relay options are available with DTM/ATM connector pins compatible with ML Series bi-stable relays 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality Specifications: Total Continuous Current Amps: 500 Max Cranking Current (Amps): 1500 Mechanical Switching Life: 1,000,000 Cycles Voltage Range (VDC): 8-36 Off-State Current Draw (mA): 1.3 State Change Current: 5A @ 12 VDC; 3A @ 24 VDC Focal Features:Led Status DisplayThe easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED. 3-Position Manual overrideForce each relay open or closed, and optionally leave the knob in either position to lock the relay in either condition. 40 Circuit Label Sheet IncludedConvenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications. Protective Cover includedProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. Stainless Hardware Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.ProgrammableVia dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications. Smaller FootprintXD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum. Integrated VentHigh-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 87301535UPC Code: 850035199565Egis 8730-1535 Literature Download Quick Reference Guide Owners Manual

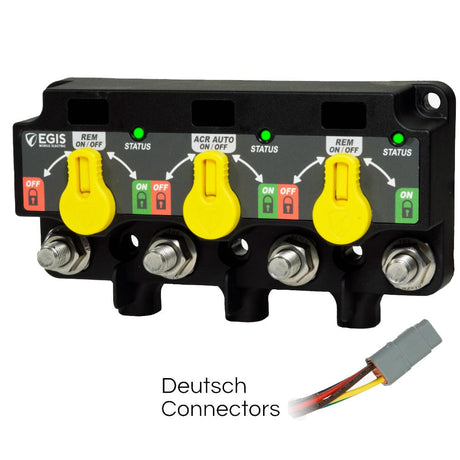

Download LiteratureEgis 8830-1535 Charger AccessoriesXD Series Triple Flex 2 Relay-ACR-Relay with Knobs & 3X DTM ConnectorThe Egis relay replaces three individual high-amp relays with one compact module, reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear, unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into.Applications:  Designed to replicate common multi-battery switching and charge management functions - common dual battery load switching via the outer relays and a central automatic charging relay to share charge current are easily implemented Multiple automatic charging relays (ACR) into one device - for 3-4 battery systems that require 2 or 3 ACRs, a single three-relay ACR provides drastic improvements in off-state quiescent current draw, space used, and reduces unnecessary interconnection cables Expandable with link and cross-link busbars to additional dual, triple, or single XD relays - supports 3 or 4 battery systems with standard busbar interconnect accessories Features: Bullet-proof construction - sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere; stainless steel cable lug studs; large mounting holes accept 1/4-20 / M6 attachment hardware Intuitive manual control option simplifies operation and increases awareness of the state of the manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions) Simple programming via dip switches gives each relay function significant flexibility for OEMs and installers. 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts Plug and play compatible with legacy competitor products - single, dual, and triple relay options are available with DTM/ATM connector pins compatible with ML Series bi-stable relays (This relay has 3x DTM connectors) 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality Specifications: Total Continuous Current Amps: 500 Max Cranking Current (Amps): 1500 Mechanical Switching Life: 1,000,000 Cycles Voltage Range (VDC): 8-36 Off-State Current Draw (mA): 1.3 State Change Current: 5A @ 12 VDC; 3A @ 24 VDC Focal Features:Led Status DisplayThe easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED. 3-Position Manual overrideForce each relay open or closed, and optionally leave the knob in either position to lock the relay in either condition. 40 Circuit Label Sheet IncludedConvenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications. Protective Cover includedProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. Stainless Hardware Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.ProgrammableVia dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications. Smaller FootprintXD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum. Integrated VentHigh-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments. Normalized SKU: 88301535UPC Code: 850035199619Egis 8830-1535 Literature Download Quick Reference Guide Owners Manual

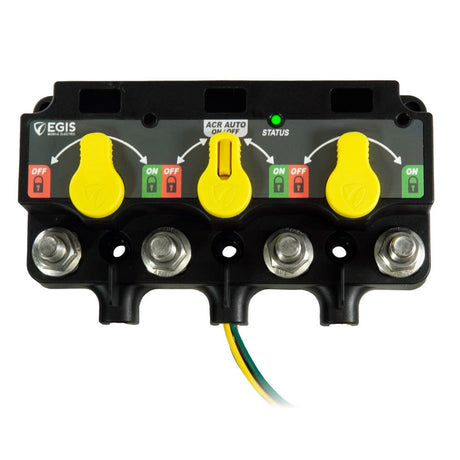

Download LiteratureEgis 8830-1939 Charger AccessoriesXD Series Triple Flex 2 Mechanical Switch-ACR-Mechanical Switch with Knobs & DTM ConnectorThe Egis relay replaces three individual high-amp relays with one compact module, reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear, unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into.Applications:  Designed to replace common multi-battery mechanical switching and charge management functions - common dual battery load switching via the outer relays and a central automatic charging relay to share charge current are easily implemented Expandable with link and cross-link busbars to additional dual, triple, or single XD relays - supports 3 or 4 battery systems with standard busbar interconnect accessories. Features: Bullet-proof construction - sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere; stainless steel cable lug studs; large mounting holes accept 1/4-20 / M6 attachment hardware Intuitive manual control option simplifies operation and increases awareness of the state of the manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions) Simple programming via dip switches gives each relay function significant flexibility for OEMs and installers. 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts Plug and play compatible with legacy competitor products - single, dual, and triple relay options are available with DTM/ATM connector pins compatible with ML Series bi-stable relays (This relay has a DTM connector) 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality Specifications: Total Continuous Current Amps: 500 Max Cranking Current (Amps): 1500 Mechanical Switching Life: 1,000,000 Cycles Voltage Range (VDC): 8-36 Off-State Current Draw (mA): 1.3 State Change Current: 5A @ 12 VDC; 3A @ 24 VDC Focal Features:Led Status DisplayThe easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED. 3-Position Manual overrideForce each relay open or closed, and optionally leave the knob in either position to lock the relay in either condition. 40 Circuit Label Sheet IncludedConvenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications. Protective Cover includedProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. Stainless Hardware Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.ProgrammableVia dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications. Smaller FootprintXD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum. Integrated VentHigh-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments. Normalized SKU: 88301939UPC Code: 850035199978Egis 8830-1939 Literature Download Quick Reference Guide Owners Manual

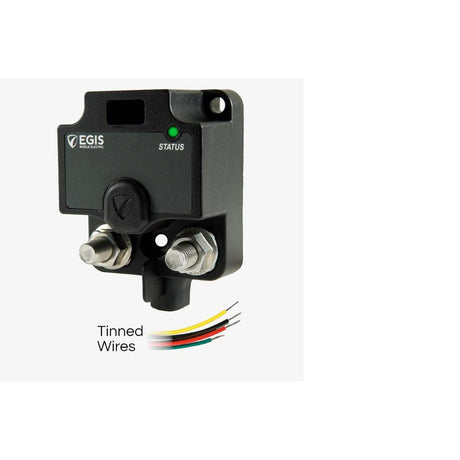

EGIS 8710-1400 Charger AccessoriesEGIS XD Single Flex 2 Automatic Charging Relay No Knob Tinned WiresModel: 8710-1400 LED STATUS DISPLAY Easy to see front facing LED indicator provides visual device status, remote LED replicates local on-device LED 40 CIRCUIT LABEL SHEET INCLUDED? Convenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications. PROTECTIVE COVER INCLUDED Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. STAINLESS HARDWARE Corrosion is no issue with quality stainless steel studs and self locking flanged nuts. PROGRAMMABLE Via dip switches located under protective cover. An easy to use configuration guide on reverse make custom settings a breeze to configure for a wide variety of applications. SMALLER FOOTPRINT XD Relays offers high Amp rating in a smaller package than competitive solutions, reducing install space requirements to a minimum. INTEGRATED VENT High quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments. Bullet-proof Construction: Sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.Intuitive Manual Control option simplifies operation and awareness of state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.Plug & Play Compatible with Legacy Competitor Products: Single, dual and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays.90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionalitySpecifications TOTAL CONTINUOUS CURRENT (AMPS) 500 MAX CRANKING CURRENT (AMPS) 1500000 MECHANICAL SWITCHING LIFE 1,000,000 Cycles VOLTAGE RANGE (V DC) 8 - 36 OFF-STATE CURRENT DRAW (mA) 1.3 STATE CHANGE CURRENT 5A @ 12 Vdc 3A @ 24 Vdc Normalized SKU: 87101400UPC Code: 850053879470

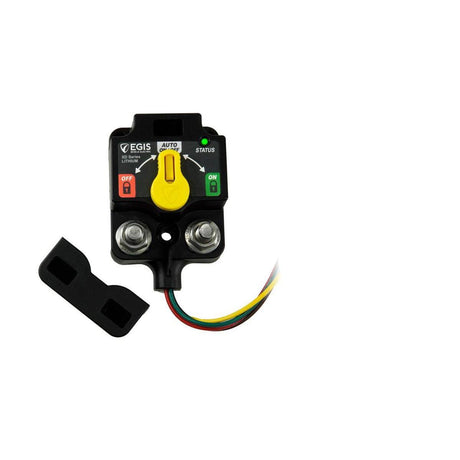

EGIS 8510-1300 Charger AccessoriesEGIS 8510-1300 XD Single Flex2 L-ion Programmable VSR Automatic Charging RelayModel: 8510-1300 Lithium Battery System Ready Designed for modern Lithium battery based electrical system applications that often require higher ON/OFF charge voltage settings over legacy battery chemistries. LED Status Display Easy to see front facing LED indicator provides visual device status, remote LED replicates local on-device LED 3-Position Manual Override Force each individual relay Open or Closed and optionally leave knob in either position to lock relay in either condition. 40 Circuit Label Sheet Included Convenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications. Protective Cover Included Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. Stainless Hardware Corrosion is no issue with quality stainless steel studs and self locking flanged nuts. Programmable Via dip switches located under protective cover. An easy to use configuration guide on reverse make custom settings a breeze to configure for a wide variety of applications. Integrated Vent High quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments. Bullet-proof Construction: Sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.Intuitive Manual Control option simplifies operation and awareness of state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.Plug & Play Compatible with Legacy Competitor Products: Single, dual and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays.90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionalitySpecifications TOTAL CONTINUOUS CURRENT (AMPS) 500 MAX CRANKING CURRENT (AMPS) 1500 MECHANICAL SWITCHING LIFE 1,000,000 Cycles VOLTAGE RANGE (V DC) 8 - 36 OFF-STATE CURRENT DRAW (mA) 1.3 STATE CHANGE CURRENT 5A @ 12 Vdc 3A @ 24 Vdc Normalized SKU: 85101300UPC Code: 850053879418

EGIS 8710-1500 Battery SwitchEGIS XD Single - Remote Battery Switch w/Knob - Tinned Wires, Bulk PackModel: 8710-1500 Bullet-proof Construction: Sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. Intuitive Manual Control option simplifies operation and awareness of state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers. Plug & Play Compatible with Legacy Competitor Products: Single, dual and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays. 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality Specifications total continous current (amps) 500 Max cranking current (amps) 1500 Mechanical switching life 1,000,000 cycles Voltage range 8-36vDC Off-state current draw 1.3mA State change current 5A @ 12vDC3A @ 24vDC Normalized SKU: 87101500UPC Code: 850035199992

EGIS 8710-1600 SolenoidsEGIS XD Single Solenoid Tinned WiresModel: 8710-1600 LED STATUS DISPLAY: Easy to see front facing LED indicator provides visual device status, remote LED replicates local on-device LED 40 CIRCUIT LABEL SHEET INCLUDED: Convenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications. PROTECTIVE COVER INCLUDED: Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. STAINLESS HARDWARE: Corrosion is no issue with quality stainless steel studs and self locking flanged nuts. PROGRAMMABLE: Via dip switches located under protective cover. An easy to use configuration guide on reverse make custom settings a breeze to configure for a wide variety of applications. SMALLER FOOTPRINT: XD Relays offers high Amp rating in a smaller package than competitive solutions, reducing install space requirements to a minimum. INTEGRATED VENT: High quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments. Bullet-proof Construction: Sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.Plug & Play Compatible with Legacy Competitor Products: Single, dual and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays.90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionalitySpecifications TOTAL CONTINUOUS CURRENT (AMPS) 500 MAX CRANKING CURRENT (AMPS) 1500 MECHANICAL SWITCHING LIFE 1,000,000 Cycles VOLTAGE RANGE (V DC) 8 - 36 OFF-STATE CURRENT DRAW (mA) 1.3 STATE CHANGE CURRENT 5A @ 12 Vdc / 3A @ 24 Vdc Normalized SKU: 87101600

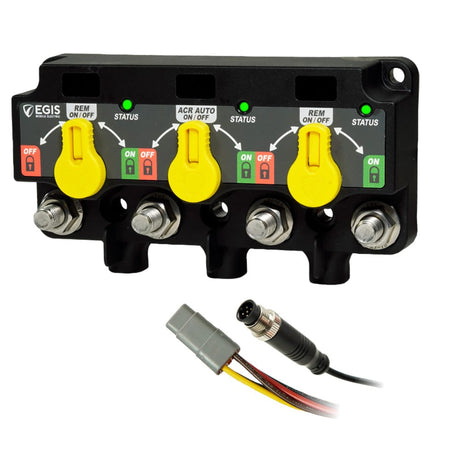

EGIS 8830-2535 RelaysEGIS XD Triple - Flex 2 (Relay/ACR/Relay) with knobs - 12 DTModel: 8830-2535 Compact 35-75% smaller installation footprint than competivee solutions Flexible functionality via dip swithes, utilize each as a relay/battery disconect or automatic charging relay Supports single/multiple engine installations with dual start/engine isolation inputs. Replaces Three Individual High Amp Relays with One Compact Module reducing space significantly, eliminating cost of external link cable connections, eliminating risk of link cable connections vibrating loose, and providing clear unambiguous awareness of how operate manual controls and what state the manual controls have forced the relay into..Designed to Replicate Common Multi-Battery Switching and Charge Management Functions: Common dual battery load switching via the outer relays and a central automatic charging relay to share charge current is easily implemented.Multiple Automatic Charging Relay (ACR) Into One Device: For 3-4 Battery Systems that require 2 or 3 ACRs, a single three relay ACR provides drastic improvement in off-state quiescent current draw, space used, and reducing unnecessary interconnection cables..Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 3 or 4 battery systems with standard busbar interconnect accessories.Bullet-proof Construction: Sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardwareIntuitive Manual Control option simplifies operation and awareness of state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.Plug & Play Compatible with Legacy Competitor Products: Single, dual and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays.90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionalityNormalized SKU: 88302535UPC Code: 850053879463

EGIS 8530-1535 Charger AccessoriesEGIS 8530-1535 XD Triple Flex Automatic Charging Relay with KnobsModel: 8530-1535 Lithium Battery System Ready Designed for modern Lithium battery based electrical system applications that often require higher ON/OFF charge voltage settings over legacy battery chemistries. LED Status Display Easy to see front facing LED indicator provides visual device status, remote LED replicates local on-device LED 3-Position Manual Override Force each individual relay Open or Closed and optionally leave knob in either position to lock relay in either condition. 40 Circuit Label Sheet Included Convenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications. Protective Cover Included Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. Stainless Hardware Corrosion is no issue with quality stainless steel studs and self locking flanged nuts. Programmable Via dip switches located under protective cover. An easy to use configuration guide on reverse make custom settings a breeze to configure for a wide variety of applications. Integrated Vent High quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments. Bullet-proof Construction: Sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.Intuitive Manual Control option simplifies operation and awareness of state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.Plug & Play Compatible with Legacy Competitor Products: Single, dual and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays.90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionalSpecifications TOTAL CONTINUOUS CURRENT (AMPS) 500 MAX CRANKING CURRENT (AMPS) 1500 MECHANICAL SWITCHING LIFE 1,000,000 Cycles VOLTAGE RANGE (V DC) 8 - 36 OFF-STATE CURRENT DRAW (mA) 1.3 STATE CHANGE CURRENT 5A @ 12 Vdc 3A @ 24 Vdc Normalized SKU: 85301535UPC Code: 850053879432
