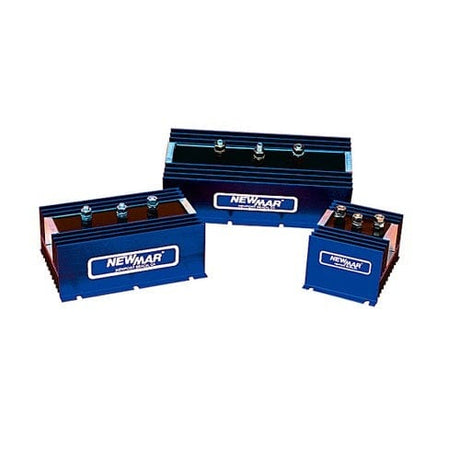

Newmar 1-2-70A Battery Isolators" These heavy duty isolators allow charging multiple batteries automatically from one or two alternators, and prevent discharge or "dumping" of one battery into another. Each battery is charged according to its need without overcharging. Rated for 12-48 volt negative ground DC systems. Feature conservatively rated diodes and a rustproof anodized aluminum heat sink case. Models are available for 70, 120 and 165 amp alternators. Features: Heavy duty construction Rated for systems up to 48 volts DC Rust-proof anodized aluminum case Stainless steel mounting hardware provided Protective covers provided for terminals Performance Specifications Operating temper ature: -40 to +80°C Duty cycle: Continuous rating to 50° C Derate linearly to 70% @ 80° C Temp. rise: 95° C at full rated current (mount vertically for optimum cooling) Voltage drop: At 50% load 0.7V - At full load 0.9V Model Alternator Battery Max Amperage Weight Dimensions   Sources Bank Input Capacity Lbs Kg L W H   1/2/70 1 2 70 2 0.9 3.25 4.5 3.1 in "Normalized SKU: 1270A

Newmar BX-2 Components"BX Series Provides for secure, protected below-deck wiring connections, IP rating 54 Rugged cast aluminum box with white enamel finish Easy wiring access through multiple grommeted cable entries Supplied with high quality connector strips Secure wires w/compression fittings ? no terminals required. Specifications Model BX-2 BX-3 Number of Connector Strips 1 2 Positions per Strip 12 11 Max Wire Gauge 16 14 Max amps (per Position) 6 10 Cable Entries 8 2 Max Cable Diameter .37" .59" Box Sizes - Inches 4.4" x 2.4" x 1.2" 4.7" x 3.7" x 1.3" Box Sizes - Centimeters 11.2 x 6.1 x 3.1 11.9 x 9.4 x 3.3 "Normalized SKU: BX2

Newmar PX-1 Terminal Blocks"Waterproof Junction Boxes Ideal for making wiring connections above or below decks, even in areas subject to occasional spray Similar to BX Series junction boxes, but made from rugged, non-corrosive, high impact polypropylene Snap-on cover provides watertight seal ""Universal"" cut-to-fit (see diagram) graduated diameter cable entries accommodate wide cable range Multiple position connector strips with ""captive"" screw compression wire terminals installed - meets ABYC standards Multiple knockouts provided for conduit access (in addition to cable entries) IEC Waterproof Rating: IP54 - ""Water projected in jets against the enclosure from any direction shall have no harmful effects."" Specifications Model PX-1 PX-2 PX-3 Number of Connector Strips 1 2 2 Positions per Strip 6 6 9 Max Wire Gauge 16 16 16 Number of Cable Entry Ports 5 7 7 Number of Cable Entries Installed 3 7 7 Spare Cable Entries Provided 2 0 0 Cable Diameter Range (inches) .14-.81 .14-.81 .14-1.0 Cable Diameter Range (mm) 3.5-20.5 3.5-20.5 3.5-25.5 Box Size Inches 2.95 x 2.95 x 1.66 3.35" x 3.35 x 1.66 4.45 x 4.45 x 2.29 Box Size Centimeters 7.5 x 7.5 x 4.2 8.5 x 8.5 x 4.2 11.3 x 11.3 x 5.8 "Normalized SKU: PX1UPC Code: 007-3001-0

Newmar PX-2 Components"Waterproof Junction Boxes Ideal for making wiring connections above or below decks, even in areas subject to occasional spray Similar to BX Series junction boxes, but made from rugged, non-corrosive, high impact polypropylene Snap-on cover provides watertight seal ""Universal"" cut-to-fit (see diagram) graduated diameter cable entries accommodate wide cable range Multiple position connector strips with ""captive"" screw compression wire terminals installed - meets ABYC standards Multiple knockouts provided for conduit access (in addition to cable entries) IEC Waterproof Rating: IP54 - ""Water projected in jets against the enclosure from any direction shall have no harmful effects."" Specifications Model PX-1 PX-2 PX-3 Number of Connector Strips 1 2 2 Positions per Strip 6 6 9 Max Wire Gauge 16 16 16 Number of Cable Entry Ports 5 7 7 Number of Cable Entries Installed 3 7 7 Spare Cable Entries Provided 2 0 0 Cable Diameter Range (inches) .14-.81 .14-.81 .14-1.0 Cable Diameter Range (mm) 3.5-20.5 3.5-20.5 3.5-25.5 Box Size Inches 2.95 x 2.95 x 1.66 3.35" x 3.35 x 1.66 4.45 x 4.45 x 2.29 Box Size Centimeters 7.5 x 7.5 x 4.2 8.5 x 8.5 x 4.2 11.3 x 11.3 x 5.8 "Normalized SKU: PX2

Newmar PX-3 Components"Waterproof Junction Boxes Ideal for making wiring connections above or below decks, even in areas subject to occasional spray Similar to BX Series junction boxes, but made from rugged, non-corrosive, high impact polypropylene Snap-on cover provides watertight seal ""Universal"" cut-to-fit (see diagram) graduated diameter cable entries accommodate wide cable range Multiple position connector strips with ""captive"" screw compression wire terminals installed - meets ABYC standards Multiple knockouts provided for conduit access (in addition to cable entries) IEC Waterproof Rating: IP54 - ""Water projected in jets against the enclosure from any direction shall have no harmful effects."" Specifications Model PX-1 PX-2 PX-3 Number of Connector Strips 1 2 2 Positions per Strip 6 6 9 Max Wire Gauge 16 16 16 Number of Cable Entry Ports 5 7 7 Number of Cable Entries Installed 3 7 7 Spare Cable Entries Provided 2 0 0 Cable Diameter Range (inches) .14-.81 .14-.81 .14-1.0 Cable Diameter Range (mm) 3.5-20.5 3.5-20.5 3.5-25.5 Box Size Inches 2.95 x 2.95 x 1.66 3.35" x 3.35 x 1.66 4.45 x 4.45 x 2.29 Box Size Centimeters 7.5 x 7.5 x 4.2 8.5 x 8.5 x 4.2 11.3 x 11.3 x 5.8 "Normalized SKU: PX3UPC Code: 007-3003-0

Newmar LS-I DecalsLS-I Standard Set-22 Labels ACCESSORY CABIN LIGHTS NAV/COM SUMP PUMP AFT CABIN ENGINE ROOM OUTLETS WATER HEATER ANCHOR FORE CABIN REFRIGERATOR WATER PRESSURE BILGE PUMP MAIN CABIN RUNNING WINDLASS BOW MAST SPARE SPREADER WINDSHIELD Normalized SKU: LSI

Newmar LS-II DecalsNewmar Label Set #LS-IINormalized SKU: LSII

Newmar LS-III Decals"LS-III Deluxe Set - 182 Labels    Note: LS-III Set Sold with a LS-I and LS-II included AC POWER CABIN LIGHTS STBD FRESH WATER PUMP  OUTLETS GALLEY SPARE AIR COMPRESSOR COCKPIT LIGHTS FUEL PUMP MACERATOR STBD AIR COND COCKPIT OUTLETS FWD. AFT. MAIN BREAKER STEAMING LIGHTS AIR COND AFT. COCKPIT SUPPLY GALLEY BLOWER MAST HEAD STOP-START AIR COND FWD. COMPASS LIGHT GALLEY LIGHTS MICROWAVE OVEN SYNCHRO AIR COND MAIN COURTESY LIGHTS GARBAGE DISPOSAL NAVIGATION LIGHTS STROBE AIR COND PUMP CREWS QUARTERS GENERATOR OIL CHANGE PUMP TRASH COMPACTOR ALARM SYSTEM DAVIT WINCH GENERATOR 1 OUTLETS AFT TRANSFER PUMP AFT DECK DC POWER GENERATOR 2 OUTLETS DECK TRI-COLORED LIGHTS AFT DECK LIGHTS DC REFRIGERATION HEAD OUTLET ENG. ROOM TRIM TABS AUTO PILOT DECCA HEAD AFT. OUTLETS FWD WASH DOWN BAIT PUMP DECK LIGHTS HEAD FWD OUTLETS PORT WASHER BEVERAGE DISPENSER DISH WASHER HEATER OUTLETS SALON WASHER/DRYER BILGE LIGHTS DOCKING LIGHTS HOLDING TANK OUTLETS STBD  WATER MAKER BILGE PUMP DRYER HORN PORT WIPERS AFT. BILGE PUMP EMERGENCY LIGHTS HYDRAULICS POWER #1 FWD BILGE PUMP ENGINE CONTROL HULL LIGHTS RANGE #2 MID BLOWER ENG ROOM BLOWER ICE MAKER RAW WATER PUMP 12 VDC BOW THRUSTER ENG ROOM LIGHTS IGNITION REFRIGERATOR 24 VDC BRIDGE SUPPLY ENG ROOM OUTLETS INSTRUMENTS SALT WATER PUMP 32 VDC BURGLAR ALARM FANS INVERTER SEARCH LIGHTS 12 VDC OUTLETS CABIN LIGHTS AFT. FIRE EXT. LOAD GROUP 1 SHIP 12V CHARGER CABIN LIGHTS FWD. FLOOD LIGHTS LOAD GROUP 2 SHORE 24V CHARGER CABIN LIGHTS MID. FOREDECK LIGHTS LOUD HAILER SHOWER PUMP 110 VAC CABIN LIGHTS PORT FREEZER LPG CONTROL SPARE 220 VAC "Normalized SKU: LSIIIUPC Code: 020-0660-1

Newmar PT-MCU Charger Accessories Newmar Phase three Monitor Control unit Model: PT-MCU Digital readout of 3 battery bank voltages to 1/10th volt Adjustable DC high/low voltage alarm Output float voltage adjustment pot; permits fine tuning from -4% to +5% AC circuit breaker (30A, double pole) provides overcurrent protection and manual disconnect AC power ON indicator light 10? wiring harness for easy connection of PT Series Charger Compatible with: PT-14W, PT-25W, PT-40U, PT-80, PT-24-8W, PT-24-13W, PT-24-20U, PT-24-45U, PT-24-95U, and PTMS-24-67 Waterproof wire cord grips Heavy duty top and bottom mounting flanges Designed for installation in conjunction with most models of PT Battery Chargers, this unit provides additional functionality of monitoring, control, and alarms. It contains a Digital DC volt meter with 3 battery bank sense selector, a dial that adjusts the PT charger float voltage, and AC Master circuit breaker for control and protection of charger input power. A 10 foot wiring harness is provided for AC input and DC monitor wiring to the charger. Specifications Case Anodized aluminum case Normalized SKU: PTMCU

Newmar NS-12-20 Battery Accessories"DC UPS: StartGuard The abrupt DC system voltage drop that accompanies engine starting can cause communication/navigation electronics to ""dump"" programmed memory. StartGuard solves this problem by providing supplemental voltage to sensitive electronics while the engine is cranked. It contains a sealed rechargeable battery which is switched on-line to electronics when sensing the starter switch or solenoid is engaged. When the engine is running StartGuard automatically goes off-line and the internal battery is recharged by the alternator. Specifications Input Voltage: 13.8 - 14.8 VDC nominal, 15.5 VDC max. Relay Activation Input Voltage: 7-15 VDC Output: 20 amps max. Battery: 12 VDC, sealed rechargeable, 5- 7 year life (typical), 5 amp-hour capacity, Certified by DOT and IATA for shipment by air. Back-up Capacity (Fully Charged): (See matrix) Model Input Back-Up Capacity Dimensions Weight 1 Minute 2 Minutes Inches Centimeters Lbs Kg. NS-12-20 13.8-14.8 VDC Nominal 15.5 VDC Max 20 amps 18 amps 8.25 x 4.9 x 3.5 20.1 x 12.5 x 8.9 5.5 2.5 "Normalized SKU: NS1220UPC Code: 426-3222-0

Newmar NP-24 Battery AccessoriesNP-24 Nav-Pac - 24VMarine communication and navigation electronics such as programmable data transceivers, GPS, and other microprocessor-controlled devices require clean and steady DC input power. Their sensitive circuitry is highly vulnerable to voltage drops from engine starts, noise and line spikes from alternators and motors, and noise from various other electronic devices. NAV-PAC prevents these conditions from affecting electronics.Features: Prevents voltage “drop-out” during engine start and/or other high intermittent loads such as Thrusters Absorbs line “spikes” Filters out electrical interference Provides supplemental voltage and battery backup for up to 15 min. Optional remote panel (773-5037-0) Specifications: Output: 24 Volt @ 15 amps max. Battery: Sealed Rechargeable 5.0 Amp-Hour, 5-7 years of typical life, can be replaced. A low-voltage disconnect circuit protects the battery from total discharge. Certified by DOT and IATA for shipment by air. Noise Filtering: Audio through 200 MHZ Voltage Spike Protection: Transient energy capability; 100 Joules, 4,000 amps Max (8 x 20 microseconds) Back-Up Power: 8A for 15 minutes, 12A for 8 minutes, and 18A for 2 minutes Size: 6.0 x 6.75 x 7.5 inches (13.3 X 17.14 X 19 cm) Weight: 8 lbs. (3.6 kg) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: NP24

Newmar NP-12 Inverters"Newmar Nav-Pac 12v DC UPSModel: NP-12 Prevents voltage "drop-out" during engine start and/or other high intermittent loads such as Thrusters Absorbs line "spikes" Filters out electrical interference Provides supplemental voltage/battery back-up for up to 15 min. Marine communication/navigation electronics such as programmable data transceivers, GPS and other microprocessor-controlled devices require clean and steady DC input power. Their sensitive circuitry is highly vulnerable to voltage drop from engine start, noise and line spikes from alternators and motors, and conducted noise from various other electronic devices. NAV-PAC prevents these conditions from affecting electronics.Specifications Output 12 Volt @ 20 amps max. Dimensions 5.25? x 6.2? x 7.4? Battery Type Sealed Rechargeable 5.0 Amp-Hour Life 5-7 years Noise Filtering Audio through 200 MHZ Voltage Spike Protection Transient energy capability; 100 Joules, 4,000 amps Max (8 x 20 micro seconds) Back up Power @ 12v 8A Draw 15 Minutes 12A 8 Minutes 18A 2 Minutes 20A 1 Minute "Normalized SKU: NP12

Newmar 150-A Accessories"Noise Filters The interference or electronic "noise" generated by alternators, ignition systems, motors, etc., can render a vehicle or vessel's radio or other electronic equipment virtually useless. This interference takes the form of popping or static on radios or audio gear and garbled images or "hash" on video displays. These specialized filters can be used singly or in combination to attenuate conducted line noise, either at the affected equipment or at the noise source. Filtered Frequencies Model 150A: 70 kHz - 100 MHz Models PC-10 and PC-25: Audio - 200 MHz Filter Features: Heavy duty aluminum construction Operate on 6-48 VDC systems Integral mounting flanges for secure installation Brass stud connectors on alternator filters accommodate high current cables and terminals Color coded wire leads on all other models make in-line installation easy Model Rating Installation Location   Size   Weight H W D 150-A 150 Amp In the alternator output lead 3.25" 5.75" 3.25" 3 lbs. (8.2 14.6 8.2cm 1.4Kg.) PC-10 10 Amp In the + and - power leads close to affected equipment 1.25" 4.25" 3" 1 lb. (3.2 10.8 8.2cm .5Kg.) PC-25  25 Amp Same as PC-10 2" 4.25" 3.25" 2 lbs. (5.1 10.8 8.2cm .9 Kg.) "Normalized SKU: 150A

Newmar PC-10 Accessories"Noise Filters The interference or electronic "noise" generated by alternators, ignition systems, motors, etc., can render a vehicle or vessel's radio or other electronic equipment virtually useless. This interference takes the form of popping or static on radios or audio gear and garbled images or "hash" on video displays. These specialized filters can be used singly or in combination to attenuate conducted line noise, either at the affected equipment or at the noise source. Filtered Frequencies Model 150A: 70 kHz - 100 MHz Models PC-10 and PC-25: Audio - 200 MHz Filter Features: Heavy duty aluminum construction Operate on 6-48 VDC systems Integral mounting flanges for secure installation Brass stud connectors on alternator filters accommodate high current cables and terminals Color coded wire leads on all other models make in-line installation easy Model Rating Installation Location   Size   Weight H W D 150-A 150 Amp In the alternator output lead 3.25" 5.75" 3.25" 3 lbs. (8.2 14.6 8.2cm 1.4Kg.) PC-10 10 Amp In the + and - power leads close to affected equipment 1.25" 4.25" 3" 1 lb. (3.2 10.8 8.2cm .5Kg.) PC-25  25 Amp Same as PC-10 2" 4.25" 3.25" 2 lbs. (5.1 10.8 8.2cm .9 Kg.) "Normalized SKU: PC10

Download LiteratureNewmar PA40/30 Hailers & Hailer HornsPA40/30 Deck HornClear, distortion-free, waterproof deck horns are ideal for shipboard paging, hailing, fog horns, and alarm systems. high-impact plastic construction and assembled with stainless steel hardware. 8 Ohm.Specifications: Output Nominal/Peak: 40 watts or 30 watts Weight: 5 lbs. Normalized SKU: PA40/30Newmar PA40/30 Literature Download Quick Reference Guide

Newmar PC-25 Components"Noise Filters The interference or electronic "noise" generated by alternators, ignition systems, motors, etc., can render a vehicle or vessel's radio or other electronic equipment virtually useless. This interference takes the form of popping or static on radios or audio gear and garbled images or "hash" on video displays. These specialized filters can be used singly or in combination to attenuate conducted line noise, either at the affected equipment or at the noise source. Filtered Frequencies Model 150A: 70 kHz - 100 MHz Models PC-10 and PC-25: Audio - 200 MHz Filter Features: Heavy duty aluminum construction Operate on 6-48 VDC systems Integral mounting flanges for secure installation Brass stud connectors on alternator filters accommodate high current cables and terminals Color coded wire leads on all other models make in-line installation easy Model Rating Installation Location   Size   Weight H W D 150-A 150 Amp In the alternator output lead 3.25" 5.75" 3.25" 3 lbs. (8.2 14.6 8.2cm 1.4Kg.) PC-10 10 Amp In the + and - power leads close to affected equipment 1.25" 4.25" 3" 1 lb. (3.2 10.8 8.2cm .5Kg.) PC-25  25 Amp Same as PC-10 2" 4.25" 3.25" 2 lbs. (5.1 10.8 8.2cm .9 Kg.) "Normalized SKU: PC25

Newmar POWER PAC 14AH Battery Chargers" Power-Pac Designed for critical applications such as VHF shore stations that must remain on the air, even during a power outage. The 12 volt supply features built-in back-up batteries which are charged during normal operation and then continue to power radios even when AC power is lost. Highly regulated, low ripple output for noise-free radio operation Battery automatically comes on-line if AC fails Low battery alarm and disconnect, with override switch for emergency power General Specifications Input 115/230 VAC, 50-60 Hz. Output:13.6 VDC @ 5A cont., 10A Int. Regulation: 1% line and load Ripple: 1% P-P Operating Temp: 0-40° C Models: Power-Pac 7 A/H (w/7 amp/hour battery), 18 lbs. Power-Pac 14 A/H (w/14 amp/hour battery), 24 lbs. Dimensions (both models): 5.3? H x 9.0? W x 10.5? D"Normalized SKU: POWERPAC14AHUPC Code: 360-2014-0
