Egis

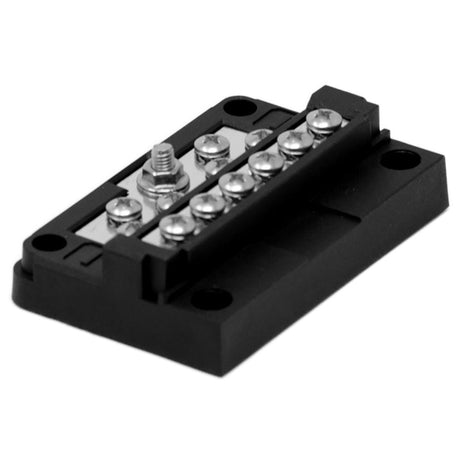

Egis RT Screw Terminal12 Circuit Dual Lever Busbar #8030
$17.21
$20.54
Download LiteratureEgis 8030 Bus BarsRT Screw Terminal 12 Circuit Dual Lever Bus BarThis Egis bus bar seamlessly integrates with RT fuse blocks, can be used as a standalone ground bus, or can be assembled with an existing RT Series fuse block line. Also, this multi-level low-amp has terminal screws for improved mounting.Applications:
The 12-circuit block ensures ground connection reliability with this compact and well-constructed ground bus block.
RT series connection compatibility enables a smaller installation footprint and convenient negative terminal access when installed with a fuse block application.
Features:
Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware, allows mounting anywhere on the vehicle
Seamlessly integrates with RT fuse blocks - use as a standalone ground bus or assembled with existing RT series fuse block lines
Specifications:
Maximum Current (Entire Block) Amps: 100
Maximum Current (Per Circuit) Amps: 30
Max Output Wire Size: #10 AWG
Voltage Range VDC: 0-36
Number of Fuse Positions: 12
Output Terminal Connection Ring Terminal Size: M4 / (#8)
Focal Features:Robust Materials For Harsh EnvironmentsAll attachment hardware is constructed of stainless steel with self-locking mechanisms for long-lasting installations. A plated copper alloy bus bar conductor withstands corrosion and maximizes conductivity. Engineering-grade composite insulators support high-temperature application exposure, such as in engine compartments.Seamlessly Integrates With RT Fuse BlocksIt can be installed individually on its own or assembled to the end of a 6, 12, or 18-position RT Series fuse block for a more compact overall footprint. Normalized SKU: 8030UPC Code: 850035199756Egis 8030 Literature Download Quick Reference Guide Owners Manual
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Egis

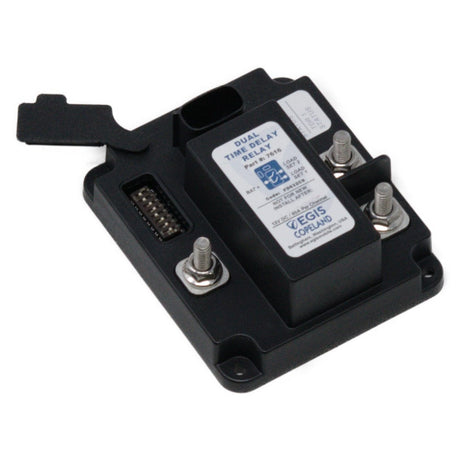

Egis TDR Series Dual Output Time Delay Relay 12v 2 x 80a #7616
$148.44
$188.53
Download LiteratureEgis 7616 Charger AccessoriesTDR Series Dual Output Time Delay Relay 12V (2 x 80A)This 12V dual-time relay can prevent dead batteries due to added equipment loads on after-engine stops or from multiple systems connected to a battery with an independent keep-alive power draw, maximizing operational readiness.Applications:
Supports on-board video systems when vehicles are not in use, allowing lengthy downloading while shutting down less time-sensitive equipment. sooner.
Protects sensitive onboard electronics via optional under/over voltage shutdown and start event isolation.
Features:
Eliminates vehicle downtime due to dead batteries; the lowest off-state current draw (1.3 mA) is available
Simple and robust Installation - Sealed plug with optional long wire leads; Single device replaces multiple control units and high-amp replays reduce installation time, costs, and points of potential failure
Additional low-amp output can be used to maintain 24-hour memory circuits or to direct other equipment to shut down
Bullet-proof construction - Sealed unit and high-temperature materials allow mounting anywhere on the vehicle; Integrated thermal overload protection as well
Meets stringent OEM standards for electrical transient self-protection
Adjustable OFF Time Delay - 0 seconds to 4 hours
Kill Switch control input option for ensuring loads are not inadvertently on, maintenance/servicing of vehicles, and emergency OFF
Flexible control options via ignition key, alternator voltage sense, or both
4 Year Industry Leading Warranty
Specifications:
Maximum Current: Continuous: 80 Amps DC per Output (160 A Total); Intermittent: 120 Amps DC (5 Minutes) per Output
Off-State Current Draw: 1.5 mA (less than 1 Amp-hr battery dissipation per month of stand-by)
Operating Specifications: Voltage: 12 Vdc Nominal (8 - 18 Vdc); Temperature: -40 to 85 degrees C
Time Delay Options: 5 Sec through 4 hours via Dip Switches
Environment Protection Standards: Waterproof to IP66. IP6K9K; Ignition Protected to ISO 8846
Optional Features: Input stud voltage sense trigger for relay OFF; Under-voltage and over-voltage load protection
Focal Features:Top Side Dip SwitchesAccessible after installation, for programming time delay and determining active features. Protected by self-retained cover.Stainless Steel Self-Locking Hardware 100% Non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.Integral I/O Connector Rapid and 100% correct assembly via Molex MX-150 connector eliminates poor field connections.Standard and Optional Harnesses The mating plugs with 2 feet of the ground and ignition wire included. Optional harnesses with additional outputs and alternate wire lengths are availableEasy Integration with CT Fuse Blocks Optional EasyLink bus bars reduce the space and cost of connecting TDRs with CT series Fuse Blocks.Easy Integration with RT Fuse Blocks Optional EasyLink bus bars reduce the space and cost of connecting TDRs with RT series Fuse Blocks.LED DiagnosticsIndicates a pending relay OFF event due to under/over voltage or external off trigger. Output on/off status is also provided.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 7616UPC Code: 850053879395Egis 7616 Literature Download Quick Reference Guide Owners Manual
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Egis

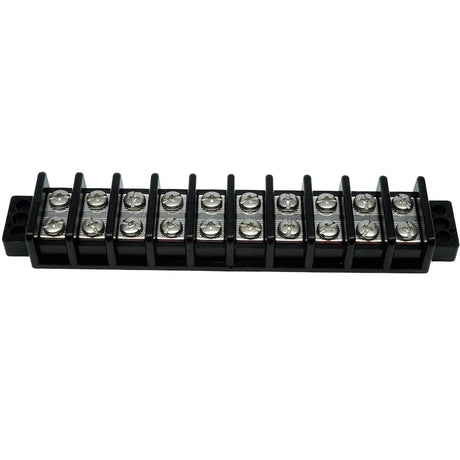

Egis Terminal Block 30a 10-Circuit #2230-10
$11.80
$14.08
Download LiteratureEgis 2230-10 Terminal BlocksTerminal Block - 30 Amp - 10 Circuit
Marine-grade materials ensure long-lasting reliability in harsh environment applications
Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair
125 Volt AC or DC rated easily supports 12, 24, 36, & 48 Vdc systems, as well as 120/240 Vac applications
Features:
Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminal blocks are available in 2, 4, 6, 8, 10, or 12 matching connection pairs.
Marine Grade Materials ensure long-lasting reliability in harsh environment applications. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution.
125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.
Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.
Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls.
Bullet-proof Construction: High-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.
4-Year Warranty: We stand behind our product's ability to meet your needs.
Specifications:
Continuous Current (Amps): 30
Max Voltage (Vac/Vdc): 250
Dielectric Strength: 2000Vac
Hardware Material: Stainless Steel
CE Marked: Yes
ROHS Compliant: Yes
Normalized SKU: 223010UPC Code: 850053879722Egis 2230-10 Literature Download Quick Reference Guide
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Egis

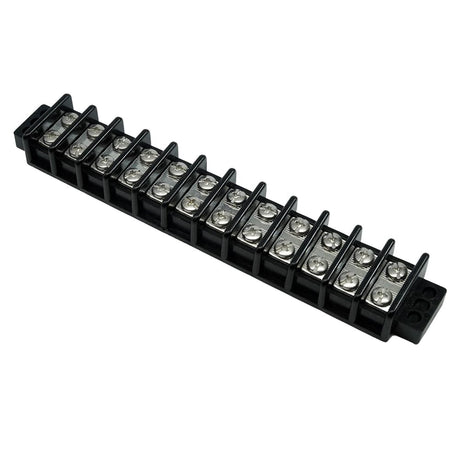

Egis Terminal Block 30a 12-Circuit #2230-12
$13.14
$15.69
Download LiteratureEgis 2230-12 Terminal BlocksTerminal Block - 30 Amp - 12 Circuit
Marine-grade materials ensure long-lasting reliability in harsh environment applications
Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair
125 Volt AC or DC rated easily supports 12, 24, 36, & 48 Vdc systems, as well as 120/240 Vac applications
Features:
Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminal blocks are available in 2, 4, 6, 8, 10, or 12 matching connection pairs.
Marine Grade Materials ensure long-lasting reliability in harsh environment applications. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution.
125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.
Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.
Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls.
Bullet-proof Construction: High-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.
4-Year Warranty: We stand behind our product's ability to meet your needs.
Specifications:
Continuous Current (Amps): 30
Max Voltage (Vac/Vdc): 250
Dielectric Strength: 2000Vac
Hardware Material: Stainless Steel
CE Marked: Yes
ROHS Compliant: Yes
Normalized SKU: 223012UPC Code: 850053879739Egis 2230-12 Literature Download Quick Reference Guide
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Egis

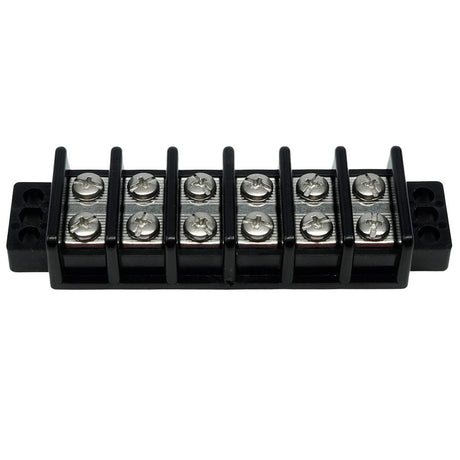

Egis Terminal Block 30a 6-Circuit #2230-06
$9.08
$10.84
Download LiteratureEgis 2230-06 Terminal BlocksTerminal Block - 30 Amp - 6 Circuit
Marine-grade materials ensure long-lasting reliability in harsh environment applications
Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair
125 Volt AC or DC rated easily supports 12, 24, 36, & 48 Vdc systems, as well as 120/240 Vac applications
Features:
Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminal blocks are available in 2, 4, 6, 8, 10, or 12 matching connection pairs.
Marine-grade materials ensure long-lasting reliability in harsh environment applications. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution.
125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.
Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.
Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls.
Bullet-proof Construction: High-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.
4-Year Warranty: We stand behind our product's ability to meet your needs.
Specifications:
Continuous Current (Amps): 30
Max Voltage (Vac/Vdc): 250
Dielectric Strength: 2000Vac
Hardware Material: Stainless Steel
CE Marked: Yes
ROHS Compliant: Yes
Normalized SKU: 223006UPC Code: 850053879708Egis 2230-06 Literature Download Quick Reference Guide
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Egis

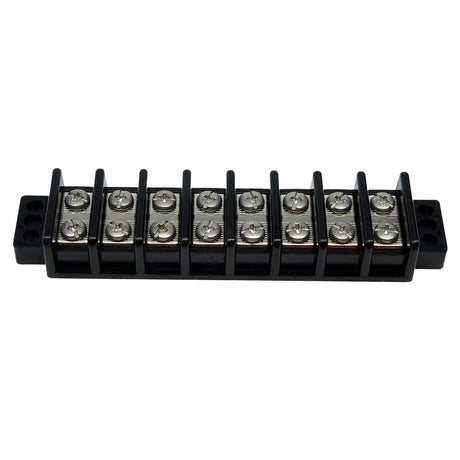

Egis Terminal Block 30a 8 -Circuit #2230-08
$10.25
$12.23
Download LiteratureEgis 2230-08 Terminal BlocksTerminal Block - 30 Amp - 8 Circuit
Marine-grade materials ensure long-lasting reliability in harsh environment applications
Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair
125 Volt AC or DC rated easily supports 12, 24, 36, & 48 Vdc systems, as well as 120/240 Vac applications
Features:
Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminal blocks are available in 2, 4, 6, 8, 10, or 12 matching connection pairs.
Marine Grade Materials ensure long-lasting reliability in harsh environment applications. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution.
125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.
Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.
Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls.
Bullet-proof Construction: High-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.
4-Year Warranty: We stand behind our product's ability to meet your needs.
Specifications:
Continuous Current (Amps): 30
Max Voltage (Vac/Vdc): 250
Dielectric Strength: 2000Vac
Hardware Material: Stainless Steel
CE Marked: Yes
ROHS Compliant: Yes
Normalized SKU: 223008UPC Code: 850053879715Egis 2230-08 Literature Download Quick Reference Guide
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Egis

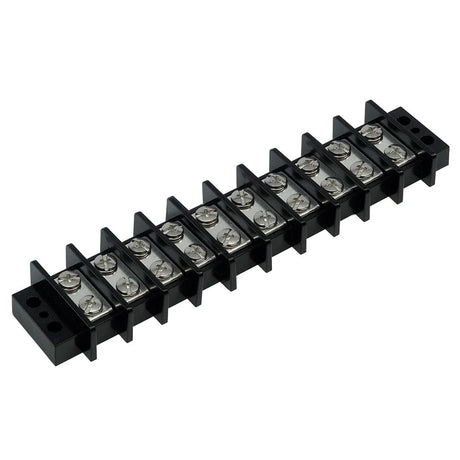

Egis Terminal Block 65a 10-Circuit #2265-10
$22.41
$26.75
Download LiteratureEgis 2265-10 Terminal BlocksTerminal Block - 65 Amp - 10 Circuit
Marine-grade materials ensure long-lasting reliability in harsh environment applications
Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair
125 Volt AC or DC rated easily supports 12, 24, 36, & 48 Vdc systems, as well as 120/240 Vac applications
Features:
Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminal blocks are available in 2, 4, 6, 8, 10, or 12 matching connection pairs.
Marine-grade materials ensure long-lasting reliability in harsh environment applications. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution.
125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.
Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.
Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls.
Bullet-proof Construction: High-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.
4-Year Warranty: We stand behind our product's ability to meet your needs.
Specifications:
Continuous Current (Amps): 65
Max Voltage (Vac/Vdc): 250
Dielectric Strength: 2000Vac
Hardware Material: Stainless Steel
CE Marked: Yes
ROHS Compliant: Yes
Normalized SKU: 226510UPC Code: 850053879784Egis 2265-10 Literature Download Quick Reference Guide
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Egis

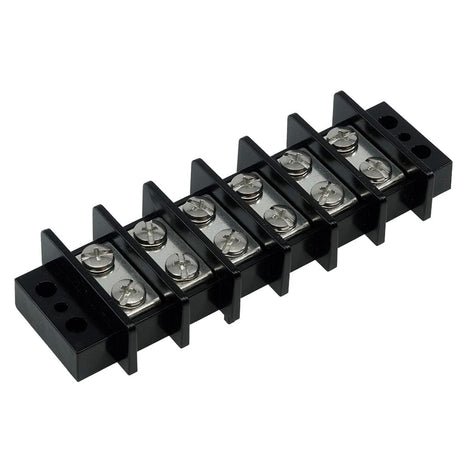

Egis Terminal Block 65a 6-Circuit #2265-06
$16.23
$19.37
Download LiteratureEgis 2265-06 Terminal BlocksTerminal Block - 30 Amp - 6 Circuit
Marine-grade materials ensure long-lasting reliability in harsh environment applications
Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair
125 Volt AC or DC rated easily supports 12, 24, 36, & 48 Vdc systems, as well as 120/240 Vac applications
Features:
Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminal blocks are available in 2, 4, 6, 8, 10, or 12 matching connection pairs.
Marine-grade materials ensure long-lasting reliability in harsh environment applications. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution.
125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.
Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.
Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls.
Bullet-proof Construction: High-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.
4-Year Warranty: We stand behind our product's ability to meet your needs.
Specifications:
Continuous Current (Amps): 65
Max Voltage (Vac/Vdc): 250
Dielectric Strength: 2000Vac
Hardware Material: Stainless Steel
CE Marked: Yes
ROHS Compliant: Yes
Normalized SKU: 226506UPC Code: 850053879760Egis 2265-06 Literature Download Quick Reference Guide
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Egis

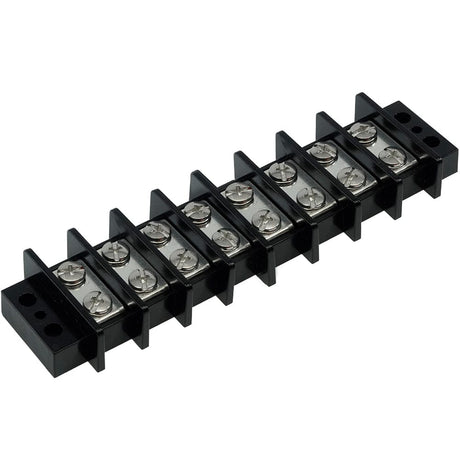

Egis Terminal Block 65a 8-Circuit #2265-08
$20.29
$24.22
Download LiteratureEgis 2265-08 Terminal BlocksTerminal Block - 65 Amp - 8 Circuit
Marine-grade materials ensure long-lasting reliability in harsh environment applications
Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair
125 Volt AC or DC rated easily supports 12, 24, 36, & 48 Vdc systems, as well as 120/240 Vac applications
Features:
Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminal blocks are available in 2, 4, 6, 8, 10, or 12 matching connection pairs.
Marine-grade materials ensure long-lasting reliability in harsh environment applications. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution.
125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.
Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.
Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls.
Bullet-proof Construction: High-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.
4-Year Warranty: We stand behind our product's ability to meet your needs.
Specifications:
Continuous Current (Amps): 65
Max Voltage (Vac/Vdc): 250
Dielectric Strength: 2000Vac
Hardware Material: Stainless Steel
CE Marked: Yes
ROHS Compliant: Yes
Normalized SKU: 226508UPC Code: 850053879777Egis 2265-08 Literature Download Quick Reference Guide
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Egis

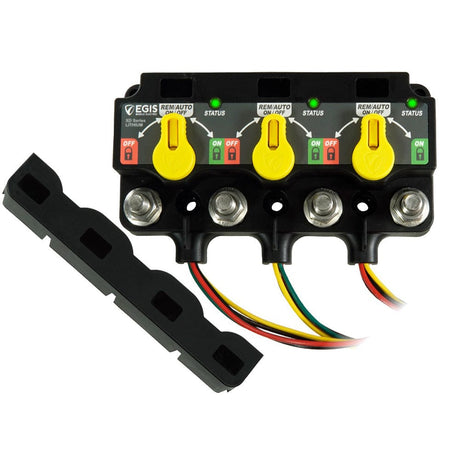

Egis Triple XD Flex Relay with Knobs #8630-2535
$329.69
$418.73
Download LiteratureEgis 8630-2535 RelaysTriple XD Flex Relay with KnobsSet of three programmable relays designed for use in 12 or 24 VDC lithium battery systems. Typically the two outer devices would be set up as remote on-off switches and the middle one would be set up as an Automatic Charge Relay. The relay settings are programmable and the list of available options is optimized for lithium batteries. Normalized SKU: 86302535UPC Code: 850053879463Egis 8630-2535 Literature Download Quick Reference Guide
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
EGIS

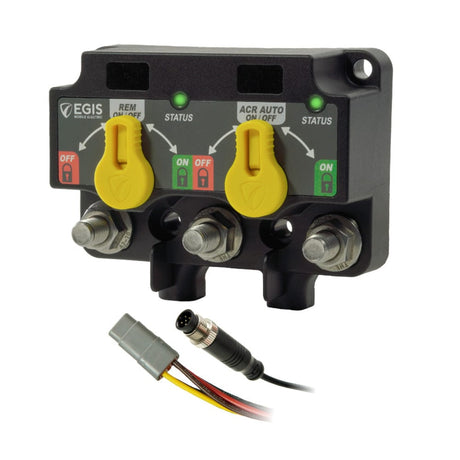

EGIS XD Dual Flex 2 Automatic Charging Relay with Knobs Tinned Wires #8720-1550
$236.16
$299.94
EGIS 8720-1550 Charger AccessoriesEGIS XD Dual Flex 2 Automatic Charging Relay with Knobs Tinned Wires #8720-1550Normalized SKU: 87201550UPC Code: 850035199855
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
EGIS
EGIS XD Dual Flex2 Automatic Charging Relay with Knobs #8520-1350
$231.02
$293.42
EGIS 8520-1350 Charger AccessoriesEGIS 8520-1350 XD Dual Flex2 Automatic Charging Relay with KnobsModel: 8520-1350
Lithium Battery System Ready Designed for modern Lithium battery based electrical system applications that often require higher ON/OFF charge voltage settings over legacy battery chemistries.
LED Status Display Easy to see front facing LED indicator provides visual device status, remote LED replicates local on-device LED
3-Position Manual Override Force each individual relay Open or Closed and optionally leave knob in either position to lock relay in either condition.
40 Circuit Label Sheet Included Convenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications.
Protective Cover Included Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.
Stainless Hardware Corrosion is no issue with quality stainless steel studs and self locking flanged nuts.
Programmable Via dip switches located under protective cover. An easy to use configuration guide on reverse make custom settings a breeze to configure for a wide variety of applications.
Integrated Vent High quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.
Bullet-proof Construction: Sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.Intuitive Manual Control option simplifies operation and awareness of state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.Plug & Play Compatible with Legacy Competitor Products: Single, dual and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays.90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionalitySpecifications
TOTAL CONTINUOUS CURRENT (AMPS)
500
MAX CRANKING CURRENT (AMPS)
1500
MECHANICAL SWITCHING LIFE
1,000,000 Cycles
VOLTAGE RANGE (V DC)
8 - 36
OFF-STATE CURRENT DRAW (mA)
1.3
STATE CHANGE CURRENT
5A @ 12 Vdc 3A @ 24 Vdc
Normalized SKU: 85201350UPC Code: 850067590156
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Egis
Egis XD NMEA 2000 Dual ACR/ACR with Knobs 8-Position DT #9821-8330
$256.57
$325.87
Download LiteratureEgis 9821-8330 RelaysDual XD - NMEA 2000 - ACR/ACR with Knobs - 8 Position DTFeatures:
Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems.
Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.
90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality
Applications:
Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage.
Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility.
35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.
Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories.
Normalized SKU: 98218330UPC Code: 850067590231Egis 9821-8330 Literature Download Quick Reference Guide
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Egis
Egis XD NMEA 2000 Dual ACR/Relay with Knobs 8-Position DT #9821-8350
$256.57
$325.87
Download LiteratureEgis 9821-8350 RelaysDual XD - NMEA 2000 - ACR/Relay with Knobs - 8 Position DTFeatures:
Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems.
Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.
90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality
Applications:
Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage.
Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility.
35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.
Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories.
Normalized SKU: 98218350UPC Code: 850067590194Egis 9821-8350 Literature Download Quick Reference Guide
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Egis
Egis XD NMEA 2000 Dual Relay/Relay with Knobs 8-Position DT #9821-8550
$256.57
$325.87
Download LiteratureEgis 9821-8550 RelaysDual XD - NMEA 2000 - Relay/Relay with Knobs - 8 Position DTFeatures:
Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems.
Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.
90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality
Applications:
Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage.
Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility.
35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.
Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories.
Normalized SKU: 98218550UPC Code: 850067590224Egis 9821-8550 Literature Download Quick Reference Guide
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Egis
Egis XD NMEA 2000 Single ACR with Knobs 4-Position DT #9811-4300
$171.85
$218.27
Download LiteratureEgis 9811-4300 RelaysSingle XD - NMEA 2000 - ACR with Knobs - 4 Position DTFeatures:
Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems.
Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.
90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality
Applications:
Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage.
Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility.
35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.
Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories.
Normalized SKU: 98114300UPC Code: 850067590217Egis 9811-4300 Literature Download Quick Reference Guide
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Egis
Egis XD NMEA 2000 Single Relay with Knobs 4-Position DT #9811-4500
$146.74
$186.37
Download LiteratureEgis 9811-4500 RelaysSingle XD - NMEA 2000 - Relay with Knobs - 4 Position DTFeatures:
Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems.
Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.
90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality
Applications:
Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage.
Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility.
35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.
Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories.
Normalized SKU: 98114500UPC Code: 850067590200Egis 9811-4500 Literature Download Quick Reference Guide
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Egis
Egis XD NMEA 2000 Triple Relay/ACR/Relay with Knobs 12-Position DT #9831-2535
$349.91
$436.73
Download LiteratureEgis 9831-2535 RelaysTriple XD - NMEA 2000 - Relay/ACR/Relay with Knobs - 12 Position DTFeatures:
Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems.
Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.
90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality
Applications:
Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage.
Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility.
35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.
Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories.
Normalized SKU: 98312535UPC Code: 850067590187Egis 9831-2535 Literature Download Quick Reference Guide
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Egis
Egis XD Relay Cross-Over Busbar #8791
$12.37
$14.76
Download Literature Watch VideoEgis 8791 Bus BarsXD Relay Cross-Over Bus BarThe XD Relay Cross-Over Bus Bar allows users to link together Egis XD Single, Dual, and Triple XD Relays to each other in multiple configurations and even to the Egis 8700 Mechanical Disconnect. Linking relays together creates compact installations and allows for robust circuit switching and battery management.Features:
Tin-Plated Copper to ensure reliable circuit connectivity and anti-corrosive features keep it last long term.
Robust Protective Insulation ensures no accidental contact shorts between XD relays.
Specifications:
Continuous Current (Amps): 500
Max Voltage (VDC): 72
Material: Tin-plated copper
Size (L x W): 90 x 47mm
Thickness: 2.8mm (1/8")
Terminal Stud Hole Size: 10.5mm (3/8”)
Normalized SKU: 8791UPC Code: 850035199886Egis 8791 Literature Download Quick Reference GuideEgis 8791 Video
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Egis
Egis XD Relay Link Busbar #8790
$7.92
$9.45
Download Literature Watch VideoEgis 8790 Bus BarsXD Relay Link BusbarThis tin-plated copper is to ensure reliable circuit connectivity and an anti-corrosive feature that will keep it long-lasting.ApplicationsLink Together XD Single, Dual, and Triple XD relays to each other in multiple configurations and even to Egis's 8700 Mechanical Disconnect. Linking relays together creates compact installations and allows for robust circuit switching and battery management.Features:
Great electrical conductivity with anti-corrosion tin plating keeps connections reliable
This bus bar is tough and built to withstand high amperage loads and resist deformation from nut-tightening
Save install space by linking XD Relays together for even more capability and maintain a professional-looking install
Specifications:
Continuous Current (Amps): 500
Max Voltage (VDC): 72
Material: Tin-plated copper
Size (L x W): 47.8mm x 22.8mm
Thickness: 2.8mm (1/8”)
Terminal Stud Hole Size: 10.5mm (3/8”)
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 8790UPC Code: 850035199879Egis 8790 Literature Download Quick Reference GuideEgis 8790 Video
Frequently Asked Questions
First Choice Marine is an online marine retailer carrying a diverse line of marine parts and accessories and related items from industry-respected and demanded manufacturers and suppliers. Through our diverse distributor network, we are able to access over 150,000 items, including our current site inventory, new products being added, and special order items. If you need it on your boat... we are your one-stop shop!
Yes, we offer FREE Shipping on most orders over $149 to US-48*.
Each product displays a shipping status message, just above the item price. Below is the meaning for each of these codes.
- Qualifies for Free Shipping: This item qualifies for free shipping when the order is $149+
- Qualifies for Free Ground Shipping: This item qualifies for free ground shipping when the order is $149+.
- Oversized - Not Qualified for Free Shipping: This item is too large/heavy to qualify for free shipping
- Hazardous Item - Not Qualified for Free Shipping: This item is hazardous and does not qualify for free shipping
- Truck Freight - Not Qualified for Free Shipping: This item has to be shipped via truck freight. Please contact us for a quote
- In-Store Pickup Only: This item can only be picked up in our Grain Valley, MO retail store
Below the price of the item, on the product page, there is a message indicating the availability of the product.
The quantity on hand is updated as inventory events happen and matches what we have available. If you have urgent needs and we are close to what you need, contact us, and we can confirm stock.
We offer a hassle-free return policy. If you're not completely satisfied with your purchase, you can return it within 30 days for a full refund or exchange.
If you need to return an item, please follow the guidelines here so we can process a prompt refund and assist you in finding the correct item.
Free Shipping
On most orders $149+ to the continental 48 US states.Secure Shopping
Fast, secure checkout with a variety of payment methods.Shop with confidence
25+ years serving the marine industry.Support center
Need help? Contact us via live chat, phone, or email.
