EGIS 3221-05 Circuit BreakersEGIS A Series Red Toggle Panel Mount Circuit Breaker Single Pole AC/DC 5 Amp Retail PackModel: 3221-05 AC & DC Rated to cover a wide range of system application needs. Stainless Steel Self Locking Hardware ensures robust connections & long term connection reliability. Easily Mounts In Standard Panels accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. 4 Year Warranty: We stand behind our product's ability to meet your needs. Protects Electrical Circuits allows from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.High Interrupt Current to safely protects circuits connected to large paralleled battery banks with significant available power.Specifications CONTINUOUS CURRENT (AMPS) 5 MAX VOLTAGE 277 Vac / 80 Vdc Regulatory Compliance UL 1077 Electrical Endurance @ Rated current 6,000 Cycles Interrupt Capacity 5kA / 277Vac, 1.5kA / 80 Vdc Normalized SKU: 322105UPC Code: 850074331087

EGIS 3211-08 Circuit BreakersModel: 3211-08 AC & DC Rated to cover a wide range of system application needs. Stainless Steel Self Locking Hardware ensures robust connections & long term connection reliability. Easily Mounts In Standard Panels accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. 4 Year Warranty: We stand behind our product's ability to meet your needs. Protects Electrical Circuits allows from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.High Interrupt Current to safely protects circuits connected to large paralleled battery banks with significant available power.Specifications CONTINUOUS CURRENT (AMPS) 8 MAX VOLTAGE 277 Vac / 80 Vdc Regulatory Compliance UL 1077 Electrical Endurance @ Rated current 6,000 Cycles Interrupt Capacity 5kA / 277Vac, 1.5kA / 80 Vdc Normalized SKU: 321108UPC Code: 850074331001

EGIS 3902 Fuses & Fuse PanelsEGIS AMG/MEGA Fuse Block Sealed Retail PackModel: 3902 Tin Plated Copper Busbar deliver superior electrical performance with minimal voltage drop. performance with minimal voltage drop. Stainless Steel Self Locking Hardware ensures robust connections & long term connection reliability. Bullet Proof Construction from glass-filled nylon delivers highest longevity in demanding environments. 4 Year Warranty: We stand behind our product's ability to meet your needs. Separate Stud Connections for Cable Mounting allow heavier gauge cables and their terminals to feed in and out of the fuse, that would otherwise land on the fuse tab itself.Ignition Protected to support installation in potentially hazardous gaseous environments such as LPG or on gas boats.Specifications Maximum Amperage 50-300A MAX VOLTAGE 80 Vdc Ingress Protection ratings IP66, IP67, IP6K9K Mounting holes 4x #10 (M5) & 2x 1/4" (M6) Mounting screw max torque 50 in-lbs (5.5 N-m) Busbar material Tin-Plated Copper Normalized SKU: 3902UPC Code: 850067590668

EGIS 3901 Fuses & Fuse PanelsEGIS AMI / MIDI Fuse Block 30 - 200 A Sealed Retail PackModel: 3901 Tin Plated Copper Busbar deliver superior electrical performance with minimal voltage drop. Stainless Steel Self Locking Hardware ensures robust connections & long term connection reliability. Bullet Proof Construction from glass-filled nylon delivers highest longevity in demanding environments. 4 Year Warranty: We stand behind our product's ability to meet your needs. Separate Stud Connections for Cable Mounting allow heavier gauge cables and their terminals to feed in and out of the fuse, that would otherwise land on the fuse tab itself.Ignition Protected to support installation in potentially hazardous gaseous environments such as LPG or on gas boats.Specifications Maximum Amperage 30-200A MAX VOLTAGE 80 Vdc Ingress Protection ratings IP66, IP67, IP6K9K Mounting holes 4x #10 (M5) & 2x 1/4" (M6) Mounting screw max torque 50 in-lbs (5.5 N-m) Busbar material Tin-Plated Copper Normalized SKU: 3901UPC Code: 850067590644

EGIS 3903 Fuses & Fuse PanelsEGIS ANL Fuse Block for Up to 4/0 Cables 35 - 750 A Sealed Retail PackModel: 3903 Tin Plated Copper Busbar deliver superior electrical performance with minimal voltage drop. Stainless Steel Self Locking Hardware ensures robust connections & long term connection reliability. Bullet Proof Construction from glass-filled nylon delivers highest longevity in demanding environments. 4 Year Warranty: We stand behind our product's ability to meet your needs. Separate Stud Connections for Cable Mounting allow heavier gauge cables and their terminals to feed in and out of the fuse, that would otherwise land on the fuse tab itself.Ignition Protected to support installation in potentially hazardous gaseous environments such as LPG or on gas boats.Specifications Maximum Amperage 35-750A MAX VOLTAGE 80 Vdc Ingress Protection ratings IP66, IP67, IP6K9K Mounting holes 4x #10 (M5) & 2x 1/4" (M6) Mounting screw max torque 50 in-lbs (5.5 N-m) Busbar material Tin-Plated Copper Normalized SKU: 3903UPC Code: 850067590682

Egis 4720-10 Circuit BreakersATM/MINI 10 AMP Circuit Breaker - Type 3Features: Extremely Compact Circuit Breakers significantly reduce the space required to implement resettable circuit protection in mobile electrical systems. 32 Max VDC Rating easily supports 12- and 24-VDC systems. Manual push-to-reset Type 3 operation allows simple re-closing of the circuit breaker after any potential fault situations are investigated and cleared.   Color-coded enclosure variations, depending on continuous current, help reduce installation errors and ensure correct replacements. Harsh Environment design with high temperature materials and tin-plated copper alloy conductors. Supports ABYC Compliant Systems when wire sizes are reduced for branch circuit distribution. Normalized SKU: 472010UPC Code: 850053879814

Egis 4720-15 Circuit BreakersATM/MINI 15 AMP Circuit Breaker - Type 3Features: Extremely Compact Circuit Breakers significantly reduce the space required to implement resettable circuit protection in mobile electrical systems. 32 Max VDC Rating easily supports 12- and 24-VDC systems. Manual push-to-reset Type 3 operation allows simple re-closing of the circuit breaker after any potential fault situations are investigated and cleared.   Color-coded enclosure variations, depending on continuous current, help reduce installation errors and ensure correct replacements. Harsh Environment design with high temperature materials and tin-plated copper alloy conductors. Supports ABYC Compliant Systems when wire sizes are reduced for branch circuit distribution. Normalized SKU: 472015UPC Code: 850053879821

Egis 4720-20 Circuit BreakersATM/MINI 20 AMP Circuit Breaker - Type 3Features: Extremely Compact Circuit Breakers significantly reduce the space required to implement resettable circuit protection in mobile electrical systems. 32 Max VDC Rating easily supports 12- and 24-VDC systems. Manual push-to-reset Type 3 operation allows simple re-closing of the circuit breaker after any potential fault situations are investigated and cleared.   Color-coded enclosure variations, depending on continuous current, help reduce installation errors and ensure correct replacements. Harsh Environment design with high temperature materials and tin-plated copper alloy conductors. Supports ABYC Compliant Systems when wire sizes are reduced for branch circuit distribution. Normalized SKU: 472020UPC Code: 850053879838

Egis 4720-25 Circuit BreakersATM/MINI 25 AMP Circuit Breaker - Type 3Features: Extremely Compact Circuit Breakers significantly reduce the space required to implement resettable circuit protection in mobile electrical systems. 32 Max VDC Rating easily supports 12- and 24-VDC systems. Manual push-to-reset Type 3 operation allows simple re-closing of the circuit breaker after any potential fault situations are investigated and cleared.   Color-coded enclosure variations, depending on continuous current, help reduce installation errors and ensure correct replacements. Harsh Environment design with high temperature materials and tin-plated copper alloy conductors. Supports ABYC Compliant Systems when wire sizes are reduced for branch circuit distribution. Normalized SKU: 472025UPC Code: 850053879845

Egis 4720-30 Circuit BreakersATM/MINI 30 AMP Circuit Breaker - Type 3Features: Extremely Compact Circuit Breakers significantly reduce the space required to implement resettable circuit protection in mobile electrical systems. 32 Max VDC Rating easily supports 12- and 24-VDC systems. Manual push-to-reset Type 3 operation allows simple re-closing of the circuit breaker after any potential fault situations are investigated and cleared.   Color-coded enclosure variations, depending on continuous current, help reduce installation errors and ensure correct replacements. Harsh Environment design with high temperature materials and tin-plated copper alloy conductors. Supports ABYC Compliant Systems when wire sizes are reduced for branch circuit distribution. Normalized SKU: 472030UPC Code: 850053879852

Egis 4720-05 Circuit BreakersATM/MINI 5 AMP Circuit Breaker - Type 3Features: Extremely Compact Circuit Breakers significantly reduce the space required to implement resettable circuit protection in mobile electrical systems. 32 Max VDC Rating easily supports 12- and 24-VDC systems. Manual push-to-reset Type 3 operation allows simple re-closing of the circuit breaker after any potential fault situations are investigated and cleared.   Color-coded enclosure variations, depending on continuous current, help reduce installation errors and ensure correct replacements. Harsh Environment design with high temperature materials and tin-plated copper alloy conductors. Supports ABYC Compliant Systems when wire sizes are reduced for branch circuit distribution. Normalized SKU: 472005UPC Code: 850053879791

Egis 4720-07 Circuit BreakersATM/MINI 7.5 AMP Circuit Breaker - Type 3Features: Extremely Compact Circuit Breakers significantly reduce the space required to implement resettable circuit protection in mobile electrical systems. 32 Max VDC Rating easily supports 12- and 24-VDC systems. Manual push-to-reset Type 3 operation allows simple re-closing of the circuit breaker after any potential fault situations are investigated and cleared.   Color-coded enclosure variations, depending on continuous current, help reduce installation errors and ensure correct replacements. Harsh Environment design with high temperature materials and tin-plated copper alloy conductors. Supports ABYC Compliant Systems when wire sizes are reduced for branch circuit distribution. Normalized SKU: 472007UPC Code: 850053879807

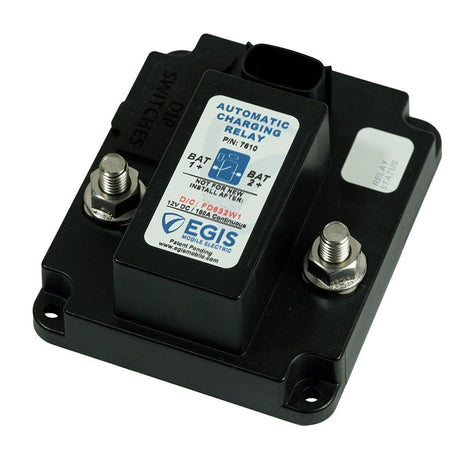

Download LiteratureEgis 7610-24 Charger AccessoriesAutomatic Charging Relay Plus - 160A - 24VThis 160A Egis automatic charging relay eliminates dead-start batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.Applications:  Supports multiple engines or independent charge systems by incorporating two independent start or engine isolation inputs to allow isolation of charge sources when both are active to maximize charging performance Protects Electrical System Cascading Faults with an optional lock-out from closing if one terminal is connected to a battery with a shorted cell Features: Ultra-low power draw compared to typical ACRs (7-10 mA) vs. the 7610 ACR @ 1.3 mA will not deplete batteries even after extended electrical system downtime. Simple and robust installation - integrated sealed plug eliminates corrosion; includes Deutsch/Amphenol DTM connector harness Start to assist input option to ensure maximum cranking amps are available by allowing manually connecting batteries via a remote switch Bullet-proof construction - sealed unit, stainless steel hardware, and high-temperature materials allow mounting anywhere; Integrated thermal overload shutdown protection Additional low-amp output can be used to report device status remotely or drive a secondary relay for charge to a battery bank without a charge source (see examples) Specifications: Continuous Current Amps: 160 Voltage Range (VDC): 16 – 36 Off-State Current Draw (mA): 1.3 Interrupt Current (Amps): 240 AC Closing Voltage Range (VDC): 25.8-27.2 AC Opening Voltage Range (VDC): 24.2-25.6 Focal Features:Top Side Dip SwitchesAccessible after mounting for programming voltage settings and determining active features. Protected by self-retained cover.Stainless Steel Self-Locking Hardware100% non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.Integral I/O ConnectorSealed Molex MX-150 connector eliminates the susceptibility to corrosion and vibrating loose of 1/4" quick connect terminals on competitive products.Connection OptionsComes standard with a Deutsch DT/AT style connector harness. Provides three connection options (MX-150, DT/AT, and wire leads). Easy Integration with RT Fuse Blocks (24 HR Circuits)Optional EasyLink bus bars reduce the space and cost of connecting TH Series relays with RT Series fuse blocks. LED DiagnosticsIndicates pending relay ON/OFF, under voltage, over voltage/temp, start isolation/assist, and output on/off status.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 761024UPC Code: 850035199947Egis 7610-24 Literature Download Quick Reference Guide Owners Manual

Egis 2500 Battery AccessoriesBattery Switch - Heavy Duty-Series 600A - Off/OnSurface and panel mounting variations allow for flexible installations.Harsh Environment Design with stainless-steel hardware, serrated flange nuts, and high-temperature materials.Ignition Protected safe for installation in closed compartments with potential explosive gases.Features: Robust Construction IP66 Waterproof 32V - Voltage Rating  600A Continuous Current Ignition Protected Normalized SKU: 2500UPC Code: 850067590590

EGIS 4714 Circuit BreakersEGIS Black Button Boot Low Amp Panel Mount Push to Reset Breakers Retail PackModel: 4714 Compatibility with Push-To-Resest spade & srew ciruit breakers. Replaces Standard Mounting Nut for mounting on ciruit breaker. UV Resistant Material ensures long-term sealing integrity. Normalized SKU: 4714UPC Code: 850074331209

Download LiteratureEgis 8793 Bus Bars3 Hole L Shaped Busbar ConnectorLink Together XD Single, Dual, and Triple XD Relays to multiple sealed fuse blocks or link fuse blocks together for compact installation.Tin-Plated Copper to ensure reliable circuit connectivity and anti-corrosive features keep it last long term.Specifications: Continuous Current (Amps): 500 Max Voltage (Vdc): 72 Material: Tin Plated Copper Size: 90mm x 90mm Thickness: 2.8 mm (1/8") Terminal Stud Hole Size: 10.5mm (3/8") Normalized SKU: 8793UPC Code: 850067590071Egis 8793 Literature Download Quick Reference Guide

Download LiteratureEgis 8794 Bus Bars4 Hole Quad Shaped Busbar ConnectorLink Together XD Single, Dual, and Triple XD Relays to multiple sealed fuse blocks or link fuse blocks together for compact installation.Tin-Plated Copper to ensure reliable circuit connectivity and anti-corrosive features keep it last long term.Specifications: Continuous Current (Amps): 500 Max Voltage (Vdc): 72 Material: Tin Plated Copper Size: 90mm x 90mm Thickness: 2.8 mm (1/8") Terminal Stud Hole Size: 10.5mm (3/8") Normalized SKU: 8794UPC Code: 850067590088Egis 8794 Literature Download Quick Reference Guide

EGIS 3502-050 Circuit BreakersEGIS C Series White Toggle Panel Mount Circuit Breaker Double Pole AC 50 Amp Retail PackModel: 3502-050 High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection fo 36 and 48 Vdc applications. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. AC & DC Rated to cover a wide range of system application needs. Normalized SKU: 3502050UPC Code: 850067590866

EGIS 3501-100 Circuit BreakersEGIS C Series White Toggle Panel Mount Circuit Breaker Single Pole AC/DC 100 Amp Retail PackModel: 3501-100 High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 26 and 48 Vdc applications. Hight Interrupt Current safely protects circuits connected to large paralleled battery banks with significant availible power. AC & DC Rated to cover a wide range of system needs. Normalized SKU: 3501100UPC Code: 850067590798

EGIS 3501-010 Circuit BreakersEGIS C Series White Toggle Panel Mount Circuit Breaker Single Pole AC/DC 10 Amp Retail PackModel: 3501-010 AC & DC Rated to cover a wide range of system application needs. Stainless Steel Self Locking Hardware ensures robust connections & long term connection reliability. Easily Mounts In Standard Panels accepting C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. 4 Year Warranty: We stand behind our product's ability to meet your needs. Protects Electrical Circuits allows from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.High Interrupt Current to safely protects circuits connected to large paralleled battery banks with significant available power.Specifications CONTINUOUS URRENT (AMPS) 10 MAX VOLTAGE 277 Vac / 125 Vdc Regulatoty Compliance UL 1077 Electrical Endurance @ Rated current 6,000 Cycles Interrupt Capacity 5kA / 277Vac, 2kA / 125 Vdc Normalized SKU: 3501010UPC Code: 850067590804
