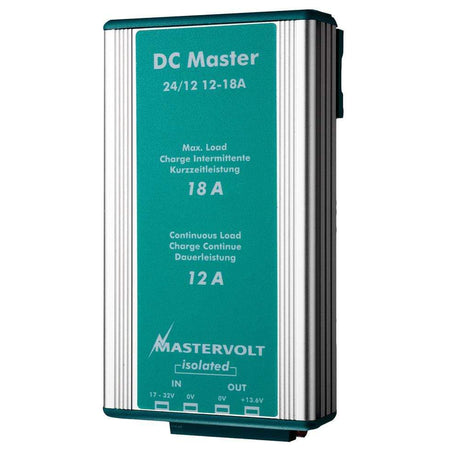

Download LiteratureMastervolt 81400300 ConvertersDC Master 24V to 12V Converter - 12 AmpAlways on course with Mastervolt. Mastervolt ensures you an electrical system with no weak links and a dependable and silent power supply. Whether for recreational or professional purposes, with Mastervolt you always have power you can rely on... The power to be independent. DC Master DC-DC convertersThe required voltage for DC current can vary. Some equipment requires 24 V, while onboard equipment usually requires 12 V. For custom DC current, Mastervolt offers a series of compact and made to measure DC-DC converters for both 12 V and 24 V battery systems that offer stable power with the right current for any connected consumer. Features: Recreational and semi-professional use Easy to install using included mounting bracket, screws and fasteners Smart electronics mean no unnecessary heat generation Continuous output Two minutes of extra power for short power boosts Excellent price/performance ratio WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 81400300UPC Code: 81400300Mastervolt 81400300 Literature Download  Owners Manual  Product Brochure

  Download Literature Mastervolt 81500300 Converters DC Master 24V to 12V Converter - 12A w/IsolatorPower you can rely onThe required voltage for DC current can vary. Some equipment requires 24 V, while onboard equipment usually requires 12 V. For custom DC current, Mastervolt offers a series of compact and made to measure DC-DC converters for both 12 V and 24 V battery systems that offer stable power with the right current for any connected consumer. There is a wide range of DC Master converters available, including insulated and non-insulated models.Benefits Recreational and semi-professional use. Easy to install using included mounting bracket, screws and fasteners. Smart electronics mean no unnecessary heat generation. Continuous output. Insulated and non-insulated models available. Two minutes of extra power for short power boosts. Excellent price/performance ratio. Intelligent DC-DC convertersA large benefit of the DC Master models is their two minutes of extra capacity; ideal if you need a short power boost.Complete package DC MasterAll DC Master converters are delivered with mounting bracket, screws and fasteners. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amps - Output = NONE Banks = NONE Battery Type = NONE Charger Type = NONE Portable = NONE Voltage - Charger Input = NONE Voltage - Output (Volts) = NONE Normalized SKU: 81500300UPC Code: 852968002554 Mastervolt 81500300 Literature Download   Owners Manual  Product Brochure

  Download LiteratureMastervolt 81400100 ConvertersDC Master 24V to 12V Converter - 3 AMPPower you can rely onThe required voltage for DC current can vary. Some equipment requires 24 V, while onboard equipment usually requires 12 V. For custom DC current, Mastervolt offers a series of compact and made to measure DC-DC converters for both 12 V and 24 V battery systems that offer stable power with the right current for any connected consumer. There is a wide range of DC Master converters available, including insulated and non-insulated models.Benefits Recreational and semi-professional use. Easy to install using included mounting bracket, screws and fasteners. Smart electronics mean no unnecessary heat generation. Continuous output. Insulated and non-insulated models available. Two minutes of extra power for short power boosts. Excellent price/performance ratio. Intelligent DC-DC convertersA large benefit of the DC Master models is their two minutes of extra capacity; ideal if you need a short power boost.Complete package DC MasterAll DC Master converters are delivered with mounting bracket, screws and fasteners.WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:Amps - Output = NONE Banks = NONE Battery Type = NONE Charger Type = NONE Portable = NONE Voltage - Charger Input = NONE Voltage - Output (Volts) = NONENormalized SKU: 81400100UPC Code: 81400100Mastervolt 81400100 Literature Download  Owners Manual  Product Brochure

Download LiteratureMastervolt 81400200 ConvertersDC Master 24V to 12V Converter - 6 AmpAlways on course with Mastervolt. Mastervolt ensures you an electrical system with no weak links and a dependable and silent power supply. Whether for recreational or professional purposes, with Mastervolt you always have power you can rely on... The power to be independent. DC Master DC-DC convertersThe required voltage for DC current can vary. Some equipment requires 24 V, while onboard equipment usually requires 12 V. For custom DC current, Mastervolt offers a series of compact and made to measure DC-DC converters for both 12 V and 24 V battery systems that offer stable power with the right current for any connected consumer. Features: Recreational and semi-professional use Easy to install using included mounting bracket, screws and fasteners Smart electronics mean no unnecessary heat generation Continuous output Two minutes of extra power for short power boosts Excellent price/performance ratio WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 81400200UPC Code: 852968002813Mastervolt 81400200 Literature Download Owners Manual Product Brochure

  Download LiteratureMastervolt 77010310 Switch PanelsEasyView 5Waterproof system monitor with daylight display and intuitive touch control.Controlling your Mastervolt system has never been easier. The EasyView 5 features a sharp, waterproof display which is clearly readable in daylight. Thanks to the color touch screen and multi-language menu, the display is a pleasure to operate. Easily customizable favorite pages show all relevant system information at a glance.Features Water proof, daylight readable color display Intuitive touch control Customizable favorite pages Log book for warnings and alarms Buzzer and Home button Easy mounting: Front mount, wall mount or retrofit MasterBus powered or MasterBus powering by 12 V DC input Easy updating through integrated USB ApplicationsThe EasyView 5 completes any MasterBus system. Applications include yachts, vehicles and stationary systems. Markets include marine, mobile (recreational & professional), infra-structure, offshore, off-grid and industrial markets.Specifications Display: 4.5 inch high contrast display with capacitive touch control. Resolution: 480x272 pixels, Color depth: 16 bits Languages: English, Dutch, German, Spanish, Italian, French, Finnish, Swedish, Norwegian, Danish IP degree: IP65 waterproof front Power supply: MasterBus powered or MasterBus powering through 12/24 V input Power Consumption: < 160 mW (idle mode) Alarm: Buzzer integrated Connections: 2 x MasterBus, USB, 12/24 V auto ranging input for optional external power Mounting: Front mount, wall mount and MasterView Easy retrofit Dimensions, HxWxD: 113 x 127 x 43 mm WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 77010310UPC Code: 816882020308Mastervolt 77010310 Literature Download  Owners Manual  Product Brochure

Download Literature Watch VideoMastervolt 81205105 Battery ChargersMac Plus 12/12-50 + CZoneBoost the Service BatteryToo often, service batteries don’t get the charge they need. This is a problem made worse by smart alternators and start/stop systems, which result in slow and insufficient charges. The Mac Plus DC-DC charger solves this problem, providing a quick, safe, and consistent charge to the service battery. And, by knowing when the engine is running and providing charge, users can be sure that the Mac Plus will never drain a starter battery.Proven Mastervolt QualityUsers get peace of mind knowing that they have the best on board. Using the proven Mastervolt 3-step+ charge algorithm, the Mac Plus delivers a quick and easy charge, even for completely flat batteries.A robust design holds up in even the harshest conditions, with battery temperature-optimized charging and a high-quality aluminum housing to ensure superior protection against dust and water ingress. The power-efficient design also allows the Mac Plus to operate silently and without a fan.Total Power FlexibilityWith a wide DC input range, the Mac Plus allows for all DC sources and can charge two batteries from a single alternator or charger. It supports a full range of chemistries and battery types, including lithium. It also functions seamlessly with modern alternators such as Euro 5 and 6, ensuring proper charging by providing constant power, even when the alternator is inactive.Parallel configuration of up to ten units will provide over 100 amperes. Advanced high-frequency technology with modern microprocessors ensures minimal power loss when switching from 12V to 24V and vice versa.Analog voltage sense ports are also available to compensate for voltage drops and maintain proper charging.Superior Monitoring & ControlCompatibility with CZone®, NMEA 2000®, and MasterBus delivers truly superior monitoring and control and ensures Mac Plus integrates easily into complete systems. Achieve the best performance possible via various controllers and high-quality MOSFETs. And configure the Mac Plus with ease via MasterAdjust, the CZone configuration tool, or even via the on-board DIP switches.Features: Fast and safe charging, even during short trips Fanless design for silent operation Suitable for flooded, Gel, AGM, and Li-Ion batteries (incl. LiFePO4) Even charges fully depleted batteries Engine run detection protects the starter battery Adjustable current limits to meet Euro 5/6 requirements Voltage stabilization protects sensitive equipment, lights, and loads Parallel operation to obtain charging capacities well over 100 Amps MasterBus, CZone, and NMEA 2000 are compatible for intelligent system monitoring and automation Temperature compensation and voltage sense for an optimal charging result E-Mark/R10 certification for mobile applications Power supply mode offers stable power for sensitive loads Heavy-duty connections for easy installation and quick setup via DIP switches Specifications: Battery Temperature Sensor: Yes, included Battery Voltage Sense: Yes  General Specifications: Status Indicator: Yes, 3-color LED Communication Protocol: MasterBus, CZone & NMEA 2000 Output Voltage: 10-15 V Nominal Output Voltage: 12 V Output Voltage Stabilization: 2 % at extremes of temperatures, load, and input Output Voltage Ripple (peak-peak): Max. 1 % Max. Output Power: 725 W Nominal Output Power: 675 W Max. Output Current: 50 A Output Charge Current (3-step mode): 50 A Nominal Input Voltage: 12 V Input Voltage Range: 10-16 V Max. Input Current: 50 A Galvanic Isolation: No Voltage Limited: Yes Efficiency: > 95 % (at nom. input voltage, full load); peak 97 Parallel Configuration: Yes Alarm Contact: Yes, through MasterBus MasterBus Powering: No Engine Run Signal Input: Yes (active high/active low) DIP Switches: Yes, for basic setup Dimensions, H x W x D: 255 x 165 x 66 mm (10.0 x 6.5 x 2.6 inch) Weight: 2 kg (4.4 lb) Compliance: CE, E-Mark, SAE J1171 & ISO 8846 Ignition Protected  Technical Specifications: No-load Consumption: < 2 mA Charge Characteristic: 3-traps+ Battery Types: Flooded, Gel, AGM, spiral, Lithium Ion, traction, user-defined 3-Step Charge Option: Yes (DIP switch settings) DC Consumption: < 5 mA Connections: 3 x M8 terminal for cable diameters of 10-50 mm², (positive input, positive output, joint negative connection) 8-pole screw connection for cable diameters of 0.75-1.5 mm² (remote on/off, temperature sensor, voltage measurement Temperature Range (ambient temp.): -25 degrees C to 60 degrees C; derating > 40 Cooling: Natural cooling Protection Degree: IP23 Protections: Overload, over temperature, DC short circuit, reversed polarity (fuse) MasterBus Compatible: Yes Normalized SKU: 81205105UPC Code: 816882023491Mastervolt 81205105 Literature Download Owners ManualMastervolt 81205105 Video

Download Literature Watch VideoMastervolt 81205305 Battery ChargersMac Plus 12/24-30 + CZoneBoost the Service BatteryToo often, service batteries don’t get the charge they need. This is a problem made worse by smart alternators and start/stop systems, which result in slow and insufficient charges. The Mac Plus DC-DC charger solves this problem, providing a quick, safe, and consistent charge to the service battery. And, by knowing when the engine is running and providing charge, users can be sure that the Mac Plus will never drain a starter battery.Proven Mastervolt QualityUsers get peace of mind knowing that they have the best on board. Using the proven Mastervolt 3-step+ charge algorithm, the Mac Plus delivers a quick and easy charge, even for completely flat batteries.A robust design holds up in even the harshest conditions, with battery temperature-optimized charging and a high-quality aluminum housing to ensure superior protection against dust and water ingress. The power-efficient design also allows the Mac Plus to operate silently and without a fan.Total Power FlexibilityWith a wide DC input range, the Mac Plus allows for all DC sources and can charge two batteries from a single alternator or charger. It supports a full range of chemistries and battery types, including lithium. It also functions seamlessly with modern alternators such as Euro 5 and 6, ensuring proper charging by providing constant power, even when the alternator is inactive.Parallel configuration of up to ten units will provide over 100 amperes. Advanced high-frequency technology with modern microprocessors ensures minimal power loss when switching from 12V to 24V and vice versa.Analog voltage sense ports are also available to compensate for voltage drops and maintain proper charging.Superior Monitoring & ControlCompatibility with CZone®, NMEA 2000®, and MasterBus delivers truly superior monitoring and control and ensures Mac Plus integrates easily into complete systems. Achieve the best performance possible via various controllers and high-quality MOSFETs. And configure the Mac Plus with ease via MasterAdjust, the CZone configuration tool, or even via the on-board DIP switches.Features: Fast and safe charging, even during short trips Fanless design for silent operation Suitable for flooded, Gel, AGM, and Li-Ion batteries (incl. LiFePO4) Even charges fully depleted batteries Engine run detection protects the starter battery Adjustable current limits to meet Euro 5/6 requirements Voltage stabilization protects sensitive equipment, lights, and loads Parallel operation to obtain charging capacities well over 100 Amps MasterBus, CZone, and NMEA 2000 are compatible for intelligent system monitoring and automation Temperature compensation and voltage sense for an optimal charging result E-Mark/R10 certification for mobile applications Power supply mode offers stable power for sensitive loads Heavy-duty connections for easy installation and quick setup via DIP switches Specifications: Battery Temperature Sensor: Yes, included Battery Voltage Sense: Yes  General Specifications: Status Indicator: Yes, 3-color LED Communication Protocol: MasterBus, CZone & NMEA 2000 Output Voltage: 20-30 V Nominal Output Voltage: 24 V Output Voltage Stabilization: 2 % at extremes of temperatures, load, and input Output Voltage Ripple (peak-peak): Max. 1 % Max. Output Power: 725 W Nominal Output Power: 675 W Max. Output Current: 30 A Output Charge Current (3-step mode): 30 A Nominal Input Voltage: 12 V Input Voltage Range: 10-16 V Max. Input Current: 50 A Galvanic Isolation: No Voltage Limited: Yes Efficiency: > 95 % (at nom. input voltage, full load); peak 97 Parallel Configuration: Yes Alarm Contact: Yes, through MasterBus MasterBus Powering: No Engine Run Signal Input: Yes (active high/active low) DIP Switches: Yes, for basic setup Dimensions, H x W x D: 255 x 165 x 66 mm (10.0 x 6.5 x 2.6 inch) Weight: 2 kg (4.4 lb) Compliance: CE, E-Mark, SAE J1171 & ISO 8846 Ignition Protected  Technical Specifications: No-load Consumption: < 2 mA Charge Characteristic: 3-traps+ Battery Types: Flooded, Gel, AGM, spiral, Lithium Ion, traction, user-defined 3-Step Charge Option: Yes (DIP switch settings) DC Consumption: < 5 mA Connections: 3 x M8 terminal for cable diameters of 10-50 mm², (positive input, positive output, joint negative connection) 8-pole screw connection for cable diameters of 0.75-1.5 mm² (remote on/off, temperature sensor, voltage measurement Temperature Range (ambient temp.): -25 degrees C to 60 degrees C; derating > 40 Cooling: Natural cooling Protections: Overload, over temperature, DC short circuit, reversed polarity (fuse) MasterBus Compatible: Yes Normalized SKU: 81205305UPC Code: 816882023507Mastervolt 81205305 Literature Download Owners ManualMastervolt 81205305 Video

Download Literature Watch VideoMastervolt 81203205 Battery ChargersMac Plus 12/48-15Boost Your Service BatteryToo often, service batteries don’t get the charge they need. This is a problem made worse by smart alternators and start/stop systems, which result in slow and insufficient charges. The Mac Plus 48V and 36V solve that problem. With brand-new bi-directional technology, the Mac Plus can use each side as an input or output, delivering a reliable and consistent charge to both service and starter batteries.Proven Mastervolt QualityThe Mac Plus uses the proven Mastervolt 3-step+ charge algorithm, delivering a quick and easy charge, even to completely flat batteries. By knowing when the engine is running and providing charge, you can also be sure that the Mac Plus will never drain your starter battery.A robust design holds up in even the harshest conditions, with battery temperature-optimized charging and high-quality aluminum housing to ensure superior protection against dust and water ingress. The power-efficient design also allows the Mac Plus to operate silently and without a fan.Total Power FlexibilityWith a wide DC input range, the Mac Plus allows all DC sources and can charge two batteries from a single alternator or charger. It supports a full range of chemistries and battery types, including lithium. It also functions seamlessly with modern alternators such as Euro 5 and 6, ensuring proper charging by providing constant power, even when the alternator is inactive.Parallel configuration of up to ten units will provide over 100 amperes. And advanced high-frequency technology with modern microprocessors ensures minimal power loss when switching from 36/48V to 12/24V and vice versa.Analog voltage sense ports are also available to compensate for voltage drops and maintain proper charging.Superior Monitoring & ControlCompatibility with CZone®, NMEA 2000®, and MasterBus delivers truly superior monitoring and control and ensures Mac Plus integrates easily into complete systems. Achieve the best performance possible via various controllers and high-quality MOSFETs. And configure the Mac Plus with ease via MasterAdjust, the CZone configuration tool, or even via the on-board DIP switches.Features: Bi-directional technology Get either 48V or 36V power from a single unit Fast and safe charging, even during short trips Fanless design for silent operation Suitable for flooded, Gel, AGM, and Li-Ion batteries (incl. LiFePO4) Even charges fully depleted batteries Engine run detection protects the starter battery Adjustable current limits to meet Euro 5/6 requirements Voltage stabilization protects sensitive equipment, lights, and loads Parallel operation to obtain charging capacities well over 100 Amps MasterBus, CZone, and NMEA 2000 compatible, with intelligent system monitoring and automation Temperature compensation and voltage sense for an optimal charging result E-Mark/R10 certification for mobile applications Power supply mode offers stable power for sensitive loads Heavy-duty connections for easy installation and quick setup via DIP switches General Specifications: Battery Voltage Sense: Yes Status indicator: Yes, 3 color double LED Communication protocol: MasterBus, CZone & NMEA 2000 Output voltage: 30-60 V DC Nominal output voltage: 36/48 V Output voltage stabilization: 2 % at extremes of temps, load, and input Output voltage ripple (peak-peak): Max. 1 % Max. output power: 900 W Max. output current: 15 A Nominal input voltage: 12 V DC Input voltage range: 8-16 V Max. input current: 60 A Galvanic isolation: No Efficiency: > 95 % (at nom. input voltage, full load); 97 % peak Parallel configuration: Yes, up to 4 Alarm contact: Yes, through MasterBus, CZone, DIP Switch, or remote switch Engine run signal input: Yes (active high/active low) DIP switches: Yes, for basic setup Dimensions, hxwxd: 255x165x66 mm, 10.0 x 6.5 x 2.6 inch Weight: 2 kg, 4.4 lb Compliance: CE, E-Mark, SAE J1171, ISO 8846 ignition protected, ABYC & UKCA Technical Specifications: Battery types: Gel, AGM, Lithium Ion, user-defined Power consumption: < 5 mA, < 10 mA in CZone, < 1 mA in MasterBus Temperature range (ambient temp.): - 25 °C to 60 °C; derating > 40 °C/104 °F Cooling: Natural cooling Protection degree: IP23 Protections: Overload, over-temperature, DC short circuit, reversed polarity (fuse) Normalized SKU: 81203205UPC Code: 816882023446Mastervolt 81203205 Literature Download Quick Reference Guide Owners Manual Product BrochureMastervolt 81203205 Video

Download Literature Watch VideoMastervolt 81205205 Battery ChargersMac Plus 24/12-50 + CZoneBoost the Service BatteryToo often, service batteries don’t get the charge they need. This is a problem made worse by smart alternators and start/stop systems, which result in slow and insufficient charges. The Mac Plus DC-DC charger solves this problem, providing a quick, safe, and consistent charge to the service battery. And, by knowing when the engine is running and providing charge, users can be sure that the Mac Plus will never drain a starter battery.Proven Mastervolt QualityUsers get peace of mind knowing that they have the best on board. Using the proven Mastervolt 3-step+ charge algorithm, the Mac Plus delivers a quick and easy charge, even for completely flat batteries.A robust design holds up in even the harshest conditions, with battery temperature-optimized charging and a high-quality aluminum housing to ensure superior protection against dust and water ingress. The power-efficient design also allows the Mac Plus to operate silently and without a fan.Total Power FlexibilityWith a wide DC input range, the Mac Plus allows for all DC sources and can charge two batteries from a single alternator or charger. It supports a full range of chemistries and battery types, including lithium. It also functions seamlessly with modern alternators such as Euro 5 and 6, ensuring proper charging by providing constant power, even when the alternator is inactive.Parallel configuration of up to ten units will provide over 100 amperes. Advanced high-frequency technology with modern microprocessors ensures minimal power loss when switching from 12V to 24V and vice versa.Analog voltage sense ports are also available to compensate for voltage drops and maintain proper charging.Superior Monitoring & ControlCompatibility with CZone®, NMEA 2000®, and MasterBus delivers truly superior monitoring and control and ensures Mac Plus integrates easily into complete systems. Achieve the best performance possible via various controllers and high-quality MOSFETs. And configure the Mac Plus with ease via MasterAdjust, the CZone configuration tool, or even via the on-board DIP switches.Features: Fast and safe charging, even during short trips Fanless design for silent operation Suitable for flooded, Gel, AGM, and Li-Ion batteries (incl. LiFePO4) Even charges fully depleted batteries Engine run detection protects the starter battery Adjustable current limits to meet Euro 5/6 requirements Voltage stabilization protects sensitive equipment, lights, and loads Parallel operation to obtain charging capacities well over 100 Amps MasterBus, CZone, and NMEA 2000 are compatible for intelligent system monitoring and automation Temperature compensation and voltage sense for an optimal charging result E-Mark/R10 certification for mobile applications Power supply mode offers stable power for sensitive loads Heavy-duty connections for easy installation and quick setup via DIP switches Specifications: Battery Temperature Sensor: Yes, included Battery Voltage Sense: Yes General Specifications: Status Indicator: Yes, 3-color LED Communication Protocol: MasterBus, CZone & NMEA 2000 Output Voltage: 10-15 V Nominal Output Voltage: 12 V Output Voltage Stabilization: 2 % at extremes of temperatures, load, and input Output Voltage Ripple (peak-peak): Max. 1 % Max. Output Power: 750 W Nominal Output Power: 710 W Max. Output Current: 50 A Output Charge Current (3-step mode): 50 A Nominal Input Voltage: 24 V Input Voltage Range: 19-30 V Max. Input Current: 30 A Galvanic Isolation: No Voltage Limited: Yes Efficiency: > 95 % (at nom. input voltage, full load); peak 97 Parallel Configuration: Yes Alarm Contact: Yes, through MasterBus MasterBus Powering: No Engine Run Signal Input: Yes (active high/active low) DIP Switches: Yes, for basic setup Dimensions, H x W x D: 255 x 165 x 66 mm (10.0 x 6.5 x 2.6 inch) Weight: 2 kg (4.4 lb) Compliance: CE, E-Mark, SAE J1171 & ISO 8846 Ignition Protected Technical Specifications: No-load Consumption: < 2 mA Charge Characteristic: 3-traps+ Battery Types: Flooded, Gel, AGM, spiral, Lithium Ion, traction, user-defined 3-Step Charge Option: Yes (DIP switch settings) DC Consumption: < 5 mA Connections: 3 x M8 terminal for cable diameters of 10-50 mm², (positive input, positive output, joint negative connection) 8-pole screw connection for cable diameters of 0.75-1.5 mm² (remote on/off, temperature sensor, voltage measurement Temperature Range (ambient temp.): -25 degrees C to 60 degrees C; derating > 40 Cooling: Natural cooling Protection Degree: IP23 Protections: Overload, over temperature, DC short circuit, reversed polarity (fuse) MasterBus Compatible: Yes Normalized SKU: 81205205UPC Code: 816882023514Mastervolt 81205205 Literature Download Owners ManualMastervolt 81205205 Video
