Egis 2500 Battery AccessoriesBattery Switch - Heavy Duty-Series 600A - Off/OnSurface and panel mounting variations allow for flexible installations.Harsh Environment Design with stainless-steel hardware, serrated flange nuts, and high-temperature materials.Ignition Protected safe for installation in closed compartments with potential explosive gases.Features: Robust Construction IP66 Waterproof 32V - Voltage Rating  600A Continuous Current Ignition Protected Normalized SKU: 2500UPC Code: 850067590590

Download LiteratureEgis 8793 Bus Bars3 Hole L Shaped Busbar ConnectorLink Together XD Single, Dual, and Triple XD Relays to multiple sealed fuse blocks or link fuse blocks together for compact installation.Tin-Plated Copper to ensure reliable circuit connectivity and anti-corrosive features keep it last long term.Specifications: Continuous Current (Amps): 500 Max Voltage (Vdc): 72 Material: Tin Plated Copper Size: 90mm x 90mm Thickness: 2.8 mm (1/8") Terminal Stud Hole Size: 10.5mm (3/8") Normalized SKU: 8793UPC Code: 850067590071Egis 8793 Literature Download Quick Reference Guide

Download LiteratureEgis 8794 Bus Bars4 Hole Quad Shaped Busbar ConnectorLink Together XD Single, Dual, and Triple XD Relays to multiple sealed fuse blocks or link fuse blocks together for compact installation.Tin-Plated Copper to ensure reliable circuit connectivity and anti-corrosive features keep it last long term.Specifications: Continuous Current (Amps): 500 Max Voltage (Vdc): 72 Material: Tin Plated Copper Size: 90mm x 90mm Thickness: 2.8 mm (1/8") Terminal Stud Hole Size: 10.5mm (3/8") Normalized SKU: 8794UPC Code: 850067590088Egis 8794 Literature Download Quick Reference Guide

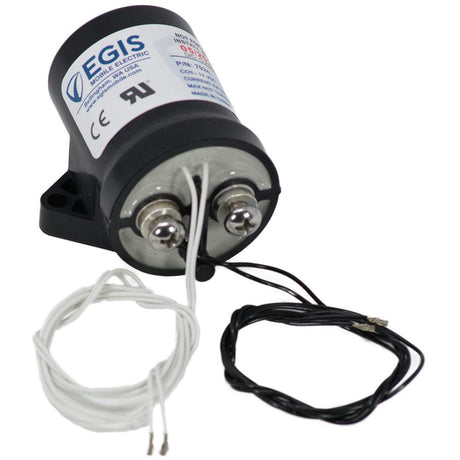

Download LiteratureEgis 7024 ComponentsContactor 100A, 12V with Aux ContactsThis 100A Egis contactor is perfect for reducing installation costs and weight by eliminating large cable runs to manual switches through robust remote switching of high-ampere engines and auxiliary loads. Also, this contactor has a side mount.Applications: Ensure flawless operation for the life of the installation with a hermetically sealed contactor sealed against dust & moisture Intrusion. High Contact Voltage Rating easily supports 12 or 24 Vdc control voltage applications while also supporting higher switching voltage applications up to 48 V and well beyond. Get positive confirmation of the relay on/off state with optional auxiliary contacts that support remote status indication. Features: Ignition is protected and safe for installation in closed compartments with potential explosive gases High Electrical Switching Endurance delivers 6,000 cycles at 100A / 350V and 100,000 cycles at 100A / 14V High Interrupt Current Capability - safely able to open in a locked starter situation (up to 1,250 A @ 14 Vdc) Bullet-proof Construction - sealed device, high-temperature materials for engine compartment applications, and stainless self-locking hardware. 4 Year Industry Leading Warranty   Specifications: Continuous Current (Amps): 100 Operation Control Voltage: 8-16 VDC Ingress Protection: IP67/IP69K Ignition Protection: ISO-8846 / UL 1500 Minimum Operate Temp. (Deg C): -40 C Max Operate Temp. (Deg C): 85 Focal Features:Sealed EnclosureHermetically sealed against dust and moisture penetration. The high temperature rating for all installation locations.18-8 Stainless Steel Self-Locking HardwareIt resists corrosion and ensures long-term connection reliability with premium hardware.Easy MountingReinforced mounting holes provide secure installation and easy attachment for the installer.Remote Status SupportOptional auxiliary contacts that support remote status indication. Normalized SKU: 7024UPC Code: 850035199787Egis 7024 Literature Download Quick Reference Guide Owners Manual

Download LiteratureEgis 7026 ComponentsContactor 100A, 24V with Aux ContactsThis 100A Egis contactor is perfect for reducing installation costs and weight by eliminating large cable runs to manual switches through robust remote switching of high-ampere engines and auxiliary loads. Also, this contactor has a side mount.Applications: Ensure flawless operation for the life of the installation with a hermetically sealed contactor sealed against dust & moisture Intrusion. High Contact Voltage Rating easily supports 12 or 24 Vdc control voltage applications while also supporting higher switching voltage applications up to 48 V and well beyond. Get positive confirmation of the relay on/off state with optional auxiliary contacts that support remote status indication. Features: Ignition is protected and safe for installation in closed compartments with potential explosive gases High Electrical Switching Endurance delivers 6,000 cycles at 100A / 350V,  100,000 cycles at 100A / 14V High Interrupt Current Capability - safely able to open in a locked starter situation (up to 1,250 A @ 14 Vdc) Bullet-proof Construction - sealed device, high-temperature materials for engine compartment applications, and stainless self-locking hardware. 4 Year Industry Leading Warranty   Specifications: Continuous Current (Amps): 100 Operation Control Voltage: 16-28 VDC Ingress Protection: IP67/IP69K Ignition Protection: ISO-8846 / UL 1500 Minimum Operate Temp. (Deg C): -40 C Max Operate Temp. (Deg C): 85 Focal Features:Sealed EnclosureHermetically sealed against dust and moisture penetration. The high temperature rating for all installation locations.18-8 Stainless Steel Self-Locking HardwareIt resists corrosion and ensures long-term connection reliability with premium hardware.Easy MountingReinforced mounting holes provide secure installation and easy attachment for the installer.Remote Status SupportOptional auxiliary contacts that support remote status indication.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 7026UPC Code: 850035199589Egis 7026 Literature Download Quick Reference Guide Owners Manual

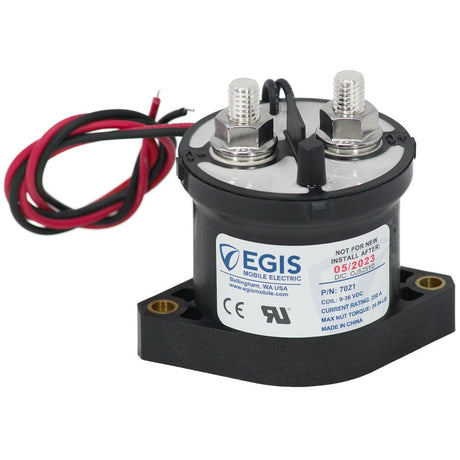

Download LiteratureEgis 7021 ComponentsContactor 250A, 12/24VThis 250A Egis contactor is perfect for reducing installation costs and weight by eliminating large cable runs to manual switches through robust remote switching of high-ampere engines and auxiliary loads.Applications: Ensure flawless operation for the life of the installation with a hermetically sealed contactor sealed against dust & moisture Intrusion. High Contact Voltage Rating easily supports 12 or 24 Vdc control voltage applications while also supporting higher switching voltage applications up to 48 V and well beyond. Features: Ignition is protected and safe for installation in closed compartments with potential explosive gases High Electrical Switching Endurance delivers 6,000 cycles at 250A or 450V and 100,000 cycles at 250A/14V High Interrupt Current Capability - safely able to open in a locked starter situation (up to 1,500 A @ 14 Vdc) Bullet-proof Construction - sealed device, high-temperature materials for engine compartment applications, and stainless self-locking hardware. 4 Year Industry Leading Warranty   Specifications: Continuous Current (Amps): 250/500 Operation Control Voltage: 9-36 VDC Ingress Protection: IP67/IP69K Ignition Protection: ISO-8846 / UL 1500 Electrical Endurance Rating (Cycles): 1,000,000 Minimum Operate Temp. (Deg C): -40 C Max Operate Temp. (Deg C): 85 Focal Features:Sealed EnclosureHermetically sealed against dust and moisture penetration. The high temperature rating for all installation locations.18-8 Stainless Steel Self-Locking HardwareResists corrosion and ensures long-term connection reliability with premium hardware.High Interrupt CapabilitySafely able to open in a locked starter situation up to 1,500 A @14 Vdc.Easy MountingReinforced mounting holes provide secure installation and easy attachment for the installer. Normalized SKU: 7021UPC Code: 850035199671Egis 7021 Literature Download Quick Reference Guide Owners Manual

Download LiteratureEgis 8720-1390 RelaysXD Series Dual Flex 2 (ACR-Mech Only) with Knobs - Flying WiresFeatures Replaces Two Individual High Amp Relays with One Compact Module reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into.. Designed to Replicate Common Multi-Battery Switching and Charge Management Functions:  Common dual battery load switching via the outer relays and a central automatic charging relay to share charge current is easily implemented. Multiple Automatic Charging Relay (ACR) Into One Device: For 2-3 Battery Systems that require 1 or 2 ACRs, a single three-relay ACR provides a drastic improvement in off-state quiescent current draw, space used, and reduces unnecessary interconnection cables. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories. Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.  35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Plug & Play Compatible with Legacy Competitor Products:   Single, dual, and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays. 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality Specifications: Total Continuous Current Amps: 500 Max Cranking Current (Amps): 1500 Mechanical Switching Life: 1,000,000 Cycles Voltage Range (VDC): 8-36 Off-State Current Draw (mA): 1.3 State Change Current: 5A @ 12 VDC; 3A @ 24 VDC Focal Features:LED Status DisplayEasy to see front facing LED indicator provides visual device status, remote LED replicates local on-device LED3-Position Manual OverrideForce each individual relay Open or Closed and optionally leave knob in either position to lock relay in either condition. 40 Circuit Label Sheet IncludedConvenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications.Protective Cover IncludedProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.Stainless HardwareCorrosion is no issue with quality stainless steel studs and self locking flanged nuts.ProgrammableVia dip switches located under protective cover. An easy to use configuration guide on reverse make custom settings a breeze to configure for a wide variety of applications.Smaller FootprintXD Relays offers high Amp rating in a smaller package than competitive solutions, reducing install space requirements to a minimum.Integrated VentHigh quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments. Normalized SKU: 87201390UPC Code: 850053879494Egis 8720-1390 Literature Download Quick Reference Guide

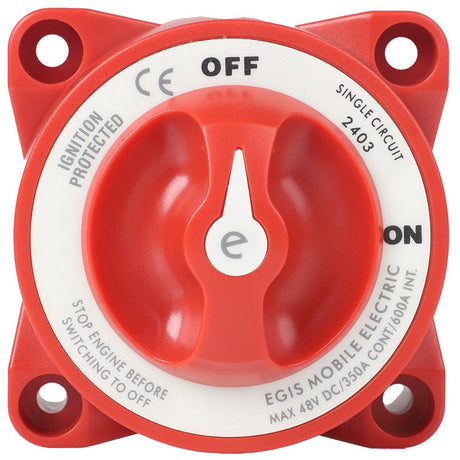

Download LiteratureEgis 2403 Battery AccessoriesE-Series 350A Battery Switch Off/OnSealed Against Dust & Water Intrusion - To ensure reliable circuit protection for the life of the electrical system installation.Ignition Protected - Safe for installation in closed compartments with potential explosive gases.Serrated Flange Lock Nuts - Improves resistance to cable terminal loosening in high-vibration environments.Flexible Mounting Options - Allow for multiple mounting configurations and a variety of installation types.Harsh Environment Design - With stainless steel hardware, serrated flange nuts, and high-temperature materials.Specifications: Maximum Voltage (Single Circuit): 48 Vdc Maximum Voltage (Selector / Dual Circuit): 32 Vdc Stud Size And Thread: 3/8”-16 Terminal Stud Torque: 140 in-lbs (15.8 N-m) Ring Terminal Size Acceptance: 3/8” (M10) Mounting Holes: #1/4" (M6) Screw Live Switching Rating: 25 Amps Ignition Protection Rating: SAE J1171 / ISO 8846 Bulkhead / Panel - Mounting Hole Size: 3-5/8" Diameter Cable Size to Meet Rating: 4/0 AWG Normalized SKU: 2403UPC Code: 850067590569Egis 2403 Literature Download Quick Reference Guide

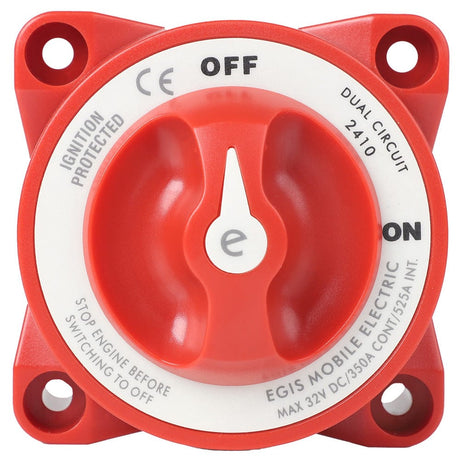

Download LiteratureEgis 2410 Battery AccessoriesE-Series 350A Dual Circuit Battery Switch Off/OnSealed Against Dust & Water Intrusion - To ensure reliable circuit protection for the life of the electrical system installation.Ignition Protected - Safe for installation in closed compartments with potential explosive gases.Serrated Flange Lock Nuts - Improves resistance to cable terminal loosening in high-vibration environments.Flexible Mounting Options - Allow for multiple mounting configurations and a variety of installation types.Harsh Environment Design - With stainless steel hardware, serrated flange nuts, and high-temperature materials.Specifications: Maximum Voltage (Single Circuit): 48 Vdc Maximum Voltage (Selector / Dual Circuit): 32 Vdc Stud Size And Thread: 3/8”-16 Terminal Stud Torque: 140 in-lbs (15.8 N-m) Ring Terminal Size Acceptance: 3/8” (M10) Mounting Holes: #1/4" (M6) Screw Live Switching Rating: 25 Amps Ignition Protection Rating: SAE J1171 / ISO 8846 Bulkhead / Panel - Mounting Hole Size: 3-5/8" Diameter Cable Size to Meet Rating: 4/0 AWG Normalized SKU: 2410UPC Code: 850067590576Egis 2410 Literature Download Quick Reference Guide

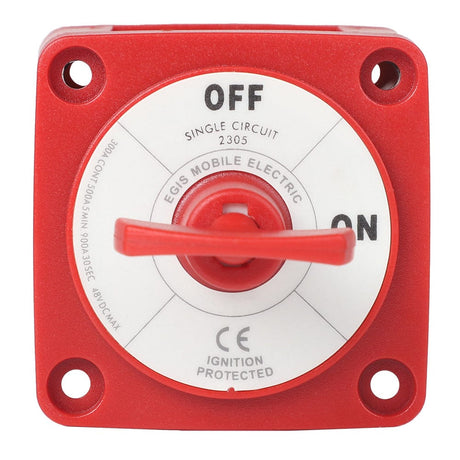

Download LiteratureEgis 2305 Battery AccessoriesM-Series 300A Battery Switch Off/On Key ActuatorSealed Against Dust & Water Intrusion - To ensure reliable circuit protection for the life of the electrical system installation.Ignition Protected - Safe for installation in closed compartments with potential explosive gases.Serrated Flange Lock Nuts - Improves resistance to cable terminal loosening in high-vibration environments.Flexible Mounting Options - Allow for multiple mounting configurations and a variety of installation types.Harsh Environment Design - With stainless steel hardware, serrated flange nuts, and high-temperature materials.Specifications: Maximum Voltage (Single Circuit): 48 Vdc Maximum Voltage (Selector / Dual Circuit): 32 Vdc Stud Size And Thread: 3/8”-16 Terminal Stud Torque: 120 in-lbs (13.6 N-m) Ring Terminal Size Acceptance: 3/8” (M10) Mounting Holes: #10 Screw Live Switching Rating: 25 Amps Ignition Protection Rating: SAE J1171 / ISO 8846 Bulkhead / Panel - Mounting Hole Size: 2-5/8" / 2-5/16" Cable Size to Meet Rating: 4/0 AWG Normalized SKU: 2305UPC Code: 850067590491Egis 2305 Literature Download Quick Reference Guide

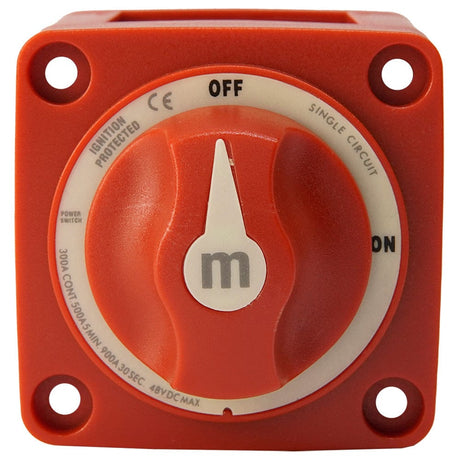

Download LiteratureEgis 2306 Battery AccessoriesM-Series 300A Battery Switch Off/On Knob ActuatorSealed Against Dust & Water Intrusion - To ensure reliable circuit protection for the life of the electrical system installation.Ignition Protected - Safe for installation in closed compartments with potential explosive gases.Serrated Flange Lock Nuts - Improves resistance to cable terminal loosening in high-vibration environments.Flexible Mounting Options - Allow for multiple mounting configurations and a variety of installation types.Harsh Environment Design - With stainless steel hardware, serrated flange nuts, and high-temperature materials.Specifications: Maximum Voltage (Single Circuit): 48 Vdc Maximum Voltage (Selector / Dual Circuit): 32 Vdc Stud Size And Thread: 3/8”-16 Terminal Stud Torque: 120 in-lbs (13.6 N-m) Ring Terminal Size Acceptance: 3/8” (M10) Mounting Holes: #10 Screw Live Switching Rating: 25 Amps Ignition Protection Rating: SAE J1171 / ISO 8846 Bulkhead / Panel - Mounting Hole Size: 2-5/8" / 2-5/16" Cable Size to Meet Rating: 4/0 AWG Normalized SKU: 2306UPC Code: 850067590507Egis 2306 Literature Download Quick Reference Guide

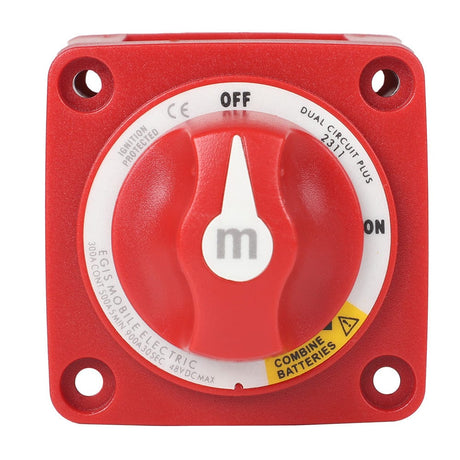

Download LiteratureEgis 2311 Battery AccessoriesM-Series 300A Dual Circuit Battery Switch with Combine Battery SwitchSealed Against Dust & Water Intrusion - To ensure reliable circuit protection for the life of the electrical system installation.Ignition Protected - Safe for installation in closed compartments with potential explosive gases.Serrated Flange Lock Nuts - Improves resistance to cable terminal loosening in high-vibration environments.Flexible Mounting Options - Allow for multiple mounting configurations and a variety of installation types.Harsh Environment Design - With stainless steel hardware, serrated flange nuts, and high-temperature materials.Specifications: Maximum Voltage (Single Circuit): 48 Vdc Maximum Voltage (Selector / Dual Circuit): 32 Vdc Stud Size And Thread: 3/8”-16 Terminal Stud Torque: 120 in-lbs (13.6 N-m) Ring Terminal Size Acceptance: 3/8” (M10) Mounting Holes: #10 Screw Live Switching Rating: 25 Amps Ignition Protection Rating: SAE J1171 / ISO 8846 Bulkhead / Panel - Mounting Hole Size: 2-5/8" / 2-5/16" Cable Size to Meet Rating: 4/0 AWG Normalized SKU: 2311UPC Code: 850067590538Egis 2311 Literature Download Quick Reference Guide

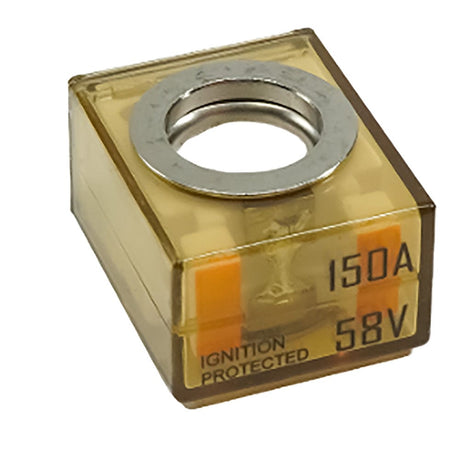

Download LiteratureEgis 3603-150 Fuses & Fuse PanelsMRBF Terminal Fuse - 150 Amp Transparent easy visual of fuse status Ignition-protected SAE/J1171-ISO8846 High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks Color-coded for easy ID of amperage rating Features: Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems. Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation 58 Vdc Rating: easily supports 12 to 48V nominal applications. High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty: We stand behind our product's ability to meet your needs. Specifications: Continuous Current (Amps): 150 Max Voltage (VDC): 58 Interrupt Rating @ 14 VDC (Amps): 10,000 Interrupt Rating @ 48Vdc (Amps): 5,000 Interrupt Rating @ 58Vdc (Amps): 2,000 Ingress Protection: IP66 Normalized SKU: 3603150UPC Code: 850053879630Egis 3603-150 Literature Download Quick Reference Guide

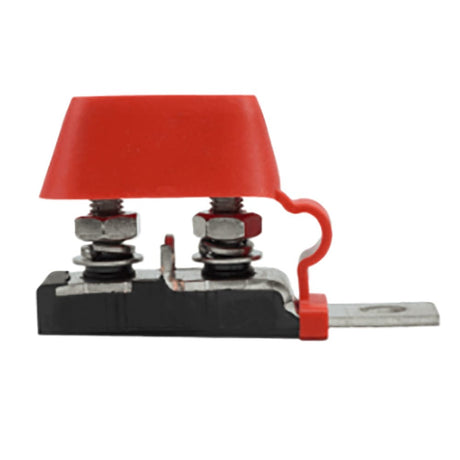

Download LiteratureEgis 3602 Terminal BlocksMRBF Dual Output Terminal Block - 30-300 AmpFeatures: Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction. Ignition Protected When Used With Egis Mobile Electric MRBF Fuses safe for installation in closed compartments with potential explosive gases. Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems. Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation  58 Vdc Rating: easily supports 12 to 48V nominal applications. 4-Year Warranty: We stand behind our product's ability to meet your needs. Specifications: Continuous Current (Amps): 30-300A Stud Size: M8 (5/16") Mounting Hole Size: M10 (3/8") Interrupt Rating @ 48 Vdc (Amps): 5,000 Interrupt Rating @ 58Vdc (Amps): 2,000 Ingress Protection: IP66 Normalized SKU: 3602UPC Code: 850053879531Egis 3602 Literature Download Quick Reference Guide

Download LiteratureEgis 3603-100 Fuses & Fuse PanelsMRBF Terminal Fuse - 100 Amp Transparent easy visual of fuse status Ignition-protected SAE/J1171-ISO8846 High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks Color-coded for easy ID of amperage rating Features: Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems. Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation 58 Vdc Rating: easily supports 12 to 48V nominal applications. High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty: We stand behind our product's ability to meet your needs. Specifications: Continuous Current (Amps): 100 Max Voltage (VDC): 58 Interrupt Rating @ 14 VDC (Amps): 10,000 Interrupt Rating @ 48Vdc (Amps): 5,000 Interrupt Rating @ 58Vdc (Amps): 2,000 Ingress Protection: IP66 Normalized SKU: 3603100UPC Code: 850053879616Egis 3603-100 Literature Download Quick Reference Guide

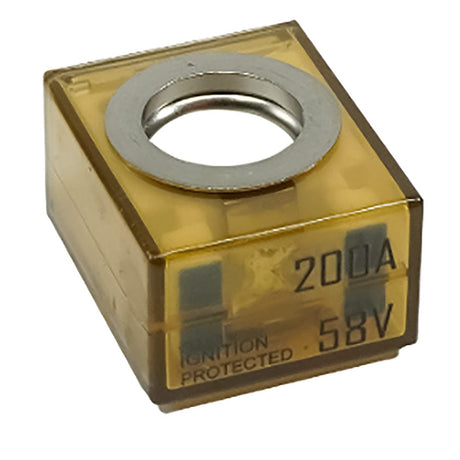

Download LiteratureEgis 3603-200 Fuses & Fuse PanelsMRBF Terminal Fuse - 200 Amp Transparent easy visual of fuse status Ignition-protected SAE/J1171-ISO8846 High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks Color-coded for easy ID of amperage rating Features Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems. Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation 58 Vdc Rating: easily supports 12 to 48V nominal applications. High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty: We stand behind our product's ability to meet your needs. Specifications: Continuous Current (Amps): 200 Max Voltage (VDC): 58 Interrupt Rating @ 14 VDC (Amps): 10,000 Interrupt Rating @ 48Vdc (Amps): 5,000 Interrupt Rating @ 58Vdc (Amps): 2,000 Ingress Protection: IP66 Normalized SKU: 3603200UPC Code: 850053879654Egis 3603-200 Literature Download Quick Reference Guide
