Download LiteratureVDO B00171201 Gauges85mm (3-3/8") VMH-35D Diesel Multifunction Gauge - NMEA2000 Certified (12-24V)The VMH 35-D is the perfect standalone solution for monitoring your diesel engine. With a configurable dial scale of 3000 or 4000 RPM, the VMH 35-D is a compact display capable of showing a wide amount of data from your engine, battery, tank, and GPS.Specific information about your diesel engine is provided with alarms, either received from the SAE J1939 bus or locally set through the embedded menu. Both 12V and 24V systems are supported, and EasyLink connectivity allows your dashboard to be expanded with additional VMH 14 satellite displays to keep your sensitive data under control.The Veratron VMH 35 is designed with a mineral glass front that's optically bonded to the sun-readable hybrid display. A sleek brushed stainless steel bezel surrounds the device and fits into classic and modern marine décors.The embedded NMEA 2000 gateway distributes sensor data inputs such as fuel, trim, and tachometer to other devices like chartplotters, saving the need for an additional external converter.Powered by the latest microprocessor, the Veratron VMH 35 is blazingly fast. Yet even when set at full brightness, it draws a mere 170mA of power—a fraction of what comparably-sized TFT screens use.Features: Analog Inputs - 2x resistive / 2x frequency Digital Inputs - 1x SAE J1939 - 1x NMEA 2000  Nominal Voltage - 12/24v Operating Voltage - 9-32v Current Consumption - ≤150mA (normal mode) Protection Class - IP X7 Dimensions - 4" (outer) 3-3/8" (mounting hole) Front Ring - Brushed stainless steel Front Lens - Mineral glass Display - Color IBN + 1.44" TFT optically bonded  Connectors - Molex MX-150 12 pins / DeviceNet M12 5 pins NMEA 2000 certified with embedded analog gateway Normalized SKU: B00171201UPC Code: 7640190290473VDO B00171201 Literature Download Quick Reference Guide Owners Manual Product Brochure

Download LiteratureVDO B00143501 Gauges85mm (3-3/8") VMH-35S Multifunction Gauge wtih Voltage Dependent (0-5V) Sensor InputThe ideal solution for your outboard engine monitoring. Digital sun-readable display with analog inputs and NMEA 2000 converter, the VMH 35-S embeds a high-performance GNSS receiver which makes it the perfect solution for your boat cockpit.The first in its new VMH line of premium marine gauges, the Veratron VMH 35-S is engineered for single inboard or outboard engine applications.Powered by the latest microprocessor, the Veratron VMH 35-S is blazingly fast. Yet even when set at full brightness, it draws a mere 170mA of power—a fraction of what comparably-sized TFT screens use.The VMH 35-S has the capacity to provide 30 types of data including engine, EcoMode pop-up screen, RPMs up to 8000 with a programmable overspeed alarm, tank levels, battery status, GPS, and vessel information. It's easily configured using the embedded on-screen menu and soft-touch buttons.Features: Integrated high-performance GNSS receiver Intelligent Battery Sensor (IBS) port Analog inputs: 1x Resistive /1x 0-5 V / 1x Frequency Stylish black-glass design with brushed stainless-steel ring Front ring: Brushed stainless steel Front lens: Mineral glass Display: Color IBN + 1.44" TFT optically bonded Connectors: Molex MX-150 12 pins / DeviceNet M12 5 pins NMEA 2000 certified with embedded analog gateway Connectivity: NMEA 2000, LIN, EasyLink Technical Specifications: Nominal voltage: 12V Operating voltage: 9-16V Current consumption: ≤ 150 mA (normal mode) Protection class: IP X7 Dimensions: 100 mm (outer) and 85 mm (mounting hole) Normalized SKU: B00143501UPC Code: 7640190290206VDO B00143501 Literature Download Quick Reference Guide Owners Manual

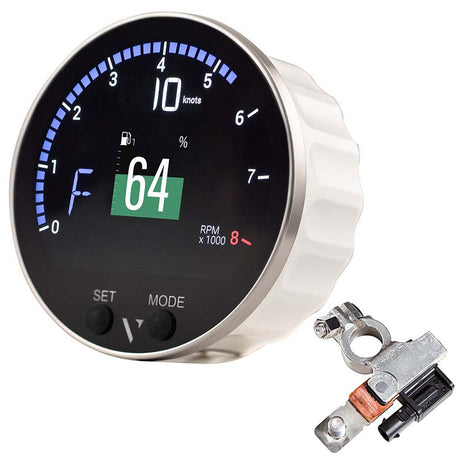

Download LiteratureVDO B00143502 Gauges85mm (3-3/8") VMH-35S Multifunction Gauge with Voltage Dependent (0-5V) Sensor Input & Battery SensorThe first in its new VMH line of premium marine gauges, the Veratron VMH 35-S was engineered for single inboard or outboard engine applications. The elegant black-glass design displays a wealth of critical boat system data, in a compact package that's perfect for dashboards, consoles, and bulkheads on smaller vessels with limited space.The Veratron VMH 35-S has an embedded NMEA 2000 gateway that distributes sensor data inputs such as fuel, trim, and tachometer to other devices like chartplotters. This saves the need for an additional external converter. Highly adaptable to a wide range of onboard networks, it's equipped with analog inputs, making it ideal for refitting with older engines. An integrated GPS makes the VMH 35-S the perfect standalone navigation solution. It integrates speed, compass, and position into the engine data information. A dedicated Veratron IBS (Intelligent Battery System) input can provide critical 12V battery monitoring capabilities.The Veratron VMH 35-S has a mineral glass front that's optically bonded to the sun-readable hybrid display. A sleek brushed stainless steel bezel surrounds the device and fits into classic and modern marine décors. Because small boat consoles are often fully exposed, the round display is waterproof to IPX7 criteria, both front and back. It fits a standard 85mm (3-3/8’’) panel cutout size.Powered by the latest microprocessor, the Veratron VMH 35-S is blazingly fast. Yet even when set at full brightness, it draws a mere 170mA of power—a fraction of what a comparably-sized TFT screen uses.The VMH 35-S has the capacity to provide 30 types of data including engine, EcoMode pop-up screen, RPMs up to 8'000 with a programmable overspeed alarm, tank levels, battery status, GPS, and vessel information. It's easily configured using the embedded on-screen menu and soft-touch buttons.Features: Integrated high-performance GNSS receiverIntelligent Battery Sensor (IBS) port Analog inputs: 1x 0-5V / 1x resistive / 1x frequency Stylish black-glass design with brushed stainless-steel ring Front ring: Brushed stainless steel Front lens: Mineral glass Display: Color IBN + 1.44" TFT optically bonded Connectors: Molex MX-150 12 pins / DeviceNet M12 5 pinsNMEA 2000 certified with embedded analog gateway Technical Specifications: Nominal voltage: 12V Operating voltage: 9-16V Current consumption: ≤ 150 mA (normal mode) Protection class: IP X7 Dimensions: 100 mm (outer) and 85 mm (mounting hole)Cable lengths: 6m Normalized SKU: B00143502UPC Code: 7640190290435VDO B00143502 Literature Download Quick Reference Guide Owners Manual

Download LiteratureVDO B00143601 Gauges85mm (3-3/8") VMH-35S Multifunction Gauge with Voltage Dependent (0-5V) Sensor Input without GPSThe ideal solution for your outboard engine monitoring. Digital sun-readable display with analog inputs and NMEA 2000 converter.The first in its new VMH line of premium marine gauges, the Veratron VMH 35-S is engineered for single inboard or outboard engine applications.Powered by the latest microprocessor, the Veratron VMH 35-S is blazingly fast. Yet even when set at full brightness, it draws a mere 170mA of power—a fraction of what comparably-sized TFT screens use.The VMH 35-S has the capacity to provide 30 types of data including engine, EcoMode pop-up screen, RPMs up to 8000 with a programmable overspeed alarm, tank levels, battery status, and vessel information. It's easily configured using the embedded on-screen menu and soft-touch buttons.Features: Intelligent Battery Sensor (IBS) port Analog inputs: 1x Resistive /1x 0-5 V / 1x Frequency Stylish black-glass design with brushed stainless-steel ring Front ring: Brushed stainless steel Front lens: Mineral glass Display: Color IBN + 1.44" TFT optically bonded Connectors: Molex MX-150 12 pins / DeviceNet M12 5 pins NMEA 2000 certified with embedded analog gateway Technical Specifications: Nominal voltage: 12V Operating voltage: 9-16V Current consumption: ≤ 150 mA (normal mode) Protection class: IP X7 Dimensions: 100 mm (outer) and 85 mm (mounting hole) Normalized SKU: B00143601UPC Code: 7640190290213VDO B00143601 Literature Download Quick Reference Guide Owners Manual

Download LiteratureVDO B002005 Senders & AccessoriesEngine Oil Temperature Sensor - M14x1.5 Thread - 150°C Temp RangeThese resistive temperature sensors are built in a housing of brass. All sensors come with a sensor output and an insulated ground pin. The two connections are interfaced through the metal plate connectors. The sensors can be applied in a wide field of applications.Features: Function - Oil temperature, coolant temperature Length - 28.5mm (1-1/8") Thread - M14x1.5 Calibration - 150°C Measurement Range - 150°C Output Signals - Resistive IP67 Insulated ground pin Normalized SKU: B002005VDO B002005 Literature Download Quick Reference Guide Owners Manual

� Download LiteratureVDO A2C1767000001 Senders & AccessoriesEngineBox - Double EngineThe EngineBox expands the possibilities of the NavBox for multi-engine applications or can be used as stand-alone when navigation information is not required. The EngineBox has a NMEA 2000® and a J1939 CAN port. The EngineBox can also be used on older, completely analog engines, thanks to the analog input ports provided and designed for RPM data, resistive sensors and capacitive sensors. The EngineBox has to be set up using an intuitive PC configuration tool making it easy for programming the inputs (delivered free of charge). Thanks to the ISO 8846:1990 compliance, the EngineBox is also designed to be installed in engine compartments.Features: Analog to NMEA 2000® gateway  J1939 to NMEA 2000® gateway  2 Models for single engine and dual engine configurations  Compact design  Status LED  Operating temperature range -40°C/+85°C Technical Specifications:  1x J1939 (2x J1939 Dual Engine)  1x M12 5 pins NMEA 2000®  1x Input 0–4 kHz for RPM (2 inputs with Dual Engine Model)  4x Inputs 0–400 Ohm (up to 8 inputs with Dual Engine Model)  2x Inputs 4–20 mA  1x Input 0–5 V (2 inputs with Dual Engine Model) In the Box: Engine Cable Cable Harness Safety Instructions *Sold as an Individual  Specifications:Gauge Size = N/A Box Set = No Voltage - Input Range (Volts) = 8 to 16 VDC Gauge Type = MultifunctionNormalized SKU: A2C1767000001UPC Code: 7640178724433VDO A2C1767000001 Literature Download� Product Brochure

Download LiteratureVDO A2C1824820001 Senders & AccessoriesEngineBox - Single EngineThe EngineBox expands the possibilities of the NavBox for multi-engine applications or can be used as stand-alone when navigation information is not required. The EngineBox has a NMEA 2000® and a J1939 CAN port. The EngineBox can also be used on older, completely analog engines, thanks to the analog input ports provided and designed for RPM data, resistive sensors and capacitive sensors. The EngineBox has to be set up using an intuitive PC configuration tool making it easy for programming the inputs (delivered free of charge). Thanks to the ISO 8846:1990 compliance, the EngineBox is also designed to be installed in engine compartments.Features: Analog to NMEA 2000® gateway  J1939 to NMEA 2000® gateway  2 Models for single engine and dual engine configurations  Compact design  Status LED  Operating temperature range -40°C/+85°C Technical Specifications: 1x J1939 (2x J1939 Dual Engine)  1x M12 5 pins NMEA 2000®  1x Input 0–4 kHz for RPM (2 inputs with Dual Engine Model)  4x Inputs 0–400 Ohm (up to 8 inputs with Dual Engine Model)  2x Inputs 4–20 mA  1x Input 0–5 V (2 inputs with Dual Engine Model) In the Box: Engine Cable Cable Harness Safety Instructions *Sold as an Individual  Normalized SKU: A2C1824820001UPC Code: 7640178724426VDO A2C1824820001 Literature Download Product Brochure

VDO B00041601 GaugesGO DATA - WhiteAll your boat’s data close to your fingertips. Veratron GO is NMEA 2000® certified and features an integrated GPS/GLONASS/GALILEO receiver. Compact and easy to install, it does not require any additional protection against harsh weather conditions. The GO Plus variant integrates a Bluetooth 5.1 Low Energy interface allowing the visualization of boat data on your portable devices, such as smartphone or tablet. The DATA variant provides you with Bluetooth. Normalized SKU: B00041601

Download Literature Watch VideoVDO B00041701 Navigational InstrumentsGO GPS PLUS ReceiverAll your boat’s data is close to your fingertips. Veratron GO is NMEA 2000® certified and features an integrated GPS/GLONASS/GALILEO receiver. Compact and easy to install, it does not require any additional protection against harsh weather conditions.  One of the smallest GPS receivers available.The Veratron GO GPS Receiver works in conjunction with the Veratron Go Data.The "Plus+" variant expands the device with a Bluetooth Low Energy interface which allows you to visualize all the vessel data on your portable devices like smartphones or tablets.Features: 72 channel receiver Fast cold-start position fix Compatible with OceanLink 52MM Bezels  10Hz update rate Up to 3 concurrent GNSS systems (GPS, GLONASS, and GALILEO) SBAS – WAAS/EGNOS/MSAS/GAGAN supported NMEA 2000 standard PGNs transmitted for position, time, speed, and heading Front-end SAW band-pass filter for enhanced immunity against electrical noise Interchangeable bezel option Technical Specifications: Update Rate: Up to 10Hz  using concurrent GNSS, up to 18Hz using single GNSS Position Fix Time: 26 second  cold-start, 1 second hot start Tracking Sensitivity:  -165dBm Position Accuracy: 2.5m Velocity Accuracy: 0.05m/s Heading Accuracy: 0.3° Water Resistance: IPX7 Dimensions (D x H): 60.7 mm x 18.9 mm Power Source: NMEA 2000 backbone (12V nominal voltage), no external power supply required Power Consumption: 100mA (2 LEN) operational, 150mA (3 LEN) during startup In the Box: GO GPS Plus Receiver Instructions Manual  *Sold as an Individual Normalized SKU: B00041701UPC Code: 7640178729445VDO B00041701 Literature Download Product BrochureVDO B00041701 Video

Watch VideoVDO A2C17593300 Senders & AccessoriesInstallation Kit for Deep-Pipe Level SensorsReplacement kit for parts sold with Deep-Pipe Level Sensors.In the Box: Stainless Steel Top Flange Bottom Threaded Flange Rubber Gasket x 2 Washers x 5 Screws x 5 *Sold as an Individual Normalized SKU: A2C17593300UPC Code: 7640178727311VDO A2C17593300 Video

VDO B00084201 Charger AccessoriesIntelligent Battery Sensor 12V - 500AAfter the simple electrical and mechanical integration, the sensor accurately measures the battery voltage, current, and temperature parameters and internally calculates the State Of Charge, State Of Health, and Time Remaining accordingly.Technical Specifications: Operating Voltage - 6-16.5V Operating Current (Permanent) -  ± 155A Max Current - ± 1500A (500 ms) Power Consumption - ≤ 15 mA (normal mode), ≤ 120 μA (sleep mode) Max Battery Capacity - 249 Ah Operating Temperature - -40°C to 155°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: B00084201UPC Code: 7640178729704

Watch VideoVDO B00043901 Charger AccessoriesLink Up - Intelligent Battery Sensor (IBS) Batteries are essential for engine starting and operating onboard utilities.  With Veratron’s new Intelligent Battery Sensor (IBS), it’s simple to monitor their status and health in real-time.  Veratron’s Intelligent Battery Sensor (IBS) measures vital battery parameters: voltage, current and temperature, as well as state of charge, health and function.  All these parameters will be available via NMEA2000.  This provides the essential information needed to plan energy usage aboard and be aware of potential problems.The IBS system monitors a single battery or full bank.  Multiple LinkUp kits can be used to provide data specific to house, starter and system-specific supplies.  It works with 12V starter, gel or AGM battery types.  The IBS simply clamps onto the negative pole terminal.  Features: NMEA 2000® certified Plug-and-Play installation and configuration Input Signal - LIN bus Nominal Voltage - 12V *Sold as an Individual Specifications:Diameter (Inches) = N/A Diameter (mm) = N/ANormalized SKU: B00043901UPC Code: 7640178729537VDO B00043901 Video

Watch VideoVDO B00042501 Charger AccessoriesLink Up - Intelligent Battery Sensor (IBS) KitBatteries are essential for engine starting and operating onboard utilities.  With Veratron’s new Intelligent Battery Sensor (IBS), it’s simple to monitor their status and health in real-time.  The system works with any OceanLink, AcquaLink or NMEA 2000-networked display, and is compatible with the latest glass cockpit systems.The system includes a Veratron LinkUp Gateway Module that enables the Intelligent Battery Sensor to be connected to and compatible with the NMEA 2000 network.  Its internal galvanic isolation decouples the backbone power from the LinkUp power supply, per NMEA requirement.Veratron’s Intelligent Battery Sensor (IBS) measures vital battery parameters: voltage, current and temperature, as well as state of charge, health and function. This provides the essential information needed to plan energy usage aboard and be aware of potential problems.The IBS system monitors a single battery or full bank.  Multiple LinkUp kits can be used to provide data specific to house, starter and system-specific supplies.  It works with 12V starter, gel or AGM battery types.The IBS simply clamps onto the negative pole terminal.  Completely sealed, it has a watertight 3A inline fuse within the housing.  This connects to the NMEA 2000 backbone through the innovative LinkUp Gateway Module and enables Veratron’s numerous sensors to communicate with the network.Configuring a LinkUp gateway is simple using a mobile device and the companion Veratron app available from the App Store and Google Play.  Each module has a built-in passive wireless antenna. The parameters of the sensor are configured to type, instance and warning threshold on the mobile device and then tapped against the LinkUp device for instant data download.Alternatively, LinkUp devices can be configured via NMEA 2000 with the PC Configuration Tool. This method additionally allows for real-time reading of the analog signal. An LED on the device will illuminate, notifying the user that the LinkUp is being configured.*Includes sensor and Link Up Gateway.Features: NMEA 2000® certified Wireless configuration through companion mobile App Status LED Plug-and-Play installation and configuration Input Signal - LIN bus Nominal Voltage - 12V Specifications:Gauge Size = N/A Gauge Type = Battery Condition Series = Link Up Voltage - Input Range (Volts) = 12V Box Set = NoNormalized SKU: B00042501UPC Code: 7640178729520VDO B00042501 Video
