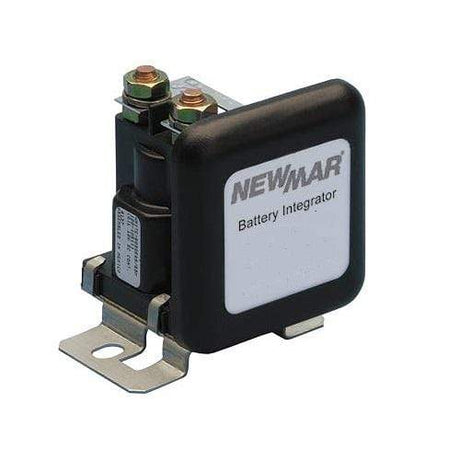

Newmar BI-24-100 Battery AccessoriesUse of multiple battery banks dictates that the batteries be connected or "integrated" only whenever a charge voltage is present so that they may be charged simultaneously, then disconnected or "isolated" when in use to allow for selective discharge and avoid having the secondary or standby battery drain into the primary battery. The new Battery Integrator performs this function automatically, acting as a "smart" switch to connect independent battery banks only when a charging voltage is present. Otherwise, they are isolated, and discharge between banks is prevented. The traditional rugged and reliable diode isolator can also be used for this function, as it also maintains isolation between banks and allows charging from multiple sources. However, one drawback is inefficiency when voltage is lost as current passes through the diodes, resulting in undercharge if the charging source does not compensate for the voltage drop. The Battery Integrator remedies this by use of an extremely low resistance contactor which causes no voltage drop in the charging system, while the multiple batteries are charged as a single bank whenever a charging source of approximately 13.2 VDC or 26.4 VDC or greater is present (depending on model). When the alternator or charger is off or a large load causes the voltage to drop below the disconnect point the unit breaks the common tie between the banks. This allows selective battery discharge and prevents "dumping" of a higher-charged bank into a lower-charged bank. The unit may also be activated through the key starter or a manual switch to provide an added "boost" from the secondary battery whenever the starter is engaged and the unit senses there is sufficient voltage in that battery to provide an assist. For systems with more than two banks, an additional unit may be installed for each additional bank to provide the same isolation and integration as described above. The Battery Integrator is ideal for multiplying the single charging output of an inverter-charger to maintain both the house bank and an engine start bank, then to isolate them during inverter function, so current is drawn from the house bank only. Features Enables charging of two separate banks without voltage drop, yet maintains 100% isolation at all other times. For systems of three banks or more, an additional unit may be installed for each additional bank Heavy duty silver-plated contactor, continuous duty rated to 100 amps Voltage sense circuit, epoxy encapsulated and heavy duty continuous rated solenoid are all designed for use in marine environments Easy-to-install: compact size - may be mounted with any orientation Easy three-wire hook up for two bank systems (BATT +, BATT +, GROUND) Terminal for optional wiring of remote light indicating when battery banks are integrated Optional internal connection can be wired though key starter or manual over ride switch, tying battery banks together for extra boost during engine start Normalized SKU: BI24100

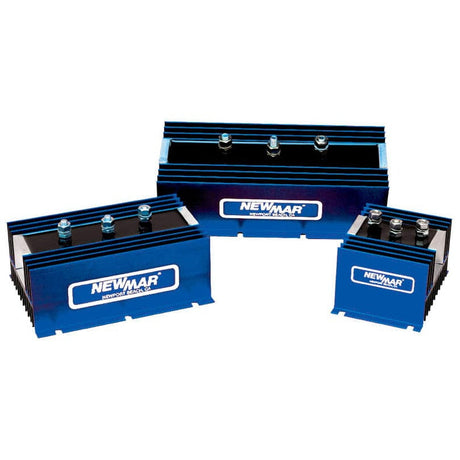

Newmar 1-3-165 Battery Isolators"Newmar 1-3-165 Battery IsolatorModel: 1-3-165 Heavy duty construction Rated for systems up to 48 volts DC, negative ground Rust-proof anodized aluminum case Stainless steel mounting hardware provided Protective covers provided for terminals These heavy duty isolators allow charging multiple batteries automatically from one or two alternators, and prevent discharge or ‘dumping" of one battery into another. Each battery is charged according to its need without overcharging, rated for 12, 24, or 36 volt, negative ground DC systems.Note: This battery isolator is not compatible with self-exciting alternators. The alternator must have an external excitation lead. Please consult the manufacturer of your alternator if you are unsure of your configurationSpecifications Alternator Sources 1 Battery Bank 3 Max. Amperage Input Capacity 165 Operating Temperature -40 to +80° Duty Cycle Continuous rating to 50° C Derate linearly to 70% @ 80° C Temp. Rise 5° C at full rated current (mount vertically for optimum cooling) Voltage Drop 0.7V @ 50% load, 0.9V @ full load "Normalized SKU: 13165

Newmar 1-3-70 Battery Isolators1-3-70 Battery IsolatorThis heavy-duty isolator allows charging multiple batteries automatically from one or two alternators and prevents the discharge or ‘dumping” of one battery into another. Each battery is charged according to its need without overcharging and is rated for 12-, 24-, or 36-volt negative ground DC systems. Features: Conservatively rated diodes and a rustproof anodized aluminum heat sink case. Heavy-duty construction Rated for systems up to 48 volts DC, negative ground Rust-proof anodized aluminum case Stainless steel mounting hardware is provided Protective covers are provided for terminals Specifications: Alternator Sources: 1 Battery Bank: 3     Max. Amperage Input Capacity: 70 Stud Terminal Size: 6mm     Dimensions (L x W x H): 3.25 x 4.5 x 3.1 inches Weight: 2 lbs. Operating Temperature: -40 to +80 degrees Duty Cycle: Continuous rating to 50 degrees C Derate linearly to 70% @ 80 degrees C. Temp. Rise: 5 degrees C at full rated current (mount vertically for optimum cooling) Voltage Drop: 0.7V @ 50% load, 0.9V @ full load *Note: These battery isolators are not compatible with self-exciting alternators. The alternator must have an external excitation lead. Please consult the manufacturer of your alternator if you are unsure of your configurationThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: 1370

Newmar 2-3-70 Battery Isolators2-3-70 Battery IsolatorThis heavy-duty isolator allows charging multiple batteries automatically from one or two alternators and prevents the discharge or ‘dumping” of one battery into another. Each battery is charged according to its need without overcharging and is rated for 12-, 24-, or 36-volt negative ground DC systems. Features: Conservatively rated diodes and a rustproof anodized aluminum heat sink case. Heavy-duty construction Rated for systems up to 48 volts DC, negative ground Rust-proof anodized aluminum case Stainless steel mounting hardware is provided Protective covers are provided for terminals Specifications: Alternator Sources: 2 Battery Bank: 3     Max. Amperage Input Capacity: 70 Stud Terminal Size: 6mm     Dimensions (L x W x H): 6.5 x 4.5 x 3.1 inches Weight: 4 lbs. Operating Temperature: -40 to +80 degrees Duty Cycle: Continuous rating to 50 degrees C Derate linearly to 70% @ 80 degrees C. Temp. Rise: 5 degrees C at full rated current (mount vertically for optimum cooling) Voltage Drop: 0.7V @ 50% load, 0.9V @ full load *Note: These battery isolators are not compatible with self-exciting alternators. The alternator must have an external excitation lead. Please consult the manufacturer of your alternator if you are unsure of your configurationThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: 2370

Newmar 1-2-120 Battery Isolators1-2-120 Battery IsolatorThis heavy-duty isolator allows multiple batteries to charge automatically from one or two alternators and prevents the discharge or ‘dumping” of one battery into another. Each battery is charged according to its need without overcharging and is rated for 12-, 24-, or 36-volt, negative ground DC systems. This model is a 120-amp alternator.Features: Conservatively rated diodes and a rustproof anodized aluminum heat sink case Heavy duty construction Rated for systems up to 48 volts DC, negative ground Rust-proof anodized aluminum case Stainless steel mounting hardware provided Protective covers provided for terminals Specifications: Operating Temperature: -40 to +80° Duty Cycle: Continuous rating to 50° C Derate linearly to 70% @ 80° C Temp. Rise: 5° C at full rated current (mount vertically for optimum cooling) Voltage Drop: 0.7V @ 50% load, 0.9V @ full load Alternator Sources: 1 Battery Bank: 2 Max. Amperage Input Capacity: 120 Stud Terminal Size: 6mm Dimensions (L x W x H): 6.5" x 4.5" x 3.1" Weight: 3 lbs. Note: These battery isolators are not compatible with self-exciting alternators. The alternator must have an external excitation lead. Please consult the manufacturer of your alternator if you are unsure of your configuration Normalized SKU: 12120

Newmar PI-2B Intercom & Phones"The Phone-Com intercom system provides direct, wired, point-to-point communication anywhere on the vessel. Voice contact to any phone in the system is as easy as lifting the receiver and pressing the call button. Phone-Com operates on 12 VDC. They are constructed of high-impact plastic and are available in either bright white or traditional black. Bulkhead mounting bracket is provided. Two versions are available: PI-2: Designed for communication between only two points. A single call button sounds a buzzer and illuminates an indicator lamp on the companion phone. Available singly or as a set with 40' of interconnect wire, fuse, terminal lugs and mounting hardware. PI-2 SET: Two station phone set, 40' interconnect wire, fuse, lugs, mounting hardware; 5 lbs. PI-10:For multiple station calling capability. Up to 10 phones may be interconnected, and each phone has 10 call buttons. Sold individually-- see wiring requirements below. Phone-Com Wiring: For PI-2, use 5 conductor wire. For PI-10, add 3 to the total number of stations to determine minimum number of conductors required. Note: Phones are not waterproof and should be installed in a protected location"Normalized SKU: PI2B

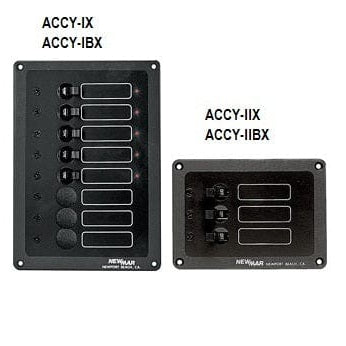

Newmar ACCY-IBX Breaker Panels"Accessory Panels These versatile panels are ideal for smaller vessels with only a limited number of electrical circuits, or for larger systems where their modular design makes for an easy and attractive expansion of existing system capacity. Stock panels with breakers installed come standard with DC indicator lights, but may be factory modified with AC indicator lights instead. Blank versions of the panels come with all necessary hardware to install lights and breakers. All panels are provided with a circuit identification label set of 22 common on-board electrical functions (see below). ACCY-IX: 8 breaker capacity, 5 installed standard; 2-5A, 1-10A, 1-15A, 1-20A or specify. 8 DC circuit "ON" indicator lights installed standard, AC lights optional. Size: 7 1/2" x 5 1/4", Weight: 2 lbs. ACCY-IBX: Blank version of ACCY-IX above. No breakers provided. Label set, light and breaker mounting hardware provided. Weight: 1 lb.    Half-height version of ACCY-IX at left. 3 breaker capacity, 3 installed standard; 3 DC ?ON? indicator lights installed standard - AC optional. 1-5A, 1-10A 1-15A or specify. Size: 3 3/4" x 5 1/4", Weight: 1 lb. ACCY-IIBX: Blank version of ACCY-IIX above. No breakers or lights provided. Label set, light and breaker mounting hardware provided. Weight: 1 lb.  Installation Cut-Out Dimensions* Model Inches (W x H) ACCY-IX 4 X 6 ACCY-IBX 4 X 6 ACCY-IIBX 4 X2.5 * Allow approximately 3" depth clearance for all panels on this page. Label Set Provided LS-I Standard Set 22 Labels   ACCESSORY AFT CABIN ANCHOR BILGE PUMP BOW CABIN LIGHTS ENGINE ROOM    FORE CABIN MAIN CABIN MAST NAV/COM OUTLETS REFRIGERATOR RUNNING   SPARE SPREADER SUMP PUMP WATER HEATER WATER PRESSURE WINDLASS WINDSHIELD "Normalized SKU: ACCYIBX

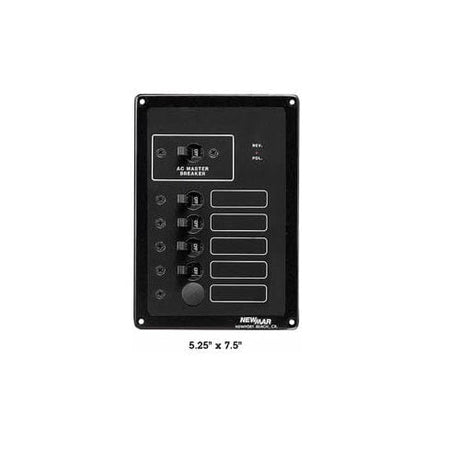

Newmar AC-IX Breaker Panels"AC Master panels Essential control/protection whenever AC from shorepower or generators is on board. A double pole master breaker with power on indicator light protects both hot and neutral legs of the AC circuit. A reverse polarity light provides clear warning when wiring is reversed and poses a shock hazard. Single pole branch circuit breakers (Model AC-IX) and individual ?ON? indicator lights provide control and protection of various AC loads. For 115/230 VAC applications ? see ratings note. A label set of common on-board circuits is provided. AC-IX: 30 amp master breaker , 5 branch circuit capacity 4 installed standard 1-10A, 2-15A, 1-20A, or specify. LS-I Label set included. Panel size: 5 1/4" x 7 1/2", (13.3 X 9.5 cm.,) Weight: 2 lbs., (.9 Kg.) AC-II: 30 Amp master breaker. Panel size: 5 1/4" x 3 3/4" (13.3 X 9.5 cm.), Weight: 1 lb (.5 Kg.) Model Inches Centimeters AC-IX 4 X 6 10.2 X 15.2 AC-II 4 X 2.5 10.2 X 6.4 "Normalized SKU: ACIX

Newmar ACCY-IX Breaker Panels"Accessory Panels These versatile panels are ideal for smaller vessels with only a limited number of electrical circuits, or for larger systems where their modular design makes for an easy and attractive expansion of existing system capacity. Stock panels with breakers installed come standard with DC indicator lights, but may be factory modified with AC indicator lights instead. Blank versions of the panels come with all necessary hardware to install lights and breakers. All panels are provided with a circuit identification label set of 22 common on-board electrical functions (see below). ACCY-IX: 8 breaker capacity, 5 installed standard; 2-5A, 1-10A, 1-15A, 1-20A or specify. 8 DC circuit "ON" indicator lights installed standard, AC lights optional. Size: 7 1/2" x 5 1/4", Weight: 2 lbs. ACCY-IBX: Blank version of ACCY-IX above. No breakers provided. Label set, light and breaker mounting hardware provided. Weight: 1 lb.    Half-height version of ACCY-IX at left. 3 breaker capacity, 3 installed standard; 3 DC ?ON? indicator lights installed standard - AC optional. 1-5A, 1-10A 1-15A or specify. Size: 3 3/4" x 5 1/4", Weight: 1 lb. ACCY-IIBX: Blank version of ACCY-IIX above. No breakers or lights provided. Label set, light and breaker mounting hardware provided. Weight: 1 lb.  Installation Cut-Out Dimensions* Model Inches (W x H) ACCY-IX 4 X 6 ACCY-IBX 4 X 6 ACCY-IIBX 4 X2.5 * Allow approximately 3" depth clearance for all panels on this page. Label Set Provided LS-I Standard Set 22 Labels   ACCESSORY AFT CABIN ANCHOR BILGE PUMP BOW CABIN LIGHTS ENGINE ROOM    FORE CABIN MAIN CABIN MAST NAV/COM OUTLETS REFRIGERATOR RUNNING   SPARE SPREADER SUMP PUMP WATER HEATER WATER PRESSURE WINDLASS WINDSHIELD "Normalized SKU: ACCYIXUPC Code: 020-0008-9

Newmar PI-2BW Intercom & Phones"The Phone-Com intercom system provides direct, wired, point-to-point communication anywhere on the vessel. Voice contact to any phone in the system is as easy as lifting the receiver and pressing the call button. Phone-Com operates on 12 VDC. They are constructed of high-impact plastic and are available in either bright white or traditional black. Bulkhead mounting bracket is provided. Two versions are available: PI-2: Designed for communication between only two points. A single call button sounds a buzzer and illuminates an indicator lamp on the companion phone. Available singly or as a set with 40' of interconnect wire, fuse, terminal lugs and mounting hardware. PI-2 SET: Two station phone set, 40' interconnect wire, fuse, lugs, mounting hardware; 5 lbs. PI-10:For multiple station calling capability. Up to 10 phones may be interconnected, and each phone has 10 call buttons. Sold individually-- see wiring requirements below. Phone-Com Wiring: For PI-2, use 5 conductor wire. For PI-10, add 3 to the total number of stations to determine minimum number of conductors required. Note: Phones are not waterproof and should be installed in a protected location"Normalized SKU: PI2BW

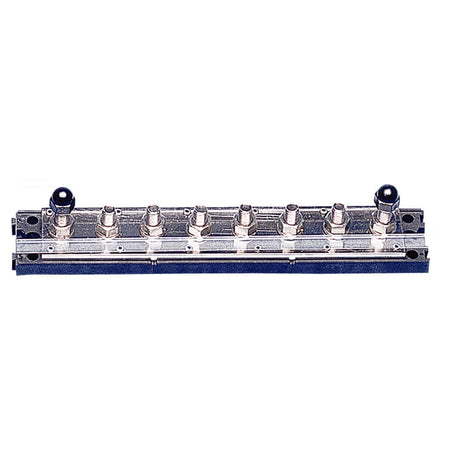

Newmar BB-8 Bus BarsBB-8 Bus BarIdeal as a DC ground tie point or positive bus, this heavy-duty, 500-amp-rated bus bar assembly features 5/16 in. studs on 1 in. center in 1/4 in. thick copper bar for common connection or distribution of large wire gauges.Features: Accommodate 5/16" ring terminals Insulated base (reinforced nylon resin with a clear protective cover) Specifications: Quantity of 5/16" Studs: 8 Size (inches): 9-1/16” x 1-1/2” Normalized SKU: BB8

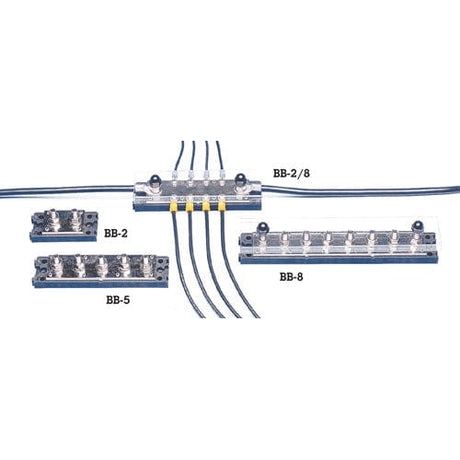

Newmar BB2 Bus Bars" Ideal as a DC ground tie point or positive bus, these heavy duty, 500 amp rated bus bar assemblies feature 5/16"" studs on 1"" centers in 1/4"" thick copper bar for common connection/distribution of large wire gauges and accommodate 5/16"" ring terminals. One combination model features two 5/16"" studs and eight #8 screws, accommodating multiple size wire terminals. All bus material is nickel-plated copper. A clear insulating protective cover is provided to prevent short circuits and provide visibility of lugs. The mounting bases are keyed for interlocking and may be mated with the terminal strips (described above). Conductive parts are captured and recessed away from the mounting surface. Use #8 or #10 screws for mounting. Model Qty. of 5/16"" Studs Base Size BB-2 2 3 1/16"" x 1 1/2"" BB-2/8 2 plus 8 - #8 screws 6 1/16"" x 1 1/2"" BB-5 5 6 1/16"" x 1 1/2"" BB-8 8 9 1/16"" x 1 1/2"" "Normalized SKU: BB2

Newmar BB8 Bus Bars" Ideal as a DC ground tie point or positive bus, these heavy duty, 500 amp rated bus bar assemblies feature 5/16"" studs on 1"" centers in 1/4"" thick copper bar for common connection/distribution of large wire gauges and accommodate 5/16"" ring terminals. One combination model features two 5/16"" studs and eight #8 screws, accommodating multiple size wire terminals. All bus material is nickel-plated copper. A clear insulating protective cover is provided to prevent short circuits and provide visibility of lugs. The mounting bases are keyed for interlocking and may be mated with the terminal strips (described above). Conductive parts are captured and recessed away from the mounting surface. Use #8 or #10 screws for mounting. Model Qty. of 5/16"" Studs Base Size BB-2 2 3 1/16"" x 1 1/2"" BB-2/8 2 plus 8 - #8 screws 6 1/16"" x 1 1/2"" BB-5 5 6 1/16"" x 1 1/2"" BB-8 8 9 1/16"" x 1 1/2"" "Normalized SKU: BB8

Newmar BB-2/8 Bus Bars" Ideal as a DC ground tie point or positive bus, these heavy duty, 500 amp rated bus bar assemblies feature 5/16"" studs on 1"" centers in 1/4"" thick copper bar for common connection/distribution of large wire gauges and accommodate 5/16"" ring terminals. One combination model features two 5/16"" studs and eight #8 screws, accommodating multiple size wire terminals. All bus material is nickel-plated copper. A clear insulating protective cover is provided to prevent short circuits and provide visibility of lugs. The mounting bases are keyed for interlocking and may be mated with the terminal strips (described above). Conductive parts are captured and recessed away from the mounting surface. Use #8 or #10 screws for mounting. Model Qty. of 5/16"" Studs Base Size BB-2 2 3 1/16"" x 1 1/2"" BB-2/8 2 plus 8 - #8 screws 6 1/16"" x 1 1/2"" BB-5 5 6 1/16"" x 1 1/2"" BB-8 8 9 1/16"" x 1 1/2"" "Normalized SKU: BB2/8

Newmar BB-5 Bus Bars" Ideal as a DC ground tie point or positive bus, these heavy duty, 500 amp rated bus bar assemblies feature 5/16"" studs on 1"" centers in 1/4"" thick copper bar for common connection/distribution of large wire gauges and accommodate 5/16"" ring terminals. One combination model features two 5/16"" studs and eight #8 screws, accommodating multiple size wire terminals. All bus material is nickel-plated copper. A clear insulating protective cover is provided to prevent short circuits and provide visibility of lugs. The mounting bases are keyed for interlocking and may be mated with the terminal strips (described above). Conductive parts are captured and recessed away from the mounting surface. Use #8 or #10 screws for mounting. Model Qty. of 5/16"" Studs Base Size BB-2 2 3 1/16"" x 1 1/2"" BB-2/8 2 plus 8 - #8 screws 6 1/16"" x 1 1/2"" BB-5 5 6 1/16"" x 1 1/2"" BB-8 8 9 1/16"" x 1 1/2"" "Normalized SKU: BB5

Newmar RA-1 Components"RA Series Right Angle Waterproof Feed-Thru Fittings Route cables at 90° through vertical and horizontal surfaces with wall hugging low profile design that keeps cable secured close to the surface reducing intrusion with personnel or other equipment / cables. Molded of nylon, the Sculpted shape has no sharp edges and provides radiused 90° feed-thru bend in cables without damage. Easy installation: slide silicone compression rings on cable, mount base piece with waterproof gasket then attach sealing end cap to create an IP 65 waterproof seal. Note cable must be routed without end connector attached. Three models to accommodate wide range of cable diameters. Model Cable Diameter Range (Inches) Dimensions (Inches) RA-1 0.1 - 0.25 2.17 x 1.65 x 0.63 RA-2 0.27 - 0.35 3.23 x 2.44 x 0.95 RA-3 0.39 - 0.47 3.23 x 2.44 x 0.95 "Normalized SKU: RA1

Newmar RA-2 Components"RA Series Right Angle Waterproof Feed-Thru Fittings Route cables at 90° through vertical and horizontal surfaces with wall hugging low profile design that keeps cable secured close to the surface reducing intrusion with personnel or other equipment / cables. Molded of nylon, the Sculpted shape has no sharp edges and provides radiused 90° feed-thru bend in cables without damage. Easy installation: slide silicone compression rings on cable, mount base piece with waterproof gasket then attach sealing end cap to create an IP 65 waterproof seal. Note cable must be routed without end connector attached. Three models to accommodate wide range of cable diameters. Model Cable Diameter Range (Inches) Dimensions (Inches) RA-1 0.1 - 0.25 2.17 x 1.65 x 0.63 RA-2 0.27 - 0.35 3.23 x 2.44 x 0.95 RA-3 0.39 - 0.47 3.23 x 2.44 x 0.95 "Normalized SKU: RA2

Newmar RA-3 Components"RA Series Right Angle Waterproof Feed-Thru Fittings Route cables at 90° through vertical and horizontal surfaces with wall hugging low profile design that keeps cable secured close to the surface reducing intrusion with personnel or other equipment / cables. Molded of nylon, the Sculpted shape has no sharp edges and provides radiused 90° feed-thru bend in cables without damage. Easy installation: slide silicone compression rings on cable, mount base piece with waterproof gasket then attach sealing end cap to create an IP 65 waterproof seal. Note cable must be routed without end connector attached. Three models to accommodate wide range of cable diameters. Model Cable Diameter Range (Inches) Dimensions (Inches) RA-1 0.1 - 0.25 2.17 x 1.65 x 0.63 RA-2 0.27 - 0.35 3.23 x 2.44 x 0.95 RA-3 0.39 - 0.47 3.23 x 2.44 x 0.95 "Normalized SKU: RA3
