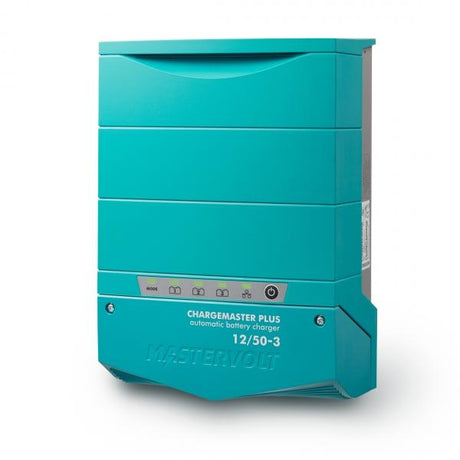

Mastervolt 44310505 Battery ChargersMastervolt Chargemaster Plus 12/50-3 Battery ChargerModel: 44310505 Improved cooling technology results in very low noise levels across the entire power range. Use as a standalone charger or as part of a complete system. Automatic power distribution, maximum charging current possible on each output. All 3 outputs can provide maximum current* Pre-float eliminates the risk of overcharging. Automatic current distribution - charging current distribution based on the condition of the battery. Compatible with worldwide frequencies and mains voltages. Smaller and lighter than the previous model. The ChargeMaster Plus family is a complete range of battery chargers that provide both efficient and reliable performance in all conditions. This new generation of battery chargers offers multiple functions in one compact device. The ChargeMaster Plus reduces costs and simplifying the system and eliminating the need for additional battery chargers.The 'Battery's Best Friend' architecture enables the ChargeMaster Plus to charge any battery chemistry using the fast and safe 3-step+ charging method. Different battery sizes can be combined, as the pre-float functionality eliminates the risk of overcharging smaller batteries. The charging profile of the Lithium Ion battery is included, as well as flexibility for a customised, user-defined profile.The ChargeMaster Plus charges almost any combination of two or three batteries quickly and safely and can handle all possible mains voltages and frequencies worldwide.The new ChargeMaster Plus models can achieve full functionality within a complete MasterBus or CZone system, or can also be used as a convenient plug-and-play standalone battery chargerThe new ChargeMaster Plus can communicate directly with Mastervolt Lithium Ion batteries, MasterShunt or system display for real-time adjustments and optimal performance.The battery charger can withstand high temperatures and significant voltage fluctuations. That makes this battery charger very suitable for the most harsh, maritime, or mobile environments. In addition, the ChargeMaster Plus has CE, ABYC, UL, cULus, SAE, CEC/DOE, ISO and ACMA certifications.*The total charging current shall not exceed the maximum of the model.*The total charging current shall not exceed the maximum of the model.*The total charging current shall not exceed the maximum of the model.Specifications General specifications Nominal output voltage (output 1 & 2) 12 V Max. output current primary output 50 A Total charge current 50 A at 14,25 V Max. AC current (230 V / 120 V) 3,5 A / 7,1 A Number of battery outlets 3 (max.) Battery bank size 200-400 Ah Nominal input voltage 120/230 V (80-275 V) 50/60 Hz Power supply mode Yes Galvanic isolation Yes Display/read-out LED display Dimensions, hxwxd 11.5 x 8.3 x 4.1 inch Weight 5.5 lb Compliance CE, CEC, DOE, ABYC, UL1236, cULus, SAE J1171, ISO 8846, ACMA Communication interfaces MasterBus, CZone, NMEA2000 Technical specifications Charge characteristic IUoUo, automatic / 3-step+ for Gel/AGM/flooded/Lithium Ion + user defined option Temperature compensation -30 mV/°C / -17 mV/°F; temperature sensor included DC voltage compensation Yes, via automatic compensation or MasterShunt Power consumption (DC side) yes, through MasterBus or Czone Current Control function yes, through MasterBus Power factor control > 0.98 Temperature range (ambient temp.) -25 °C to 80 °C, derating < 0 °C and > 40 °C Cooling vario fan Protection degree IP23, vertical mounting Protections over-temperature, overload, short circuit, high/low battery voltageover-temperature, overload, short circuit, high/low battery voltage, ignition protection MasterBus compatible yes Charger Status Interface (alarm contact) yes, using a Multipurpose Contact Output (code 77030500) What's in the Box: Chargemaster Plus 12/50-3 Temp Sensor Wall Bracket Drop cable CZone/MB (1m) MasterBus Terminator User and installation manual. Normalized SKU: 44310505UPC Code: 816882022883

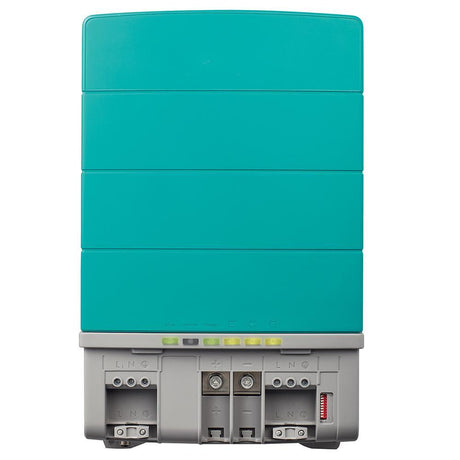

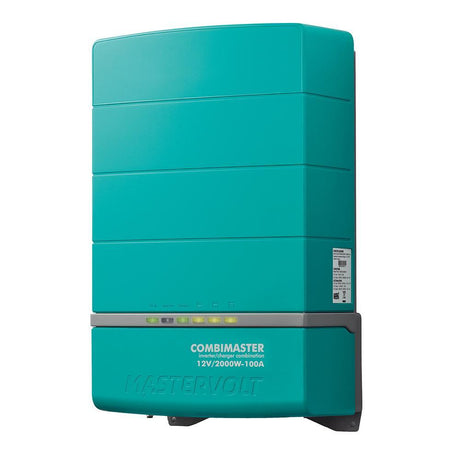

  Download Literature  Watch VideoMastervolt 35512000 InvertersCombiMaster 12V - 2000W - 100 Amp (120V)Designed with the customer in mind and using the latest technology, the CombiMaster range is all about user-friendliness and reliability. But don’t let that friendly appearance misguide you: the powerful CombiMaster range drives even the heaviest and most sensitive loads with ease!With the CombiMaster, power dips and failures belong to the past. The automatic AC transfer system switches between generator or mains and inverter output, ensuring a constant power supply. Its Power Assist function prevents tripping of the mains fuse in case you’re connected to a weak land line or small generator.The CombiMaster range delivers unmatched performance and value for money. As you would expect from Mastervolt, the CombiMaster is completed with MasterBus, CZone and NMEA 2000 compatible communication, allowing for a broad range of monitoring and system integration options.Features: Most compact and lightweight Combi in its class. Reliable, hum-free and longer operation from your batteries. Starts even the heaviest and most sensitive loads. Intelligent 3-step+ battery charger for faster and safer charging. Automatic switching between mains and inverter mode. Power Assist prevents blown mains fuses. Generator compatible. Integrated CZone*, MasterBus and NMEA 2000 communication. Quick installation with heavy duty connections. E-mark certified. Remote Control & Monitoring Options: MasterBus compatible via SmartRemote or EasyView 5 display. CZone* / NMEA 2000 compatible via Touch 5 or Touch 10 display. NMEA 2000 compatible via 3rd party multifunctional display WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:Charger Output Voltage = NONE Inverter Input Voltage = NONE Inverter Output Voltage = NONE Outlet Qty = NONE Inverter Surge Rating = NONE Inverter Cont. Output Wattage = NONE Waveform = NONE Charger Output - Amps = NONE Charger Input - Voltage = NONE Charging Banks = NONENormalized SKU: 35512000UPC Code: 816882022302Mastervolt 35512000 Literature Download  Owners Manual  Product BrochureMastervolt 35512000 Video

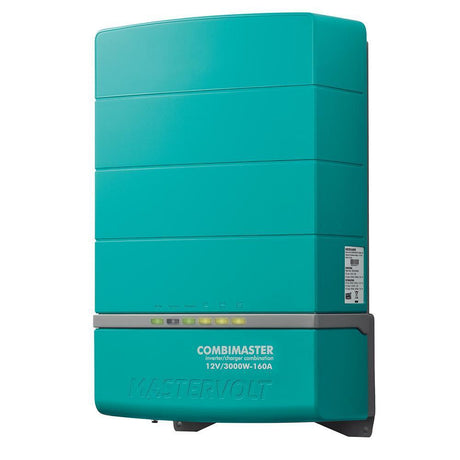

Download Literature Watch VideoMastervolt 35513000 InvertersCombiMaster 12V - 3000W - 160 Amp (120V)Designed with the customer in mind and using the latest technology, the CombiMaster range is all about user-friendliness and reliability. But don’t let that friendly appearance misguide you: the powerful CombiMaster range drives even the heaviest and most sensitive loads with ease!With the CombiMaster, power dips and failures belong to the past. The automatic AC transfer system switches between generator or mains and inverter output, ensuring a constant power supply. Its Power Assist function prevents tripping of the mains fuse in case you’re connected to a weak land line or small generator.The CombiMaster range delivers unmatched performance and value for money. As you would expect from Mastervolt, the CombiMaster is completed with MasterBus, CZone and NMEA 2000 compatible communication, allowing for a broad range of monitoring and system integration options.Features: Most compact and lightweight Combi in its class. Reliable, hum-free and longer operation from your batteries. Starts even the heaviest and most sensitive loads. Intelligent 3-step+ battery charger for faster and safer charging. Automatic switching between mains and inverter mode. Power Assist prevents blown mains fuses. Generator compatible. Integrated CZone*, MasterBus and NMEA 2000 communication. Quick installation with heavy duty connections. E-mark certified. Remote Control & Monitoring Options: MasterBus compatible via SmartRemote or EasyView 5 display. CZone* / NMEA 2000 compatible via Touch 5 or Touch 10 display. NMEA 2000 compatible via 3rd party multifunctional display WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:Waveform = NONE Outlet Qty = NONE Inverter Surge Rating = NONE Inverter Output Voltage = NONE Inverter Input Voltage = NONE Inverter Cont. Output Wattage = NONE Charging Banks = NONE Charger Output Voltage = NONE Charger Output - Amps = NONE Charger Input - Voltage = NONENormalized SKU: 35513000UPC Code: 816882022319Mastervolt 35513000 Literature Download Owners Manual Product BrochureMastervolt 35513000 Video

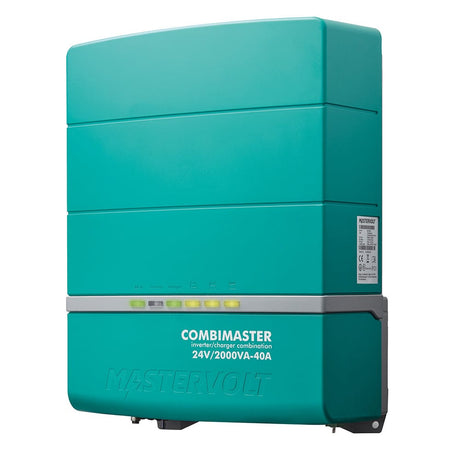

Download Literature Watch VideoMastervolt 35022000 InvertersCombiMaster 24V - 2000W - 40 Amp (230V)Designed with the customer in mind and using the latest technology, the CombiMaster range is all about user-friendliness and reliability. But don’t let that friendly appearance misguide you: the powerful CombiMaster range drives even the heaviest and most sensitive loads with ease!With the CombiMaster, power dips and failures belong to the past. The automatic AC transfer system switches between generator or mains and inverter output, ensuring a constant power supply. Its Power Assist function prevents tripping of the mains fuse in case you’re connected to a weak land line or small generator.The CombiMaster range delivers unmatched performance and value for money. As you would expect from Mastervolt, the CombiMaster is completed with MasterBus, CZone and NMEA 2000 compatible communication, allowing for a broad range of monitoring and system integration options.Features: Most compact and lightweight Combi in its class. Reliable, hum-free and longer operation from your batteries. Starts even the heaviest and most sensitive loads. Intelligent 3-step+ battery charger for faster and safer charging. Automatic switching between mains and inverter mode. Power Assist prevents blown mains fuses. Generator compatible. Integrated CZone*, MasterBus and NMEA 2000 communication. Quick installation with heavy duty connections. E-mark certified. Remote Control & Monitoring Options: MasterBus compatible via SmartRemote or EasyView 5 display. CZone* / NMEA 2000 compatible via Touch 5 or Touch 10 display. NMEA 2000 compatible via 3rd party multifunctional display WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 35022000UPC Code: 816882021879Mastervolt 35022000 Literature Download Owners Manual Product BrochureMastervolt 35022000 Video

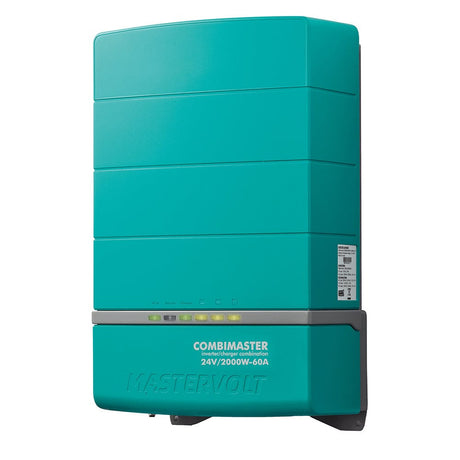

Download Literature Watch VideoMastervolt 35522000 InvertersCombiMaster 24V - 2000W - 60 Amp (120V)Designed with the customer in mind and using the latest technology, the CombiMaster range is all about user-friendliness and reliability. But don’t let that friendly appearance misguide you: the powerful CombiMaster range drives even the heaviest and most sensitive loads with ease!With the CombiMaster, power dips and failures belong to the past. The automatic AC transfer system switches between generator or mains and inverter output, ensuring a constant power supply. Its Power Assist function prevents tripping of the mains fuse in case you’re connected to a weak land line or small generator.The CombiMaster range delivers unmatched performance and value for money. As you would expect from Mastervolt, the CombiMaster is completed with MasterBus, CZone and NMEA 2000 compatible communication, allowing for a broad range of monitoring and system integration options.Features: Most compact and lightweight Combi in its class. Reliable, hum-free and longer operation from your batteries. Starts even the heaviest and most sensitive loads. Intelligent 3-step+ battery charger for faster and safer charging. Automatic switching between mains and inverter mode. Power Assist prevents blown mains fuses. Generator compatible. Integrated CZone*, MasterBus and NMEA 2000 communication. Quick installation with heavy duty connections. E-mark certified. Remote Control & Monitoring Options: MasterBus compatible via SmartRemote or EasyView 5 display. CZone* / NMEA 2000 compatible via Touch 5 or Touch 10 display. NMEA 2000 compatible via 3rd party multifunctional display Normalized SKU: 35522000Mastervolt 35522000 Literature Download Owners Manual Product BrochureMastervolt 35522000 Video

  Download Literature  Watch VideoMastervolt 35023000 InvertersCombiMaster 24V - 3000W - 60 Amp (230V)Designed with the customer in mind and using the latest technology, the CombiMaster range is all about user-friendliness and reliability. But don’t let that friendly appearance misguide you: the powerful CombiMaster range drives even the heaviest and most sensitive loads with ease!With the CombiMaster, power dips and failures belong to the past. The automatic AC transfer system switches between generator or mains and inverter output, ensuring a constant power supply. Its Power Assist function prevents tripping of the mains fuse in case you’re connected to a weak land line or small generator.The CombiMaster range delivers unmatched performance and value for money. As you would expect from Mastervolt, the CombiMaster is completed with MasterBus, CZone and NMEA 2000 compatible communication, allowing for a broad range of monitoring and system integration options.Features: Most compact and lightweight Combi in its class. Reliable, hum-free and longer operation from your batteries. Starts even the heaviest and most sensitive loads. Intelligent 3-step+ battery charger for faster and safer charging. Automatic switching between mains and inverter mode. Power Assist prevents blown mains fuses. Generator compatible. Integrated CZone*, MasterBus and NMEA 2000 communication. Quick installation with heavy duty connections. E-mark certified. Remote Control & Monitoring Options: MasterBus compatible via SmartRemote or EasyView 5 display. CZone* / NMEA 2000 compatible via Touch 5 or Touch 10 display. NMEA 2000 compatible via 3rd party multifunctional display WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:Charging Banks = NONE Charger Output Voltage = NONE Inverter Cont. Output Wattage = NONE Waveform = NONE Charger Output - Amps = NONE Charger Input - Voltage = NONE Outlet Qty = NONE Inverter Surge Rating = NONE Inverter Output Voltage = NONE Inverter Input Voltage = NONENormalized SKU: 35023000UPC Code: 816882021886Mastervolt 35023000 Literature Download  Owners Manual  Product BrochureMastervolt 35023000 Video

Download Literature Watch VideoMastervolt 35523000 InvertersCombiMaster 24V - 3000W - 70 Amp (120V)Designed with the customer in mind and using the latest technology, the CombiMaster range is all about user-friendliness and reliability. But don’t let that friendly appearance misguide you: the powerful CombiMaster range drives even the heaviest and most sensitive loads with ease!With the CombiMaster, power dips and failures belong to the past. The automatic AC transfer system switches between generator or mains and inverter output, ensuring a constant power supply. Its Power Assist function prevents tripping of the mains fuse in case you’re connected to a weak land line or small generator.The CombiMaster range delivers unmatched performance and value for money. As you would expect from Mastervolt, the CombiMaster is completed with MasterBus, CZone and NMEA 2000 compatible communication, allowing for a broad range of monitoring and system integration options.Features: Most compact and lightweight Combi in its class. Reliable, hum-free and longer operation from your batteries. Starts even the heaviest and most sensitive loads. Intelligent 3-step+ battery charger for faster and safer charging. Automatic switching between mains and inverter mode. Power Assist prevents blown mains fuses. Generator compatible. Integrated CZone*, MasterBus and NMEA 2000 communication. Quick installation with heavy duty connections. E-mark certified. Remote Control & Monitoring Options: MasterBus compatible via SmartRemote or EasyView 5 display. CZone* / NMEA 2000 compatible via Touch 5 or Touch 10 display. NMEA 2000 compatible via 3rd party multifunctional display. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:Waveform = NONE Outlet Qty = NONE Inverter Surge Rating = NONE Inverter Output Voltage = NONE Charger Output - Amps = NONE Charger Input - Voltage = NONE Inverter Input Voltage = NONE Inverter Cont. Output Wattage = NONE Charging Banks = NONE Charger Output Voltage = NONENormalized SKU: 35523000UPC Code: 816882022333Mastervolt 35523000 Literature Download Owners Manual Product BrochureMastervolt 35523000 Video

Mastervolt 35511500 Battery ChargersCombiMaster Inverter/Charger - 12/1500-60 Amp - 120VThe CombiMaster inverter/charger provides the most power and charging in the series. The 3500W version comes in 12V and can be paralleled stacked in a single system up to 10.5kW. The 24V models in 3500W and 5000W can create parallel stacked systems up 35kW. The 1500W version delivers 1500W of pure sine wave inverter power and 60 amps multi chemistry battery charging. The 1500W is the smallest form factor in the series. All models provide pure sine wave inverter power and over 60-200 amps multi-chemistry battery charging, plus the intelligent design is NMEA 2K and MasterBus compatible.Specifications: Nominal DC Voltage: 12V (10.2-16V) Continuous Power at 104° F: 1500W Peak Power 30 seconds: 2250W Surge Power 5 seconds: 3000W Parallel Stacking: No Synchronize with Mains/Generator: Yes Output Waveform: Pure Sine Normalized SKU: 35511500UPC Code: 816882022296

Mastervolt 35513500 Battery Chargers CombiMaster Inverter/Charger - 12/3500-200 Amp - 120V The CombiMaster inverter/charger provides the most power and charging in the series. The 3500W version comes in 12V and can be paralleled stacked in a single system up to 10.5kW. The 24V models in 3500W and 5000W can create parallel stacked systems up to 35kW. The 1500W version delivers 1500W of pure sine wave inverter power and 60 amps of multi-chemistry battery charging. The 1500W is the smallest form factor in the series. All models provide pure sine wave inverter power and over 60-200 amps of multi-chemistry battery charging, plus the intelligent design is NMEA 2K and MasterBus compatible. Specifications: Nominal DC Voltage: 12V (10.2-16V) Continuous Power at 104° F: 3500W Peak Power 30 seconds: 5250W Surge Power 5 seconds: 7000W Parallel Stacking: Yes, Up to 3 Synchronize with Mains/Generator: Yes Output Waveform: Pure Sine What's in the Box: CombiMaster 12/3500-200 (120 V) Temperature sensor with cable and plug MasterBus terminator RJ45-M12 Drop cable Czone (1m) Mounting bracket User and installation manual Normalized SKU: 35513500UPC Code: 816882023002

Mastervolt 35523500 Battery ChargersCombiMaster Inverter/Charger - 24/3500-100 Amp - 120VThe CombiMaster inverter/charger provides the most power and charging in the series. The 3500W version comes in 12V and can be paralleled stacked in a single system up to 10.5kW. The 24V models in 3500W and 5000W can create parallel stacked systems up 35kW. The 1500W version delivers 1500W of pure sine wave inverter power and 60 amps multi chemistry battery charging. The 1500W is the smallest form factor in the series. All models provide pure sine wave inverter power and over 60-200 amps multi-chemistry battery charging, plus the intelligent design is NMEA 2K and MasterBus compatible.Specifications: Nominal DC Voltage: 24V (10.2-16V) Continuous Power at 104° F: 3500W Peak Power 30 seconds: 4500W Surge Power 5 seconds: 6000W Parallel Stacking: Yes, Up to 7 Synchronize with Mains/Generator: Yes Output Waveform: Pure Sine Normalized SKU: 35523500

Mastervolt 77060050 Charger AccessoriesCZone Drop Cable - 0.5MAdapter cable for connecting Mastervolt devices with CZone support to the CZone or NMEA 2000 network. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 77060050UPC Code: 816882022449

Mastervolt 77060200 Charger AccessoriesCZone Drop Cable - 2MAdapter cable for connecting Mastervolt devices with CZone support to the CZone or NMEA 2000 network. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 77060200UPC Code: 816882022463

Mastervolt 77060500 Charger AccessoriesCZone Drop Cable - 5MAdapter cable for connecting Mastervolt devices with CZone support to the CZone or NMEA 2000 network. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 77060500UPC Code: 816882022487
