Watch VideoLumishore 010-04531-00 Wiring & AccessoriesEOS TIX404 2 Lights, Hub, LUX Command Center, DisplaySUPRA TIX404 Interchangeable Thru-HullLumishore's TIX404 is a dual-color, full-power underwater LED light that produces 8,150 fixture lumens and an ultra-wide 110° beam angle!Available in blue and white. Easily switch between colors, fade colors, adjust brightness, and strobe at two speeds.TIX models have the added benefit of an internal LED array and an integrated driver, allowing for service from inside the hull and simplifying installation.Controlled by the SUPRA i-Connect Hub & Switch, or directly from your compatible MFD and/or optional Lumishore Display, when you add the SUPRA Bridge Module.Suitable for transom, side, and bottom mounting.EOS-LUX Command CenterThe key to controlling your LUX above-water lights and EOS underwater lights directly from your MFD, smart device, and/or optional Display.Simple to set up and use, owners can control the lights by zone and create lighting scenes to match any mood. An input for “triggers” allows for programmable lighting events personal to you.Simply connect the Command Center with a plug-and-play cable, and smart control for your lighting fixtures will appear automatically.The Over-the-Air feature allows software updates for new features and improvements by connecting to a laptop or PC via Wi-Fi.Required for all LUX above-water lights and EOS Series lights (excl. SMX93).EOS-LUX-SUPRA DisplayThe EOS-LUX-SUPRA Display is an optional secondary display, which can be used in addition to, or instead of, an MFD.This dedicated glass-bridge style, touch display, and rotary dial is easy to manipulate when cruising, or with wet/salty hands.Compatible with your LUX above-water lights, EOS, and SUPRA underwater lights (excl. SMX23).Lumishore's EOS-LUX-SUPRA Display features built-in Wi-Fi control.i-Connect Hub Kit with 1M DMX CableUsed to expand a Lumishore SUPRA THX or TIX underwater lighting system to greater than four lights. Powers up to four additional SUPRA underwater lights. Normalized SKU: 0100453100UPC Code: 847772004078Lumishore 010-04531-00 Video

Download Literature Watch VideoLumishore 010-04529-00 Underwater LightingEOS TIX404 Interchangeable Thru-HullThe fully controllable color change TIX404 underwater light delivers the greatest range of colors and offers a powerful 7,500 verified fixture lumens and an ultra-wide 110° beam angle for the ultimate halo-effect.Control colors, modes & special effects directly from your MFD and/or the optional Lumishore Display.All Lumishore Thru-Hulls are ‘flush-fit’ with extremely low profiles, suitable for transom, side, and bottom mounting. TIX models have the added benefit of an internal LED array and integrated driver, for the ability to service from inside the hull and to simplify installation.Specifications: Available Colors: Full EOS Color Change (RGBW) Lumens: 16,875 Fixture Lumens (White): 7,500 Number & Type Of LED: White–12×10W / Green–12×3W / Blue–12×3W / Red–16×3W LED Power - HICOB Array: Yes Typical LED Life: 50,000+ Hours Warranty: 3 Years User Control Options: Certified MFD Screen EOS-LUX-SUPRA Display WiFi Control from Smart Phone or Connected Device (via MFD or 2204i Wifi) Electrical Installation: Plug-and-Play Connections Housing Type: Marine Bronze Body with Borosilicate Glass Lens Normalized SKU: 0100452900UPC Code: 847772004054Lumishore 010-04529-00 Literature Download Quick Reference GuideLumishore 010-04529-00 Video

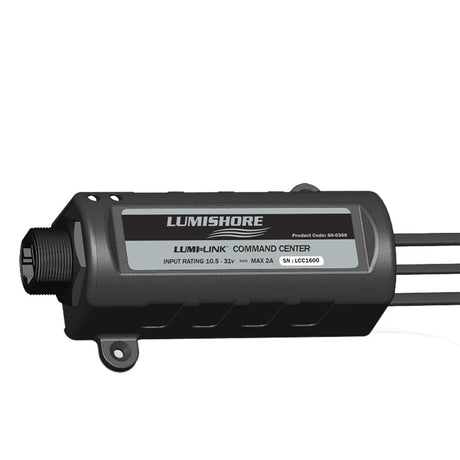

Download Literature Watch VideoLumishore 010-04360-00 Wiring & AccessoriesEOS-LUX Command CenterThe key to controlling your LUX above-water lights and EOS underwater lights directly from your MFD, smart device, and/or optional Display.Simple to set up and use, owners can control the lights by zone and create lighting scenes to match any mood. An input for “triggers” allows for programmable lighting events personal to you.Simply connect the Command Center with a plug-and-play cable, and smart control for your lighting fixtures will appear automatically.The Over-the-Air feature allows software updates for new features and improvements by connecting to a laptop or PC via Wi-Fi.Required for all LUX above-water lights and EOS Series lights (excl. SMX93).Features: Auto DJ automatically configures sensitivity and adjusts settings for optimal song transitions The control of your SUPRA lights through an interface module that connects to the SUPRA Hub’s data port Wi-Fi Hotspot allows you to control your lights from a smart device by connecting to the Command Center Wi-Fi, operating independently from the MFD (that can be turned off) Smooth Scene Transitions ensure a seamless experience when turning on your lights Specifications: Supply Voltage Range: 10.5-31 VDC Max Current Draw 12/24V: 0.5A Reverse Polarity Protection: Yes Load Dump Protection: Yes ISO 8846 (Ignition Protection): Yes Ingress Protection Rating: IP67 Normalized SKU: 0100436000UPC Code: 847772002302Lumishore 010-04360-00 Literature Download Quick Reference Guide Owners Manual Product BrochureLumishore 010-04360-00 Video

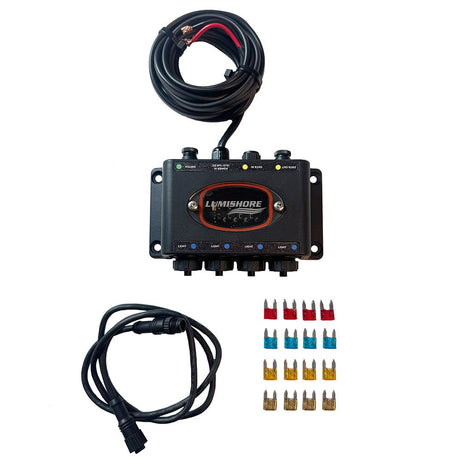

Watch VideoLumishore 010-04359-00 Wiring & Accessoriesi-Connect Hub Kit with 1M DMX CableUsed to expand a Lumishore SUPRA THX or TIX underwater lighting system to greater than four lights. Powers up to four additional SUPRA underwater lights. Features: Fuse pack inlcuded Powers and controls up to four Supra THX or TIX underwater lights Includes 1 meter DMX cable Normalized SKU: 0100435900UPC Code: 847772002234Lumishore 010-04359-00 Video

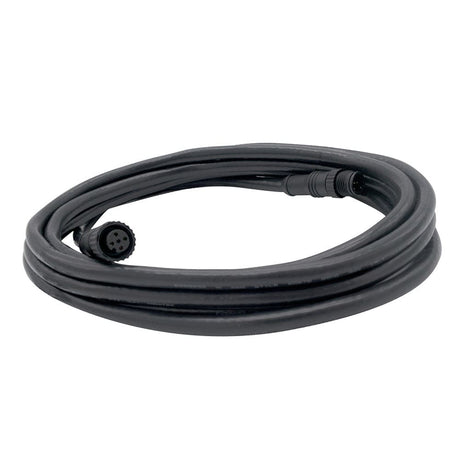

Lumishore 010-14464-00 Wiring & AccessoriesLight Extension Cable for EOS SMX153/4 & TIX403/4Specifications: Boat Underwater Light Extension Cable For Use With TIX403 EOS Series Underwater Light 3 Meters Length Normalized SKU: 0101446400

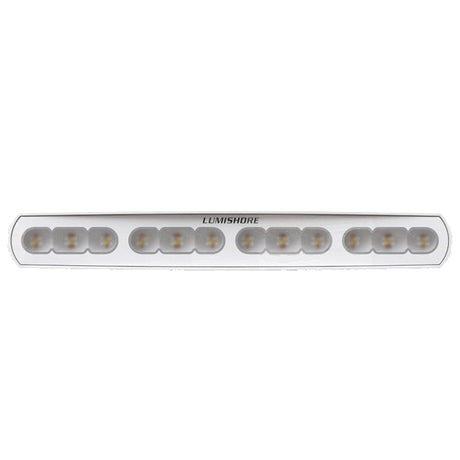

Download Literature Watch VideoLumishore 010-04461-00 Flood/Spreader LightsLUX 18" Flood LightThe world’s first CRGBW Flood Lights are designed to offer a high-intensity light source onboard. Perfect for deck, cockpit lighting, or for general security purposes.Lumishore's 18" (40cm) Flood Light has an ultra-wide reaching (70° - 90°) oval beam angle for full coverage and custom diffusion optics for consistent and smooth beam colors. Generating a powerful 7,500 fixture lumens to illuminate your boat deck and beyond.With its unique capability to combine warm and cold white (as well as red, green, and blue) in a single lighting unit, LUX Flood Lights are unlike anything else on the market.Lumishore’s low-profile articulating Flood Lights are ideal for exterior mounting on cabin tops, T-tops, arches, transoms, and radar pedestals.Designed to withstand the harshest marine environments, with an IP68 rating, and in marine-grade powder-coated aluminium housing. The lighting units themselves are beautifully built, enhancing your boat’s fit-out, even when not in use.Easily controllable by a switch, with the option to upgrade to full integration with your compatible MFD and/or Lumishore Display.Dimmable control as standard.Specifications: Lumens: 16,875 Fixture Lumens: 7,500 Number & Type Of LED: Warm White, Cold White, Red, Green, and Blue (5 Channel) LED Power HICOB Array: Yes Typical LED Life: 50,000+ Hours Warranty: 3 Years User Control Options: EOS-LUX Command Center or Customer Supplied Momentary Switch Electrical Installation: Simple 3 Wire Connection (see installation manual) Housing Type: Powder Coated Aluminium Body with Frosted Lens Driver: Multi-Channel Internal Supply Voltage Range: 10.5—31 V DC Max Current Draw 12/24V: 9.2 A/4.6 A Beam Angle: 70° - 90° Oval Beam Water Ingress Protection Rating: IP68 Normalized SKU: 0100446100UPC Code: 847772003231Lumishore 010-04461-00 Literature Download Quick Reference GuideLumishore 010-04461-00 Video

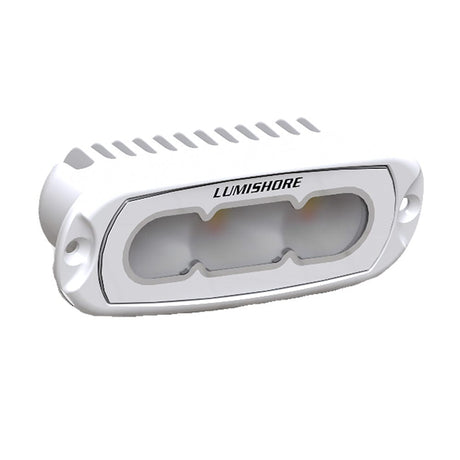

Download Literature Watch VideoLumishore 010-04500-00 Flood/Spreader LightsLUX 4" Flood Light Flush FitLumishore’s 4” Flush Fit Flood Lights deliver powerful CRGBW illumination in a sleek, low-profile unit. Designed for decks, cockpits, and exterior mounting points like T-tops, arches, and transoms, they offer a wide oval beam (70°–90°) and smooth, blended colors — including both warm and cold white, plus red, green, and blue.Built for harsh marine environments with an IP68 rating and marine-grade aluminum housing. Control via switch, MFD, or Lumishore Display — with dimming as standard.Specifications: Available colors: White Color Temperature Tunable (2700K to 6500K) and Full Spectrum RGB Lumens: 2,360 Fixture Lumens: 1,050 Number & Type Of LED: Warm White, Cold White, Red, Green, and Blue (5 Channel) LED Power HICOB Array: Yes Typical LED Life: 50,000+ Hours Warranty: 3 Years User Control Options: EOS-LUX Command Center or Customer Supplied Momentary Switch Electrical Installation: Simple 3 Wire Connection (see installation manual) Housing Type: Powder Coated Aluminium Body with Frosted Lens Driver: Multi-Channel Internal Supply Voltage Range: 10.5—31 V DC Max Current Draw 12/24V: 1.7 A/0.9 A Beam Angle: 70° - 90° Oval Beam Water Ingress Protection Rating: IP68 Normalized SKU: 0100450000UPC Code: 8477720037678Lumishore 010-04500-00 Literature Download Quick Reference GuideLumishore 010-04500-00 Video

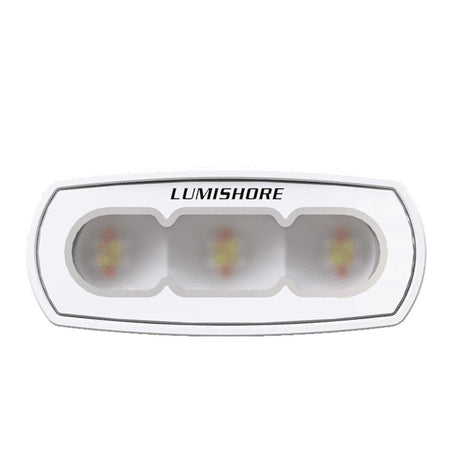

Download Literature Watch VideoLumishore 010-04459-00 Flood/Spreader LightsLUX 4" Flood Light - White HousingThe world’s first CRGBW Flood Lights — powerful, precise, and built for the water.Lumishore’s 4" LUX Flood Lights deliver 1,050 fixture lumens through a wide 70°–90° beam, perfect for decks, cockpits, and onboard security. With full CRGBW capability (including warm + cold white), they offer smooth, vibrant color and dimmable control.Compact and low-profile, they mount easily to T-tops, arches, transoms, and more. Built from marine-grade powder-coated aluminium and IP68 rated for durability.Control via switch or integrate with your compatible MFD or Lumishore Display.Specifications: Lumens: 2,360 Fixture Lumens: 1,050 Number & Type Of LED: Warm White, Cold White, Red, Green, and Blue (5 Channel) LED Power HICOB Array: Yes Typical LED Life: 50,000+ Hours Warranty: 2 Years User Control Options: EOS-LUX Command Center or Customer Supplied Momentary Switch Electrical Installation: Simple 3 Wire Connection (see installation manual) Housing Type: Powder Coated Aluminium Body with Frosted Lens Driver: Multi-Channel Internal Supply Voltage Range: 10.5—31 V DC Max Current Draw 12/24V: 1.7 A/0.9 A Beam Angle: 70° - 90° Oval Beam Water Ingress Protection Rating: IP68 Normalized SKU: 0100445900UPC Code: 847772003217Lumishore 010-04459-00 Literature Download Quick Reference GuideLumishore 010-04459-00 Video

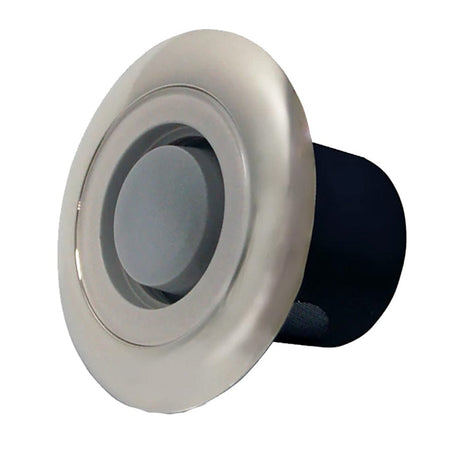

Watch VideoLumishore 010-04441-00 Courtesy LightsLUX CL25 Courtesy Light - CRGBW - Chrome BezelLUX Courtesy Lights are perfect for lighting external walkways, stairs, and architectural elements of a boat, while at the same time creating a warm and comfortable atmosphere.The CL25 offers full spectrum CRGBW (cold white, red, green, blue, warm white) and white color temperature tunable (from 2700k to 6500k) in a single courtesy light unit.Completely sealed and IP68 rated, the CL25 is suitable for interior and exterior installation. Control by a momentary switch, or upgrade to full integration with your compatible MFD and/or Lumishore Display.Dimmable as standard and powered by the LUX Light Control Module.Specifications: Available Colors: Full Spectrum CRGBW and white color temperature tunable from 2700K to 6500K Ingress Protection: IP68 Supply Voltage Range: 10.5 - 31v DC Max Current Draw: 0.1A/0.05A Front Diameter (Bezel): 45mm Hold Diameter for Fitting: 25mm Mechanical Installation: Screw fixings Number of Downlights Per Control Module: 16 Control Options: Momentary switch with option to upgrade to full MFD and optional Lumishore Display Normalized SKU: 0100444100UPC Code: 847772002531Lumishore 010-04441-00 Video

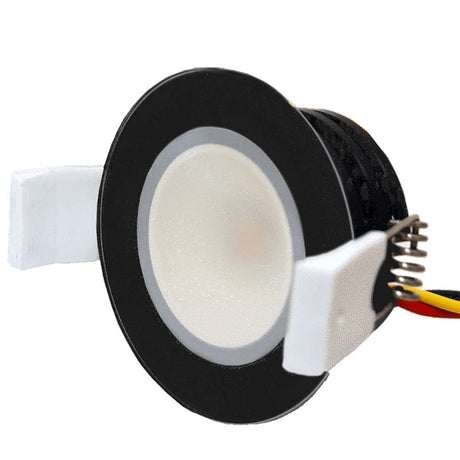

Download Literature Watch VideoLumishore 010-04447-00 Cabin & Reading LightLUX DL50 Downlight - 5 Watt - Black BezelLUX Downlights are the perfect solution for interior or exterior overhead lighting needs. The DL50 delivers incredible output and a profile that is among the slimmest.Full spectrum CRGBW (cold white, red, green, blue, warm white) and white color temperature tunable (from 2700k to 6500k) in a single downlight unit.Completely sealed and IP68 rated, it is perfectly suited for a variety of indoor or outdoor overhead lighting needs.Choose between a white or black bezel and a hard anodised aluminium body to complement the style of your boat.LUX Downlights are easily controllable by a momentary switch, with the option to upgrade to full integration with your compatible MFD and/or Lumishore Display.Dimmable as standard and powered by the LUX Light Control Module.Specifications: Available Colors: Full Spectrum CRGBW and white color temperature tunable from 2700K to 6500K Ingress Protection: IP68 Supply Voltage Range: 10.5 - 31v DC Max Current Draw: 0.5A/0.25A Front Diameter (Bezel): 64mm Hold Diameter for Fitting: 50mm Mechanical Installation: Spring clip Number of Downlights Per Control Module: 16 Control Options: Momentary switch with option to upgrade to full MFD and optional Lumishore Display Normalized SKU: 0100444700UPC Code: 847772002616Lumishore 010-04447-00 Literature Download Product BrochureLumishore 010-04447-00 Video

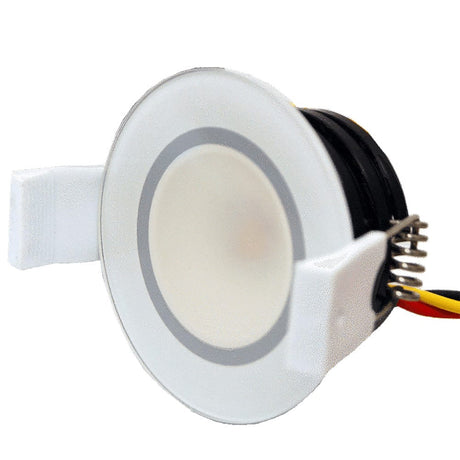

Download Literature Watch VideoLumishore 010-04440-00 Cabin & Reading LightLUX DL50 Downlight - 5 Watt - White BezelLUX Downlights are the perfect solution for interior or exterior overhead lighting needs. The DL50 delivers incredible output and a profile that is among the slimmest.Full spectrum CRGBW (cold white, red, green, blue, warm white) and white color temperature tunable (from 2700k to 6500k) in a single downlight unit.Completely sealed and IP68 rated, it is perfectly suited for a variety of indoor or outdoor overhead lighting needs.Choose between a white or black bezel and a hard anodised aluminium body to complement the style of your boat.LUX Downlights are easily controllable by a momentary switch, with the option to upgrade to full integration with your compatible MFD and/or Lumishore Display.Dimmable as standard and powered by the LUX Light Control Module.Specifications: Available Colors: Full Spectrum CRGBW and white color temperature tunable from 2700K to 6500K Ingress Protection: IP68 Supply Voltage Range: 10.5 - 31v DC Max Current Draw: 0.5A/0.25A Front Diameter (Bezel): 64mm Hold Diameter for Fitting: 50mm Mechanical Installation: Spring clip Number of Downlights Per Control Module: 16 Control Options: Momentary switch with option to upgrade to full MFD and optional Lumishore Display Normalized SKU: 0100444000UPC Code: 847772002524Lumishore 010-04440-00 Literature Download Product BrochureLumishore 010-04440-00 Video

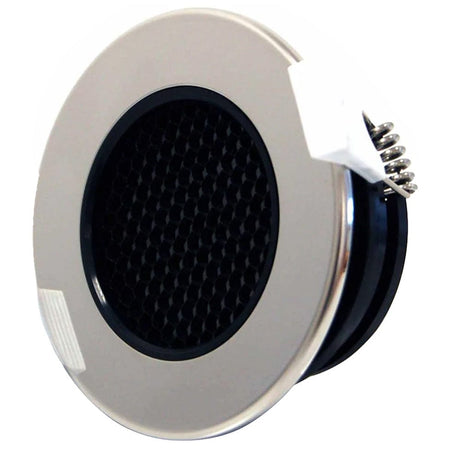

Download Literature Watch VideoLumishore 010-04450-00 Cabin & Reading LightLUX Downlight DL65 Anti-Glare 5 Watt Chrome BezelLUX Downlights are the perfect solution for interior or exterior overhead lighting needs - designed for all cabin ceiling heights!Full spectrum CRGBW (cold white, red, green, blue, warm white) and white color temperature tunable (from 2700k to 6500k) in the same light unit.Finished in a Chrome Bezel and a hard-anodized aluminium body to complement the style of your boat's interior/exterior.Controlled by a momentary switch, or upgrade to full integration with your compatible MFD and/or Lumishore Display.LUX Downlights are dimmable as standard and powered by the LUX Light Control Module.Specifications: Ingress Protection: IP68 Supply Voltage Range: 10.5 – 31V DC Max Current Draw: 0.6A / 0.3A Front diameter (Bezel): 82mm Hole diameter for fitting: 65mm Mechanical installation: Screw fittings (outdoor), spring clips (indoor use only) Number of Downlights per control module: 16 Control options: Momentary switch with option to upgrade to full MFD and optional Lumishore Display Normalized SKU: 0100445000UPC Code: 847772002814Lumishore 010-04450-00 Literature Download Quick Reference GuideLumishore 010-04450-00 Video

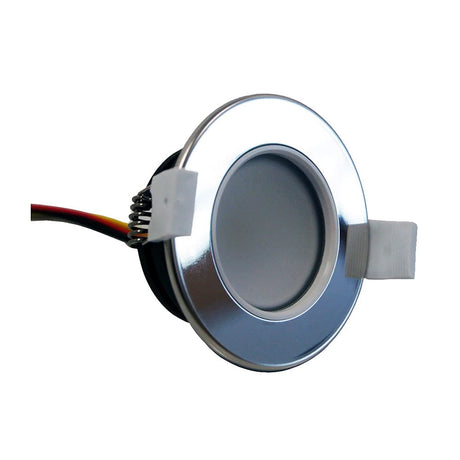

Download Literature Watch VideoLumishore 010-04439-00 Cabin & Reading LightLUX DL65 Downlight - 5 Watt - Chrome BezelLUX Downlights are the perfect solution for interior or exterior overhead lighting needs - designed for all cabin ceiling heights!Full spectrum CRGBW (cold white, red, green, blue, warm white) and white color temperature tunable (from 2700k to 6500k) in the same light unit.Finished in a Chrome Bezel and a hard-anodized aluminium body to complement the style of your boat's interior/exterior.Controlled by a momentary switch, or upgrade to full integration with your compatible MFD and/or Lumishore Display.LUX Downlights are dimmable as standard and powered by the LUX Light Control Module.Specifications: Available Colors: Full Spectrum CRGBW and white color temperature tunable from 2700K to 6500K Ingress Protection: IP68 Supply Voltage Range: 10.5 - 31v DC Max Current Draw: 0.6A/0.3A Front Diameter (Bezel): 82mm Hold Diameter for Fitting: 65mm Mechanical Installation: Screw fittings (outdoor), spring clips (indoor use only) Number of Downlights Per Control Module: 16 Control Options: Momentary switch with option to upgrade to full MFD and optional Lumishore Display Normalized SKU: 0100443900UPC Code: 847772002517Lumishore 010-04439-00 Literature Download Product BrochureLumishore 010-04439-00 Video

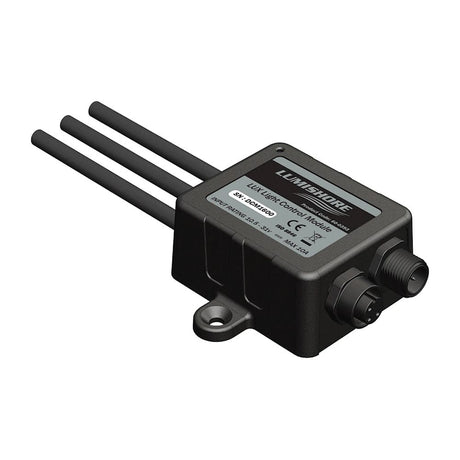

Download Literature Watch VideoLumishore 010-04442-00 Wiring & AccessoriesLUX Light Control ModuleFeatures: Full Spectrum RGB and White Color Temperature Tunable (2700K to 6500K) Full Capability for LUX Smart Lighting Specially Designed for Ease of Installation Specifications: Ingress Protection Rating: IP68 Driver: Multi-Channel Internal Driver Supply Voltage Range: 10.5 - 31 V DC Max Current Draw: (12/24V DC) 0.2 A / 0.1 A Surge Protection: Yes ATRB (Automatic Thermal Roll Back): Yes Low Voltage Protection: Yes Auto Power Control: Yes - Intelligent Multi-Channel Power Management “Soft Start” Electronics Protection: Yes Reverse Polarity Protection: Yes In Rush Current Protection: Yes Power Line Noise Suppression: Yes ISO 8846 (Ignition Protection): Yes Normalized SKU: 0100444200Lumishore 010-04442-00 Literature Download Quick Reference GuideLumishore 010-04442-00 Video

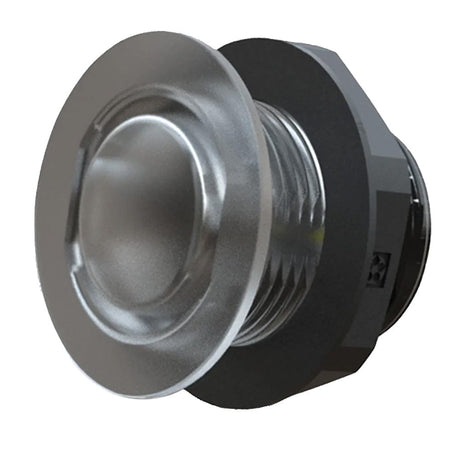

Download Literature Watch VideoLumishore 010-04449-00 Live Well AccessoriesLUX Livewell Light LW25 .5 Watt - Chrome BezelLUX Livewell Lights are built for the harsh environment of livewells, fish boxes, and splash wells. Suitable for any wet place onboard, or submerged underwater, where an internal screw thread/locking nut is desirable.Full spectrum CRGBW (cold white, red, green, blue, warm white ) and white color temperature tunable (from 2700k to 6500k) in one livewell light unit.Easily controllable by a momentary switch, with the option to upgrade to full integration with your compatible MFD and/or Lumishore Display.The LW25 is completely sealed and IP68 rated and can be installed with or without a stainless steel bezel. Dimmable as standard and powered by the LUX Light Control Module.Specifications: Ingress Protection: IP68 Supply Voltage Range: 10.5 - 31 V DC Max Current Draw: 0.1A / 0.05A Front diameter (Bezel): 50mm Profile (Bezel): 5.4mm Front diameter (Without Bezel): 36mm Profile (Without Bezel): 3.5mm Depth: 30.0mm Hole diameter for fitting: 25mm Mechanical installation: Bulkhead Panel Mount (with marine adhesive) Number of Livewell Lights per control module: 16 Control options: Momentary switch or upgrade to full MFD and optional Lumishore Display Normalized SKU: 0100444900UPC Code: 847772002807Lumishore 010-04449-00 Literature Download Quick Reference GuideLumishore 010-04449-00 Video

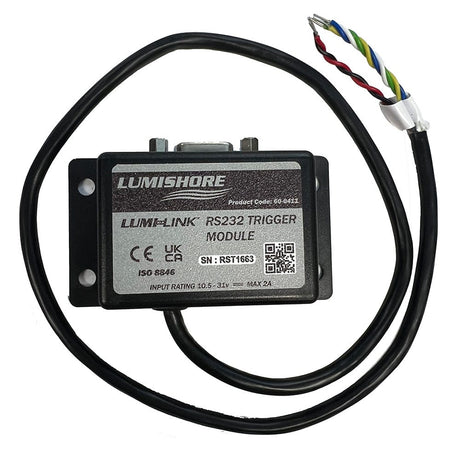

Watch VideoLumishore 010-04446-00 Wiring & AccessoriesLUX RS232 Trigger ModulesFeatures: Key component designed to integrate external control systems with your EOS-LUX lighting system Utilizes RS232 connectivity Allows for seamless communication and triggering of lighting events from compatible control devices Ensures precise synchronization and automation of lighting effects, enhancing the overall functionality and versatility of your marine lighting setup Provides an essential interface for advanced lighting control Normalized SKU: 0100444600UPC Code: 847772002661Lumishore 010-04446-00 Video

Download Literature Watch VideoLumishore 010-04438-00 Wiring & AccessoriesLUX Strip Light Driver - Regulated with Built-In StabilizerFeatures: Full Spectrum RGB and White Color Temperature Tunable (2700K to 6500K) Full MFD Connectivity for LUX Lighting Specially Designed for Ease of Installation Plug and Play Connections Specifications: Driver: Multi-Channel Internal Driver Supply Voltage Range: 10.5 - 31 V DC Max Current Draw (12/24V DC): 5.6A / 2.8A Surge Protection: Yes ATRB (Automatic Thermal Roll Back): Yes Low Voltage Protection: Yes Auto Power Control: Yes - Intelligent Multi-Channel Power Management “Soft Start” Electronics Protection: Yes Reverse Polarity Protection: Yes In Rush Current Protection: Yes Power Line Noise Suppression: Yes Max Cable Length to start of LED strip: 5m (16.8’) Number of LED strips per Driver: Multiple LED Strips - up to 10m (32.8’) total strip length ISO 8846 (Ignition Protection): Yes Normalized SKU: 0100443800UPC Code: 847772002449Lumishore 010-04438-00 Literature Download Quick Reference GuideLumishore 010-04438-00 Video

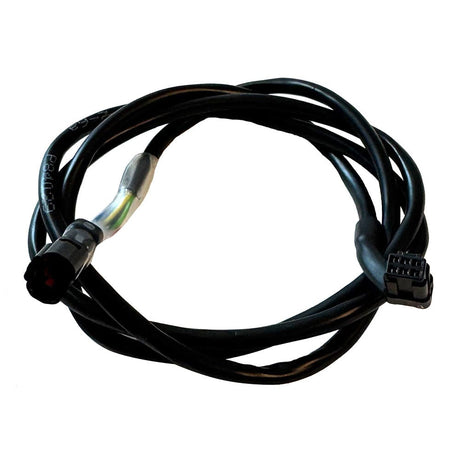

Lumishore 010-14455-00 Wiring & AccessoriesLux SL/SNL Power Extension Cable - 1MLumishore's strip light extension cable.Specifications:Length: 1M Normalized SKU: 0101445500

Lumishore 010-14456-00 Wiring & AccessoriesLux SL/SNL Power Extension Cable - 2MLumishore's strip light extension cable.Specifications:Length: 2M Normalized SKU: 0101445600
