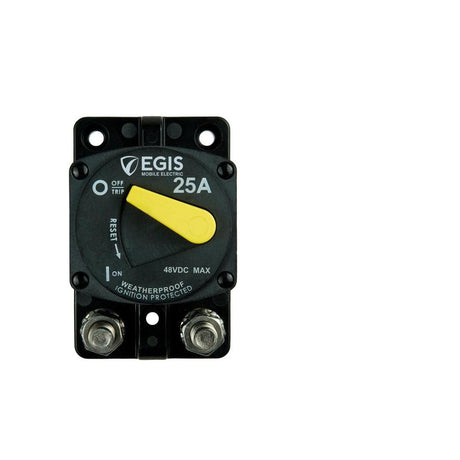

EGIS 4704-025 Circuit BreakersEGIS 87-Series 25 Amp Circuit Breaker Surface MountModel: 4704-025 ON/OFF High Visibility Controls Sealed against dust and moisture penetration. High temp rated for all installation locations Reinforced Mounting ?Ensures long term structural reliability with reinforced mounting tabs built to withstand the stress of vibration. Stainless Steel Hardware / Serrated Flange Nuts Corrosion and vibration resistant for harsh environment applications. Made in the USA of high quality components. IP 66 Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installationHigh Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 VdcHigh Electrical / Manual Switching Endurance delivers 2,000 cycles at full currentHigh Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power4 Year Warranty: We stand behind our product's ability to meet your needs.Specifications CONTINUOUS CURRENT (AMPS) 25 MAX VOLTAGE (VDC) 48 CYCLING ENDURANCE 2,000 INTERRUPT CURRENT @ 14 VDC (AMPS) 5,000 INTERRUPT CURRENT @ 28 VDC (AMPS) 3,000 INGRESS PROTECTION RATING IP66 Normalized SKU: 4704025UPC Code: 850035199558

EGIS 4707-040 Circuit BreakersEGIS 87-Series 40 Amp Circuit Breaker Panel MountModel: 4707-040 ON/OFF High Visibility Controls Sealed against dust and moisture penetration. High temp rated for all installation locations. Circular Design Compatible with circular cutout enables easy in panel installation Stainless Steel Hardware / Serrated Flange Nuts Corrosion and vibration resistant for harsh environment applications. Made in the USA of high quality components. IP 66 Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installationHigh Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 VdcHigh Electrical / Manual Switching Endurance delivers 2,000 cycles at full currentHigh Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power4 Year Warranty: We stand behind our product's ability to meet your needs.Specifications CONTINUOUS CURRENT (AMPS) 40 MAX VOLTAGE (VDC) 48 CYCLING ENDURANCE 2,000 INTERRUPT CURRENT @ 14 VDC (AMPS) 5,000 INTERRUPT CURRENT @ 28 VDC (AMPS) 3,000 INGRESS PROTECTION RATING IP66 Normalized SKU: 4707040UPC Code: 850053879029

EGIS 4707-050 Circuit BreakersEGIS 87-Series 50 Amp Circuit Breaker Panel MountModel: 4707-050 ON/OFF High Visibility Controls Sealed against dust and moisture penetration. High temp rated for all installation locations. Circular Design Compatible with circular cutout enables easy in panel installation. Stainless Steel Hardware / Serrated Flange Nuts Corrosion and vibration resistant for harsh environment applications. Made in the USA of high quality components. IP 66 Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installationHigh Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 VdcHigh Electrical / Manual Switching Endurance delivers 2,000 cycles at full currentHigh Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power4 Year Warranty: We stand behind our product's ability to meet your needs.Specifications CONTINUOUS CURRENT (AMPS) 50 MAX VOLTAGE (VDC) 48 CYCLING ENDURANCE 2,000 INTERRUPT CURRENT @ 14 VDC (AMPS) 5,000 INTERRUPT CURRENT @ 28 VDC (AMPS) 3,000 INGRESS PROTECTION RATING IP66 Normalized SKU: 4707050UPC Code: 850053879036

EGIS 4704-050 Circuit BreakersEGIS 87-Series 50 Amp Circuit Breaker Surface MountModel: 4704-050 ON/OFF High Visibility Controls Sealed against dust and moisture penetration. High temp rated for all installation locations. Reinforced Mounting Ensures long term structural reliability with reinforced mounting tabs built to withstand the stress of vibration. Stainless Steel Hardware / Serrated Flange Nuts Corrosion and vibration resistant for harsh environment applications. Made in the USA of high quality components. IP 66 Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installationHigh Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 VdcHigh Electrical / Manual Switching Endurance delivers 2,000 cycles at full currentHigh Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power4 Year Warranty: We stand behind our product's ability to meet your needs.Specifications CONTINUOUS CURRENT (AMPS) 50 MAX VOLTAGE (VDC) 48 CYCLING ENDURANCE 2,000 INTERRUPT CURRENT @ 14 VDC (AMPS 5,000 INTERRUPT CURRENT @ 28 VDC (AMPS) 3,000 INGRESS PROTECTION RATING IP66 Normalized SKU: 4704050UPC Code: 850035199312

EGIS 4707-060 Circuit BreakersEGIS 87-Series 60 Amp Circuit Breaker Panel MountModel: 4707-060 ON/OFF High Visibility Controls Sealed against dust and moisture penetration. High temp rated for all installation locations. Circular Design Compatible with circular cutout enables easy in panel installation. Stainless Steel Hardware / Serrated Flange Nuts Corrosion and vibration resistant for harsh environment applications. Made in the USA of high quality components. IP 66 Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installationHigh Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 VdcHigh Electrical / Manual Switching Endurance delivers 2,000 cycles at full currentHigh Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power4 Year Warranty: We stand behind our product's ability to meet your needs.Specifications CONTINUOUS CURRENT (AMPS) 60 MAX VOLTAGE (VDC) 48 CYCLING ENDURANCE 2,000 INTERRUPT CURRENT @ 14 VDC (AMPS) 5,000 INTERRUPT CURRENT @ 28 VDC (AMPS) 3,000 INGRESS PROTECTION RATING IP66 Normalized SKU: 4707060UPC Code: 850053879043

EGIS 4707-070 Circuit BreakersEGIS 87-Series 70 Amp Circuit Breaker Panel MountModel: 4707-070 ON/OFF High Visibility Controls Sealed against dust and moisture penetration. High temp rated for all installation locations. Circular Design Compatible with circular cutout enables easy in panel installation. Stainless Steel Hardware / Serrated Flange Nuts Corrosion and vibration resistant for harsh environment applications. Made in the USA of high quality components. IP 66 Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installationHigh Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 VdcHigh Electrical / Manual Switching Endurance delivers 2,000 cycles at full currentHigh Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power4 Year Warranty: We stand behind our product's ability to meet your needs.Specifications CONTINUOUS CURRENT (AMPS) 70 MAX VOLTAGE (VDC) 48 CYCLING ENDURANCE 2,000 INTERRUPT CURRENT @ 14 VDC (AMPS) 5,000 INTERRUPT CURRENT @ 28 VDC (AMPS) 3,000 INGRESS PROTECTION RATING IP66 Normalized SKU: 4707070UPC Code: 850053879050

EGIS 4704-070 Circuit BreakersEGIS 87-Series 70 Amp Circuit Breaker Surface MountModel: 4704-070 ON/OFF High Visibility Controls Sealed against dust and moisture penetration. High temp rated for all installation locations. Reinforced Mounting Ensures long term structural reliability with reinforced mounting tabs built to withstand the stress of vibration. Stainless Steel Hardware / Serrated Flange Nuts Corrosion and vibration resistant for harsh environment applications. Made in the USA of high quality components. IP 66 Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installationHigh Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 VdcHigh Electrical / Manual Switching Endurance delivers 2,000 cycles at full currentHigh Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power4 Year Warranty: We stand behind our product's ability to meet your needs.Specifications CONTINUOUS CURRENT (AMPS) 70 MAX VOLTAGE (VDC 48 CYCLING ENDURANCE 2,000 INTERRUPT CURRENT @ 14 VDC (AMPS) 5,000 INTERRUPT CURRENT @ 28 VDC (AMPS) 3,000 INGRESS PROTECTION RATING IP66 Normalized SKU: 4704070UPC Code: 850035199336

EGIS 4707-080 Circuit BreakersEGIS 87-Series 80 Amp Circuit Breaker Panel MountModel: 4707-080 ON/OFF High Visibility Controls Sealed against dust and moisture penetration. High temp rated for all installation locations. Circular Design Compatible with circular cutout enables easy in panel installation. Stainless Steel Hardware / Serrated Flange Nuts Corrosion and vibration resistant for harsh environment applications. Made in the USA of high quality components. IP 66 Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installationHigh Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 VdcHigh Electrical / Manual Switching Endurance delivers 2,000 cycles at full currentHigh Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power4 Year Warranty: We stand behind our product's ability to meet your needs.Specifications CONTINUOUS CURRENT (AMPS) 80 MAX VOLTAGE (VDC) 48 CYCLING ENDURANCE 2,000 INTERRUPT CURRENT @ 14 VDC (AMPS) 5,000 INTERRUPT CURRENT @ 28 VDC (AMPS) 3,000 INGRESS PROTECTION RATING IP66 Normalized SKU: 4707080UPC Code: 8850053879067

EGIS 4704-080 Circuit BreakersEGIS 87-Series 80 Amp Circuit Breaker Surface MountModel: 4704-080 ON/OFF High Visibility Controls Sealed against dust and moisture penetration. High temp rated for all installation locations. Reinforced Mounting Ensures long term structural reliability with reinforced mounting tabs built to withstand the stress of vibration. Stainless Steel Hardware / Serrated Flange Nuts Corrosion and vibration resistant for harsh environment applications. Made in the USA of high quality component IP 66 Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installationHigh Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 VdcHigh Electrical / Manual Switching Endurance delivers 2,000 cycles at full currentHigh Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power4 Year Warranty: We stand behind our product's ability to meet your needs.Specifications CONTINUOUS CURRENT (AMPS) 80 MAX VOLTAGE (VDC) 48 CYCLING ENDURANCE 2,000 INTERRUPT CURRENT @ 14 VDC (AMPS) 5,000 INTERRUPT CURRENT @ 28 VDC (AMPS) 3,000 INGRESS PROTECTION RATING IP66 Normalized SKU: 4704080UPC Code: 850035199343

EGIS 4707-090 Circuit BreakersEGIS 87-Series 90 Amp Circuit Breaker Panel MountModel: 4707-090 ON/OFF High Visibility Controls Sealed against dust and moisture penetration. High temp rated for all installation locations. Circular Design Compatible with circular cutout enables easy in panel installation. Stainless Steel Hardware / Serrated Flange Nuts Corrosion and vibration resistant for harsh environment applications. Made in the USA of high quality components. IP 66 Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installationHigh Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 VdcHigh Electrical / Manual Switching Endurance delivers 2,000 cycles at full currentHigh Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power4 Year Warranty: We stand behind our product's ability to meet your needs.Specifications CONTINUOUS CURRENT (AMPS) 90 MAX VOLTAGE (VDC) 48 CYCLING ENDURANCE 2,000 INTERRUPT CURRENT @ 14 VDC (AMPS) 5,000 INTERRUPT CURRENT @ 28 VDC (AMPS) 3,000 INGRESS PROTECTION RATING IP66 Normalized SKU: 4707090UPC Code: 850053879074

EGIS 4704-090 Circuit BreakersEGIS 87-Series 90 Amp Circuit Breaker Surface MountModel: 4704-090 ON/OFF High Visibility Controls Sealed against dust and moisture penetration. High temp rated for all installation locations. Reinforced Mounting Ensures long term structural reliability with reinforced mounting tabs built to withstand the stress of vibration. Stainless Steel Hardware / Serrated Flange Nuts Corrosion and vibration resistant for harsh environment applications. Made in the USA of high quality components. IP 66 Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installationHigh Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 VdcHigh Electrical / Manual Switching Endurance delivers 2,000 cycles at full currentHigh Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power4 Year Warranty: We stand behind our product's ability to meet your needs.Specifications CONTINUOUS CURRENT (AMPS) 90 MAX VOLTAGE (VDC) 48 CYCLING ENDURANCE 2,000 INTERRUPT CURRENT @ 14 VDC (AMPS) 5,000 INTERRUPT CURRENT @ 28 VDC (AMPS) 3,000 INGRESS PROTECTION RATING INGRESS PROTECTION RATING Normalized SKU: 4704090UPC Code: 850035199398

Egis 4720-10 Circuit BreakersATM/MINI 10 AMP Circuit Breaker - Type 3Features: Extremely Compact Circuit Breakers significantly reduce the space required to implement resettable circuit protection in mobile electrical systems. 32 Max VDC Rating easily supports 12- and 24-VDC systems. Manual push-to-reset Type 3 operation allows simple re-closing of the circuit breaker after any potential fault situations are investigated and cleared.   Color-coded enclosure variations, depending on continuous current, help reduce installation errors and ensure correct replacements. Harsh Environment design with high temperature materials and tin-plated copper alloy conductors. Supports ABYC Compliant Systems when wire sizes are reduced for branch circuit distribution. Normalized SKU: 472010UPC Code: 850053879814

Egis 4720-15 Circuit BreakersATM/MINI 15 AMP Circuit Breaker - Type 3Features: Extremely Compact Circuit Breakers significantly reduce the space required to implement resettable circuit protection in mobile electrical systems. 32 Max VDC Rating easily supports 12- and 24-VDC systems. Manual push-to-reset Type 3 operation allows simple re-closing of the circuit breaker after any potential fault situations are investigated and cleared.   Color-coded enclosure variations, depending on continuous current, help reduce installation errors and ensure correct replacements. Harsh Environment design with high temperature materials and tin-plated copper alloy conductors. Supports ABYC Compliant Systems when wire sizes are reduced for branch circuit distribution. Normalized SKU: 472015UPC Code: 850053879821

Egis 4720-20 Circuit BreakersATM/MINI 20 AMP Circuit Breaker - Type 3Features: Extremely Compact Circuit Breakers significantly reduce the space required to implement resettable circuit protection in mobile electrical systems. 32 Max VDC Rating easily supports 12- and 24-VDC systems. Manual push-to-reset Type 3 operation allows simple re-closing of the circuit breaker after any potential fault situations are investigated and cleared.   Color-coded enclosure variations, depending on continuous current, help reduce installation errors and ensure correct replacements. Harsh Environment design with high temperature materials and tin-plated copper alloy conductors. Supports ABYC Compliant Systems when wire sizes are reduced for branch circuit distribution. Normalized SKU: 472020UPC Code: 850053879838

Egis 4720-25 Circuit BreakersATM/MINI 25 AMP Circuit Breaker - Type 3Features: Extremely Compact Circuit Breakers significantly reduce the space required to implement resettable circuit protection in mobile electrical systems. 32 Max VDC Rating easily supports 12- and 24-VDC systems. Manual push-to-reset Type 3 operation allows simple re-closing of the circuit breaker after any potential fault situations are investigated and cleared.   Color-coded enclosure variations, depending on continuous current, help reduce installation errors and ensure correct replacements. Harsh Environment design with high temperature materials and tin-plated copper alloy conductors. Supports ABYC Compliant Systems when wire sizes are reduced for branch circuit distribution. Normalized SKU: 472025UPC Code: 850053879845

Egis 4720-30 Circuit BreakersATM/MINI 30 AMP Circuit Breaker - Type 3Features: Extremely Compact Circuit Breakers significantly reduce the space required to implement resettable circuit protection in mobile electrical systems. 32 Max VDC Rating easily supports 12- and 24-VDC systems. Manual push-to-reset Type 3 operation allows simple re-closing of the circuit breaker after any potential fault situations are investigated and cleared.   Color-coded enclosure variations, depending on continuous current, help reduce installation errors and ensure correct replacements. Harsh Environment design with high temperature materials and tin-plated copper alloy conductors. Supports ABYC Compliant Systems when wire sizes are reduced for branch circuit distribution. Normalized SKU: 472030UPC Code: 850053879852

Egis 4720-05 Circuit BreakersATM/MINI 5 AMP Circuit Breaker - Type 3Features: Extremely Compact Circuit Breakers significantly reduce the space required to implement resettable circuit protection in mobile electrical systems. 32 Max VDC Rating easily supports 12- and 24-VDC systems. Manual push-to-reset Type 3 operation allows simple re-closing of the circuit breaker after any potential fault situations are investigated and cleared.   Color-coded enclosure variations, depending on continuous current, help reduce installation errors and ensure correct replacements. Harsh Environment design with high temperature materials and tin-plated copper alloy conductors. Supports ABYC Compliant Systems when wire sizes are reduced for branch circuit distribution. Normalized SKU: 472005UPC Code: 850053879791

Egis 4720-07 Circuit BreakersATM/MINI 7.5 AMP Circuit Breaker - Type 3Features: Extremely Compact Circuit Breakers significantly reduce the space required to implement resettable circuit protection in mobile electrical systems. 32 Max VDC Rating easily supports 12- and 24-VDC systems. Manual push-to-reset Type 3 operation allows simple re-closing of the circuit breaker after any potential fault situations are investigated and cleared.   Color-coded enclosure variations, depending on continuous current, help reduce installation errors and ensure correct replacements. Harsh Environment design with high temperature materials and tin-plated copper alloy conductors. Supports ABYC Compliant Systems when wire sizes are reduced for branch circuit distribution. Normalized SKU: 472007UPC Code: 850053879807

Download LiteratureEgis 7610-24 Charger AccessoriesAutomatic Charging Relay Plus - 160A - 24VThis 160A Egis automatic charging relay eliminates dead-start batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.Applications:  Supports multiple engines or independent charge systems by incorporating two independent start or engine isolation inputs to allow isolation of charge sources when both are active to maximize charging performance Protects Electrical System Cascading Faults with an optional lock-out from closing if one terminal is connected to a battery with a shorted cell Features: Ultra-low power draw compared to typical ACRs (7-10 mA) vs. the 7610 ACR @ 1.3 mA will not deplete batteries even after extended electrical system downtime. Simple and robust installation - integrated sealed plug eliminates corrosion; includes Deutsch/Amphenol DTM connector harness Start to assist input option to ensure maximum cranking amps are available by allowing manually connecting batteries via a remote switch Bullet-proof construction - sealed unit, stainless steel hardware, and high-temperature materials allow mounting anywhere; Integrated thermal overload shutdown protection Additional low-amp output can be used to report device status remotely or drive a secondary relay for charge to a battery bank without a charge source (see examples) Specifications: Continuous Current Amps: 160 Voltage Range (VDC): 16 – 36 Off-State Current Draw (mA): 1.3 Interrupt Current (Amps): 240 AC Closing Voltage Range (VDC): 25.8-27.2 AC Opening Voltage Range (VDC): 24.2-25.6 Focal Features:Top Side Dip SwitchesAccessible after mounting for programming voltage settings and determining active features. Protected by self-retained cover.Stainless Steel Self-Locking Hardware100% non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.Integral I/O ConnectorSealed Molex MX-150 connector eliminates the susceptibility to corrosion and vibrating loose of 1/4" quick connect terminals on competitive products.Connection OptionsComes standard with a Deutsch DT/AT style connector harness. Provides three connection options (MX-150, DT/AT, and wire leads). Easy Integration with RT Fuse Blocks (24 HR Circuits)Optional EasyLink bus bars reduce the space and cost of connecting TH Series relays with RT Series fuse blocks. LED DiagnosticsIndicates pending relay ON/OFF, under voltage, over voltage/temp, start isolation/assist, and output on/off status.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 761024UPC Code: 850035199947Egis 7610-24 Literature Download Quick Reference Guide Owners Manual
