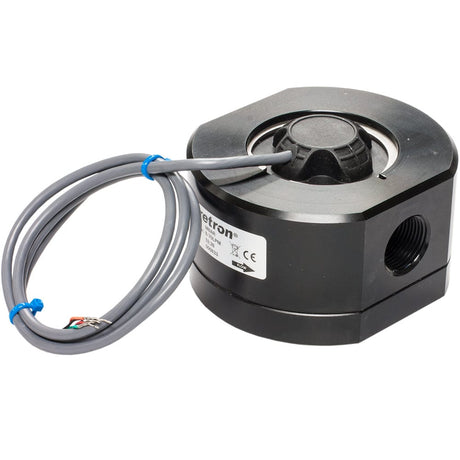

Maretron M2AR Navigational InstrumentsFuel Flow Sensor - 25-500 LPH/6.6-132 GPHFeatures: Operating Temperature: -40°C to 80°C (-40°F to 176°F) Storage Temperature: -65°C to 170°C (-85°F to 338°F) Port Size: 1/4" NPT Female Cable Length: 1M (3.28 ft) Maximum Viscosity: 1000 cPs Pressure: 68.95 Bar (1000 PSI) Strainer Size: 200 Mesh (If not already installed after fuel filter) WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications:Load Equivalence # (LEN) = NONENormalized SKU: M2ARUPC Code: 873804003535

Maretron SH-003 Fume & FireHigh-Temperature Smoke/Heat Detector KitMaretron's High-Temperature Smoke/Heat Detector Kit is an intelligent NMEA 2000® networked solution, designed to alert you of unusually fast rises in temperature or smoke.This kit contains a smoke/heat detector, auxiliary relay, and sounder that are designed to work in high-temperature marine environments, such as engine rooms. The components in this kit are rated from -25°C (-13°F) to +70°C (158°F). This system is designed to work with a 24 VDC power supply.Features: Kit contains a smoke/heat detector, auxiliary relay, and sounder Designed to work in high-temperature marine environments, such as engine rooms Connects to an NMEA 2000® network via a Maretron SIM100 Switch Indicator Module (sold separately) Rated from -25°C (-13°F) to +70°C (158°F) For use with a 24 Volt DC power supply Normalized SKU: SH003UPC Code: 873804004334

  Download LiteratureMaretron IPG100-01 Network AccessoriesIPG100 (Internet Protocol Gateway) lets you connect Maretron black boxes (MBB100's), Maretron touch screens (DSM800's), PC's, Mac's, tablets, or smartphones to an NMEA 2000 network so you can monitor and control your vessel using Maretron's N2KViewr software. The conventional way of viewing NMEA 2000 information is with a display on the vessel that is directly connected to an NMEA 2000 network, but with the IPG100, you are not limited to direct connected displays. With the IPG100, you can use any device running N2KViewr software to monitor and control your vessel from onboard or ashore.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: IPG10001UPC Code: 873804003061Maretron IPG100-01 Literature Download  Owners Manual

Maretron A3706 Network AccessoriesJ1 Output Mating Connector with 3M Leads-CLMD12Output (J1) Mating Connector with 12" flying leads.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: A3706UPC Code: 873804004167

Maretron A3707 Network AccessoriesJ2 Output Mating Connector with 3M Leads-CLMD12Input (J2) Mating Connector with 12" flying leads.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: A3707UPC Code: 873804004174

Maretron CLMD16-R Network AccessoriesMaretron M-Power CLMD16-R DC Load Module 28 Channel N2KModel: CLMD16-R NMEA 2000® Interface IP67 Rated Ignition Protected Opto-isolated from NMEA 2000®, eliminating potential ground loops Sixteen (16) dimmable Electronic Circuit Breakers (ECBs) for On/Off Control over NMEA 2000® network. 4 breakers capable of carrying up to 25 Amps. 12 breakers capable of carrying up to 12 Amps Individual breaker electrical current monitoring Breakers can have Power-Up states defined (ON, OFF or previous states) Breakers can be Locked against inadvertent actuation. Capacitive touch switches for local control of all loads All inputs and outputs protected against short to Power and short to Ground Automatic ECB overcurrent shutdown Automatic ECB thermal shutdown (Overtemperature Protection) Eight (8) discrete digital input channels capable of sensing +ve or ground signals Two (2) resistive analog input channels One (1) 4-20mA current loop input channel For larger breakers and more circuits, the MPower® CLMD16 is a 16-Channel DC Load Controller Module. Four of the 16 breakers handle a maximum of 25 amps and twelve breakers handle a maximum of 12 amps with a total current capacity of 125 Amps. Additionally, circuits can be paralleled.The CLMD16 also supports two H-Bridge reversing polarity circuits that can be used for loads such as engine hatches, passerelles, trim tabs, etc. The CLMD16 has 8 inputs for hard-wired switches that can be used to switch breaker states, or as inputs for other data such as bilge alarms or hatch positions, etc. There are 3 inputs capable of monitoring tank levels.The CLMD16 handles many DC load types such as lights, pumps, motors, and electronics. An added benefit of the CLMD16 is that it reports the current through each of the 16 breakers. This allows you to determine if loads are drawing too much or too little electrical current. This information can be used to report overcurrent faults and under-current conditions such as burnt-out bulbs.Remote control of navigation lights and boarding lights. Control of area lights with dimming. Burnt out bulb alerts.What's in the Box: CLMD16 Load Module with a 1m mating connector for both the J1 and J2 connectors and a 1m I/O harness kit for the J3 connector. Normalized SKU: CLMD16RUPC Code: 873804004365

  Download LiteratureMaretron MS-1085-N Network AccessoriesMS-1085-N Rectangular Magnetic Switch for OutdoorsApplications: Convenient surface mounting Mounting screws included Specifications: ABS Plastic Enclosure IP67 Hermetically sealed reed switch encapsulated in polyurethane WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications:Load Equivalence # (LEN) = NONENormalized SKU: MS1085NUPC Code: 873804002552Maretron MS-1085-N Literature Download  Quick Reference Guide  Owners Manual

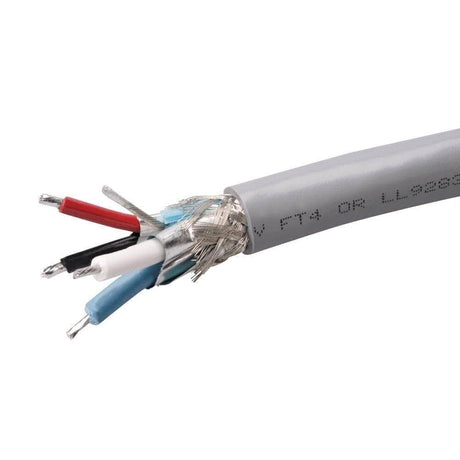

Maretron CG1-100C Wiring & SuppliesMicro Bulk Cable Single Piece - 100M SpoolMicro bulk cable is primarily used as drop cable, but it can also be used as the trunk line depending on network power requirements. Bulk cable with field-attachable connectors allows for maximum flexibility as cables can be made on the job to exact lengths.Features: Single Piece 100M Spool Length Trunk of drop cable for use with Micro Connectors Used with field attachable connectors to build exact length cables at the job site Specifications:Length (Feet) = NONE Gauge = NONE Color = NONENormalized SKU: CG1100CUPC Code: 873804003016

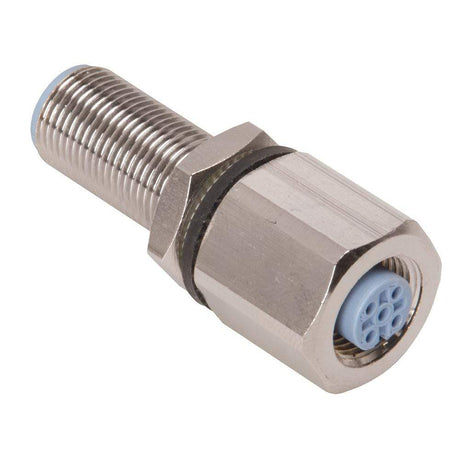

Maretron BHF-CM-CF Network AccessoriesMicro Bulkhead Feed-ThruThe Bulkhead Feed-Thru allows ease of installation through panels or bulkheads and establishes future connection points in a network installation. The bulkhead feed-thru also maintains the integrity of watertight bulkheads by providing a waterproof seal and connectionFeatures rugged keyways for positive alignment of connections Waterproof rated to IP67 MARETRON MICRO BULKHEAD FEED THRUNormalized SKU: BHFCMCFUPC Code: 873804001630
