SI-TEX T-940A-3 Radar Array8.5" Color LCD Radar with 4kW Output 1/16-48NM Range - 3.5' Open Array AntennaSI-TEX's T-940-3 Radars feature sophisticated Hyper-Digital Processing™ (HDP) Technology for real-time presentation and superior target discrimination.Features: Display: 8.4" TFT Color LCD Includes 3.5' Open Array, Output: 4 kW Power: 12 / 24 Volt DC, Consumption: 70 Watts In the Box: Display Unit MRD-103 with hardcover Connecting Cable 242J158055A -10 M with 2 connectors DC Power Cable CW265-2M 2m CCD Camera Cable CW-405-0.3M Operation manual, Quick reference Fuse (8A) Additional Features:It virtually eliminates unwanted noise to provide a clearer detailed image of targets and enhances the detection of smaller targetsRadome: 4kW 48NM 3-1/2' Open Array Display: Brilliant 8.4" color LCD daylight viewable display 480 x 640-pixel resolution and anti-reflective glare coating for outstanding viewing True-color radar feature displays echoes in different colors depending on signal strength The real-time presentation offers smooth movement as bearing changes The T-940 has two-speed antenna rotation for tracking quick-moving, close-in targets: 48 RPM 24 RPM (Requires 24 Volt DC input) Selectable range scales from 1/16 NM Warning Zone alerts you to "incoming" and "departing" targets breaking your preset guard zone Automatic hands-off tuning maintains maximum sensitivity at all times with manual override for the experienced use RGB output for connecting (2) optional external monitors Easy access to all system functions with a simply arranged keypad, programmable function keys, comprehensive menus, and dedicated rotary knobs for instant control of Gain and STC The built-in flush mounting system makes installation easy All this advanced radar technology is housed in a sleek, waterproof (IPX5 rating) case design that can be mounted almost anywhere The Dual Range Radar function lets you view split-screen displays of both long and short-range targets simultaneouslyMonitor a nearby buoy and a far off island at the same time True Trail function clearly identifies moving targets from stationary targets The display shows the exact movement of other vessels like drawing tails, while land and buoys are shown as stationary objects even while your vessel is moving Accepts CCD camera input, to display split-screen Radar and CameraAllows you to monitor important areas of your vessel while shill keeping watch of your surroundings Optional ATA (Automatic Tracking Aid) allows you to track up to 50 user designated targets Designate the target and the radar will automatically provide the target distance, speed, bearing, course, and closest point of approach on all user targets selected. Optional AIS interface displays information on up to (100) AIS targets including the vessel's MMSI number, name, course, and speed of each vessel with an AIS transmitterThis information is sent continuously and is useful in navigating, traffic monitoring, and collision prevention Specifications:Antenna Unit: Scanner 3-1/2' Open Array Peak Power Output 4kW Output Frequency 9410 + 30MHz Beam Width: Horizontal 2.5° Vertical 22° Rotation 24 or 48 rpm (48 rpm; 24V DC or more Pulse Width .08, 0.15, 0.3, 0.5, 1 use IF Frequency 60 MHz Range Accuracy Better than 8m Min. Detecting Distance: Within 25m Display Unit: Display Size/Type 8.4" TFT Color LCD (480 x 640 pixels) Off Centering Max 66% Display Modes Heads up, North up*, Course up* WPT up**, True motion* Indication System PPI, PPI/PPI, PPI/NAV Range Scales NM 1/16, 1/8, 1/4, 1/2, 3/4, 1, 1.5, 2, 3, 4, 6, 7, 12, 16, 24, 32, 48 (T -- PNEW to 24,T -- 941 to 32, T -- 940 to 48) Range Rings NM 1/32, 1/16, 1/8, 1/4, 1/2, 3/4, 1/1.5, 2, 3, 4, 6, 8 12 Bearing Accuracy Better than + 1° Video Level 8 colors Distant Unit (VRM unit) NM, SM, KM Alarms Entry or Breakaway (In and Out) Other Functions Interference rejection, Target expansion, VRM, EBL, Parallel index, Course position (Lat/Lon), Bearing (true/relative), Trail*, RGB Monitor output, Slave display monitor input/output, External buzzer. Accepts CCD camera input AIS Interface Option (100 targets) ATA Option (Auto/Manual, 50 targets) Input Data Format BEC, BWC, BWR, DPT, DBT, GGA, GLL, GNS, HDG, HDM, HDT, MTW, MWD, MWV, RMA, RMB, RMC, VHW, VTG, XTE Output Data Format TTM, TLL Power Requirements 10.8 - 31.2 Volt DC Power Consumption 70 Watt or less Water Protection Display: IPX 5 Antenna CFR 46 IPX *Requires heading, speed, and/or position signal input from external equipment including GPS Compass depending on the application of the user.**Requires waypoint data input Normalized SKU: T940A3

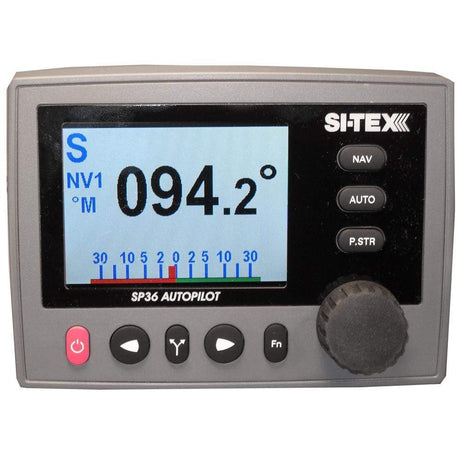

  Download LiteratureSI-TEX SP36-6 AutopilotsSP36-6 Core Pack Only, No Rotary Feedback, No Compass, No PumpSI-TEX has expanded its leading autopilot line-up with the addition of the new-for-2010 SP36 Autopilot. The company's most advanced pilot yet, the new SP36 has been designed to provide a wide range of powerboats and Commercial vessels with sophisticated steering functions and reliable performance under the harshest conditions at sea.The SP36 is the first SI-TEX autopilot to offer full Virtual Feedback capabilities, eliminating the need for a rudder feedback unit when installed on outboard powered or stern drive vessels. SI-TEX's Virtual Feedback feature makes installation of the SP36 straightforward and uncomplicated and improves reliability of the overall system by eliminating a critical part. For commercial vessels that use a rudder feedback unit, the SP36 is available with full "fly by wire" follow-up steering levers.Among the innovative features engineered into the SP36 is SI-TEX's Intelligent Steering Technology (IST). With IST, the autopilots computer "learns" a vessel's steering characteristics over time and fine-tunes its settings and parameters to deliver optimum steering performance. The "smart" SP36 pilot does this automatically and ensures boaters of the best auto steering experience for their vessel and their style of boating. SI-TEX's advanced Proportional Rate Steering Control and Adjustable Rate of Turn (ROT) Control provide smooth and precise turns in any sea conditions and deliver the control today's boaters demand, particularly when following a GPS route.The SP36 also features Auto Setup to make system calibration a breeze, with Auto Drive Detection, Auto Tune and Auto Compass Calibration (for the system's new one-piece 3-axis rate compass). Pre-defined parameter sets for outboard and inboard power- as well as planing hulls, semi-displacement and displacement hulls - further eases setup and optimizes performance for every vessel type.The SP36's Auto Sea State and Auto Trim features further enhance steering performance under a range of vessel and sea conditions. Preset turn patterns including Adjustable Fish Zag, Continuous Circle, Adjustable U-Turn and Emergency MOB Turn make it easy to access commonly used turning commands for sportfishing and boating safety. Advanced No Drift Mode and Leeway Control help maintain a vessel's Course Over Ground, even in severe wind and/or current conditions. For commercial vessels, the SP36 features advanced Work modes for fishing and towing applications.The SP36's compact control head is waterproof (to IP67 Standard) and features a vivid hi-resolution sunlight-viewable color display with rotary steering and course control knob for easy course adjustments, and "fly by wire" electronics steering. This advanced control head, overall system performance and multi-station capabilities make the SP36 an ideal choice for a wide variety of vessels, from center consoles, flybridge sportfishers, cruising yachts, and commercial vessels. Its robust construction is more than a match for harsh conditions aboard many types of commercial vessels, as well.Features: SP-36 Color Control Head w/ 25' Cable (Sitex Part #SP36 ) Control Head Cover w/ Sitex Logo (Sitex Part #CHC36) Control Head Surface Mount Kit w/ Mounting Hardware (Sitex Part #SMK36) SP-36 Processor Unit (Sitex Part #J360) Sunlight Viewable Color Display Intelligent Steering Technology Advanced No Drift Mode Specifications:Display Included = NONE GPS Included = NONE AIS Class = NONE SOLAS/Non-SOLAS = NONE Antenna Included = NONENormalized SKU: SP366SI-TEX SP36-6 Literature Download  Owners Manual

  Download LiteratureSI-TEX SP36-5 AutopilotsSP36-5 Core Pack incluing Rotary Feedback only, No Compass, No PumpSI-TEX has expanded its leading autopilot line-up with the addition of the new-for-2010 SP36 Autopilot. The company's most advanced pilot yet, the new SP36 has been designed to provide a wide range of powerboats and Commercial vessels with sophisticated steering functions and reliable performance under the harshest conditions at sea.The SP36 is the first SI-TEX autopilot to offer full Virtual Feedback capabilities, eliminating the need for a rudder feedback unit when installed on outboard powered or stern drive vessels. SI-TEX's Virtual Feedback feature makes installation of the SP36 straightforward and uncomplicated and improves reliability of the overall system by eliminating a critical part. For commercial vessels that use a rudder feedback unit, the SP36 is available with full "fly by wire" follow-up steering levers.Among the innovative features engineered into the SP36 is SI-TEX's Intelligent Steering Technology (IST). With IST, the autopilots computer "learns" a vessel's steering characteristics over time and fine-tunes its settings and parameters to deliver optimum steering performance. The "smart" SP36 pilot does this automatically and ensures boaters of the best auto steering experience for their vessel and their style of boating. SI-TEX's advanced Proportional Rate Steering Control and Adjustable Rate of Turn (ROT) Control provide smooth and precise turns in any sea conditions and deliver the control today's boaters demand, particularly when following a GPS route.The SP36 also features Auto Setup to make system calibration a breeze, with Auto Drive Detection, Auto Tune and Auto Compass Calibration (for the system's new one-piece 3-axis rate compass). Pre-defined parameter sets for outboard and inboard power- as well as planing hulls, semi-displacement and displacement hulls - further eases setup and optimizes performance for every vessel type.The SP36's Auto Sea State and Auto Trim features further enhance steering performance under a range of vessel and sea conditions. Preset turn patterns including Adjustable Fish Zag, Continuous Circle, Adjustable U-Turn and Emergency MOB Turn make it easy to access commonly used turning commands for sportfishing and boating safety. Advanced No Drift Mode and Leeway Control help maintain a vessel's Course Over Ground, even in severe wind and/or current conditions. For commercial vessels, the SP36 features advanced Work modes for fishing and towing applications.The SP36's compact control head is waterproof (to IP67 Standard) and features a vivid hi-resolution sunlight-viewable color display with rotary steering and course control knob for easy course adjustments, and "fly by wire" electronics steering. This advanced control head, overall system performance and multi-station capabilities make the SP36 an ideal choice for a wide variety of vessels, from center consoles, flybridge sportfishers, cruising yachts, and commercial vessels. Its robust construction is more than a match for harsh conditions aboard many types of commercial vessels, as well.Features: SP-36 Color Control Head w/ 25' Cable (Sitex Part #SP36 ) Control Head Cover w/ Sitex Logo (Sitex Part #CHC36) Control Head Surface Mount Kit w/ Mounting Hardware (Sitex Part #SMK36) SP-36 Processor Unit (Sitex Part #J360) Sunlight Viewable Color Display Intelligent Steering Technology Advanced No Drift Mode Specifications:Drive Type = NONE Feedback Type = NONE Pilot Type = NONE Remote Capable = NONE Turn Patterns = NONE Vessel Displacement - Max (Pounds) = NONE Boat Length - Max (Feet) = NONE Capacity - Max Ram (CU) = NONENormalized SKU: SP365SI-TEX SP36-5 Literature Download  Owners Manual

  Download LiteratureSI-TEX SP36-10 AutopilotsSP36-10SI-TEX has expanded its leading autopilot line-up with the addition of the new-for-2010 SP36 Autopilot. The company's most advanced pilot yet, the new SP36 has been designed to provide a wide range of powerboats and Commercial vessels with sophisticated steering functions and reliable performance under the harshest conditions at sea.The SP36 is the first SI-TEX autopilot to offer full Virtual Feedback capabilities, eliminating the need for a rudder feedback unit when installed on outboard powered or stern drive vessels. SI-TEX's Virtual Feedback feature makes installation of the SP36 straightforward and uncomplicated and improves reliability of the overall system by eliminating a critical part. For commercial vessels that use a rudder feedback unit, the SP36 is available with full "fly by wire" follow-up steering levers.Among the innovative features engineered into the SP36 is SI-TEX's Intelligent Steering Technology (IST). With IST, the autopilots computer "learns" a vessel's steering characteristics over time and fine-tunes its settings and parameters to deliver optimum steering performance. The "smart" SP36 pilot does this automatically and ensures boaters of the best auto steering experience for their vessel and their style of boating. SI-TEX's advanced Proportional Rate Steering Control and Adjustable Rate of Turn (ROT) Control provide smooth and precise turns in any sea conditions and deliver the control today's boaters demand, particularly when following a GPS route.The SP36 also features Auto Setup to make system calibration a breeze, with Auto Drive Detection, Auto Tune and Auto Compass Calibration (for the system's new one-piece 3-axis rate compass). Pre-defined parameter sets for outboard and inboard power- as well as planing hulls, semi-displacement and displacement hulls - further eases setup and optimizes performance for every vessel type.The SP36's Auto Sea State and Auto Trim features further enhance steering performance under a range of vessel and sea conditions. Preset turn patterns including Adjustable Fish Zag, Continuous Circle, Adjustable U-Turn and Emergency MOB Turn make it easy to access commonly used turning commands for sportfishing and boating safety. Advanced No Drift Mode and Leeway Control help maintain a vessel's Course Over Ground, even in severe wind and/or current conditions. For commercial vessels, the SP36 features advanced Work modes for fishing and towing applications.The SP36's compact control head is waterproof (to IP67 Standard) and features a vivid hi-resolution sunlight-viewable color display with rotary steering and course control knob for easy course adjustments, and "fly by wire" electronics steering. This advanced control head, overall system performance and multi-station capabilities make the SP36 an ideal choice for a wide variety of vessels, from center consoles, flybridge sportfishers, cruising yachts, and commercial vessels. Its robust construction is more than a match for harsh conditions aboard many types of commercial vessels, as well.Features: SP-36 Color Control Head w/ 25' Cable (Sitex Part #SP36 ) Control Head Cover w/ Sitex Logo (Sitex Part #CHC36) Control Head Surface Mount Kit w/ Mounting Hardware (Sitex Part #SMK36) SP-36 Processor Unit (Sitex Part #J360) Sunlight Viewable Color Display Intelligent Steering Technology Advanced No Drift Mode Specifications:Drive Type = NONE Feedback Type = NONE Pilot Type = NONE Remote Capable = NONE Turn Patterns = NONE Vessel Displacement - Max (Pounds) = NONE Boat Length - Max (Feet) = NONE Capacity - Max Ram (CU) = NONENormalized SKU: SP3610SI-TEX SP36-10 Literature Download  Owners Manual

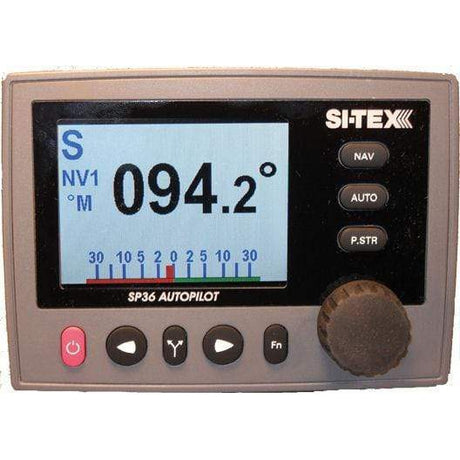

SI-TEX SP36-1 AutopilotsThis pilot consist of the SP36 control, 3axis rate compass, and rotoray feedback, no pump. SI-TEX has expanded its leading autopilot line-up with the addition of the new-for-2010 SP36 Autopilot. The company?s most advanced pilot yet, the new SP36 has been designed to provide a wide range of powerboats and Commercial vessels with sophisticated steering functions and reliable performance under the harshest conditions at sea. IST ? Auto learning Steering Technology New One Piece 3 Axis Rate Compass Advanced No Drift Mode & Advanced Leeway Control GPS Nav Mode provides precise adaptive track steering Rotary steering & course control knob Auto Setup: Auto Drive Detection, Auto Tune, Auto Compass Cal. Auto Sea State & Auto Trim for enhanced steering in all conditions Crystal Clear High Resolution Sunlight Viewable Color Control Head Standard with 20 Amp Processor for Reversing Pumps or DC Solenoids Proportional Rate Steering Control Multiple NMEA-0183 I/O ports Multiple turn patterns Adjustable rate of turn control Full Follow up levers available w/ optional rudder feedback Commercial Grade Waterproof Control Head - IP67 Standard Multi-Station Capability Predefined parameter sets for Outboards, Inboard, Displacement, etc. SI-TEX SP-36 AUTOMATIC PILOT - Specifications Operating Voltage 11 to 30 vdc Power Consumption Avgerage Pwr. Consumption .5 Amp to 3 Amps Peak DC Hydraulic Pump Output   20 Amps Max. Output   Solenoid Drive Output   12v & 24v Solenoid Output Available   Clutch Output   20 Amps Max   Nav Interface Inputs   2 x NMEA-0183   Nav Interface Output   NMEA-0183 Heading @ 10hz & Autopilot Status @ 1Hz   Heading Reference Devices   3 Axis Rate Gyro Compass, Compass Pick-off, Flux Gate Compass, GPS SAT Compass   Course Detection Resolution   0.1 Deg. w/ 3 Axis rate compass   Course Resolution   Auto Mode 1 Deg. Nav Mode 0.1 Deg.   Control Head Dimensions   6.1"W X 4.4"H X 1"D   Control Head LCD   waterproof, High Resolution Sunlight Viewable Color LCD 320 x 240 pixels   Rudder Feedback   Standard w/ Virtual Feedback, Optional Rudder Feedbacks available   Normalized SKU: SP361UPC Code: 010407720012

SI-TEX SP36-2 AutopilotsThis pilot configurAtion includes: SP36 control, GPS compass, rotoray rudder reference, no pump. SI-TEX has expanded its leading autopilot line-up with the addition of the new-for-2010 SP36 Autopilot. The company?s most advanced pilot yet, the new SP36 has been designed to provide a wide range of powerboats and Commercial vessels with sophisticated steering functions and reliable performance under the harshest conditions at sea. IST ? Auto learning Steering Technology New One Piece 3 Axis Rate Compass Advanced No Drift Mode & Advanced Leeway Control GPS Nav Mode provides precise adaptive track steering Rotary steering & course control knob Auto Setup: Auto Drive Detection, Auto Tune, Auto Compass Cal. Auto Sea State & Auto Trim for enhanced steering in all conditions Crystal Clear High Resolution Sunlight Viewable Color Control Head Standard with 20 Amp Processor for Reversing Pumps or DC Solenoids Proportional Rate Steering Control Multiple NMEA-0183 I/O ports Multiple turn patterns Adjustable rate of turn control Full Follow up levers available w/ optional rudder feedback Commercial Grade Waterproof Control Head - IP67 Standard Multi-Station Capability Predefined parameter sets for Outboards, Inboard, Displacement, etc. SI-TEX SP-36 AUTOMATIC PILOT - Specifications Operating Voltage 11 to 30 vdc Power Consumption Avgerage Pwr. Consumption .5 Amp to 3 Amps Peak DC Hydraulic Pump Output   20 Amps Max. Output   Solenoid Drive Output   12v & 24v Solenoid Output Available   Clutch Output   20 Amps Max   Nav Interface Inputs   2 x NMEA-0183   Nav Interface Output   NMEA-0183 Heading @ 10hz & Autopilot Status @ 1Hz   Heading Reference Devices   3 Axis Rate Gyro Compass, Compass Pick-off, Flux Gate Compass, GPS SAT Compass   Course Detection Resolution   0.1 Deg. w/ 3 Axis rate compass   Course Resolution   Auto Mode 1 Deg. Nav Mode 0.1 Deg.   Control Head Dimensions   6.1"W X 4.4"H X 1"D   Control Head LCD   waterproof, High Resolution Sunlight Viewable Color LCD 320 x 240 pixels   Rudder Feedback   Standard w/ Virtual Feedback, Optional Rudder Feedbacks available   Normalized SKU: SP362UPC Code: 010407720029

SI-TEX SP36-8 AutopilotsThis configuration includes a SP36 control, GPS compass, No Drive. It utilizes Virtual Feedback SI-TEX has expanded its leading autopilot line-up with the addition of the new-for-2010 SP36 Autopilot. The company?s most advanced pilot yet, the new SP36 has been designed to provide a wide range of powerboats and Commercial vessels with sophisticated steering functions and reliable performance under the harshest conditions at sea. IST ? Auto learning Steering Technology New One Piece 3 Axis Rate Compass Advanced No Drift Mode & Advanced Leeway Control GPS Nav Mode provides precise adaptive track steering Rotary steering & course control knob Auto Setup: Auto Drive Detection, Auto Tune, Auto Compass Cal. Auto Sea State & Auto Trim for enhanced steering in all conditions Crystal Clear High Resolution Sunlight Viewable Color Control Head Standard with 20 Amp Processor for Reversing Pumps or DC Solenoids Proportional Rate Steering Control Multiple NMEA-0183 I/O ports Multiple turn patterns Adjustable rate of turn control Full Follow up levers available w/ optional rudder feedback Commercial Grade Waterproof Control Head - IP67 Standard Multi-Station Capability Predefined parameter sets for Outboards, Inboard, Displacement, etc. SI-TEX SP-36 AUTOMATIC PILOT - Specifications Operating Voltage 11 to 30 vdc Power Consumption Avgerage Pwr. Consumption .5 Amp to 3 Amps Peak DC Hydraulic Pump Output   20 Amps Max. Output   Solenoid Drive Output   12v & 24v Solenoid Output Available   Clutch Output   20 Amps Max   Nav Interface Inputs   2 x NMEA-0183   Nav Interface Output   NMEA-0183 Heading @ 10hz & Autopilot Status @ 1Hz   Heading Reference Devices   3 Axis Rate Gyro Compass, Compass Pick-off, Flux Gate Compass, GPS SAT Compass   Course Detection Resolution   0.1 Deg. w/ 3 Axis rate compass   Course Resolution   Auto Mode 1 Deg. Nav Mode 0.1 Deg.   Control Head Dimensions   6.1"W X 4.4"H X 1"D   Control Head LCD   waterproof, High Resolution Sunlight Viewable Color LCD 320 x 240 pixels   Rudder Feedback   Standard w/ Virtual Feedback, Optional Rudder Feedbacks available   Normalized SKU: SP368

Download LiteratureSI-TEX B744V-CX TransducersB744V Thru-Hull Triducer 600kW, 50/200kHzThe B744V Triducer Multisensor provides you with depth, speed, and temperature in one thru-hull housing. This unit is ideal for all 600 Watt fishfinders and requires only a single hole in the hull. The B744V's valve assembly prevents water from rushing into the hull when the insert is removed for cleaning or storage. The innovative housing design allows the TRIDUCER Multisensor to be fully recessed into its custom High-Performance Fairing. The end result is a streamlined installation. At speeds above 30 knots (34 MPH), the B744V will produce clear images and solid bottom tracking.Features: Thru Hull Bronze Housing Frequency: 50/200 kHz Cone: 45°/12° Depth, speed, and temperature in one housing Maximum depth range 50 kHz 235m to 353m (800' to 1,200') - 200 kHz 118m to 206m (400' to 700') Greatly improved high-speed performance at both 50 kHz and 200 kHz when installed with a high-performance fairing Self-closing sea valve reduces water flow into the hull when paddlewheel insert is removed Speed Operating Range: 1 knot to 45 knots (1 MPH to 52 MPH) The extra length of the B744VL allows mounting into thicker and/or high deadrise hulls Boat Size: 9m (30') and up Speed insert is easily removed for service or storage Fins on sides of paddlewheel cavity improve accuracy at low speeds and in cross flow conditions Valve assembly is replaceable Airmar's fairings are easy to cut and will not swell or rot 8 pin connector Shielding eliminates interference between the speed and depth sensors for more accurate instrument readings Fishing Applications: Inshore or coastal fishing in shallow to medium depths Slow trolling, structure fishing and drifting Deep-water lake fishing Normalized SKU: B744VCXUPC Code: 010407320632SI-TEX B744V-CX Literature Download Owners Manual Product Brochure

SI-TEX ES502 Black Box ModuleES502Fishfinder ModuleConnects to your SI-TEX Charting Systems to ass full-featured color fishfinder capabilities.The affordable, new SI-TEX ES502 Fishfinder Module connects to your SI-TEX NAVMATE, ColorMax 6, ColorMax Wide, ColorMax 11, ColorMax 15, Explorer Plus, or Trawl Plot 12 Charting Systems to add full-featured color fishfinder capabilities. View fishfinder or charting displays in either full-screen or split-screen presentations. Dual Frequency 50/200 kHz operation. 500/1000 watts of power. Real-time, multi-color A-Scope. Zoom capability to magnify any part of the image of a fixed rate 2x, 4x and by user-selected range. Other features include trip log; speed sensor; interference rejection and noise filter; shallow, deep, fish and temperature alarms. Specifications:Frequency = 50/200 Service Carrier = NONE Waterproof Rating = NONE Watts RMS - Max = 600/1000 Audio Capable = NoSITEX ES502 SOUNDER BOX Normalized SKU: ES502

SI-TEX 300/50/200T TransducersSI-TEX 300/50/200T Bronze Thru-Hull Transducer Dual Frequency 50/200 kHz Max Power: 600W Beam Angle: 43 deg. @ 50 kHz, 9 deg. @ 200 kHz Housing: Bronze Mount: Through Hull Plug: Two 8 pin Cable: 30' Temp: Yes Speed: No For SI-TEX model: CVS208/209 Specifications: Fairing Block Included = NONE Frequency = 50/200 kHz Mounting Style = Thru-Hull Pins = Two 8-pin Speed Included = No Temperature = Yes Beam Width = NONE Cable Length (Feet) = 30' SITEX 300/50/200T Normalized SKU: 300/50/200TUPC Code: 000000136488

SI-TEX 706/50/200T TransducersSI-TEX706/50/200T Bronze Thru-Hull Trandsucer Dual Frequency 50/200 kHz Max Power: 1kW Beam Angle: 14 x 20 deg. @ 50 kHz, 7 deg. @ 200 kHz Housing: Bronze Mount: Through Hull Plug: Two 8 pin Cable: 30' Temp: Yes Speed: No For SI-TEX model: CVS-841/208/209/210/211 Specifications: Fairing Block Included = NONE Frequency = 50/200 kHz Mounting Style = Thru-Hull Pins = Two 8-pin Speed Included = No Temperature = Yes Beam Width = NONE Cable Length (Feet) = 30' SITEX 706/50/200T Normalized SKU: 706/50/200TUPC Code: 000000134842

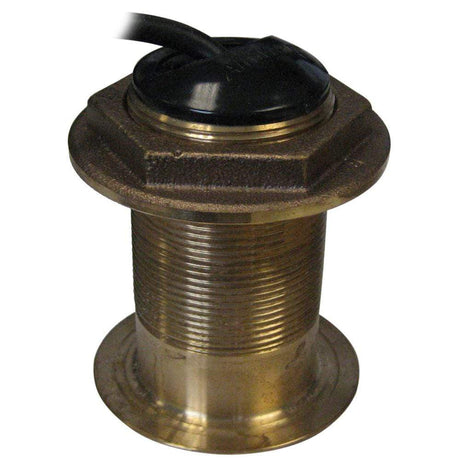

SI-TEX 496/50/200ST-ES TransducersSI-TEX 496/50/200ST Bronze Thru-Hull Transducer w/ Fairing Block f/ ES502 Dual Frequency 50/200 kHz Max Power: 500W Beam Angle: 42 deg. @ 50 kHz, 12 deg. @ 200 kHz Housing: Bronze Mount: Through Hull Plug: 8 pin Cable: 30' Temp: Yes Speed: Yes For SI-TEX model: ES502 Specifications: Beam Width = NONE Cable Length (Feet) = 30' Fairing Block Included = Yes Frequency = 50/200 kHz Mounting Style = Thru-Hull Pins = 8 Speed Included = Yes Temperature = Yes Normalized SKU: 496/50/200STES

SI-TEX 496/50/200ST TransducersSI-TEX 492/50/200ST Bronze Thru-Hull Transducer w/ Fairing Block f/ ES502 Dual Frequency 50/200 kHz Max Power: 500W Beam Angle: 42 deg. @ 50 kHz, 12 deg. @ 200 kHz Housing: Bronze Mount: Through Hull Plug: 8 pin Cable: 30' Temp: Yes Speed: Yes For SI-TEX model: ES502Specifications: Fairing Block Included = Yes Frequency = 50/200 kHz Mounting Style = Thru-Hull Pins = 8 Speed Included = Yes Temperature = Yes Beam Width = NONE Cable Length (Feet) = 30' SITEX BRONZE THRU HULL TRI W/FAIRING BLOCK F/ ES502 Normalized SKU: 496/50/200STUPC Code: 010407310732

  Download LiteratureSI-TEX SVS-460C ChartplottersSVS-460C Chartplotter - 4.3" Color Screen with Internal GPSThe SVS-460C proves that you don't need a big boat - or a big bankroll to benefit from SI-TEX's rugged construction and professional-grade performance.This compact chartplotter deliver the goods for any vessel, from center console skiffs to sailboats to light commercial boats. The SVS-460 chart plotter features a 4.3" high-resolution color LCD and compact case. Rugged construction, versatile, no-nonsense performance and features that really matter.Features: 52-channel GPS w/standard internal antenna (optional external antenna) "Dual fuel" charting with C-MAP and Navionics cartography Unit pre-loaded w/Navionics Gold North American Chart Card Global GPS compatibility (U.S., European Galileo, Russian Glonass and Asian QZSS) Brilliant LED backlighting for daylight readability Easy, intuitive operation and control Weather protector cover included Specifications:Weather Capable = NONE Waypoints/Routes = 50,000/100 Waterproof Rating = NONE Voltage - Input Range (Volts) = 12V-36V Touchscreen = NONE Screen Type = Color Screen Size = 4.3" Resolution (VxH) = 480 x 272 Internal/External Antenna = Internal Cartography Type = NONE Cartography Brand = NONE Cartography - Preloaded = NONE Card Format = NONE Basemap = NONE Amps - Draw = NONENormalized SKU: SVS460CUPC Code: 010407330813SI-TEX SVS-460C Literature Download  Quick Reference Guide  Owners Manual  Product Brochure

Download LiteratureSI-TEX SCS-1000 AccessoriesSCS-1000 CHIRP Echo Sounder ModuleTurns your chartplotter into a CHIRP Echo Sounder The SI-TEX CHIRP Echo Sounder is designed to be easily connected and combined with SI-TEX NavPro multifunction chartplotters* to turn it into an Echo Sounder.Transducer compatibilityCHIRP Echo Sounder is compatible with both AIRMAR CHIRP and CW transducers, and with Radarsonics CW transducers. It can be coupled with various types of transducers: plastic stern thru hull, in hull, or bronze thru hull.Operation frequency & display modeOperation frequency may vary depending on the model of transducers. CHIRP Echo Sounder supports double frequency mode for CW transducers. Dual mode splits the "Fish Finder" page into two parts. Each part displays the echogram for the predefined frequency.Automatic detectionCHIRP Echo Sounder automatically detects the connected AIRMAR transducers. The Xducer ID® detection system automatically selects the power output and configures the parameters to suit the transducer.Advanced filteringCHIRP Echo Sounder features advanced filtering, that eliminates unwanted noise and sharpens echoes to enhance separation and detection.Zero lineCHIRP Echo Sounder supports Zero Line rejection: Depending on the transmission line of a transducer, you can increase or decrease "Zero Line Area" values.HistoryCHIRP Echo Sounder allows access to the echoes history received by the transducer. Frequency view history includes approximately 2048 echoes.Point on mapCHIRP Echo Sounder supports point on map function. This feature allows the user to place a Mark on the echogram and then find and check it later on the map.*Compatible with: Explorer NavPro, NavPro-900, NavPro-1200 Only Normalized SKU: SCS1000SI-TEX SCS-1000 Literature Download Product Brochure

  Download LiteratureSI-TEX SAS-300-3 Auto ID SystemsSAS-300 Class B AIS System - Display Only for Use with Existing AISThe SAS-300 is a complete Class B AIS system designed for simple to use management, control and display of all AIS targets within VHF range. AIS data can be received from all types of Class B or Class A transponders, and can be displayed either on a "radar" type display, with chart overlay or without. The vivid graphics and the simple menu structure on the 6.5 inch, high resolution displays make the unit easy to use. The data is easy to access and the information easy to analyze, enabling the user to quickly move from screen to screen and gain access to the information specifically required.Features: Complete information from all AIS vessels Radar Style Display Heads Up, North Up, and True Motion Chart Orientations Plot targets on detailed C-Map Charts Bright 6.5" TFT LCD Display 5 track memories totaling 50,000 pts Programmable CPA and TCPA alarms Display vessels by selectable color and icon Filter vessels by type of transmission Built in Class B AIS Transceiver Transceiver easily programmed via keypad Transmitter easily silenced via keypad Tracks the movement of up to 5 vessels with 50,000 point track history and optional live details on individual vessels Monitors position, speed and heading of vessels on a background chart or on detailed C-Map cartography (optional) Allows variable parameters to be set for CPA and TCPA alarms Listing of all vessels with name, MMSI, range and bearing, with full details on each vessel, and instant GOTO function Ability to display different types of vessels by color, and different types of transmission by icon shapes Displays the Following Information: Class A vessels Class B vessels Base Stations Aids to Navigation AIS SARTs Search & Rescue *Display ONLY Specifications:AIS Class = B Antenna Included = NONE Display Included = Yes GPS Included = NONE SOLAS/Non-SOLAS = NONENormalized SKU: SAS3003UPC Code: 010407420059SI-TEX SAS-300-3 Literature Download  Quick Reference Guide

  Download LiteratureSI-TEX SAS-300-1 Auto ID SystemsSAS-300 AIS Class B AIS Transceiver with Internal GPS AntennaFeatures: 6.5" High Resolution color TFT display with 740 x 480 pixels Track AIS targets on standard "radar" display, over included worldwide base charts or (with optional SD Card) overlaid onto full C-MAP MAX cartography Advanced Rmax™ technology maximizes receive/transmit range, ensures that all available AIS messages are received and decoded in real time Track up to five vessels with track history and optional live details on individual vessels Large display allows easy viewing of all vessels with name, MMSI, range/bearing and full details on each vessel Instant "Go To" function Full control pad with dedicated function keys for easy operation Easy-to-use alarms for Closest Point of Approach (CPA) and Time to Closest Point of Approach (TCPA) Sort different types of vessels by color and different types of transmission by on-screen icon Displays the Following Information: Class A vessels Class B vessels Base Stations Aids to Navigation AIS SARTs Search & Rescue What's in the box? Class B Transceiver Power Data Cable Packet of 4 screws Bracket Product CD Quick Start Guide Product Manual Warranty Info Specifications:AIS Class = B Antenna Included = Yes Display Included = Yes GPS Included = Yes SOLAS/Non-SOLAS = NONENormalized SKU: SAS3001UPC Code: 1042935SI-TEX SAS-300-1 Literature Download  Quick Reference Guide

  Download Literature SI-TEX SAS-300-2 Auto ID Systems SAS-300 AIS Class B AIS Transceiver with External GPS AntennaThe SAS-300 is a complete Class B AIS system designed for simple to use management, control and display of all AIS targets within VHF range. AIS data can be received from all types of Class B or Class A transponders, and can be displayed either on a "radar" type display, with chart overlay or without. The vivid graphics and the simple menu structure on the 6.5 inch, high resolution displays make the unit easy to use. The data is easy to access and the information easy to analyze, enabling the user to quickly move from screen to screen and gain access to the information specifically required.Features: 6.5" High Resolution color TFT display with 740 x 480 pixels Track AIS targets on standard "radar" display, over included worldwide base charts or (with optional SD Card) overlaid onto full C-MAP MAX cartography Advanced Rmax™ technology maximizes receive/transmit range, ensures that all available AIS messages are received and decoded in real time Track up to five vessels with track history and optional live details on individual vessels Large display allows easy viewing of all vessels with name, MMSI, range/bearing and full details on each vessel Instant "Go To" function Full control pad with dedicated function keys for easy operation Easy-to-use alarms for Closest Point of Approach (CPA) and Time to Closest Point of Approach (TCPA) Sort different types of vessels by color and different types of transmission by on-screen icon Displays the Following Information: Class A vessels Class B vessels Base Stations Aids to Navigation AIS SARTs Search & Rescue Specifications: AIS Class = B Antenna Included = Yes Display Included = Yes GPS Included = Yes SOLAS/Non-SOLAS = NONE Normalized SKU: SAS3002UPC Code: 010407420066 SI-TEX SAS-300-2 Literature Download   Quick Reference Guide
