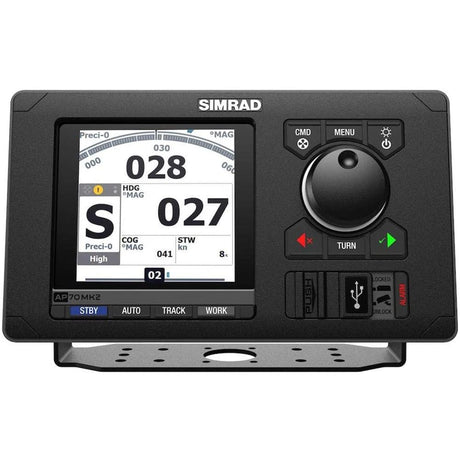

Download LiteratureSimrad 000-15042-001 AutopilotsAP70 Mk2 IMO Pack (Analog)The AP70 Mk2 is a dedicated autopilot controller designed to meet the needs of professional mariners aboard a variety of commercial vessels.Replacing both the AP70 and AP80 as our IMO/SOLAS autopilot controller, the AP70 Mk2 retains much of the well-reputed platform of its predecessors, but with a brilliant display and modernized software interface.The AP70 Mk2 will accommodate installations with up to six drives. Previously only available with the AP80, this premium feature is now a standard in the AP70 Mk2.Engineered for responsiveness, robustness, and ease of use, the AP70Mk2 pairs a precision rotary control dial with dedicated buttons for instant access to steering modes, several custom-configurable work modes, and multiple rudder/thruster integration.Wheelmarked for use on SOLAS vesselsThe AP70 Mk2 builds on and continues the legacy of the SIMRAD Pro autopilot product portfolio. Its performance, robustness, and quality are proven and recognized with the wheel mark symbol, making it suitable for all vessels ranging from small workboats to large tankers.Advanced configuration and tuning options to suit all shipsParameters ranges and tuning options to support vessel dynamics. Adjustable for all weather conditions, hull types, and work situations. Suitable for retrofit on old ships as well as modern builds.Compatible with all common rudder/drive typesWater jet, Azi-pods, Voith-Schneider, Rudder, outboard. Control signals to control, hydraulic pumps, solenoids, analog current/voltage, control/handshake signals.Up to 6 rudders/thrusters integrationDual rudders, and fore and aft thrusters support large and complex installations and redundancy.Heavy-duty rudder feedback supportSimrad heavy-duty rudder feedbacks are supported.Configurable Work Mode and Low/High-Speed ModesAutopilot settings can be tuned for optimal performance in separate low-speed, high-speed, and Work modes. The user-configurable Work mode allows the autopilot system to be configured for optimal response in a specific situation, such as a fully laden vessel, configurable thruster usage.No Drift SteeringNo Drift mode integrates GPS navigation with auto-steering, using position data to counteract the effects of wind and tide. This allows the AP70 Mk2 to maintain a straight track over ground on the current course, without the need to manually set a waypoint or route.Navigation steering, route followingNavigation steering controls the ship on a pre-planned route from a Simrad MFD, Simrad ECDIS, or third party MFD and ECDIS.Command transfer and multiple control stations supportCommand transfer is a mechanism useful in multi-controller installations. It enables the officer on watch to allow, and deny the transfer of autopilot control to control devices such as a secondary AP70 Mk2 or a remote controller on a bridge wing station, above deck, or aft bridge depending on the work scenario. The AP70 Mk2 can also be used in an open configuration, where control flow is unrestricted.Features: Wheelmarked for use onboard SOLAS vessels (IMO, MED-B) Advanced configuration and tuning options to suit all ships Compatible with all common rudder/drive types Up to 6 rudders/thrusters integration Heavy-duty rudder feedback support Configurable work modes and low/high-speed modes No Drift steering holds course against wind and tide Navigation steering, route following Command transfer and multiple control stations support What's In The Box? AP70 Ak2 Autopilot Controller Simrad AC80A Autopilot Controller Normalized SKU: 00015042001UPC Code: 9420024179819Simrad 000-15042-001 Literature Download Quick Reference Guide Product Brochure

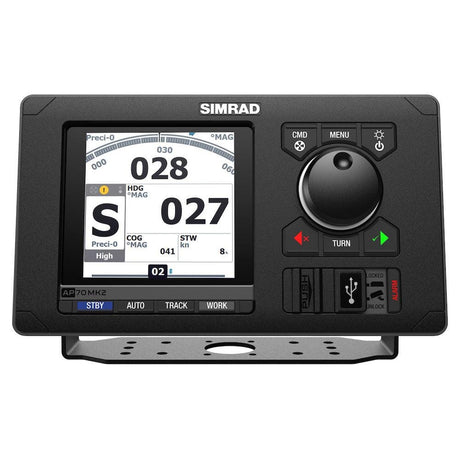

Simrad 000-15040-001 AutopilotsAP70 MK2 Autopilot IMO Pack for Solenoid - Includes AP70 MK2 Control Head & AC80S Course ComputerThe AP70 Mk2 is a dedicated autopilot controller designed to meet the needs of professional mariners aboard a variety of commercial vessels.Replacing both the AP70 and AP80 as our IMO/SOLAS autopilot controller, the AP70 Mk2 retains much of the well-reputed platform of its predecessors, but with a brilliant new display and modernised software interface.The AP70 Mk2 will accommodate installations with up to six drives. Previously only available with the AP80, this premium feature is now a standard in the AP70 Mk2.Engineered for responsiveness, robustness and ease of use, the AP70Mk2 pairs a precision rotary control dial with dedicated buttons for instant access to steering modes, several custom-configurable work modes and multiple rudder/thruster integration.Wheelmarked for use on SOLAS vesselsThe AP70 Mk2 builds on, and continues the legacy of the SIMRAD Pro autopilot product portfolio. Its performance, robustness and quality are proven and recognized with the wheelmark symbol, making it suitable for all vessels ranging from small work- boats to large tankers.Advanced configuration and tuning options to suit all shipsParameters ranges and tuning options to support vessel dynamics. Adjustable for all weather conditions, hull types, work situations. Suitable for retro-fit on old ships as well as modern new-builds.Compatible with all common rudder/drive typesWater jet, Azi-pods, Voith-Schneider, Rudder, outboard. Control signals to control, hydraulic pumps, solenoids, analog current/voltage, control/handshake signals.Up to 6 rudders/thrusters integrationDual rudders, fore and aft thrusters supports large and complex installations and redundancy.Heavy-duty rudder feedback supportSimrad heavy-duty rudder feedbacks are supported.Configurable Work Mode and Low/High Speed ModesAutopilot settings can be tuned for optimal performance in separate low-speed, high-speed, and Work modes. The user-configurable Work mode allows the autopilot system to be configured for optimal response in a specific situation, such as a fully laden vessel, configurable thruster usage.No Drift SteeringNo Drift mode integrates GPS navigation with auto-steering, using position data to counteract the effects of wind and tide. This allows the AP70 Mk2 to maintain a straight track over ground on the current course, without the need to manually set a waypoint or route.Navigation steering, route followingNavigation steering controls the ship on a pre-planned route from a Simrad MFD, Simrad ECDIS or third party MFD and ECDIS.Command transfer and multiple control stations supportCommand transfer is a mechanism useful in multi-controller installations. It enables the officer on watch to allow, deny the transfer of autopilot control to control devices such as a secondary AP70 Mk2 or a remote controller on a bridge wing station, above deck, or aft bridge depending on the work scenario. The AP70 Mk2 can also be used in an open configuration, where control flow is unrestricted.Included in Package: AC80S SIMRAD AUTOPILOT COMPUTER - 000-10188-001 AP70 MK2 AUTOPILOT CONTROL HEAD - 000-14958-001 Normalized SKU: 00015040001UPC Code: 9420024179796

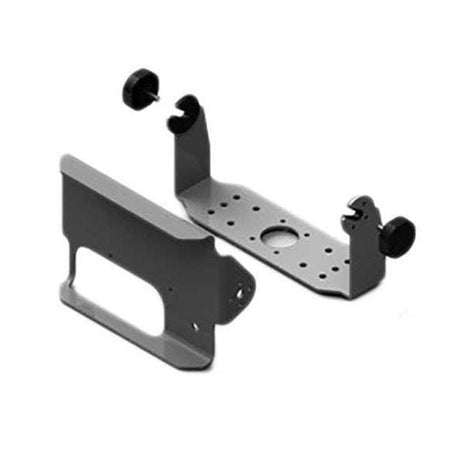

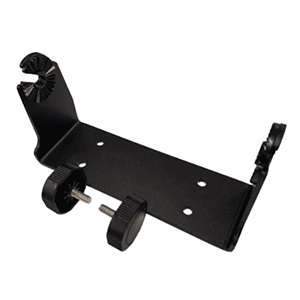

Simrad 000-10590-001 AccessoriesAP70/AP80 Bracket with KnobsAP70/AP80 Optional bracket mount kit with knobs. Normalized SKU: 00010590001UPC Code: 9420024114568

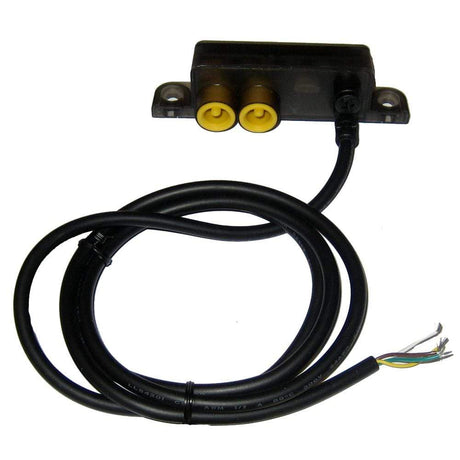

Simrad 24005936 Network AccessoriesAT10The AT10 converts data on NMEA0183 format to SimNet/ NMEA2000 format and vice versa. AT10 is powered from the SimNet bus or from the NMEA2000 bus via an adaptor cable.Note: The AT10 complies with NMEA0183 version 3.01. Specifications:Drive Type = NONE Feedback Type = NONE Pilot Type = NONE Remote Capable = NONE Turn Patterns = NONE Vessel Displacement - Max (Pounds) = NONE Boat Length - Max (Feet) = NONE Capacity - Max Ram (CU) = NONESIMRAD AT10 SIMNET TO NMEA 0183 CONVERTER Normalized SKU: 24005936UPC Code: 809190300095

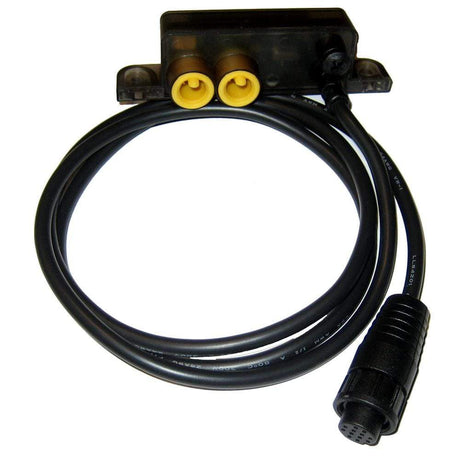

Simrad 24006694 Network AccessoriesAT10HD SimNet to NMEA 0183 Coverter f/ 10Hz HeadingAT10HD Universal high speed NMEA0183 converter MFG 24006694 converts NMEA0183 10Hz heading data to Simnet. SIMRAD AT10 HD CONVERTER Normalized SKU: 24006694UPC Code: 9420024106013

Simrad 000-15597-002 Network AccessoriesAutopilot Gateway for VolvoVolvo Autopilot Gateway for SG05 autopilot computer. Normalized SKU: 00015597002UPC Code: 9420064115518

Simrad 000-16188-001 AccessoriesSimrad B60 Xsonic 50/200kHz Bronze Thru-hull 20 Degree Tilted ElementModel: 000-16188-001 Depth and water temperature 600 W 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1,200') 200 kHz with a 12° beamwidth for depth performance to 206 m (700') Perfect for center-console or trailered boats Low-profile protrusion extends only 5 mm (3/16") outside the hull No effect on your boat’s running performance Bronze housing The B60 is a Bronze, thru-hull, dual-frequency, depth and temperature transducer. The ceramic element gives excellent echo returns for more accurate depth readings.Specifications Weight 1.4 kg (3 lb.) Recommended Boat Length Up to 8 m (25') Hull Material Fiberglass or wood Hull Deadrise 16°-24° Acoustic Window Urethane Hole Diameter 60 mm (2-3/8") (fiberglass or wood hull) Normalized SKU: 00016188001UPC Code: 9420064132140

Simrad 000-12495-001 TransducersB75H Bronze 600 W Thru Hull High CHIRP (130-210kHz) Depth/Temp (0 tilt) - blue 7 pin connector Simrad B75h 130-210kHz CHIRP Thru Hull 0 Degree Tilted Element Transducer Model: 000-12495-001 UPC: 9420024144091 130-210 kHz High CHIRP with 15-9° beam width Up to 310 m (1000 ft) range with High CHIRP 1 internal broadband ceramic element Thru-hull with bronze housing Suitable for fiberglass and wood hulls Ideal for sportfishing and commercial vessels up to 8 m (25 ft) Recommended for use with the BSM-3 broadband sounder module, SonarHub sounder module & Simrad NSS evo2 multifunction displays The 0° tilt is ideal for boats with a 0° to 14° hull deadrise. The B75H is a Bronze, thru-hull CHIRP transducer, ideal for sportfishing and commercial vessels up to 8 m (25 ft) in size. This single-channel transducer offers High CHIRP only, for the best target resolution in shallower depths. Single Channel CHIRPUsing pulsed transmissions swept across a range of frequencies, CHIRP technology delivers superior target resolution and depth penetration to traditional single-frequency sonar. This single channel CHIRP transducer operates anywhere in the 130-210 kHz High CHIRP frequency range, with a 15-9° beam width. With High CHIRP, the B75H provides an operating depth of up to 310 m (1000 ft). Depth/Temperature One sensor does it all. Able to measure both depth and temperature in a single package, the B75H simplifies installation and requires just one connection to your echosounder module or multifunction display. Mounting With bronze housing, the B75H is suitable for thru-hull mounting in fiberglass and wood hulls. Thru-hull mounting places the transducer in the water on the outside of your boat’s hull; a hole must be drilled for installation. This typically offers the best depth measurement and fishfinding performance.Normalized SKU: 00012495001UPC Code: 9420024144091

Simrad 000-13700-001 Mounting HardwareReplacement Bezel for GO9 Replacement Bezel specifically for Simrad GO9. Normalized SKU: 00013700001UPC Code: 9420024159415
