Newmar 088-0501-2 Circuit Breakers The Newmar 088-0501-2 is a 50 Amp single-pole circuit breaker with black toggle handles for marine electrical systems. Its magnetic-hydraulic “trip-free” mechanism provides a clear replacement reference for matching AC or DC circuit protection equipment. The breaker uses rear-mounted #10 screw terminals for wiring and is rated for systems up to 32 VDC or 120 VAC at the 50 Amp rating. It is UL recognized and CSA listed for AC and DC systems and meets USCG requirements as a qualified circuit protection device. Brand: Newmar Rating: 50 Amp Configuration: Single pole Mechanism: Magnetic-hydraulic “trip-free” Handles: Black toggle Terminals: Rear #10 screw terminals Voltage rating at 50 Amp: 32 VDC or 120 VAC Listings: UL recognized and CSA listed for AC and DC systems Manufacturer part number: 088-0501-2 Normalized SKU: 08805012

Newmar 50ASB Circuit Breakers"All circuit breakers offered by NEWMAR are UL recognized and CSA listed for AC and DC systems and meet USCG requirements as a qualified circuit protection device. Single and Double Pole Fit all NEWMAR electrical panels, as well as most other brands Feature magnetic-hydraulic ""trip-free"" mechanism 5-30 amp rated to 65 VDC or 277 VAC; 40, 50 amp rated to 32 VDC or 120 VAC (See rating note below). Mounting scrws not provide order separatly #10 screw terminals on rear for wiring Options Red, white or black toggle handles Single pole values: 5, 10, 15, 20, 25, 30, 40 or 50 amp. Double pole values: 15, 20, 30 or 50 amp Important Circuit Breaker Rating Note: Standard series breakers shown on this page which are rated higher than 30 amps are acceptable for use in 230 VAC Line-to-Line systems (where each leg is 115 VAC - to - neutral), but are not rated for 230 VAC line-to-neutral systems."Normalized SKU: 50ASB

Newmar 088-0051-2 Circuit BreakersNewmar 5a Single Breaker Black #088-0051-2Normalized SKU: 08800512

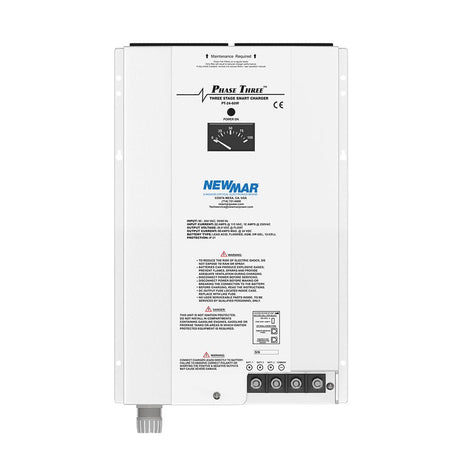

Newmar PT-24-60W Battery Chargers PT-24-60W Battery Charger “Smart” marine battery charging technology for 24V systems aboard workboats, military vessels, commercial vessels, and recreational craft. This charger interacts with batteries, providing the optimum three-stage charge process for fast recovery and conditioning, maximizing performance, and extending battery life. A selector switch adjusts output voltage to adapt to gel-cell, flooded lead-acid, or AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries’ ambient temperature. All models are housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance. Features: 24V model “Smart” circuitry provides three-stage charging – bulk, absorption, float Gel-cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages Multiple isolated output banks; ammeter indicates total output current The optional sensor adjusts output voltage based on battery temperature Current limiting prevents damage from overloading Use as a power supply; can power loads without a battery in line Built to last – rugged stainless steel case with a durable white powder coat finish with an optional drip shield and marinized internal circuitry Protection: Current Limiting, Thermal Protection, Forced Air Cooling, Drip Shield Install in conjunction with PT-MCU for additional control and monitoring ABS type approval for battery charging and power supplies Specifications: Input VAC (50-60 Hz.): 207-253 Input Amps @ Full Load: @ 115 VAC: NA, @ 230 VAC: 13 Power Factor: .7 Max Output Amps: 60 Output Banks: 3 Battery Capacity (Amp-Hours): 120-600     Operating Temp. Rating Reference: T-4 Case Size Reference: A-5 Case Size (H x W x D): 17.5E x 12 x 7.2E inches (44.5E x 30.5 x 18.3E centimeters) *Note with Dripshield installed E add 2” (5.08 cm) to height and 1” (2.54 cm) to depth Weight Lbs./Kg: 24.1/11 Optional Temp. Sensor Model: TP     Remote Panel Model: N/A Compliance Reference: EN, CE, ABS Temperature Rating References: Temperature: -20 degrees C to +50 degrees C     Derate Linearly From Full output Nominal Output Voltages at Gel/Flooded Switch Settings (without Temperature Compensation): Gel-Cell: 28.0 VDC Charge @ 50% load and 27.2 VDC Float @ .5 amp load Flooded/AGM: 28.4 VDC Charge @ 50% load and 26.8 VDC Float @ .5 amp load Compliance References: UL: UL 1950 (per DNB report) CG: USCG CFR 183.410 (Ignition protected) EN: EN 60335-1 CE: Carries the CE mark ABS: PT Series meets SVR 2009 4-8-3/5.9, Under 90 meters Rules 2006 4-6-4/7.19, and HSNC 2007 4-8-3/5.13. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.   Models  12 Volt 24 Volt 32 Volt PT-7 PT-24-8W PT-32-25W PT-14W PT-24-13W   PT-25W PT-24-20U   PT-40U PT-24-45U   PT-80 PT-24-60W     PT-24-95U   Detailed specifications below.   Specifications  12 Volt Models PT-7 PT-14W PT-25W PT-40W PT-80 Input VAC (50-60 Hz.) 88-132 or 176-264 85-264 90-132 or 180-264 85-135 or 170-270 90-264 Input Amps @ Full Load   @ 115 VAC 2 2.8 6.5 8.5 12 @ 230 VAC 1 1.4 4 4.3 7 P.F. Rating >.65 .93@230V.98@115V .7 .7 .95@230V.98@115V Max Output Amps 7 14 25 40 80 Output Banks 2 3 3 3 3 Battery Capacity (Amp-Hours) 14-70 28-140 50-250 80-400 160-800 Operating Temp.Rating Reference T-1 T-2 T-4 T-5 T-7 Case Size Ref. A-1 A-2 A-2 A-3 A-5 Weight; Lbs./Kg. 3.2/1.5 8/4 8.2/4 12/6 15.2/7 Optional Temp.Sensor Model N/A TCS-12/24 TCS-12/24 TCS-12/24 TCS-12/24 Remote Panel Model N/A RP RP RP RP Equalize Option No Yes Yes Yes Yes Output Indicator Ref. M-1 M-3 M-3 M-3 M-3 Compliance Ref. CG, CE CG, CE CG CG, CE CE    24 Volt Models PT-24-8W PT-24-13W PT-24-20U PT-24-45U PT-24-60W PT-24-95U Input VAC (50-60 Hz.) 85-264 90-132 or 180-264 85-135 or 170-270 90-264 207-253 90-264 Input Amps @ Full Load   @ 115 VAC 2.8 6.5 8.5 12 NA 26 @ 230 VAC 1.4 4 4.3 7 13 14 P.F. Rating .93@230V.98@115V .7 .7 .95@230V.98@115V .7 .95@230V.98@115V Max Output Amps 8 13 20 45 60 95 Output Banks 3 3 3 3 3 3 Battery Capacity (Amp-Hours) 16-80 26-130 40-200 90-450 120-600 180-950 Operating Temp.Rating Reference T-2 T-3 T-5 T-8 T-6 T-8 Case Size Ref. A-2 A-2 A-3 A-5 A-6 A-6 Weight; Lbs./Kg. 8/4 8.2/4 12/6 12.2/6 24.1/11 24.5/11 Optional Temp.Sensor Model TCS-12/24 TCS-12/24 TCS-12/24 TCS-12/24 TP TCS-12/24 Remote Panel Model RP RP RP RP N/A RP Equalize Option Yes Yes Yes Yes No Yes Output Indicator Ref. M-3 M-3 M-3 M-3 M-2 M-3 Compliance Ref. CG, CE CG CG, CE EN, CE EN, CE EN, CE   32 Volt Model  PT-32-25W Input VAC (50-60 Hz.) 104-126 Input Amps @ Full Load    @ 115 VAC 15 @ 230 VAC N/A P.F. Rating .7 Max Output Amps 25 Output Banks 3 Battery Capacity (Amp-Hours) 50-250 Operating Temp.Rating Reference T-6 Case Size Ref. A-4 Weight; Lbs./Kg. 12.2/6 Optional Temp.Sensor Model TP Remote Panel Model N/A Equalize Option No Output Indicator Ref. M-2 Compliance Ref. EN, CE Case Size    Inches Centimeters Ref H W D H W D A-1 10.5 5.0 2.8 26.7 12.7 7.1 A-2 12.5 7.7 4.3 31.8 19.6 10.9 A-3 13.85* 9.5 4.8* 35.2* 24.1 12.2* A-4 13.8A 9.8 5A 35A 24.9 12.7A A-5 14.8B 9.6 5.6B 37.6B 24.4 14.2B A-6 17.5C 12 7.2C 44.5C 30.5 18.3C * Add .75" (1.9 cm) to height and 1.35" (3.4 cm) to depthA Add 1.27" (3.2 cm) to height and 1.1" (2.8 cm) to depthB Add 1" (2.54 cm) to height and .5" (1.27 cm) to depthC Add 2" (5.08 cm) to height and 1" (2.54 cm) to depth Temperature Rating References:  T-1 -10°C to +45°C; Derate linearly from 100% @ 0°C to 80% @ -10°C T-2 -10°C to +60°C; Derate linearly from 100% @ 40°C to 60% @ 60°C T-3 -10°C to +60°C; Derate linearly from 100% @ 50°C to 60% @ 60°C T-4 -10°C to +60°C; Derate linearly from 100% @ 40°C to 60% @ 60°C T-5 -40°C to +60°C; Derate linearly from 100% @ 50°C to 75% @ 60°C T-6 -20°C to +50°C; Full output T-7 -20°C to +70°C; Derate linearly from 100% @ 45°C to 50% @ 70°C T-8 -20°C to +70°C; Derate linearly from 100% @ 50°C to 50% @ 70°C Output Indicator References  M-1 Total output ammeter M-2 Charge/Float L.E.D. M-3 Total output ammeter and charger status L.E.D.'s/Alarms Compliance References*See matrix for applicable modelsCG USCG CFR 183.410 (Ignition protected)EN EN 60335-1, EN 60335-2-29CE Carries the CE Mark* Numerous other Safety and EMC compliances may also apply. Contact factory if further compliance  information is required.Nominal Output Voltages at Gel/Flooded Switch Settings(Without Temperature Compensation option installed or at 22.2˚C (72˚F) with TemperatureCompensation option installed.)    12 Volt Models 24 Volt Models 32 Volt Model Charge Float Charge Float Charge Float Setting @ 50% load @ .5 amp load @ 50% load @ .5 amp load @ 50% load @ .5 amp load Gel-Cell 14.0 VDC 13.6 VDC 28.0 VDC 27.2 VDC 37.3 VDC 36.2 VDC Flooded/AGM 14.2 VDC 13.4 VDC 28.4 VDC 26.8 VDC 37.8 VDC 35.7 VDC Normalized SKU: PT2460WUPC Code: 012302330563

Newmar 2-3-70A Battery Isolators"These heavy duty isolators allow charging multiple batteries automatically from one or two alternators, and prevent discharge or 'dumping"" of one battery into another. Each battery is charged according to its need without overcharging. rated for 12-48 volt negative ground DC systems. feature conservatively rated diodes and a rustproof anodized aluminum heat sink case. Models are available for 70, 120 and 165 amp alternators. Features: Heavy duty construction Rated for systems up to 48 volts DC, negative ground Rust-proof anodized aluminum case Stainless steel mounting hardware provided Protective covers provided for terminals Performance Specifications Operating temperature: -40° to +80° C Duty cycle: Continuous rating to 50° C Derate linearly to 70% @ 80° C Temp. rise: 5° C at full rated current (mount vertically for optimum cooling) Voltage drop: 0.7V @ 50% load, 0.9V @ full load Note: These battery isolators are not compatible with self exciting alternators. Please consult the manufacturer of your alternator if you are unsure of your configuration.  "Normalized SKU: 2370A

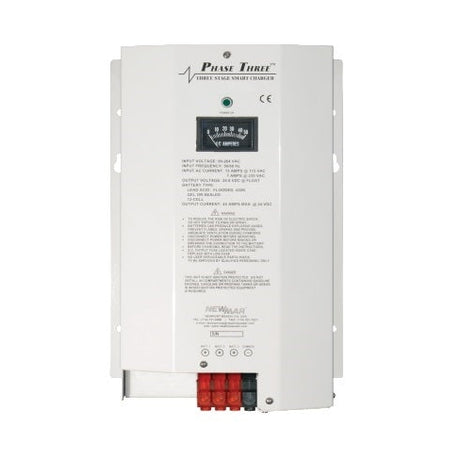

Newmar PT-24-8W Battery Chargers"Three Stage "Smart" Chargers Phase Three "Smart" battery charging technology is now available in a wide range of power levels, allowing you to select the right size, features and flexibility you require for virtually any application from small recreational craft to large live-aboards, workboats and other commercial vessels. These chargers interact with batteries to put them through the optimum three stage charge process which provides for fastest recovery and ideal conditioning, maximizing battery performance and extending battery life. A selector switch adjusts output voltage to adapt for gel-cell/flooded lead-acid/AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries' ambient temperature. All models are housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance. Features "Smart" circuitry provides three stage charging?bulk, absorption, float. Wide model range covers battery system ratings from 14-950 amp-hours Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages. Multiple isolated output banks; ammeter indicates total output current. (except PT-7) Optional sensor adjusts output voltage based on battery temperature. (except PT-7) Current limiting-prevents damage from overloading. Charger status clearly displayed with L.E.D. and/or audible indicators or optional remote panel. Use as a power supply; can power loads without a battery in line. Built to last?rugged stainless steel case with a durable white powder coat finish with an optional drip shield and marinized internal circuitry. Numerous Safety and EMC CompliancesTwo year parts and labor warranty Models   12 Volt 24 Volt 32 Volt PT-7 PT-24-8W PT-32-25W PT-14W PT-24-13W   PT-25W PT-24-20U   PT-40U PT-24-45U   PT-80 PT-24-60W     PT-24-95U   Detailed specifications below.  Specifications   12 Volt Models PT-7 PT-14W PT-25W PT-40W PT-80 Input VAC (50-60 Hz.) 88-132 or 176-264 85-264 90-132 or 180-264 85-135 or 170-270 90-264 Input Amps @ Full Load   @ 115 VAC 2 2.8 6.5 8.5 12 @ 230 VAC 1 1.4 4 4.3 7 P.F. Rating >.65 .93@230V .98@115V .7 .7 .95@230V .98@115V Max Output Amps 7 14 25 40 80 Output Banks 2 3 3 3 3 Battery Capacity (Amp-Hours) 14-70 28-140 50-250 80-400 160-800 Operating Temp. Rating Reference T-1 T-2 T-4 T-5 T-7 Case Size Ref. A-1 A-2 A-2 A-3 A-5 Weight; Lbs./Kg. 3.2/1.5 8/4 8.2/4 12/6 15.2/7 Optional Temp.Sensor Model N/A TCS-12/24 TCS-12/24 TCS-12/24 TCS-12/24 Remote Panel Model N/A RP RP RP RP Equalize Option No Yes Yes Yes Yes Output Indicator Ref. M-1 M-3 M-3 M-3 M-3 Compliance Ref. CG, CE CG, CE CG CG, CE CE    24 Volt Models PT-24-8W PT-24-13W PT-24-20U PT-24-45U PT-24-60W PT-24-95U Input VAC (50-60 Hz.) 85-264 90-132 or 180-264 85-135 or 170-270 90-264 207-253 90-264 Input Amps @ Full Load   @ 115 VAC 2.8 6.5 8.5 12 NA 26 @ 230 VAC 1.4 4 4.3 7 13 14 P.F. Rating .93@230V .98@115V .7 .7 .95@230V .98@115V .7 .95@230V .98@115V Max Output Amps 8 13 20 45 60 95 Output Banks 3 3 3 3 3 3 Battery Capacity (Amp-Hours) 16-80 26-130 40-200 90-450 120-600 180-950 Operating Temp. Rating Reference T-2 T-3 T-5 T-8 T-6 T-8 Case Size Ref. A-2 A-2 A-3 A-5 A-6 A-6 Weight; Lbs./Kg. 8/4 8.2/4 12/6 12.2/6 24.1/11 24.5/11 Optional Temp.Sensor Model TCS-12/24 TCS-12/24 TCS-12/24 TCS-12/24 TP TCS-12/24 Remote Panel Model RP RP RP RP N/A RP Equalize Option Yes Yes Yes Yes No Yes Output Indicator Ref. M-3 M-3 M-3 M-3 M-2 M-3 Compliance Ref. CG, CE CG CG, CE EN, CE EN, CE EN, CE   32 Volt Model  PT-32-25W Input VAC (50-60 Hz.) 104-126 Input Amps @ Full Load    @ 115 VAC 15 @ 230 VAC N/A P.F. Rating .7 Max Output Amps 25 Output Banks 3 Battery Capacity (Amp-Hours) 50-250 Operating Temp. Rating Reference T-6 Case Size Ref. A-4 Weight; Lbs./Kg. 12.2/6 Optional Temp.Sensor Model TP Remote Panel Model N/A Equalize Option No Output Indicator Ref. M-2 Compliance Ref. EN, CE Case Size     Inches Centimeters Ref H W D H W D A-1 10.5 5.0 2.8 26.7 12.7 7.1 A-2 12.5 7.7 4.3 31.8 19.6 10.9 A-3 13.85* 9.5 4.8* 35.2* 24.1 12.2* A-4 13.8A 9.8 5A 35A 24.9 12.7A A-5 14.8B 9.6 5.6B 37.6B 24.4 14.2B A-6 17.5C 12 7.2C 44.5C 30.5 18.3C * Add .75" (1.9 cm) to height and 1.35" (3.4 cm) to depth A Add 1.27" (3.2 cm) to height and 1.1" (2.8 cm) to depth B Add 1" (2.54 cm) to height and .5" (1.27 cm) to depth C Add 2" (5.08 cm) to height and 1" (2.54 cm) to depth Temperature Rating References:   T-1 -10°C to +45°C; Derate linearly from 100% @ 0°C to 80% @ -10°C T-2 -10°C to +60°C; Derate linearly from 100% @ 40°C to 60% @ 60°C T-3 -10°C to +60°C; Derate linearly from 100% @ 50°C to 60% @ 60°C T-4 -10°C to +60°C; Derate linearly from 100% @ 40°C to 60% @ 60°C T-5 -40°C to +60°C; Derate linearly from 100% @ 50°C to 75% @ 60°C T-6 -20°C to +50°C; Full output T-7 -20°C to +70°C; Derate linearly from 100% @ 45°C to 50% @ 70°C T-8 -20°C to +70°C; Derate linearly from 100% @ 50°C to 50% @ 70°C Output Indicator References   M-1 Total output ammeter M-2 Charge/Float L.E.D. M-3 Total output ammeter and charger status L.E.D.'s/Alarms Compliance References* See matrix for applicable models CG USCG CFR 183.410 (Ignition protected) EN EN 60335-1, EN 60335-2-29 CE Carries the CE Mark * Numerous other Safety and EMC compliances may also apply. Contact factory if further compliance   information is required. Nominal Output Voltages at Gel/Flooded Switch Settings (Without Temperature Compensation option installed or at 22.2˚C (72˚F) with Temperature Compensation option installed.)     12 Volt Models 24 Volt Models 32 Volt Model Charge Float Charge Float Charge Float Setting @ 50% load @ .5 amp load @ 50% load @ .5 amp load @ 50% load @ .5 amp load Gel-Cell 14.0 VDC 13.6 VDC 28.0 VDC 27.2 VDC 37.3 VDC 36.2 VDC Flooded/AGM 14.2 VDC 13.4 VDC 28.4 VDC 26.8 VDC 37.8 VDC 35.7 VDC "Normalized SKU: PT248W

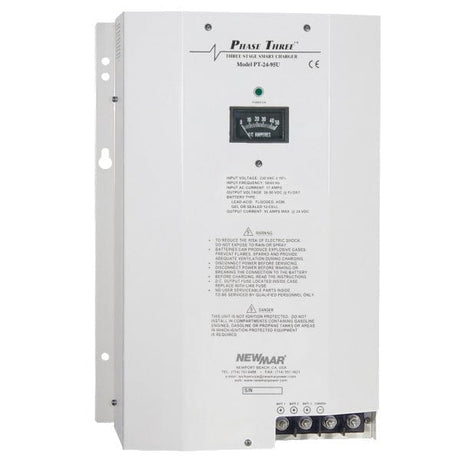

Newmar PT-24-95U Battery Chargers"Three Stage "Smart" Chargers Phase Three "Smart" battery charging technology is now available in a wide range of power levels, allowing you to select the right size, features and flexibility you require for virtually any application from small recreational craft to large live-aboards, workboats and other commercial vessels. These chargers interact with batteries to put them through the optimum three stage charge process which provides for fastest recovery and ideal conditioning, maximizing battery performance and extending battery life. A selector switch adjusts output voltage to adapt for gel-cell/flooded lead-acid/AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries' ambient temperature. All models are housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance. Features "Smart" circuitry provides three stage charging?bulk, absorption, float. Wide model range covers battery system ratings from 14-950 amp-hours Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages. Multiple isolated output banks; ammeter indicates total output current. (except PT-7) Optional sensor adjusts output voltage based on battery temperature. (except PT-7) Current limiting-prevents damage from overloading. Charger status clearly displayed with L.E.D. and/or audible indicators or optional remote panel. Use as a power supply; can power loads without a battery in line. Built to last?rugged stainless steel case with a durable white powder coat finish with an optional drip shield and marinized internal circuitry. Numerous Safety and EMC CompliancesTwo year parts and labor warranty Models   12 Volt 24 Volt 32 Volt PT-7 PT-24-8W PT-32-25W PT-14W PT-24-13W   PT-25W PT-24-20U   PT-40U PT-24-45U   PT-80 PT-24-60W     PT-24-95U   Detailed specifications below.  Specifications   12 Volt Models PT-7 PT-14W PT-25W PT-40W PT-80 Input VAC (50-60 Hz.) 88-132 or 176-264 85-264 90-132 or 180-264 85-135 or 170-270 90-264 Input Amps @ Full Load   @ 115 VAC 2 2.8 6.5 8.5 12 @ 230 VAC 1 1.4 4 4.3 7 P.F. Rating >.65 .93@230V .98@115V .7 .7 .95@230V .98@115V Max Output Amps 7 14 25 40 80 Output Banks 2 3 3 3 3 Battery Capacity (Amp-Hours) 14-70 28-140 50-250 80-400 160-800 Operating Temp. Rating Reference T-1 T-2 T-4 T-5 T-7 Case Size Ref. A-1 A-2 A-2 A-3 A-5 Weight; Lbs./Kg. 3.2/1.5 8/4 8.2/4 12/6 15.2/7 Optional Temp.Sensor Model N/A TCS-12/24 TCS-12/24 TCS-12/24 TCS-12/24 Remote Panel Model N/A RP RP RP RP Equalize Option No Yes Yes Yes Yes Output Indicator Ref. M-1 M-3 M-3 M-3 M-3 Compliance Ref. CG, CE CG, CE CG CG, CE CE    24 Volt Models PT-24-8W PT-24-13W PT-24-20U PT-24-45U PT-24-60W PT-24-95U Input VAC (50-60 Hz.) 85-264 90-132 or 180-264 85-135 or 170-270 90-264 207-253 90-264 Input Amps @ Full Load   @ 115 VAC 2.8 6.5 8.5 12 NA 26 @ 230 VAC 1.4 4 4.3 7 13 14 P.F. Rating .93@230V .98@115V .7 .7 .95@230V .98@115V .7 .95@230V .98@115V Max Output Amps 8 13 20 45 60 95 Output Banks 3 3 3 3 3 3 Battery Capacity (Amp-Hours) 16-80 26-130 40-200 90-450 120-600 180-950 Operating Temp. Rating Reference T-2 T-3 T-5 T-8 T-6 T-8 Case Size Ref. A-2 A-2 A-3 A-5 A-6 A-6 Weight; Lbs./Kg. 8/4 8.2/4 12/6 12.2/6 24.1/11 24.5/11 Optional Temp.Sensor Model TCS-12/24 TCS-12/24 TCS-12/24 TCS-12/24 TP TCS-12/24 Remote Panel Model RP RP RP RP N/A RP Equalize Option Yes Yes Yes Yes No Yes Output Indicator Ref. M-3 M-3 M-3 M-3 M-2 M-3 Compliance Ref. CG, CE CG CG, CE EN, CE EN, CE EN, CE   32 Volt Model  PT-32-25W Input VAC (50-60 Hz.) 104-126 Input Amps @ Full Load    @ 115 VAC 15 @ 230 VAC N/A P.F. Rating .7 Max Output Amps 25 Output Banks 3 Battery Capacity (Amp-Hours) 50-250 Operating Temp. Rating Reference T-6 Case Size Ref. A-4 Weight; Lbs./Kg. 12.2/6 Optional Temp.Sensor Model TP Remote Panel Model N/A Equalize Option No Output Indicator Ref. M-2 Compliance Ref. EN, CE Case Size     Inches Centimeters Ref H W D H W D A-1 10.5 5.0 2.8 26.7 12.7 7.1 A-2 12.5 7.7 4.3 31.8 19.6 10.9 A-3 13.85* 9.5 4.8* 35.2* 24.1 12.2* A-4 13.8A 9.8 5A 35A 24.9 12.7A A-5 14.8B 9.6 5.6B 37.6B 24.4 14.2B A-6 17.5C 12 7.2C 44.5C 30.5 18.3C * Add .75" (1.9 cm) to height and 1.35" (3.4 cm) to depth A Add 1.27" (3.2 cm) to height and 1.1" (2.8 cm) to depth B Add 1" (2.54 cm) to height and .5" (1.27 cm) to depth C Add 2" (5.08 cm) to height and 1" (2.54 cm) to depth Temperature Rating References:   T-1 -10°C to +45°C; Derate linearly from 100% @ 0°C to 80% @ -10°C T-2 -10°C to +60°C; Derate linearly from 100% @ 40°C to 60% @ 60°C T-3 -10°C to +60°C; Derate linearly from 100% @ 50°C to 60% @ 60°C T-4 -10°C to +60°C; Derate linearly from 100% @ 40°C to 60% @ 60°C T-5 -40°C to +60°C; Derate linearly from 100% @ 50°C to 75% @ 60°C T-6 -20°C to +50°C; Full output T-7 -20°C to +70°C; Derate linearly from 100% @ 45°C to 50% @ 70°C T-8 -20°C to +70°C; Derate linearly from 100% @ 50°C to 50% @ 70°C Output Indicator References   M-1 Total output ammeter M-2 Charge/Float L.E.D. M-3 Total output ammeter and charger status L.E.D.'s/Alarms Compliance References* See matrix for applicable models CG USCG CFR 183.410 (Ignition protected) EN EN 60335-1, EN 60335-2-29 CE Carries the CE Mark * Numerous other Safety and EMC compliances may also apply. Contact factory if further compliance   information is required. Nominal Output Voltages at Gel/Flooded Switch Settings (Without Temperature Compensation option installed or at 22.2˚C (72˚F) with Temperature Compensation option installed.)     12 Volt Models 24 Volt Models 32 Volt Model Charge Float Charge Float Charge Float Setting @ 50% load @ .5 amp load @ 50% load @ .5 amp load @ 50% load @ .5 amp load Gel-Cell 14.0 VDC 13.6 VDC 28.0 VDC 27.2 VDC 37.3 VDC 36.2 VDC Flooded/AGM 14.2 VDC 13.4 VDC 28.4 VDC 26.8 VDC 37.8 VDC 35.7 VDC "Normalized SKU: PT2495UUPC Code: 445-4906-0

Newmar AC-II Switch Panels"AC Master panels Essential control/protection whenever AC from shorepower or generators is on board. A double pole master breaker with power on indicator light protects both hot and neutral legs of the AC circuit. A reverse polarity light provides clear warning when wiring is reversed and poses a shock hazard. Single pole branch circuit breakers (Model AC-IX) and individual ?ON? indicator lights provide control and protection of various AC loads. For 115/230 VAC applications ? see ratings note. A label set of common on-board circuits is provided. AC-IX: 30 amp master breaker , 5 branch circuit capacity 4 installed standard 1-10A, 2-15A, 1-20A, or specify. LS-I Label set included. Panel size: 5 1/4" x 7 1/2", (13.3 X 9.5 cm.,) Weight: 2 lbs., (.9 Kg.) AC-II: 30 Amp master breaker. Panel size: 5 1/4" x 3 3/4" (13.3 X 9.5 cm.), Weight: 1 lb (.5 Kg.) Model Inches Centimeters AC-IX 4 X 6 10.2 X 15.2 AC-II 4 X 2.5 10.2 X 6.4 "Normalized SKU: ACII

Newmar ACE ComponentsFor 115/230 volt systems. Reads: 90-300 VAC, 0-150 amps, frequency from 40-70 Hz and power from 0-45 kW. Features alarm circuits for high/low voltage and high/low frequency. Can be programmed to provide automatic generator shutdown (see Remote Alarm Option below) in the event that voltage or frequency exceed predetermined range. Current and voltage transformers are included. 12 or 24 volt source required to power meter.  2 1/2 " faceNormalized SKU: ACE

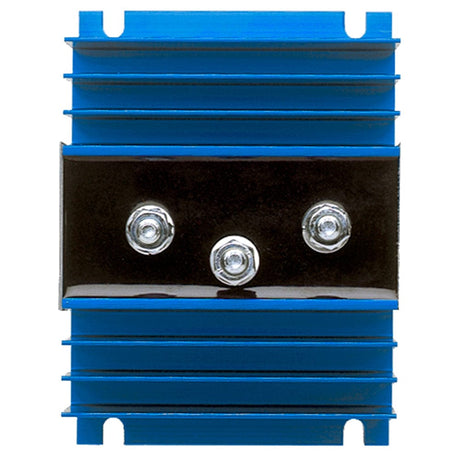

Newmar APS-70 Components"Automatic Power Selectors The Automatic Power Selector (APS) is a solid state device which enables installation of a seamless, redundant power system for critical electronic loads. It selects the higher voltage of two independent DC power sources and routes power to the load. Should one source falter or fail, the other will automatically supply the load with no transfer delay, operation continues uninterrupted. Easy installation, two independent power sources are wired to the APS and routed in a single output to the vital load. Alarm sense wires can be easily attached to input studs providing loss of power source signal. Rugged, rust-proof anodized aluminum case.   Model Max Loads Voltage Rating Stud Terminal Size Dimensions (Inches) Weight (Lbs.) APS-70 70 Amps 6 - 50 VDC, neg. ground 6mm 3.25 x 4.5 x 3.1 2 "Normalized SKU: APS70

Newmar ERC-12-15 Components"The Emergency Relay/Charger is a device for assuring immediate back-up power to communications equipment in the event AC power is temporarily lost to the power supply or the supply fails. In addition it will allow the power supply to act as a ?trickle? battery charger without any additional modification. When loss of DC voltage is sensed by the ERC, it employs a fast-acting S.P.D.T. relay to automatically switch the equipment?s DC input over to a standby battery to allow continued operation. When the power supply is returned to service, the ERC disengages the battery and puts the supply back on line to provide DC voltage. While the power supply is operating normally, a small portion of the output current is directed to the battery to trickle-charge and maintain it at full voltage.( Note: Battery float voltage will be maintained at .7 volts lower than power supply voltage) Note: If the power supply is down for an extended period, the back-up battery may become significantly discharged while powering the radio. When the supply returns to service, the trickle charge rate of the ERC may be insufficient to restore the battery to full charge in a timely manner. In the event this occurs, a supplemental charger may be necessary to bring the battery to full charge.   ERC12-15 ERC24-15 ERC12-35 Input range 10.0 - 14.5 VDC 20. - 29.0 VDC 10.0 - 14.5VDC Relay ratings 10 Amps Continuous15 Amps intermittant 10 Amps Continuous15 Amps intermittant 30 Amps Continuous35 Amps intermittant Float Trickle Typical 0.1 amps 0.2 amps .01 amps Dimensions 5 1/8" x 2 7/8" x 2 3/8' 5 1/8" x 2 7/8" x 2 3/8' 5 1/8" x 2 7/8" x 3 5/8" "Normalized SKU: ERC1215

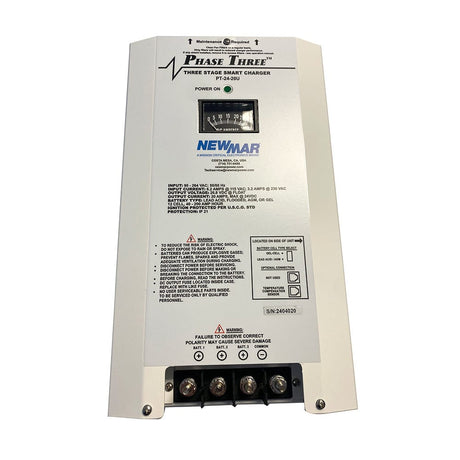

Newmar PT-24-20U Battery ChargersPT-24-20U Battery Charge“Smart” marine battery charging technology for 24-volt systems aboard workboats, military vessels, commercial vessels, and recreational craft. This charger interacts with batteries, providing the optimum three-stage charge process for fast recovery and conditioning, maximizing performance, and extending battery life.A selector switch adjusts output voltage to adapt to gel-cell, flooded lead-acid, or AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries’ ambient temperature. All models are housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance.Features: 24-volt model “Smart” circuitry provides three-stage charging – bulk, absorption, float Gel-cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages Multiple isolated output banks; ammeter indicates total output current The optional sensor adjusts output voltage based on battery temperature Current limiting prevents damage from overloading Use as a power supply; can power loads without a battery in line Built to last – rugged stainless steel case with a durable white powder coat finish with an optional drip shield and marinized internal circuitry Protection: Current Limiting, Thermal Protection, Forced Air Cooling, Drip Shield Install in conjunction with PT-MCU for additional control and monitoring ABS-type approval for battery charging and power supplies Specifications: Input VAC (50-60 Hz.): 85 – 135, 170 – 270 Input Amps @ Full Load: @ 115 VAC: 6.8, @ 230 VAC: 4.3  Power Factor: .7 Max Output Amps: 20 Output Banks: 3 Battery Capacity (Amp-Hours): 40– 200 Operating Temp. Rating Reference: T-3 Case Size Reference: A-2 Case Size (H x W x D): 13.85B x 9.5 x 4.8B inches (35.2B x 24.1 x 12.2B centimeters) *Note with Dripshield installed B add .75” (1.9 cm) to height and 1.35” (3.4 cm) to depth Weight Lbs./Kg: 12/6 Optional Temp. Sensor Model: TCS-12/24     Remote Panel Model: NA Compliance Reference: CG, ABS Temperature Rating References: Temperature: -20 degrees C to +60 degrees C     Derate Linearly From 100% @ 50 degrees C to 60% @ 60 degrees C Nominal Output Voltages at Gel/Flooded Switch Settings (without Temperature Compensation): Gel-Cell: 28.0 VDC Charge @ 50% load and 27.2 VDC Float @ .5 amp load Flooded/AGM: 28.4 VDC Charge @ 50% load and 26.8 VDC Float @ .5 amp load Compliance References: UL: UL 1950 (per DNB report) CG: USCG CFR 183.410 (Ignition protected) EN: EN 60335-1 CE: Carries the CE mark ABS: PT Series meets SVR 2009 4-8-3/5.9, Under 90 meters Rules 2006 4-6-4/7.19, and HSNC 2007 4-8-3/5.13. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: PT2420U

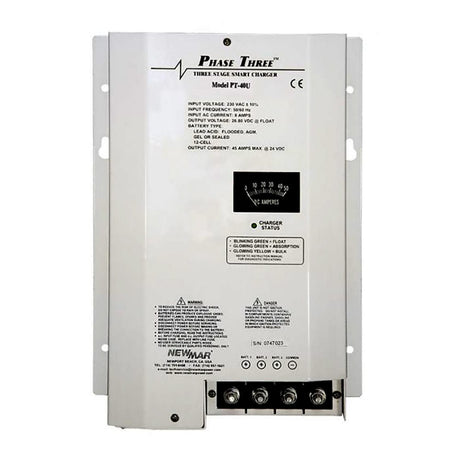

Download LiteratureNewmar PT-40U Battery ChargersPT-40U Battery ChargerNewmar’s Phase Three Series Battery Chargers employ “Smart” battery charging technology for 12-volt systems aboard marine applications including workboats, military vessels, commercial vessels, and recreational craft. This charger interacts with batteries, providing the optimum three-stage charge process for fast recovery and conditioning, maximizing performance, and extending battery life.A selector switch adjusts output voltage to adapt to gel-cell, flooded lead-acid, or AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries’ ambient temperature. This model is housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance.Features: 12-volt model “Smart” circuitry provides three-stage charging – bulk, absorption, and float Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages Multiple isolated output banks; ammeter indicates total output current. (Except PT-7) The optional sensor adjusts the output voltage based on battery temperature. (Except PT-7) Current limitations prevent damage from overloading Clean well-regulated output can be used as a power supply; can power loads directly without a battery in line Built to last – rugged stainless steel case with a durable white powder coat finish, an optional drip shield, and marinized internal circuitry Protection: Current Limiting, Thermal Protection, Forced Air Cooling, Drip Shield ABS-type approval for battery charging and power supplies Specifications: Input VAC (50-60 Hz.): 90-264 Input Amps @ Full Load: @ 115 VAC: 6.8, @ 230 VAC: 3.4 Power Factor: .98 @ 115V and .95 @ 230V Max Output Amps: 40 Output Banks: 3 Battery Capacity (Amp-Hours): 80-400     Operating Temp. Rating Reference: T-5 Case Size Reference: A-3 Case Size (H x W x D): 13.85B x 9.5 x 4.8B inches (35.2B x 24.1 x 12.2B centimeters) *Note with Dripshield installed B add .75” (1.9 cm) to height and 1.35” (3.4 cm) to depth Weight Lbs./Kg: 11/6 Optional Temp. Sensor Model: TCS-12/24                 Remote Panel Model: EVM-12-2     Equalize Option: No Output Indicator Reference: M-3 Compliance Reference: CG Temperature Rating References: Temperature: -20 degrees C to +70 degrees C Derate Linearly From 100% @ 50 degrees C to 50% @ 70 degrees C Nominal Output Voltages at Gel/Flooded Switch Settings (without Temperature Compensation): Gel-Cell: 14.0 VDC Charge @ 50% load and 13.6 VDC Float @ .5 amp load Flooded/AGM: 14.2 VDC Charge @ 50% load and 13.4 VDC Float @ .5 amp load Compliance References: CG: USCG CFR 183.410 (Ignition protected) CE: Carries the CE mark ABS: PT Series meets SVR 2009 4-8-3/5.9, Under 90 meters Rules 2006 4-6-4/7.19, and HSNC 2007 4-8-3/5.13. Options: Remote Panel, model EVM-12-2, for us with model PT-40 only (Enables monitoring of when the battery charger is “on” and the batteries’ state of readiness, at a glance of two (2) battery banks only) Temperature Compensation Sensor, Model TCS 12/24, for use with all models except PT 7 (-5 mV per cell degrees C, 25′ cable (40’cable optional) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: PT40UNewmar PT-40U Literature Download Quick Reference Guide Owners Manual

Newmar BI-200 Battery AccessoriesBI-200 Battery IntegratorCharging multiple battery banks without the use of diode isolators dictates that the batteries be connected or “integrated” only whenever a charge voltage is present so that they may be charged simultaneously, then disconnected or “isolated” when the charge voltage is no longer present to allow for selective discharge and avoid having the secondary or standby battery drain into the primary battery.Battery integrators perform this function automatically, acting as a “smart” switch to connect independent battery banks only when a charging voltage is present. Otherwise, they are isolated, and discharge between banks is prevented.The Battery Integrator causes no voltage drop in the charging system, while the multiple batteries are charged as a single bank whenever a charging source of approximately 13.2 VDC or 26.4 VDC or greater is present (depending on the model).When the alternator or charger is off or a large load causes the voltage to drop below the disconnect point, the unit breaks the common tie between the banks. This allows selective battery discharge and prevents the “dumping” of a higher-charged bank into a lower-charged bank. The unit may also be remotely activated to connect other batteries through the key starter or a manual switch to provide an added “boost” from the secondary battery whenever the starter is engaged and the unit senses there is sufficient voltage in that battery to provide an assist.Features: Enables charging of two separate banks without voltage drop yet maintains 100% isolation at all other times. For systems of three banks or more, an additional unit must be installed for each additional bank Heavy-duty silver-plated contactor, continuous duty rated to 100 Amps or 200 Amps depending on model Voltage sense circuits, epoxy-encapsulated, and heavy-duty continuous-rated solenoids are all designed for use in marine environments Has ignition protection rating Easy three-wire hookup for two bank systems (BATT +, BATT +, GROUND) Terminal for optional wiring of a remote light indicating when battery banks are integrated Optional internal connections can be wired through the key starter or manual override switch, tying battery banks together for an extra boost during engine start Specifications: Terminals: Battery Connections: 5/16 in. copper alloy stud Approvals: CE Marked Dimensions (H x W x D): 200 Amp Models: 4 x 3.3 x 4.1 inches Weight: 2 lb. Operating Temperature: Control: -40 to +85 degrees C and Solenoid: -28 to +48 degrees C Voltage: 12 VDC Battery Integration Point: 13.2 VDC     Battery Disconnect Point: 12.8 VDC Max. Continuous Current: 200 Amps     Peak Maximum Current: 600 Amps Normalized SKU: BI200
