Download LiteratureMaretron DCR100-01 Network AccessoriesMaretron's DCR100 contains 6 Direct Current (DC) relays, each capable of switching up to 10amps. The DCR100 connects directly to an NMEA 2000 network, so you can turn on and off the relays from any device onboard or remotely running Maretron's N2KViewr software. The DCR100 easily handles resistive DC loads like lights, or inductive DC loads like pumps and motors. The DCR100 can also be used to switch AC circuits using external relays.An added benefit of the DCR100 is that it reports the current through each of the six channels. This allows you to determine if loads are drawing too little electrical current such as burnt out bulbs, or if the loads are starting to draw too much electrical current.FeaturesSix Relays for On / Off Control Over NMEA 2000 Network Each Relay Capable of Carrying Up to 10 amps Individual Relay Electrical Current Monitoring Automatic Relay Over Current Shutdown (Shuts Down at 12 amps) Automatic Relay Thermal Shutdown (Over Temperature Protection)Applications Remote Control of Navigation Lights Remote Control of Boarding Lights Burnt Out Bulb AlertsWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: DCR10001UPC Code: 873804003108Maretron DCR100-01 Literature Download   Quick Reference Guide  Owners Manual

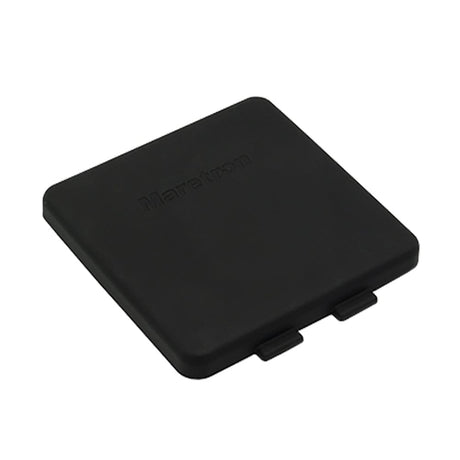

Maretron DSM410-DUST-COVER Cases & CoversDSM410 Protective CoverMaretron's DSM410 protective dust cover. Normalized SKU: DSM410DUSTCOVER

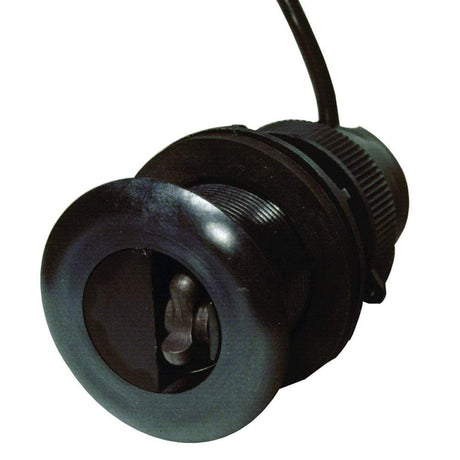

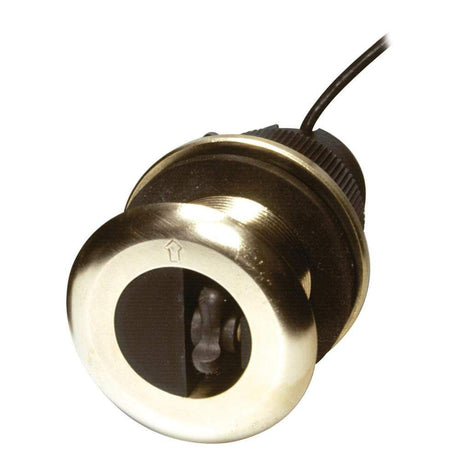

  Download LiteratureMaretron DST110-01 TransducersMareton DST110 Smart™ Retractable Depth/Speed/Temperature Transducer The DST110 delivers precise digital depth, accurate speed and exact water temperature even at speeds above 40 knots - all with no programming or calibration necessary.Its patented Smart™ Sensor Technology, retractable and removable sensor, and NMEA 2000® network connectivity make the DST110 easy to interpre, easy to install and connect with other navigation equipment, and easy to maintain.The DST110 measures precise water depth at 0.4m to 100m with a wide beam width and is tolerant to most deadrise angles. It reads water temperature from -10°C to +40°C at ±1.0xC accuracy, and accurate speed from 1 to 50 knots. User customizable calibrations for speed and temperature indications for your installation. At 235kHz it can be used with a fishfinder as an ideal navigation tool for sport or commercial fishing vessels or with sailing vessels of all sizes.The DST110's plastic, bronze, or stainless steel housing choices are compatible with any hull material. It includes a blank plug to replace its sensor unit when the vessel will be docked for extended periods or trailered. This prevents damage to the sensor and reduces fouling growth.Maretron's DST110 is CE compliant (IEC 60945) and is manufactured to the highest quality standards under ISO9K/2K procedures. Its compact, waterproof housing will provide years of reliable performance, making it the Smart™ choice in marine sensing.WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications:Fairing Block Included = NONE Frequency = 235 Mounting Style = NONE Pins = NONE Speed Included = Yes Temperature = Yes Beam Width = 10 x 44 Cable Length (Feet) = NONENormalized SKU: DST11001UPC Code: 873804003160Maretron DST110-01 Literature Download  Owners Manual

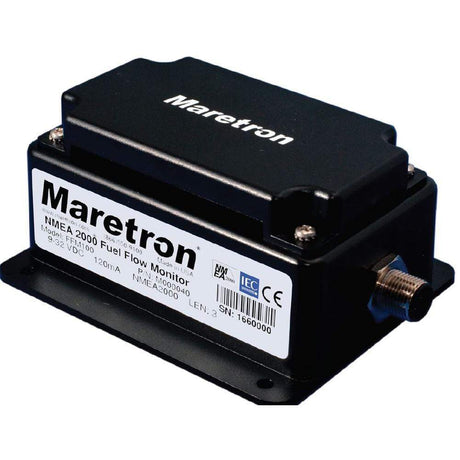

  Download LiteratureMaretron FFM100-01 GaugesFuel Flow MonitorPart #: FFM100-01Maretron's FFM100 provides precision fuel flow information to help optimize fuel consumption, which can save thousands of dollars in fuel operating cost. The FFM100 uses state-of-the-art, positive displacement metering technology for unprecedented accuracy. In fact, the accuracy of the FFM100 is nearly that of commercial vessel systems costing tens of thousands of dollars, yet the FFM100 cost less than existing recreational systems found on the market today. Additional benefits of the positive displacement metering technology are the elimination of flow conditioning components such as straighteners and pulsation dampers. Other flow meter technologies require flow conditioning components that increase system and installation cost. The FFM100 also uses true temperature compensation with embedded temperature sensors within the meters. The returning fuel is generally hotter than the supply fuel and if not properly compensated, inaccuracies as much as 5% can occur in computing the engine's fuel consumption. The FFM100 also detects momentary reverse flow in the fuel lines due to fluctuating pressure caused by the injection pump. Less accurate systems count the reverse fuel flow as part of the consumed fuel where the FFM100 properly accounts for momentary reverse flow.Lastly, the FFM100 can be used for fluid types other than fuel (e.g., water, oil, etc.) by ordering the appropriate flow sender.The FPM100 is NMEA 2000® certified so you can view any and all information anywhere on the vessel using a compatible NMEA 2000® display. The FFM100 is a key component of Maretron's N2KView® vessel monitoring and control system. Features: FFM100 converts a variety of flow senders (e.g., fuel, water, etc.) to NMEA 2000® Network Data All flow senders ordered separately depending on application (i.e., single fuel flow sender for gas engine, dual fuel flow senders for diesel engine, water flow sender for sea water, etc.) Fuel flow senders facilitates fuel consumption optimization for reduced fuel operating cost Fuel flow senders use positive displacement metering technology for superior accuracy over other measurement technology such as turbine meters Fuel flow senders do not require costly fuel conditioning components like flow straighteners and pulse dampers Fuel flow senders implement true temperature compensation with precision built-in thermistors for increased accuracy Fuel flow senders automatically detect reverse flow due to fluctuating pressure difference from injection pumps Fuel flow senders pass particle sizes up to 70 micrometers (diesel fuel filters normally filter down to 2 micrometers to prevent clogging injectors) WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:3-D View = NONE GPH Range = NONE Single/Twin = NONE SmartCraft Enabled = NONENormalized SKU: FFM10001UPC Code: 873804003276Maretron FFM100-01 Literature Download  Quick Reference Guide  Owners Manual

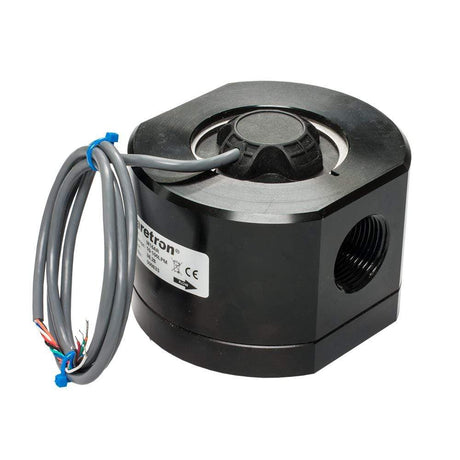

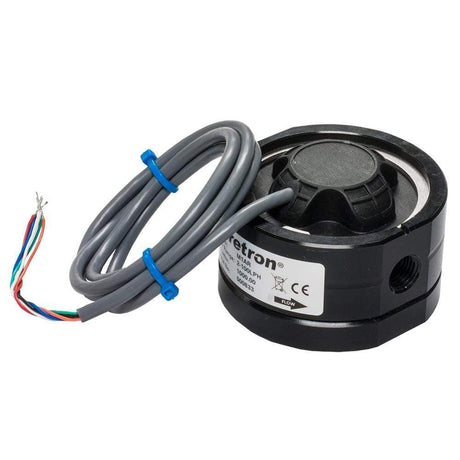

Maretron M1AR AccessoriesFuel Flow Sensor - 2-100 LPHFeatures: Flow Range: 2 LPH to 100 LPH (0.53 GPH to 26.4 GPH) All M1AR fuel flow sensor accessories for the FFM100 are fitted with 1/4" NPT female threads Nominal K Factor: 1000 pulses/L (3785.4 pulses/Gal) Cable Length: 1m (3.28') Strainer Size: 200 Mesh (If not already installed after fuel filter) Port Size: 1/4" NPT Female Maximum Viscosity: 1000 cPs Maximum Operating Pressure: 68.95 Bar (1000 PSI) Weight: 775g (1.71 lb) Construction: Aluminum Housing Material Rotors: PPS (Ryton) Shafts: 316/304 Stainless Steel Magnets: Samarium Cobalt O-Ring: FKM (Viton™) WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications:Load Equivalence # (LEN) = NONENormalized SKU: M1ARUPC Code: 873804003528
