Furuno 000-158-002 Network AccessoriesPower Cable Assembly, 3 MetersWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. FURUNO 000-158-002 POWER CBL F/ 667-668-582-663Normalized SKU: 000158002UPC Code: 00015800210

Furuno 000-176-666-10 AccessoriesPower Cable f/GP1870FPower cable assembly for GP1670F & GP1870F Chartplotter/FishfindersWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 00017666610UPC Code: 00017666610

Furuno 000-191-487-10 AccessoriesPower Cable for GP39Furuno power data cable specifically for Furuno's GP39. Normalized SKU: 00019148710

Furuno 000-156-058-10 AccessoriesPower Cable for TZT2 & TZT9FFuruno power cable specifically for TZT2 and TZT9F. Normalized SKU: 00015605810

Furuno 000-147-564 AccessoriesFurno 000-147-564 Power CableModel: 000147564Power Cable AssemblyNormalized SKU: 000147564

  Download LiteratureFuruno FPS8 AutopilotsFPS8 Valve BlockThe Optional FPS8 valve block unit is designed to be used together with a Furuno HRP pump. The FPS8 and is mounted directly onto the HRP pump unit. When combined with our "Whisper Quiet" HRP11 and HRP17 pump units, the FPS8 Module provides Safe Helm and Power Assist steering functionality for any vessel with a hydraulic helm steering system. The FPS8 module is installed in the hydraulic steering system between the HRP pump unit and the Steering Helm/Rudder Actuating Cylinder. If the FPS8 is not engaged or enabled, there is no effect on steering performance. Additionally, when the NavPilot system is turned off, or if the NavPilot software has not yet been updated to provide Safe Helm and Power Assist capability, hydraulic fluid simply passes through the FPS8 module as if it is not present. If you are interested in utilizing the "SAFE HELM" and "POWER ASSIST" features, it is highly recommend that, when installing the NavPilot 700 Series Autopilot, the optional FPS8 Power Steering Module is purchased and installed at the same time. This will eliminate the need to re-plumb the hydraulic system and run additional connection cables in the future. When the new software is available this Fall, you will only need to update the NavPilot software and make a few setting changes in the installation menu.FPS8 and HRP pump sold separately - pump not included.Power Assist Mode: Power Assist mode is activated when the two direction helm pump sensors in the FPS8 detect helm movement in either the port or starboard direction. Power Assist Mode is programmable by selecting an appropriate rudder assisted speed. Power Assist is also vessel speed dependent and programmable. For example, at programmable higher vessel speeds, the power assist mode can be disabled so that the vessel does not over-correct when the helm is used. Then as the boat slows down for maneuvering, power assist will automatically re-engage. If the NavPilot is in Standby Mode, the Power Assist function is automatically disabled by default. As long as the operator provides helm movement, Power Assist will continue to move the rudder. This unique mode will greatly reduce steering effort for the operator. HRP reversing pump is operated in the same direction as the oil flow from the helm pump. As the helm operator turns the helm pump the reversing pump will continue to operate. When the helm wheel is stopped the PS8 sensors turn off the reversing pump.Safe Helm Mode: Safe Helm uses two directional helm pump sensors in the FPS8 to interrupt autopilot control of the vessel. Whenever the direction sensors detect helm movement, Safe Helm is activated. The sensitivity of the Safe Helm is programmable and can be adjusted so that minor helm movements do not automatically evoke Safe Helm. Once helm movement is stopped the previous NavPilot mode of either Auto or NAV will resume automatically after a programmable delay of several seconds.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:Boat Length - Max (Feet) = NONE Capacity - Max Ram (CU) = NONE Drive Type = NONE Feedback Type = NONE Pilot Type = NONE Remote Capable = NONE Turn Patterns = NONE Vessel Displacement - Max (Pounds) = NONENormalized SKU: FPS8UPC Code: 611679341402Furuno FPS8 Literature Download  Owners Manual

Furuno PSU005 Radar DomePower SupplyFuruno power supply specifically for Furuno's 1953 and 1954. Features:12kWWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. FURUNO POWER SUPPLY UNIT USED W/ 1953C 1954C (12KW)Normalized SKU: PSU005UPC Code: 611679266880

Furuno PSU008 Radar DomePower SupplyFuruno's power supply is used specifically for Furuno's 1964C.Features:25kWWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. FURUNO POWER SUPPLY UNIT USED W/ 1964C (25KW)Normalized SKU: PSU008UPC Code: 611679295996

Furuno 000-156-405 Network AccessoriesPower/Data CableThis is a dual purpose cable. It is utilized as a Power Cable Assembly for the FCV585 and FCV620 Fish Finders. In addition, this cable can be utilized as an NMEA0183 data cable for the GP33.*Note: When used with the GP33, the fused portion of the red and black wire MUST be removed. In this application, this cable provides data only and CAN NOT be used to power the GP33.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. FURUNO POWER/DATA CABLE FOR FCV-585 FCV-620Normalized SKU: 000156405UPC Code: 611679304292

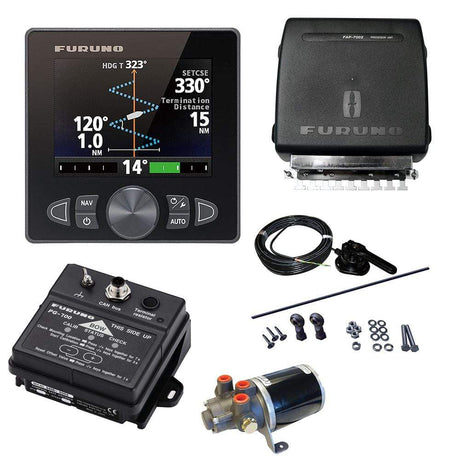

Furuno PUMPOCT16-12 AutopilotsPUMPOCT16-12 Pump 12V - 1.6 Cubic Inches for RAM Sizes 12-231,600CC/MIN OCTOPUS PUMP, 12V, 1.6 Cubic Inches per second (For Ram sizes from 12-23 Cubic Inches in volume).The Octopus pump's industry leading efficiency minimizes power consumption, and their design offers significantly quieter operation. The Octopus pump's small footprint provides the ultimate in installation flexibility. Features: Provides from 15.1 to 24 cubic inches of displacement Professional solution for hydraulically steered boats Industry leading efficiency - lower power consumption, particularly under demanding conditions requiring higher flow rates equates to a major advantage over competing units Cost saving - the increased efficiency and performance means the pumps can be used with smaller autopilot course computers than equivalent drive units The smaller footprint of the compact gear pump increases installation flexibility Lower noise and vibration make the gear pump particularly suitable for sailboat installations Suitable for balanced or unbalanced cylinders Normalized SKU: PUMPOCT1612UPC Code: 611679375957

Download LiteratureFuruno PUMPOCT10-12 AutopilotsPUMPOCT10-12 Pump for Rams 7-12 Cubic Inches In VolumeThe Octopus pump's industry-leading efficiency minimizes power consumption, and the design offers significantly quieter operation. The Octopus pump's small footprint provides the ultimate in installation flexibility.Features: Provides from 9.1 to 15 cubic inches of displacement A professional solution for hydraulically steered boats Industry-leading efficiency - lower power consumption, particularly under demanding conditions requiring higher flow rates, equates to a major advantage over competing units Cost savings: the increased efficiency and performance mean the pumps can be used with smaller autopilot course computers than equivalent drive units The smaller footprint of the compact gear pump increases installation flexibility Lower noise and vibration make the gear pump particularly suitable for sailboat installations Suitable for balanced or unbalanced cylinders Normalized SKU: PUMPOCT1012Furuno PUMPOCT10-12 Literature Download Quick Reference Guide

Furuno PUMPLA11-12 AutopilotsThe Accusteer PUMPLA11-12 Linear Actuator is designed to interface an autopilot system with mechanical steering systems such as wire, cable or chain drives. This linear actuator consists of a hydraulic drive unit, steering cylinder, and interconnecting hoses.This unit is also available as the PUMPLA17-12 using a 1.75" x 12" RAM. PUMPLA11 Specifications: Heavy-duty brass cylinder (2" bore x 11" stroke) 1.5" x 9" RAM Stainless steel braid covered hoses Compact and rugged drive unit Average Motor Current: 3-6 Amps ? PUMPLA11-12 (12VDC Motor) Cylinder Design: Balanced Max Cylinder Stroke and Swept Volume: 9 in. (23 cm) and 13.1 cubic in. (215 cc) Solenoid/Clutch Current Draw: 1.5 Amps (12V)/0.75 Amps (24V) Max Cylinder Thrust @ 500 psi: 785 lbs (356 kg) Hard Over Time (HOH): About 13 Seconds Maximum Rudder Torque (+/-35 deg. @ 8 in. Rudder Shaft to Tiller Bolt Distance): 6280 in. lbs. (710 Nm) Raymarine Equivalent Linear Drive: TYPE 1 (Recommended Maximum Boat Displacement = 22,000lbs (10,000kg)) Simrad Equivalent Linear Drive: HLD350 Normalized SKU: PUMPLA1112UPC Code:  611679326010

Furuno PUMPLA17-12 AutopilotsThe Accusteer PUMPLA17-12 Linear Actuator is designed to interface an autopilot system with mechanical steering systems such as wire, cable or chain drives. This linear actuator consists of a hydraulic drive unit, steering cylinder, and interconnecting hoses.This unit is also available as the PUMPLA11-12 using a 1.5" x 9" RAM.PUMPLA17 Specifications:   1.75" x 9" RAM Stainless steel braid covered hoses Compact and rugged drive unit Average Motor Current: 4-8 Amps ? PUMPLA17-12 (12VDC Motor), 3-5 Amps ? PUMPLA17-24 (24VDC Motor) Cylinder Design: Balanced Max Cylinder Stroke and Swept Volume: 12 in. (30.5 cm) and 23.5 cubic in. (215 cc) Solenoid/Clutch Current Draw: 1.5 Amps (12V)/0.75 Amps (24V) Max Cylinder Thrust @ 500 psi: 1045 lbs (474 kg) Hard Over Time (HOH): About 14.7 Seconds Maximum Rudder Torque (+/-35 deg. @ 10.5 in. Rudder Shaft to Tiller Bolt Distance): 10450 in. lbs. (1181 Nm) Raymarine Equivalent Linear Drive: TYPE 2 (Recommended Maximum Boat Displacement = 48,500lbs (22,000kg)) Simrad Equivalent Linear Drive: HLD2000L Normalized SKU: PUMPLA1712UPC Code: 611679326027

Furuno 1715WO Network Accessories"The MODEL 1715 is a high contrast LCD radar designed for pleasure craft and small fishing boats. Radar echoes are presented in four shades of gray on the 7" Silver Bright LCD. The Radar offers detailed pictures of coastline and targets at short ranges thanks to narrower pulselengths and dual IF bandwidths. The antenna rotation speed automatically changes depending on the range selection for optimum target detection. The compact, waterproof display allows table top or panel mounting in the cockpit or on the open fly bridge. The radar has a power saving Watchman mode. this mode, the antenna is stopped and the transmission is off, while the screen displays nav data only. The radar wakes up at a specified time interval (5, 10 or 20 min) and operates for a minute. If a target enters the Guard Zone, an audible alarm sounds and the radar goes into its normal operating mode, cancelling the Watchman mode. The alarm may also be set to work for a target leaving the Zone. Other standard features include: EBL (Electronic Bearing Line), VRM (Variable Range Marker), TLL output (Target L/L), Cursor L/L readout, Echo Trail, Guard Zone Alarm, Anti Clutter Rain, Automatic control of tuning and sensitivity. The A/C RAIN control improves the target detection in the rain by elaborate design of the receiver. With use of nav data inputs in NMEA 0183 format, the radar offers additional functions. Graphical and numeric waypoint information can be shown on the display. The Waypoint is indicated by a lollipop mark for easy identification on the radar display. In the TLL output function, you can use the cursor to output a specified target's L/L to the optional GPS navigator as a mark.   Standard Features: High Contrast 7" Silver Bright LCD for excellent sunlight viewability 14 range scales from 0.125 to 24 nm Low power consumption in Watchman mode - only 8 W Dual bandwidth IF amplifier: broad band for high fidelity in short ranges, narrow band for enhanced detection in long ranges Variable antenna speeds with range scales for optimum performance on all ranges Cursor position can be read in L/L (GPS Navigator is required) Waypoint Lollipop On-Screen to aid in Vessel Navigation (GPS Navigator is required) Programmable Navigation Data repeater feature Zoom in to a specific area Reverse video feature for effective use at night Guard Zone Alarm (US Patent No.5032842)  "Normalized SKU: 1715WO
