Download LiteratureNewmar 24-12-3 Converters24-12-3 DC ConverterConvert 17-32 VDC input to 12 VDC negative ground output for powering communication and navigation equipment on negative ground systems. (See Isolated Series for positive ground applications.)Features: Excellent Regulation: Output voltage maintained within 1% under all line and load conditions within the rating The heat generated by semi-conductors is extracted and dissipated by large heat sink fins that maximize air contact for cool operation and the long life of components Polyurethane conformal coating on PC boards and corrosion-resistant anodized aluminum cases with heavy-duty shock mounts assure survival in hostile environments Numerous Converter and Load Protection Circuits: Current limiting Automatic thermal shutdown Short circuit proof Reverse polarity Overvoltage protection Carries CE mark Specifications: Input Voltage: 17-32 Output Voltage: 13.6 Output Amps (Intermittent): 3 Output Amps (Continuous): 3 Case Size (H x W x D): 3.5 x 3.5 x 1.75 inches (8.9 x 8.9 x 4.5 centimeters) Weight: 1 lb. (.45 kg) Output: 13.6 VDC (internally adjustable 12.6 -14.5)  Ripple: 150 mV P-P maximum Regulation: 1% Line/Load Switching Frequency: 40 kHz Efficiency: 85% – Typical. Isolation: Output/Chassis; Input/chassis: 250 VDC Duty Cycle Ratings*: Intermittent: 20 minutes max on time, 20% duty. current limit set at approx. 105% of intermittent rating. Continuous: 24 hours, 100% duty *24-12-3: 2-minute max. on time Idle Current: Less than 100 mA (including power “ON” light) Operating Temp Specifications: 0-50 degrees C, Derate Linearly From 100% @ 40 degrees C To 50% @ 50 degrees C. Thermal shutdown @ 70 degrees C Case Temperature Model 24-12-3: Full output -25 degrees to +30 degrees C; Derate linearly from 100% @ +30 degrees C to 45% @ +50 degrees C Mechanical Specifications: Powder-coated aluminum heat sink case Front panel terminal block Heavy-duty mounting flange Conformal coated PC board Options:Operation as battery charger or parallel redundant operation* – derate to continuous duty rating (contact factory)This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: 24123Newmar 24-12-3 Literature Download Quick Reference Guide

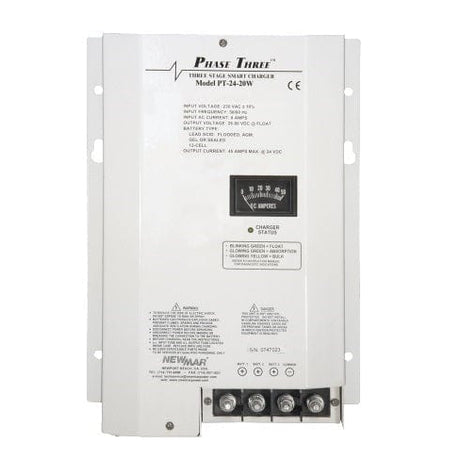

Newmar PT24-20U Battery Chargers"Three Stage "Smart" Chargers Phase Three "Smart" battery charging technology is now available in a wide range of power levels, allowing you to select the right size, features and flexibility you require for virtually any application from small recreational craft to large live-aboards, workboats and other commercial vessels. These chargers interact with batteries to put them through the optimum three stage charge process which provides for fastest recovery and ideal conditioning, maximizing battery performance and extending battery life. A selector switch adjusts output voltage to adapt for gel-cell/flooded lead-acid/AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries' ambient temperature. All models are housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance. Features "Smart" circuitry provides three stage charging?bulk, absorption, float. Wide model range covers battery system ratings from 14-950 amp-hours Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages. Multiple isolated output banks; ammeter indicates total output current. (except PT-7) Optional sensor adjusts output voltage based on battery temperature. (except PT-7) Current limiting-prevents damage from overloading. Charger status clearly displayed with L.E.D. and/or audible indicators or optional remote panel. Use as a power supply; can power loads without a battery in line. Built to last?rugged stainless steel case with a durable white powder coat finish with an optional drip shield and marinized internal circuitry. Numerous Safety and EMC CompliancesTwo year parts and labor warranty Models   12 Volt 24 Volt 32 Volt PT-7 PT-24-8W PT-32-25W PT-14W PT-24-13W   PT-25W PT-24-20U   PT-40U PT-24-45U   PT-80 PT-24-60W     PT-24-95U   Detailed specifications below.  Specifications   12 Volt Models PT-7 PT-14W PT-25W PT-40W PT-80 Input VAC (50-60 Hz.) 88-132 or 176-264 85-264 90-132 or 180-264 85-135 or 170-270 90-264 Input Amps @ Full Load   @ 115 VAC 2 2.8 6.5 8.5 12 @ 230 VAC 1 1.4 4 4.3 7 P.F. Rating >.65 .93@230V .98@115V .7 .7 .95@230V .98@115V Max Output Amps 7 14 25 40 80 Output Banks 2 3 3 3 3 Battery Capacity (Amp-Hours) 14-70 28-140 50-250 80-400 160-800 Operating Temp. Rating Reference T-1 T-2 T-4 T-5 T-7 Case Size Ref. A-1 A-2 A-2 A-3 A-5 Weight; Lbs./Kg. 3.2/1.5 8/4 8.2/4 12/6 15.2/7 Optional Temp.Sensor Model N/A TCS-12/24 TCS-12/24 TCS-12/24 TCS-12/24 Remote Panel Model N/A RP RP RP RP Equalize Option No Yes Yes Yes Yes Output Indicator Ref. M-1 M-3 M-3 M-3 M-3 Compliance Ref. CG, CE CG, CE CG CG, CE CE    24 Volt Models PT-24-8W PT-24-13W PT-24-20U PT-24-45U PT-24-60W PT-24-95U Input VAC (50-60 Hz.) 85-264 90-132 or 180-264 85-135 or 170-270 90-264 207-253 90-264 Input Amps @ Full Load   @ 115 VAC 2.8 6.5 8.5 12 NA 26 @ 230 VAC 1.4 4 4.3 7 13 14 P.F. Rating .93@230V .98@115V .7 .7 .95@230V .98@115V .7 .95@230V .98@115V Max Output Amps 8 13 20 45 60 95 Output Banks 3 3 3 3 3 3 Battery Capacity (Amp-Hours) 16-80 26-130 40-200 90-450 120-600 180-950 Operating Temp. Rating Reference T-2 T-3 T-5 T-8 T-6 T-8 Case Size Ref. A-2 A-2 A-3 A-5 A-6 A-6 Weight; Lbs./Kg. 8/4 8.2/4 12/6 12.2/6 24.1/11 24.5/11 Optional Temp.Sensor Model TCS-12/24 TCS-12/24 TCS-12/24 TCS-12/24 TP TCS-12/24 Remote Panel Model RP RP RP RP N/A RP Equalize Option Yes Yes Yes Yes No Yes Output Indicator Ref. M-3 M-3 M-3 M-3 M-2 M-3 Compliance Ref. CG, CE CG CG, CE EN, CE EN, CE EN, CE   32 Volt Model  PT-32-25W Input VAC (50-60 Hz.) 104-126 Input Amps @ Full Load    @ 115 VAC 15 @ 230 VAC N/A P.F. Rating .7 Max Output Amps 25 Output Banks 3 Battery Capacity (Amp-Hours) 50-250 Operating Temp. Rating Reference T-6 Case Size Ref. A-4 Weight; Lbs./Kg. 12.2/6 Optional Temp.Sensor Model TP Remote Panel Model N/A Equalize Option No Output Indicator Ref. M-2 Compliance Ref. EN, CE Case Size     Inches Centimeters Ref H W D H W D A-1 10.5 5.0 2.8 26.7 12.7 7.1 A-2 12.5 7.7 4.3 31.8 19.6 10.9 A-3 13.85* 9.5 4.8* 35.2* 24.1 12.2* A-4 13.8A 9.8 5A 35A 24.9 12.7A A-5 14.8B 9.6 5.6B 37.6B 24.4 14.2B A-6 17.5C 12 7.2C 44.5C 30.5 18.3C * Add .75" (1.9 cm) to height and 1.35" (3.4 cm) to depth A Add 1.27" (3.2 cm) to height and 1.1" (2.8 cm) to depth B Add 1" (2.54 cm) to height and .5" (1.27 cm) to depth C Add 2" (5.08 cm) to height and 1" (2.54 cm) to depth Temperature Rating References:   T-1 -10°C to +45°C; Derate linearly from 100% @ 0°C to 80% @ -10°C T-2 -10°C to +60°C; Derate linearly from 100% @ 40°C to 60% @ 60°C T-3 -10°C to +60°C; Derate linearly from 100% @ 50°C to 60% @ 60°C T-4 -10°C to +60°C; Derate linearly from 100% @ 40°C to 60% @ 60°C T-5 -40°C to +60°C; Derate linearly from 100% @ 50°C to 75% @ 60°C T-6 -20°C to +50°C; Full output T-7 -20°C to +70°C; Derate linearly from 100% @ 45°C to 50% @ 70°C T-8 -20°C to +70°C; Derate linearly from 100% @ 50°C to 50% @ 70°C Output Indicator References   M-1 Total output ammeter M-2 Charge/Float L.E.D. M-3 Total output ammeter and charger status L.E.D.'s/Alarms Compliance References* See matrix for applicable models CG USCG CFR 183.410 (Ignition protected) EN EN 60335-1, EN 60335-2-29 CE Carries the CE Mark * Numerous other Safety and EMC compliances may also apply. Contact factory if further compliance   information is required. Nominal Output Voltages at Gel/Flooded Switch Settings (Without Temperature Compensation option installed or at 22.2˚C (72˚F) with Temperature Compensation option installed.)     12 Volt Models 24 Volt Models 32 Volt Model Charge Float Charge Float Charge Float Setting @ 50% load @ .5 amp load @ 50% load @ .5 amp load @ 50% load @ .5 amp load Gel-Cell 14.0 VDC 13.6 VDC 28.0 VDC 27.2 VDC 37.3 VDC 36.2 VDC Flooded/AGM 14.2 VDC 13.4 VDC 28.4 VDC 26.8 VDC 37.8 VDC 35.7 VDC "Normalized SKU: PT2420UUPC Code: 445-5210-1

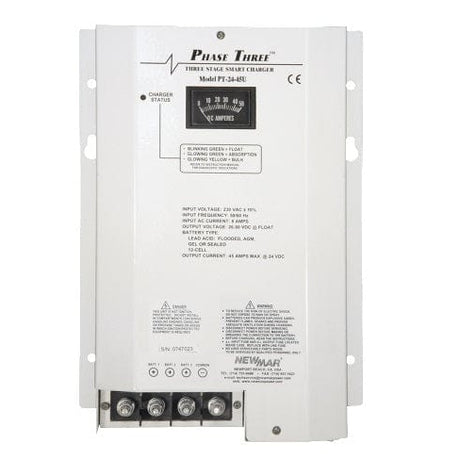

Newmar PT-24-45U Battery Chargers"Three Stage "Smart" Chargers Phase Three "Smart" battery charging technology is now available in a wide range of power levels, allowing you to select the right size, features and flexibility you require for virtually any application from small recreational craft to large live-aboards, workboats and other commercial vessels. These chargers interact with batteries to put them through the optimum three stage charge process which provides for fastest recovery and ideal conditioning, maximizing battery performance and extending battery life. A selector switch adjusts output voltage to adapt for gel-cell/flooded lead-acid/AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries' ambient temperature. All models are housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance. Features "Smart" circuitry provides three stage charging?bulk, absorption, float. Wide model range covers battery system ratings from 14-950 amp-hours Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages. Multiple isolated output banks; ammeter indicates total output current. (except PT-7) Optional sensor adjusts output voltage based on battery temperature. (except PT-7) Current limiting-prevents damage from overloading. Charger status clearly displayed with L.E.D. and/or audible indicators or optional remote panel. Use as a power supply; can power loads without a battery in line. Built to last?rugged stainless steel case with a durable white powder coat finish with an optional drip shield and marinized internal circuitry. Numerous Safety and EMC CompliancesTwo year parts and labor warranty Models   12 Volt 24 Volt 32 Volt PT-7 PT-24-8W PT-32-25W PT-14W PT-24-13W   PT-25W PT-24-20U   PT-40U PT-24-45U   PT-80 PT-24-60W     PT-24-95U   Detailed specifications below.  Specifications   12 Volt Models PT-7 PT-14W PT-25W PT-40W PT-80 Input VAC (50-60 Hz.) 88-132 or 176-264 85-264 90-132 or 180-264 85-135 or 170-270 90-264 Input Amps @ Full Load   @ 115 VAC 2 2.8 6.5 8.5 12 @ 230 VAC 1 1.4 4 4.3 7 P.F. Rating >.65 .93@230V .98@115V .7 .7 .95@230V .98@115V Max Output Amps 7 14 25 40 80 Output Banks 2 3 3 3 3 Battery Capacity (Amp-Hours) 14-70 28-140 50-250 80-400 160-800 Operating Temp. Rating Reference T-1 T-2 T-4 T-5 T-7 Case Size Ref. A-1 A-2 A-2 A-3 A-5 Weight; Lbs./Kg. 3.2/1.5 8/4 8.2/4 12/6 15.2/7 Optional Temp.Sensor Model N/A TCS-12/24 TCS-12/24 TCS-12/24 TCS-12/24 Remote Panel Model N/A RP RP RP RP Equalize Option No Yes Yes Yes Yes Output Indicator Ref. M-1 M-3 M-3 M-3 M-3 Compliance Ref. CG, CE CG, CE CG CG, CE CE    24 Volt Models PT-24-8W PT-24-13W PT-24-20U PT-24-45U PT-24-60W PT-24-95U Input VAC (50-60 Hz.) 85-264 90-132 or 180-264 85-135 or 170-270 90-264 207-253 90-264 Input Amps @ Full Load   @ 115 VAC 2.8 6.5 8.5 12 NA 26 @ 230 VAC 1.4 4 4.3 7 13 14 P.F. Rating .93@230V .98@115V .7 .7 .95@230V .98@115V .7 .95@230V .98@115V Max Output Amps 8 13 20 45 60 95 Output Banks 3 3 3 3 3 3 Battery Capacity (Amp-Hours) 16-80 26-130 40-200 90-450 120-600 180-950 Operating Temp. Rating Reference T-2 T-3 T-5 T-8 T-6 T-8 Case Size Ref. A-2 A-2 A-3 A-5 A-6 A-6 Weight; Lbs./Kg. 8/4 8.2/4 12/6 12.2/6 24.1/11 24.5/11 Optional Temp.Sensor Model TCS-12/24 TCS-12/24 TCS-12/24 TCS-12/24 TP TCS-12/24 Remote Panel Model RP RP RP RP N/A RP Equalize Option Yes Yes Yes Yes No Yes Output Indicator Ref. M-3 M-3 M-3 M-3 M-2 M-3 Compliance Ref. CG, CE CG CG, CE EN, CE EN, CE EN, CE   32 Volt Model  PT-32-25W Input VAC (50-60 Hz.) 104-126 Input Amps @ Full Load    @ 115 VAC 15 @ 230 VAC N/A P.F. Rating .7 Max Output Amps 25 Output Banks 3 Battery Capacity (Amp-Hours) 50-250 Operating Temp. Rating Reference T-6 Case Size Ref. A-4 Weight; Lbs./Kg. 12.2/6 Optional Temp.Sensor Model TP Remote Panel Model N/A Equalize Option No Output Indicator Ref. M-2 Compliance Ref. EN, CE Case Size     Inches Centimeters Ref H W D H W D A-1 10.5 5.0 2.8 26.7 12.7 7.1 A-2 12.5 7.7 4.3 31.8 19.6 10.9 A-3 13.85* 9.5 4.8* 35.2* 24.1 12.2* A-4 13.8A 9.8 5A 35A 24.9 12.7A A-5 14.8B 9.6 5.6B 37.6B 24.4 14.2B A-6 17.5C 12 7.2C 44.5C 30.5 18.3C * Add .75" (1.9 cm) to height and 1.35" (3.4 cm) to depth A Add 1.27" (3.2 cm) to height and 1.1" (2.8 cm) to depth B Add 1" (2.54 cm) to height and .5" (1.27 cm) to depth C Add 2" (5.08 cm) to height and 1" (2.54 cm) to depth Temperature Rating References:   T-1 -10°C to +45°C; Derate linearly from 100% @ 0°C to 80% @ -10°C T-2 -10°C to +60°C; Derate linearly from 100% @ 40°C to 60% @ 60°C T-3 -10°C to +60°C; Derate linearly from 100% @ 50°C to 60% @ 60°C T-4 -10°C to +60°C; Derate linearly from 100% @ 40°C to 60% @ 60°C T-5 -40°C to +60°C; Derate linearly from 100% @ 50°C to 75% @ 60°C T-6 -20°C to +50°C; Full output T-7 -20°C to +70°C; Derate linearly from 100% @ 45°C to 50% @ 70°C T-8 -20°C to +70°C; Derate linearly from 100% @ 50°C to 50% @ 70°C Output Indicator References   M-1 Total output ammeter M-2 Charge/Float L.E.D. M-3 Total output ammeter and charger status L.E.D.'s/Alarms Compliance References* See matrix for applicable models CG USCG CFR 183.410 (Ignition protected) EN EN 60335-1, EN 60335-2-29 CE Carries the CE Mark * Numerous other Safety and EMC compliances may also apply. Contact factory if further compliance   information is required. Nominal Output Voltages at Gel/Flooded Switch Settings (Without Temperature Compensation option installed or at 22.2˚C (72˚F) with Temperature Compensation option installed.)     12 Volt Models 24 Volt Models 32 Volt Model Charge Float Charge Float Charge Float Setting @ 50% load @ .5 amp load @ 50% load @ .5 amp load @ 50% load @ .5 amp load Gel-Cell 14.0 VDC 13.6 VDC 28.0 VDC 27.2 VDC 37.3 VDC 36.2 VDC Flooded/AGM 14.2 VDC 13.4 VDC 28.4 VDC 26.8 VDC 37.8 VDC 35.7 VDC "Normalized SKU: PT2445UUPC Code: 445-4800-0

Newmar 25ASB Circuit Breakers"All circuit breakers offered by NEWMAR are UL recognized and CSA listed for AC and DC systems and meet USCG requirements as a qualified circuit protection device. Single and Double Pole Fit all NEWMAR electrical panels, as well as most other brands Feature magnetic-hydraulic ""trip-free"" mechanism 5-30 amp rated to 65 VDC or 277 VAC; 40, 50 amp rated to 32 VDC or 120 VAC (See rating note below). Mounting scrws not provide order separatly #10 screw terminals on rear for wiring Options Red, white or black toggle handles Single pole values: 5, 10, 15, 20, 25, 30, 40 or 50 amp. Double pole values: 15, 20, 30 or 50 amp Important Circuit Breaker Rating Note: Standard series breakers shown on this page which are rated higher than 30 amps are acceptable for use in 230 VAC Line-to-Line systems (where each leg is 115 VAC - to - neutral), but are not rated for 230 VAC line-to-neutral systems."Normalized SKU: 25ASB

Newmar BX-3 Components"BX Series Provides for secure, protected below-deck wiring connections, IP rating 54 Rugged cast aluminum box with white enamel finish Easy wiring access through multiple grommeted cable entries Supplied with high quality connector strips Secure wires w/compression fittings ? no terminals required. Specifications Model BX-2 BX-3 Number of Connector Strips 1 2 Positions per Strip 12 11 Max Wire Gauge 16 14 Max amps (per Position) 6 10 Cable Entries 8 2 Max Cable Diameter .37" .59" Box Sizes - Inches 4.4" x 2.4" x 1.2" 4.7" x 3.7" x 1.3" Box Sizes - Centimeters 11.2 x 6.1 x 3.1 11.9 x 9.4 x 3.3 "Normalized SKU: BX3

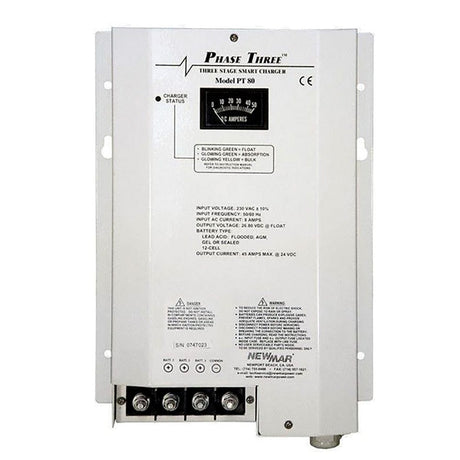

Newmar PT-80 Battery ChargersPT-80 Battery ChargerNewmar’s Phase Three Series Battery Chargers employ “Smart” battery charging technology for 12-volt systems aboard marine applications including workboats, military vessels, commercial vessels, and recreational craft. This charger interacts with batteries, providing the optimum three-stage charge process for fast recovery and conditioning, maximizing performance, and extending battery life.A selector switch adjusts output voltage to adapt to gel-cell, flooded lead-acid, or AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries’ ambient temperature. This model is housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance.Features: 12-volt model “Smart” circuitry provides three-stage charging – bulk, absorption, and float Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages Multiple isolated output banks; ammeter indicates total output current. (Except PT-7) The optional sensor adjusts the output voltage based on battery temperature. (Except PT-7) Current limitations prevent damage from overloading Clean well-regulated output can be used as a power supply; can power loads directly without a battery in line Built to last – rugged stainless steel case with a durable white powder coat finish, an optional drip shield, and marinized internal circuitry Protection: Current Limiting, Thermal Protection, Forced Air Cooling, Drip Shield ABS-type approval for battery charging and power supplies Specifications: Input VAC (50-60 Hz.): 90-264 Input Amps @ Full Load: @ 115 VAC: 12, @ 230 VAC: 7 Power Factor: .95@230V or .98@115V Max Output Amps: 80 Output Banks: 3 Battery Capacity (Amp-Hours): 160-800 Operating Temp. Rating Reference: T-7 Case Size Reference: A-5 Case Size (H x W x D): 16.8C x 9.6 x 6.1C inches (42.7C x 24.4 x 15.5C centimeters) *Note with Dripshield installed C add 1” (2.54 cm) to height and .5” (1.27 cm) to depth Weight Lbs./Kg: 15.2/7 Optional Temp. Sensor Model: TCS-12/24                 Remote Panel Model: RP Equalize Option: Yes Output Indicator Reference: M-3 Compliance Reference: CE Temperature Rating References: Temperature: -10 degrees C to +60 degrees C Derate Linearly From 100% @ 50 degrees C to 80% @ 60 degrees C Nominal Output Voltages at Gel/Flooded Switch Settings (without Temperature Compensation): Gel-Cell: 14.0 VDC Charge @ 50% load and 13.6 VDC Float @ .5 amp load Flooded/AGM: 14.2 VDC Charge @ 50% load and 13.4 VDC Float @ .5 amp load Compliance References: CG: USCG CFR 183.410 (Ignition protected) CE: Carries the CE mark ABS: PT Series meet SVR 2009 4-8-3/5.9, Under 90 meters Rules 2006 4-6-4/7.19, and HSNC 2007 4-8-3/5.13 Options: Remote Panel, model RP, for use with all models except PT-7 and PT-40U (LEDs indicate charger output stage. Manual re-initialization of three-stage charge cycle. With 25′ of cable. Panel dimensions: 3″ H x 4.75″ W) Temperature Compensation Sensor, Model TCS 12/24, for use with all models except PT 7 (-5 mV per cell degrees C, 25′ cable (40’cable optional) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: PT80

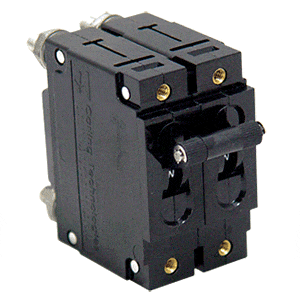

Newmar 30ADB Circuit Breakers All circuit breakers offered by NEWMAR are UL recognized and CSA listed for AC and DC systems and meet USCG requirements as a qualified circuit protection device. Single and Double Pole. Fit all NEWMAR electrical panels, as well as most other brands Feature magnetic-hydraulic "trip-free" mechanism 5-30 amp rated to 65 VDC or 277 VAC; 40, 50 amp rated to 32 VDC or 120 VAC (See rating note below). Mounting screws are not provide should be order separately #10 screw terminals on rear for wiring Options Red, white or black toggle handles Single pole values: 5, 10, 15, 20, 25, 30, 40 or 50 amp. Double pole values: 15, 20, 30 or 50 amp Important Circuit Breaker Rating Note: Standard series breakers shown on this page which are rated higher than 30 amps are acceptable for use in 230 VAC Line-to-Line systems (where each leg is 115 VAC - to - neutral), but are not rated for 230 VAC line-to-neutral systems. Normalized SKU: 30ADB

Newmar 30ASB Circuit Breakers"All circuit breakers offered by NEWMAR are UL recognized and CSA listed for AC and DC systems and meet USCG requirements as a qualified circuit protection device. Single and Double Pole Fit all NEWMAR electrical panels, as well as most other brands Feature magnetic-hydraulic ""trip-free"" mechanism 5-30 amp rated to 65 VDC or 277 VAC; 40, 50 amp rated to 32 VDC or 120 VAC (See rating note below). Mounting scrws not provide order separatly #10 screw terminals on rear for wiring Options Red, white or black toggle handles Single pole values: 5, 10, 15, 20, 25, 30, 40 or 50 amp. Double pole values: 15, 20, 30 or 50 amp Important Circuit Breaker Rating Note: Standard series breakers shown on this page which are rated higher than 30 amps are acceptable for use in 230 VAC Line-to-Line systems (where each leg is 115 VAC - to - neutral), but are not rated for 230 VAC line-to-neutral systems."Normalized SKU: 30ASB

Newmar 40ASB Circuit Breakers"All circuit breakers offered by NEWMAR are UL recognized and CSA listed for AC and DC systems and meet USCG requirements as a qualified circuit protection device. Single and Double Pole Fit all NEWMAR electrical panels, as well as most other brands Feature magnetic-hydraulic ""trip-free"" mechanism 5-30 amp rated to 65 VDC or 277 VAC; 40, 50 amp rated to 32 VDC or 120 VAC (See rating note below). Mounting scrws not provide order separatly #10 screw terminals on rear for wiring Options Red, white or black toggle handles Single pole values: 5, 10, 15, 20, 25, 30, 40 or 50 amp. Double pole values: 15, 20, 30 or 50 amp Important Circuit Breaker Rating Note: Standard series breakers shown on this page which are rated higher than 30 amps are acceptable for use in 230 VAC Line-to-Line systems (where each leg is 115 VAC - to - neutral), but are not rated for 230 VAC line-to-neutral systems."Normalized SKU: 40ASB

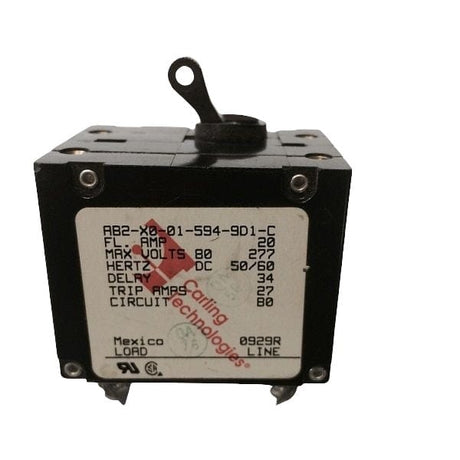

Newmar 50ASB Circuit Breakers"All circuit breakers offered by NEWMAR are UL recognized and CSA listed for AC and DC systems and meet USCG requirements as a qualified circuit protection device. Single and Double Pole Fit all NEWMAR electrical panels, as well as most other brands Feature magnetic-hydraulic ""trip-free"" mechanism 5-30 amp rated to 65 VDC or 277 VAC; 40, 50 amp rated to 32 VDC or 120 VAC (See rating note below). Mounting scrws not provide order separatly #10 screw terminals on rear for wiring Options Red, white or black toggle handles Single pole values: 5, 10, 15, 20, 25, 30, 40 or 50 amp. Double pole values: 15, 20, 30 or 50 amp Important Circuit Breaker Rating Note: Standard series breakers shown on this page which are rated higher than 30 amps are acceptable for use in 230 VAC Line-to-Line systems (where each leg is 115 VAC - to - neutral), but are not rated for 230 VAC line-to-neutral systems."Normalized SKU: 50ASB

Newmar PT-24-60W Battery Chargers PT-24-60W Battery Charger “Smart” marine battery charging technology for 24V systems aboard workboats, military vessels, commercial vessels, and recreational craft. This charger interacts with batteries, providing the optimum three-stage charge process for fast recovery and conditioning, maximizing performance, and extending battery life. A selector switch adjusts output voltage to adapt to gel-cell, flooded lead-acid, or AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries’ ambient temperature. All models are housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance. Features: 24V model “Smart” circuitry provides three-stage charging – bulk, absorption, float Gel-cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages Multiple isolated output banks; ammeter indicates total output current The optional sensor adjusts output voltage based on battery temperature Current limiting prevents damage from overloading Use as a power supply; can power loads without a battery in line Built to last – rugged stainless steel case with a durable white powder coat finish with an optional drip shield and marinized internal circuitry Protection: Current Limiting, Thermal Protection, Forced Air Cooling, Drip Shield Install in conjunction with PT-MCU for additional control and monitoring ABS type approval for battery charging and power supplies Specifications: Input VAC (50-60 Hz.): 207-253 Input Amps @ Full Load: @ 115 VAC: NA, @ 230 VAC: 13 Power Factor: .7 Max Output Amps: 60 Output Banks: 3 Battery Capacity (Amp-Hours): 120-600     Operating Temp. Rating Reference: T-4 Case Size Reference: A-5 Case Size (H x W x D): 17.5E x 12 x 7.2E inches (44.5E x 30.5 x 18.3E centimeters) *Note with Dripshield installed E add 2” (5.08 cm) to height and 1” (2.54 cm) to depth Weight Lbs./Kg: 24.1/11 Optional Temp. Sensor Model: TP     Remote Panel Model: N/A Compliance Reference: EN, CE, ABS Temperature Rating References: Temperature: -20 degrees C to +50 degrees C     Derate Linearly From Full output Nominal Output Voltages at Gel/Flooded Switch Settings (without Temperature Compensation): Gel-Cell: 28.0 VDC Charge @ 50% load and 27.2 VDC Float @ .5 amp load Flooded/AGM: 28.4 VDC Charge @ 50% load and 26.8 VDC Float @ .5 amp load Compliance References: UL: UL 1950 (per DNB report) CG: USCG CFR 183.410 (Ignition protected) EN: EN 60335-1 CE: Carries the CE mark ABS: PT Series meets SVR 2009 4-8-3/5.9, Under 90 meters Rules 2006 4-6-4/7.19, and HSNC 2007 4-8-3/5.13. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.   Models  12 Volt 24 Volt 32 Volt PT-7 PT-24-8W PT-32-25W PT-14W PT-24-13W   PT-25W PT-24-20U   PT-40U PT-24-45U   PT-80 PT-24-60W     PT-24-95U   Detailed specifications below.   Specifications  12 Volt Models PT-7 PT-14W PT-25W PT-40W PT-80 Input VAC (50-60 Hz.) 88-132 or 176-264 85-264 90-132 or 180-264 85-135 or 170-270 90-264 Input Amps @ Full Load   @ 115 VAC 2 2.8 6.5 8.5 12 @ 230 VAC 1 1.4 4 4.3 7 P.F. Rating >.65 .93@230V.98@115V .7 .7 .95@230V.98@115V Max Output Amps 7 14 25 40 80 Output Banks 2 3 3 3 3 Battery Capacity (Amp-Hours) 14-70 28-140 50-250 80-400 160-800 Operating Temp.Rating Reference T-1 T-2 T-4 T-5 T-7 Case Size Ref. A-1 A-2 A-2 A-3 A-5 Weight; Lbs./Kg. 3.2/1.5 8/4 8.2/4 12/6 15.2/7 Optional Temp.Sensor Model N/A TCS-12/24 TCS-12/24 TCS-12/24 TCS-12/24 Remote Panel Model N/A RP RP RP RP Equalize Option No Yes Yes Yes Yes Output Indicator Ref. M-1 M-3 M-3 M-3 M-3 Compliance Ref. CG, CE CG, CE CG CG, CE CE    24 Volt Models PT-24-8W PT-24-13W PT-24-20U PT-24-45U PT-24-60W PT-24-95U Input VAC (50-60 Hz.) 85-264 90-132 or 180-264 85-135 or 170-270 90-264 207-253 90-264 Input Amps @ Full Load   @ 115 VAC 2.8 6.5 8.5 12 NA 26 @ 230 VAC 1.4 4 4.3 7 13 14 P.F. Rating .93@230V.98@115V .7 .7 .95@230V.98@115V .7 .95@230V.98@115V Max Output Amps 8 13 20 45 60 95 Output Banks 3 3 3 3 3 3 Battery Capacity (Amp-Hours) 16-80 26-130 40-200 90-450 120-600 180-950 Operating Temp.Rating Reference T-2 T-3 T-5 T-8 T-6 T-8 Case Size Ref. A-2 A-2 A-3 A-5 A-6 A-6 Weight; Lbs./Kg. 8/4 8.2/4 12/6 12.2/6 24.1/11 24.5/11 Optional Temp.Sensor Model TCS-12/24 TCS-12/24 TCS-12/24 TCS-12/24 TP TCS-12/24 Remote Panel Model RP RP RP RP N/A RP Equalize Option Yes Yes Yes Yes No Yes Output Indicator Ref. M-3 M-3 M-3 M-3 M-2 M-3 Compliance Ref. CG, CE CG CG, CE EN, CE EN, CE EN, CE   32 Volt Model  PT-32-25W Input VAC (50-60 Hz.) 104-126 Input Amps @ Full Load    @ 115 VAC 15 @ 230 VAC N/A P.F. Rating .7 Max Output Amps 25 Output Banks 3 Battery Capacity (Amp-Hours) 50-250 Operating Temp.Rating Reference T-6 Case Size Ref. A-4 Weight; Lbs./Kg. 12.2/6 Optional Temp.Sensor Model TP Remote Panel Model N/A Equalize Option No Output Indicator Ref. M-2 Compliance Ref. EN, CE Case Size    Inches Centimeters Ref H W D H W D A-1 10.5 5.0 2.8 26.7 12.7 7.1 A-2 12.5 7.7 4.3 31.8 19.6 10.9 A-3 13.85* 9.5 4.8* 35.2* 24.1 12.2* A-4 13.8A 9.8 5A 35A 24.9 12.7A A-5 14.8B 9.6 5.6B 37.6B 24.4 14.2B A-6 17.5C 12 7.2C 44.5C 30.5 18.3C * Add .75" (1.9 cm) to height and 1.35" (3.4 cm) to depthA Add 1.27" (3.2 cm) to height and 1.1" (2.8 cm) to depthB Add 1" (2.54 cm) to height and .5" (1.27 cm) to depthC Add 2" (5.08 cm) to height and 1" (2.54 cm) to depth Temperature Rating References:  T-1 -10°C to +45°C; Derate linearly from 100% @ 0°C to 80% @ -10°C T-2 -10°C to +60°C; Derate linearly from 100% @ 40°C to 60% @ 60°C T-3 -10°C to +60°C; Derate linearly from 100% @ 50°C to 60% @ 60°C T-4 -10°C to +60°C; Derate linearly from 100% @ 40°C to 60% @ 60°C T-5 -40°C to +60°C; Derate linearly from 100% @ 50°C to 75% @ 60°C T-6 -20°C to +50°C; Full output T-7 -20°C to +70°C; Derate linearly from 100% @ 45°C to 50% @ 70°C T-8 -20°C to +70°C; Derate linearly from 100% @ 50°C to 50% @ 70°C Output Indicator References  M-1 Total output ammeter M-2 Charge/Float L.E.D. M-3 Total output ammeter and charger status L.E.D.'s/Alarms Compliance References*See matrix for applicable modelsCG USCG CFR 183.410 (Ignition protected)EN EN 60335-1, EN 60335-2-29CE Carries the CE Mark* Numerous other Safety and EMC compliances may also apply. Contact factory if further compliance  information is required.Nominal Output Voltages at Gel/Flooded Switch Settings(Without Temperature Compensation option installed or at 22.2˚C (72˚F) with TemperatureCompensation option installed.)    12 Volt Models 24 Volt Models 32 Volt Model Charge Float Charge Float Charge Float Setting @ 50% load @ .5 amp load @ 50% load @ .5 amp load @ 50% load @ .5 amp load Gel-Cell 14.0 VDC 13.6 VDC 28.0 VDC 27.2 VDC 37.3 VDC 36.2 VDC Flooded/AGM 14.2 VDC 13.4 VDC 28.4 VDC 26.8 VDC 37.8 VDC 35.7 VDC Normalized SKU: PT2460WUPC Code: 012302330563

Newmar 2-3-70A Battery Isolators"These heavy duty isolators allow charging multiple batteries automatically from one or two alternators, and prevent discharge or 'dumping"" of one battery into another. Each battery is charged according to its need without overcharging. rated for 12-48 volt negative ground DC systems. feature conservatively rated diodes and a rustproof anodized aluminum heat sink case. Models are available for 70, 120 and 165 amp alternators. Features: Heavy duty construction Rated for systems up to 48 volts DC, negative ground Rust-proof anodized aluminum case Stainless steel mounting hardware provided Protective covers provided for terminals Performance Specifications Operating temperature: -40° to +80° C Duty cycle: Continuous rating to 50° C Derate linearly to 70% @ 80° C Temp. rise: 5° C at full rated current (mount vertically for optimum cooling) Voltage drop: 0.7V @ 50% load, 0.9V @ full load Note: These battery isolators are not compatible with self exciting alternators. Please consult the manufacturer of your alternator if you are unsure of your configuration.  "Normalized SKU: 2370A

Newmar PT-24-8W Battery Chargers"Three Stage "Smart" Chargers Phase Three "Smart" battery charging technology is now available in a wide range of power levels, allowing you to select the right size, features and flexibility you require for virtually any application from small recreational craft to large live-aboards, workboats and other commercial vessels. These chargers interact with batteries to put them through the optimum three stage charge process which provides for fastest recovery and ideal conditioning, maximizing battery performance and extending battery life. A selector switch adjusts output voltage to adapt for gel-cell/flooded lead-acid/AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries' ambient temperature. All models are housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance. Features "Smart" circuitry provides three stage charging?bulk, absorption, float. Wide model range covers battery system ratings from 14-950 amp-hours Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages. Multiple isolated output banks; ammeter indicates total output current. (except PT-7) Optional sensor adjusts output voltage based on battery temperature. (except PT-7) Current limiting-prevents damage from overloading. Charger status clearly displayed with L.E.D. and/or audible indicators or optional remote panel. Use as a power supply; can power loads without a battery in line. Built to last?rugged stainless steel case with a durable white powder coat finish with an optional drip shield and marinized internal circuitry. Numerous Safety and EMC CompliancesTwo year parts and labor warranty Models   12 Volt 24 Volt 32 Volt PT-7 PT-24-8W PT-32-25W PT-14W PT-24-13W   PT-25W PT-24-20U   PT-40U PT-24-45U   PT-80 PT-24-60W     PT-24-95U   Detailed specifications below.  Specifications   12 Volt Models PT-7 PT-14W PT-25W PT-40W PT-80 Input VAC (50-60 Hz.) 88-132 or 176-264 85-264 90-132 or 180-264 85-135 or 170-270 90-264 Input Amps @ Full Load   @ 115 VAC 2 2.8 6.5 8.5 12 @ 230 VAC 1 1.4 4 4.3 7 P.F. Rating >.65 .93@230V .98@115V .7 .7 .95@230V .98@115V Max Output Amps 7 14 25 40 80 Output Banks 2 3 3 3 3 Battery Capacity (Amp-Hours) 14-70 28-140 50-250 80-400 160-800 Operating Temp. Rating Reference T-1 T-2 T-4 T-5 T-7 Case Size Ref. A-1 A-2 A-2 A-3 A-5 Weight; Lbs./Kg. 3.2/1.5 8/4 8.2/4 12/6 15.2/7 Optional Temp.Sensor Model N/A TCS-12/24 TCS-12/24 TCS-12/24 TCS-12/24 Remote Panel Model N/A RP RP RP RP Equalize Option No Yes Yes Yes Yes Output Indicator Ref. M-1 M-3 M-3 M-3 M-3 Compliance Ref. CG, CE CG, CE CG CG, CE CE    24 Volt Models PT-24-8W PT-24-13W PT-24-20U PT-24-45U PT-24-60W PT-24-95U Input VAC (50-60 Hz.) 85-264 90-132 or 180-264 85-135 or 170-270 90-264 207-253 90-264 Input Amps @ Full Load   @ 115 VAC 2.8 6.5 8.5 12 NA 26 @ 230 VAC 1.4 4 4.3 7 13 14 P.F. Rating .93@230V .98@115V .7 .7 .95@230V .98@115V .7 .95@230V .98@115V Max Output Amps 8 13 20 45 60 95 Output Banks 3 3 3 3 3 3 Battery Capacity (Amp-Hours) 16-80 26-130 40-200 90-450 120-600 180-950 Operating Temp. Rating Reference T-2 T-3 T-5 T-8 T-6 T-8 Case Size Ref. A-2 A-2 A-3 A-5 A-6 A-6 Weight; Lbs./Kg. 8/4 8.2/4 12/6 12.2/6 24.1/11 24.5/11 Optional Temp.Sensor Model TCS-12/24 TCS-12/24 TCS-12/24 TCS-12/24 TP TCS-12/24 Remote Panel Model RP RP RP RP N/A RP Equalize Option Yes Yes Yes Yes No Yes Output Indicator Ref. M-3 M-3 M-3 M-3 M-2 M-3 Compliance Ref. CG, CE CG CG, CE EN, CE EN, CE EN, CE   32 Volt Model  PT-32-25W Input VAC (50-60 Hz.) 104-126 Input Amps @ Full Load    @ 115 VAC 15 @ 230 VAC N/A P.F. Rating .7 Max Output Amps 25 Output Banks 3 Battery Capacity (Amp-Hours) 50-250 Operating Temp. Rating Reference T-6 Case Size Ref. A-4 Weight; Lbs./Kg. 12.2/6 Optional Temp.Sensor Model TP Remote Panel Model N/A Equalize Option No Output Indicator Ref. M-2 Compliance Ref. EN, CE Case Size     Inches Centimeters Ref H W D H W D A-1 10.5 5.0 2.8 26.7 12.7 7.1 A-2 12.5 7.7 4.3 31.8 19.6 10.9 A-3 13.85* 9.5 4.8* 35.2* 24.1 12.2* A-4 13.8A 9.8 5A 35A 24.9 12.7A A-5 14.8B 9.6 5.6B 37.6B 24.4 14.2B A-6 17.5C 12 7.2C 44.5C 30.5 18.3C * Add .75" (1.9 cm) to height and 1.35" (3.4 cm) to depth A Add 1.27" (3.2 cm) to height and 1.1" (2.8 cm) to depth B Add 1" (2.54 cm) to height and .5" (1.27 cm) to depth C Add 2" (5.08 cm) to height and 1" (2.54 cm) to depth Temperature Rating References:   T-1 -10°C to +45°C; Derate linearly from 100% @ 0°C to 80% @ -10°C T-2 -10°C to +60°C; Derate linearly from 100% @ 40°C to 60% @ 60°C T-3 -10°C to +60°C; Derate linearly from 100% @ 50°C to 60% @ 60°C T-4 -10°C to +60°C; Derate linearly from 100% @ 40°C to 60% @ 60°C T-5 -40°C to +60°C; Derate linearly from 100% @ 50°C to 75% @ 60°C T-6 -20°C to +50°C; Full output T-7 -20°C to +70°C; Derate linearly from 100% @ 45°C to 50% @ 70°C T-8 -20°C to +70°C; Derate linearly from 100% @ 50°C to 50% @ 70°C Output Indicator References   M-1 Total output ammeter M-2 Charge/Float L.E.D. M-3 Total output ammeter and charger status L.E.D.'s/Alarms Compliance References* See matrix for applicable models CG USCG CFR 183.410 (Ignition protected) EN EN 60335-1, EN 60335-2-29 CE Carries the CE Mark * Numerous other Safety and EMC compliances may also apply. Contact factory if further compliance   information is required. Nominal Output Voltages at Gel/Flooded Switch Settings (Without Temperature Compensation option installed or at 22.2˚C (72˚F) with Temperature Compensation option installed.)     12 Volt Models 24 Volt Models 32 Volt Model Charge Float Charge Float Charge Float Setting @ 50% load @ .5 amp load @ 50% load @ .5 amp load @ 50% load @ .5 amp load Gel-Cell 14.0 VDC 13.6 VDC 28.0 VDC 27.2 VDC 37.3 VDC 36.2 VDC Flooded/AGM 14.2 VDC 13.4 VDC 28.4 VDC 26.8 VDC 37.8 VDC 35.7 VDC "Normalized SKU: PT248W

Newmar PT-24-95U Battery Chargers"Three Stage "Smart" Chargers Phase Three "Smart" battery charging technology is now available in a wide range of power levels, allowing you to select the right size, features and flexibility you require for virtually any application from small recreational craft to large live-aboards, workboats and other commercial vessels. These chargers interact with batteries to put them through the optimum three stage charge process which provides for fastest recovery and ideal conditioning, maximizing battery performance and extending battery life. A selector switch adjusts output voltage to adapt for gel-cell/flooded lead-acid/AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries' ambient temperature. All models are housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance. Features "Smart" circuitry provides three stage charging?bulk, absorption, float. Wide model range covers battery system ratings from 14-950 amp-hours Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages. Multiple isolated output banks; ammeter indicates total output current. (except PT-7) Optional sensor adjusts output voltage based on battery temperature. (except PT-7) Current limiting-prevents damage from overloading. Charger status clearly displayed with L.E.D. and/or audible indicators or optional remote panel. Use as a power supply; can power loads without a battery in line. Built to last?rugged stainless steel case with a durable white powder coat finish with an optional drip shield and marinized internal circuitry. Numerous Safety and EMC CompliancesTwo year parts and labor warranty Models   12 Volt 24 Volt 32 Volt PT-7 PT-24-8W PT-32-25W PT-14W PT-24-13W   PT-25W PT-24-20U   PT-40U PT-24-45U   PT-80 PT-24-60W     PT-24-95U   Detailed specifications below.  Specifications   12 Volt Models PT-7 PT-14W PT-25W PT-40W PT-80 Input VAC (50-60 Hz.) 88-132 or 176-264 85-264 90-132 or 180-264 85-135 or 170-270 90-264 Input Amps @ Full Load   @ 115 VAC 2 2.8 6.5 8.5 12 @ 230 VAC 1 1.4 4 4.3 7 P.F. Rating >.65 .93@230V .98@115V .7 .7 .95@230V .98@115V Max Output Amps 7 14 25 40 80 Output Banks 2 3 3 3 3 Battery Capacity (Amp-Hours) 14-70 28-140 50-250 80-400 160-800 Operating Temp. Rating Reference T-1 T-2 T-4 T-5 T-7 Case Size Ref. A-1 A-2 A-2 A-3 A-5 Weight; Lbs./Kg. 3.2/1.5 8/4 8.2/4 12/6 15.2/7 Optional Temp.Sensor Model N/A TCS-12/24 TCS-12/24 TCS-12/24 TCS-12/24 Remote Panel Model N/A RP RP RP RP Equalize Option No Yes Yes Yes Yes Output Indicator Ref. M-1 M-3 M-3 M-3 M-3 Compliance Ref. CG, CE CG, CE CG CG, CE CE    24 Volt Models PT-24-8W PT-24-13W PT-24-20U PT-24-45U PT-24-60W PT-24-95U Input VAC (50-60 Hz.) 85-264 90-132 or 180-264 85-135 or 170-270 90-264 207-253 90-264 Input Amps @ Full Load   @ 115 VAC 2.8 6.5 8.5 12 NA 26 @ 230 VAC 1.4 4 4.3 7 13 14 P.F. Rating .93@230V .98@115V .7 .7 .95@230V .98@115V .7 .95@230V .98@115V Max Output Amps 8 13 20 45 60 95 Output Banks 3 3 3 3 3 3 Battery Capacity (Amp-Hours) 16-80 26-130 40-200 90-450 120-600 180-950 Operating Temp. Rating Reference T-2 T-3 T-5 T-8 T-6 T-8 Case Size Ref. A-2 A-2 A-3 A-5 A-6 A-6 Weight; Lbs./Kg. 8/4 8.2/4 12/6 12.2/6 24.1/11 24.5/11 Optional Temp.Sensor Model TCS-12/24 TCS-12/24 TCS-12/24 TCS-12/24 TP TCS-12/24 Remote Panel Model RP RP RP RP N/A RP Equalize Option Yes Yes Yes Yes No Yes Output Indicator Ref. M-3 M-3 M-3 M-3 M-2 M-3 Compliance Ref. CG, CE CG CG, CE EN, CE EN, CE EN, CE   32 Volt Model  PT-32-25W Input VAC (50-60 Hz.) 104-126 Input Amps @ Full Load    @ 115 VAC 15 @ 230 VAC N/A P.F. Rating .7 Max Output Amps 25 Output Banks 3 Battery Capacity (Amp-Hours) 50-250 Operating Temp. Rating Reference T-6 Case Size Ref. A-4 Weight; Lbs./Kg. 12.2/6 Optional Temp.Sensor Model TP Remote Panel Model N/A Equalize Option No Output Indicator Ref. M-2 Compliance Ref. EN, CE Case Size     Inches Centimeters Ref H W D H W D A-1 10.5 5.0 2.8 26.7 12.7 7.1 A-2 12.5 7.7 4.3 31.8 19.6 10.9 A-3 13.85* 9.5 4.8* 35.2* 24.1 12.2* A-4 13.8A 9.8 5A 35A 24.9 12.7A A-5 14.8B 9.6 5.6B 37.6B 24.4 14.2B A-6 17.5C 12 7.2C 44.5C 30.5 18.3C * Add .75" (1.9 cm) to height and 1.35" (3.4 cm) to depth A Add 1.27" (3.2 cm) to height and 1.1" (2.8 cm) to depth B Add 1" (2.54 cm) to height and .5" (1.27 cm) to depth C Add 2" (5.08 cm) to height and 1" (2.54 cm) to depth Temperature Rating References:   T-1 -10°C to +45°C; Derate linearly from 100% @ 0°C to 80% @ -10°C T-2 -10°C to +60°C; Derate linearly from 100% @ 40°C to 60% @ 60°C T-3 -10°C to +60°C; Derate linearly from 100% @ 50°C to 60% @ 60°C T-4 -10°C to +60°C; Derate linearly from 100% @ 40°C to 60% @ 60°C T-5 -40°C to +60°C; Derate linearly from 100% @ 50°C to 75% @ 60°C T-6 -20°C to +50°C; Full output T-7 -20°C to +70°C; Derate linearly from 100% @ 45°C to 50% @ 70°C T-8 -20°C to +70°C; Derate linearly from 100% @ 50°C to 50% @ 70°C Output Indicator References   M-1 Total output ammeter M-2 Charge/Float L.E.D. M-3 Total output ammeter and charger status L.E.D.'s/Alarms Compliance References* See matrix for applicable models CG USCG CFR 183.410 (Ignition protected) EN EN 60335-1, EN 60335-2-29 CE Carries the CE Mark * Numerous other Safety and EMC compliances may also apply. Contact factory if further compliance   information is required. Nominal Output Voltages at Gel/Flooded Switch Settings (Without Temperature Compensation option installed or at 22.2˚C (72˚F) with Temperature Compensation option installed.)     12 Volt Models 24 Volt Models 32 Volt Model Charge Float Charge Float Charge Float Setting @ 50% load @ .5 amp load @ 50% load @ .5 amp load @ 50% load @ .5 amp load Gel-Cell 14.0 VDC 13.6 VDC 28.0 VDC 27.2 VDC 37.3 VDC 36.2 VDC Flooded/AGM 14.2 VDC 13.4 VDC 28.4 VDC 26.8 VDC 37.8 VDC 35.7 VDC "Normalized SKU: PT2495UUPC Code: 445-4906-0
