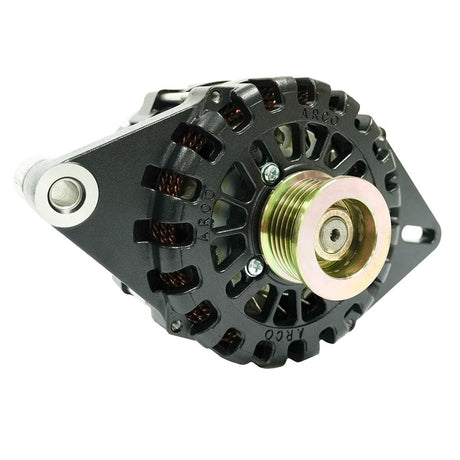

Download LiteratureARCO 4603 AlternatorsZeus A8000-48V 8kW J180 4" Alternator with Isolated GroundThe ARCO Zeus A8000-48V alternator turns on at lower RPMs, runs cooler, and provides more power than other 48V alternators that are larger and heavier. This alternator continuously generates over 3kW (55 Amps)at  2,500 RPM and almost 6kW (111 Amps) at 4,000 Alternator RPM. Put in real-world terms, a marine diesel engine charging at 1,200 RPM with a 3.13:1 pulley ratio is generating just over 5kW (97 Amps), and a Mercedes Sprinter at 750 RPM with a 3.21:1 ratio is generating over 3kW (55 Amps)!Instead of using rotors designed for 48 volts, many competitor alternators simply use their 12V rotors which is less efficient and limits output at all RPMs. In this scenario, your external smart regulator must drastically reduce field, by as much as 78%. If this is not done correctly, you run the risk of destroying the unit and damaging other components in your system. ARCO utilizes a native 48V rotor and field current. This results in our 48V alternator running cooler than competitor’s 48V alternators, having a direct impact on the alternator’s lifespan.Features: Engineered for high energy production. Suitable for marine, RV, military, and commercial applications. Rapidly charges large battery banks. Coolest operating temperatures for increased performance: Heat shedding coatings Rectifier located on housing exterior Dual cooling fans OEM components Optimized for performance at idle speeds. Reduces the need for a generator by creating additional power with your engine. Unleash peak performance with E-Coat/Cerakote, keeping the high amp alternator cooler for sustained amperage output. Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging. SAE J1171 Certified. Proudly made in the U.S.A. Technical Specifications: Voltage - 48v Field Type - P Rotor Poles - 16 Stator Size - 138mm Frame Size - Large Weight - 15.89lbs/7.2kg Regulation - External Only Finish - (Black) E-coating Cut-In RPM - 1,920 Alternator RPM Maximum Alt RPM - 19,000 Battery Post - M8 Thread Post, Side Mount Standard Pulley - 49K6 (6-groove, 49mm) Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5 Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included) Diodes - 6 positive, 6 negative, 80A Rated, Avalanche Max Output (Cold, 9,000 RPM) at 53.5v - 180 Amps - 9,360 Watts – 14.8 kW PTO Sustained Cruising Output (Hot, 6,000 RPM) at 53.5v - 138 Amps - 7,383 Watts – 10.5 kW PTO Sustained Idle Output (Hot, 2,500 RPM) at 53.5v - 78 Amps 4,173 Watts – 6kW PTO Max Continuous Operating Temperature - 100°C / 212°F Mounting Application:Replaces most Volvo Penta alternators using a 4” J180 saddle-style mount. Also, used on many larger industrial-based engines. Normalized SKU: 4603UPC Code: 612461714282ARCO 4603 Literature Download Quick Reference Guide Owners Manual

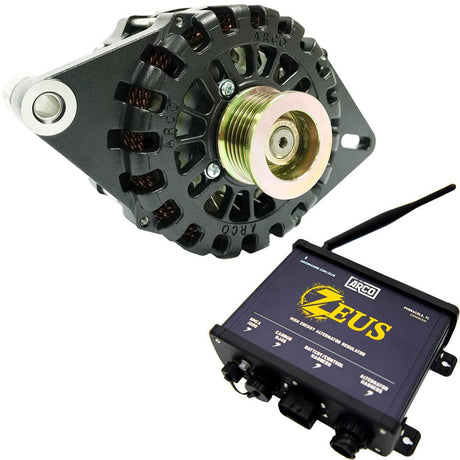

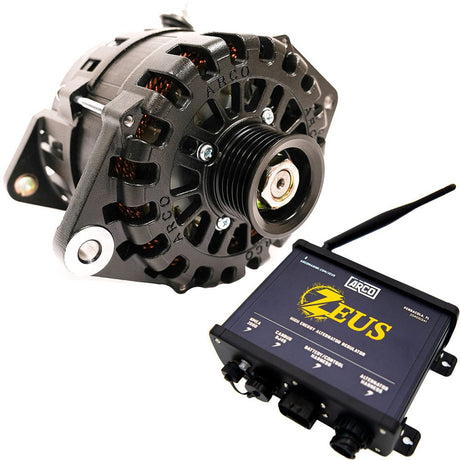

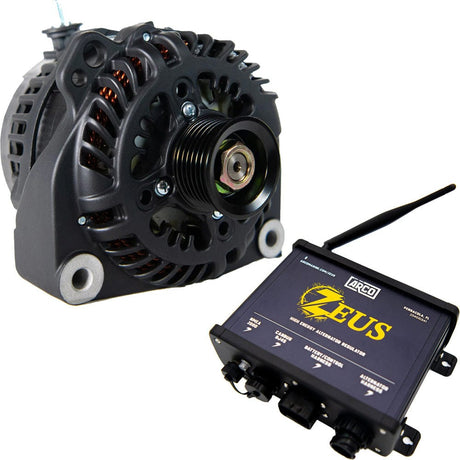

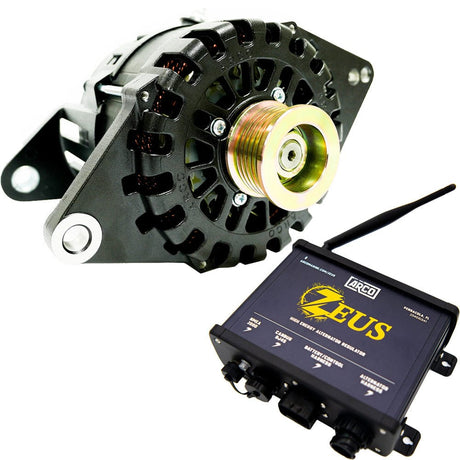

Download LiteratureARCO 4603-AZ1000 AlternatorsZeus A8000-48V 8kW J180 4" Alternator with Isolated Ground & Zeus High-Energy Alternator RegulatorZeus A8000-48V 8kW J180 4" Alternator with Isolated GroundThe ARCO Zeus A8000-48V alternator turns on at lower RPMs, runs cooler, and provides more power than other 48V alternators that are larger and heavier. This alternator continuously generates over 3kW (55 Amps)at  2,500 RPM and almost 6kW (111 Amps) at 4,000 RPM. Put in real-world terms, a marine diesel engine charging at 1,200 RPM with a 3.13:1 pulley ratio is generating just over 5kW (97 Amps), and a Mercedes Sprinter at 750 RPM with a 3.21:1 ratio is generating over 3kW (55 Amps)!Instead of using rotors designed for 48 volts, many competitor alternators simply use their 12V rotors, which are less efficient and limit output at all RPMs. In this scenario, your external smart regulator must drastically reduce the field by as much as 78%. If this is not done correctly, you run the risk of destroying the unit and damaging other components in your system. ARCO utilizes a native 48V rotor and field current. This results in our 48V alternator running cooler than competitors’ 48V alternators, having a direct impact on the alternator’s lifespan.Features: Engineered for high energy production. Suitable for marine, RV, military, and commercial applications. Rapidly charges large battery banks. Coolest operating temperatures for increased performance: Heat-shedding coatings Rectifier located on housing exterior Dual cooling fans OEM components Optimized for performance at idle speeds. Reduces the need for a generator by creating additional power with your engine. Unleash peak performance with E-Coat/Cerakote, keeping the high amp alternator cooler for sustained amperage output. Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging. SAE J1171 Certified. Proudly made in the U.S.A. Technical Specifications: Voltage - 48V Field Type - P Rotor Poles - 16 Stator Size - 138mm Frame Size - Large Weight - 15.89lbs/7.2kg Regulation - External Only Finish - (Black) E-coating Cut-In RPM - 1,920 Alternator RPM Maximum Alt RPM - 19,000 Battery Post - M8 Thread Post, Side Mount Standard Pulley - 49K6 (6-groove, 49mm) Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5 Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included) Diodes - 6 positive, 6 negative, 80A Rated, Avalanche Max Output (Cold, 9,000 RPM) at 53.5v - 180 Amps - 9,360 Watts – 14.8 kW PTO Sustained Cruising Output (Hot, 6,000 RPM) at 53.5v - 138 Amps - 7,383 Watts – 10.5 kW PTO Sustained Idle Output (Hot, 2,500 RPM) at 53.5v - 78 Amps 4,173 Watts – 6kW PTO Max Continuous Operating Temperature - 100°C / 212°F Mounting Application:Replaces most Volvo Penta alternators using a 4” J180 saddle-style mount. Also, used on many larger industrial-based engines.Zeus High-Energy Alternator RegulatorARCO’s Zeus is the only high-energy external alternator regulator to feature Bluetooth and a native app (on IOS and Android) allowing for easy installation and configuration. With its intuitive interface, you can access information on your system that you never had before. This information will enable you to regulate your system and optimize your battery charge and alternator output, resulting in a safer experience while protecting your energy system investment.Zeus is the only alternator regulator that can read 2 shunts at a time (the battery shunt and alternator shunt). This feature enables Zeus to react to inputs from the battery current/temperature and alternator current/temperature.Through the ARCO Zeus application, you are in good hands. Your data is automatically logged and can be shared with your technician to troubleshoot your system remotely. You can even import your remote technician’s configurations. Zeus optimizes battery charges for 12-48 volt systems. Whether you are using Lithium (LiFePo4) batteries or lead-acid Deep Cycle batteries, Zeus has you covered with its pre-set battery libraries and configurable menus to optimize your charging profiles. Zeus manages a complex set of inputs by giving you easy-to-understand options.Zeus also takes into consideration the power of your engine and allows you to configure the alternator’s power take-off from the engine by managing the field, or duty. An advanced feature of Zeus is that it can turn your engine into a dedicated generator with the press of a button, whereby it focuses the alternator’s performance on the creation of energy to replenish your battery bank quickly.Consistent with Zeus’ ease of use, Zeus is the only alternator regulator on the market that comes with alternator/battery harnesses and 2 thermistor harnesses, without an additional charge, saving users money and time from sourcing harnesses.Features: Secure Bluetooth connection Harnesses, Thermistors, and NMEA 2000 kit included Monitors the state of charge Can turn your engine into a dedicated generator with generator mode Pre-set battery libraries Data logging and sharing CAN bus and NMEA 2000-integrated networks Compatible with all voltage systems (12- 48V) IP66 & IP67 rated 2-Year warranty Technical Specifications: Enclosure dimensions without antenna - 8.2" x 5.9" x 2.4"  Enclosure dimensions with antenna - 8.2" x 7.5" x 2.4" Weight - 1.7 lbs In the Box: Zeus high-energy alternator regulator Battery wiring harness Alternator wiring harness 2 thermistors Normalized SKU: 4603AZ1000ARCO 4603-AZ1000 Literature Download Quick Reference Guide

Download LiteratureARCO 4604-AZ1000 AlternatorsZeus A8000-48V 8kW N62 Alternator with Clutch Pulley & Zeus High-Energy Alternator RegulatorZeus A8000-48V 8kW N62 Alternator with Clutch PulleyThe ARCO Zeus A8000-48V alternator turns on at lower RPMs, runs cooler, and provides more power than other 48V alternators that are larger and heavier. This alternator continuously generates over 3kW (55 Amps)at  2,500 RPM and almost 6kW (111 Amps) at 4,000 RPM. Put in real-world terms, a marine diesel engine charging at 1,200 RPM with a 3.13:1 pulley ratio is generating just over 5kW (97 Amps), and a Mercedes Sprinter at 750 RPM with a 3.21:1 ratio is generating over 3kW (55 Amps)!Instead of using rotors designed for 48 volts, many competitor alternators simply use their 12V rotors, which are less efficient and limit output at all RPMs. In this scenario, your external smart regulator must drastically reduce the field by as much as 78%. If this is not done correctly, you run the risk of destroying the unit and damaging other components in your system. ARCO utilizes a native 48V rotor and field current. This results in our 48V alternator running cooler than competitors’ 48V alternators, having a direct impact on the alternator’s lifespan.Features: Engineered for high energy production. Suitable for marine, RV, military, and commercial applications. Rapidly charges large battery banks. Coolest operating temperatures for increased performance: Heat-shedding coatings Rectifier located on housing exterior Dual cooling fans OEM components Optimized for performance at idle speeds. Reduces the need for a generator by creating additional power with your engine. Unleash peak performance with E-Coat/Cerakote, keeping the high amp alternator cooler for sustained amperage output. Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging. SAE J1171 Certified. Proudly made in the U.S.A. Technical Specifications: Voltage - 48V Field Type - P Rotor Poles - 16 Stator Size - 138mm Frame Size - Large Weight - 15.89lbs/7.2kg Regulation - External Only Finish - (Black) E-coating Cut-In RPM - 1,920 Alternator RPM Maximum Alt RPM - 19,000 Battery Post - M8 Thread Post, Side Mount Standard Pulley - 49K6 (6-groove, 49mm) Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5 Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included) Diodes - 6 positive, 6 negative, 80A Rated, Avalanche Max Output (Cold, 9,000 RPM) at 53.5v - 180 Amps - 9,360 Watts – 14.8 kW PTO Sustained Cruising Output (Hot, 6,000 RPM) at 53.5v - 138 Amps - 7,383 Watts – 10.5 kW PTO Sustained Idle Output (Hot, 2,500 RPM) at 53.5v - 78 Amps 4,173 Watts – 6kW PTO Max Continuous Operating Temperature - 100°C / 212°F Mounting Application:Replaces factory dual alternator on many Sprinter RVs, including Roadtrek, Thor, Winnebago, and others. For all Mercedes Sprinter applications with the N62 option. Meets current Mercedes Upfitter weight and PTO requirements.Zeus High-Energy Alternator RegulatorARCO’s Zeus is the only high-energy external alternator regulator to feature Bluetooth and a native app (on IOS and Android) allowing for easy installation and configuration. With its intuitive interface, you can access information on your system that you never had before. This information will enable you to regulate your system and optimize your battery charge and alternator output, resulting in a safer experience while protecting your energy system investment.Zeus is the only alternator regulator that can read 2 shunts at a time (the battery shunt and alternator shunt). This feature enables Zeus to react to inputs from the battery current/temperature and alternator current/temperature.Through the ARCO Zeus application, you are in good hands. Your data is automatically logged and can be shared with your technician to troubleshoot your system remotely. You can even import your remote technician’s configurations. Zeus optimizes battery charges for 12-48 volt systems. Whether you are using Lithium (LiFePo4) batteries or lead-acid Deep Cycle batteries, Zeus has you covered with its pre-set battery libraries and configurable menus to optimize your charging profiles. Zeus manages a complex set of inputs by giving you easy-to-understand options.Zeus also takes into consideration the power of your engine and allows you to configure the alternator’s power take-off from the engine by managing the field, or duty. An advanced feature of Zeus is that it can turn your engine into a dedicated generator with the press of a button, whereby it focuses the alternator’s performance on the creation of energy to replenish your battery bank quickly.Consistent with Zeus’ ease of use, Zeus is the only alternator regulator on the market that comes with alternator/battery harnesses and 2 thermistor harnesses, without an additional charge, saving users money and time from sourcing harnesses.Features: Secure Bluetooth connection Harnesses, Thermistors, and NMEA 2000 kit included Monitors the state of charge Can turn your engine into a dedicated generator with generator mode Pre-set battery libraries Data logging and sharing CAN bus and NMEA 2000-integrated networks Compatible with all voltage systems (12- 48V) IP66 & IP67 rated 2-Year warranty Technical Specifications: Enclosure dimensions without antenna - 8.2" x 5.9" x 2.4"  Enclosure dimensions with antenna - 8.2" x 7.5" x 2.4" Weight - 1.7 lbs In the Box: Zeus high-energy alternator regulator Battery wiring harness Alternator wiring harness 2 thermistors Normalized SKU: 4604AZ1000ARCO 4604-AZ1000 Literature Download Quick Reference Guide

Download LiteratureARCO 4604 AlternatorsZeus A8000-48V 8kW N62 Alternator with Clutch PulleyThe ARCO Zeus A8000-48V alternator turns on at lower RPMs, runs cooler, and provides more power than other 48V alternators that are larger and heavier. This alternator continuously generates over 3kW (55 Amps)at  2,500 RPM and almost 6kW (111 Amps) at 4,000 Alternator RPM. Put in real-world terms, a marine diesel engine charging at 1,200 RPM with a 3.13:1 pulley ratio is generating just over 5kW (97 Amps), and a Mercedes Sprinter at 750 RPM with a 3.21:1 ratio is generating over 3kW (55 Amps)!Instead of using rotors designed for 48 volts, many competitor alternators simply use their 12V rotors which is less efficient and limits output at all RPMs. In this scenario, your external smart regulator must drastically reduce field, by as much as 78%. If this is not done correctly, you run the risk of destroying the unit and damaging other components in your system. ARCO utilizes a native 48V rotor and field current. This results in our 48V alternator running cooler than competitor’s 48V alternators, having a direct impact on the alternator’s lifespan.Features: Engineered for high energy production. Suitable for marine, RV, military, and commercial applications. Rapidly charges large battery banks. Coolest operating temperatures for increased performance: Heat shedding coatings Rectifier located on housing exterior Dual cooling fans OEM components Optimized for performance at idle speeds. Reduces the need for a generator by creating additional power with your engine. Unleash peak performance with E-Coat/Cerakote, keeping the high amp alternator cooler for sustained amperage output. Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging. SAE J1171 Certified. Proudly made in the U.S.A. Technical Specifications: Voltage - 48v Field Type - P Rotor Poles - 16 Stator Size - 138mm Frame Size - Large Weight - 15.89lbs/7.2kg Regulation - External Only Finish - (Black) E-coating Cut-In RPM - 1,920 Alternator RPM Maximum Alt RPM - 19,000 Battery Post - M8 Thread Post, Side Mount Standard Pulley - 49K6 (6-groove, 49mm) Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5 Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included) Diodes - 6 positive, 6 negative, 80A Rated, Avalanche Max Output (Cold, 9,000 RPM) at 53.5v - 180 Amps - 9,360 Watts – 14.8 kW PTO Sustained Cruising Output (Hot, 6,000 RPM) at 53.5v - 138 Amps - 7,383 Watts – 10.5 kW PTO Sustained Idle Output (Hot, 2,500 RPM) at 53.5v - 78 Amps 4,173 Watts – 6kW PTO Max Continuous Operating Temperature - 100°C / 212°F Mounting Application:Replaces factory dual alternator on many Sprinter RVs, including Roadtrek, Thor, Winnebago, and others. For all Mercedes Sprinter applications with the N62 option. Meets current Mercedes Upfitter weight and PTO requirements. Normalized SKU: 4604UPC Code: 612461577207ARCO 4604 Literature Download Quick Reference Guide Owners Manual

ARCO AS12 AlternatorsZeus Alternator Shield - 12VProtect Your Alternator from Voltage Spikes & Disconnect EventsThe ARCO Zeus Alternator Shield is engineered to protect high-output alternators from damaging voltage spikes caused by sudden battery disconnect events. These events, commonly triggered by lithium battery BMS shutdowns or accidental switch interruptions, can instantly destroy alternator diodes. The Shield clamps excess voltage and safely diverts it to ground, helping extend alternator life and prevent costly failures.Key Benefits: Protects Against Voltage Spikes - Prevents damage caused by battery disconnects and load dump events Designed for Modern Electrical Systems - Ideal for lithium battery systems with BMS shutoff risk Extends Alternator Life - Reduces stress on diodes and internal components Real-Time Status Indication - LED indicator provides instant health status Easy Installation - Installs directly at alternator terminals in minutes Built for High Output Systems - Engineered to perform with today’s high-amperage alternators ARCO Advantage: Tested to ISO 16750-2 Load Dump Standard Up to 75% more survivable disconnect events vs. the leading competitor Designed to handle real-world high-output charging conditions Integrated into the ARCO Zeus ecosystem Normalized SKU: AS12UPC Code: 735380922375

ARCO AS24 AlternatorsZeus Alternator Shield - 24VProtect Your Alternator from Voltage Spikes & Disconnect EventsThe ARCO Zeus Alternator Shield is engineered to protect high-output alternators from damaging voltage spikes caused by sudden battery disconnect events. These events, commonly triggered by lithium battery BMS shutdowns or accidental switch interruptions, can instantly destroy alternator diodes. The Shield clamps excess voltage and safely diverts it to ground, helping extend alternator life and prevent costly failures.Key Benefits: Protects Against Voltage Spikes - Prevents damage caused by battery disconnects and load dump events Designed for Modern Electrical Systems - Ideal for lithium battery systems with BMS shutoff risk Extends Alternator Life - Reduces stress on diodes and internal components Real-Time Status Indication - LED indicator provides instant health status Easy Installation - Installs directly at alternator terminals in minutes Built for High Output Systems - Engineered to perform with today’s high-amperage alternators ARCO Advantage: Tested to ISO 16750-2 Load Dump Standard Up to 75% more survivable disconnect events vs. the leading competitor Designed to handle real-world high-output charging conditions Integrated into the ARCO Zeus ecosystem Normalized SKU: AS24UPC Code: 735380943103

ARCO AS48 AlternatorsZeus Alternator Shield - 48VProtect Your Alternator from Voltage Spikes & Disconnect EventsThe ARCO Zeus Alternator Shield is engineered to protect high-output alternators from damaging voltage spikes caused by sudden battery disconnect events. These events, commonly triggered by lithium battery BMS shutdowns or accidental switch interruptions, can instantly destroy alternator diodes. The Shield clamps excess voltage and safely diverts it to ground, helping extend alternator life and prevent costly failures.Key Benefits: Protects Against Voltage Spikes - Prevents damage caused by battery disconnects and load dump events Designed for Modern Electrical Systems - Ideal for lithium battery systems with BMS shutoff risk Extends Alternator Life - Reduces stress on diodes and internal components Real-Time Status Indication - LED indicator provides instant health status Easy Installation - Installs directly at alternator terminals in minutes Built for High Output Systems - Engineered to perform with today’s high-amperage alternators ARCO Advantage: Tested to ISO 16750-2 Load Dump Standard Up to 75% more survivable disconnect events vs. the leading competitor Designed to handle real-world high-output charging conditions Integrated into the ARCO Zeus ecosystem Normalized SKU: AS48UPC Code: 735380545703

Download LiteratureARCO AZ1000X AlternatorsZeus High-Energy Alternator Regulator - Extended Package w/Extended Battery/Alternator HarnessARCO’s Zeus is the only high-energy external alternator regulator to feature Bluetooth and a native app (on IOS and Android) allowing for easy installation and configuration. With its intuitive interface, you can access information on your system that you never had before. This information allows you to regulate your system and optimize your battery charge and alternator output resulting in a safer experience while protecting your energy system investment.Zeus is the only alternator regulator that can read 2 shunts at a time (the battery shunt and alternator shunt). This feature enables Zeus to react to inputs from the battery current/temperature and alternator current/temperature.Through the ARCO Zeus application, you are in good hands as your data is automatically logged and can be shared with your technician to troubleshoot your system when remote. You can even import your remote technician’s configurations. Zeus optimizes battery charges for 12-48 volt systems. Whether you are using Lithium (LiFePo4) batteries or lead-acid Deep Cycle batteries, Zeus has you covered with its pre-set battery libraries and configurable menus to optimize your charging profiles. Zeus manages a complex set of inputs by giving you easy-to-understand options.Zeus also takes into consideration the power of your engine and allows you to configure the alternator’s power take-off from the engine by managing the field, or duty. An advanced feature of Zeus is that it can turn your engine into a dedicated generator with a press of a button, which focuses the alternator’s performance on creating energy to replenish your battery bank quickly.Consistent with Zeus’ ease of use, Zeus is the only alternator regulator on the market with alternator/battery harnesses and 2 thermistor harnesses, without an additional charge, saving users money and time from sourcing harnesses.Features: Secure Bluetooth connection Harnesses, Thermistors, and NMEA 2000 kit included (extended 15' battery and 30' alternator harnesses) Monitors state of charge Can turn your engine into a dedicated generator with generator mode Pre-set battery libraries Data logging and sharing CAN bus and NMEA 2000-integrated networks Compatible with all voltage systems (12-48V) IP66 & IP67 rated 2-Year warranty Technical Specifications: Enclosure dimensions without antenna - 8.2" x 5.9" x 2.4"  Enclosure dimensions with antenna - 8.2" x 7.5" x 2.4" Weight - 1.7 lbs In the Box: Zeus high energy alternator regulator Battery wiring harness Alternator wiring harness 2 thermistors Normalized SKU: AZ1000XUPC Code: 659675592794ARCO AZ1000X Literature Download Quick Reference Guide

Arco 6286 Tilt & TrimArco MerCruiser Replacement SS Bracket Assembly 862548A1 #6286Normalized SKU: 6286UPC Code: 693006010748

Arco 6285 Tilt & TrimArco Mercruiser Tilt/Trim Motor & Pump Assembly 865380A25 #6285Normalized SKU: 6285UPC Code: 693006010731

Arco IG002 Ignition CoilsArco Mercury Ignition Coil #IG002Normalized SKU: IG002

Arco MBK460 Starters Parts & AccessoriesARCO MISC COMPONENTARCO MISC COMPONENTElectrical: Starter BoltArco Metric Bolt Adapter Kit Mbk460Normalized SKU: MBK460UPC Code: 042813010159

Arco MK1201 Alternators Mounting Kit Ford Transit 2019-up with Belt Normalized SKU: MK1201

Arco 60050 AlternatorsPremium Replacement Alternator with Single Groove Pulley - 12V, 55APremium replacement alternator that will fit late model Mercruiser, 12 Volt, 55 Amp, Internal regulator. 2-inch mounting foot. Single groove pulley included.Features: All alternators are engineered for performance and reliability All alternators are engineered and manufactured with precision and quality All alternators must meet or exceed OEM performance before being boxed Replaces:MARINE POWER Alternator 1210-000MERCURY Alternator 12449MERCURY Alternator 78403A1MERCURY Alternator 78403A2MERCURY Alternator 817119A1MERCURY Alternator 817119A4MERCURY Alternator 92497A3MERCURY Alternator 98555MERCURY Alternator 98555A1SIERRA Alternator 18-5957SIERRA Alternator 18-5966*ARCO Assurance 12-month part and labor warranty protection Charging System: AlternatorArco New Alternator 60050Normalized SKU: 60050UPC Code: 693006001258
