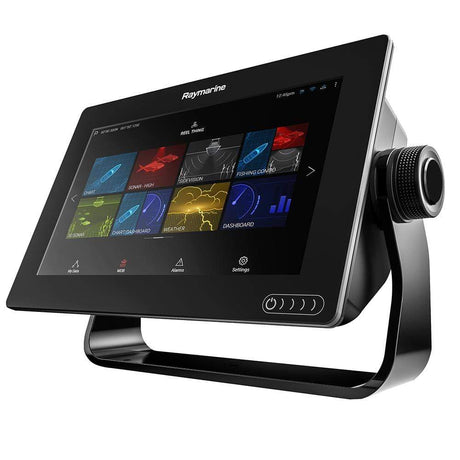

Download LiteratureRaymarine E70371-00-LNC FishfindersAxiom Pro 9 RVX MFD w/RealVision 3D and 1kW CHIRP Sonar - LNC Vector ChartWith RealVision 3D, 1kW CHIRP sonar and Raymarine HybridTouch control, Axiom Pro 9 is the new standard for “all-in-one” display. And with a blazing fast quad core processor, a super bright IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience.Axiom Pro is engineered for captains that want it all. The new standard for “all in-one” multifunction devices. And with a blazing fast quad core processor, a super bright high-definition IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience. Axiom Pro is easy to expand into an advanced navigation network that includes multiple Raymarine Axiom displays, CHIRP radar, Evolution autopilot, FLIR thermal night vision technology, and more.Blazing FastQuad core processor delivers instantaneous response and the ability to run multiple apps simultaneously without any slowdowns.Bold & BrightOptical bonding technology and IPS display panels give you stunning Color, clarity, and contrast in all lighting conditions. Axiom Pro looks great even through polarized sunglasses.HybridTouch™Control Axiom Pro from its multi-touch screen, its buttons and rotary knob, or any combination of both. This choice is yours.Custom KeyGet instant access to your favorite function with user-programmable Custom Key.Lighthouse 3 OSFast, fluid and easy to learn. The Lighthouse 3 interface is uncluttered and easy to personalize for your style of boating.Specifications: Screen Size: 9" Display Resolution: 1280 x 720 Screen Type: Super bright IPS display with optical bonding. Multitouch support Mounting Options: Front and trunnion mount Front Waterproofing: IPX6 / IPX7 Memory: 16GB Internal / x2 microSDXC slots USB: 1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440) Voltage: 12 / 24 V dc Weight: 3.35lbs / 1.52kg Operating Temperature: -25ºC to +55ºC (13ºF to 131ºF) Wi-Fi Ethernet: 2 x 10/100 Mbits/ Network (RayNet) NMEA 0183: x2 NMEA 0183 input and x1 NMEA 0183 output (part of power cable) NMEA2000: 1 x NMEA2000 port (DeviceNet microC) Radar Compatible Thermal Night Vision Compatible Video Cameras: 1 x Analogue input (BNC). Up to 10 IP Cameras Built-in Sonar: RealVision 3D & 1kW CHIRP Sonar built in – RVX models only External Sonar Compatible GPS: Built-in GNSS Receiver: GPS/GLONASS/Beidou - 10Hz 167 Channel | External Accessory: GA150 (A80288) Optional Remote Controls AIS Audio Integration Autopilot Control: Evolution Autopilot Control Digital Switching: Empirbus compatible Dimensions (w x h x d): 11.9" x 6.85" x 2.56" / 300 x 174 x 65 mm The Axiom Pro 9 RVX is bundled with LightHouse USA Coastal Vector charts on MicroSD.  Axiom Pro 9 RVX also includes surface and trunnion mounting kits and hardware, suncover, power/video/NMEA0183 cable, micro-C DeviceNet (F) to STNG (F) 1M cable, Raynet (F) to Raynet (F) 2M cable and installation instructions. Specifications:Basemap = Yes Card Format = Micro SD Cartography - Preloaded = No Cartography Brand = Navionics/C-Map Cartography Type = Hotmaps/Navionics+/Gold/Platinum+/4D Max Frequency = NONE Included Transducer = NONE Internal/External Antenna = Internal Resolution (VxH) = 1280 x 720 Screen Size = 9" Screen Type = Color Speed/Temp = N/A Touchscreen = Yes Transducer Type = Not Included Waterproof Rating = Waterproof Watts RMS - Max = NONE Waypoints/Routes = 10,000/200 Weather Capable = YesNormalized SKU: E7037100LNCUPC Code: 723193822302Raymarine E70371-00-LNC Literature Download  Product Brochure

  Download LiteratureRaymarine E70371-00-NAG FishfindersAxiom Pro 9 RVX MFD w/RealVision 3D and 1kW CHIRP Sonar - Navionics+ ChartWith RealVision 3D, 1kW CHIRP sonar and Raymarine HybridTouch control, Axiom Pro 9 is the new standard for “all-in-one” display. And with a blazing fast quad core processor, a super bright IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience.Axiom Pro is engineered for captains that want it all. The new standard for “all in-one” multifunction devices. And with a blazing fast quad core processor, a super bright high-definition IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience. Axiom Pro is easy to expand into an advanced navigation network that includes multiple Raymarine Axiom displays, CHIRP radar, Evolution autopilot, FLIR thermal night vision technology, and more.Blazing FastQuad core processor delivers instantaneous response and the ability to run multiple apps simultaneously without any slowdowns.Bold & BrightOptical bonding technology and IPS display panels give you stunning Color, clarity, and contrast in all lighting conditions. Axiom Pro looks great even through polarized sunglasses.HybridTouch™Control Axiom Pro from its multi-touch screen, its buttons and rotary knob, or any combination of both. This choice is yours.Custom KeyGet instant access to your favorite function with user-programmable Custom Key.Lighthouse 3 OSFast, fluid and easy to learn. The Lighthouse 3 interface is uncluttered and easy to personalize for your style of boating.Specifications: Screen Size: 9" Display Resolution: 1280 x 720 Screen Type: Super bright IPS display with optical bonding. Multitouch support Mounting Options: Front and trunnion mount Front Waterproofing: IPX6 / IPX7 Memory: 16GB Internal / x2 microSDXC slots USB: 1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440) Voltage: 12 / 24 V dc Weight: 3.35lbs / 1.52kg Operating Temperature: -25ºC to +55ºC (13ºF to 131ºF) Wi-Fi Ethernet: 2 x 10/100 Mbits/ Network (RayNet) NMEA 0183: x2 NMEA 0183 input and x1 NMEA 0183 output (part of power cable) NMEA2000: 1 x NMEA2000 port (DeviceNet microC) Radar Compatible Thermal Night Vision Compatible Video Cameras: 1 x Analogue input (BNC). Up to 10 IP Cameras Built-in Sonar: RealVision 3D & 1kW CHIRP Sonar built in – RVX models only External Sonar Compatible GPS: Built-in GNSS Receiver: GPS/GLONASS/Beidou - 10Hz 167 Channel | External Accessory: GA150 (A80288) Optional Remote Controls AIS Audio Integration Autopilot Control: Evolution Autopilot Control Digital Switching: Empirbus compatible Dimensions (w x h x d): 11.9" x 6.85" x 2.56" / 300 x 174 x 65 mm The Axiom Pro 9 RVX includes surface and trunnion mounting kits and hardware, suncover, power/video/NMEA0183 cable, micro-C DeviceNet (F) to STNG (F) 1M cable, Raynet (F) to Raynet (F) 2M cable and installation instructions. Navionics+ Chart Specifications:Basemap = Yes Card Format = Micro SD Cartography - Preloaded = No Cartography Brand = Navionics/C-Map Cartography Type = Hotmaps/Navionics+/Gold/Platinum+/4D Max Frequency = NONE Included Transducer = NONE Internal/External Antenna = Internal Resolution (VxH) = 1280 x 720 Screen Size = 9" Screen Type = Color Speed/Temp = N/A Touchscreen = Yes Transducer Type = Not Included Waterproof Rating = Waterproof Watts RMS - Max = NONE Waypoints/Routes = 10,000/200 Weather Capable = YesNormalized SKU: E7037100NAGUPC Code: 723193822319Raymarine E70371-00-NAG Literature Download  Product Brochure

Raymarine E70371-00-CSA FishfindersAxiom™ Pro 9 RVX MFD w/RealVision 3D & 1kW CHIRP Sonar - Navionics+ Central & South America ChartWith RealVision 3D, 1kW CHIRP sonar and Raymarine HybridTouch control, Axiom Pro 9 is the new standard for “all-in-one” display. And with a blazing fast quad core processor, a super bright IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience.Axiom Pro is engineered for captains that want it all. The new standard for “all in-one” multifunction devices. And with a blazing fast quad core processor, a super bright high-definition IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience. Axiom Pro is easy to expand into an advanced navigation network that includes multiple Raymarine Axiom displays, CHIRP radar, Evolution autopilot, FLIR thermal night vision technology, and more.Blazing FastQuad core processor delivers instantaneous response and the ability to run multiple apps simultaneously without any slowdowns.Bold & BrightOptical bonding technology and IPS display panels give you stunning Color, clarity, and contrast in all lighting conditions. Axiom Pro looks great even through polarized sunglasses.HybridTouch™Control Axiom Pro from its multi-touch screen, its buttons and rotary knob, or any combination of both. This choice is yours.Custom KeyGet instant access to your favorite function with user-programmable Custom Key.Lighthouse 3 OSFast, fluid and easy to learn. The Lighthouse 3 interface is uncluttered and easy to personalize for your style of boating.Specifications: Screen Size: 9" Display Resolution: 1280 x 720 Screen Type: Super bright IPS display with optical bonding. Multitouch support Mounting Options: Front and trunnion mount Front Waterproofing: IPX6 / IPX7 Memory: 16GB Internal / x2 microSDXC slots USB: 1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440) Voltage: 12 / 24 V dc Weight: 3.35lbs / 1.52kg Operating Temperature: -25ºC to +55ºC (13ºF to 131ºF) Wi-Fi Ethernet: 2 x 10/100 Mbits/ Network (RayNet) NMEA 0183: x2 NMEA 0183 input and x1 NMEA 0183 output (part of power cable) NMEA2000: 1 x NMEA2000 port (DeviceNet microC) Radar Compatible Thermal Night Vision Compatible Video Cameras: 1 x Analogue input (BNC). Up to 10 IP Cameras Built-in Sonar: RealVision 3D & 1kW CHIRP Sonar built in – RVX models only External Sonar Compatible GPS: Built-in GNSS Receiver: GPS/GLONASS/Beidou - 10Hz 167 Channel | External Accessory: GA150 (A80288) Optional Remote Controls AIS Audio Integration Autopilot Control: Evolution Autopilot Control Digital Switching: Empirbus compatible Dimensions (w x h x d): 11.9" x 6.85" x 2.56" / 300 x 174 x 65 mm The Axiom Pro 9 RVX includes surface and trunnion mounting kits and hardware, suncover, power/video/NMEA0183 cable, micro-C DeviceNet (F) to STNG (F) 1M cable, Raynet (F) to Raynet (F) 2M cable and installation instructions. Navionics+ Central & South America Chart Specifications:Cartography Brand = Navionics/C-Map/CMOR Transducer Included = No Touchscreen = Yes Screen Size = 9"Normalized SKU: E7037100CSAUPC Code: 723193822326

Raymarine E70481-00-CSA FishfindersAxiom™ Pro 9 S MFD with Single Channel High CHIRP Sonar - Navionics+ Central & South America ChartWith single channel high CHIRP Sonar and Raymarine HybridTouch control, Axiom Pro 9 is the new standard for “all-in-one” display. And with a blazing fast quad core processor, a super bright IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience.Axiom Pro is engineered for captains that want it all. The new standard for “all in-one” multifunction devices. And with a blazing fast quad core processor, a super bright high-definition IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience. Axiom Pro is easy to expand into an advanced navigation network that includes multiple Raymarine Axiom displays, CHIRP radar, Evolution autopilot, FLIR thermal night vision technology, and more.Blazing FastQuad core processor delivers instantaneous response and the ability to run multiple apps simultaneously without any slowdowns.Bold & BrightOptical bonding technology and IPS display panels give you stunning Color, clarity, and contrast in all lighting conditions. Axiom Pro looks great even through polarized sunglasses.HybridTouch™Control Axiom Pro from its multi-touch screen, its buttons and rotary knob, or any combination of both. This choice is yours.Custom KeyGet instant access to your favorite function with user-programmable Custom Key.Lighthouse 3 OSFast, fluid and easy to learn. The Lighthouse 3 interface is uncluttered and easy to personalize for your style of boating.Specifications: Screen Size: 9" Display Resolution: 1280 x 720 Screen Type: Super bright IPS display with optical bonding. Multitouch support Mounting Options: Front and trunnion mount Front Waterproofing: IPX6 / IPX7 Memory: 16GB Internal / x2 microSDXC slots USB: 1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440) Voltage: 12 / 24 V dc Weight: 3.35lbs / 1.52kg Operating Temperature: -25ºC to +55ºC (13ºF to 131ºF) Wi-Fi Ethernet: 2 x 10/100 Mbits/ Network (RayNet) NMEA 0183: x2 NMEA 0183 input and x1 NMEA 0183 output (part of power cable) NMEA2000: 1 x NMEA2000 port (DeviceNet microC) Radar Compatible Thermal Night Vision Compatible Video Cameras: 1 x Analogue input (BNC). Up to 10 IP Cameras Built-in Sonar: High CHIRP Sonar built in – S models only - uses CPT-S Transducers Only External Sonar Compatible GPS: Built-in GNSS Receiver: GPS/GLONASS/Beidou - 10Hz 167 Channel | External Accessory: GA150 (A80288) Optional Remote Controls AIS Audio Integration Autopilot Control: Evolution Autopilot Control Digital Switching: Empirbus compatible Dimensions (w x h x d): 11.9" x 6.85" x 2.56" / 300 x 174 x 65 mm The Axiom Pro 9 S includes surface and trunnion mounting kits and hardware, suncover, power/video/NMEA0183 cable, micro-C DeviceNet (F) to STNG (F) 1M cable, RayNet (F) to Raynet (F) 2M cable and installation instructions. Also comes with Navionics+ Central and South America Chart. Specifications:Basemap = Yes Card Format = Micro SD Cartography - Preloaded = No Cartography Brand = Navionics/C-Map Cartography Type = Hotmaps/Navionics+/Gold/Platinum+/4D Max Frequency = NONE Included Transducer = NONE Internal/External Antenna = Internal Resolution (VxH) = NONE Screen Size = 9" Touchscreen = Yes Transducer Type = Not Included Watts RMS = NONENormalized SKU: E7048100CSAUPC Code: 723193822272

Raymarine E70481 FishfindersAxiom™ Pro 9 S MFD with Single Channel High CHIRP Sonar With single channel high CHIRP Sonar and Raymarine HybridTouch control, Axiom Pro 9 is the new standard for “all-in-one” display. And with a blazing fast quad core processor, a super bright IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience.Axiom Pro is engineered for captains that want it all. The new standard for “all in-one” multifunction devices. And with a blazing fast quad core processor, a super bright high-definition IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience. Axiom Pro is easy to expand into an advanced navigation network that includes multiple Raymarine Axiom displays, CHIRP radar, Evolution autopilot, FLIR thermal night vision technology, and more.Blazing FastQuad core processor delivers instantaneous response and the ability to run multiple apps simultaneously without any slowdowns.Bold & BrightOptical bonding technology and IPS display panels give you stunning color, clarity, and contrast in all lighting conditions. Axiom Pro looks great even through polarized sunglasses.HybridTouch™Control Axiom Pro from its multi-touch screen, its buttons and rotary knob, or any combination of both. This choice is yours.Custom KeyGet instant access to your favorite function with user-programmable Custom Key.Lighthouse 3 OSFast, fluid and easy to learn. The Lighthouse 3 interface is uncluttered and easy to personalize for your style of boating.Specifications: Screen Size: 9" Display Resolution: 1280 x 720 Screen Type: Super bright IPS display with optical bonding. Multitouch support Mounting Options: Front and trunnion mount Front Waterproofing: IPX6 / IPX7 Memory: 16GB Internal / x2 microSDXC slots USB: 1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440) Voltage: 12 / 24 V dc Weight: 3.35lbs / 1.52kg Operating Temperature: -25ºC to +55ºC (13ºF to 131ºF) Wi-Fi Ethernet: 2 x 10/100 Mbits/ Network (RayNet) NMEA 0183: x2 NMEA 0183 input and x1 NMEA 0183 output (part of power cable) NMEA2000: 1 x NMEA2000 port (DeviceNet microC) Radar Compatible Thermal Night Vision Compatible Video Cameras: 1 x Analogue input (BNC). Up to 10 IP Cameras Built-in Sonar: High CHIRP Sonar built in – S models only - uses CPT-S Transducers only External Sonar Compatible GPS: Built-in GNSS Receiver: GPS/GLONASS/Beidou - 10Hz 167 Channel | External Accessory: GA150 (A80288) Optional Remote Controls AIS Audio Integration Autopilot Control: Evolution Autopilot Control Digital Switching: Empirbus compatible Dimensions (w x h x d): 11.9" x 6.85" x 2.56"/300 x 174 x 65 mm The Axiom Pro 9 S includes surface and trunnion mounting kits and hardware, suncover, power/video/NMEA0183 cable, micro-C DeviceNet (F) to STNG (F) 1M cable, RayNet (F) to Raynet (F) 2M cable and installation instructions. Specifications:Basemap = Yes Card Format = Micro SD Cartography - Preloaded = No Cartography Brand = Navionics/C-Map Cartography Type = Hotmaps/Navionics+/Gold/Platinum+/4D Max Frequency = NONE Included Transducer = NONE Internal/External Antenna = Internal Resolution (VxH) = NONE Screen Size = 9" Touchscreen = Yes Transducer Type = Not Included Watts RMS = NONENormalized SKU: E70481UPC Code: 723193822227

  Download LiteratureRaymarine E70481-00-LNC FishfindersAxiom Pro 9 S MFD w/Single Channel High CHIRP Sonar - LNC Vector ChartWith single channel high CHIRP Sonarand Raymarine HybridTouch control, Axiom Pro 9 is the new standard for “all-in-one” display. And with a blazing fast quad core processor, a super bright IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience.Axiom Pro is engineered for captains that want it all. The new standard for “all in-one” multifunction devices. And with a blazing fast quad core processor, a super bright high-definition IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience. Axiom Pro is easy to expand into an advanced navigation network that includes multiple Raymarine Axiom displays, CHIRP radar, Evolution autopilot, FLIR thermal night vision technology, and more.Blazing FastQuad core processor delivers instantaneous response and the ability to run multiple apps simultaneously without any slowdowns.Bold & BrightOptical bonding technology and IPS display panels give you stunning Color, clarity, and contrast in all lighting conditions. Axiom Pro looks great even through polarized sunglasses.HybridTouch™Control Axiom Pro from its multi-touch screen, its buttons and rotary knob, or any combination of both. This choice is yours.Custom KeyGet instant access to your favorite function with user-programmable Custom Key.Lighthouse 3 OSFast, fluid and easy to learn. The Lighthouse 3 interface is uncluttered and easy to personalize for your style of boating.Specifications: Screen Size: 9" Display Resolution: 1280 x 720 Screen Type: Super bright IPS display with optical bonding. Multitouch support Mounting Options: Front and trunnion mount Front Waterproofing: IPX6 / IPX7 Memory: 16GB Internal / x2 microSDXC slots USB: 1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440) Voltage: 12 / 24 V dc Weight: 3.35lbs / 1.52kg Operating Temperature: -25ºC to +55ºC (13ºF to 131ºF) Wi-Fi Ethernet: 2 x 10/100 Mbits/ Network (RayNet) NMEA 0183: x2 NMEA 0183 input and x1 NMEA 0183 output (part of power cable) NMEA2000: 1 x NMEA2000 port (DeviceNet microC) Radar Compatible Thermal Night Vision Compatible Video Cameras: 1 x Analogue input (BNC). Up to 10 IP Cameras Built-in Sonar: High CHIRP Sonar built in – S models only External Sonar Compatible GPS: Built-in GNSS Receiver: GPS/GLONASS/Beidou - 10Hz 167 Channel | External Accessory: GA150 (A80288) Optional Remote Controls AIS Audio Integration Autopilot Control: Evolution Autopilot Control Digital Switching: Empirbus compatible Dimensions (w x h x d): 11.9" x 6.85" x 2.56" / 300 x 174 x 65 mm The Axiom Pro 9 S includes surface and trunnion mounting kits and hardware, suncover, power/video/NMEA0183 cable, micro-C DeviceNet (F) to STNG (F) 1M cable, Raynet (F) to Raynet (F) 2M cable and installation instructions. Specifications:Resolution (VxH) = 1280 x 720 Screen Size = 9 Speed/Temp = N/A Screen Type = Color Weather Capable = Yes Waypoints/Routes = 10,000/200 Watts RMS - Max = NONE Waterproof Rating = Waterproof Transducer Type = Not Included Touchscreen = Yes Internal/External Antenna = Internal Included Transducer = NONE Frequency = NONE Cartography Type = Hotmaps/Navionics+/Gold/Platinum+/4D Max Cartography Brand = Navionics/C-Map Cartography - Preloaded = No Card Format = Micro SD Basemap = YesNormalized SKU: E7048100LNCUPC Code: 723193822258Raymarine E70481-00-LNC Literature Download  Product Brochure

  Download LiteratureRaymarine E70481-00-NAG FishfindersAxiom Pro 9 S MFD w/Single Channel High CHIRP Sonar - Navionics+ ChartWith single channel high CHIRP Sonarand Raymarine HybridTouch control, Axiom Pro 9 is the new standard for “all-in-one” display. And with a blazing fast quad core processor, a super bright IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience.Axiom Pro is engineered for captains that want it all. The new standard for “all in-one” multifunction devices. And with a blazing fast quad core processor, a super bright high-definition IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience. Axiom Pro is easy to expand into an advanced navigation network that includes multiple Raymarine Axiom displays, CHIRP radar, Evolution autopilot, FLIR thermal night vision technology, and more.Blazing FastQuad core processor delivers instantaneous response and the ability to run multiple apps simultaneously without any slowdowns.Bold & BrightOptical bonding technology and IPS display panels give you stunning Color, clarity, and contrast in all lighting conditions. Axiom Pro looks great even through polarized sunglasses.HybridTouch™Control Axiom Pro from its multi-touch screen, its buttons and rotary knob, or any combination of both. This choice is yours.Custom KeyGet instant access to your favorite function with user-programmable Custom Key.Lighthouse 3 OSFast, fluid and easy to learn. The Lighthouse 3 interface is uncluttered and easy to personalize for your style of boating.Specifications: Screen Size: 9" Display Resolution: 1280 x 720 Screen Type: Super bright IPS display with optical bonding. Multitouch support Mounting Options: Front and trunnion mount Front Waterproofing: IPX6 / IPX7 Memory: 16GB Internal / x2 microSDXC slots USB: 1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440) Voltage: 12 / 24 V dc Weight: 3.35lbs / 1.52kg Operating Temperature: -25ºC to +55ºC (13ºF to 131ºF) Wi-Fi Ethernet: 2 x 10/100 Mbits/ Network (RayNet) NMEA 0183: x2 NMEA 0183 input and x1 NMEA 0183 output (part of power cable) NMEA2000: 1 x NMEA2000 port (DeviceNet microC) Radar Compatible Thermal Night Vision Compatible Video Cameras: 1 x Analogue input (BNC). Up to 10 IP Cameras Built-in Sonar: High CHIRP Sonar built in – S models only External Sonar Compatible GPS: Built-in GNSS Receiver: GPS/GLONASS/Beidou - 10Hz 167 Channel | External Accessory: GA150 (A80288) Optional Remote Controls AIS Audio Integration Autopilot Control: Evolution Autopilot Control Digital Switching: Empirbus compatible Dimensions (w x h x d): 11.9" x 6.85" x 2.56" / 300 x 174 x 65 mm The Axiom Pro 9 S includes surface and trunnion mounting kits and hardware, suncover, power/video/NMEA0183 cable, micro-C DeviceNet (F) to STNG (F) 1M cable, Raynet (F) to Raynet (F) 2M cable and installation instructions and Navionics+ Chart Specifications:Resolution (VxH) = 1280 x 720 Internal/External Antenna = Internal Included Transducer = NONE Frequency = NONE Cartography Type = Hotmaps/Navionics+/Gold/Platinum+/4D Max Cartography Brand = Navionics/C-Map Cartography - Preloaded = No Card Format = Micro SD Basemap = Yes Screen Size = 9" Screen Type = Color Speed/Temp = N/A Touchscreen = Yes Transducer Type = Not Included Waterproof Rating = Waterproof Watts RMS - Max = NONE Waypoints/Routes = 10,000/200 Weather Capable = YesNormalized SKU: E7048100NAGUPC Code: 723193822265Raymarine E70481-00-NAG Literature Download  Product Brochure

Raymarine E70371 FishfindersAxiom™ Pro 9 RVX MFD with RealVision 3D & 1kW CHIRP Sonar With RealVision 3D, 1kW CHIRP sonar and Raymarine HybridTouch control, Axiom Pro 9 is the new standard for “all-in-one” display. And with a blazing fast quad core processor, a super bright IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience.Axiom Pro is engineered for captains that want it all. The new standard for “all in-one” multifunction devices. And with a blazing fast quad core processor, a super bright high-definition IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience. Axiom Pro is easy to expand into an advanced navigation network that includes multiple Raymarine Axiom displays, CHIRP radar, Evolution autopilot, FLIR thermal night vision technology, and more.Blazing FastQuad core processor delivers instantaneous response and the ability to run multiple apps simultaneously without any slowdowns.Bold & BrightOptical bonding technology and IPS display panels give you stunning Color, clarity, and contrast in all lighting conditions. Axiom Pro looks great even through polarized sunglasses.HybridTouch™Control Axiom Pro from its multi-touch screen, its buttons and rotary knob, or any combination of both. This choice is yours.Custom KeyGet instant access to your favorite function with user-programmable Custom Key.Lighthouse 3 OSFast, fluid and easy to learn. The Lighthouse 3 interface is uncluttered and easy to personalize for your style of boating.Specifications: Screen Size: 9" Display Resolution: 1280 x 720 Screen Type: Super bright IPS display with optical bonding. Multitouch support Mounting Options: Front and trunnion mount Front Waterproofing: IPX6 / IPX7 Memory: 16GB Internal / x2 microSDXC slots USB: 1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440) Voltage: 12 / 24 V dc Weight: 3.35lbs / 1.52kg Operating Temperature: -25ºC to +55ºC (13ºF to 131ºF) Wi-Fi Ethernet: 2 x 10/100 Mbits/ Network (RayNet) NMEA 0183: x2 NMEA 0183 input and x1 NMEA 0183 output (part of power cable) NMEA2000: 1 x NMEA2000 port (DeviceNet microC) Radar Compatible Thermal Night Vision Compatible Video Cameras: 1 x Analogue input (BNC). Up to 10 IP Cameras Built-in Sonar: RealVision 3D & 1kW CHIRP Sonar built in – RVX models only External Sonar Compatible GPS: Built-in GNSS Receiver: GPS/GLONASS/Beidou - 10Hz 167 Channel | External Accessory: GA150 (A80288) Optional Remote Controls AIS Audio Integration Autopilot Control: Evolution Autopilot Control Digital Switching: Empirbus compatible Dimensions (w x h x d): 11.9" x 6.85" x 2.56"/300 x 174 x 65 mm Axiom Pro 9 RVX includes surface and trunnion mounting kits and hardware, suncover, power/video/NMEA0183 cable, micro-C DeviceNet (F) to STNG (F) 1M cable, RayNet (F) to Raynet (F) 2M cable and installation instructions. Normalized SKU: E70371UPC Code: 723193814994

Raymarine E70371-00-101 FishfindersAxiom™ Pro 9 RVX MFD with RealVision 3D & 1kW CHIRP Sonar - LNC2 Vector ChartWith RealVision 3D, 1kW CHIRP sonar and Raymarine HybridTouch control, Axiom Pro 9 is the new standard for “all-in-one” display. And with a blazing fast quad core processor, a super bright IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience.Axiom Pro is engineered for captains that want it all. The new standard for “all in-one” multifunction devices. And with a blazing fast quad core processor, a super bright high-definition IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience. Axiom Pro is easy to expand into an advanced navigation network that includes multiple Raymarine Axiom displays, CHIRP radar, Evolution autopilot, FLIR thermal night vision technology, and more.Blazing FastQuad core processor delivers instantaneous response and the ability to run multiple apps simultaneously without any slowdowns.Bold & BrightOptical bonding technology and IPS display panels give you stunning Color, clarity, and contrast in all lighting conditions. Axiom Pro looks great even through polarized sunglasses.HybridTouch™Control Axiom Pro from its multi-touch screen, its buttons and rotary knob, or any combination of both. This choice is yours.Custom KeyGet instant access to your favorite function with user-programmable Custom Key.Lighthouse 3 OSFast, fluid and easy to learn. The Lighthouse 3 interface is uncluttered and easy to personalize for your style of boating.Specifications: Screen Size: 9" Display Resolution: 1280 x 720 Screen Type: Super bright IPS display with optical bonding. Multitouch support Mounting Options: Front and trunnion mount Front Waterproofing: IPX6 / IPX7 Memory: 16GB Internal / x2 microSDXC slots USB: 1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440) Voltage: 12 / 24 V dc Weight: 3.35lbs / 1.52kg Operating Temperature: -25ºC to +55ºC (13ºF to 131ºF) Wi-Fi Ethernet: 2 x 10/100 Mbits/ Network (RayNet) NMEA 0183: x2 NMEA 0183 input and x1 NMEA 0183 output (part of power cable) NMEA2000: 1 x NMEA2000 port (DeviceNet microC) Radar Compatible Thermal Night Vision Compatible Video Cameras: 1 x Analogue input (BNC). Up to 10 IP Cameras Built-in Sonar: RealVision 3D & 1kW CHIRP Sonar built in – RVX models only External Sonar Compatible GPS: Built-in GNSS Receiver: GPS/GLONASS/Beidou - 10Hz 167 Channel | External Accessory: GA150 (A80288) Optional Remote Controls AIS Audio Integration Autopilot Control: Evolution Autopilot Control Digital Switching: Empirbus compatible Dimensions (w x h x d): 11.9" x 6.85" x 2.56" / 300 x 174 x 65 mm The Axiom Pro 9 RVX is bundled with LNC2 on MicroSD.  Axiom Pro 9 RVX also includes surface and trunnion mounting kits and hardware, suncover, power/video/NMEA0183 cable, micro-C DeviceNet (F) to STNG (F) 1M cable, Raynet (F) to RayNet (F) 2M cable and installation instructions. Normalized SKU: E7037100101UPC Code: 723193834244

Raymarine E70371-00-102 Ray53 Bundle Multifunction DisplaysRaymarine Axiom Pro 9RVX 9" MFD With RealVision 3D and 1kW CHIRP, Lighthouse NC3 North America Lakes and Coastal Tide Stations RAY53 BundleModel: E70371-00-102 Ray53 RealVision 3D True 1kW Sonar Sonar Scroll Back HybridTouch™ Quad Core Processor Optical Bonding Technology & IPS Displays IP & Analog Video Clear Cruise™ Quantum CHIRP, HD & SHD NMEA2000 & NMEA0183 Specifications Display Size 9" IPS Optically Bonded LCD Display Resolution 1280 x 720 WXGA Display Type Multitouch Brightness 1,200 nits Viewing Angle Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right) Mounting Top, Front, Bracket Waterproof Rating IPX6 / IPX7 Operating Temp minus 13deg F to 131deg F (-25deg C to +55deg C) Storage Temp minus 22deg F to 158deg F (-30deg C to +70deg C) Sensors Sonar Type - Built-in RealVision 3D & 1kW CHIRP Sonar built in Sonar Connections 25pin connector used only with CPT-S transducers, Pro S can only be used with CPT-S transducers that also connect directly to CP470 sonar module. Requires A80490 adaptor cable. Sonar Depth CHIRP Sonar = 900 feet (974 m)DownVision™ = 600 feet (183 m) External Sonar Yes - CP100, CP200, CP370, CP470, CP570 via RayNet Radar Yes - Quantum, Digital, HD Color and Super HD Color Radars AIS Yes - N2K compatible GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel - External Accessory: GA150 (A80288) Autopilot Control Yes - Evolution Autopilot Thermal Night Vision Yes - IP or Analogue Video / Camera 1 x Analogue input (BNC) Up to 10 IP Cameras Weather GRIB View - Free GRIB viewer and Theyr Ltd Subscription - SiriusXM - N. America Only Audio N2K / *Bluetooth / *SiriusXM Audio [*Available in future Lighthouse 3 software update] Digital Switching Yes - Empirbus & C-Zone compatible [C-Zone integration available in future Lighthouse 3 software update] Remote Control RMK-10 (A80438) & RCU-3 (E62351) Networking Ethernet 2 x 10/100/1000 Mbits/ Network (RayNet) NMEA0183 1 Transmit / 2 Receive NMEA2000 1 x NMEA2000 port (DeviceNet microC) SeaTalkNG Requires DEVICENET FEMALE (F) ADAPTOR CABLE (A06079 100mm adaptor included in box) USB 1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440) Wi-Fi WiFi - 802.11 a / b / g / n BlueTooth Bluetooth 4.0 + Low Energy + Power Class 1.5 [Available in future Lighthouse 3 software update] Navigation Cartography Lighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+ [*C-MAP chart compatibility available in future Lighthouse 3 software update] Waypoint/Routes/Tracks (Wpts/Rts/Trk) 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts MEMORY Internal 16GB Solid State 16GB Solid State 2 x microSD slots (front) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32) Input Voltage 12V and 24V DC (8 V to 32 DC) Input Draw ~20W Dimensions 11.9" x 6.85" x 2.56" (300 x 174 x 65 mm) What's in the Box: Axiom Pro 9RVX RayNet (F) to Raynet (F) Cable — 2M (A62361) Trunnion Cover Trunnion Knobs Trunnion Bracket Suncover (A80534) Power / Video / NMEA0183 Cable - Straight, 1.5M (R62379) Micro-C DeviceNet (F) to STNG (F) Cable - 1M (A06075) Panel Seal Gasket Bezel Pieces and Home / Menu Button Mounting Fixings Quick Start Guide Warranty Card Raymarine window decal LNC3 Card RAY53 VHF Normalized SKU: E7037100102Ray53Bundle

Raymarine E70371-00-102 ChartplottersRaymarine Axiom Pro 9RVX 9" MFD With RealVision 3D and 1kW CHIRP, Lighthouse NC2 North America Lakes and Coastal Tide StationsModel: E70371-00-102 RealVision 3D True 1kW Sonar Sonar Scroll Back HybridTouch™ Quad Core Processor Optical Bonding Technology & IPS Displays IP & Analog Video Clear Cruise™ Quantum CHIRP, HD & SHD NMEA2000 & NMEA0183 Specifications Display Size 9" IPS Optically Bonded LCD Display Resolution 1280 x 720 WXGA Display Type Multitouch Brightness 1,200 nits Viewing Angle Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right) Mounting Top, Front, Bracket Waterproof Rating IPX6 / IPX7 Operating Temp minus 13deg F to 131deg F (-25deg C to +55deg C) Storage Temp minus 22deg F to 158deg F (-30deg C to +70deg C) Sensors Sonar Type - Built-in RealVision 3D & 1kW CHIRP Sonar built in Sonar Connections 25pin connector used only with CPT-S transducers, Pro S can only be used with CPT-S transducers that also connect directly to CP470 sonar module. Requires A80490 adaptor cable. Sonar Depth CHIRP Sonar = 900 feet (974 m)DownVision™ = 600 feet (183 m) External Sonar Yes - CP100, CP200, CP370, CP470, CP570 via RayNet Radar Yes - Quantum, Digital, HD Color and Super HD Color Radars AIS Yes - N2K compatible GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel - External Accessory: GA150 (A80288) Autopilot Control Yes - Evolution Autopilot Thermal Night Vision Yes - IP or Analogue Video / Camera 1 x Analogue input (BNC) Up to 10 IP Cameras Weather GRIB View - Free GRIB viewer and Theyr Ltd Subscription - SiriusXM - N. America Only Audio N2K / *Bluetooth / *SiriusXM Audio [*Available in future Lighthouse 3 software update] Digital Switching Yes - Empirbus & C-Zone compatible [C-Zone integration available in future Lighthouse 3 software update] Remote Control RMK-10 (A80438) & RCU-3 (E62351) Networking Ethernet 2 x 10/100/1000 Mbits/ Network (RayNet) NMEA0183 1 Transmit / 2 Receive NMEA2000 1 x NMEA2000 port (DeviceNet microC) SeaTalkNG Requires DEVICENET FEMALE (F) ADAPTOR CABLE (A06079 100mm adaptor included in box) USB 1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440) Wi-Fi WiFi - 802.11 a / b / g / n BlueTooth Bluetooth 4.0 + Low Energy + Power Class 1.5 [Available in future Lighthouse 3 software update] Navigation Cartography Lighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+ [*C-MAP chart compatibility available in future Lighthouse 3 software update] Waypoint/Routes/Tracks (Wpts/Rts/Trk) 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts MEMORY Internal 16GB Solid State 16GB Solid State 2 x microSD slots (front) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32) Input Voltage 12V and 24V DC (8 V to 32 DC) Input Draw ~20W Dimensions 11.9" x 6.85" x 2.56" (300 x 174 x 65 mm) What's in the Box: Axiom Pro 9RVX RayNet (F) to Raynet (F) Cable — 2M (A62361) Trunnion Cover Trunnion Knobs Trunnion Bracket Suncover (A80534) Power / Video / NMEA0183 Cable - Straight, 1.5M (R62379) Micro-C DeviceNet (F) to STNG (F) Cable - 1M (A06075) Panel Seal Gasket Bezel Pieces and Home / Menu Button Mounting Fixings Quick Start Guide Warranty Card Raymarine window decal Lighthouse NC3 Card Normalized SKU: E7037100102UPC Code: 723193838174

Raymarine E70481-00-101 FishfindersAxiom™ Pro 9 S MFD with Single Channel High CHIRP Sonar - LNC2 Vector ChartWith single channel high CHIRP Sonarand Raymarine HybridTouch control, Axiom Pro 9 is the new standard for “all-in-one” display. And with a blazing fast quad core processor, a super bright IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience.Axiom Pro is engineered for captains that want it all. The new standard for “all in-one” multifunction devices. And with a blazing fast quad core processor, a super bright high-definition IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience. Axiom Pro is easy to expand into an advanced navigation network that includes multiple Raymarine Axiom displays, CHIRP radar, Evolution autopilot, FLIR thermal night vision technology, and more.Blazing FastQuad core processor delivers instantaneous response and the ability to run multiple apps simultaneously without any slowdowns.Bold & BrightOptical bonding technology and IPS display panels give you stunning Color, clarity, and contrast in all lighting conditions. Axiom Pro looks great even through polarized sunglasses.HybridTouch™Control Axiom Pro from its multi-touch screen, its buttons and rotary knob, or any combination of both. This choice is yours.Custom KeyGet instant access to your favorite function with user-programmable Custom Key.Lighthouse 3 OSFast, fluid and easy to learn. The Lighthouse 3 interface is uncluttered and easy to personalize for your style of boating.Specifications: Screen Size: 9" Display Resolution: 1280 x 720 Screen Type: Super bright IPS display with optical bonding. Multitouch support Mounting Options: Front and trunnion mount Front Waterproofing: IPX6 / IPX7 Memory: 16GB Internal / x2 microSDXC slots USB: 1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440) Voltage: 12 / 24 V dc Weight: 3.35lbs / 1.52kg Operating Temperature: -25ºC to +55ºC (13ºF to 131ºF) Wi-Fi Ethernet: 2 x 10/100 Mbits/ Network (RayNet) NMEA 0183: x2 NMEA 0183 input and x1 NMEA 0183 output (part of power cable) NMEA2000: 1 x NMEA2000 port (DeviceNet microC) Radar Compatible Thermal Night Vision Compatible Video Cameras: 1 x Analogue input (BNC). Up to 10 IP Cameras Built-in Sonar: High CHIRP Sonar built in – S models only - uses CPT-S Transducers Only External Sonar Compatible GPS: Built-in GNSS Receiver: GPS/GLONASS/Beidou - 10Hz 167 Channel | External Accessory: GA150 (A80288) Optional Remote Controls AIS Audio Integration Autopilot Control: Evolution Autopilot Control Digital Switching: Empirbus compatible Dimensions (w x h x d): 11.9" x 6.85" x 2.56" / 300 x 174 x 65 mm The Axiom Pro 9 S includes surface and trunnion mounting kits and hardware, suncover, power/video/NMEA0183 cable, micro-C DeviceNet (F) to STNG (F) 1M cable, RayNet (F) to Raynet (F) 2M cable and installation instructions. Also LNC2 Chart Normalized SKU: E7048100101UPC Code: 723193834237

Raymarine E70481-00-102 ChartplottersRaymarine Axiom Pro 9S 9" MFD With Single Channel CHIRP and Lighthouse NC3 North America Lakes and Coastal Tide StationsModel: E70481-00-102 High CHIRP NMEA2000 & NMEA0183 Sonar Scroll Back HybridTouch™ Quad Core Processor Optical Bonding Technology & IPS Displays IP & Analog Video Clear Cruise™ Quantum CHIRP, HD & SHD Specifications Display Size 9" IPS Optically Bonded LCD Display Resolution 1280 x 720 WXGA Display Type Multitouch Brightness 1,200 nits Viewing Angle Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right) Mounting Top, Front, Bracket Waterproof Rating IPX6 / IPX7 Operating Temp minus 13deg F to 131deg F (-25deg C to +55deg C) Storage Temp minus 22deg F to 158deg F (-30deg C to +70deg C) Sensors Sonar Type - Built-in High CHIRP Sonar Connections 25pin connector used only with CPT-S transducers, Pro S can only be used with CPT-S transducers that also connect directly to CP470 sonar module. Requires A80490 adaptor cable. Sonar Depth CHIRP Sonar = 900 feet (974 m)DownVision™ = 600 feet (183 m) External Sonar Yes - CP100, CP200, CP370, CP470, CP570 via RayNet Radar Yes - Quantum, Digital, HD Color and Super HD Color Radars AIS Yes - N2K compatible GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel - External Accessory: GA150 (A80288) Autopilot Control Yes - Evolution Autopilot Thermal Night Vision Yes - IP or Analogue Video / Camera 1 x Analogue input (BNC) Up to 10 IP Cameras Weather GRIB View - Free GRIB viewer and Theyr Ltd Subscription - SiriusXM - N. America Only Audio N2K / *Bluetooth / *SiriusXM Audio [*Available in future Lighthouse 3 software update] Digital Switching Yes - Empirbus & C-Zone compatible [C-Zone integration available in future Lighthouse 3 software update] Remote Control RMK-10 (A80438) & RCU-3 (E62351) Networking Ethernet 2 x 10/100/1000 Mbits/ Network (RayNet) NMEA0183 1 Transmit / 2 Receive NMEA2000 1 x NMEA2000 port (DeviceNet microC) SeaTalkNG Requires DEVICENET FEMALE (F) ADAPTOR CABLE (A06079 100mm adaptor included in box) USB 1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440) Wi-Fi WiFi - 802.11 a / b / g / n BlueTooth Bluetooth 4.0 + Low Energy + Power Class 1.5 [Available in future Lighthouse 3 software update] Navigation Cartography Lighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+ [*C-MAP chart compatibility available in future Lighthouse 3 software update] Waypoint/Routes/Tracks (Wpts/Rts/Trk) 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts MEMORY Internal 16GB Solid State 16GB Solid State 2 x microSD slots (front) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32) Input Voltage 12V and 24V DC (8 V to 32 DC) Input Draw ~20W Dimensions 11.9" x 6.85" x 2.56" (300 x 174 x 65 mm) What's in the Box: Axiom Pro 9S RayNet (F) to Raynet (F) Cable — 2M (A62361) Trunnion Cover Trunnion Knobs Trunnion Bracket Suncover (A80534) Power / Video / NMEA0183 Cable - Straight, 1.5M (R62379) Micro-C DeviceNet (F) to STNG (F) Cable - 1M (A06075) Panel Seal Gasket Bezel Pieces and Home / Menu Button Lighthouse NC3 North America Lakes and Coastal Tide Stations microSD Mounting Fixings Quick Start Guide Warranty Card Raymarine window decal Normalized SKU: E7048100102UPC Code: 723193838150

Raymarine T70589 FishfindersAxiom XL 16 & RVX1000 Bundle Pack with GA200 GPS Antenna, RCR-SD Card Reader, External Alarm Module, Alarm/Video Input Cable & LightHouse Charts North America Chart CardThis powerful combo offers the simplicity of Axiom XL and the performance of RealVision and 1 kW CHIRP sonar in one convenient bundle.The Axiom XL 16 is the most popular model in the Axiom XL family. Featuring a 16-inch HD touchscreen, the Axiom XL 16 delivers superior visibility and simple control of the LightHouse 4 OS. 3 RayNet ports with POE, HDMI, touchscreen input/output, and NMEA2000 offer network expansion and upgrade capability.The RVX1000 3D CHIRP Sonar Module perfectly complements the Axiom XL 16. This multi-channel sonar module features RealVision 3D and a powerful 1 kW CHIRP sonar. Users will experience stunning 2D and 3D fishfinder imagery, plus powerful deep-water capability. Complete the RVX1000 sonar by choosing optional RealVision 3D and Airmar 1kW CHIRP transducers.Bundle Includes: (1) Axiom XL 16 (1) RVX1000 3D CHIRP Sonar Module (1) GA200 external GPS antenna (A80589) (1) RCR-SD External Card Reader (A80440) (1) External Alarm Module (E26033) (1) Alarm/Video Input Accessory Cable (A80235) (1) LightHouse Charts North America chart card (R70794) with a 1-year LightHouse Charts Premium subscription Normalized SKU: T70589UPC Code: 723193859919

Raymarine E70399 Multifunction DisplaysAxiom XL 16 15.6" Multifunction DisplayThe Axiom XL range is the pinnacle of Raymarine navigation and modern helm integration.Designed for glass bridge installations, Axiom XL displays offer superior performance, large format visibility and elegant simplicity. Engineered to perform in extreme conditions, the fully waterproof Axiom XL family of glass bridge MFDS can be installed in both open cockpits and enclosed bridge stations. Each model uses in-plane switching technology (IPS) and Raymarine optical bonding to deliver wider viewing angles, sharp contrast, and unmatched readability in bright sun.Flagship PerformanceAt the heart of each Axiom XL display is a blazing fast quad core processor that delivers a responsive and powerful all-in-one big screen navigation experience. Axiom XL brings together multiple technologies and sensors into single or multi display helm solution. Integrate Axiom XL with additional Axiom XL displays or connect seamlessly with Raymarine’s family of Axiom and Axiom Pro displays at remote stations.Superior IntegrationA powerful network and video integration platform, Axiom XL displays feature three Ethernet ports for connecting radar, CHIRP and 3D sonar modules, plus additional Axiom family displays. FLIR thermal camera support enhances awareness and HDMI input enables Axiom XL to serve as a remote PC or entertainment display.Elegant SimplicityAxiom XL displays are powered by Raymarine’s LightHouse 3 OS and offer a fast, fluid, and uncluttered interface that is easily personalized for your navigation style. Enjoy multi-touch screen control or add the Raymarine RMK-10 keypad for complete remote system.Features: Smart and Rugged All-Glass Display is optimized for flush or surface mounting and features sleek buttonless design with swipe-to-power touch control. A built-in ambient light sensor automatically adjusts display brightness based on lighting conditions. Connect Even More with LightHouse Apps. Expand the power and capabilities of Axiom XL by streaming mobile entertainment apps and connect with leading marine technology partners like Seakeeper, Mazy and Luminshore. Keep Watch on the crew or engine room with marine video cameras. Connect both analog and video over IP to view 4 simultaneous video streams. Built in recording capability transforms Axiom XL into an onboard DVR.  Access Axiom Everywhere using Axiom XL’s HDMI video output. Monitor Axiom from the big screen below deck or stream Axiom XL to your phone or tablet with Raymarine mobile apps. Vessel Automation with Raymarine Digital Switching solutions for boat builders. Axiom XL Digital Switching technology offers simple touch screen control of onboard electrical devices. Get Underway Faster with the intuitive LightHouse 3 OS. Spend seconds, not minutes, plotting your next course. LightHouse 3 is easy to learn and easy to customize. Elevate Awareness with Quantum 2 CHIRP radar and Doppler target tracking, the easier way to keep a watchful eye on potentially dangerous targets. An Extra Set of Eyes for safer navigation with FLIR ClearCruise™ thermal object recognition. Let Axiom XL and FLIR be your sixth sense on the water so you can navigate safer, both night and day. Ready to Fish with the optional RVX1000 remotely mounted 3D CHIRP sonar module. Experience Raymarine CHIRP sonar and award winning RealVision™ 3D on the big the screen. Bring your computer to the helm. Axiom XL lets captains view and control a remote personal computer using a computer’s HDMI output and USB touch screen control. Navigate with the Best Charts from Navionics, C-MAP, and Raymarine’s library of LightHouse raster and vector charts from leading map makers. Stay on Course with advanced Evolution autopilot integration. Plot a waypoint on Axiom XL and let Evolution’s 9-axis intelligent sensor keep you on the perfect course. Normalized SKU: E70399UPC Code: 723193824214

Raymarine T70427 Multifunction DisplaysAxiom XL 16 15.6" Multifunction Display Kit with RCR-SD, Alarm & CableThe Axiom XL range is the pinnacle of Raymarine navigation and modern helm integration.Designed for glass bridge installations, Axiom XL displays offer superior performance, large format visibility and elegant simplicity. Engineered to perform in extreme conditions, the fully waterproof Axiom XL family of glass bridge MFDS can be installed in both open cockpits and enclosed bridge stations. Each model uses in-plane switching technology (IPS) and Raymarine optical bonding to deliver wider viewing angles, sharp contrast, and unmatched readability in bright sun.Flagship PerformanceAt the heart of each Axiom XL display is a blazing fast quad core processor that delivers a responsive and powerful all-in-one big screen navigation experience. Axiom XL brings together multiple technologies and sensors into single or multi display helm solution. Integrate Axiom XL with additional Axiom XL displays or connect seamlessly with Raymarine’s family of Axiom and Axiom Pro displays at remote stations.Superior IntegrationA powerful network and video integration platform, Axiom XL displays feature three Ethernet ports for connecting radar, CHIRP and 3D sonar modules, plus additional Axiom family displays. FLIR thermal camera support enhances awareness and HDMI input enables Axiom XL to serve as a remote PC or entertainment display.Elegant SimplicityAxiom XL displays are powered by Raymarine’s LightHouse 3 OS and offer a fast, fluid, and uncluttered interface that is easily personalized for your navigation style. Enjoy multi-touch screen control or add the Raymarine RMK-10 keypad for complete remote system.Features: Smart and Rugged All-Glass Display is optimized for flush or surface mounting and features sleek buttonless design with swipe-to-power touch control. A built-in ambient light sensor automatically adjusts display brightness based on lighting conditions. Connect Even More with LightHouse Apps. Expand the power and capabilities of Axiom XL by streaming mobile entertainment apps and connect with leading marine technology partners like Seakeeper, Mazy and Luminshore. Keep Watch on the crew or engine room with marine video cameras. Connect both analog and video over IP to view 4 simultaneous video streams. Built in recording capability transforms Axiom XL into an onboard DVR.  Access Axiom Everywhere using Axiom XL’s HDMI video output. Monitor Axiom from the big screen below deck or stream Axiom XL to your phone or tablet with Raymarine mobile apps. Vessel Automation with Raymarine Digital Switching solutions for boat builders. Axiom XL Digital Switching technology offers simple touch screen control of onboard electrical devices. Get Underway Faster with the intuitive LightHouse 3 OS. Spend seconds, not minutes, plotting your next course. LightHouse 3 is easy to learn and easy to customize. Elevate Awareness with Quantum 2 CHIRP radar and Doppler target tracking, the easier way to keep a watchful eye on potentially dangerous targets. An Extra Set of Eyes for safer navigation with FLIR ClearCruise™ thermal object recognition. Let Axiom XL and FLIR be your sixth sense on the water so you can navigate safer, both night and day. Ready to Fish with the optional RVX1000 remotely mounted 3D CHIRP sonar module. Experience Raymarine CHIRP sonar and award winning RealVision™ 3D on the big the screen. Bring your computer to the helm. Axiom XL lets captains view and control a remote personal computer using a computer’s HDMI output and USB touch screen control. Navigate with the Best Charts from Navionics, C-MAP, and Raymarine’s library of LightHouse raster and vector charts from leading map makers. Stay on Course with advanced Evolution autopilot integration. Plot a waypoint on Axiom XL and let Evolution’s 9-axis intelligent sensor keep you on the perfect course. Normalized SKU: T70427UPC Code: 723193826614

Raymarine T70427R Multifunction DisplaysRaymarine Axiom XL 16 MFD KitModel: T70427At the heart of each Axiom XL display is a blazing fast quad core processor that delivers a responsive and powerful all-in-one big screen navigation experience. Axiom XL brings together multiple technologies and sensors into single or multi display helm solution. Integrate Axiom XL with additional Axiom XL displays or connect seamlessly with Raymarines family of Axiom and Axiom Pro displays at remote stations. Axiom XL displays are powered by Raymarines LightHouse 3 OS and offer a fast, fluid, and uncluttered interface that is easily personalized for your navigation style. Enjoy multi-touch screen control or add the Raymarine RMK-10 keypad for complete remote system control. A powerful network and video integration platform, Axiom XL displays feature three Ethernet ports for connecting radar, CHIRP and 3D sonar modules, plus additional Axiom family displays. FLIR thermal camera support enhances awareness and HDMI input enables Axiom XL to serve as a remote PC or entertainment display. Smart and Rugged All-Glass Display is optimized for flush or surface mounting and features sleek buttonless design with swipe-to-power touch control. A built-in ambient light sensor automatically adjusts display brightness based on lighting conditions. Connect Even More with LightHouse Apps. Expand the power and capabilities of Axiom XL by streaming mobile entertainment apps and connect with leading marine technology partners like Seakeeper, Mazy and Luminshore. Keep Watch on the crew or engine room with marine video cameras. Connect both analog and video over IP to view 4 simultaneous video streams. Built in recording capability transforms Axiom XL into an onboard DVR. Access Axiom Everywhere using Axiom XLs HDMI video output. Monitor Axiom from the big screen below deck or stream Axiom XL to your phone or tablet with Raymarine mobile apps. Vessel Automation with Raymarine Digital Switching solutions for boat builders.Normalized SKU: T70427R

Raymarine E70399R ChartplottersRaymarine Axiom XL 16 MFD OnlyRemanufacturedModel: E70399The Axiom XL range is the pinnacle of Raymarine navigation and modern helm integration.Designed for glass bridge installations, Axiom XL displays offer superior performance, large format visibility and elegant simplicity. Engineered to perform in extreme conditions, the fully waterproof Axiom XL family of glass bridge MFDS can be installed in both open cockpits and enclosed bridge stations. Each model uses in-plane switching technology (IPS) and Raymarine optical bonding to deliver wider viewing angles, sharp contrast, and unmatched readability in bright sun.Axiom XL’s edge-to-edge glass construction gives vessel designers the ability to create integrated and elegant navigation helm appearance.Specifications General Specifications Display Size 15.6" Display Type IPS (In-Plane Switching) Color Depth 24 bit Display Resolution 1920 x 1080 FHD Display Aspect Ratio 16:9 Viewing Angle Top 88’ / Bottom 88’ / Left 88’ / Right 88’ Power Nominal supply voltage 12 / 24 Vdc Operating voltage range 8 Vdc to 32 Vdc Fuse Requirements Inline fuse = 15Amp, or Thermal breaker = 15Amp Max. Power 60W Environmental Operating Temperature Range -25°C to + 55°C Storage temperature range -30°C to +70°C Humidity Up to 93% @40°C Water Ingress Protection IPx6 and IPx7 Physical Overall Dimensions W x D x H (mm) 395 x 78 x 249 Product Weight (Kg) 5.9 Other Specifications 64 GB Solid State (62 GB usable) Internal Storage What's in the Box: Axiom XL MFD Suncover (Silicone) Rear mounting bar x2 Documentation pack Mounting gasket tape Power / Video / NMEA 0183 cable. 1.5m (4.92ft) right-angled Mounting bar fixings x4 (M5 x20) Mounting fixings x4 (Including M5 bolts x35, M5 wavy washers, M5 nuts and mounting feet) SeaTalkng to DeviceNet 1m (3.3ft) adapter cable M3 screw x5, M3 spring washer and M3 crimp terminal (for optional grounding connection) RayNet 2m (6.6ft) network cable Normalized SKU: E70399RUPC Code: 723193835630

Raymarine E70399RNAVBNDL ChartplottersRaymarine Axiom XL 16 MFD Only Remanufactured with Navionics, GA150 and RCR1Model: E70399RNAVBNDLThe Axiom XL range is the pinnacle of Raymarine navigation and modern helm integration.Designed for glass bridge installations, Axiom XL displays offer superior performance, large format visibility and elegant simplicity. Engineered to perform in extreme conditions, the fully waterproof Axiom XL family of glass bridge MFDS can be installed in both open cockpits and enclosed bridge stations. Each model uses in-plane switching technology (IPS) and Raymarine optical bonding to deliver wider viewing angles, sharp contrast, and unmatched readability in bright sun.Axiom XL’s edge-to-edge glass construction gives vessel designers the ability to create integrated and elegant navigation helm appearance.Specifications General Specifications Display Size 15.6" Display Type IPS (In-Plane Switching) Color Depth 24 bit Display Resolution 1920 x 1080 FHD Display Aspect Ratio 16:9 Viewing Angle Top 88’ / Bottom 88’ / Left 88’ / Right 88’ Power Nominal supply voltage 12 / 24 Vdc Operating voltage range 8 Vdc to 32 Vdc Fuse Requirements Inline fuse = 15Amp, or Thermal breaker = 15Amp Max. Power 60W Environmental Operating Temperature Range -25°C to + 55°C Storage temperature range -30°C to +70°C Humidity Up to 93% @40°C Water Ingress Protection IPx6 and IPx7 Physical Overall Dimensions W x D x H (mm) 395 x 78 x 249 Product Weight (Kg) 5.9 Other Specifications 64 GB Solid State (62 GB usable) Internal Storage What's in the Box: Axiom XL MFD Suncover (Silicone) Rear mounting bar x2 Documentation pack Mounting gasket tape Power / Video / NMEA 0183 cable. 1.5m (4.92ft) right-angled Mounting bar fixings x4 (M5 x20) Mounting fixings x4 (Including M5 bolts x35, M5 wavy washers, M5 nuts and mounting feet) SeaTalkng to DeviceNet 1m (3.3ft) adapter cable M3 screw x5, M3 spring washer and M3 crimp terminal (for optional grounding connection) RayNet 2m (6.6ft) network cable GA150 Antenna RCR1 Card Reader Navionics Navplus Normalized SKU: E70399RNAVBNDL

Raymarine E70400R ChartplottersRaymarine Axiom XL 19 Reman #E70400RNormalized SKU: E70400R
