Lowrance Qualifies for Free Shipping Lowrance Totalscan Skimmer TM Transducer 455/800 Med-Hi #000-12568-001

Lowrance Totalscan Skimmer TM Transducer 455/800 Med-Hi #000-12568-001

$335.02 $425.50 -22% OFF

Lowrance Totalscan Skimmer TM Transducer 455/800 Med-Hi #000-12568-001

$335.02 $425.50 -22% OFF

Lowrance Totalscan Skimmer TM Transducer 455/800 Med-Hi #000-12568-001

$335.02 $425.50 -22% OFF
Brand: Lowrance

SKU: LOW-000-12568-001

UPC: 9420024145265

Category: Transducers

More about this item

Lowrance 000-12568-001 Transducers

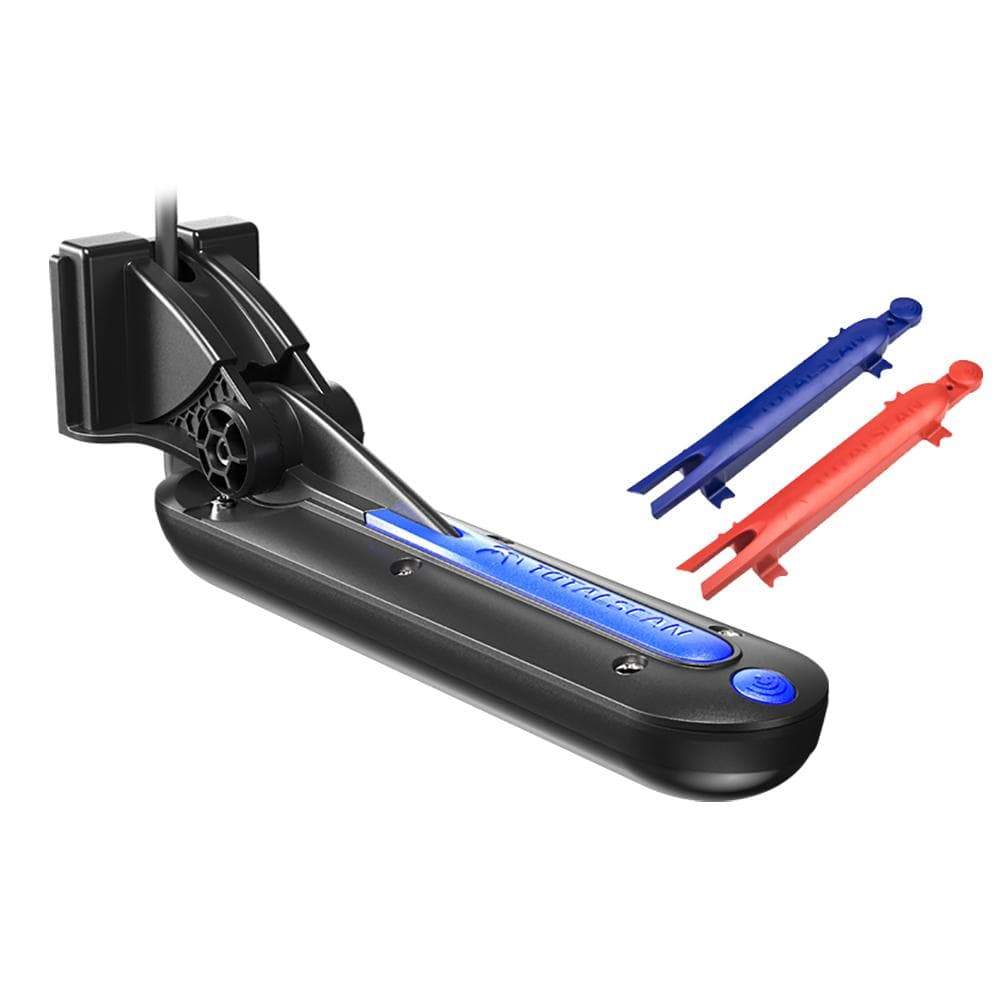

TotalScan™ Transom Mount transducer

An all-in-one transducer that matches proven CHIRP sonar with StructureScan® HD and DownScan Imaging™ technology, making it possible to target fish and search for fish-holding structure with the same transducer.

The TotalScan transducer features multiple mounting options and is fully compatible with displays featuring integrated StructureScan HD, like Lowrance HDS Gen3, Elite-7 Ti, Elite-5 Ti, Simrad NSS evo2, and NSO evo2.

The TotalScan transducer is one of four new transducers that feature the new xSonic (9-pin black) 24ft cable.

An adapter cable will be available to connect xSonic (9-pin black) transducers to legacy displays that have a 7-pin blue connector.

Note: When a TotalScan transducer is connected to a legacy display with a 7-pin blue connector, the side-scanning feature will not function.

Features
  • All-in-one transducer featuring CHIRP Sonar, StructureScan HD and DownScan Imaging
  • Also supports 83/200kHz Broadband Sounder frequencies
  • Supports Medium and High CHIRP Sonar frequencies
  • Supports 455/800kHz StructureScan HD frequencies
  • Multiple mounting options
  • Fully compatible with Lowrance HDS Gen3, Elite-7Ti, Elite-5Ti, Simrad NSS evo2, and NSO evo2
  • Compatible with select legacy displays (Requires xSonic transducer adapter - side-scanning sonar not supported on legacy products)

Specifications:

Beam Width = NONE
Cable Length (Feet) = NONE
Fairing Block Included = NONE
Frequency = 455/800
Load Equivalence # (LEN) = NONE
Mounting Style = Transom
Pins = 7 Pin
Speed Included = No
Temperature = Yes


Normalized SKU: 00012568001
UPC Code: 9420024145265
