Pico 2261GT Terminals & KitsSeamless Barrel provides for a solid crimp with no barrel splitting. Wire Stop prevents over insertion of wire and flared sleeve provides for easy wire insertion. Translucent Heat Shrink Sleeve allows for visual inspection of correct wire placement. Insert stripped wire into each end of connector barrel and crimp firmly. Slowly apply heat (300°F) until inner adhesive wall of sleeve softens, melts filling voids, and outer wall shrinks. Cool for a permanent waterproof and corrosion resistant connection. Seamless Copper Connector Barrel Adhesive Lined Polyolefin Heat Shrink Sleeve Maximum Electrical Rating 600 Volts - Tensile Strenth 1500 psi Insulation Shrink Temp 302°F (150°C) Operating Temperature 14°F to 241°F (-10°C to 105°C) Normalized SKU: 2261GTUPC Code: 035704122611

Pico 2260A Terminals & KitsSeamless Barrel provides for a solid crimp with no barrel splitting. Wire Stop prevents over insertion of wire and flared sleeve provides for easy wire insertion. Translucent Nylon Heat Shrink Sleeve allows for visual inspection of correct wire placement and has a 30% faster shrink time. Insert stripped wire into each end of connector barrel and crimp firmly. Slowly apply heat (212°F) until inner adhesive wall of sleeve softens, melts filling voids, and outer wall shrinks. Cool for a permanent waterproof and corrosion resistant connection. Seamless Copper Connector Barrel Adhesive Lined Nylon Heat Shrink Sleeve Maximum Electrical Rating 750 Volts - Tensile Strenth 4000 psi Insulation Shrink Temp 212°F (100°C) Operating Temperature -67°F to 257°F (-55°C to 125°C) Normalized SKU: 2260AUPC Code: 035704222601

Pico 2253GT Terminals & KitsCrystal Clear Heat Shrink Sleeve allows for a visual inspection of wire placement, proper crimp and inspection of wire condition over life of the connection. Seamless Barrel provides for a solid crimp with no barrel splitting and is Red Striped indicating 22-16 AWG connector and where to crimp mark. Wire Stop prevents over insertion of wire. Insert stripped wire into each end of connector barrel and crimp firmly on both red stripes. Slowly apply heat (212°F) until inner adhesive wall of sleeve softens, melts filling voids, and outer wall shrinks. Cool for a permanent waterproof and corrosion resistant connection. 22-16 AWG Splice Together 2 Wires of Same Gauge Waterproof and Corrosion Resistant Connections Adhesive Lined Heat Shrink Sleeve Normalized SKU: 2253GTUPC Code: 035704122536

Pico 2251GT Terminals & KitsSeamless Barrel provides for a solid crimp with no barrel splitting. Wire Stop prevents over insertion of wire and flared sleeve provides for easy wire insertion. Translucent Heat Shrink Sleeve allows for visual inspection of correct wire placement. Insert stripped wire into each end of connector barrel and crimp firmly. Slowly apply heat (300°F) until inner adhesive wall of sleeve softens, melts filling voids, and outer wall shrinks. Cool for a permanent waterproof and corrosion resistant connection. Seamless Copper Connector Barrel Adhesive Lined Polyolefin Heat Shrink Sleeve Maximum Electrical Rating 600 Volts - Tensile Strenth 1500 psi Insulation Shrink Temp 302°F (150°C) Operating Temperature 14°F to 241°F (-10°C to 105°C) Normalized SKU: 2251GTUPC Code: 035704122512

Pico 0045PT Terminals & KitsHandy Re-Sealable and Re-Usable Clam Package. Package has the most commonly used Fully Insulated mated Male and Female Quick Connects in 22-16, 16-14 and 12-10 Gauges. Also included are popular vinyl insulated female connectors in 22-16 and 16-14 Gauge. Full instructions on package back for stripping and crimping the terminals. A good selection for the Do-It-Yourself individual. Clam Package of Assorted Quick Connects Includes 22-16, 16-14 and 12-10 AWG Connectors Includes Fully Insulated Male and Female Connectors Includes 22-16 and 16-14 Female Quick Connects Normalized SKU: 0045PTUPC Code: 035704101456

Pico 0050PT Terminals & KitsHandy Re-Sealable and Re-Usable Clam Package. Package has the most commonly used Heat Shrink Terminals and Connectors. Includes 22-16, 16-14 and 12-10 Gauge Butt Connectors and 22-16 and 16-14 Gauge #10 Stud Ring Terminals. Full instructions on package back for stripping, crimping and Heat Shrinking the terminals. A good selection to introduce the Do-It-Yourself individual into the world of Heat Shrink Terminals. Clam Package of Assorted Heat Shrink Connectors Includes 22-16, 16-14 and 12-10 AWG Butt Connectors Includes 22-16 and 16-14 AWG #10 Stud Ring Connectors Heat Shrink Connectors for Waterproof Connections Normalized SKU: 0050PTUPC Code: 035704101500

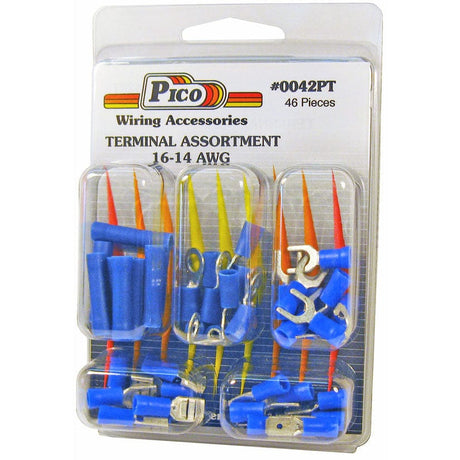

Pico 0042PT Terminals & KitsHandy Re-Sealable and Re-Usable Clam Package. Package has the most commonly used 16-14 Gauge Blue Vinyl Insulated Butt Connectors, #10 Stud Rings and Spades and Male and Female Quick Connects. Full instructions on package back for stripping and crimping the terminals. A good starter selection for the Do-It-Yourself individual. Clam Package of Assorted 16-14 Blue Connectors Includes Blue 16-14 AWG Butt Connectors Includes Blue 16-14 AWG #10 Stud Ring and Spade Connectors Includes Blue 16-14 AWG Male and Female Quick Connects Normalized SKU: 0042PTUPC Code: 035704101425

Pico 0040PT Terminals & KitsHandy Re-Sealable and Re-Usable Clam Package. Package has the most commonly used Blue 16-14 AWG Vinyl Insulated Butt Connectors and Terminals. Full instructions on package back for stripping and crimping the terminals. A good selection for the Do-It-Yourself individual. Clam Package of Assorted Butt Connectors and Assorted Terminals Includes Red 22-16 AWG Butt Connectors Blue 16-14 AWG Butt Connectors Yellow 12-10 AWG Butt Connectors Normalized SKU: 0040PTUPC Code: 035704101401

Pico 0002-T Terminals & KitsSolderless Terminals are Crimp on terminals that do not require solder for making the mechanical connection and at least one end of the terminal will be crimped onto a wire end. Solderless Terminals are quick and easy to use, very versatile and come in several styles to suit many applications. Terminals are tin-plated copper or brass. 175 Piece Assorted Terminals Red 22-16 AWG - Blue 16-14 AWG - Yellow 12-10 AWG Vinyl Insulated Solderless Terminals Kit Size: 7" x 4-1/2" x 1-1/2" with Hang Tab Normalized SKU: 0002TUPC Code: 035704500020

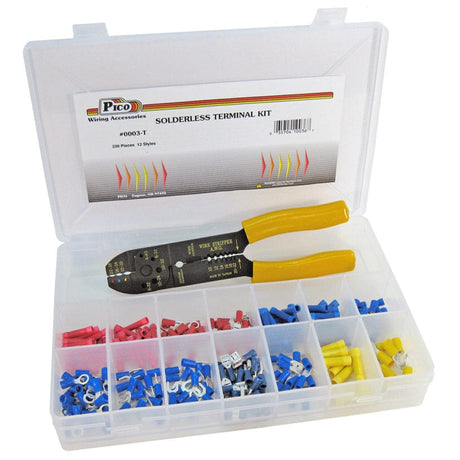

Pico 0003-T Terminals & KitsSolderless Terminals are Crimp on terminals that do not require solder for making the mechanical connection and at least one end of the terminal will be crimped onto a wire end. Solderless Terminals are quick and easy to use, very versatile and come in several styles to suit many applications. Terminals are tin-plated copper or brass. Included in Kit is a PICO #0300T Crimping Tool. 230 Piece Assorted Solderless Terminals Red 22-16 AWG - Blue 16-14 AWG - Yellow 12-10 AWG Vinyl Insulated Solderless Terminals Kit Size: 10-3/4" x 7" x 1-1/2" Normalized SKU: 0003TUPC Code: 035704100367

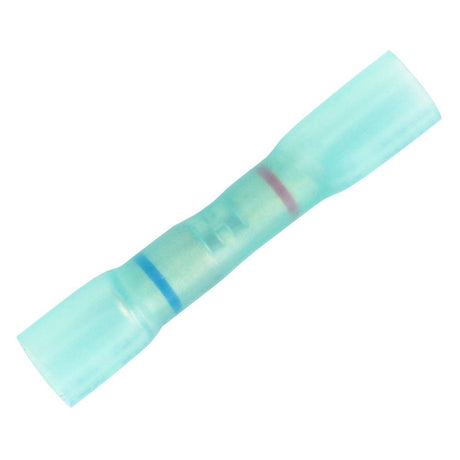

Download LiteraturePacer Group TBSDE14-18-500 Terminals & KitsStep-Down Butt Splices with Blue Heat Shrink - 22-18 AWG to 16-14 AWG - 500 PackIn an electrical system, there may be times when connecting one wire to multiple wires is needed. Alternatively, there may be times when connecting two different gauge wires is needed. In situations like this, users would use step-down butt splices with colored heat shrink.Heat-shrink butt splices protect against the elements in the most challenging of environments. They offer the best moisture protection available. These step-down heat-shrink butt splices have an adhesive liner. This liner provides a durable, rugged, environmentally sealed connection for wires between 18 AWG - and 14 AWG. It protects from physical abuse and abrasion, water, salt, and other corrosive compounds. Step-down butt splices join two wires to one. The colored dash on the tubing indicates the wire size for the connector, and this blue one indicates 16-14 AWG. Step-down heat-shrink butt splices are used to connect different gauge wires. They are also used to connect multiple wires of the same size. So, users could connect a 10 AWG wire to a 12 AWG wire or connect a 12 AWG wire to two 12 AWG wires. The first step is to properly strip the wires to the correct length. If users look inside the butt splice, an indentation where the wires should butt up against can be seen. Also, be careful to make sure that the butt splice and the wire insulation are touching. If not, users run the risk of weakening the connection.Next, the stripped wire is inserted into one side of the butt splice and crimped with the proper tool. This crimp bends the connector around the wire. This crimp creates a solid connection. On the other side, two wires are added. After crimping, perform the tug test to make sure the wires don't pull out. Once the wire has passed the test, apply heat to the heat shrink, working outward. Be careful not to burn the butt splice or the wire insulation. Now a durable, environmentally protected connection is created. Remember, butt splices are useful for their rapid installation and durability. Other methods of connection may not offer the same level of protection.Features: Protects terminations from water, condensation, salt spray, and corrosion Added vibration protection in rugged environments Provides strain relief Compliances: UL CSA RoHS Specifications: Shrink Ratio: Approx. 3:1 at 135 degrees C Operating Temperature: -55 degrees C - 125 degrees C Vol. Resistivity: 1015 Ohm-cm3 Dielectric Strength: 900V/mil Voltage Rating: 600V Guage (AWG): 22-18 AWG to 16-14 AWG Max. Wire Insulation Outer Diameter: 0.21 in. Heat Shrink Color: Blue *Sold as a pack of 500 Normalized SKU: TBSDE1418500Pacer Group TBSDE14-18-500 Literature Download Quick Reference Guide

Download LiteraturePacer Group TBSDE14-18-100 Terminals & KitsStep-Down Butt Splices with Blue Heat Shrink - 22-18 AWG to 16-14 AWG - 100 PackIn an electrical system, there may be times when connecting one wire to multiple wires is needed. Alternatively, there may be times when connecting two different gauge wires is needed. In situations like this, users would use step-down butt splices with colored heat shrink.Heat-shrink butt splices protect against the elements in the most challenging of environments. They offer the best moisture protection available. These step-down heat-shrink butt splices have an adhesive liner. This liner provides a durable, rugged, environmentally sealed connection for wires between 18 AWG - and 14 AWG. It protects from physical abuse and abrasion, water, salt, and other corrosive compounds. Step-down butt splices join two wires to one. The colored dash on the tubing indicates the wire size for the connector, and this blue one indicates 16-14 AWG. Step-down heat-shrink butt splices are used to connect different gauge wires. They are also used to connect multiple wires of the same size. So, users could connect a 10 AWG wire to a 12 AWG wire or connect a 12 AWG wire to two 12 AWG wires. The first step is to properly strip the wires to the correct length. If users look inside the butt splice, an indentation where the wires should butt up against can be seen. Also, be careful to make sure that the butt splice and the wire insulation are touching. If not, users run the risk of weakening the connection.Next, the stripped wire is inserted into one side of the butt splice and crimped with the proper tool. This crimp bends the connector around the wire. This crimp creates a solid connection. On the other side, two wires are added. After crimping, perform the tug test to make sure the wires don't pull out. Once the wire has passed the test, apply heat to the heat shrink, working outward. Be careful not to burn the butt splice or the wire insulation. Now a durable, environmentally protected connection is created. Remember, butt splices are useful for their rapid installation and durability. Other methods of connection may not offer the same level of protection.Features: Protects terminations from water, condensation, salt spray, and corrosion Added vibration protection in rugged environments Provides strain relief Compliances: UL CSA RoHS Technical Specifications: Shrink Ratio: Approx. 3:1 at 135 degrees C Operating Temperature: -55 degrees C - 125 degrees C Vol. Resistivity: 1015 Ohm-cm3 Dielectric Strength: 900V/mil Voltage Rating: 600V Guage (AWG): 22-18 AWG to 16-14 AWG Max. Wire Insulation Outer Diameter: 0.21 in. Heat Shrink Color: Blue *Sold as a pack of 100 Normalized SKU: TBSDE1418100Pacer Group TBSDE14-18-100 Literature Download Quick Reference Guide

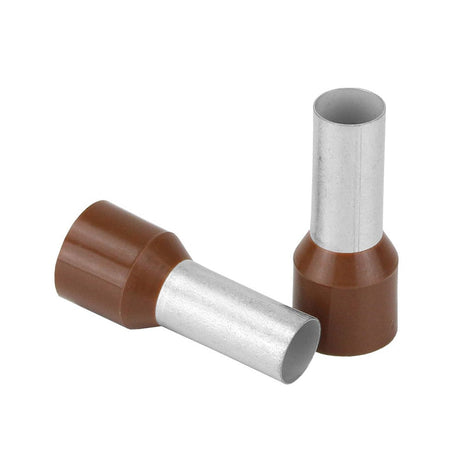

Download Literature Watch VideoPacer Group TFRL4-16MM-10 Terminals & KitsBrown 4 AWG Wire Ferrule - 16mm Length - 10 PackWire fraying can quickly become a problem when dealing with IEC (European)-style terminal blocks. As the wire frays, the connection becomes weaker, and the problem will need to be addressed. But all that can be prevented. How? By utilizing wire ferrules. Wire ferrules are a type of terminal that prevents wire fraying. It covers the stranded wire and creates a solid, connected piece. In a sense, wire ferrules make stranded wire behave like solid wire. This is important, especially when working with IEC terminal blocks.How are wire ferrules properly used? The first step is to strip the wire to the correct length. Now slide the ferrule over the exposed wire. Make sure that the nylon casing butts up to the wire insulation. Once set, crimp using the proper tool. Using the proper tool is important, as, without the proper pressure, the wire may not create a solid connection. Proper crimping pressure and technique are key to ensuring continued performance. Once properly crimped, users can add heat shrink for added protection if they choose. Features: Prevent strand separation while minimizing strand breakage Insulated ferrules provide additional electrical insulation Increase connection reliability when terminating stranded wire in terminal blocks Specifications: Package Size: 10 Wire Size (AWG): 4 Insulation Color: Brown Ferrule Length: 16mm (0.63 in.) Stripping Length: 18mm (0.75 in.) Normalized SKU: TFRL416MM10Pacer Group TFRL4-16MM-10 Literature Download Quick Reference GuidePacer Group TFRL4-16MM-10 Video
