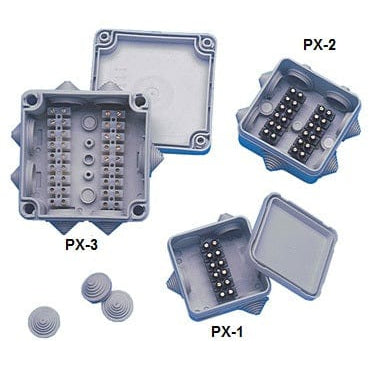

Newmar Junction Box #PX-1
Newmar PX-1 Terminal Blocks"
Waterproof Junction Boxes
- Ideal for making wiring connections above or below decks, even in areas subject to occasional spray
- Similar to BX Series junction boxes, but made from rugged, non-corrosive, high impact polypropylene
- Snap-on cover provides watertight seal
- ""Universal"" cut-to-fit (see diagram) graduated diameter cable entries accommodate wide cable range
- Multiple position connector strips with ""captive"" screw compression wire terminals installed - meets ABYC standards
- Multiple knockouts provided for conduit access (in addition to cable entries)
- IEC Waterproof Rating: IP54 - ""Water projected in jets against the enclosure from any direction shall have no harmful effects.""
|Number of Connector Strips||1||2||2|
|Positions per Strip||6||6||9|
|Max Wire Gauge||16||16||16|
|Number of Cable Entry Ports||5||7||7|
|Number of Cable Entries Installed||3||7||7|
|Spare Cable Entries Provided||2||0||0|
|Cable Diameter Range (inches)||.14-.81||.14-.81||.14-1.0|
|Cable Diameter Range (mm)||3.5-20.5||3.5-20.5||3.5-25.5|
|Box Size Inches||2.95 x 2.95 x 1.66||3.35" x 3.35 x 1.66||4.45 x 4.45 x 2.29|
|Box Size Centimeters||7.5 x 7.5 x 4.2||8.5 x 8.5 x 4.2||11.3 x 11.3 x 5.8|
Normalized SKU: PX1
UPC Code: 007-3001-0
