EMP Qualifies for Free Shipping EMP Switch Box #300-01852

EMP Switch Box #300-01852

$226.04 $287.08 -22% OFF

EMP Switch Box #300-01852

$226.04 $287.08 -22% OFF

EMP Switch Box #300-01852

$226.04 $287.08 -22% OFF
Brand: EMP

SKU: EMP-300-01852

UPC: 840080481555

Category: Switchbox

More about this item

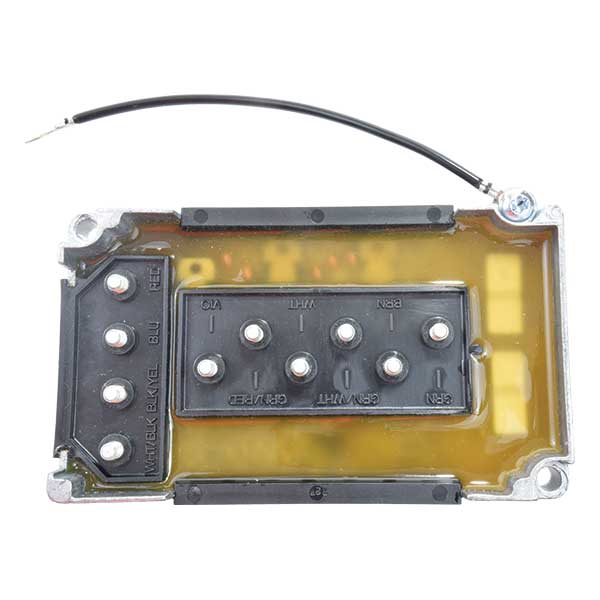

EMP 300-01852 Switchbox

The switch box is the brain of the capacitor discharge ignition system on older Mercury and Mariner outboards. It receives a trigger signal from the stator and timer base, then fires a precisely timed high-voltage charge to the ignition coils, which in turn fire the spark plugs. When the switch box starts to fail, the symptoms can range from subtle to dramatic: intermittent misfires, hard starting when the engine is warm, a cylinder that drops out under load, or in some cases the engine simply refuses to run at all. Because the switch box controls ignition timing and spark delivery, a failing unit can mimic a wide range of other problems, which is why it is often one of the last things diagnosed and one of the most satisfying fixes when it turns out to be the culprit.

The EMP 300-01852 Switch Box fits Mercury and Mariner 3-cylinder outboards in the 65 to 90 horsepower range, as well as V6 outboards in the 135 to 275 horsepower range. It is a direct replacement for nine Mercury part numbers: 7778A12, 7778A6, 7778A7, 7778A9, F7778A9, F749301, 7778A3, 5524A1, and 7778A1. If you are cross-referencing from any of those numbers, you are in the right place.

EMP builds this switch box to OEM specifications, so the trigger sensitivity, output voltage, and timing characteristics match what Mercury originally engineered for these engines. At this price point, you are getting a reliable replacement without the dealer markup, and since this is a complete unit rather than a repair, installation is straightforward for anyone comfortable working with marine ignition systems.

Compatibility and specs at a glance:

  • Fits Mercury and Mariner 3-cylinder outboards, 65 to 90 horsepower
  • Fits Mercury and Mariner V6 outboards, 135 to 275 horsepower
  • Capacitor discharge ignition switch box
  • Replaces Mercury 7778A12, 7778A6, 7778A7, 7778A9, F7778A9, F749301, 7778A3, 5524A1, and 7778A1
  • Built to OEM specifications by EMP
  • Direct replacement, no modification required for listed applications

Normalized SKU: 30001852
UPC Code: 840080481555

Qualifies for Free Shipping
This item qualifies for free shipping when the order is over $149
$226.04 $287.08 -22% OFF
0 watching this item.
0 LEFT IN STOCK
LIMITED TIME OFFER 00
days
00
hours
00
minutes
00
seconds

The price of this item will revert back to $287.08 at the end of this countdown.
