Blue Sea System Qualifies for Free Shipping Blue Sea Solenoid M-Series 65a 12/24v ACR Bulk #7601-B

Blue Sea Solenoid M-Series 65a 12/24v ACR Bulk #7601-B

$101.73 $126.29 -20% OFF

Blue Sea Solenoid M-Series 65a 12/24v ACR Bulk #7601-B

$101.73 $126.29 -20% OFF

Blue Sea Solenoid M-Series 65a 12/24v ACR Bulk #7601-B

$101.73 $126.29 -20% OFF

SKU: BSS-7601-B

Category: Solenoids

More about this item

Blue Sea System 7601-B Solenoids

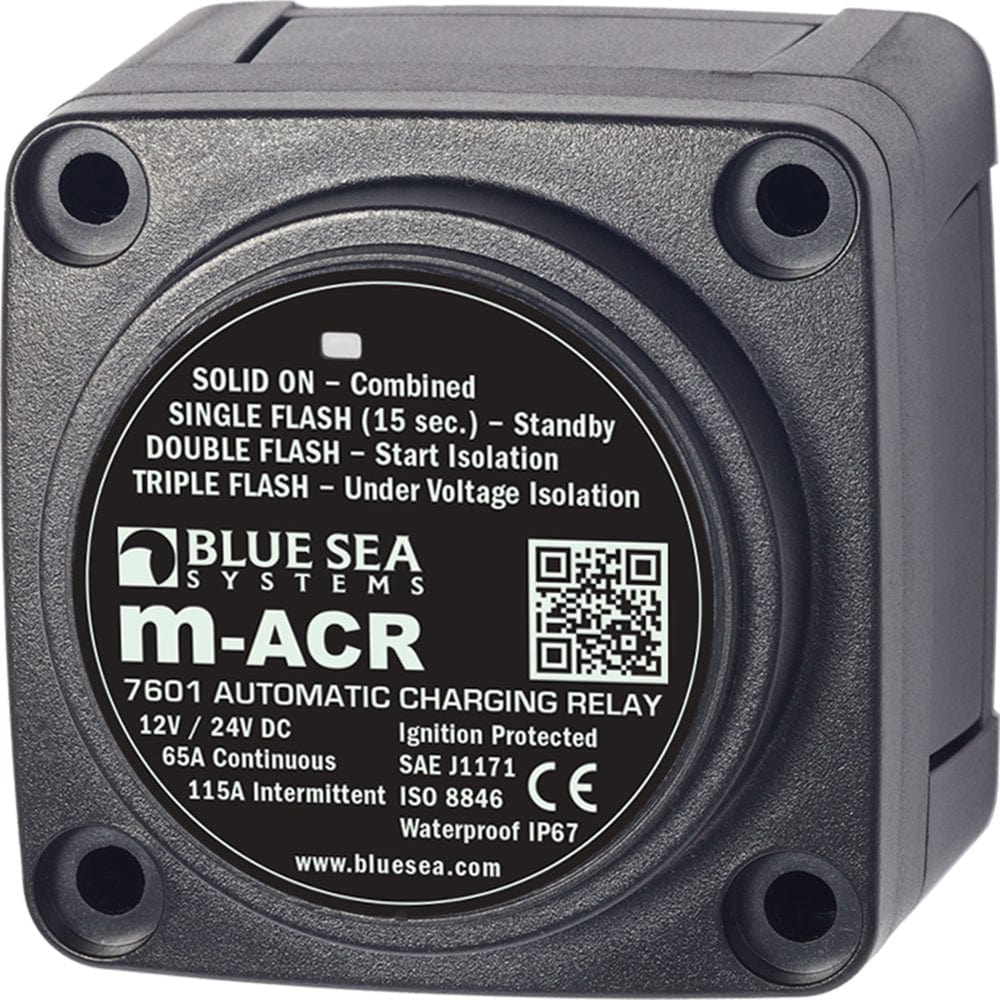

7601 DC Mini ACR Automatic Charging Relay - 65 Amp (Bulk - no packaging)

Features:

  • 65 Amp continuous rating manages the charging current from alternators up to 65 Amps found on most outboards and many inboard engines
  • Compact case design allows surface and panel mounting
  • Senses charging on two battery banks
  • Snap-on cover insulates terminal connections
  • LED indicates ACR status
  • 1/4" x .032" male quick connect terminal for ground
  • 5/8" (16 mm) stud length to accept multiple cable terminals
  • 12V DC voltage input



Specifications:

  • Intermittent Rating: 5 min.: 115A
  • Terminal Stud Size: 1/4"-20
  • Relay Contact Position: Open (30 sec.): 12.75V DC
  • Continuous Rating: 65A
  • Maximum Torque: 75 in-lb (8.5 Nm)
  • Relay Contact Position - Open High: 16.0V DC
  • Amperage Operating Current: 175mA (Combine)
  • Relay Contact Position: Combine (30 sec.): 13.0V DC
  • Under Voltage Lockout: 9.5V DC
  • Amperage Operating Current: 15mA (Open)
  • Relay Contact Position: Combine (2 min.): 13.6V DC
  • Maximum Cable Size: 1/0 AWG
  • Relay Contact Position: Open (10 sec.): 12.35V DC

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
