Maretron DM-DG1-DF-06.0 Network AccessoriesMaretron Mid Double-Ended Cordset - 6 M GrayMechanical:Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold Coupling Nut Mat/Plating: Brass/Nickel Connector Outside Diameter: 0.59"Electrical Current Rating: 4.0 Amps Voltage Rating: 250 VCable Outer Jacket Mat/Color: PVC/Gray Conductor Insulation Material: PE (data pair), PVC (power pair) Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire Shielding (3 Levels): Alum/Polyester Foil (Overall), Foil (Power Pair), Foil (Data Pair)ENVIRONMENTAL Protection Class: IEC IP68, NEMA 1,3,4,6P Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)APPROVALS (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4 NMEA: NMEA 2000 Approved IEC: IEC 61162-3 Specifications: Load Equivalence # (LEN) = NONE Normalized SKU: DMDG1DF060UPC Code: 873804001821

Maretron DM-DG1-DF-01.0 Network AccessoriesMid Double-Ended Cordset - 1 Meter - GrayDouble-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.Features: Rugged, IP68 rated connectors for continued connection integrity in marine environments Various cable lengths to match installatin requirements Optimized for voltage drop sensitive networks (long runs) because power pair wires have half the resistance of Micro cable Color: Gray Specifications:Load Equivalence # (LEN) = NONENormalized SKU: DMDG1DF010UPC Code: 873804001906

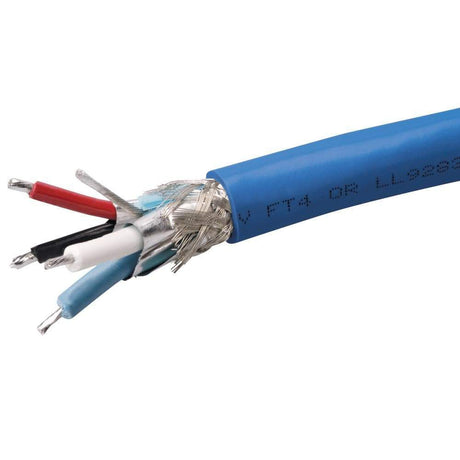

Maretron NB1-100C Network AccessoriesMaretron Mini Bulk Cable - 100 Meter - BlueSpecificationsOverall Outer Jacket Mat/Color:PVC/Blue - NB1, PVC/Gray - NG1 Insulation Material: PE (data), PVC (power) Construction: 2x15 (1.45mm) AWG, 2x18 (1.02mm) AWG, 18 (1.02mm) AWG Drain Wire Shielding (3 Levels): Foil (overall), Foil (power pair), Foil (data pair)Power Pair Wire: 2x15 (1.45mm) AWG Resistance/Conductor: 3.44 Ohms/1000 ft max Max Amperage: 16 Amps - NB1, 14 Amps - NG1 Color Code: Red/BlackData Pair Wire: 2x18 (1.02mm) AWG Characteristic Impedance: 120 Ohms +/- 10% Capacitance: 12 pF/1000 ft Max Color Code: White/BlueApprovals UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4 NMEA: NMEA 2000 APPROVED IEC: IEC-61162-3 Specifications: Load Equivalence # (LEN) = NONE Normalized SKU: NB1100CUPC Code: 873804003047

Maretron NM4P-05 Network AccessoriesMini Power Cordset - 2 Power & 2 Ground To Female - 5 Meter 2 Power & 2 Ground To Female 5 Meter Specifications:Load Equivalence # (LEN) = NONENormalized SKU: NM4P05UPC Code: 873804002439

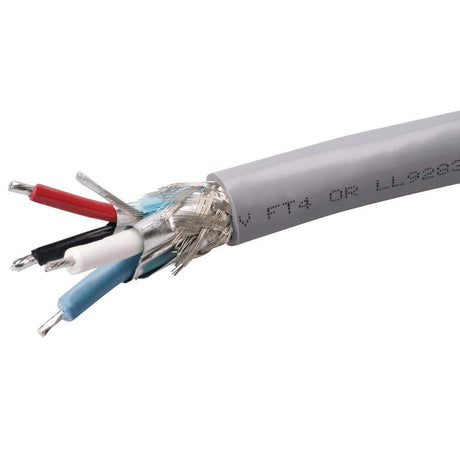

Maretron NG1-100C Network AccessoriesMaretron Mini Bulk Cable - 100 Meter - GraySpecificationsOverall Outer Jacket Mat/Color:PVC/Blue - NB1, PVC/Gray - NG1 Insulation Material: PE (data), PVC (power) Construction: 2x15 (1.45mm) AWG, 2x18 (1.02mm) AWG, 18 (1.02mm) AWG Drain Wire Shielding (3 Levels): Foil (overall), Foil (power pair), Foil (data pair)Power Pair Wire: 2x15 (1.45mm) AWG Resistance/Conductor: 3.44 Ohms/1000 ft max Max Amperage: 16 Amps - NB1, 14 Amps - NG1 Color Code: Red/BlackData Pair Wire: 2x18 (1.02mm) AWG Characteristic Impedance: 120 Ohms +/- 10% Capacitance: 12 pF/1000 ft Max Color Code: White/BlueApprovals UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4 NMEA: NMEA 2000 APPROVED IEC: IEC-61162-3 Specifications: Load Equivalence # (LEN) = NONE Normalized SKU: NG1100CUPC Code: 873804003054

Maretron LEMHTA400-S Network AccessoriesCurrent Transducer w/ cable - 400 amp - f/DCM100 WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications:Load Equivalence # (LEN) = NONENormalized SKU: LEMHTA400SUPC Code: 873804002781

Maretron LEMHTA600-S Network AccessoriesCurrent Transducer w/Cable - 600 amp - f/DCM100WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications:Load Equivalence # (LEN) = NONENormalized SKU: LEMHTA600SUPC Code: 873804002798

Maretron MN2KKIT Network AccessoriesMaretron NMEA 2000 Starter KitBuilding a New NMEA 2000 Network onboard? Save when buying this Maretron NMEA 2000 Starter Kit. Everything you need for a basic NMEA 2000 Bus/Network or to start a complex one. Please see the ACCESSORIES tab above if additional equipment is neededThe Kit Includes: One Micro/Mid Powertap Tee CF-SPWR05-CF Two Micro Tee CM-CF-CF Two Micro Terminators TR-CM One 3 meter Cordset CM-CG1-CF-03.0 Specifications:Load Equivalence # (LEN) = NONENormalized SKU: MN2KKIT

Maretron PX0837/5M00 Network AccessoriesPX0837/5M00Maretron Waterproof Ethernet Cable 16.4' Specifications:Load Equivalence # (LEN) = NONENormalized SKU: PX0837/5M00UPC Code: 873804003009

Maretron VDR100-00 Network AccessoriesMaretron VDR100-00 Vessel Data RecodeeMaretron's Vessel Data Recorder (VDR100) is used to record messages transmitted from every product interconnected on the vessel's NMEA 2000® network. Each message is stored using solid-state memory technology with simple data retrieval via a removable USB flash drive (purchased separately). Depending on the chosen USB flash drive memory size, a year or more of data can be stored. And you never have to worry about losing the most recent data because the VDR100 uses a circular buffer where the oldest data is overwritten only after the entire memory is filled.Recorded vessel data can be used in many ways including performance analysis, vessel tracking, preventative maintenance, network diagnostics, warranty incident, and accident investigation, all in an effort to reduce operating cost and improve safety. As an example of how the recorded data might be used, consider an NMEA 2000® fuel flow monitor plugged into the network, which will provide a complete record of how much fuel was used and how fast it was used. With a GPS antenna/receiver plugged into the NMEA 2000® network, you will have a complete record of where the vessel has been including its speed and course over ground.Analyzing and graphing recorded data is done using a spreadsheet program like Microsoft® Excel®. Simply remove the USB flash drive and plug it into a PC or Mac and run Maretron's free extraction software (N2KExtractor™). Choose any or all of the recorded data including the associated dates and times and the program will create a comma delimited file (.csv) that can be read into a spreadsheet for graphing or any other type of data analysis.With the VDR100, you have a complete record of all the information produced by NMEA 2000® products connected to the vessel's network. And because the VDR100 is engineered and manufactured to the highest standards (IEC 60945 Maritime Navigation and Radio Communication Equipment), your data is safely protected in a compact waterproof housing. Data Recorded on Solid State Memory via Removable USB Flash Drive Circular Buffer Preserves Latest Recorded Data while Oldest Data Overwritten when Memory is Full Recorded Data Available for Performance Analysis, Vessel Tracking, Preventive Maintenance, and More Optional Waterproof USB Flash Drive Cover Free Data Extraction Software (N2KExtractor™) builds Comma Delimited Files for Data Analysis USB Flash DrivesThe USB Flash Drives are supplied by the user. Depending on how much data you wish to record without overwriting older data, the following table can be used to determine the capacity of the USB Flash Drive you need. These figures are estimated assuming a 25% loaded system (approx 463 frames/second).Recording Period/Media Storage Capacity1 second / 7862 bytes1 minute / 471,750 bytes 1 hour / 29 MBytes1 day / 680 MBytes1 week / 5 GBytes1 month (30 days) / 21 GBytes1 year (365.25 days) / 248 GBytesWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:Load Equivalence # (LEN) = 4Normalized SKU: VDR10000UPC Code: 873804003399

Maretron QCM-CG1-QCF-01 Network AccessoriesNylon to Metal Connector CableSome products use inexpensive nylon connectors and when connected with metal connectors, the nylon threads can be damaged. This cable eliminates the problem by allowing nylon to nylon connections and metal to metal connections. NMEA 2000® Approved Waterproof rated to IP67 Specifications:Load Equivalence # (LEN) = NONENormalized SKU: QCMCG1QCF01UPC Code: 873804700267

Furuno 000-159-704 Network Accessories1 Meter Cable, RJ-45 to 6 PinWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 000159704UPC Code: 611679315656
