Iris Innovations IRIS-S076 Navigation Cameras

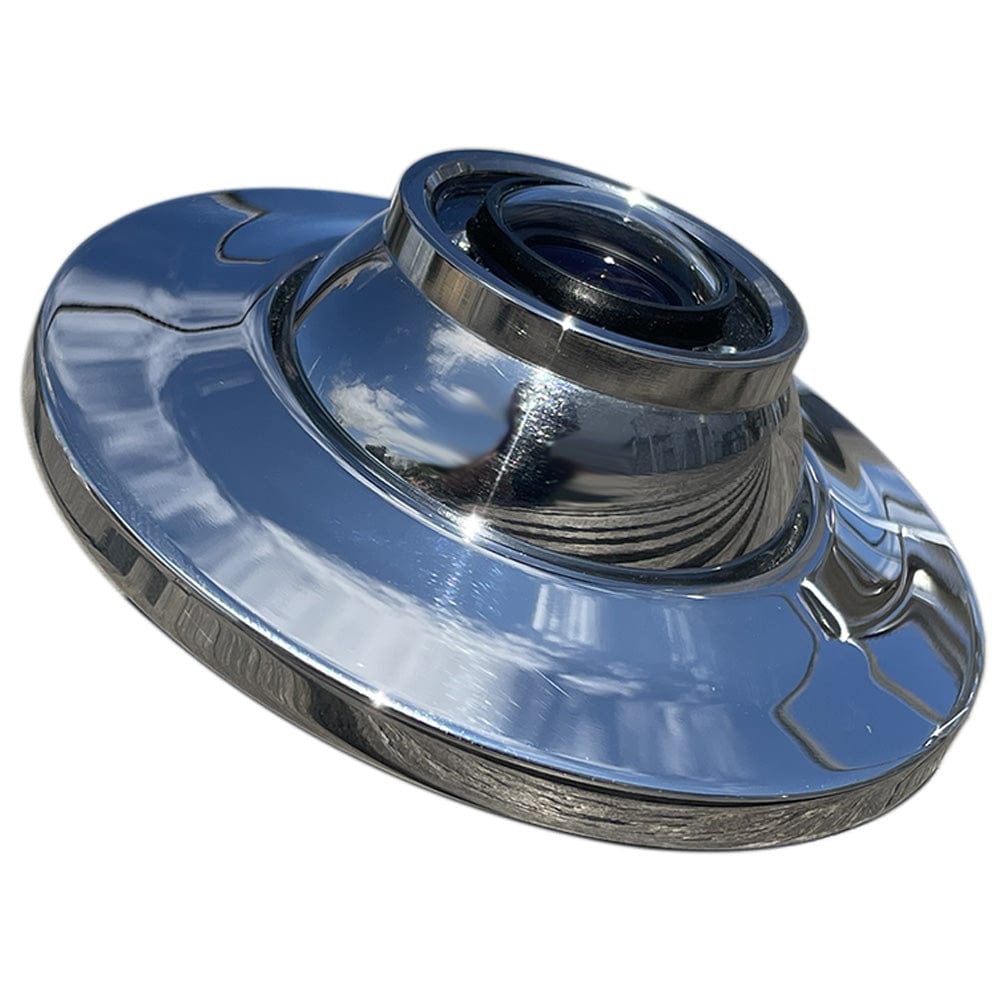

4-In-1 Flush Vertical Surface Mount  - 316L Marine Grade Stainless Steel - Recess Mount Dome

Iris’ Sx76 series camera is the first of its kind designed to be installed into a bulkhead or vertical surface. Its waterproof stainless steel case is machined from marine-grade 316L stainless steel, which means it will not corrode in harsh saltwater environments, making it a great option as a backup or docking camera for boats. By mounting the camera on the sides of your boat, it can even be used when mooring alongside jetties or pontoons.

During installation, the camera’s inner ball can be adjusted and locked into position by tightening the outer bezel to achieve the desired view.

For analog or analog hi-def (such as TVI / CVI / AHD) systems, the S076 version features 1080P resolution. The camera also outputs a CVBS signal for legacy composite video systems.

As well as marine applications, the camera's tough case, and small footprint make it a perfect visibility aid for recreational vehicles, fire and rescue trucks, and other applications requiring a robust and reliable high-definition camera.

The camera is certified to EN60945, EN55032, EN55035, and EN60529 (IP66) and is ONVIF compliant. For marine applications, the camera is directly compatible with Raymarine LH2 and above, Simrad, Lowrance, and B & G. For Garmin systems, use them in conjunction with Iris CMAC systems.

Features:

  • 1.8mm standard lens (160-degree horizontal field of view)
  • Corrosion-Proof 316L Marine Grade Stainless Steel
  • Available in 4-in-1 (CVBS, TVI, CVI, AHD) & IP formats
  • Analogue Hi-Def resolutions up to 1920x1080P resolution
  • IP Version - Max 3MP Hi-Def Resolution
  • Super wide angle 160-degree lens
  • IP version supports PoE and 12VDC - ultra-low power
  • Built-in infrared LED illumination (10m range)
  • EN60945, EN55032, EN55035, EN50529 (IP66) , FCC, CE
  • Shock & vibration proof
  • Super rugged and easy to install

Applications:

  • Perfect for extreme environments
  • Workboats & tug boats
  • Fishing vessels
  • Engine room monitoring
  • Law enforcement & military
  • Wind farm vessels
  • SUVs, RVs, work vehicles, and trucks
  • Luxury vessels
  • Passenger ferries & cruise liners

Specifications:

  • Lens (millimeter): 1.8mm
  • Horizontal Field of View: 160-degree HFOV
  • Sensor (inch): Sensor 1/4” CMOS Sensor
  • Resolution: CVBS: 960H / AHD, HD-TVI. HD-CVI: 1920 x 1080
  • Interface: OSD Menu via in-line Joystick in Cable Tail
  • Video Processing: Analogue / Analogue HD
  • Protocols/Video Format: 1VPP / 75Ω composite / AHD/TVI/CVI formats
  • Onvif: NA
  • Bitrate: NA
  • Illumination: 6 x 850nm Infra-Red - 10-meter range
  • Lens/Field of View: 1.8mm Standard (160-degree HFOV)
  • Mirroring: Horizontal & vertical configuration via the OSD
  • Automatic Gain Control: Supported / multiple levels
  • Compatibility: CVBS: All MFDs / Screens featuring composite video input AHD/TVI/CVI via interface or IRIS CMAC System
  • Operating Temperature: -30 + 60-degrees C
  • Connections: Video: Video - 75Ω BNC female / 2.1mm DC socket
  • Material: Marine Grade 316L Stainless Steel (highly polished as a standard)
  • Power: +12VDC (+10 +15VDC range) / 1W Nominal / 1.8W max. (LEDs on)
  • Power Over Ethernet (PoE): NA
  • Weight & Dimensions: 88mm ø x 22.25mm above and below the mounting surface
  • Environmental: EN60529 / IP66
  • EMC: EN55032:2015/A11:2020 & EN55035:2017/A11:2020 EN60945:2002 Sections 9 & 10 / FCC Part 15 A & B
  • RoHS: EN6300:2018

Normalized SKU: IRISS076
UPC Code: 5060777480219
