FLIR Systems Qualifies for Free Shipping FLIR SCION PTM166 Thermal Monocular 32d FOV IP Stream 60Hz #7TM-01-F310

FLIR SCION PTM166 Thermal Monocular 32d FOV IP Stream 60Hz #7TM-01-F310

$3,459.00 $3,511.58 -2% OFF

FLIR SCION PTM166 Thermal Monocular 32d FOV IP Stream 60Hz #7TM-01-F310

$3,459.00 $3,511.58 -2% OFF

FLIR SCION PTM166 Thermal Monocular 32d FOV IP Stream 60Hz #7TM-01-F310

$3,459.00 $3,511.58 -2% OFF

SKU: FLR-7TM-01-F310

UPC: 849815010169

Category: Navigation Cameras

More about this item

FLIR Systems 7TM-01-F310 Navigation Cameras

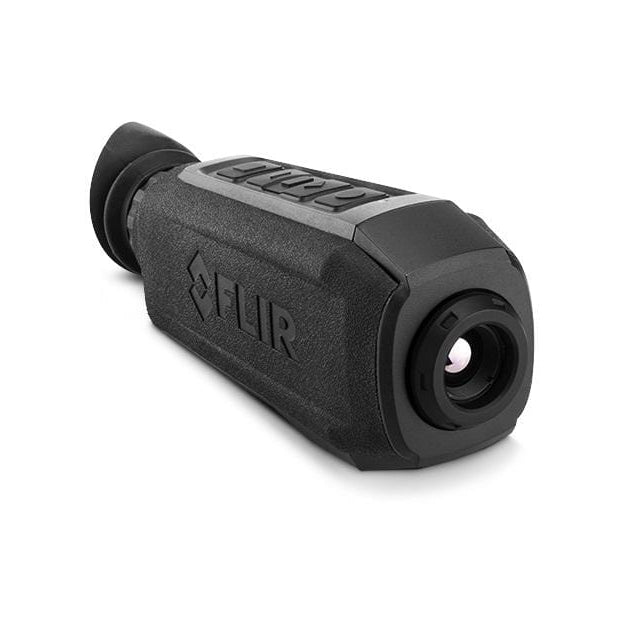

FLIR SCION PTM166 Thermal Imager 640x480 60 Hz 14mm

Model: 7TM-01-F310
  • Pairing Scion PTM with FLIR’s innovative TruWITNESS platform provides public safety agencies with enhanced situational awareness and real-time centralized information.
  • The full-featured Scion PTM packs onboard recording, picture-in-picture zoom, and intuitive controls into a rugged thermal optic
  • The advanced image processing of FLIR’s Boson® thermal core paired with a 60 Hz image refresh rate provide smooth, unwavering vision in challenging environments.
Specifications
Detector Type 640 x 512
Internal Memory 2 GB Internal Storage / Optional microSD™ Card (up to 128 GB)
Size 227 76.8 60.5 mm (9 3 2.4 in)
Weight Without Batteries: 452 g; With Batteries 572 g
SYSTEM OVERVIEW
Eye Relief 16 mm
Color (housing) Black
Lens System 14 mm
Optical Magnification .7x
Display Focus Manual
Core Technology BOSON 12 µm Vox Microbolometer
CONNECTIONS & COMMUNICATIONS
Bluetooth BLE 4.1+
USB USB-C; Power In; Video Out; Video and Image File Transfer
Geo Positioning [GPS] No
Wifi Video Streaming, File Transfer
ENVIRONMENTAL
Mounting ¼-20 Tripod Mount
IMAGING & OPTICAL
Digital Zoom 1X , 2X , 4X,8x
Field of View 32° 24°
Refresh Rate 60hz
Detection Range Performance [1.8 m man] 550m
METER DATA
Auto Power Off Yes
Display Quad-VGA (1280x960) High definition display
POWER
Battery Life Up to 4.5 hours at 20°C
Battery Type 6x CR123A 3V Lithium Battery
UI-UX
Temperature Imaging Modes White Hot; Black Hot; Iron Bow; Rainbow; Graded Fire; Lava
Viewing Modes Scouting, Picture-in-Picture
Picture While Recording Yes
Real Time Clock Yes
DateTime Stamp Yes
Magnetic Compass Yes
Accelerometer Yes

Normalized SKU: 7TM01F310
UPC Code: 849815010169
