FLIR Systems E70518R Navigation Cameras

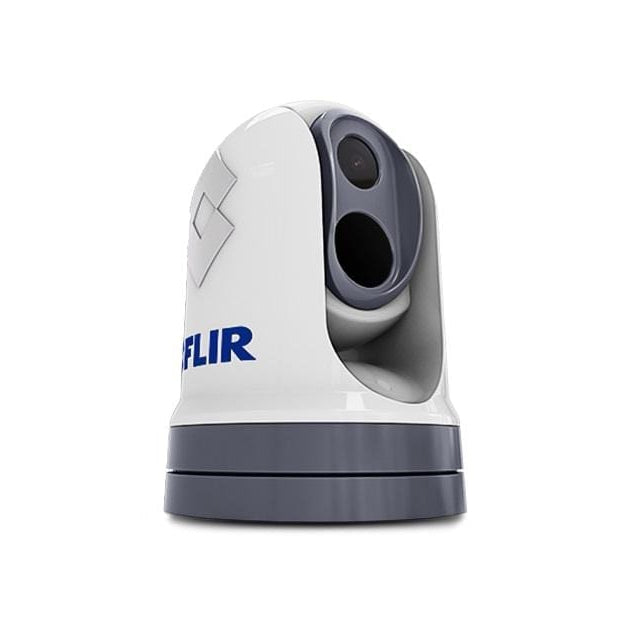

FLIR M364C Dual Payload Thermal Camera No JCU 640 x 480 24D HFoV - Remanufactured

Model: E70518R

Featuring a high definition low light camera and one of the most advanced FLIR thermal imaging cores, the M364C and M364C-LR provide an elite level of awareness on the water. Both cameras use multispectral imaging to deliver exclusive FLIR Color Thermal Vision™ (CTV) technology. Color Thermal Vision blends visible camera details with a thermal image, overlaying vital color imagery that allows captains to positively identify navigation aids and other vessels within the thermal scene. Outstanding imaging performance, intelligent object recognition technology, and enhanced gyro-stabilization make the M364C and M364-LR indispensable tools for law enforcement professionals, commercial mariners, and serious recreational boaters.

Thermal and visible imaging featuring FLIR Color Thermal Vision and MSX®.

Low light HD visible imaging sensor and long-range zoom offer enhanced target identification.

Two-axis mechanical stabilization virtually eliminates the effects of pitch, heave, and yaw.

Specifications
General
Detector Type 640 x 512 VOx Microbolometer
Field of View 24° x 18°
Image Processing FLIR Proprietary Digital Detail Enhancement
HD-SDI Lossless Video Output Yes
Network Video Output Single H.264 Network Video Stream
Pan & Tilt Adjustment Range 360° Continuous Pan, +/- 90° Tilt
Pan/Tilt Yes
Color Camera
E-Zoom - Color 12x
Connections & Communications
Analog Video Output NTSC/PAL User Settable
Analog Video Connector Types BNC
Daylight Imaging
Zoom 30x Optical Zoom
Detector Type - Daylight 1/2.8" Exmor R CMOS
Field of View - Daylight Optical 63.7° x 35.8° WFOV to 2.3° x 1.29° NFOV
Focal Length - Daylight 129 mm to 4.3 mm
Lines of Resolution - Daylight High Definition up to 1080/30p
Minimum Illumination - Daylight 0.1 lux (50 IRE, 1/30s, ICR off, slow shutter off, high sensitivity off) / 0.0008 lux (30 IRE, ICR on, slow shutter 1/4s, high sensitivity on)
Environmental
Automatic Window Defrost Standard at Power-Up
EMI IEC60945
Lightning Protection Standard
Operating Temperature Range -13°F to +131°F (-25°C to +55°C)
Salt Mist IEC60945
Shock 15g vertical, 9g horizontal
Storage Temperature Range -30°F to +158°F (-30°C to +70°C)
Vibration IEC60945
Water Ingress IPX6 (heavy seas, power jets of water)
Wind 100 knots (115.2 MPH)
Sand & Dust Ingress Mil-Std-810E or IP6X
Marine Imaging & Optical
Focus Fixed 12ft (3m) to infinity
Thermal Imaging
Continuous E-Zoom 8x
Focal Length - Thermal 18mm
Video Refresh Rate - Thermal 30 Hz

What's in the Box:
  • M364C Camera unit - Remanufactured
  • Camera base-seal
  • Camera gasket
  • RayNet-to-RJ45 adaptor cable 120 mm (4.72 in.)
  • Right-angled RayNet-to-RayNet cable 3 m (9.8 ft.)
  • Right-angled BNC-to-BNC cable 3 m (9.8 ft.)
  • Right-angled 3-pin power cable 3 m (9.8 ft.)
  • Mounting riser
  • 3 x camera xings: nuts, dome nuts, spring and at washers, threaded studs
  • 2 x self-adhesive decals (for ball-down mounting only)
  • Documentation pack
