Motor Plates

Bob's Machine Shop Bob's Machine Lower Standard Transom Backing Plate #110-215000 $3.38 $3.98

Bob's Machine Shop 110-215000 Bob's Machine Shop's transom backing plates are a machined product made out of cold rolled plate. Unlike competitors that use a weak casting, our backing plates are made to last! Includes one lower plate for all Standard BIA boat pattern motors. This is a good addition with the installation of a jack plate to help spread the load of the plate/engine across more of the transom than just the bolts/washers, and it looks great! Constructed of cold rolled plate and made to last Includes one lower plate for all Standard BIA boat pattern motors Good addition with the installation of a jack plate to help spread the load of the plate/engine across more of the transom than just the bolts/washers In addition to great functionality, Bob's Backing Plates look great! Normalized SKU: 110215000UPC Code: 818377011143

-20% sale

T-H Marine Qualifies for Free Shipping T-H Marine Atlas Blinker Trim System Single Switch #FFBT-SSS-DP

T-H Marine T-H Marine Atlas Blinker Trim System Single Switch #FFBT-SSS-DP $90.28 $112.07

Download LiteratureT-H Marine FFBT-SSS-DP Motor PlatesATLAS FingerFlex Blinker Trim Control for Hydraulic Helms - Single Control SwitchUPDATED DESIGN: FingerFlex "Blinker Style" Steering Wheel Trim SwitchT-H Marine offers the answer to convenient trim control for hydraulic helms - FingerFlex. Simple and easy to install, this unit can be added to any boat with only a moderate amount of difficulty.FingerFlex incorporates "Positive Clicking" technology that provides a positive touch and feel so, unlike similar systems, you know when your trim is operating and that's important when you really need it!FingerFlex can be installed on the right or left side of the bezel or both for dual controls. It can also be used to control hydraulic jack plates in addition to tilt and trim systems. Versions are also available to fit most mechanical steering systems.Features: The Ultimate in Trim Control for Hydraulic Helms Positive clicking technology for positive touch Operates engine trim and/or jack plates Fits hydraulic, cable, and tilt steering Easy installation Specifications: "Blinker" style switches allow quick and easy trim control Available in single or dual configurations Normalized SKU: FFBTSSSDPUPC Code: 733572238761T-H Marine FFBT-SSS-DP Literature Download Quick Reference Guide

Sold out -20% sale

Bob's Machine Shop Qualifies for Free Shipping Bob's Machine Relay Wiring Harness #120-150011

Bob's Machine Shop Bob's Machine Relay Wiring Harness #120-150011 $96.43 $119.70

Bob's Machine Shop 120-150011 The Bob's Machine Shop 120-150011 is a relay wiring harness designed for use with Bob's Machine Shop jack plate systems. The relay harness is the electrical backbone that connects the jack plate's relay to the power source and control switch, allowing the hydraulic or electric actuator to raise and lower the motor on command. If your jack plate is not responding to the switch, moves intermittently, or the existing harness shows signs of corrosion, chafing, or damaged connectors, replacing the harness is often the first and most straightforward fix before looking at the relay or actuator itself. As a genuine Bob's Machine Shop part, the 120-150011 is built to integrate directly with compatible Bob's Machine Shop jack plate setups, ensuring the connector fit and wire gauge are correct for the system. Complete Action Series jack plate wiring harness with Deutsch connections Can not be used for Standard Series jack plates Normalized SKU: 120150011UPC Code: 818377012652

Bob's Machine Shop Bob's Machine Shop Wire Harness Standard Pumps #120-150000 $36.08 $43.07

Bob's Machine Shop 120-150000 Wire Harness Fits Standard Pumps Normalized SKU: 120150000UPC Code: 818377012591

Sold out -20% sale

Bob's Machine Shop Qualifies for Free Shipping Bob's Machine 4

Bob's Machine Shop Bob's Machine 4" Replacement Action Pump Assembly #120-120016B $513.74 $641.21

Bob's Machine Shop 120-120016B The Action Series pump. For jack plates manufactured in 2020 and later, you just need a pump. For Jack plates manufactured 2019 and earlier, you need the refit kit with a new clevis bracket and lower bar. Complete hydraulic pump/reservoir/motor in one compact unit. New Gen 2 unit for faster/smoother/heavier loads! New plastic motor housing. Normalized SKU: 120120016BUPC Code: 818377012508

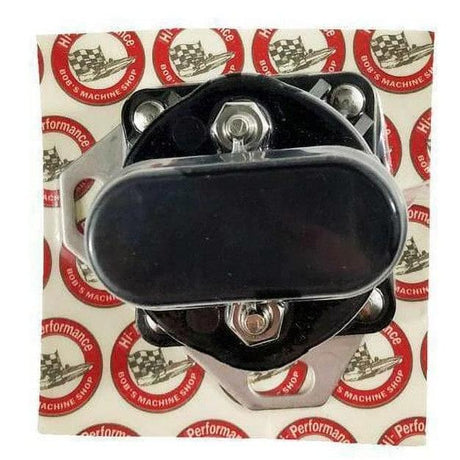

Bob's Machine Shop Qualifies for Free Shipping Bob's Machine Shop Solenoid Standard Jack Plate #120-111000

Bob's Machine Shop Bob's Machine Shop Solenoid Standard Jack Plate #120-111000 $30.92 $36.91

Bob's Machine Shop 120-111000 Replacement of the solenoid for Bob’s Machine jack plates with a standard series pump (Flats jacs, Ultra light, Std Extreme, etc) This solenoid is the “new” style that has been in use since September 2012. If your jack plate was made on or after that date, this is a direct fit replacement. If you have an older jack plate, you will need to purchase the solenoid upgrade kit, as this unit will not fit onto your old pump backing plate. Normalized SKU: 120111000UPC Code: 0313035631669

-20% sale

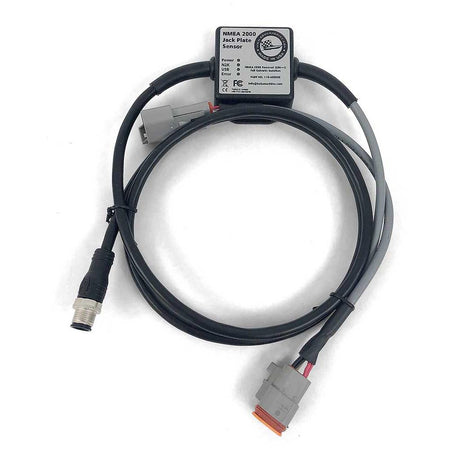

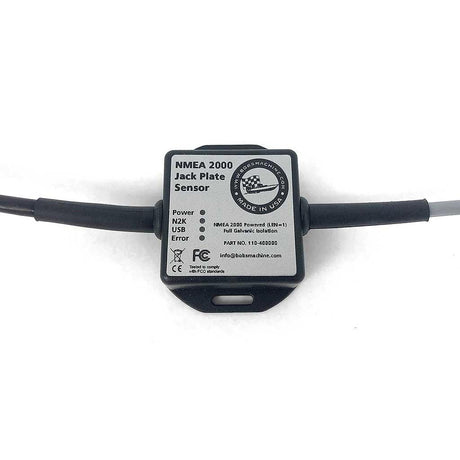

Bob's Machine Shop Qualifies for Free Shipping Bob's Machine NMEA Kit complete with Black Gauge #110-400004

Bob's Machine Shop Bob's Machine NMEA Kit complete with Black Gauge #110-400004 $574.89 $717.54

Bob's Machine Shop 110-400004 Bob’s Machine NMEA connector. Garmin. Humminbird & Raymarine supported! Navico (Simrad/Lowrance) coming soon. Please make sure to check your units compatibility & software version to make sure Jack Plates are supported, many older units do not have the newest software updates available to integrate. Connect your Bob’s Machine jack plate to your Multi-Function Display and view your jack plate height. Simple plug-and-play technology into your NMEA backbone. 110-400004 – NMEA Kit complete with Black Gauge Normalized SKU: 110400004UPC Code: 818377012263

-18% sale

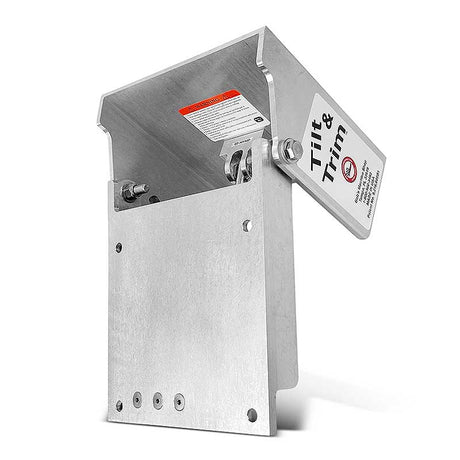

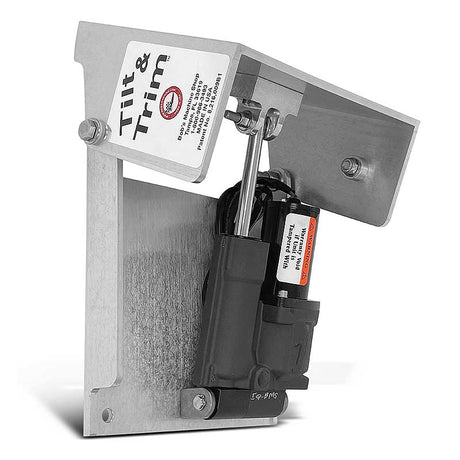

Bob's Machine Shop Not Qualified for Free Shipping Bob's Machine Clamp-on Motor Tilt and Trim Action Series 30 HP #100-701100-NOPC

Bob's Machine Shop Bob's Machine Clamp-on Motor Tilt and Trim Action Series 30 HP #100-701100-NOPC $948.15 $1,148.15

Bob's Machine Shop 100-701100-NOPC New Action series Tilt and Trim, all in one unit! Easy rigging and tons of benefits! For outboard owners without factory tilt and trim, Bob’s Machine Shop has a solution. Designed for motors up to 30hp (2 Stroke, clamp on style only), BMS’s hydraulic Tilt & Trim can provide increased performance, better handling, and less hassle raising and lowering the motor at the launch ramp. The Tilt & Trim allows boat operators to trim the boat for a smoother, drier ride. When fully trimmed in, it provides a negative 3-degree tuck-under angle for faster starts and quicker on-plane times. After reaching plane, the boat can be optimized for the best running angle by trimming the tilt up to its maximum of 65 degrees. A 5-1/2 inch setback is standard. The hydraulically operated Tilt & Trim will accommodate clamp-on motors, not standard BIA bolt pattern style. Call for questions. The overall mounting dimensions are: 10″ wide by 11.5″ length BMS’s Tilt & Trim is easy to install. It comes with wiring harness, control switch and carries a limited lifetime structural warranty. Includes trim plate, wiring harness, relays, rocker style switch Limited Lifetime Structure Warranty against manufacturing defects 3-Year Action Pump Warranty Stackable spacers for the clamps are included standard! Normalized SKU: 100701100NOPCUPC Code: 894721000872

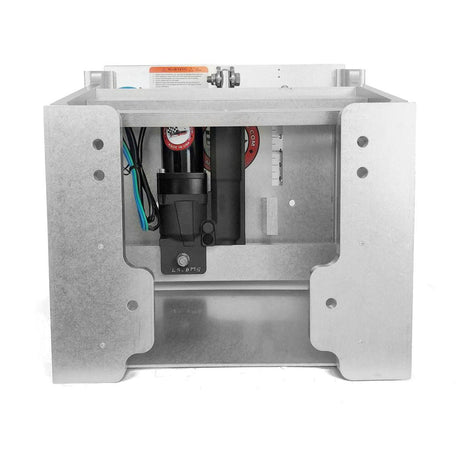

Bob's Machine Shop Not Qualified for Free Shipping Bob's Machine 12

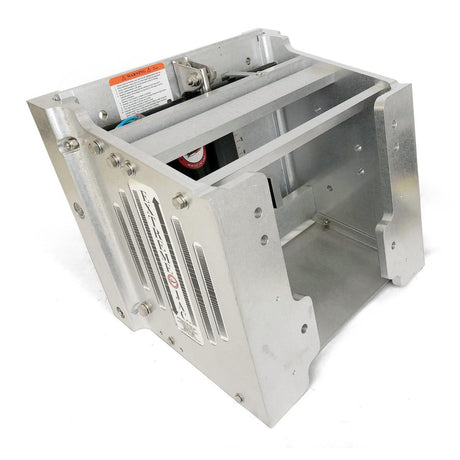

Bob's Machine Shop Bob's Machine 12" Setback Gen 3 Extreme ACTION 550 HP V10 Black PC #100-612005P-PCGB $2,147.44 $2,491.03

Bob's Machine Shop 100-612005P-PCGB Extreme Gen 3 series support motors up to a 15″ mounting width. If using wider motor such as the Yamaha XTO, a set of 1″ spacers will be required for clearance. Bob’s Machine Shop has re engineered their world famous jack plate for new 550+hp engines including V10’s. The Extreme Gen 3 Action has the all in one style pump, built into the jack plate so no hoses or pump to mount inside the boat. This makes rigging the boat extremely easy! The Extreme Gen 3 Action series jack plates are available in 4, 6, 8, 10 & 12″ setbacks to suit every application. Jack plates are no longer just for fishing boats, offshore boaters will enjoy the extra speed and increased fuel economy from BMS’s new line. Jack plates are used to improve an outboard boat's speed, hole shot, and fuel efficiency, and the boater navigates in shallow waters. Includes Jack plate, wiring harness, relays, rocker style switch Limited Lifetime Structure Warranty against manufacturing defects 3-Year Action Pump Warranty Shown in Satin, this one is black Powdercoated Normalized SKU: 100612005PPCGBUPC Code: 818377014540

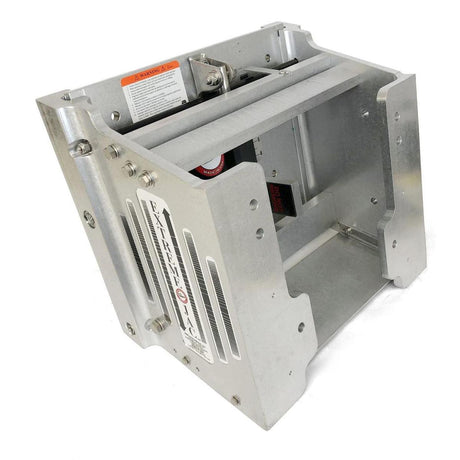

Bob's Machine Shop Truck Freight - Not Qualified for Free Shipping Bob's Machine 10

Bob's Machine Shop Bob's Machine 10" Setback Gen 3 Extreme ACTION 550 HP V10 Black PC #100-610005P-PCGB $2,067.30 $2,398.07

Bob's Machine Shop 100-610005P-PCGB Extreme Gen 3 series support motors up to a 15″ mounting width. If using wider motor such as the Yamaha XTO, a set of 1″ spacers will be required for clearance. Bob’s Machine Shop has re engineered their world famous jack plate for new 550+hp engines including V10’s. The Extreme Gen 3 Action has the all in one style pump, built into the jack plate so no hoses or pump to mount inside the boat. This makes rigging the boat extremely easy! The Extreme Gen 3 Action series jack plates are available in 4, 6, 8, 10 & 12″ setbacks to suit every application. Jack plates are no longer just for fishing boats, offshore boaters will enjoy the extra speed, and increased fuel economy from BMS’s new line. Jack plates are used to improve an outboard boats speed, hole shot, fuel efficiency, and the boater navigates in shallow waters. To help find the correct setback for your boat, give us a call! 1-813-247-7040 Includes Jack plate, wiring harness, relays, rocker style switch Limited Lifetime Structure Warranty against manufacturing defects 3 Year Action Pump Warranty Normalized SKU: 100610005PPCGBUPC Code: 818377014533

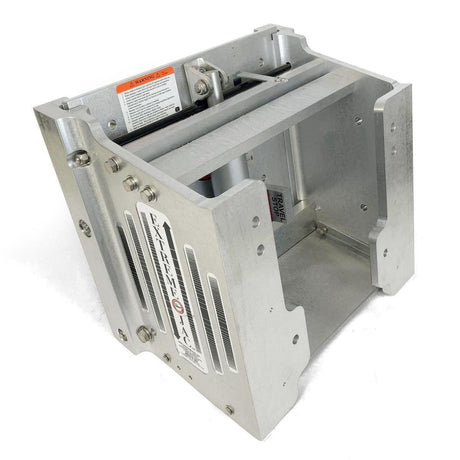

Bob's Machine Shop Bob's Machine 10" Setback Gen 3 Extreme ACTION 550 HP V10 #100-610002 $1,885.40 $2,187.06

Bob's Machine Shop 100-610002 Extreme Gen 3 series support motors up to a 15″ mounting width. If using wider motor such as the Yamaha XTO, a set of 1″ spacers will be required for clearance. Bob’s Machine Shop has re engineered their world famous jack plate for new 550+hp 1000lbs engines including V10’s. The New Gen 3 Extreme is wider allowing for Verado installation without the use of spacers. Through innovative engineering, BMS’s new Extreme Series (TM) jack plates are their strongest yet. The Extreme series jack plates are available in 4, 6, 8, 10, & 12″ setbacks to suit every application. Jack plates are no longer just for fishing boats, offshore boaters will enjoy the extra speed, and increased fuel economy from BMS’s new line. Jack plates are used to improve an outboard boats speed, holeshot, fuel efficiency, and the boater navigate in shallow waters. Extreme Gen3 standard series – Remote mount pump, 7′ hose set, switch, and all wiring required. For all in one jack plate, see Extreme Gen3 Action series Normalized SKU: 100610002UPC Code: 818377010115

-6% sale

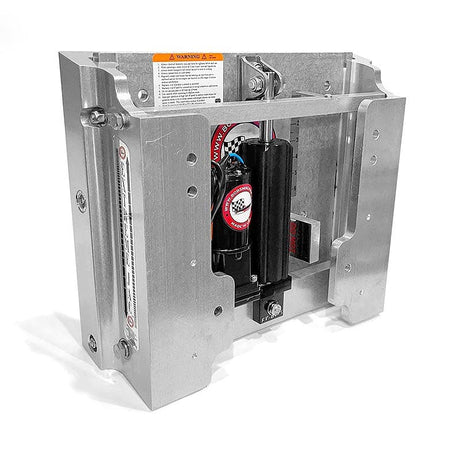

Bob's Machine Shop Not Qualified for Free Shipping Bob's Machine 4

Bob's Machine Shop Bob's Machine 4" Setback Gen 3 Extreme ACTION 550 HP V10 #100-604005 $1,800.00 $1,905.45

Bob's Machine Shop 100-604005 Extreme Gen 3 series support motors up to a 15″ mounting width. If using a wider motor such as the Yamaha XTO, a set of 1″ spacers will be required for clearance. Bob’s Machine Shop has re engineered their world famous jack plate for new 550+hp engines including V10’s. The Extreme Gen 3 Action has the all in one style pump, built into the jack plate so no hoses or pump to mount inside the boat. This makes rigging the boat extremely easy! The Extreme Gen 3 Action series jack plates are available in 4, 6, 8, 10 & 12″ setbacks to suit every application. Jack plates are no longer just for fishing boats, offshore boaters will enjoy the extra speed, and increased fuel economy from BMS’s new line. Jack plates are used to improve an outboard boat's speed, hole shot, fuel efficiency, and the boater navigates in shallow waters. Includes Jack plate, wiring harness, relays, rocker style switch Limited Lifetime Structure Warranty against manufacturing defects 3 Year Action Pump Warranty Normalized SKU: 100604005UPC Code: 818377013826

Sold out -14% sale

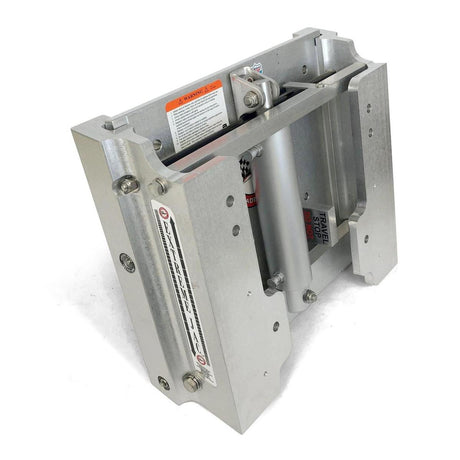

Bob's Machine Shop Not Qualified for Free Shipping Bob's Machine Shop 4

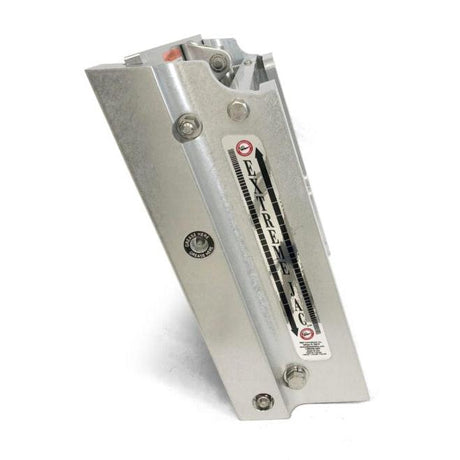

Bob's Machine Shop Bob's Machine Shop 4" Setback Gen 3 Extreme 550 HP V10 #100-604002 $1,653.25 $1,917.77

Bob's Machine Shop 100-604002 Extreme Gen 3 series support motors up to a 15″ mounting width. If using wider motor such as the Yamaha XTO, a set of 1″ spacers will be required for clearance. Bob’s Machine Shop has re engineered their world famous jack plate for new 550+hp 1000lbs engines including V10’s. The New Gen 3 Extreme is wider allowing for Verado installation without the use of spacers. Through innovative engineering, BMS’s new Extreme Series (TM) jack plates are their strongest yet. The Extreme series jack plates are available in 4, 6, 8, 10, & 12″ setbacks to suit every application. Jack plates are no longer just for fishing boats, offshore boaters will enjoy the extra speed, and increased fuel economy from BMS’s new line. Jack plates are used to improve an outboard boats speed, holeshot, fuel efficiency, and the boater navigate in shallow waters. Extreme Gen3 standard series – Remote mount pump, 7′ hose set, switch, and all wiring required. For all in one jack plate, see Extreme Gen3 Action series Normalized SKU: 100604002UPC Code: 818377010078

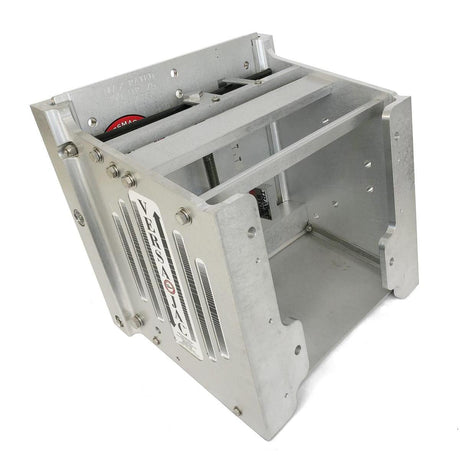

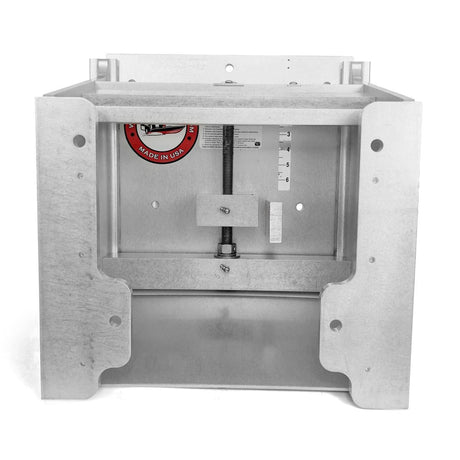

Bob's Machine Shop Bob's Machine 12" Setback HD Versa Series Jack Plate 300 HP Max #100-512000 $1,049.59 $1,259.51

Bob's Machine Shop 100-512000 Bob’s Machine Shop’s Versa Jac jack plate line, offers new technology in the Jack Plate market. The first & only jack plate to offer an upgrade kit for boaters to convert to Hydraulic at a later date! Made of high-quality, aircraft-grade aluminum, the patent pending Versajac™ has the same look as Bob’s popular line of hydraulic jacks. It is rated for engines up to 300 hp and is available in 4″, 6″, 8″, 10″, 12″ & 14″ setbacks as well as our mini jack plate line. Adjusting the jackplate for optimum results is easily done while the boat is in the water. When it’s time to upgrade from manual to all-hydraulic operation, converting the jack is simple. Using a few basic hand tools, remove the Versajac’s manual screw assembly and swap it out for the new hydraulic cylinder kit. Then install the pump inside the boat. All BMS’s hydraulic pumps are designed to mount inside for longevity and protection from the elements. Jack plates have “limited lifetime warranty” and pumps have a 5 year warranty (excluding water damage). Bob’s Versa Jac, Jack plates offer 1-piece design, unlike competitors that require setback spacers to achieve the proper setback. Lifetime warranty on structure Can be converted to Hydraulic if owner desires to change styles Automotive grease nipples for easy lubrication Tension rods Made in USA, in our own factory in Tampa, Florida Rated for 300HP, up to 625 lbs motors (heavier should use Extreme series) Pre-drilled for dual side mount Power Pole brackets. Comes with Standard Splash Pan, but can be upgraded to Performance Hole Shot model Normalized SKU: 100512000UPC Code: 894721000704

Bob's Machine Shop Not Qualified for Free Shipping Bob's Machine 10

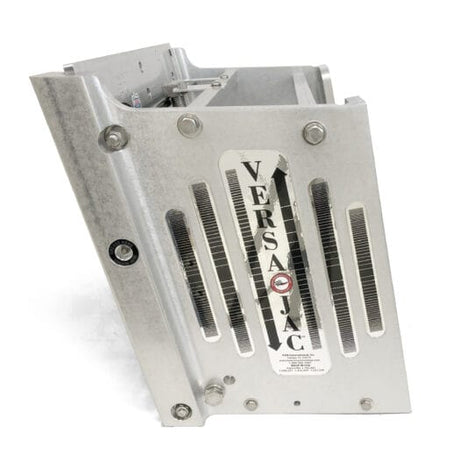

Bob's Machine Shop Bob's Machine 10" Setback HD Versa Series Jack Plate 300 HP Max #100-510000 $962.78 $1,155.33

Bob's Machine Shop 100-510000 Bob’s Machine Shop’s Versa Jac jack plate line, offers new technology in the Jack Plate market. The first & only jack plate to offer an upgrade kit for boaters to convert to Hydraulic at a later date! Made of high-quality, aircraft-grade aluminum, the patent pending Versajac™ has the same look as Bob’s popular line of hydraulic jacks. It is rated for engines up to 300 hp and is available in 4″, 6″, 8″, 10″, 12″ & 14″ setbacks as well as our mini jack plate line. Adjusting the jackplate for optimum results is easily done while the boat is in the water. When it’s time to upgrade from manual to all-hydraulic operation, converting the jack is simple. Using a few basic hand tools, remove the Versajac’s manual screw assembly and swap it out for the new hydraulic cylinder kit. Then install the pump inside the boat. All BMS’s hydraulic pumps are designed to mount inside for longevity and protection from the elements. Jack plates have “limited lifetime warranty” and pumps have a 5 year warranty (excluding water damage). Bob’s Versa Jac, Jack plates offer 1 piece design, unlike competitors that require setback spacers to achieve the proper setback. Lifetime warranty on structure Can be converted to Hydraulic if owner desires to change styles Automotive grease nipples for easy lubrication Tension rods Made in USA, in our own factory in Tampa, Florida Rated for 300HP, up to 625 lbs motors (heavier should use Extreme series) Pre drilled for dual side mount Power Pole brackets. Normalized SKU: 100510000UPC Code: 686461273179

-18% sale

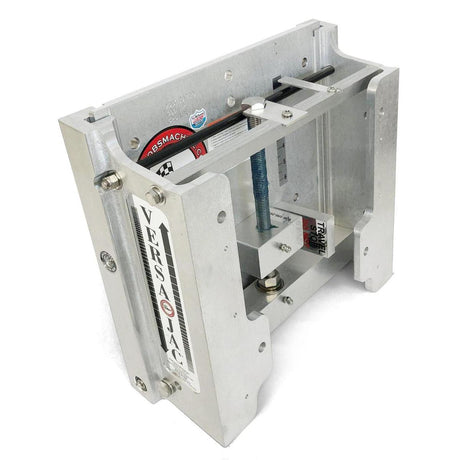

Bob's Machine Shop Not Qualified for Free Shipping Bob's Machine 6

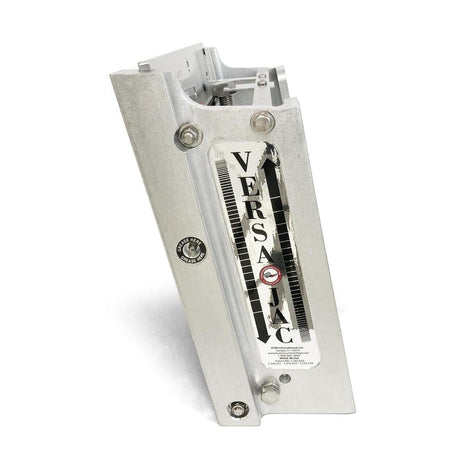

Bob's Machine Shop Bob's Machine 6" Setback HD Versa Series Jack Plate 300 HP Max #100-506000 $822.71 $996.25

Bob's Machine Shop 100-506000 Bob’s Machine Shop’s Versa Jac jack plate line, offers new technology in the Jack Plate market. The first & only jack plate to offer an upgrade kit for boaters to convert to Hydraulic at a later date! Made of high-quality, aircraft-grade aluminum, the patent pending Versajac™ has the same look as Bob’s popular line of hydraulic jacks. It is rated for engines up to 300 hp and is available in 4″, 6″, 8″, 10″, 12″ & 14″ setbacks as well as our mini jack plate line. Adjusting the jackplate for optimum results is easily done while the boat is in the water. When it’s time to upgrade from manual to all-hydraulic operation, converting the jack is simple. Using a few basic hand tools, remove the Versajac’s manual screw assembly and swap it out for the new hydraulic cylinder kit. Then install the pump inside the boat. All BMS’s hydraulic pumps are designed to mount inside for longevity and protection from the elements. Jack plates have “limited lifetime warranty” and pumps have a 5 year warranty (excluding water damage). Bob’s Versa Jac, Jack plates offer 1 piece design, unlike competitors that require setback spacers to achieve the proper setback. Lifetime warranty on structure Can be converted to Hydraulic if owner desires to change styles Automotive grease nipples for easy lubrication Tension rods Made in USA, in our own factory in Tampa, Florida Rated for 300HP, up to 625 lbs motors (heavier should use Extreme series) Pre-drilled for dual side mount Power Pole brackets. Normalized SKU: 100506000UPC Code: 894721000674

-18% sale

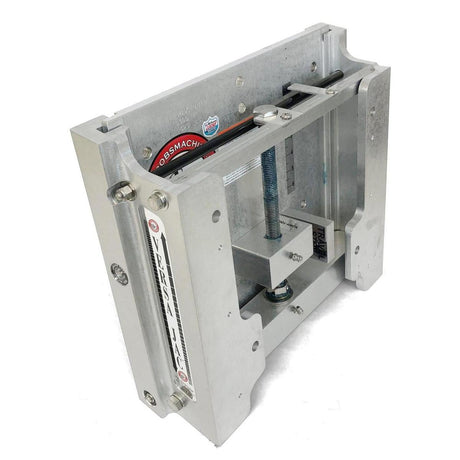

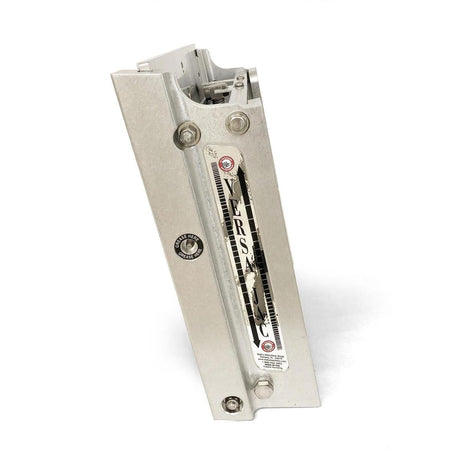

Bob's Machine Shop Bob's Machine 4" Setback HD Versa Series Jack Plate 300 HP Max #100-504100 $780.49 $945.13

Bob's Machine Shop 100-504100 Bob’s Machine Shop’s Versa Jac jack plate line offers new technology in the Jack Plate market. The first & only jack plate to offer an upgrade kit for boaters to convert to Hydraulic at a later date! Made of high-quality, aircraft-grade aluminum, the patent pending Versajac™ has the same look as Bob’s popular line of hydraulic jacks. It is rated for engines up to 300 hp and is available in 4″, 6″, 8″, 10″, 12″ & 14″ setbacks as well as our mini jack plate line. Adjusting the jack plate for optimum results is easily done while the boat is in the water. When it’s time to upgrade from manual to all-hydraulic operation, converting the jack is simple. Using a few basic hand tools, remove the Versajac’s manual screw assembly and swap it out for the new hydraulic cylinder kit. Then, install the pump inside the boat. All BMS’s hydraulic pumps are designed to be mounted inside for longevity and protection from the elements. Jack plates have a “limited lifetime warranty” and pumps have a 5 year warranty. Versa series support motors up to a 14.5″ mounting width. If wider we recommend our Extreme Gen 3 Versa series jack plates. Bob’s Versa Jac, Jack plates offer 1 piece design, unlike competitors that require setback spacers to achieve the proper setback. Lifetime warranty on structure Can be converted to Hydraulic if owner desires to change styles Automotive grease nipples for easy lubrication Tension rods Made in USA, in our own factory in Tampa, Florida Rated for 300HP, up to 625 lbs motors (heavier should use Extreme series) Pre-drilled for dual side mount Power Pole brackets. Normalized SKU: 100504100UPC Code: 894721000650

Sold out -14% sale

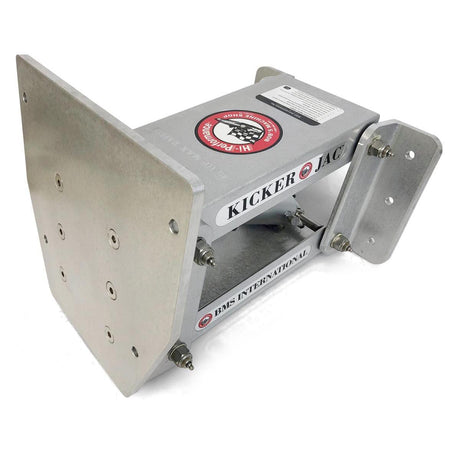

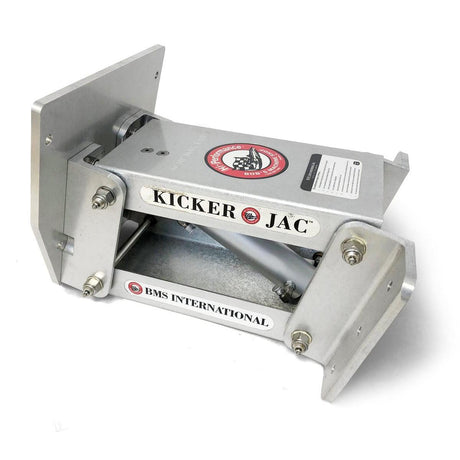

Bob's Machine Shop Not Qualified for Free Shipping Bob's Machine Kicker Jac up to 150 HP 4-Stroke Motors #100-300000

Bob's Machine Shop Bob's Machine Kicker Jac up to 150 HP 4-Stroke Motors #100-300000 $2,000.00 $2,320.00

Bob's Machine Shop 100-300000 Bob’s Machine Shop’s Kicker Jac With a maximum engine rating of 40 hp, BMS’s hydraulic kicker jack plate provides slow-speed power for cruisers, auxiliary power for sailboats, and trolling power for fishermen. Sailboat skippers will appreciate the jack plate’s ability to reduce engine drag while under sail. For economy, powerboaters can fire up their kicker for no-wake zones, slow cruising or when navigating shallow backwaters. And, the jack provides anglers with the option of using just one motor for trolling and main power. The kicker jack is built with 6061 T-6 aircraft-grade aluminum to ensure high strength with minimal weight.All of Bob’s Machine’s hydraulic jack plate motors are mounted inside the boat for long life and easy maintenance.An optional wireless control kit allows the skipper to operate the jack plate remotely with a small key fob from anywhere on the boat. Rated to 40HP 4 strokes Patented design has 16-inch (40.6 cm) lift Custom hose lengths are available Through hull fittings available 5-year warranty on hydraulic pump Optional wireless control Complete package including the kicker jac, hydraulic pump, 10′ hoses, wiring harness, switch and fluid. Limited lifetime warranty against structural defects Weighs 48 lbs (21.7 KG) plate weight Normalized SKU: 100300000UPC Code: 894721000612

Bob's Machine Shop Not Qualified for Free Shipping Bob's Machine 14
