Bob's Machine Shop 100-701100-NOPC

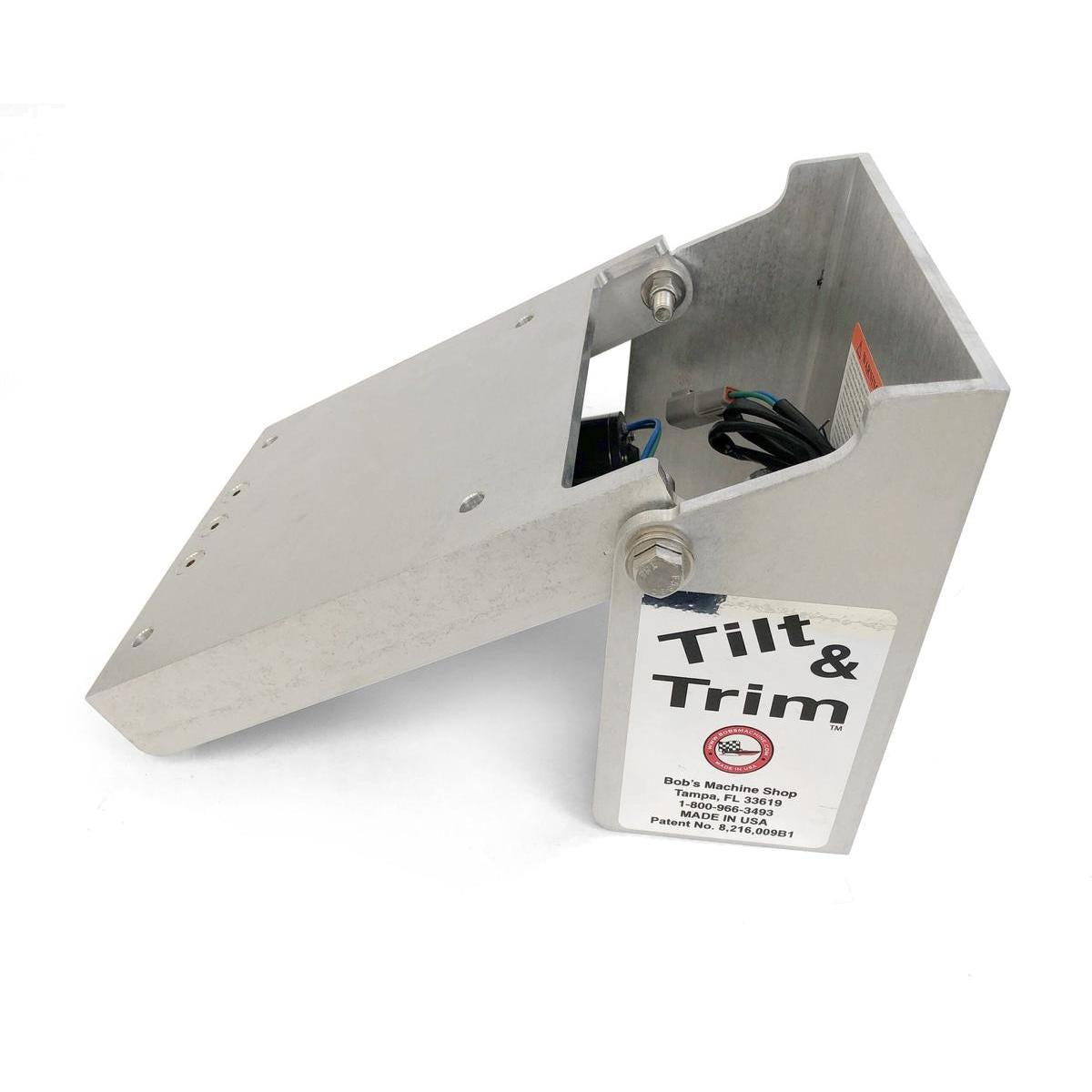

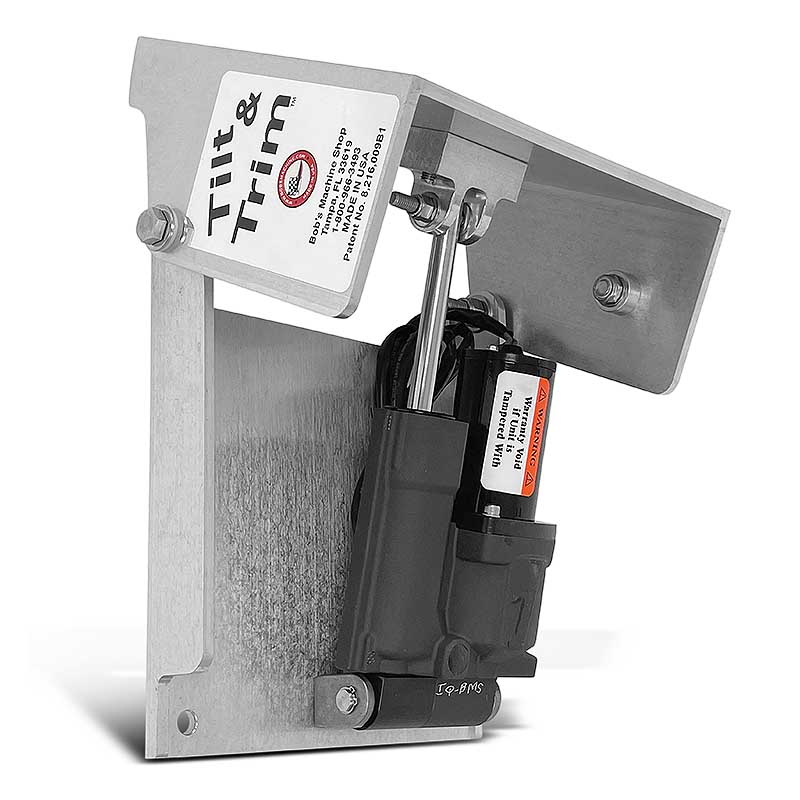

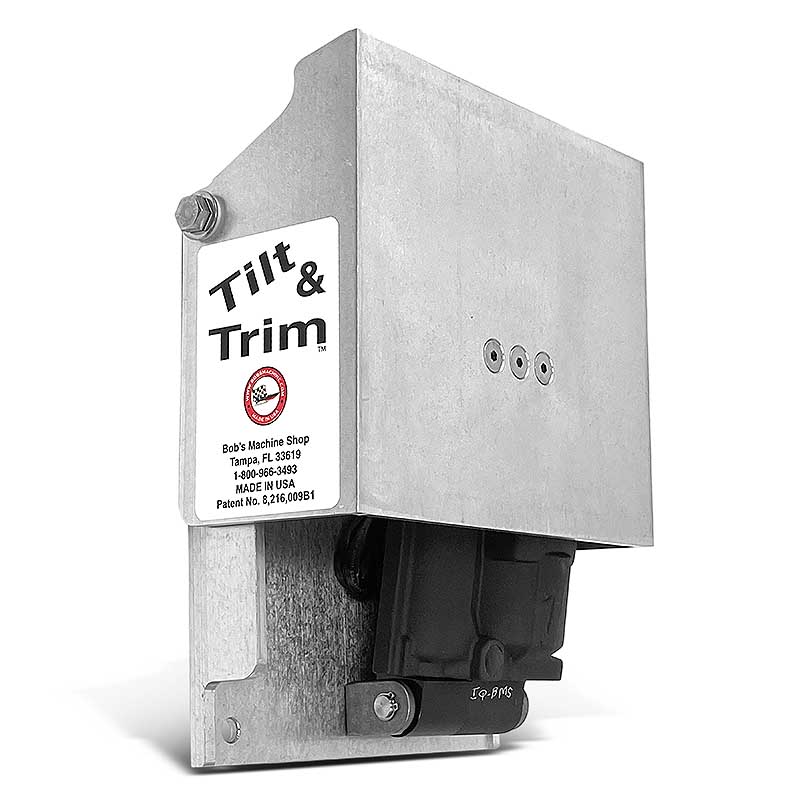

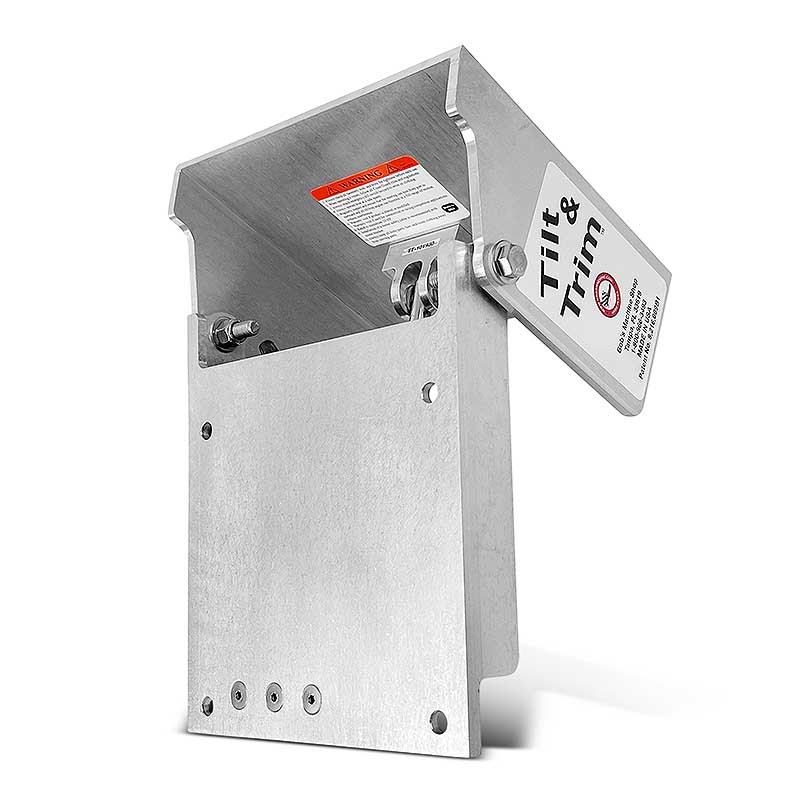

New Action series Tilt and Trim, all in one unit!  Easy rigging and tons of benefits!

For outboard owners without factory tilt and trim, Bob’s Machine Shop has a solution. Designed for motors up to 30hp (2 Stroke, clamp on style only), BMS’s hydraulic Tilt & Trim can provide increased performance, better handling, and less hassle raising and lowering the motor at the launch ramp.

The Tilt & Trim allows boat operators to trim the boat for a smoother, drier ride. When fully trimmed in, it provides a negative 3-degree tuck-under angle for faster starts and quicker on-plane times. After reaching plane, the boat can be optimized for the best running angle by trimming the tilt up to its maximum of 65 degrees. A 5-1/2 inch setback is standard.

The hydraulically operated Tilt & Trim will accommodate clamp-on motors, not standard BIA bolt pattern style. Call for questions.

The overall mounting dimensions are: 10″ wide by 11.5″ length

BMS’s Tilt & Trim is easy to install. It comes with wiring harness, control switch and carries a limited lifetime structural warranty.

Includes trim plate, wiring harness, relays, rocker style switch

Limited Lifetime Structure Warranty against manufacturing defects

3-Year Action Pump Warranty

Stackable spacers for the clamps are included standard!


Normalized SKU: 100701100NOPC
UPC Code: 894721000872
