RIGID Industries
RIGID SR-Series 10" Spot Black #910213
$365.99
RIGID Industries 910213 Light BarsSR-Series 10" SpotThe SR-Series PRO LED Light Bars provide a sleek, low profile lighting solution that measures less than 2" tall. Thanks to improved LED technology, the SR-Series PRO now offers more light output than ever before with up to 111% more raw lumens. As the name implies, the SR-Series PRO utilizes a single row of LEDs with your choice of Hybrid or patented Specter optics in a variety of beam patterns. Ideal for applications where space is limited, the SR-Series PRO is a powerful light source designed to project light at extreme distances while consuming very little power. Available in a wide range of lengths and configurations, these LED light bars can be used on virtually any application, whether it's an off-road vehicle, industrial, agricultural, or marine.The SR-Series PRO lights utilize extruded aluminum housings and are available with either a black or white durable powder coated finish. Along with improved LEDs for more output, the SR-Series PRO benefits from new branding and blacked-out circuit boards for a more refined look. They feature the same superior build quality as the rest of RIGID's lighting products, providing reliable and efficient lighting on demand.Features:
Hybrid Optics
Spot / Flood Combo
50,000+ Hr LED Lifespan
Instant On / Off - No Warm Up
RoHS Compliant
Over / Under Voltage Protection
Extruded Aluminum Housing
Durable Polycarbonate Lens
Integrated Thermal Management
GORE® Pressure Equalizing Vent
Designed, Engineered, & Assembled in the USA
Specifications:
Watts: 59
Amp Draw: 4.21
LED's: 10
Raw Lumens: 7920
Lux @ 10m: 1394.11
Beam Distance: 373.4 m
Peak Beam Intensity: 139411 cd
Operating Temperature: -40°C to 70°C | -40°F to 158°F
Normalized SKU: 910213UPC Code: 849774029806
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
RIGID Industries
RIGID E-Series Pro 20" Combo Spot/Flood Combo Black #120313
$859.99
RIGID Industries 120313 Light BarsE-Series PRO 20" Spot/Flood ComboThe E-Series is one of RIGID's most versatile, all-around lighting solutions, and recent enhancements in LED technology delivering up to 111% more raw lumens than ever before with the E-Series PRO. Among RIGID's most popular product lines, the E-Series PRO has recently benefited from several upgrades to improve both looks and performance. Plus, branding and blacked-out circuit boards give the E-Series PRO a more refined look. Available with your choice of optics, the E-Series features a host of beam options, including Spot, Flood, Driving, Hyperspot, Diffused, and Driving/Spot and Spot/Hyperspot combinations. These and other innovations make it one of the brightest and most efficient LED light bars on the market. The E-Series was born in off-road, but its versatility makes it well suited for use with power sports, marine, general automotive and even first responder applications.Features:
Hybrid Optics
Spot / Flood Combo
50,000+ Hr LED Lifespan
Instant On / Off - No Warm Up
RoHS Compliant
Over / Under Voltage Protection
Extruded Aluminum Housing
Durable Polycarbonate Lens
Integrated Thermal Management
GORE® Pressure Equalizing Vent
Designed, Engineered, & Assembled in the USA
Specifications:
Watts: 214
Amp Draw: 15.29
LED's: 40
Raw Lumens: 25080
Lux @ 10m: 3898
Beam Distance: 624 m
Peak Beam Intensity: 389784 cd
Normalized SKU: 120313UPC Code: 849774028984
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
HEISE LED Lighting Systems
Heise 54" Dual Row Marine LED Light Bar Curved #HE-MDRC54
$434.92
$542.84
HEISE LED Lighting Systems HE-MDRC54 Light BarsDual Row Marine Curved LED Light Bar - 54"Specs
Input Voltage: 10-30V DC
Wattage: 300 W
(100-3W CREE LEDs)
Raw Lumens: 24960
LUX at 10M: 1050
Color Temperature: 6000K
Beam Pattern: Combo/Flood 90 degrees/Spot 8 degrees
Construction
Housing Material: Die-Cast Aluminum Housing
Housing Color: White Coating with UV Inhibitors
Membrane: Gore®
Lens Material: PC
Mounting Bracket: Die-Cast Aluminum
Hole Dimensions:
Brackets Turned Inward – 52.75 inches
Brackets Turned Outward – 55.25 inches
Mounting Bolt Drill – 25 inches
Height of Light Bar Itself: 3 inches
Depth of Light Bar Itself: 3.5 inches
Electronics: Integrated-Epoxy Encapsulated
Hardware: Stainless 316
Operation
Operating Temperature: – 40 degrees C to +60 degrees C
Current Consumption: 16 Amps at 13.8 Volts
IP Rating: IP67
Protections: Reverse Polarity
Specifications:Amps - Draw = NONE Bulb Type = NONE Bulb Watts = NONE Candela = NONE Candle Power = NONE Voltage - Input Range (Volts) = NONE Waterproof = NONE Wireless = NONENormalized SKU: HEMDRC54UPC Code: 086429348305
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
HEISE LED Lighting Systems

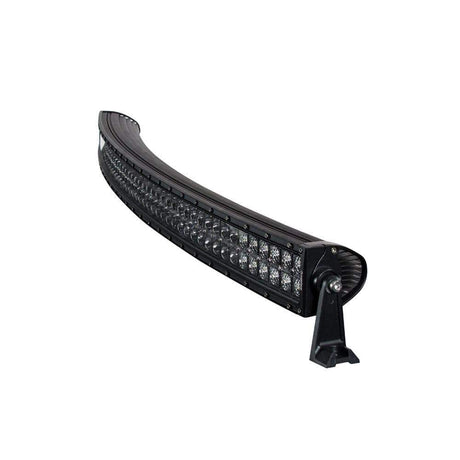

Heise 50" Dual Row Marine LED Light Bar Curved #HE-MDRC50
$404.20
$504.49
HEISE LED Lighting Systems HE-MDRC50 Light BarsDual Row Marine Curved LED Light Bar - 50"Specs
Input Voltage: 10-30V DC
Wattage: 300 W
(100-3W CREE LEDs)
Raw Lumens: 24960
LUX at 10M: 1050
Color Temperature: 6000K
Beam Pattern: Combo/Flood 90 degrees/Spot 8 degrees
Construction
Housing Material: Die-Cast Aluminum Housing
Housing Color: White Coating with UV Inhibitors
Membrane: Gore®
Lens Material: PC
Mounting Bracket: Die-Cast Aluminum
Hole Dimensions:
Brackets Turned Inward – 52.75 inches
Brackets Turned Outward – 55.25 inches
Mounting Bolt Drill – 25 inches
Height of Light Bar Itself: 3 inches
Depth of Light Bar Itself: 3.5 inches
Electronics: Integrated-Epoxy Encapsulated
Hardware: Stainless 316
Operation
Operating Temperature: – 40 degrees C to +60 degrees C
Current Consumption: 16 Amps at 13.8 Volts
IP Rating: IP67
Protections: Reverse Polarity
Specifications:Amps - Draw = NONE Bulb Type = NONE Bulb Watts = NONE Candela = NONE Candle Power = NONE Voltage - Input Range (Volts) = NONE Waterproof = NONE Wireless = NONENormalized SKU: HEMDRC50UPC Code: 086429348299
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
HEISE LED Lighting Systems
Heise 30" Dual Row Marine LED Light Bar Curved #HE-MDRC30
$617.99
$643.15
HEISE LED Lighting Systems HE-MDRC30 Light BarsDual Row Marine LED Curved Light Bar - 30"Specs
Input Voltage: 10-30V DC
Wattage: 180 W
(60-3W CREE LEDs)
Raw Lumens: 14400
LUX at 10M: 625
Color Temperature: 6000K
Beam Pattern: Combo/Flood 90 degrees/Spot 8 degrees
Construction
Housing Material: Die-Cast Aluminum Housing
Housing Color: White Coating with UV Inhibitors
Membrane: Gore®
Lens Material: PC
Mounting Bracket: Die-Cast Aluminum
Hole Dimensions:
Brackets Turned Inward – 31 inches
Brackets Turned Outward – 33.5 inches
Mounting Bolt Drill – 25 inches
Height of Light Bar Itself: 3 inches
Depth of Light Bar Itself: 3.5 inches
Electronics: Integrated-Epoxy Encapsulated
Hardware: Stainless 316
Operation
Operating Temperature: – 40 degrees C to +60 degrees C
Current Consumption: 9.5 Amps at 13.8 Volts
IP Rating: IP67
Protections: Reverse Polarity
Specifications:Amps - Draw = NONE Bulb Type = NONE Bulb Watts = NONE Candela = NONE Candle Power = NONE Voltage - Input Range (Volts) = NONE Waterproof = NONE Wireless = NONENormalized SKU: HEMDRC30UPC Code: 086429348275
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
HEISE LED Lighting Systems
Heise 14" Dual Row Marine LED Light Bar #HE-MDR14
$308.99
$327.61
HEISE LED Lighting Systems HE-MDR14 Light BarsDual Row Marine LED Light Light Bar - 14"SPECS
Input Voltage: 10-30V DC
Wattage: 72W (24-3W CREE LEDs)
Raw Lumens: 5400
Color Temperature: 6000K
Beam Pattern: Combo/Flood(90deg)/Spot(8deg)
CONSTRUCTION
Housing Material: Die-cast Aluminum Housing
Housing Color: White Coating with UV Inhibitors
Membrane: Gore™
Lens Material: PC
Mounting Bracket: Die-cast Aluminum
Hole Dimensions: Brackets turned inward – 13.50in
Brackets turned outward – 14.75in
Mounting Bolt Drill – .25in
Electronics: Integrated-Epoxy Encapsulated
Hardware: Stainless 316
OPERATION
Operating Temperature: -40degC to +60degC
Current Consumption: 3.7amps at 13.8 volts
IP Rating: IP68
Protections: Reverse Polarity
Specifications:Amps - Draw = NONE Bulb Type = NONE Bulb Watts = NONE Candela = NONE Candle Power = NONE Voltage - Input Range (Volts) = NONE Waterproof = NONE Wireless = NONENormalized SKU: HEMDR14UPC Code: 086429312894
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
HEISE LED Lighting Systems
Heise 8" Dual Row Marine Light Bar #HE-MDR8
$191.99
HEISE LED Lighting Systems HE-MDR8 Light BarsDual Row Marine LED Light Bar - 8"SPECS
Input Voltage: 10-30V DC
Wattage: 36W (12-3W CREE LEDs)
Raw Lumens: 2880
Color Temperature: 6000K
Beam Pattern: Combo/Flood(90deg)/Spot(8deg)
CONSTRUCTION
Housing Material: Die-cast Aluminum Housing
Housing Color: White Coating with UV Inhibitors
Membrane: Gore™
Lens Material: PC
Mounting Bracket: Die-cast Aluminum
Hole Dimensions: Brackets turned inward – 7.25in
Brackets turned outward – 9.5in
Mounting Bolt Drill – .25in
Electronics: Integrated-Epoxy Encapsulated
Hardware: Stainless 316
OPERATION
Operating Temperature: -40degC to +60degC
Current Consumption: 1.9 amps at 13.8 volts
IP Rating: IP68
Protections: Reverse Polarity
Specifications:Amps - Draw = NONE Bulb Type = NONE Bulb Watts = NONE Candela = NONE Candle Power = NONE Voltage - Input Range (Volts) = NONE Waterproof = NONE Wireless = NONENormalized SKU: HEMDR8UPC Code: 086429312887
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
HEISE LED Lighting Systems
Heise 42" Dual Row Marine LED Light Bar Curved #HE-MDRC42
$778.99
$806.31
HEISE LED Lighting Systems HE-MDRC42 Light BarsDual Row Marine Curved LED Light Bar - 42"Specs
Input Voltage: 10-30V DC
Wattage: 240 W
(80-3W CREE LEDs)
Raw Lumens: 19200
LUX at 10M: 780
Color Temperature: 6000K
Beam Pattern: Combo/Flood 90 degrees/Spot 8 degrees
Construction
Housing Material: Die-Cast Aluminum Housing
Housing Color: White Coating with UV Inhibitors
Membrane: Gore®
Lens Material: PC
Mounting Bracket: Die-Cast Aluminum
Hole Dimensions:
Brackets Turned Inward – 41 inches
Brackets Turned Outward – 43.5 inches
Mounting Bolt Drill – 25 inches
Height of Light Bar Itself: 3 inches
Depth of Light Bar Itself: 3.5 inches
Electronics: Integrated-Epoxy Encapsulated
Hardware: Stainless 316
Operation
Operating Temperature: – 40 degrees C to +60 degrees C
Current Consumption: 12 Amps at 13.8 Volts
IP Rating: IP67
Protections: Reverse Polarity
Specifications:Amps - Draw = NONE Bulb Type = NONE Bulb Watts = NONE Candela = NONE Candle Power = NONE Voltage - Input Range (Volts) = NONE Waterproof = NONE Wireless = NONENormalized SKU: HEMDRC42UPC Code: 086429348282
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
HEISE LED Lighting Systems
Heise 50-3/4" Single Row LED Light Bar Slimline #HE-SL5034
$674.99
HEISE LED Lighting Systems HE-SL5034 Light BarsSingle Row Slimline LED Light Bar - 50-3/4"SPECS
Input Voltage: 10–30V DC
Wattage: 117W (39–3W OSRAM LEDs)
Raw Lumens: 9360
LUX @ 10M: 3250
Color Temperature: 6000K
Beam Pattern: Combo/Flood(90°)/Spot(8°)
CONSTRUCTION
Housing Material: Powder Coated Aluminum
Housing Color: Black
Membrane: Gore™
Lens Material: PC
Mounting Bracket: Die–cast Aluminum
Mounting: Side and Bottom
Hole Dimensions:
Brackets turned inward – 50.50"
Brackets turned outward – 52.50"
Mounting Bolt Drill – .25"
Height of Light Bar Itself: 2"
Depth of Light Bar Itself: 2"
Electronics: Integrated–Epoxy Encapsulated
Hardware: Stainless 316
OPERATION
Operating Temperature: –40°C to +60°C
Current Consumption: 6.5 amps @ 13.8 volts
IP Rating: IP67
Protections: Reverse Polarity
Normalized SKU: HESL5034UPC Code: 086429317394
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
HEISE LED Lighting Systems
Heise 5-1/2" Single Row LED Light Bar Slimline #HE-SL550
$152.99
HEISE LED Lighting Systems HE-SL550 Light BarsSingle Row Slimline LED Light Bar - 5-1/2"SPECS
Input Voltage: 10–30V DC
Wattage: 9W (3–3W OSRAM LEDs)
Raw Lumens: 720
LUX @ 10M: 10
Color Temperature: 6000K
Beam Pattern: 90° Flood
CONSTRUCTION
Housing Material: Powder Coated Aluminum
Housing Color: Black
Membrane: Gore™
Lens Material: PC
Mounting Bracket: Die–cast Aluminum
Mounting: Side and Bottom
Hole Dimensions:
Brackets turned inward – 5.25"
Brackets turned outward – 7.25"
Mounting Bolt Drill – .25"
Height of Light Bar Itself: 2"
Depth of Light Bar Itself: 2"
Electronics: Integrated–Epoxy Encapsulated
Hardware: Stainless 316
OPERATION
Operating Temperature: –40°C to +60°C
Current Consumption: .4 amps @ 13.8 volts
IP Rating: IP67
Protections: Reverse Polarity
Normalized SKU: HESL550UPC Code: 086429317400
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
HEISE LED Lighting Systems
Heise 20-1/4" Single Row LED Light Bar Slimline #HE-SL2014
$277.99
$293.56
HEISE LED Lighting Systems HE-SL2014 Light BarsSingle Row Slimline LED Light Bar - 20-1/4"SPECS
Input Voltage: 10–30V DC
Wattage: 45W (15–3W OSRAM LEDs)
Raw Lumens: 3600
LUX @ 10M: 1280
Color Temperature: 6000K
Beam Pattern: Combo/Flood(90°)/Spot(8°)
CONSTRUCTION
Housing Material: Powder Coated Aluminum
Housing Color: Black
Membrane: Gore™
Lens Material: PC
Mounting Bracket: Die–cast Aluminum
Mounting: Side and Bottom
Hole Dimensions:
Brackets turned inward – 20"
Brackets turned outward – 22"
Mounting Bolt Drill – .25"
Height of Light Bar Itself: 2"
Depth of Light Bar Itself: 2"
Electronics: Integrated–Epoxy Encapsulated
Hardware: Stainless 316
OPERATION
Operating Temperature: –40°C to +60°C
Current Consumption: 2.4 amps @ 13.8 volts
IP Rating: IP67
Protections: Reverse Polarity
Normalized SKU: HESL2014UPC Code: 086429317363
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
HEISE LED Lighting Systems
Heise 54" Dual Row LED Light Bar Blackout Curved #HE-BDRC54
$425.59
$531.18
HEISE LED Lighting Systems HE-BDRC54 Light BarsDual Row Curved Blackout LED Light Bard - 54"SPECS
Input Voltage: 10–30V DC
Wattage: 300W (100–3W CREE LEDs)
Raw Lumens: 24960
LUX @ 10M: 1050
Color Temperature: 6000K
Beam Pattern: Combo/Flood(90°)/Spot(8°)
CONSTRUCTION
Housing Material: Die–cast Aluminum Housing
Housing Color: Black
Membrane: Gore™
Lens Material: PC
Mounting Bracket: Die–cast Aluminum
Hole Dimensions:
Brackets turned inward – 52.75"
Brackets turned outward – 55.25"
Mounting Bolt Drill – .25"
Height of Light Bar Itself: 3"
Depth of Light Bar Itself: 3.50"
Electronics: Integrated–Epoxy Encapsulated
Hardware: Stainless 316
OPERATION
Operating Temperature: –40°C to +60°C
Current Consumption: 16 amps @ 13.8 volts
IP Rating: IP67
Protections: Reverse Polarity
Normalized SKU: HEBDRC54UPC Code: 086429312825
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
HEISE LED Lighting Systems

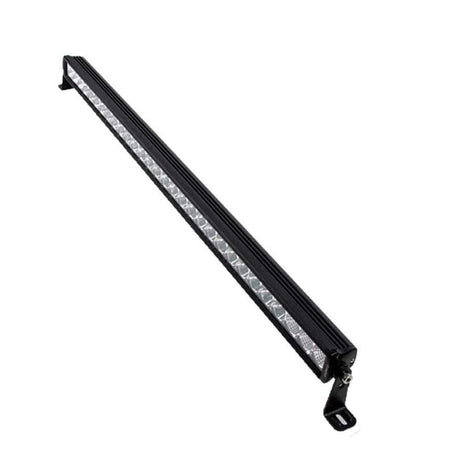

Heise 32" Single Row LED Light Bar Slimline #HE-SL32
$474.99
HEISE LED Lighting Systems HE-SL32 Light BarsSingle Row Slimline LED Light Bar - 32"SPECS
Input Voltage: 10–30V DC
Wattage: 72W (24–3W OSRAM LEDs)
Raw Lumens: 5760
LUX @ 10M: 2200
Color Temperature: 6000K
Beam Pattern: Combo/Flood(90°)/Spot(8°)
CONSTRUCTION
Housing Material: Powder Coated Aluminum
Housing Color: Black
Membrane: Gore™
Lens Material: PC
Mounting Bracket: Die–cast Aluminum
Mounting: Side and Bottom
Hole Dimensions:
Brackets turned inward – 31.75"
Brackets turned outward – 33.75"
Mounting Bolt Drill – .25"
Height of Light Bar Itself: 2"
Depth of Light Bar Itself: 2"
Electronics: Integrated–Epoxy Encapsulated
Hardware: Stainless 316
OPERATION
Operating Temperature: –40°C to +60°C
Current Consumption: 4 amps @ 13.8 volts
IP Rating: IP67
Protections: Reverse Polarity
Normalized SKU: HESL32UPC Code: 086429317370
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
HEISE LED Lighting Systems
Heise 30" Dual Row LED Light Bar Blackout Curved #HE-BDRC30
$565.00
HEISE LED Lighting Systems HE-BDRC30 Light BarsDual Row Curved Blackout LED Light Bar - 30"SPECS
Input Voltage: 10–30V DC
Wattage: 180W (60–3W CREE LEDs)
Raw Lumens: 14400
LUX @ 10M: 625
Color Temperature: 6000K
Beam Pattern: Combo/Flood(90°)/Spot(8°)
CONSTRUCTION
Housing Material: Die–cast Aluminum Housing
Housing Color: Black
Membrane: Gore™
Lens Material: PC
Mounting Bracket: Die–cast Aluminum
Hole Dimensions:
Brackets turned inward – 31.25"
Brackets turned outward – 33.6875"
Mounting Bolt Drill – .25"
Height of Light Bar Itself: 3"
Depth of Light Bar Itself: 3.50"
Electronics: Integrated–Epoxy Encapsulated
Hardware: Stainless 316
OPERATION
Operating Temperature: –40°C to +60°C
Current Consumption: 9.5 amps @ 13.8 volts
IP Rating: IP67
Protections: Reverse Polarity
Normalized SKU: HEBDRC30UPC Code: 086429312795
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
HEISE LED Lighting Systems
Heise 22" Dual Row LED Light Bar Blackout Curved #HE-BDRC22
$367.00
$751.68
HEISE LED Lighting Systems HE-BDRC22 Light BarsDual Row Curved Blackout LED Light Bar - 22"SPECS
Input Voltage: 10–30V DC
Wattage: 120W (40–3W CREE LEDs)
Raw Lumens: 9600
LUX @ 10M: 480
Color Temperature: 6000K
Beam Pattern: Combo/Flood(90°)/Spot(8°)
CONSTRUCTION
Housing Material: Die–cast Aluminum Housing
Housing Color: Black
Membrane: Gore™
Lens Material: PC
Mounting Bracket: Die–cast Aluminum
Hole Dimensions:
Brackets turned inward – 21.50"
Brackets turned outward – 23.75"
Mounting Bolt Drill – .25"
Height of Light Bar Itself: 3"
Depth of Light Bar Itself: 3.50"
Electronics: Integrated–Epoxy Encapsulated
Hardware: Stainless 316
OPERATION
Operating Temperature: –40°C to +60°C
Current Consumption: 6.3 amps @ 13.8 volts
IP Rating: IP67
Protections: Reverse Polarity
Normalized SKU: HEBDRC22UPC Code: 086429312788
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
HEISE LED Lighting Systems
Heise 42" Dual Row LED Light Bar Blackout Curved #HE-BDRC42
$930.99
HEISE LED Lighting Systems HE-BDRC42 Light BarsDual Row Curved Blackout LED Light Bar - 42"SPECS
Input Voltage: 10–30V DC
Wattage: 240W (80–3W CREE LEDs)
Raw Lumens: 19200
LUX @ 10M: 780
Color Temperature: 6000K
Beam Pattern: Combo/Flood(90°)/Spot(8°)
CONSTRUCTION
Housing Material: Die–cast Aluminum Housing
Housing Color: Black
Membrane: Gore™
Lens Material: PC
Mounting Bracket: Die–cast Aluminum
Hole Dimensions:
Brackets turned inward – 41"
Brackets turned outward – 43.50"
Mounting Bolt Drill – .25"
Height of Light Bar Itself: 3"
Depth of Light Bar Itself: 3.50"
Electronics: Integrated–Epoxy Encapsulated
Hardware: Stainless 316
OPERATION
Operating Temperature: –40°C to +60°C
Current Consumption: 12 amps @ 13.8 volts
IP Rating: IP67
Protections: Reverse Polarity
Normalized SKU: HEBDRC42UPC Code: 086429312801
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
HEISE LED Lighting Systems
Heise 30" Dual Row LED Light Bar Blackout #HE-BDR30
$597.99
HEISE LED Lighting Systems HE-BDR30 Light BarsDual Row Blackout LED Light Bar - 30"SPECS
Input Voltage: 10–30V DC
Wattage: 180W (60–3W CREE LEDs)
Raw Lumens: 14400
LUX @ 10M: 870
Color Temperature: 6000K
Beam Pattern: Combo/Flood(90°)/Spot(8°)
CONSTRUCTION
Housing Material: Die–cast Aluminum Housing
Housing Color: Black
Membrane: Gore™
Lens Material: PC
Mounting Bracket: Die–cast Aluminum
Hole Dimensions:
Brackets turned inward – 31.375"
Brackets turned outward – 33.75"
Mounting Bolt Drill – .25"
Height of Light Bar Itself: 3"
Depth of Light Bar Itself: 3.50"
Electronics: Integrated–Epoxy Encapsulated
Hardware: Stainless 316
OPERATION
Operating Temperature: –40°C to +60°C
Current Consumption: 9.5 amps @ 13.8 volts
IP Rating: IP67
Protections: Reverse Polarity
Normalized SKU: HEBDR30UPC Code: 086429312757
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
HEISE LED Lighting Systems
Heise 22" Dual Row LED Light Bar Blackout #HE-BDR22
$475.99
HEISE LED Lighting Systems HE-BDR22 Light BarsDual Row Blackout LED Light Bar - 22"SPECS
Input Voltage: 10–30V DC
Wattage: 120W (40–3W CREE LEDs)
Raw Lumens: 9600
LUX @ 10M: 655
Color Temperature: 6000K
Beam Pattern: Combo/Flood(90°)/Spot(8°)
CONSTRUCTION
Housing Material: Die–cast Aluminum Housing
Housing Color: Black
Membrane: Gore™
Lens Material: PC
Mounting Bracket: Die–cast Aluminum
Hole Dimensions:
Brackets turned inward – 21.3125"
Brackets turned outward – 23.75"
Mounting Bolt Drill – .25"
Height of Light Bar Itself: 3"
Depth of Light Bar Itself: 3.50"
Electronics: Integrated–Epoxy Encapsulated
Hardware: Stainless 316
OPERATION
Operating Temperature: –40°C to +60°C
Current Consumption: 6.3 amps @ 13.8 volts
IP Rating: IP67
Protections: Reverse Polarity
Normalized SKU: HEBDR22UPC Code: 086429312740
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
HEISE LED Lighting Systems
Heise 14" Dual Row LED Light Bar Blackout #HE-BDR14
$225.00
HEISE LED Lighting Systems HE-BDR14 Light BarsDual Row Blackout LED LIght Bar - 14"SPECS
Input Voltage: 10-30V DC
Wattage: 72W (24-3W CREE LEDs)
Raw Lumens: 5760
Color Temperature: 6000K
Beam Pattern: Combo/Flood(90deg)/Spot(8deg)
CONSTRUCTION
Housing Material: Die-cast Aluminum Housing
Housing Color: Black
Membrane: Gore™
Lens Material: PC
Mounting Bracket: Die-cast Aluminum
Hole Dimensions: Brackets turned inward – 13.375in Brackets turned outward – 15.75in Mounting Bolt Drill – .25in
Electronics: Integrated-Epoxy Encapsulated
Hardware: Stainless 316
OPERATION
Operating Temperature: -40degC to +60degC
Current Consumption: 3.7 amps at 13.8 volts
IP Rating: IP68
Protections: Reverse Polarity
Normalized SKU: HEBDR14UPC Code: 086429312733
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
HEISE LED Lighting Systems
Heise 42" Dual Row LED Light Bar Blackout #HE-BDR42
$678.99
HEISE LED Lighting Systems HE-BDR42 Light BarsDual Row LED Blackout Light Bar - 42"SPECS
Input Voltage: 10–30V DC
Wattage: 240W (80–3W CREE LEDs)
Raw Lumens: 19200
LUX @ 10M: 1100
Color Temperature: 6000K
Beam Pattern: Combo/Flood(90°)/Spot(8°)
CONSTRUCTION
Housing Material: Die–cast Aluminum Housing
Housing Color: Black
Membrane: Gore™
Lens Material: PC
Mounting Bracket: Die–cast Aluminum
Hole Dimensions:
Brackets turned inward – 41.25"
Brackets turned outward – 43.50"
Mounting Bolt Drill – .25"
Height of Light Bar Itself: 3"
Depth of Light Bar Itself: 3.50"
Electronics: Integrated–Epoxy Encapsulated
Hardware: Stainless 316
OPERATION
Operating Temperature: –40°C to +60°C
Current Consumption: 12 amps @ 13.8 volts
IP Rating: IP67
Protections: Reverse Polarity
Normalized SKU: HEBDR42UPC Code: 086429312764
Frequently Asked Questions
First Choice Marine is an online marine retailer carrying a diverse line of marine parts and accessories and related items from industry-respected and demanded manufacturers and suppliers. Through our diverse distributor network, we are able to access over 150,000 items, including our current site inventory, new products being added, and special order items. If you need it on your boat... we are your one-stop shop!
Yes, we offer FREE Shipping on most orders over $149 to US-48*.
Each product displays a shipping status message, just above the item price. Below is the meaning for each of these codes.
- Qualifies for Free Shipping: This item qualifies for free shipping when the order is $149+
- Qualifies for Free Ground Shipping: This item qualifies for free ground shipping when the order is $149+.
- Oversized - Not Qualified for Free Shipping: This item is too large/heavy to qualify for free shipping
- Hazardous Item - Not Qualified for Free Shipping: This item is hazardous and does not qualify for free shipping
- Truck Freight - Not Qualified for Free Shipping: This item has to be shipped via truck freight. Please contact us for a quote
- In-Store Pickup Only: This item can only be picked up in our Grain Valley, MO retail store
Below the price of the item, on the product page, there is a message indicating the availability of the product.
The quantity on hand is updated as inventory events happen and matches what we have available. If you have urgent needs and we are close to what you need, contact us, and we can confirm stock.
We offer a hassle-free return policy. If you're not completely satisfied with your purchase, you can return it within 30 days for a full refund or exchange.
If you need to return an item, please follow the guidelines here so we can process a prompt refund and assist you in finding the correct item.
Free Shipping
On most orders $149+ to the continental 48 US states.Secure Shopping
Fast, secure checkout with a variety of payment methods.Shop with confidence
25+ years serving the marine industry.Support center
Need help? Contact us via live chat, phone, or email.
