Watch VideoRam Mounts RAM-B-177U Laptop MountsRAM Glare Shield Clamp Mount with Diamond Base Adapter The RAM-B-177U consists of a double socket arm, glare shield clamp base and diamond base adapter. The RAM-B-177U is designed to mount to the lip edge of a flat surface up to 1" thick. Popular mounting edges include a car side window edge lip or glare shield on an airplance. The base has two composite bolts that, when tightened, clamp the base to the lip surface. A RAM 1" diameter rubber ball is connected to the base allowing you to connect a RAM 1" diamter arm socket and connection plates to create the perfect mount for your application. The hole pattern found on the diamond base adapter will connect to most RAM cradles. Mount will attach to flat surfaces with the following dimensions: Min: 4.4mm / 0.17" Max: 28.0mm / 1.12" Material: Powder Coated Marine Grade Aluminum Ball Size: 1" Rubber Ball "B" Size Note:The "U" in the part number reflects product packaged in poly bag. RAM Mount Type: Rail & Handle Bar MountsRAM Mount Type: AviationNormalized SKU: RAMB177UUPC Code: 793442907067Ram Mounts RAM-B-177U Video

  Download Literature  Watch VideoRam Mounts RAM-VB-178-SW1 Laptop MountsVehicle BaseCompatible Vehicles:DODGE RAM 1500-5500 (2008-2011) This No-Drill™ Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolationPlacement of Mount:Passenger side, front, where seat rail frame attaches to floor board. DRILLING REQUIREMENTS:No - attaches to seat studsSeat Configuration:BucketPole:Purchased SeparatelyWeight:2.1 lbs.Material:Powder Coated Steel Dimensions:A = 14.75", B = 3.8", C = 1.75", Hole Center = 13.25" Features:Quick installation with no drilling needed. Rock solid construction with lifetime warranty. Low profile keeps mount away from passenger leg space. Won?t interfere with levers or factory-installed console or 4WD lever. Designed to accommodate trucks with PTO Swing ArmThe RAM RAM-VP-SW1-89, combination swing arm/tele-pole system, will connect to any RAM vehicle base without a welded female tele-pole. Included is a tele-pole with a height range from 11.5" to 17"; it can be easily adjusted by turning the knob at the top of the post. Once the knob has been tightened, the tele-pole becomes a rigid support for any RAM cradle, holder or Tough-Tray.The double swing arm with rotating plate, allows you to twist and tilt the viewing angle of your laptop, tablet, UMPC, monitor, or any other connected electronic device, when mounted on your RAM Vehicle Mount. Taking the highly successful RAM Vehicle Mounts to the next level, this rotating swivel arm gives you even more viewing positions for your mounted electronic device while holding everything firmly in place. The length of the double swing arm is 12". Material: Powder Coated Marine Grade Aluminum Ball Size: 1.5" Rubber Ball "C" Size Note: Part number reflects product packaged in clear clam shell for store shelf display.Laptop Mount TrayThe RAM Tough-Tray is spring loaded expandable tray that can accommodate 10 to 16 inch wide laptops. The tray includes four (4) side clamping arm with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS, PDAs or other electronics. Tough-Tray Dimensions:Tray Depth: 10.0"Tray Thickness: 2.125"Tray Width (Expansion): 10" to 16"Side Clamp Arm Height: 0.5" (min) to 1.75" (max) Material: High Strength Composite Note: Part number reflects product packaged in clear clam shell for store shelf display. The Tough-Tray is compatible with laptops that have 17" screens. If the Tough-Tray Laptop Cradle is intended to hold a laptop or device while the vehicle is in motion, we recommend the Secure-n-Motion kit. RAM Mount Type: Vehicle MountsNormalized SKU: RAMVB178SW1UPC Code: 793442916922Ram Mounts RAM-VB-178-SW1 Literature Download  Owners ManualRam Mounts RAM-VB-178-SW1 Video

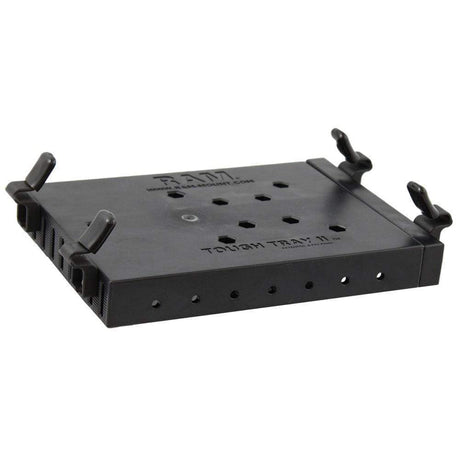

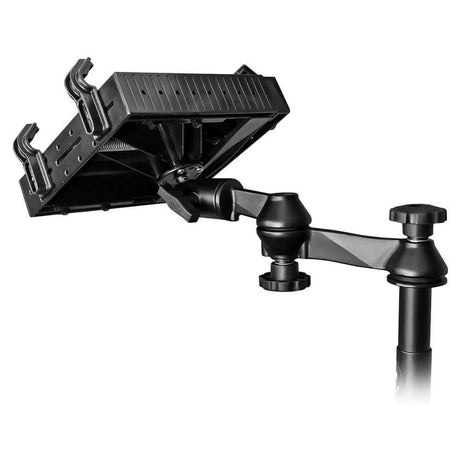

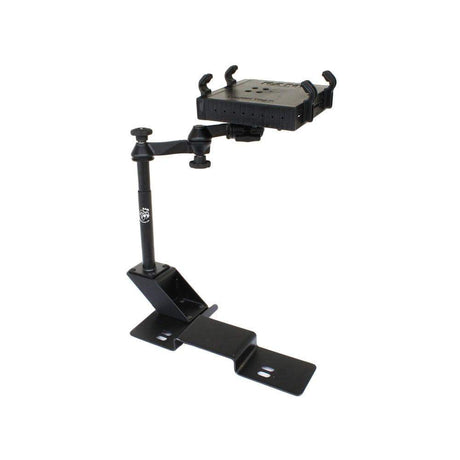

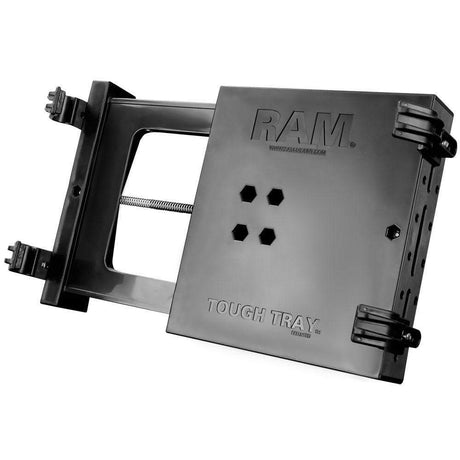

  Download Literature  Watch VideoRam Mounts RAM-VB-109-SW1 Laptop MountsVehicle Base Ford F-150 (2004-2010)Ford F-150 (2004-2010)Lincoln Mark LT (2005-2010) This No-Drill™ Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation.Placement of Mount: Passenger side floor board, under seat Drilling Requirements: No - uses existing seat boltsSeat Configuration: Bucket/bench Pole: Purchased Separately Weight: 9.1 lbs. Material:Powder Coated SteelFeatures: Quick installation with no drilling needed. Rock solid construction with a lifetime warranty.The RAM Tough-Tray is spring loaded expandable tray that can accommodate 10 to 16 inch wide laptops. The tray includes four (4) side clamping arm with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS, PDAs or other electronics. Tough-Tray Dimensions:Tray Depth: 10.0"Tray Thickness: 2.125"Tray Width (Expansion): 10" to 16"Side Clamp Arm Height: 0.5" (min) to 1.75" (max) Material: High Strength Composite The RAM RAM-VP-SW1-89, combination swing arm/tele-pole system, will connect to any RAM vehicle base without a welded female tele-pole. Included is a tele-pole with a height range from 11.5" to 17"; it can be easily adjusted by turning the knob at the top of the post. Once the knob has been tightened, the tele-pole becomes a rigid support for any RAM cradle, holder or Tough-Tray.The double swing arm with rotating plate, allows you to twist and tilt the viewing angle of your laptop, tablet, UMPC, monitor, or any other connected electronic device, when mounted on your RAM Vehicle Mount. Taking the highly successful RAM Vehicle Mounts to the next level, this rotating swivel arm gives you even more viewing positions for your mounted electronic device while holding everything firmly in place. The length of the double swing arm is 12". Material: Powder Coated Marine Grade Aluminum RAM Mount Type: Vehicle MountsNormalized SKU: RAMVB109SW1Ram Mounts RAM-VB-109-SW1 Literature Download  Owners ManualRam Mounts RAM-VB-109-SW1 Video

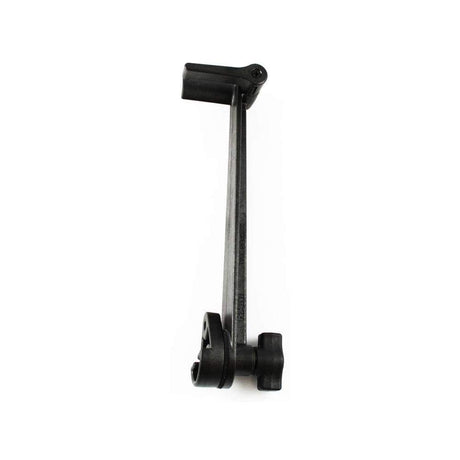

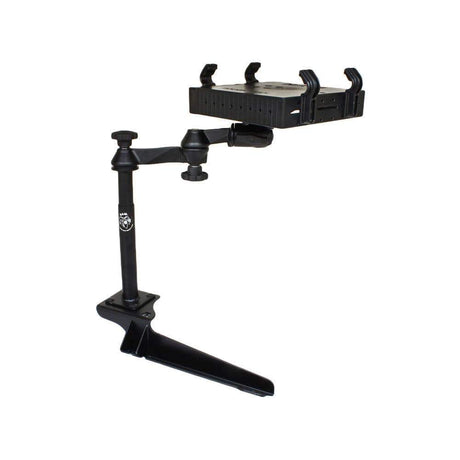

  Download Literature  Watch VideoRam Mounts RAM-VB-185-SW1 Laptop MountsNo-Drill™ Laptop Mount for the Ford F-250, F-350, F-450, F-550, F-650, F-750 & ExcursionCompatible Vehicles:Ford F-250 to F-750 Super Duty Trucks with Bucket Seats (1999-2014)Ford Excursion (2000-2005)Ford Excursion Eddie Bauer (2000-2005)Ford F-350 Super Duty Trucks (1997)This No-Drill™ Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough Tray™ is spring loaded to accommodate 10" to 16" wide laptops & (17" wide screens). The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics.Placement of Mount:Passenger side floor board, in front of seatDrilling Requirements:No - attaches to seat studsSeat Configuration:Bucket/BenchMaterial:High Strength Composite and Powder Coated Steel RAM Mount Type: Vehicle MountsNormalized SKU: RAMVB185SW1Ram Mounts RAM-VB-185-SW1 Literature Download  Owners ManualRam Mounts RAM-VB-185-SW1 Video

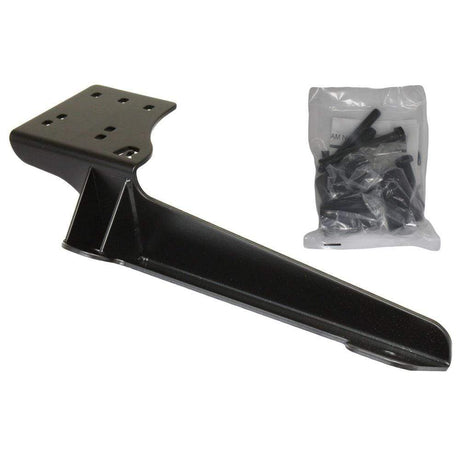

Ram Mounts RAM-VB-185 Laptop MountsNo-Drill™ Laptop Base for the Ford F-250, F-350, F-450, F-550, F-650, F-750 & ExcursionCompatible Vehicles:Ford F-250 to F-750 Super Duty Trucks with Bucket Seats (1999-2014)Ford Excursion (2000-2005)Ford Excursion Eddie Bauer (2000-2005)Ford F-350 Super Duty Trucks (1997) Placement of Mount: Passenger side floor board, in front of seat DRILLING REQUIREMENTS: No - attaches to seat studs Seat Configuration: Bucket Pole: Purchased Separately Material: Powder Coated Steel RAM Mount Type: Vehicle MountsNormalized SKU: RAMVB185UPC Code: 793442909092

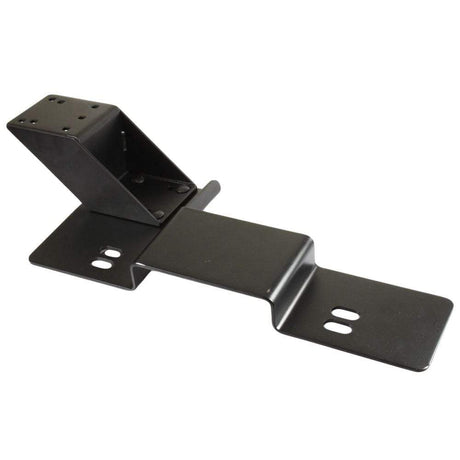

  Download LiteratureRam Mounts RAM-VB-109 Laptop MountsNo-Drill™ Laptop Base for the Ford F-150 & Lincoln Mark LTCompatible VehiclesFord F-150 (2004-2014)Lincoln Mark LT (2005-2010) Placement of Mount: Passenger side floor board, under seat Drilling Requirements: No - uses existing seat bolts Seat Configuration: Bucket/bench Pole: Purchased Separately Weight: 9.1 lbs. Material:Powder Coated SteelFeatures: Quick installation with no drilling needed. Rock solid construction with a lifetime warranty. Note:If you are installing this product into a 2009-2010 F-150 with the slide out cup holder, the RAM-VB-109A is the preferred kit. The standard RAM-VB-109 kit will install but limit the use of the cup holder. To use the RAM-VB-109 with the slide out cup holder, pull the cup holder all the way out if you plan to use it prior to installation. Once installed, the cup holder will not be able to slide back under the center console. The RAM-VB-109A has an adjustable riser that can be positioned so that the cup holder is not interfered with. For base model trucks without the slide out cup holder, the standard RAM-VB-109 kit is ideal. RAM Mount Type: Vehicle MountsNormalized SKU: RAMVB109UPC Code: 793442900617Ram Mounts RAM-VB-109 Literature Download  Owners Manual

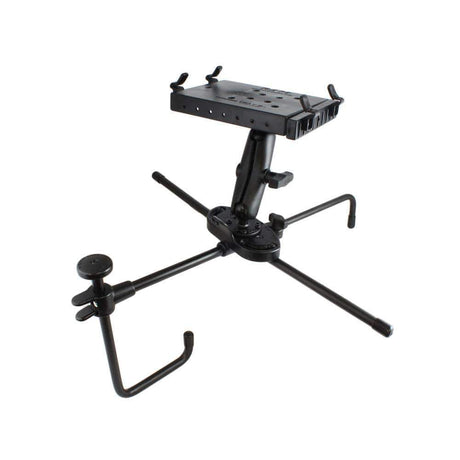

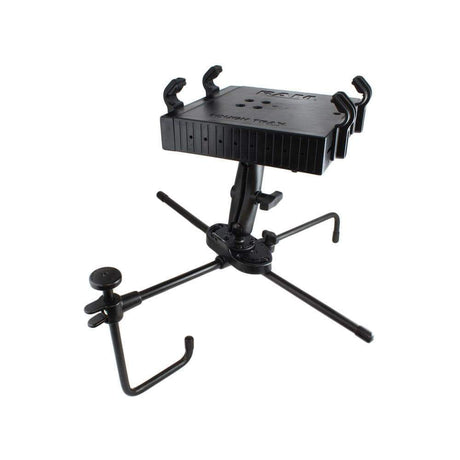

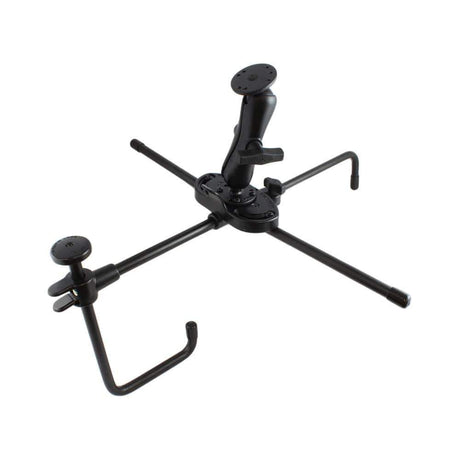

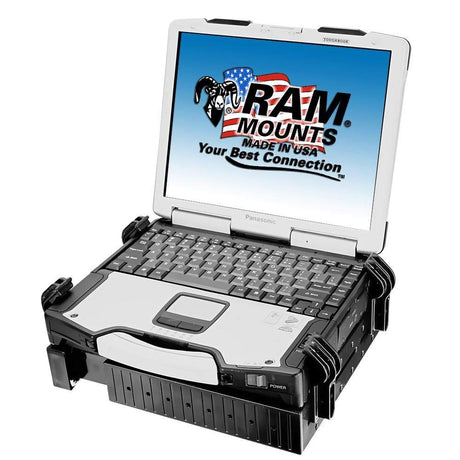

  Download Literature  Watch VideoRam Mounts RAM-SM1-234-3 Laptop MountsRAM Seat-Mate Laptop Mounting System for Laptop and Notebooks Computers Universal Vehicle FitmentRAM Seat-Mate Description:Compact, portable, amazingly strong and no tools required are words that best describe the new RAM Seat-Mate. Able to transform most any passenger seat into a workstation, simply unpack the mount from the compact bag, unfold the legs, and buckle it in. Truly innovative in design, this product is able to actively hold onto the seat and stabilize itself. For anyone who needs a temporary mobile workstation, this mounting solution is absolutely perfect. Designed to easily pack into a travel bag, suit case, or even under the seat of a vehicle, RAM makes it possible to create a comfortable workspace in minutes where ever your job takes you. The RAM Seat-Mate? is perfect for laptops, tablets, and UMPC?s. The integrated rubber ball and socket system allows the user to achieve ergonomic viewing and typing angles. If you're a mobile professional, this product was designed for you.Material:High Strength Composite & Powder Coated Marine Grade Aluminum The RAM Tough-Tray is spring loaded expandable tray that can accommodate 10 to 16 inch wide laptops. The tray includes four (4) side clamping arm with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS, PDAs or other electronics. Tough-Tray Dimensions:Tray Depth: 10.0"Tray Thickness: 2.125"Tray Width (Expansion): 10" to 16"Side Clamp Arm Height: 0.5" (min) to 1.75" (max) Material: High Strength Composite Note: Part number reflects product packaged in clear clam shell for store shelf display. The Tough-Tray is compatible with laptops that have 17" screens. If the Tough-Tray Laptop Cradle is intended to hold a laptop or device while the vehicle is in motion, we recommend the Secure-n-Motion kit. RAM Mount Type: Seat MountsRAM Mount Type: Vehicle MountsNormalized SKU: RAMSM12343UPC Code: 793442924965Ram Mounts RAM-SM1-234-3 Literature Download  Quick Reference GuideRam Mounts RAM-SM1-234-3 Video

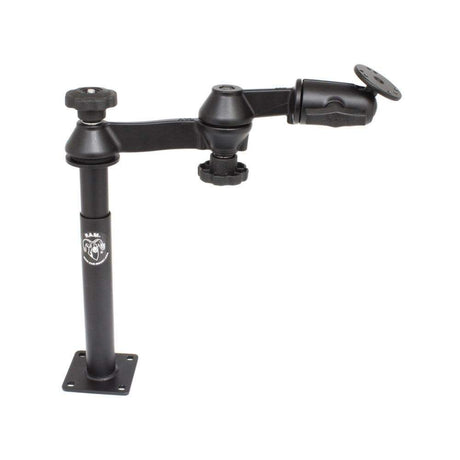

  Download LiteratureRam Mounts RAM-VP-SW1-89 Laptop MountsRAM Double Swing Arm with 8" Male Tele-Pole™, 9" Female Tele-Pole™ & 2.5" Round Base (AMPs Hole Pattern)DescriptionThe RAM RAM-VP-SW1-89, combination swing arm/tele-pole system, will connect to any RAM vehicle base without a welded female tele-pole. Included is a tele-pole with a height range from 11.5" to 17"; it can be easily adjusted by turning the knob at the top of the post. Once the knob has been tightened, the tele-pole becomes a rigid support for any RAM cradle, holder or Tough-Tray. The double swing arm with rotating plate, allows you to twist and tilt the viewing angle of your laptop, tablet, UMPC, monitor, or any other connected electronic device, when mounted on your RAM Vehicle Mount. Taking the highly successful RAM Vehicle Mounts to the next level, this rotating swivel arm gives you even more viewing positions for your mounted electronic device while holding everything firmly in place. The length of the double swing arm is 12". Material: Powder Coated Marine Grade Aluminum Ball Size: 1.5" Rubber Ball "C" Size Note: Part number reflects product packaged in clear clam shell for store shelf display. RAM Mount Type: Swing Arm MountsRAM Mount Type: Seat MountsNormalized SKU: RAMVPSW189UPC Code: 793442905889Ram Mounts RAM-VP-SW1-89 Literature Download  Quick Reference Guide

Ram Mounts RAM-B-316-1-202U Laptop MountsRAM POD I Universal No-Drill™ Vehicle Mount with 18" Rigid Aluminum Rod & Round Adapter BaseThe RAM-B-316-1-202U, universal RAM-POD I vehicle mount, consists of a RAM 1" diameter ball and socket system, connected to a 18" long flexible rod. The base consists of a 2.5" diameter round plate with universal AMPS hole patten end. This RAM POD I allows you to mount a light to medium weight item in a car safely and securely.Installation Instructions:At right angles to the base of the flexible 18" long leg is a foot with a mounting hole. Simply place the hole into the passenger seat mounting bolt and adjust the mount to the required height with the flexible leg. The rigid flexible arm will hold everything you need safely and securely.Material:Powder Coated Marine Grade AluminumBall Size:1" Rubber Ball "B" Size RAM Mount Type: iPad iPhone & iPod MountsNormalized SKU: RAMB3161202UUPC Code: 793442921193
