Garmin Qualifies for Free Shipping Garmin Panoptix PS22-IF Portable Live Sonar #010-01945-10

Garmin Panoptix PS22-IF Portable Live Sonar #010-01945-10

$1,099.99 $1,275.50 -14% OFF

Garmin Panoptix PS22-IF Portable Live Sonar #010-01945-10

$1,099.99 $1,275.50 -14% OFF

Garmin Panoptix PS22-IF Portable Live Sonar #010-01945-10

$1,099.99 $1,275.50 -14% OFF
Brand: Garmin

SKU: GAR-010-01945-10

UPC: 753759340223

More about this item

Garmin 010-01945-10 Ice Fishing Accessories

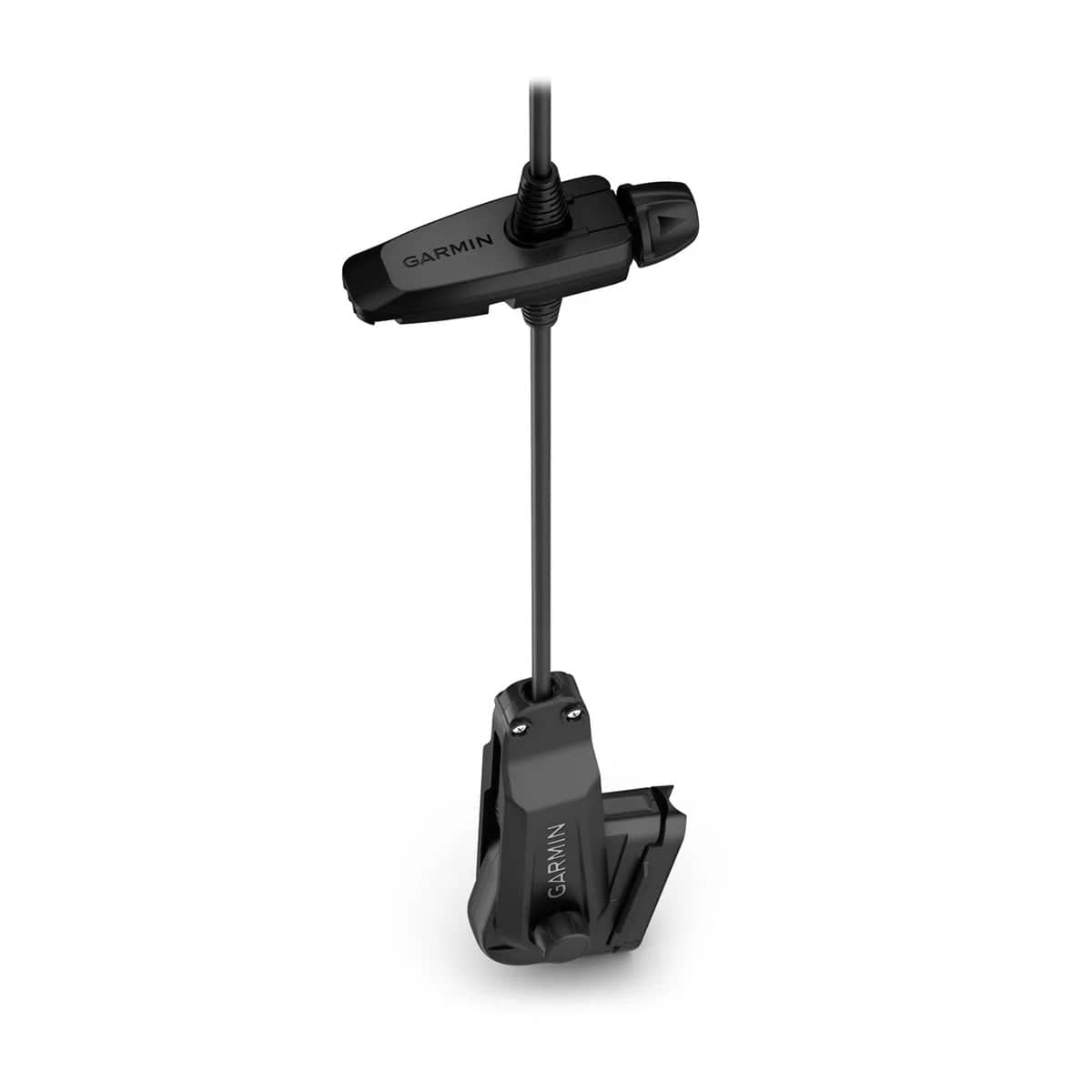

Garmin Panoptix™ PS22-IF Portable Live Sonar

Model: 010-01945-10

Hop faster between holes with the ultraportable Panoptix PS22-IF transducer. This live sonar transducer has an all-new bracket and rotator — which eliminates the need for a bulky pole mount — as well as a removable lens so you can optimize the sonar beam angle for the water below. Locate schools of fish in real time with two types of Panoptix sonar: LiveVü™ Forward and LiveVü™ Down scan modes.

Specifications
General
Transducer beamwidth With lens: 12° x 120°
Without lens: 57° x 120°
Transducer cable length 9.8' (3 m)
Dimension 9.1" x 4.1" x 2.5" (23.1 x 10.4 x 6.4 cm)
Weight 2.60 lbs (1.18 kg)
Temperature range Operating: 0° C to 40° C
Electrical Features
Power input 10-32 V
Fuse 4A
Sonar Features
Frequency 417 kHz
Transmit power 48 W
Maximum depth 300'
Connections
Garmin Marine Network Ports 1 (standard connector)
Sonar Modes
LiveVü Down Yes
LiveVü Forward Yes
Traditional sonar source Yes

What's in the Box:
  • Panoptix PS22-IF transducer
  • Transducer rotator and bracket
  • Removable lens
  • Hardware
  • Documentation

  • Normalized SKU: 0100194510
    UPC Code: 753759340223
