Garmin Qualifies for Free Shipping Garmin Heading Sensor #010-11417-00

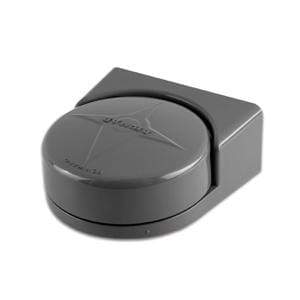

Garmin Heading Sensor #010-11417-00

$834.87 $1,010.97 -18% OFF

Garmin Heading Sensor #010-11417-00

$834.87 $1,010.97 -18% OFF

Garmin Heading Sensor #010-11417-00

$834.87 $1,010.97 -18% OFF
Brand: Garmin

SKU: GAR-010-11417-00

UPC: 753759099220

Category: Accessories

More about this item

Garmin 010-11417-00 Accessories

When interfacing this 3-axis compass heading sensor to Garmin's marine lineup of MFDs and radars, mariners can expect unparalleled radar overlay performance and accuracy along with excellent MARPA capabilities.

This heading sensor uses a rate gyro, so it can maintain an exceptional 2 degree heading accuracy under heavy dynamic conditions, with up to 30 degrees of pitch and roll. In addition, it supports either NMEA 0183 or NMEA 2000® data output to fit any installation.

Installation is a snap thanks to the heading sensor's innovative design allowing it to mount to any angled bulkhead. Mariners can expect this heading sensor to provide trouble-free service in the harshest conditions and will learn to appreciate its reliability and excellent performance.

  • Better than 1 degree static heading accuracy
  • Industry leading 2 degree dynamic accuracy up to 30 degree pitch and roll
  • Three-axis solid-state compass provides accurate heading data
  • Three-axis accelerometer improves heading, pitch and roll in static conditions
  • Three-axis rate gyro improves heading, pitch and roll in dynamic conditions
  • Temperature compensated across the entire operating range to ensure optimum accuracy
  • Heading output by default is 10 Hz for both NMEA 0183 and NMEA 2000 (NMEA 2000 can be output up to 20 Hz)
  • Easy installation to any angled bulkhead
  • Auto-calibration feature
  • Waterproof housing (IPX6)
  • Dimensions: 2" (5.08 cm) H x 4.4" (11.18 cm) L x 4.5" (11.43 cm) D
  • Operating voltage: 9 VDC to 16 VDC

* Please Note: NMEA 0183 and NMEA 2000 cables sold separately


Normalized SKU: 0101141700
UPC Code: 753759099220
