Jabsco Qualifies for Free Shipping Jabsco Y-Valve for Waste Management Systems #45490-1000

Jabsco Y-Valve for Waste Management Systems #45490-1000

$119.71 $148.61 -20% OFF

Jabsco Y-Valve for Waste Management Systems #45490-1000

$119.71 $148.61 -20% OFF

Jabsco Y-Valve for Waste Management Systems #45490-1000

$119.71 $148.61 -20% OFF
Brand: Jabsco

SKU: JAB-45490-1000

UPC: 671880536462

Category: Fittings

More about this item
  Download Literature
  Watch Video

Jabsco 45490-1000 Fittings

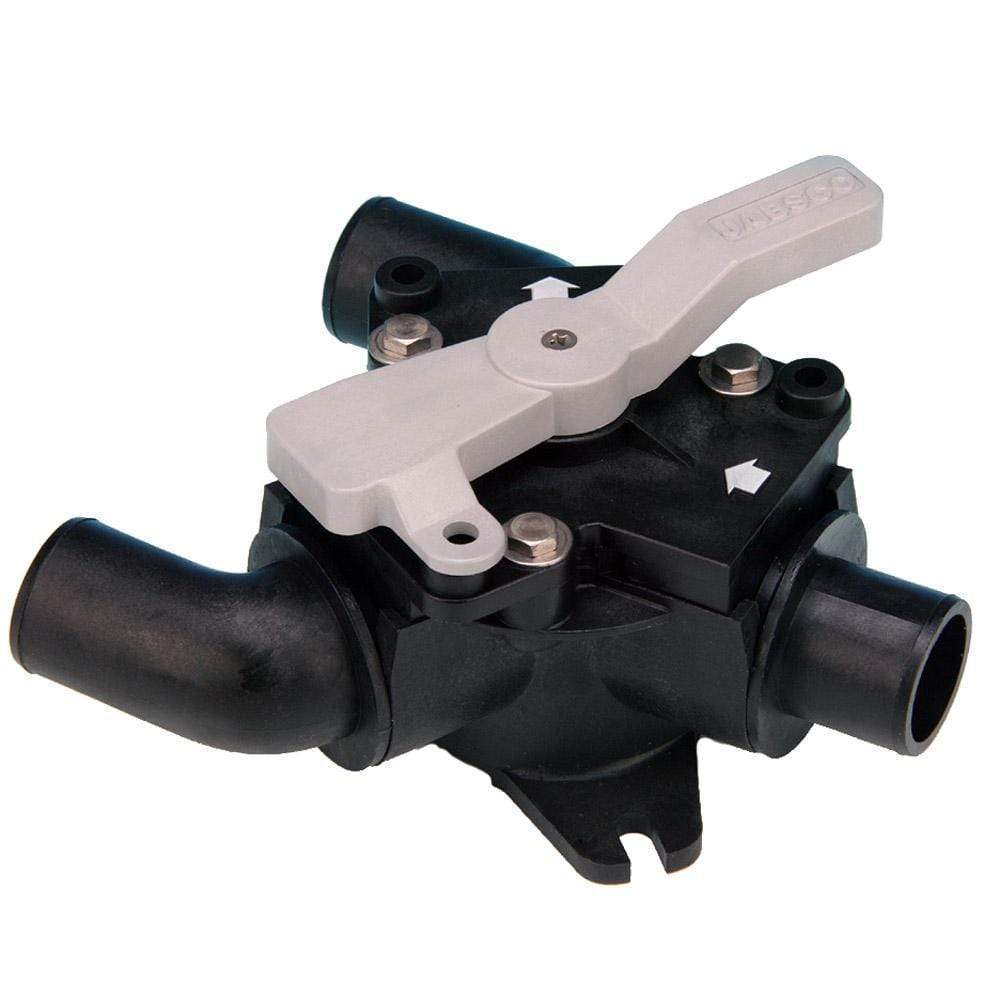

Y-Valve

The Jabsco Y-Valve is designed to provide flexibility of onboard waste management by diverting waste either into an onboard holding tank or directly overboard where legal to do so. Check local and Federal regulations to determine where direct overboard discharge of untreated waste is permitted. No overboard discharge of untreated waste is allowed within three miles of shore.

Some near shore areas and inland areas are designated as "No-Discharge Zones" where the discharge of any onboard waste, even treated waste is strictly prohibited. Many of these areas require a waste retention system that can be positively secured in an onboard retention mode. The Jabsco Y- Valve accommodates this requirement by providing the ability to add a padlock that secures the selector handle in either direction to ensure waste is directed to an onboard holding tank. The Y-Valve may also be used to direct waste from a holding tank to an onboard waste discharge pump for holding tank evacuation or, alternatively, to a waste deck plate for removal by a shoreside pump-out facility.

The Y- Valve may also be used in a bilge pumping system to select between two separate bilge pickups in different bilge compartments providing for evacuation of two separate bilge areas with only one bilge pump.

Features:
  • Chemical and corrosion resistant polypropylene and stainless steel construction
  • Selector lever can be padlocked (lock not included) and/or sealed in either position
  • Ports can be rotated so discharge plumbing can be routed away in parallel, at 900 or in opposite directions, or either up or down without disassembly
  • Valve is supplied with both 1-1/2" (38 mm) ports (fitted) and extra 1" (25 mm) straight inlet port
  • Optional shaft extension allows valve to be mounted through a bulkhead up to 1-3/4" thick with only the selector handle exposed
  • Self cleaning design provides trouble free operation
  • Molded in flow direction indicator arrows
  • Easy access to three sturdy mounting feet for quick and simple installation
  • Easy access to valve by removal of just three hex head machine screws, top cover and diverter assembly lift away from the body

WarningWARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.


Specifications:

Amps - Draw = NONE
Volts = NONE
Operation = NONE
Outlet Size = NONE
Gallons Per Hour = NONE
Inlet Size = NONE
Gallons Per Minute = NONE
Rinse Water = NONE
Quick Flush = NONE
Back Design = NONE
Suction Lift (ft.) = NONE


JABSCO Y-VALVE FOR WASTE MANAGEMENT SYSTEMS


Normalized SKU: 454901000
UPC Code: 671880536462

Jabsco 45490-1000 Literature Download

  Owners Manual

Jabsco 45490-1000 Video



Qualifies for Free Shipping
This item qualifies for free shipping when the order is over $149
$119.71 $148.61 -20% OFF
0 watching this item.
0 LEFT IN STOCK
LIMITED TIME OFFER 00
days
00
hours
00
minutes
00
seconds

The price of this item will revert back to $148.61 at the end of this countdown.
