Humminbird 411940-1 Fishfinders Humminbird HELIX 7 G4N CHIRP MEGA SI GPS Model: 411940-1 Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions. MEGA Side Imaging: See the world below like never before with crystal-clear viewing out to 125 feet on either side of your boat. You'll unlock new details with up to 3X more detail than standard Side Imaging sonar. MEGA Down Imaging: Get unprecedented underwater clarity with coverage down to 125 feet below your boat. You'll unlock new details with up to 3X more detail than standard Down Imaging sonar. Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly-detailed fish arches and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail. Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S. Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts. AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually-endless AutoChart Live mapping capacity. One-Boat Network Compatible: These Humminbird models seamlessly integrate and communicate with other Humminbird and Minn Kota products to unlock more features and capabilities for anglers everywhere. Make the more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network. Ethernet Networking: High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar. Bluetooth: Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors. Additional features include wireless software updates from the Humminbird FishSmart App and display of smart phone notifications on your Humminbird. NMEA 2000 networking built-in: Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking. The HELIX 7 CHIRP MEGA SI GPS G4N fish finder features MEGA Side Imaging, MEGA Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS and Humminbird Basemap built-in. An upgraded high-definition 7" display will give you the best view of the many pre-loaded split screen view options so that you'll never miss a fish. All HELIX 7 G4N models support Ethernet networking, Bluetooth(R), NMEA 2000(R), Wi-Fi and are compatible with the One-Boat Network(TM), which means you'll have total control of your fishing machine at your fingertips. Specifications Display Size - Diagonal 7" Display Pixel Matrix 1024H x 600V Sonar-Standard Dual Spectrum CHIRP, MEGA Down Imaging, MEGA Side Imaging Sonar-Coverage 20°, 42°, 60° & (2) 86° @ -10dB Sonar-Optional 53 kHz, 50/Low Airmar CHIRP CHIRP - Frequencies Supported 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz) Sonar-Frequencies Supported 50/83/200/455/800 kHz & 1.2 MHz Depth-Sonar 1,200 ft (standard transducer), 3,500 ft (optional 50 kHz) CHIRP - Imaging-Frequencies Supported 455 kHz (440-500 kHz), MEGA DI (1075-1150 kHz), MEGA SI (1075-1150 kHz) Depth-Down Imaging 400 ft (455 kHz), 75 ft (MEGA) Range-Side Imaging (Side-To-Side) 800 ft (455 kHz), 250 ft (MEGA) Interface Keypad Control Features Built In GPS, Built In Mapping, Dual Spectrum CHIRP, Down Imaging, Side Imaging, MEGA Imaging, MEGA Live Imaging, Bluetooth, Networking, Wi-Fi Memory Card Slot Dual Micro SD Compatible With AIS, AutoPilot, Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, MEGA Live, One-Boat Network, Minn Kota i-Pilot Link, Minn Kota Talon/Raptor, NMEA 2000, Radar Power Draw 800 mA Power Input 10.8-20 VDC Power Output Peak-to-Peak 4000 Watts Power Output RMS 500 Watts Screen Snap Shot Included Sonar Recording Included Mount-Standard Gimbal Mount-Standard Size 10.54" W x 5.8" H x 3.68" D Mount-Optional Size 10.54" W x 5.44" H x 1.13" D Transducer Mount Location Transom Transom Included GPS Trackplotting Included LakeMaster Compatibility Yes Coast Master Compatibility Yes Navionics Gold/HotMaps Compatibility Yes Navionics Platinum + Compatibility Yes Platinum Compatibility Yes Heading Sensor GPS Compatibility Yes Upgradable Software Yes View Preset Keys Yes X-Press Menu System Yes Custom Digital Readout Yes Custom View Selections No Display Colors Grayscale 16-Bit Speed Included Temperature Built In Temperature Alarm Yes Temperature Graph Yes HDMI Compatible No MEGA Live Compatibility Yes   What's in the Box: Control head Transom-mount transducer XNT 9 HW MSI 150 T Power cable Gimbal mounting bracket Mounting hardware. Normalized SKU: 4119401 UPC Code: 082324058172

Humminbird 411930-1 Fishfinders HELIX 7 GPS CHIRP MSI G4 The HELIX 7 MEGA SI GPS G4 fish finder features MEGA Side Imaging, MEGA Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS, and Humminbird Basemap built-in. An upgraded high-definition 7" display will give you the best view of the many pre-loaded split screen view options, so users never miss a fish. Features: Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any condition. MEGA Side Imaging: See the world below like never before with crystal-clear viewing out to 125 feet on either side of the boat. Users unlock new details with up to 3X more detail than standard Side Imaging sonar. MEGA Down Imaging: Get unprecedented underwater clarity with coverage down to 125 feet below your boat. Unlock new details with up to 3X more detail than standard Down Imaging sonar. Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly-detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail. Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S. Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts. AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity. Includes control head, transom-mount transducer, power cable, gimbal mounting bracket, and mounting hardware. 1-Year Limited Warranty Specifications: Display Size - Diagonal: 7" Display Pixel Matrix: 1024H x 600V Transducer Included: XNT 9 HW MSI 150 T Compatible With: Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, AIS, AutoPilot Features: Down Imaging, Built-In GPS, Side Imaging, Dual Spectrum CHIRP, Built In Mapping, MEGA Imaging Memory Card Slot: Single Micro SD Sonar-Standard: Dual Spectrum CHIRP, MEGA Down Imaging, MEGA Side Imaging Sonar-Coverage: 20°, 42°, 60° & (2) 86° @ -10dB Sonar-Optional: 53 kHz, 50/Low Airmar CHIRP CHIRP - Frequencies Supported: Narrow Mode (180-240 kHz), 83/200 (75-155/130-250 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz) Sonar-Frequencies Supported: 50/83/200/455/800 kHz & 1.2 MHz Depth-Sonar: 3,500' (optional 50 kHz), 1,200 ft (standard transducer) CHIRP - Imaging Frequencies Supported: 455 kHz (440-500 kHz), MEGA SI (1075-1150 kHz), MEGA DI (1075-1150 kHz) Depth-Down Imaging: 75 ft (MEGA), 400 ft (455 kHz) Range-Side Imaging (Side-To-Side): 800 ft (455 kHz), 250 ft (MEGA) Interface: Keypad Control Power Draw: 800 mA Power Input: 10.8-20 VDC Power Output Peak-to-Peak: 4000 Watts Power Output RMS: 500 Watts Screen Snap Shot: Included Sonar Recording: Included Mount-Standard: Gimbal Mount-Standard Size: 10.54 in W x 5.8 in H x 3.68 in D Mount-Optional: In-Dash Mounting Kit Mount-Optional Size: 10.54 in W x 5.44 in H x 1.13 in D Transducer Mount Location: Transom GPS Chartplotting: Included GPS Receiver: Internal GPS Trackplotting: Included Waypoints, Routes, Tracks/Points: 2,750, 47, 50/20,000 360 Imaging Compatibility: No MEGA Live Compatibility: No Humminbird Basemap: Included LakeMaster Compatibility: Yes CoastMaster Compatibility: Yes Navionics Gold/HotMaps Compatibility: Yes Navionics Platinum+ Compatibility: Yes Platinum Compatibility: Yes Minn Kota i-Pilot Link Compatibility: No Minn Kota Talon Shallow Water Anchor Compatibility: No Radar Compatibility: No 5-Port Ethernet Switch Compatibility: No AIS Compatibility: Optional Autopilot Compatibility: Yes Heading Sensor GPS Compatibility: Yes Target Separation: 2.5" Interference Rejection: 6 Modes Noise Rejection: 10 Steps Upgradable Software: Yes View Preset Keys: No X-Press Menu System: Yes Custom Digital Readout: Yes Custom View Selections: No Display Colors Grayscale: 16-Bit Display Type: Color TFT Speed: Included Temperature: Built In Temperature Alarm: Yes Temperature Graph: Yes HDMI Compatible: No Warranty: One-Year Warranty Normalized SKU: 4119301UPC Code: 082324058295

Garmin 010-02367-52 FishfindersGarmin GPSMAP® 1223xsv SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap and GMR18HD3 radar DomeModel: 010-02367-52 Easily integrate with more engines. Connect to compatible third-party devices with OneHelm™ digital switching. Easily build your marine system using the best of network connectivity. Navigate any waters with preloaded mapping and coastal charts. See below your boat with built-in sonar capabilities. Manage your marine experience from nearly anywhere. With its sleek design, powerful processing and upgraded IPS display, this advanced 12" chartplotter/sonar combo integrates seamlessly into your Garmin marine system.Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP 923xsv also supports 1 kW CHIRP traditional sonar capabilities.Pair with Panoptix or Panoptix LiveScope™ easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.With its ultrasleek design, vivid sonar color palette and high-resolution 12" in-plane switching display, this large format chartplotter/sonar combo offers improved sunlight readability and wide-angle visibility.If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ Community data and more.Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.Specifications General PHYSICAL DIMENSIONS 12.1" x 8.9" x 3.2" (30.8 x 22.8 x 8.2 cm) DISPLAY SIZE 10.3" x 6.4"; 12.1" diagonal DISPLAY RESOLUTION 1280 x 800 pixels DISPLAY TYPE WXGA display WEIGHT 6.6 lbs. (3.0 kg) WATER RATING IPX7 POLARIZED SUPPORT Yes POWER CONSUMPTION Max power usage at 10 Vdc: 26.5 W Typical current draw at 12 Vdc: 1.7 A Max current draw at 12 Vdc: 2.2 A ANTENNA Internal or external over NMEA 2000 MOUNTING OPTIONS Bail, flush or flat RECEIVER 10 Hz high-sensitivity GARMIN MARINE NETWORK™ PORTS 2 TRANSMIT POWER 1 kW traditional; 1 kW CHIRP Maps & Memory PRELOADED MAPS worldwide basemap ACCEPTS DATA CARDS 2 microSD™ cards (back of unit) WAYPOINTS 5,000 TRACK LOG 50,000 points; 50 saved tracks ROUTES 100 Outdoor Recreation TIDE TABLES Yes Chartplotter Features GARMIN RADAR COMPATIBLE Yes GARMIN SONAR COMPATIBLE Yes (built-in) GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS) Yes SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) Yes SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) Yes SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS Yes GSD™ BLACK BOX SONAR SUPPORT Yes GCV™ BLACK BOX SONAR SUPPORT Yes ACTIVECAPTAIN COMPATIBLE Yes GRID™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLE Yes WIRELESS REMOTE COMPATIBLE Yes SAILING FEATURES Yes Sonar Features & Specifications DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE Yes DUAL-BEAM (77/200 KHZ) SONAR CAPABLE Yes FREQUENCIES SUPPORTED Traditional: 50/77/83/200 kHz CHIRP (low, medium, high) ClearVü (260/455/800 kHz) (dependent on transducer) CHIRP SONAR TECHNOLOGY Yes (Built-in) CLEARVü Yes with CHIRP (built-in) SIDEVü Yes with CHIRP (built-in) MAXIMUM DEPTH 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) Yes WATER TEMPERATURE LOG AND GRAPH Yes SONAR RECORDING Yes SONAR HISTORY REWIND Yes Connections NMEA 2000® COMPATIBLE Yes TRANSDUCER PIN NUMBERS 12-pin (orange) NMEA 0183 INPUT PORTS 1 NMEA 0183 OUTPUT PORTS 1 VIDEO INPUT PORTS 1 BNC VIDEO OUTPUT PORTS 1 HDMI WIRELESS CONNECTIVITY Yes J1939 COMPATIBLE Yes What's in the Box: GPSMAP 1223xsv chartplotter microSD™ card preinstalled Power cable NMEA 2000® T-connector NMEA 2000 drop cable (2 meters) Bail mount kit with knobs Flush mount kit with gasket Protective cover Trim piece snap covers Documentation 8-pin transducer to 12-pin sounder adapter cable GMR 18 HD3 radome Mounting hardware kit Power cable (15 m) Network cable (15 m) Installation instructions Normalized SKU: 0100236752UPC Code: 753759326029

Watch VideoGarmin 010-02367-53 FishfindersGPSMAP® 1243xsv with GMR™ 18 HD3 RadomeWith its sleek design, powerful processing, and upgraded IPS display, this advanced 12" chartplotter integrates seamlessly into your Garmin marine system.Features: Easily integrate with more engines Connect to compatible third-party devices with OneHelm™ digital switching Easily build your marine system using the best network connectivity Navigate any waters with preloaded Garmin Navionics+™ charts and mapping See below for your boat's built-in sonar capabilities Manage your marine experience from nearly anywhere Ultra-High-Definition Scanning SonarGet built-in ultra-high-definition sidevü and clearvü™ scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. Gpsmap® X3 series also supports 1 KW chirp traditional sonar capabilities.Panoptix™ Sonar SupportPair with panoptix or livescope™ easy-to-interpret live sonar (transducer required, sold separately) to see all around your boat in real-time.Faster, Sharper, SmarterWith its added processing power and slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this plotter in a wider range of dash configurations.Improved Display OpticsThis higher-resolution display offers improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation GPSMAP devices.Preloaded MappingExperience unparalleled coverage and detail with built-in Garmin Navionics+ integrated coastal and inland mapping that includes Auto Guidance+™ technology3 and a 1-year subscription for downloadable daily updates and more on select chartplotters.Optional Charts & MapsBring a fresh look and feel to your chartplotter with the optional upgrade to Garmin Navionics Vision+™ premium chart subscription, featuring downloadable high-resolution relief shading, satellite imagery, sonar imagery, and more.Optional Radar BundleTo help you avoid weather and traffic on the water, the compact 4 kW GMR™ 18 HD+ dome radar is available as a bundled option with your GPSMAP chartplotter/sonar package.Power-Pole® Shallow Water AnchorBy networking select Garmin chartplotters with a force® trolling motor and your compatible power-pole shallow water anchoring system, you can access advanced boat control features from your plotter, including smart anchor auto-deployment, smart anchor jog, auto stow, anchor drag detection, and auto guidance end-of-route anchoring. Spend more time fishing and less time positioning.Garmin Sailassist™ Sailing Features View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields, tide/current/time slider, wind angle, set and drift, wind speed, polars, and more.Sailing PolarsUse the polar table to see key data, including how fast you should go at a certain wind angle and speed, so you know whether you need to adjust sail trim.Garmin Marine NetworkIf you have multiple compatible Garmin devices on your boat, you can share information—such as maps, user data, radar, and IP camera video—among them.NMEA 2000® and NMEA 0183 NetworksConnect to compatible autopilots, digital switching, weather, fusion-link™ audio system, media, VHF, AIS, and more from one screen.Activecaptain® AppBuilt-in wi-fi® connectivity pairs with the free all-in-one mobile app for access to the onechart™ feature, smart notifications, software updates, helm, Garmin quickdraw™ community data, and more.Integrated Ant® TechnologyConnect with some of your favorite devices, such as Quatix® marine watches, gWind™ wireless 2 transducers, GNX™ wind marine instruments, and wireless remote controls.Engine ConnectivityNow you can connect your chartplotter to different kinds of engines, including select Yamaha engines.OneHelm FeatureThis feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.Send inReach® Device MessagesPair your inreach satellite COMMUNICATOR5 to your chartplotter and type custom messages using your mfd’s on-screen keyboard. Access your contact list or enter an email, inreach address, or phone number. You can also group messages by conversation for a texting-like experience.In the Box (chartplotter): GPSMAP 1243xsv chartplotter microSD™ card preinstalled Power cable NMEA 2000® T-connector NMEA 2000 drop cable (2 meters) 8-pin transducer to 12-pin sounder adapter cable Bail mount kit with knobs Flush mount kit with gasket Protective cover Trim-piece snap covers Documentation In the Box (radome): GMR 18 HD3 dome radar Power cable (49.21 ft) Network cable (49.21 ft) Mounting hardware kit and template Installation instructions General: Dimension: 12.1" x 8.9" x 3.2" (30.8 x 22.8 x 8.2 cm) Weight: 6.6 lbs (3.0 KG) Waterproof: IPX7 Touchscreen: Yes Display Type: WXGA Display Size: 10.3" x 6.4"; 12.1" diagonal (26.2 x 16.3 cm; 30.7 cm diagonal) Display Resolution: 1280 x 720 pixels Mounting Options: Bail, flush, or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) Input: Touchscreen Maps & Memory: Accepts Data Cards: 2 MicroSD cards (Back of Unit) Waypoints: 5000 Track Points: 50,000 Tracks: 50 saved tracks Navigation Routes: 100 Sensors: GPS: Yes     Glonass: Yes Galileo: Yes Has Built-In Receiver: Yes     Receiver: 10Hz NMEA 2000 Compatible: Yes NMEA 0183 Compatible: Yes Supports WAAS: Yes Built-In Maps: Built-in Auto Guidance+: Yes Garmin Navionics+ Inland & Coastal: Yes Tide Tables: Yes Optional Map Support:  Garmin Navionics+™: Yes Garmin Navionics Vision+™: Yes Topo 100K: Yes Standard Mapping: Yes Garmin Quickdraw Contours: Yes Raster Chart Support: Yes Chartplotter Features: Smart Mode Compatible: Yes AIS: Yes     DSC: Yes Supports Fusion-Link™ Compatible Radios: Yes GSD Black Box Sonar Support: Yes GCV Black Box Sonar Support: Yes Activecaptain® Compatible: Yes Grid (Garmin Remote Input Device) Compatible: Yes Wireless Remote Compatible: Yes Sailing Features: Yes Spoken Audio Alerts: Yes Onehelm Support: Yes Electrical Features: Power Input: 10 to 32 Vdc Typical Current Draw at 12 Vdc: 1.37 A Maximum Current Draw at 12 Vdc: 3.20 A Maximum Power Usage at 10 Vdc: 40.2w Sonar Features & Specifications: Displays Sonar: Yes Power Output: 1 KW Traditional Sonar (Dual Frequency/Beam): Built-in (Single Channel Chirp, 50/70/83/200 Khz, L, M, H Chirp) Clearvü: Built-in 260/455/800/1000/1200 kHz Sidevü: Built-in 260/455/800/1000/1200 kHz Panoptix™ Sonar: Yes Livescope: Yes Connections: NMEA 2000® Ports: 1 Connections NMEA0183 Input Ports: 1 NMEA 0183 Input (TX) Ports: 1 Video Input Ports: 1 (BNC Composite) Video Output Ports: 1 HDMI J1939 Ports: 1 Garmin Marine Network Ports: 2 12-Pin Transducer Ports: 1 USB Ports: Yes BNC External GPS Antenna Port: Yes Bluetooth® Pairing: Yes Ant+ (Connectivity): Yes Garmin Wi-Fi Network (Local Connection): Yes Normalized SKU: 0100236753UPC Code: 753759326036Garmin 010-02367-53 Video

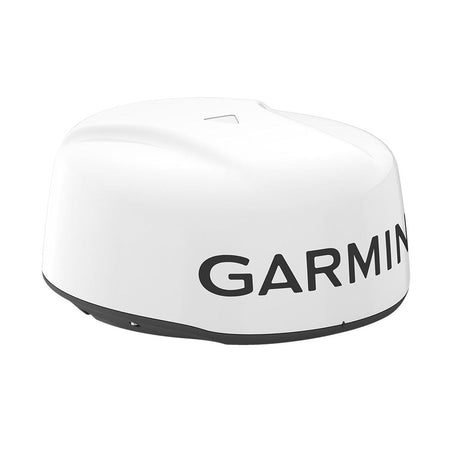

Watch VideoGarmin 010-02843-00 FishfindersGMR 18 HD3 18" Radar DomeThis compact 18" dome radar combines ease of use with powerful scanning features that work to maximize your confidence and situational awareness on the water.Features: 4 KW power output, 36 nautical mile max range Space-saving 18" dome Marpa target tracking Dynamic auto gain and sea filter Dual-radar support Quiet dome drive motor Dual-Radar Support Using dual radar provides redundancy and allows each display unit on the boat to pull data from one of two different radar sources.Dynamic Auto GainGain automatically adjusts levels to optimum settings.Dynamic Sea FilterRadar gain automatically adjusts sea clutter for calm, medium and rough sea conditions.Radar OverlayOverlay radar images onto your chartplotter’s map page. You can add an optional autopilot or heading sensor (sold separately) for the best results.MARPA Target TrackingMARPA tracks selected targets to help keep track of other vessels and avoid collisions (with appropriate sensors, sold separately).Low-Noise Scanning The reliable GMR HD3 dome drive motor spins at a fixed 24 rpm, offering reliable, low-noise operation and minimal power consumption.Compact and Powerful4 kW of transmit power, a 36 nautical mile maximum range, and clear echo definition at all ranges.Close-In Target ScanningMinimum scanning range of 20 meters for excellent short-range detection and target detail.High-Resolution Radar8-bit true color for outstanding target separation with less screen clutter.Timed Transmit ModeSpecify transmit times down to the seconds to help reduce power consumption.Intuitive operationNo complex user settings, so it’s easy to install and start using.In the Box: GMR 18 HD3 dome radar Power cable (15 m/49.21 ft) Network cable (15 m/49.21 ft) Mounting hardware kit and template Installation instructions General: Dimensions: 20" diameter, 9.8" high (508 mm diameter, 248 mm high) Weight: 7.0 kg Waterproof: IPX7 Antenna length: 17" (43 cm) Rotation Speed (RPM): 24 rpm Beam Width: 5.2° horizontal, 25° vertical Maximum Range: 36 nm Minimum Range: 20 meters Radar Type: Radome Electrical Features: Power Input: 11-32 v DC Power Consumption (Standby): 15 W Typical Power Consumption, Transmitting (Normal Mode): 40 W Transmit Power: 4 KW Radar Features: Overlay: Yes Dual Radar Support: Yes Auto Gain: Dynamic MARPA Target Tracking: Yes (requires heading sensor, sold separately) Normalized SKU: 0100284300UPC Code: 753759320737Garmin 010-02843-00 Video

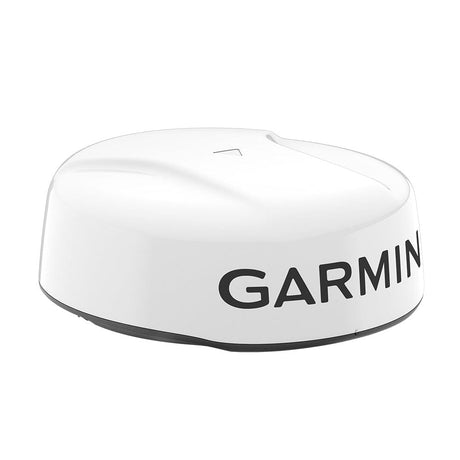

Watch VideoGarmin 010-02842-00 FishfindersGMR 24 xHD3 24" Radar DomeLoaded with advanced features typically found on open arrays, this powerful 24" dome radar offers superior traffic, obstacle, and weather detection for peace of mind on the water.Features: 4 KW power output, 48 nautical mile max range Scan-averaging technology Improved target-size processing Split-screen dual-range display Bird detection Quiet dome-drive motor Scan Averaging Technology A first for Garmin magnetron radar, scan averaging helps filter out sea clutter and interference to enhance the detection and display of consistent targets.Angular Target-Size AdjustmentPulse expansion and angular target-size processing techniques optimize on-screen object shapes for better interpretation at all range scales.Faster Scanning Antenna Rotation speeds up to 60 rpm improve the redraw rate for faster target updates.True Echo TrailsA historical "trail" of boats on the water is displayed on the screen, removing relative motion influences to help you quickly identify moving targets and potential collision threats.Dual Range with OverlayA single radar antenna is capable of providing split-screen, side-by-side images on your compatible chartplotter, with independent range settings and controls for both close and long range. Overlay either or both ranges on a chart.Dynamic Auto GainGain automatically adjusts levels to optimum settings for harbors, near shore, and offshore in open waters.Radar OverlaySee overlaid images on your chartplotter’s map screen (with appropriate sensors, sold separately).High-Resolution RadarPick out targets at a distance thanks to a narrow horizontal beamwidth and high antenna gain.Dual-Radar SupportThis provides redundancy and allows each display unit to pull data from different sources.Dynamic Sea FilterRadar gain automatically adjusts sea clutter for calm, medium, and rough sea conditions.Auto Bird GainLocate flocks of birds at the water’s surface, where baitfish are also likely to be found.MARPA Target TrackingTrack up to 30 targets to help avoid collisions (with appropriate sensors, sold separately).Guard ZoneSet the safety zone and receive an alarm when an object enters the zone.Range and Bearing CuesVariable range markers and electronic bearing lines allow rapid measurements of distance and bearing to vessels and land.In the Box: GMR 24 xHD3 dome radar Power cable (15 m/49.21 ft) Network cable (15 m/49.21 ft) Mounting hardware kit and template Installation instructions General: Dimensions: 25.4" x 9.8" (64.5 cm x 24.9 cm) Weight: 7.0 kg Waterproof: IPX7 Antenna length: 17" (43 cm) Rotation Speed (RPM): Up to 60 RPM, depending on settings Beam Width: 3.7° horizontal, 25° vertical Maximum Range: 48 nm Minimum Range: 20 metersRadar Type: Radome Electrical Features: Power Input: 11-32 v DC Power Consumption (Standby): 15 W Typical Power Consumption, Transmitting (Normal Mode): 40 W Transmit Power: 4 KW Radar Features: Dual Range: Yes Overlay: Yes Dual Radar Support: Yes Auto Bird Gain: Yes Auto Gain: Dynamic MARPA Target Tracking: Yes (requires heading sensor, sold separately) Echo Trails: True Target Size: Yes Scan Averaging: Yes Normalized SKU: 0100284200UPC Code: 753759320751Garmin 010-02842-00 Video

Watch VideoGarmin 010-02841-00 FishfindersGMR 18 xHD3 18" Radar DomeLoaded with advanced features typically found on open arrays, this powerful 18" dome radar offers superior traffic, obstacle, and weather detection for peace of mind on the water.Features: 4 KW power output, 48 nautical mile max range Scan-averaging technology Improved target-size processing Split-screen dual-range display Bird detection Quiet dome-drive motor Scan Averaging Technology A first for Garmin magnetron radar, scan averaging helps filter out sea clutter and interference to enhance the detection and display of consistent targets.Angular Target-Size AdjustmentPulse expansion and angular target-size processing techniques optimize on-screen object shapes for better interpretation at all range scales.Faster Scanning Antenna Rotation speeds up to 60 rpm improve the redraw rate for faster target updates.True Echo TrailsA historical "trail" of boats on the water is displayed on the screen, removing relative motion influences to help you quickly identify moving targets and potential collision threats.Dual Range with OverlayA single radar antenna is capable of providing split-screen, side-by-side images on your compatible chartplotter, with independent range settings and controls for both close and long range. Overlay either or both ranges on a chart.Dynamic Auto GainGain automatically adjusts levels to optimum settings for harbors, near shore, and offshore in open waters.Radar OverlaySee overlaid images on your chartplotter’s map screen (with appropriate sensors, sold separately).High-Resolution RadarPick out targets at a distance thanks to a narrow horizontal beamwidth and high antenna gain.Dual-Radar SupportThis provides redundancy and allows each display unit to pull data from different sources.Dynamic Sea FilterRadar gain automatically adjusts sea clutter for calm, medium, and rough sea conditions.Auto Bird GainLocate flocks of birds at the water’s surface, where baitfish are also likely to be found.MARPA Target TrackingTrack up to 30 targets to help avoid collisions (with appropriate sensors, sold separately).Guard ZoneSet the safety zone and receive an alarm when an object enters the zone.Range and Bearing CuesVariable range markers and electronic bearing lines allow rapid measurements of distance and bearing to vessels and land.In the Box: GMR 18 xHD3 dome radar Power cable (15 m/49.21 ft) Network cable (15 m/49.21 ft) Mounting hardware kit and template Installation instructions General: Dimensions: 20" x 9.8" (508 mm x 248 mm) Weight: 7.0 kg Waterproof: IPX7 Antenna length: 17" (43 cm) Rotation Speed (RPM): Up to 60 RPM, depending on settings Beam Width: 5.2° horizontal, 25° vertical Maximum Range: 48 nm Minimum Range: 20 metersRadar Type: Radome Electrical Features: Power Input: 11-32 v DC Power Consumption (Standby): 15 W Typical Power Consumption, Transmitting (Normal Mode): 40 W Transmit Power: 4 KW Radar Features: Dual Range: Yes Overlay: Yes Dual Radar Support: Yes Auto Bird Gain: Yes Auto Gain: Dynamic MARPA Target Tracking: Yes (requires heading sensor, sold separately) Echo Trails: True Target Size: Yes Scan Averaging: Yes Normalized SKU: 0100284100UPC Code: 753759320744Garmin 010-02841-00 Video

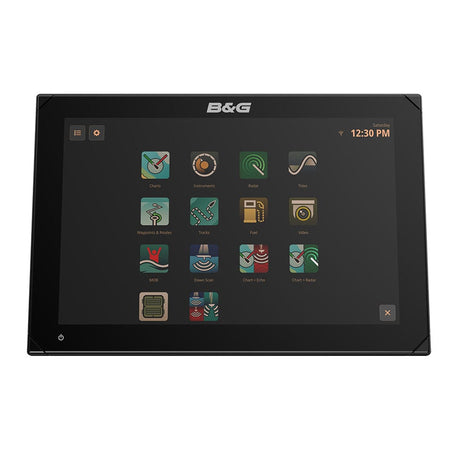

B & G 000-15224-001 FishfindersZeus® S 12 Chartplotter/Fishfinder without TransducerThe Zeus® S has been designed with the cruiser, racer, monohull, and multihull sailor in mind, providing a new intuitive user experience with user modes to easily get the best experience while sailing.The bright, sunlight viewable, touch screen combined with the new C MAP® Reveal X cartography enables new features and each sailing feature has been reimagined to be more capable and more intuitive.All are powered by the latest quad-core microprocessors that allow Instrument, Radar, Sonar and Charting features to all work seamlessly Features: 12V power supply - 4 pins with yellow ignition Latest industrial-spec Quad-core microprocessors NMEA2000 compliant interface (Micro-C) Ethernet, 100mbps, waterproof Dual Wi-Fi (802.11g) for Over The Air software upgrades and B & G App support Waterproof Micro SD card slot IP67 Environmental rating USB Port Zeus s 9 and 12 only Sonar- CHIRP/Single Frequency, StructureScan, ActiveImaging, and Totalscan support Internal GPS with sail-specific filtering and 10Hz position updates. GLONASS, Galileo, Beidou, and QZSS constellation support for highly-accurate positioning worldwide 12" Ultra-bright IPS SolarMax HD display Touch screen for quick and simlple operation. Includes touch-lock feature Compatible with the latest CMAP® Discover TM X and Reveal TM X cartography providing up-to-date charting detail with a clean and modern look.Powerful Chart Overlays For: Radar High-Resolution Bathymetric contours (HRB) Shaded Relief* Satellite Imagery* Chart Features: Chart Safety Alerts Tides and Currents Night Mode Chart Inspector tool Subscription-free Auto-routing        *CMAP Reveal ™X only - Some features require additional system components (e.g. radar). Custom depth-shadingSailing Features:User Experience Simple Home screen with easy-to-find features Sailing modes - Cruise & Race, just the data you want Multihull & Monohull characterization Night mode optimized for low light conditions Configurable to suit your requirements Charting Clear CMAP Reveal X charts Safety Alerts Laylines with wind history Sailing Time to the Cursor position Chart orientations: Wind up; Target up; Start Line up Instruments Sailing dashboards Dashboard editor SailSteer™ gauge Tide Gauge Data Bar - prestart, upwind, reaching, downwind Triton® Edge integration Rotating mast support for wind and radar Racing Quick race entry Race Overview Race timer GPS start timer Start line tools Cruise Mode inhibits race features for a clean display of the right tools at the right time Chart Safety Alerts Sailing Laylines SailingTime & Distance to Cursor Subscription - free auto routing Tides & Currents Chart Inspector Race Mode enables additional features for racing = the right tools at the right time Start lIne Race Timer Quick Route Entry Race Overview Sailing Modes Easily switch between Cruise or Race sailing modes Race mode enables additional features: Quick race route entry Port / Starboard waypoint rounding indicators Race leg(s) overview  Start line chart overlay with: Set the start line Apply GPS offset for bow position Bias indicator tide and wind indicators Race Timer Countdown timer Start/Stop/Sync/Reset Countdown to GPS start time Safety AlertsThe Safety Alerts feature included with Zeus S can constantly monitor your course for dangerous chart objects no matter what your speed, zoom level, or view. Whether it’s a buoy, shallow water, rocks, or land Zeus S can warn you in advance. CMAP® Discover  X and Reveal  X charts provide detailed chart data available at all times to Safety Alert Alerts provide the sailor with awareness of potentially dangerous charted objects above and below the waterline Automatically identify charted objects which are of concern, warning, or critical based on their relative time and distance ‘Harbor’ and ‘Offshore’ modes allow Zeus S to automatically change the time and range sensitivity based on the use  Ideal for use in unfamiliar waters or at night when visibility is reduced to identify dangerous objects. Quick Race Entry Quickly create a race route from the sorted list of waypoints Easily add port and starboard rounding indicators Intuitively add, remove or reorder a race route Use the Race overview tool to brief your race crew with expected wind angles and estimated sailing time for each race leg to aid decision-making and sail selection Start line The powerful Zeus Start Line tool is now chart based to allow navigational awareness during the start procedure Start line view, including laylines, favored end, tide set & rate, and True Wind Direction The chart dynamically orientates and zooms to ensure the boat and start line are in view Calculations are based on the yacht’s Bow Position via an offset distance for the GPS Zeus S Internal GPS (or optional external options) provides precise position 10 times per second Simple setup - set the port and starboard start line end positions via a button press (“ping”), waypoint, or cursor Easily return to view the start line on the chart via an edge marker Zeus S automatically captures your distance to the line when the race timer reaches zero The following start line data is calculated and displayed:  Distance behind the line (boat lengths or meters) Distance to port & starboard ends Start line Bias to True Wind Direction Bias advantage Race TimerRace Timer provides a flexible and integrated tool for starting and monitoring race duration Quickly adjust the race timer start value Set the race timer to countdown to a GPS-based start time. e.g. 1900h The race timer control is available from networked devices Start, Stop, Sync [to nearest minute] and Reset functions Automatically starts a stopwatch when the race timer reaches zero to track race duration Chart OrientationEasily rotate the chart to aid understanding and make better decisions for your route or race course.Single touch rotates between: North up Heading up Course up (Course over Ground) Target up (Waypoint) Wind up (True Wind Direction) Start line up LaylinesB & G pioneered laylines in chart plotters with the original Zeus®. Zeus S laylines provide a powerful decision-aiding tool. Overlay your target sailing angles, upwind or downwind, to your destination on the chart Enable wind history to show a wind shift heat map, which intensifies the colors over time to show the history of true wind direction Mini Inspect (short press) a layline to gain detailed target sailing angles, speed, SailingTime, and distances Full Inspect provides detailed sailing information on current and opposite tacks Apply tidal correction to layline calculations Display laylines using actual data or input targets. Time to CursorHave you ever wanted to know how long it will take to sail to a location on the chart or do you need to tell your race crew how long to go?Simply place the cursor anywhere on the chart to show an estimated sailing time and distance information to the cursor position.Ideal, when you’re navigating to a waypoint and you need to know the sailing time to a secondary position.Tide GaugeNeed to know the state of the tide quickly? Zeus S provides at a glance tidal data Graphically see a tidal histogram including current time indication in the instrument data bar Choose between the automatic selection of the closest tidal station, or selecting a specific station More detailed tidal data is available via the chart icons Wind PlotDedicated wind charts for monitoring wind history and assessing trendsUser configurable options include: Show Trend lines Show tack color (port/starboard) Show Average Min, Max, and current value Time range 1,5,10,30 or 60 minutes B & G Companion App Download the latest B & G App Plan & review your waypoints and routes using the latest C Map® Reveal X charts Seamlessly synchronize waypoints and routes between products Review your sailing data from Triton® Edge Register new products and access support information Complete product software updates Triton Edge IntegrationAdding a Triton® Edge Sailing processor to your system provides advanced wind, calibration, and data recording. Zeus S provides seamless integration with Triton Edge. Display all B & G NMEA2000® performance sailing data Seamlessly access the web interface on Triton ™Edge Control and system setup Perform advanced calibration Control data recording Connect via Ethernet or Wi-FiWhat's In The Box? Zeus S display unit Panel mounting kit Sun Cover Corner clips Power Cable (2.0m) Fuse holder and fuse Installation guide and quick star documentation Mounting U bracket Normalized SKU: 00015224001UPC Code: 9420064110117
