Sea-Dog Qualifies for Free Shipping Sea-Dog Push Button Rim Latch #224301-1

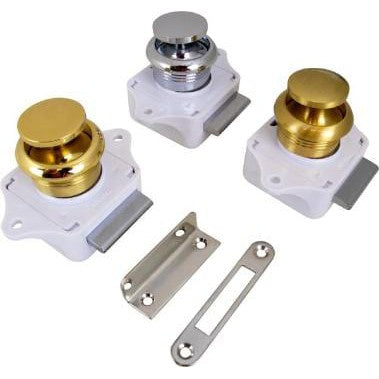

Sea-Dog Push Button Rim Latch #224301-1

$33.06 $39.46 -17% OFF

Sea-Dog Push Button Rim Latch #224301-1

$33.06 $39.46 -17% OFF

Sea-Dog Push Button Rim Latch #224301-1

$33.06 $39.46 -17% OFF
Brand: Sea-Dog

SKU: SDG-224301-1

UPC: 035514224154

More about this item

Sea-Dog 224301-1 Door Latches & Hinges

All latches ensure that doors, cabinets, and other surfaces remain close. Rim latch is a typical fixture in any home. The Push Button Rim Latch (3-224301-1) has a white plastic and a long-lasting chrome-plated or polished brass knob. This product has a sleek, positive action closing that keeps cabinets and drawers closed until the button is pushed correctly. You can use it on either the left or right side of the doors or cabinets. Mortise mount for a sleek and polished look. For inset or overlay mounting, the package version includes flat and 90� striking plates. Latch installs with two #6 RH fasteners. Two number 4 FH fasteners must be used for the striking plates (not included in the package).

Key Features:

  • Brass/Plastic Housing.

  • It comes with both strike plates.

  • Max. Door Thickness: 1"

  • Latch installs with two #6 RH fasteners.

  • Fit type: Universal Fit.

  • Expertly crafted from premium materials.

  • Designed to match rigorous quality standards

  • High quality at a budget-friendly price.

Specifications:

  • Size A: 1-15/16"

  • Size B: 1-7/8"

  • Size C: 2-1/16"

  • Size D: 1"

  • Fastener: #6 FH


Push Button Rim Latch housings feature a streamlined, positive action closure, ensuring cabinets and drawers stay closed until the button is deliberately pushed. Suitable for left-side or right-side use. Mortise mount for a sleek, finished appearance. Constructed of sturdy plastic with a chrome plated or polished brass knob. Latch installs with two #6 RH fasteners, strike plates require two #4 FH fasteners (fasteners not included). Display version comes with both flat and 90�8 strike plates for inset or overlay mounting. When ordering bulk, please order strike plates (224320 flat, or 224321 90�8) separately. Hole spacing on flat strike plate (224320) is 1-7/8". Hole spacing on 90�8 strike plate (224321) is 1-3/16". For OEM applications, varying combinations of rosette/button material are available.


This product replaces:

    3-224301, 224301-1, 224301

Normalized SKU: 2243011
UPC Code: 035514224154
