Download LiteratureEgis 8830-1939 Charger AccessoriesXD Series Triple Flex 2 Mechanical Switch-ACR-Mechanical Switch with Knobs & DTM ConnectorThe Egis relay replaces three individual high-amp relays with one compact module, reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear, unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into.Applications:  Designed to replace common multi-battery mechanical switching and charge management functions - common dual battery load switching via the outer relays and a central automatic charging relay to share charge current are easily implemented Expandable with link and cross-link busbars to additional dual, triple, or single XD relays - supports 3 or 4 battery systems with standard busbar interconnect accessories. Features: Bullet-proof construction - sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere; stainless steel cable lug studs; large mounting holes accept 1/4-20 / M6 attachment hardware Intuitive manual control option simplifies operation and increases awareness of the state of the manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions) Simple programming via dip switches gives each relay function significant flexibility for OEMs and installers. 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts Plug and play compatible with legacy competitor products - single, dual, and triple relay options are available with DTM/ATM connector pins compatible with ML Series bi-stable relays (This relay has a DTM connector) 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality Specifications: Total Continuous Current Amps: 500 Max Cranking Current (Amps): 1500 Mechanical Switching Life: 1,000,000 Cycles Voltage Range (VDC): 8-36 Off-State Current Draw (mA): 1.3 State Change Current: 5A @ 12 VDC; 3A @ 24 VDC Focal Features:Led Status DisplayThe easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED. 3-Position Manual overrideForce each relay open or closed, and optionally leave the knob in either position to lock the relay in either condition. 40 Circuit Label Sheet IncludedConvenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications. Protective Cover includedProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. Stainless Hardware Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.ProgrammableVia dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications. Smaller FootprintXD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum. Integrated VentHigh-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments. Normalized SKU: 88301939UPC Code: 850035199978Egis 8830-1939 Literature Download Quick Reference Guide Owners Manual

Download LiteratureEgis 8810-1600 Charger AccessoriesXD Series Single Flex 2 Relay-ACR - DTM ConnectorThis Egis relay provides a 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. The relay is expandable with link and cross-link busbars to additional dual, triple, or single XD relays. Also, the relay supports 2 or 3 battery systems with standard busbar interconnect accessories.Applications:  Improved replacement/alternative to legacy solenoids and remote battery switches; Wire-for-wire compatible with Blue Sea ML-solenoid and ML-remote battery switch products Forward-facing input studs make landing large wires easily, and a protective cover with integrated label recesses enables easy identification while providing anti-contact short protection Features: Bullet-proof construction, sealed to IP67/IP6K9K, and high temperature electronics and materials allow mounting anywhere; Stainless steel cable lug studs; Large mounting holes accept 1/4-20 / M6 attachment hardware Simple programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers Plug-and-play compatible with Legacy competitor products: Single, dual, and triple relay options are available with DTM/ATM connector pins for pin compatibility with ML Series bi-stable relays 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality Specifications: Total Continuous Current Amps: 500 Max Cranking Current (Amps): 1500 Mechanical Switching Life: 1,000,000 cycles Voltage Range (VDC): 8-36 Off-State Current Draw (mA): 1.3 State Change Current: 5A @ 12 VDC; 3A @ 24 VDC Focal Features:Led Status DisplayThe easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED. 40 Circuit Label Sheet IncludedConvenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications. Protective Cover IncludedProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.Integrated VentHigh-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.Stainless Hardware Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.ProgrammableVia dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications. Smaller FootprintXD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum. Normalized SKU: 88101600UPC Code: 850035199596Egis 8810-1600 Literature Download Quick Reference Guide Owners Manual

Download LiteratureEgis 8810-1500 Charger AccessoriesXD Series Single Flex 2 Relay-ACR with Knobs - DTM ConnectorThis Egis relay provides a 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. The relay is expandable with link and cross-link busbars to additional dual, triple, or single XD relays. Also, the relay supports 2 or 3 battery systems with standard busbar interconnect accessories.Applications:  Improved replacement/alternative to legacy solenoids and remote battery switches; Wire-for-wire compatible with Blue Sea ML-solenoid and ML-remote battery switch products Forward-facing input studs make landing large wires easily, and a protective cover with integrated label recesses enables easy identification while providing anti-contact short protection Features: Bullet-proof construction, sealed to IP67/IP6K9K, and high temperature electronics and materials allow mounting anywhere; Stainless steel cable lug studs; Large mounting holes accept 1/4-20 / M6 attachment hardware The intuitive manual control option simplifies operation and increases awareness of the state of the manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions) Simple programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers Plug-and-play compatible with Legacy competitor products: Single, dual, and triple relay options are available with DTM/ATM connector pins for pin compatibility with ML Series bi-stable relays 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality Specifications: Total Continuous Current Amps: 500 Max Cranking Current (Amps): 1500 Mechanical Switching Life: 1,000,000 cycles Voltage Range (VDC): 8-36 Off-State Current Draw (mA): 1.3 State Change Current: 5A @ 12 VDC; 3A @ 24 VDC Focal Features:Led Status DisplayThe easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED. 3-Position Manual OverrideForce each relay open or closed, and optionally leave the knob in either position to lock the relay in either condition. 40 Circuit Label Sheet IncludedConvenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications. Protective Cover IncludedProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. Stainless Hardware Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.ProgrammableVia dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications. Smaller FootprintXD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum. Integrated VentHigh-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments. Normalized SKU: 88101500UPC Code: 850035199985Egis 8810-1500 Literature Download Quick Reference Guide Owners Manual

Download LiteratureEgis 8810-1400 Charger AccessoriesXD Series Single Flex 2 ACR-Relay - DTM ConnectorThis Egis relay provides a 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Also, this relay eliminates dead-start batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.Applications:  Supports multiple engines or independent charge systems by incorporating two independent start or engine isolation inputs to allow isolation of charge sources when both are active to maximize charging performance.  Expandable with link and cross-link busbars to additional dual, triple, or single XD relays; supports 2 or 3 battery systems with standard busbar interconnect accessories Features: Bullet-proof construction, sealed to IP67/IP6K9K, and high temperature electronics and materials allow mounting anywhere; Stainless steel cable lug studs; Large mounting holes accept 1/4-20 / M6 attachment hardware The intuitive manual control option simplifies operation and increases awareness of the state of the manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions) Simple programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers Plug-and-play compatible with Legacy competitor products: Single, dual, and triple relay options are available with DTM/ATM connector pins for pin compatibility with ML Series bi-stable relays 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality Specifications: Total Continuous Current Amps: 500 Max Cranking Current (Amps): 1500 Mechanical Switching Life: 1,000,000 cycles Voltage Range (VDC): 8-36 Off-State Current Draw (mA): 1.3 State Change Current: 5A @ 12 VDC; 3A @ 24 VDC Focal Features:Led Status DisplayThe easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED. 3-Position Manual OverrideForce each relay open or closed, and optionally leave the knob in either position to lock the relay in either condition. 40 Circuit Label Sheet IncludedConvenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications. Protective Cover IncludedProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. Stainless Hardware Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.ProgrammableVia dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications. Smaller FootprintXD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum. Integrated VentHigh-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments. Normalized SKU: 88101400UPC Code: 850035199848Egis 8810-1400 Literature Download Quick Reference Guide Owners Manual

Download LiteratureEgis 7610 Charger AccessoriesProgrammable Automatic Charging Relay (ACR) 160A, 12VThis 160A Egis charging relay is automatic and programable. The relay eliminates dead start batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.Applications: Supports multiple engines or independent charge systems by incorporating two independent start or engine isolation inputs to allow isolation of charge sources when both are active to maximize charging performance. Protects Electrical System Cascading Faults with an optional lock-out from closing if one terminal is connected to a battery with a shorted cell. Features: Ultra-Low Power Draw Compared to typical ACRs (7-10 mA) vs 7610 ACR @ 1.3 mA, will not deplete batteries even after extended electrical system downtime. Simple and robust installation - The integrated sealed plug eliminates corrosion and includes a Deutsch/Amphenol DTM connector harness Start Assist input option to ensure maximum cranking amps are available by allowing the manual connection of batteries via a remote switch. Bullet-proof construction - Sealed unit, stainless steel hardware, and high-temperature materials allow mounting anywhere. Integrated thermal overload shutdown protection. Additional low-amp output can be used to report device status remotely or drive a secondary relay for charging a battery bank without a charge source (see example) Specifications: Continuous Current (Amps): 160 Voltage Range: 8-18 VDC Off-State Current Draw mA: 1.3 Interrupt Current (Amps): 240 ACR Closing Voltage (VDC): 12.9-13.6 ACR Opening Voltage (VDC): 12.1-12.8 Focal Features:Top Side Dip SwitchesAccessible after mounting for programming voltage settings and determining active features. Protected by self-retained cover.Stainless Steel Self-Locking Hardware100% Non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.Integral I/O ConnectorSealed Molex MX-150 connector eliminates the susceptibility to corrosion and vibrating loose of 1/4" quick connect terminals on competitive products.Connection OptionsComes standard with a Deutsch DT/AT style connector harness. Provides three connection options (MX-150, DT/AT, and wire leads).Easy Integration with RT Fuse Blocks (24 HR Circuits)Optional EasyLink bus bars reduce the space and cost of connecting TH Series relays with RT Series Fuse Blocks.LED DiagnosticsProvides an indication of pending relay ON/OFF, under voltage, over voltage/temp, start isolation/assist, and output on/off status. Normalized SKU: 7610UPC Code: 850035199633Egis 7610 Literature Download Quick Reference Guide Owners Manual

Download LiteratureVictron Energy BPP900451100 Charger AccessoriesCerbo GX MK2Victron's Cerbo GX MK2 is the most commonly used GX product. This communications center has hardware revision 2 with two VE.Can ports, 3 USB host ports, and digital input pulse counting.The Cerbo GX MK2 Is Different from the Cerbo Gx since It Has: Two fully functional CAN bus ports- VE.Can 1 and VE.Can 2. Instead of one VE.Can and one BMS-Can port VE.Can 1 is isolated (on previous models, there was no isolated CAN-bus port) RJ-45 sockets have been rotated 180 degrees, so it's easier to take the cables out All three USB ports are fully functional (instead of two functional and one for power (to a GX Touch) only) Digital inputs can do pulse counting This communication center allows users to always have perfect control over the system from wherever they are and maximizes its performance. Connect through the Victron Remote Management (VRM) portal, or access directly, using the separate GX Touch 50, an MFD, or Victron's VictronConnect app thanks to its added Bluetooth capability. This latest addition to the GX range combines all the best of connectivity, redefining smart power solutions in every way.Perfect Monitoring & ControlInstantly monitor the battery state of charge, power consumption, and power harvest from PV, generator, and mains, or check tank levels and temperature measurements. Easily control the shore power input current limit, (auto)start/stop generator(s), or change any setting to optimize the system. Follow up on alerts, perform diagnostic checks, and resolve challenges remotely. The Cerbo GX MK2 turns any power challenge into an effortless experience.Maximize Your System PerformanceThe Cerbo GX MK2 maximizes the performance of a system's components in real time and keeps them in perfect tune. This enclosure has two fully functional CAN bus ports, called VE.Can 1 and VE.Can 2. Instead of one VE.Can and one BMS-Can port. VE.Can 1 is isolated. In the previous models, there was no isolated canbus port. This can be useful where a Lynx Smart BMS (VE.Can connection) as well as an RV-C port are required.Expand Your ViewThe (optional) GX MK2 Touch 50 display gives users an instant overview of their system and adjust settings in the blink of an eye. Its super slim 5-inch waterproof design, top-mountable setup, and simple installation bring a lot of flexibility when creating a crisp and clean dashboard.Simple Mounting & ConfigurationThe Cerbo GX MK2 is now optimized to more than meet the standards of installer professionals. The device is easily mountable on a DIN-Rail (with DIN35 adapter small, not included), and its separate touchscreen can now be bolted on top of a dashboard, eliminating the need to create perfect cut-outs (like with the Color Control GX MK2). It is connected through just one cable, taking away the hassle of having to bring many wires to a dashboard. Its new Bluetooth feature enables a quick connection and configuration via the VictronConnect app.Outsmart Any Power ChallengeThe Cerbo GX MK2 serves endless purposes, extending perfect control to the most diverse applications. For solutions including generators, such as marine, or backup & off-grid, it will auto-start/stop the generator, or delay ignition until the end of ‘quiet’ periods. It keeps backup batteries at 100% for energy storage systems, kicks in during power cuts, and diverts excess (solar) power to self-consumption, saving users money. For RVs and emergency vehicles, it keeps vital systems functioning flawlessly. But that’s just to name a few...Specifications: Remote Console: Yes Buzzer: Yes VE.Direct ports (always isolated): 3 VE.Bus (always isolated): 2 paralleled RJ45 sockets VE.Can: Yes, VE.Can 1 isolated & VE.Can 2 non-isolated USB: 3 USB Host ports Ethernet: 10/100 RJ45 socket - isolated except for shield WiFi: Built-in Bluetooth Smart: Yes Micro SDcard slot: SDHC cards up to max. of 32GB (5) Second CAN-bus port (BMS-Can): Yes - see VE.Can BMS-Can port: No Built-in RS485: No Programmable Relay: 2 x NO/NC (8), DC up to 30VDC: 6A, DC up to 70VDC: 1A, AC: 6A, 125VAC Resistive Tank Level Inputs: 4 Temperature Sense Inputs: 4 Same as part# BPP900450110 other than Country of Origin Digital Inputs: 4 Performance Specifications: CPU: Dual-core RAM: 1GB Max. VE.Direct Devices: 15 Other Specifications:  Supply Voltage: 8 - 70 VDC Power Draw: 2,5 to 5 W Mounting: Wall or DIN rail (35mm) Outer Dimensions  (H x W x D): 478 x 154 x 48 mm Operating Temperature: -20 to +50 degrees C Battery Backup Clock: Yes 5V Output: No Standards: Safety: IEC 62368-1 EMC: EN 301489-1, EN301489-17 Automotive: ECE R10-6 Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: BPP900451100UPC Code: 8719076057833Victron Energy BPP900451100 Literature Download Quick Reference Guide

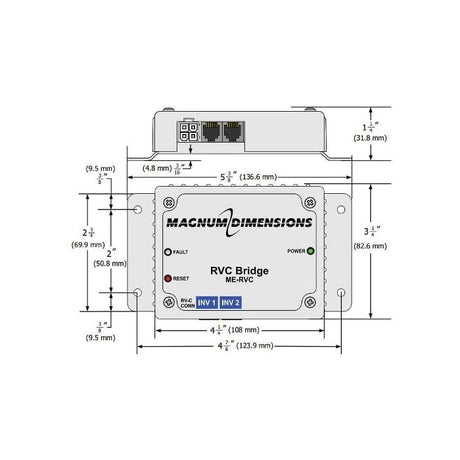

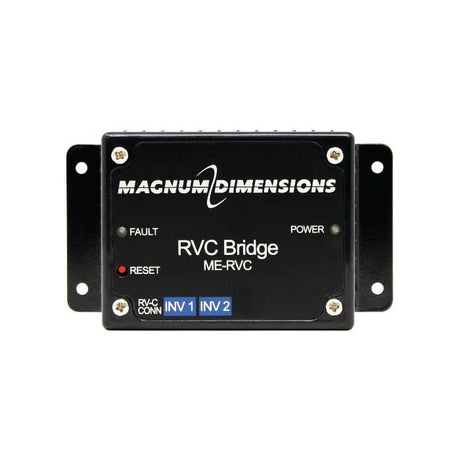

Magnum Energy ME-RVC-L Charger Accessories The ME-RVC comes with one RV-C and two MagNet communication connector ports The RV-C connector connects to the network bus/backbone in the RV The MagNet ports connect to the Magnum inverter(s) RV-C Connector - The 4-pin RV-C connector on the ME-RVC is used to provide power to the ME-RVC and to communicate with the network bus/backbone in the RV Normalized SKU: MERVCL

Victron Energy CIP140325000 Charger AccessoriesVictron Energy Fuse CNN 325a/80v for Lynx Shunt 1 Pc #CIP140325000Normalized SKU: CIP140325000

Victron Energy BAM030712200R Charger AccessoriesVictron Energy Battery Monitor Bmv-712 Black Smart #BAM030712200RNormalized SKU: BAM030712200R

Victron Energy ASS030140030 Charger AccessoriesVictron Energy Interface MK3-USB-C Ve.Bus to USB-C #ASS030140030Normalized SKU: ASS030140030
