Download LiteratureSentry SFR-TEMP Charger AccessoriesTemperature Sensor with 12" ExtensionThe optional temperature sensor senses temperatures over 120°F.Features:Includes 12" ExtensionThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: SFRTEMPSentry SFR-TEMP Literature Download Quick Reference Guide Owners Manual Product Brochure

Download Literature Watch VideoEgis 901819 Charger AccessoriesRelay 24V, 150A with ResistorThis is a 24V automotive-rated relay/industry standard drop-in replacement for Tyco/Amp. The relay switch carries high-amp electrical currents in high ambient temperatures/wet environments.Applications: Resistor circuit protection ensures flyback voltage does not affect control signal circuitry. A great option for sensitive electrical systems. High intermittent amp rating of 300 amps for up to 3 seconds, making this relay great for temporary high-equipment start-up amp draw applications. Automotive-grade connectors ensure moisture and dust intrusion are kept from the control circuitry. The high-temperature rating of 125C/257F makes this a great relay for high-temperature installation environments like engine bays and other low-ventilation spaces. Features: Bullet-proof Construction - Robust automotive grade relay with IP54 ingress protection and reinforced mounting tabs ensure secure mounting Dual mounting holes on either side for easy mounting with ¼-20”/M6 1.25 bolts or screws up to #14 screw Incorporate the highest quality materials for superior performance and have a high 100,000 electrical switching cycle capacity Enhanced vibration and shock protection ensures enhanced reliability, a long service life, and the operational readiness of the electrical system Specifications: Intermittent Current @ 3 SEC (Amps): 300 Ambient Temp. Rating (Low/High) (Celsius): -40/125 C Max Continuous Current (Amps): 180 @23 degrees C Electrical Endurance Rating (Cycles): 1,000,000 On State Current Draw @ 24 VDC: 163 mA Operating Voltage Range: 17.6-32VDC Focal Features:Sealed HousingIP67-rated housing keeps out moisture and ensures long-term reliability.Reinforced MountingRobust mounting tabs with strengthening gussets ensure the relay stays mounted securely, even through vibration, heat, and wire tension.Terminal ProtectionShielded dual M6x1.0 terminals ensure protection from accidental contact shorts.Delphi Metripak ConnectorAutomotive-grade sealed control wire connectors keep moisture out of the control circuit.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 901819Egis 901819 Literature Download Quick Reference GuideEgis 901819 Video

Newpowa America NPC-20C2T Charger Accessories MC4 Connectors 20 Pairs with Spanner Normalized SKU: NPC20C2T

Newpowa America NPC-10C2T Charger Accessories MC4 Connectors 10 Pairs with Spanner Normalized SKU: NPC10C2T

Xantrex 70-0154-64T Charger Accessories Control board for Freedom 458 and Freedom Marine 3000W models Freedom 3000 Watt Control Board NO RETURNS ON BOARDS Please call if you have any questions before ordering 800-621-1271 Normalized SKU: 70015464T

Outback Power Systems FM80-150VDC Charger Accessories Outback FM 80 Amp Charge Controller 12 24 36 48 or 60 VDC Five Stages: Bulk Absorption Float Silent, and Equalization Voltage Step-Down Capability Optional Mate or Mate2 with RS232 Serial Communications Port Programmable Auxiliary Control Output Normalized SKU: FM80150VDC

Newpowa America NPC-50FT Charger Accessories High-quality 50-foot Male to Female 10 AWG double-jacket PV extension wire. Male, Female connectors are attached to each end of the cable. Wire Size Range: 10 AWG 50 FT Length (Single Cable, Black) TUV Tested Cable UL Listed (M/F) Connectors UV and Waterproof Resistant Cable Normalized SKU: NPC50FT

Newpowa America NPC-30FT Charger Accessories High-quality Male to Female 10 AWG double jacket PV extension wire. Male and Female connectors are attached to each end of the cable. 600V Wire Size Range: 10 AWG 30-foot Length (Single Cable, Black) TUV Tested Cable UL Listed (M/F) Connectors UV and Waterproof Resistant Cable Normalized SKU: NPC30FT

Download LiteratureEgis 7616 Charger AccessoriesTDR Series Dual Output Time Delay Relay 12V (2 x 80A)This 12V dual-time relay can prevent dead batteries due to added equipment loads on after-engine stops or from multiple systems connected to a battery with an independent keep-alive power draw, maximizing operational readiness.Applications: Supports on-board video systems when vehicles are not in use, allowing lengthy downloading while shutting down less time-sensitive equipment. sooner. Protects sensitive onboard electronics via optional under/over voltage shutdown and start event isolation. Features: Eliminates vehicle downtime due to dead batteries; the lowest off-state current draw (1.3 mA) is available Simple and robust Installation - Sealed plug with optional long wire leads; Single device replaces multiple control units and high-amp replays reduce installation time, costs, and points of potential failure Additional low-amp output can be used to maintain 24-hour memory circuits or to direct other equipment to shut down Bullet-proof construction - Sealed unit and high-temperature materials allow mounting anywhere on the vehicle; Integrated thermal overload protection as well Meets stringent OEM standards for electrical transient self-protection Adjustable OFF Time Delay - 0 seconds to 4 hours Kill Switch control input option for ensuring loads are not inadvertently on, maintenance/servicing of vehicles, and emergency OFF Flexible control options via ignition key, alternator voltage sense, or both 4 Year Industry Leading Warranty Specifications: Maximum Current: Continuous: 80 Amps DC per Output (160 A Total); Intermittent: 120 Amps DC (5 Minutes) per Output Off-State Current Draw: 1.5 mA (less than 1 Amp-hr battery dissipation per month of stand-by) Operating Specifications: Voltage: 12 Vdc Nominal (8 - 18 Vdc); Temperature: -40 to 85 degrees C Time Delay Options: 5 Sec through 4 hours via Dip Switches Environment Protection Standards: Waterproof to IP66. IP6K9K; Ignition Protected to ISO 8846 Optional Features: Input stud voltage sense trigger for relay OFF; Under-voltage and over-voltage load protection Focal Features:Top Side Dip SwitchesAccessible after installation, for programming time delay and determining active features. Protected by self-retained cover.Stainless Steel Self-Locking Hardware 100% Non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.Integral I/O Connector Rapid and 100% correct assembly via Molex MX-150 connector eliminates poor field connections.Standard and Optional Harnesses The mating plugs with 2 feet of the ground and ignition wire included. Optional harnesses with additional outputs and alternate wire lengths are availableEasy Integration with CT Fuse Blocks Optional EasyLink bus bars reduce the space and cost of connecting TDRs with CT series Fuse Blocks.Easy Integration with RT Fuse Blocks Optional EasyLink bus bars reduce the space and cost of connecting TDRs with RT series Fuse Blocks.LED DiagnosticsIndicates a pending relay OFF event due to under/over voltage or external off trigger. Output on/off status is also provided.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 7616UPC Code: 850053879395Egis 7616 Literature Download Quick Reference Guide Owners Manual

Download LiteratureDolphin Charger 99520 Charger AccessoriesTouchView Controller for Dolphin Charger PROThe TouchView lets you view operations and access remote charger setting menus. The color touch screen provides an intuitive selection of measurements (amperage, voltage, charge percentage), charging phases (boost, absorption, float), and allocated available power and possible operation faults.Features: Color touchscreen measurements: voltage, amperage, charging mode, and operating parameter settings Anomaly display: battery voltage too low, internal temperature too high, fuse Operation log Fault and alarm display (activation of relays or not) Communications protocol: CAN bus Connection via an RJ11 plug External diameter 3-5/8" (chrome plated trim), mount using 4 screws. Can be mounted on front panel of Pro chargers. Works with Pro and 12V-60A, 24V-30A Premium chargers. Normalized SKU: 99520UPC Code: 786142995205Dolphin Charger 99520 Literature Download Quick Reference Guide

EGIS 8720-1550 Charger AccessoriesEGIS XD Dual Flex 2 Automatic Charging Relay with Knobs Tinned Wires #8720-1550Normalized SKU: 87201550UPC Code: 850035199855

EGIS 8710-1400 Charger AccessoriesEGIS XD Single Flex 2 Automatic Charging Relay No Knob Tinned WiresModel: 8710-1400 LED STATUS DISPLAY Easy to see front facing LED indicator provides visual device status, remote LED replicates local on-device LED 40 CIRCUIT LABEL SHEET INCLUDED? Convenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications. PROTECTIVE COVER INCLUDED Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. STAINLESS HARDWARE Corrosion is no issue with quality stainless steel studs and self locking flanged nuts. PROGRAMMABLE Via dip switches located under protective cover. An easy to use configuration guide on reverse make custom settings a breeze to configure for a wide variety of applications. SMALLER FOOTPRINT XD Relays offers high Amp rating in a smaller package than competitive solutions, reducing install space requirements to a minimum. INTEGRATED VENT High quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments. Bullet-proof Construction: Sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.Intuitive Manual Control option simplifies operation and awareness of state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.Plug & Play Compatible with Legacy Competitor Products: Single, dual and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays.90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionalitySpecifications TOTAL CONTINUOUS CURRENT (AMPS) 500 MAX CRANKING CURRENT (AMPS) 1500000 MECHANICAL SWITCHING LIFE 1,000,000 Cycles VOLTAGE RANGE (V DC) 8 - 36 OFF-STATE CURRENT DRAW (mA) 1.3 STATE CHANGE CURRENT 5A @ 12 Vdc 3A @ 24 Vdc Normalized SKU: 87101400UPC Code: 850053879470

EGIS 8530-1535 Charger AccessoriesEGIS 8530-1535 XD Triple Flex Automatic Charging Relay with KnobsModel: 8530-1535 Lithium Battery System Ready Designed for modern Lithium battery based electrical system applications that often require higher ON/OFF charge voltage settings over legacy battery chemistries. LED Status Display Easy to see front facing LED indicator provides visual device status, remote LED replicates local on-device LED 3-Position Manual Override Force each individual relay Open or Closed and optionally leave knob in either position to lock relay in either condition. 40 Circuit Label Sheet Included Convenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications. Protective Cover Included Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. Stainless Hardware Corrosion is no issue with quality stainless steel studs and self locking flanged nuts. Programmable Via dip switches located under protective cover. An easy to use configuration guide on reverse make custom settings a breeze to configure for a wide variety of applications. Integrated Vent High quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments. Bullet-proof Construction: Sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.Intuitive Manual Control option simplifies operation and awareness of state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.Plug & Play Compatible with Legacy Competitor Products: Single, dual and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays.90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionalSpecifications TOTAL CONTINUOUS CURRENT (AMPS) 500 MAX CRANKING CURRENT (AMPS) 1500 MECHANICAL SWITCHING LIFE 1,000,000 Cycles VOLTAGE RANGE (V DC) 8 - 36 OFF-STATE CURRENT DRAW (mA) 1.3 STATE CHANGE CURRENT 5A @ 12 Vdc 3A @ 24 Vdc Normalized SKU: 85301535UPC Code: 850053879432

EGIS 8520-1350 Charger AccessoriesEGIS 8520-1350 XD Dual Flex2 Automatic Charging Relay with KnobsModel: 8520-1350 Lithium Battery System Ready Designed for modern Lithium battery based electrical system applications that often require higher ON/OFF charge voltage settings over legacy battery chemistries. LED Status Display Easy to see front facing LED indicator provides visual device status, remote LED replicates local on-device LED 3-Position Manual Override Force each individual relay Open or Closed and optionally leave knob in either position to lock relay in either condition. 40 Circuit Label Sheet Included Convenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications. Protective Cover Included Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. Stainless Hardware Corrosion is no issue with quality stainless steel studs and self locking flanged nuts. Programmable Via dip switches located under protective cover. An easy to use configuration guide on reverse make custom settings a breeze to configure for a wide variety of applications. Integrated Vent High quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments. Bullet-proof Construction: Sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.Intuitive Manual Control option simplifies operation and awareness of state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.Plug & Play Compatible with Legacy Competitor Products: Single, dual and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays.90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionalitySpecifications TOTAL CONTINUOUS CURRENT (AMPS) 500 MAX CRANKING CURRENT (AMPS) 1500 MECHANICAL SWITCHING LIFE 1,000,000 Cycles VOLTAGE RANGE (V DC) 8 - 36 OFF-STATE CURRENT DRAW (mA) 1.3 STATE CHANGE CURRENT 5A @ 12 Vdc 3A @ 24 Vdc Normalized SKU: 85201350UPC Code: 850067590156

EGIS 8510-1300 Charger AccessoriesEGIS 8510-1300 XD Single Flex2 L-ion Programmable VSR Automatic Charging RelayModel: 8510-1300 Lithium Battery System Ready Designed for modern Lithium battery based electrical system applications that often require higher ON/OFF charge voltage settings over legacy battery chemistries. LED Status Display Easy to see front facing LED indicator provides visual device status, remote LED replicates local on-device LED 3-Position Manual Override Force each individual relay Open or Closed and optionally leave knob in either position to lock relay in either condition. 40 Circuit Label Sheet Included Convenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications. Protective Cover Included Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. Stainless Hardware Corrosion is no issue with quality stainless steel studs and self locking flanged nuts. Programmable Via dip switches located under protective cover. An easy to use configuration guide on reverse make custom settings a breeze to configure for a wide variety of applications. Integrated Vent High quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments. Bullet-proof Construction: Sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.Intuitive Manual Control option simplifies operation and awareness of state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.Plug & Play Compatible with Legacy Competitor Products: Single, dual and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays.90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionalitySpecifications TOTAL CONTINUOUS CURRENT (AMPS) 500 MAX CRANKING CURRENT (AMPS) 1500 MECHANICAL SWITCHING LIFE 1,000,000 Cycles VOLTAGE RANGE (V DC) 8 - 36 OFF-STATE CURRENT DRAW (mA) 1.3 STATE CHANGE CURRENT 5A @ 12 Vdc 3A @ 24 Vdc Normalized SKU: 85101300UPC Code: 850053879418

EGIS 7612 Charger AccessoriesEGIS 7612 Programable ACR Triple BatteryModel: 7612 TOP SIDE DIP SWITCHES Accessible after mounting, for programming voltage settings and determining active features. Protected by self-retained cover. STAINLESS STEEL SELF-LOCKING HARDWARE 100% Non-ferrous corrosion resistant materials. All attachment screws and nuts are self-locking. INTEGRAL I/O CONNECTOR Sealed Molex MX-150 connector eliminates the susceptibility to corrosion and vibrating loose of 1/4" quick connect terminals on competitive products. CONNECTION OPTIONS Comes standard with Deutsch DT/AT style connector harness. Provides three connection options (MX-150, DT/AT, Wire Leads) EASY INTEGRATION WITH RT FUSE BLOCKS (24 HR CIRCUITS) Optional EasyLink bus bars reduces space and cost to connect TH Series Relays with RT Series Fuse Blocks. LED DIAGNOSTICS Provides indication of pending relay ON/OFF, under voltage, over voltage/temp, start isolation/assist, and Output on/off status. Ultra-Low Power Draw Compare to typical ACRs (7-10 mA) vs 7610 ACR @ 1.3 mA, will not deplete batteries even after extended electrical system downtime.Optional Under-Voltage Lock-Out provides ability to prevent either ACR from connecting a good battery under charge with a battery that has a shorted cell, ensuring a single battery or bank will not deplete the other system batteries.Start/Engine Isolation and Start Assist functions are optional for each relay; allowing protection of sensitive electronics from engine starting events or the option to boost cranking effectiveness.Adjustable Off-Voltage for Auxiliary Battery Priority provides ability to share start battery energy for auxiliary without risking engine starting ability.Additional Low Amp Output can be used to report device status remotely, or drive a secondary relay for charge to a battery bank without a charge source (see examples)Specifications CONTINUOUS AMPS TOTAL / PER CIRCUIT 160 / 80 voltage range (v dc) 8 - 18 off-state current draw (mA) 1.3 intermittent AMPS TOTAL / PER RELAY 240/120 acr closing voltage range (v dc) 12.8-13.4 ACR opening VOLTAGE RANGE (V DC) 12.2-12.8 Normalized SKU: 7612UPC Code: 850035199640

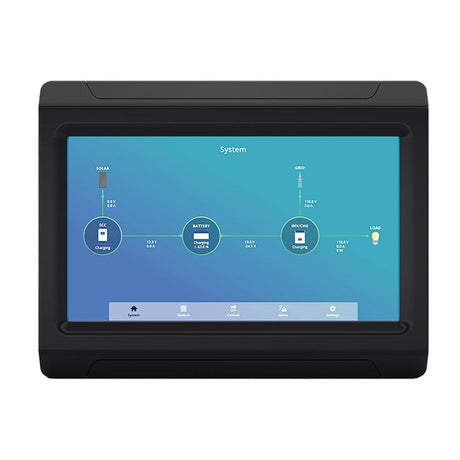

Download LiteratureXantrex 808-0890 Charger AccessoriesGateway Touchscreen DisplayNo more compatibility issues or complex setups. Xantrex Gateway gives you power at your fingertips to integrate, monitor, and control all your essential components — batteries, inverter/charger, and solar controller into one seamless system for effortless operation.Xantrex offers a complete energy system that includes easy-to-use connectivity. The Xantrex gateway provides a coordinated view and easy drill-down access to control and monitor your system as a whole rather than single separate components. Remote monitoring with WiFi and Bluetooth capabilities makes your life easier than ever before.Features: Replace multiple displays with one Error alerts to monitor performance Coordinated system control What's Included?Xantrex Gateway Touchscreen PanelHDMI and USB 39" (1.0M Cables)Specifications: Housing/Mounting System: ABS Plastic, Wall Mount 4 screws IP Rating: Indoor IP42 front; IP21 back Display Resolution: 1024 x 600 Weight: 0.8lb (360g) Dimensions: 7.2 x 5.5 x 0.975in (183 x 140 x 25mm) Normalized SKU: 8080890UPC Code: 715535921095Xantrex 808-0890 Literature Download Quick Reference Guide
