Download LiteratureEgis 8793 Bus Bars3 Hole L Shaped Busbar ConnectorLink Together XD Single, Dual, and Triple XD Relays to multiple sealed fuse blocks or link fuse blocks together for compact installation.Tin-Plated Copper to ensure reliable circuit connectivity and anti-corrosive features keep it last long term.Specifications: Continuous Current (Amps): 500 Max Voltage (Vdc): 72 Material: Tin Plated Copper Size: 90mm x 90mm Thickness: 2.8 mm (1/8") Terminal Stud Hole Size: 10.5mm (3/8") Normalized SKU: 8793UPC Code: 850067590071Egis 8793 Literature Download Quick Reference Guide

BEP Marine 779-LB-ZS Bus BarsBEP Marine Link Bar Z Bar Set #779-LB-ZSNormalized SKU: 779LBZSUPC Code: 843687008637

BEP Marine 779-LB-BSS Bus Bars  A range of linking bars to complement the Pro Installer range of products High-purity copper, tin plated for optimum marine electrical performance Fastest, most economical way of connecting products Saves space, allows clustering for the most compact installations Links can be doubled for higher loads High purity copper, tin plated Fastest, most economical way of connecting products Saves space, allows clustering for the most compact installations 779LBBSS Includes 1ea 779LB1, 3ea 779LB2 Normalized SKU: 779LBBSSUPC Code: 843687008606

Download Literature Watch VideoEgis 8790 Bus BarsXD Relay Link BusbarThis tin-plated copper is to ensure reliable circuit connectivity and an anti-corrosive feature that will keep it long-lasting.ApplicationsLink Together XD Single, Dual, and Triple XD relays to each other in multiple configurations and even to Egis's 8700 Mechanical Disconnect. Linking relays together creates compact installations and allows for robust circuit switching and battery management.Features: Great electrical conductivity with anti-corrosion tin plating keeps connections reliable This bus bar is tough and built to withstand high amperage loads and resist deformation from nut-tightening Save install space by linking XD Relays together for even more capability and maintain a professional-looking install Specifications: Continuous Current (Amps): 500 Max Voltage (VDC): 72 Material: Tin-plated copper Size (L x W): 47.8mm x 22.8mm  Thickness: 2.8mm (1/8”) Terminal Stud Hole Size: 10.5mm (3/8”) WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 8790UPC Code: 850035199879Egis 8790 Literature Download Quick Reference GuideEgis 8790 Video

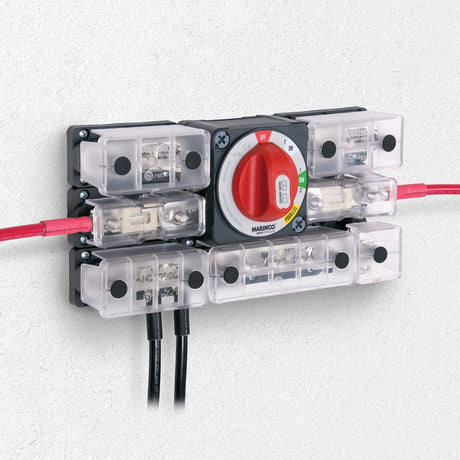

Download LiteratureBEP Marine 779-LBJ-6 Bus BarsPro Installer Link Joiner 6-WayThis tin-plated bus bar can be used to link 6 adjacent DC products together.  The rating varies from 350-650 Amps depending on how this busbar is wired, see drawing for details.  Made from tin-plated high-purity copper, this bar is intended for use with the BEP Pro Installer system but it has universal applications anywhere a high amperage link bus is needed. Pro Installer link bars provide the fastest and most economical way of connecting the Pro Installer line of products to save space and allow for the most compact installations. The common interconnection height of Pro Installer components allows link bars to quickly and easily convert a group of different products into a functional cluster. Links can be doubled to accommodate higher loads.Features: Tin-plated high-purity copper for maximum conductivity and corrosion resistance 650 AMP continuous rating between two adjacent positions 350 AMP continuous rating across all positions Bars can be doubled up for additional amperage This link bar is intended to be used with 3/8" studs Hole spacing is 2"  Overall dimensions 10.8" x 1" WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 779LBJ6UPC Code: 843687008125BEP Marine 779-LBJ-6 Literature Download Quick Reference Guide

Download LiteratureBEP Marine 779-LBJ-4 Bus BarsPro Installer Link Joinder 4-WayThis tin-plated bus bar can be used to link 4 adjacent DC products together.  The rating varies from 450-650 Amps depending on how this busbar is wired.  Made from tin-plated high-purity copper, this bar is intended for use with the BEP Pro Installer system but it has universal applications anywhere a high amperage link bus is needed. Pro Installer link bars provide the fastest and most economical way of connecting the Pro Installer line of products to save space and allow for the most compact installations. The common interconnection height of Pro Installer components allows link bars to quickly and easily convert a group of different products into a functional cluster. Links can be doubled to accommodate higher loads.Features: Tin-plated high-purity copper for maximum conductivity and corrosion resistance 650 AMP continuous rating between two adjacent positions 450 AMP continuous rating across all positions This link bar is intended to be used with 3/8" studs Hole spacing is 2"  Overall dimensions 6.9" x 1" WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 779LBJ4UPC Code: 843687008101BEP Marine 779-LBJ-4 Literature Download Quick Reference Guide

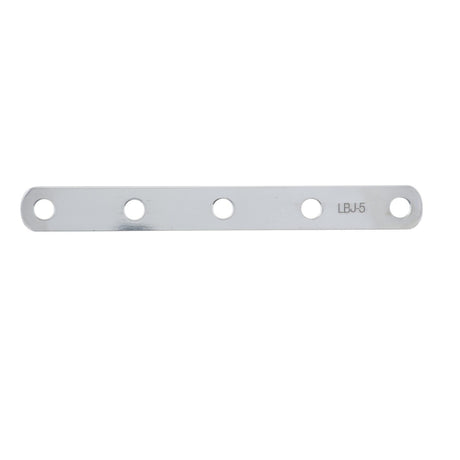

Download LiteratureBEP Marine 779-LBJ-5 Bus BarsPro Installer Link Joiner 5-WayThis tin-plated bus bar can be used to link 5 adjacent DC products together.  The rating varies from 400-650 Amps depending on how this busbar is wired, see drawing for details.  Made from tin-plated high-purity copper, this bar is intended for use with the BEP Pro Installer system but it has universal applications anywhere a high amperage link bus is needed. Pro Installer link bars provide the fastest and most economical way of connecting the Pro Installer line of products to save space and allow for the most compact installations. The common interconnection height of Pro Installer components allows link bars to quickly and easily convert a group of different products into a functional cluster. Links can be doubled to accommodate higher loads.Features: Tin-plated high-purity copper for maximum conductivity and corrosion resistance 650 AMP continuous rating between two adjacent positions 400 AMP continuous rating across all positions Bars can be doubled up for additional amperage This link bar is intended to be used with 3/8" studs Hole spacing is 2"  Overall dimensions 8.8" x 1" WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 779LBJ5UPC Code: 843687008118BEP Marine 779-LBJ-5 Literature Download Quick Reference Guide

Download Literature Watch VideoEgis 8791 Bus BarsXD Relay Cross-Over Bus BarThe XD Relay Cross-Over Bus Bar allows users to link together Egis XD Single, Dual, and Triple XD Relays to each other in multiple configurations and even to the Egis 8700 Mechanical Disconnect.  Linking relays together creates compact installations and allows for robust circuit switching and battery management.Features: Tin-Plated Copper to ensure reliable circuit connectivity and anti-corrosive features keep it last long term. Robust Protective Insulation ensures no accidental contact shorts between XD relays. Specifications: Continuous Current (Amps): 500 Max Voltage (VDC): 72 Material: Tin-plated copper Size (L x W): 90 x 47mm Thickness: 2.8mm (1/8") Terminal Stud Hole Size: 10.5mm (3/8”) Normalized SKU: 8791UPC Code: 850035199886Egis 8791 Literature Download Quick Reference GuideEgis 8791 Video

Download LiteratureEgis 8030 Bus BarsRT Screw Terminal 12 Circuit Dual Lever Bus BarThis Egis bus bar seamlessly integrates with RT fuse blocks, can be used as a standalone ground bus, or can be assembled with an existing RT Series fuse block line. Also, this multi-level low-amp has terminal screws for improved mounting.Applications: The 12-circuit block ensures ground connection reliability with this compact and well-constructed ground bus block. RT series connection compatibility enables a smaller installation footprint and convenient negative terminal access when installed with a fuse block application. Features: Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware, allows mounting anywhere on the vehicle Seamlessly integrates with RT fuse blocks - use as a standalone ground bus or assembled with existing RT series fuse block lines Specifications: Maximum Current (Entire Block) Amps: 100 Maximum Current (Per Circuit) Amps: 30 Max Output Wire Size: #10 AWG Voltage Range VDC: 0-36 Number of Fuse Positions: 12 Output Terminal Connection Ring Terminal Size: M4 / (#8) Focal Features:Robust Materials For Harsh EnvironmentsAll attachment hardware is constructed of stainless steel with self-locking mechanisms for long-lasting installations. A plated copper alloy bus bar conductor withstands corrosion and maximizes conductivity. Engineering-grade composite insulators support high-temperature application exposure, such as in engine compartments.Seamlessly Integrates With RT Fuse BlocksIt can be installed individually on its own or assembled to the end of a 6, 12, or 18-position RT Series fuse block for a more compact overall footprint. Normalized SKU: 8030UPC Code: 850035199756Egis 8030 Literature Download Quick Reference Guide Owners Manual

Newmar BB-2 Bus BarsBB-2 Bus BarIdeal as a DC ground tie point or positive bus, this heavy-duty, 500-amp-rated bus bar assembly features 5/16 in. studs on 1 in. center in 1/4 in. thick copper bar for common connection or distribution of large wire gauges.Features: Accommodate 5/16" ring terminals Insulated base (reinforced nylon resin with a clear protective cover) Specifications: Quantity of 5/16" Studs: 2 Size (inches): 1/16" x 1 1/2" Normalized SKU: BB2

Newmar BB-8 Bus BarsBB-8 Bus BarIdeal as a DC ground tie point or positive bus, this heavy-duty, 500-amp-rated bus bar assembly features 5/16 in. studs on 1 in. center in 1/4 in. thick copper bar for common connection or distribution of large wire gauges.Features: Accommodate 5/16" ring terminals Insulated base (reinforced nylon resin with a clear protective cover) Specifications: Quantity of 5/16" Studs: 8 Size (inches): 9-1/16” x 1-1/2” Normalized SKU: BB8

Sea-Dog 426693-3 Bus BarsDual Buss Bar with Cover - 12 TerminalsThis dual bus bar is designed for DC positive or negative distribution on one block or AC neutral and safety ground collection on one block. Constructed of corrosion-resistant tin-plated Copper and ABS with a polycarbonate cover.Features: Includes two 1/4"-20 stainless steel stud terminals and six #8-32 stainless steel screw terminals per buss Installs with four #8 FH fasteners (included) 48VDC, 150A per buss; 300VAC, 150A per buss CE and RoHS compliant Specifications: Terminals: 12 Length (inch): 5-1/2" Width (inch): 2-3/4" Depth (inch): 1-11/16" Max. Amps: 150 Fastener: #8 FH Weight: 0.59 lb. Normalized SKU: 4266933UPC Code: 035514433198

Sea-Dog 426692-3 Bus BarsBuss Bar with Cover - 6 TerminalsThis bus bar is designed for positive or negative DC distribution or collection of AC neutral or safety ground circuits. Constructed of corrosion-resistant tin-plated Copper and ABS with a polycarbonate cover.Features: Includes two 5/16"-18 stainless steel stud terminals and six #10-32 stainless steel screw terminals Installs with four #8 FH fasteners (included) 48VDC, 300A; 300VAC, 300A maximum CE and RoHS compliant Specifications: Terminals: 6 Length (inch): 5-1/2" Width (inch): 2-3/4" Depth (inch): 1-11/16" Max. Amps: 300 Fastener: #8 FH Weight: 0.68 lb. Normalized SKU: 4266923UPC Code: 035514433174

BEP Marine 777-BB3S-650-B Bus Bars Busbar HD 3-Stud 650a Bulk MC10 Normalized SKU: 777BB3S650B

Sierra FS46710 Bus Bars Dimensions: 6" x 1.25" x 1.37" Maximum Voltage Rating: 300VAC/ 48VDC Maximum Continuous Amp: 250A DC/ 130A AC Stud Size: 1/4"-20 Screw Size: #8-32 Stud Torque: 60lb-in Screw Torque: 15lb-in Sierra's 250A Common Bus Bar with cover is the industry-standard bus bar Designed for positive distribution or collection of AC/DC ground circuits Stainless steel studs and screws provide superior anti-corrosion ability Tin-plated copper bus rated to 250A Flame Retardant ABS Base SAE threaded studs Normalized SKU: FS46710UPC Code: 808282382803
