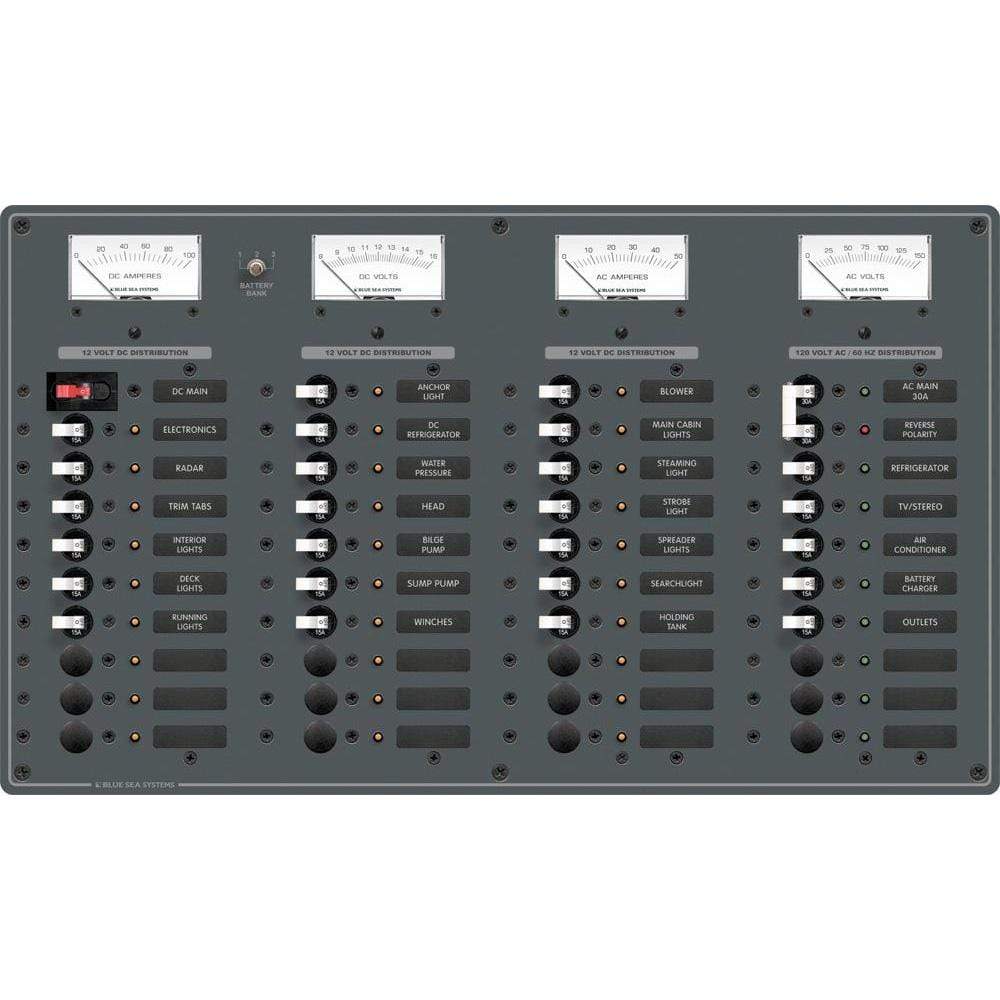

Blue Sea System Qualifies for Free Shipping Blue Sea Breaker Panel 30-12v 10-120v AC #8095

Blue Sea Breaker Panel 30-12v 10-120v AC #8095

$1,520.06 $1,763.27 -14% OFF

Blue Sea Breaker Panel 30-12v 10-120v AC #8095

$1,520.06 $1,763.27 -14% OFF

Blue Sea Breaker Panel 30-12v 10-120v AC #8095

$1,520.06 $1,763.27 -14% OFF

SKU: BSS-8095

UPC: 632085080952

Category: Breaker Panels

More about this item

  Download Literature

Blue Sea System 8095 Components

AC Main +8 Positions / DC Main +29 Positions

PN:   8095
White Switches

  • Includes set of 30 common AC and 30 common DC labels
  • All AC and DC buses installed, fully pre-wired
  • Label backlighting pre-installed
  • All LEDs installed
  • Maximum panel Amperage
    • 100 Amperes DC
    • 50 Amperes AC


AC Features

  • Red reverse polarity indicating LED
  • 9353, 0-150 Volt AC Voltmeter
  • 9630, 0-50 Amp AC Ammeter


DC Features

  • 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
  • 8003, 8-16 Volt DC Voltmeter
  • 8017, 0-100 Amp DC Ammeter
  • Owner upgradeable to 24 Volts with 8240, 18-32 Volt DC Voltmeter


Specifications:

  • AC Positions: Source Selectors +8
  • DC Positions: Main +29
  • 120 Volts AC
  • 12 Volts DC
  • (1) 30A - (5) 15A AC Circuit Breakers
  • (1) 100A - (20) 15A DC Circuit Breakers
  • Height 11.50in (292.1 mm)
  • Width 19.50in (495.3 mm)
  • Depth 3.00in (76.2 mm)


Combined AC/DC panels require an AC Insulating Cover to meet ABYC Standards

Specifications:

Fuses/Amps/Volts = NONE
AC/DC = NONE
Meters = NONE
Switches/Amps/Volts = NONE
Breaker Quantity - Max = NONE

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.


Normalized SKU: 8095
UPC Code: 632085080952

Blue Sea System 8095 Literature Download

  Quick Reference Guide
