Blue Sea System Qualifies for Free Shipping Blue Sea Breaker Panel 20-12v 20-120v AC #8086

Blue Sea Breaker Panel 20-12v 20-120v AC #8086

$1,680.18 $1,949.00 -14% OFF

Blue Sea Breaker Panel 20-12v 20-120v AC #8086

$1,680.18 $1,949.00 -14% OFF

Blue Sea Breaker Panel 20-12v 20-120v AC #8086

$1,680.18 $1,949.00 -14% OFF

SKU: BSS-8086

UPC: 632085080860

Category: Breaker Panels

More about this item
  Download Literature

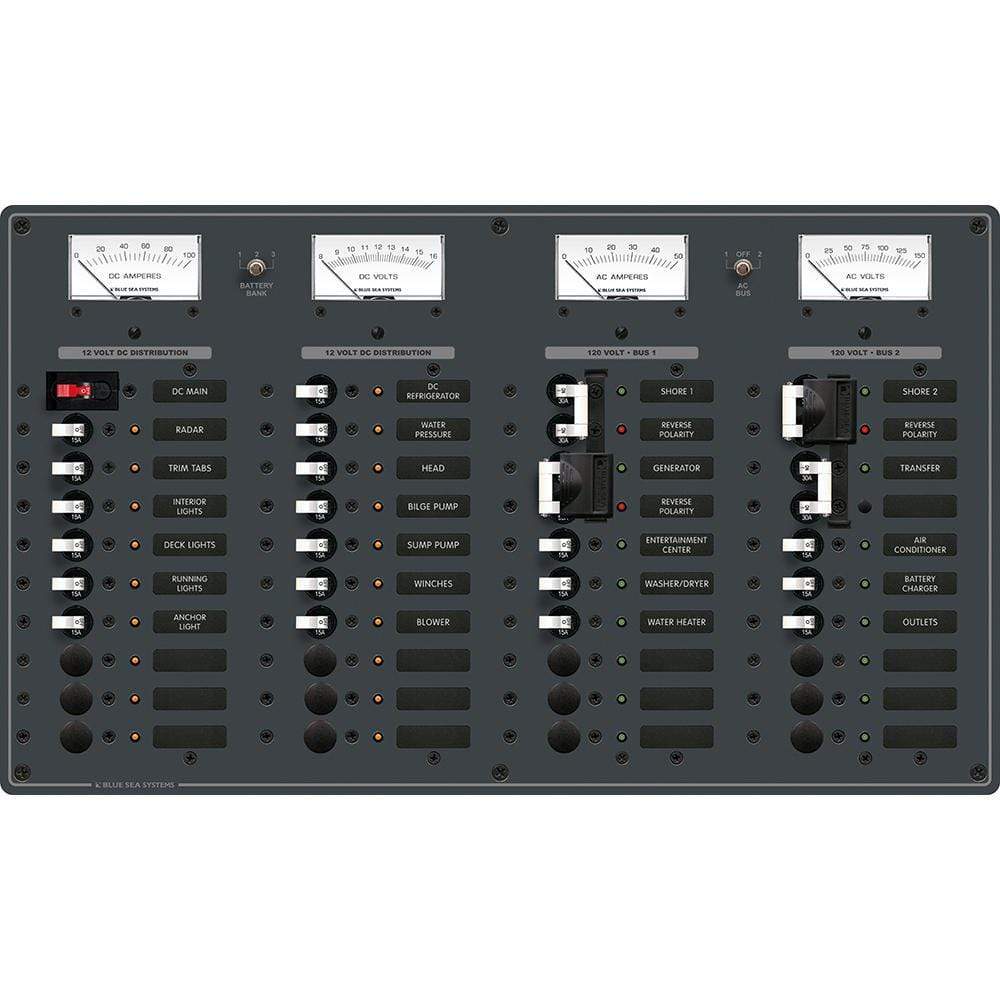

Blue Sea System 8086 Breaker Panels

AC Main +12 Positions / DC Main +19 Positions

PN:   8086
White Switches

  • Includes set of 30 common AC and 30 common DC labels
  • All AC and DC buses installed, fully pre-wired
  • Label backlighting pre-installed
  • All LEDs installed
  • Maximum panel Amperage
    • 100 Amperes DC
    • 50 Amperes AC

AC Features
  • Two separate AC load groups with transfer switch to combine into one load group
  • Switch allows Ammeter and Voltmeter to read either AC load group
  • Reverse polarity indicators on both AC load groups
  • Ready for installation of optional 4031 AC Isolation Cover
  • 9353, 0-150 Volt AC Voltmeter
  • 9630, 0-50 Amp AC Ammeter

DC Features
  • 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
  • 8003, 8-16 Volt DC Voltmeter
  • 8017, 0-100 Amp DC Ammeter

Specifications:
  • AC Positions: Source Selectors +12
  • DC Positions: Main +19
  • 120 Volts AC
  • 12 Volts DC
  • (3) 30A - (1) 50A - (6) 15A AC Circuit Breakers
  • (1) 100A - (13) 15A DC Circuit Breakers

Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards



WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.


Specifications:

Fuses/Amps/Volts = NONE
AC/DC = NONE
Meters = NONE
Switches/Amps/Volts = NONE
Breaker Quantity - Max = NONE


BLUE SEA 8086 BREAKER PANEL 20-12V 20-120AC


Normalized SKU: 8086
UPC Code: 632085080860
