Simrad 000-10998-001 Black Box Module

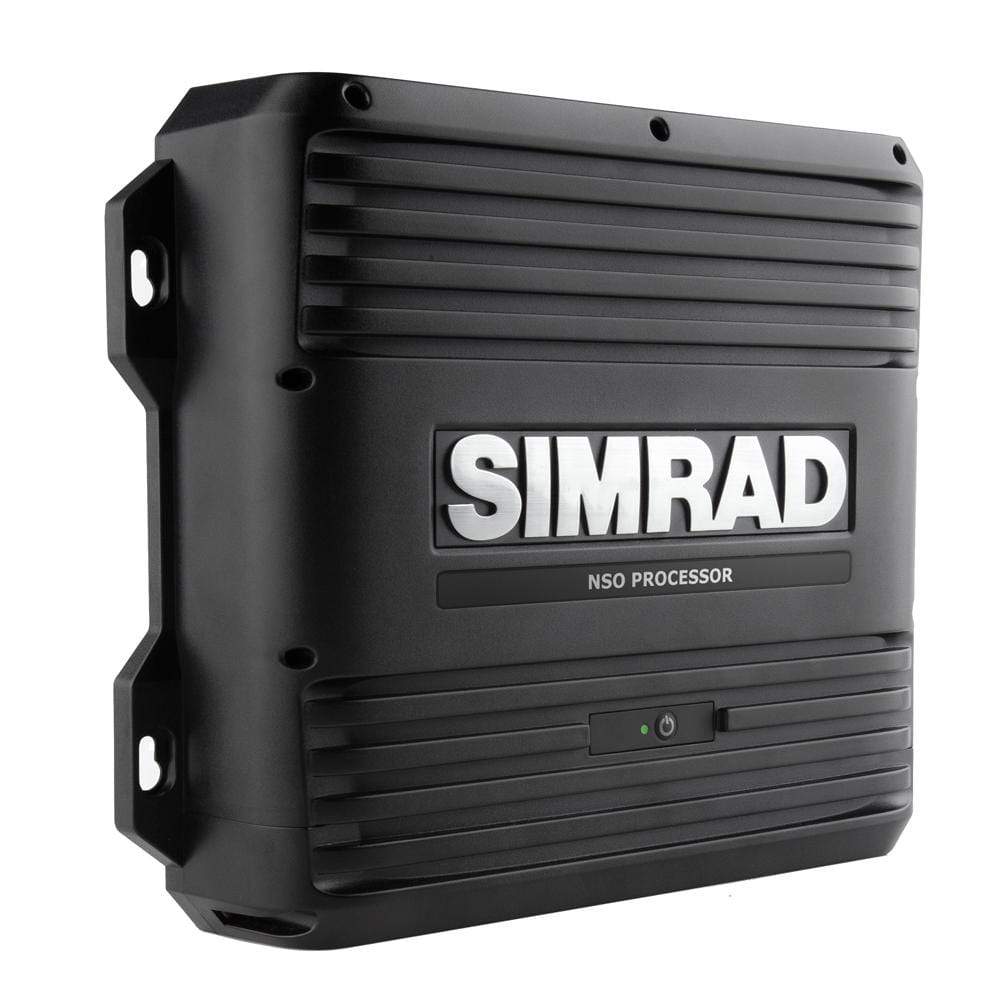

Simrad NSO evo2 Marine Processor Unit

The NSO evo2 (MPU - Marine Processor Unit) is the premium single or
multi-display multifunction navigation system for performance-minded
boaters.

The NSO evo2 offers dual high-definition, video output each with a lightning
fast quad-core processor for quick response and high performance in single
and dual independent display installations.

NSO evo2 Marine Processor Key Features

  • Large-Screen Navigation System
  • Multi-TouchSensible (with compatible display)
  • Dual Independent Video Output

  • Full HD Video
  • Performance Module compatibility
  • Smaller, lighter design
  • Quad-Core Processing Power
  • built in Insight Cartography(Amer)


Dual Independent Video Output
  • Independent HDMI output ports allow different setups on each display
  • 2 x Quad core processors


- Dedicated processor per monitor gives superior speed and chart draw
performanc


GoFree
  • Control both NSO evo2 monitors direct from your Ipad or Android
    Tablet.
  • NSO evo2 Appears as 2 Separate MFD Displays within the GoFree
    Application.


Even if you only have 1 monitor connected to the NSO evo2 on the vessel you
can view and control the second output direct from your tablet.

Control Options

OP-40 Remote -Full NSO evo2 System control available with OP-40 Remote
-*Integrated NSO evo2 Autopilot control functions require OP-40 remote

Touch screen Control - NSO evo2 can be operated by multi-touch monitors
provided by select partners. Currently KEP marine Glass bridge touch screen
monitors are certified for use on NSO evo2 and operate via USB cable
connection. Multi touch gestures are supported for chart zoom / sonar zoom/
Radar range

NSO evo2
  • Multi zoom touch gestures
  • Naviconics Depth Highlight range
  • Naviconics shallow water highlight
  • AIS Sarts
  • Fusion Link Audio Device Support
  • Grib Weather
  • GS25 Antenna Configuration
  • Wide screen display support


Language Packs
  • Standard Language Pack:


English(US), English(UK), Danish, German, Spanish, Finnish, French,
Greek, Icelandic, Italian, Dutch,Norwegian, Portuguese, Swedish


Mechanical / Environmental

Casing: ABS PLASTIC
Operating Temp: -15 degrees C to +55 degrees C
Water Ingress: IPx2
Weight: 1060g
Dimensions (overall): 281mm W x 232mm H x 65.5mm D

Electrical

Operating voltage: 9-31.2 V DC
Power consumption: 45W (Max)
Low power standby mode: Yes
Protection: Reverse polarity and temporary over-voltage to 36V
Alarm output current: Capable of driving 10A relay coil
Processor: iMX61 quad core
RAM: DDR3 1GB
Storage: 8 GB Flash
Conformity: CE, C-Tick, HDMI

Interfaces

Ethernet: 3 ports total - 1 & 2 are PoE (RJ45 socket)
NMEA 2000: 1 port on rear (Micro-C male)
Video Input: 2 ports on rear (BNC female. NTCS or PAL format)
Video Output: 800x600 (SVGA 4:3), 1024x768 (XGA 4:3), 1280x720 (HD 16:9), 1366x768 (WXGA), 1920x1080 (Full HD 16:9), 1920x1200 (WUXGA 16:10), 1280x800 (16:10), 1280x1024 (SXGA 5:4)
USB: mass storage, keyboard and mouse (type A socket)
SD: 32GB (Full size SD card socket)
NMEA 0183 baud rate: 4800, 9600, 19200, & 38400 (via proprietary cable)
MNEA 0183 iva RS232: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Charting Support: Navionics, Insight


Specifications:

Audio Capable = NONE
Frequency = NONE
Load Equivalence # (LEN) = NONE
Service Carrier = NONE
Waterproof Rating = NONE
Watts RMS - Max = NONE


Normalized SKU: 00010998001
UPC Code: 9420024122273
