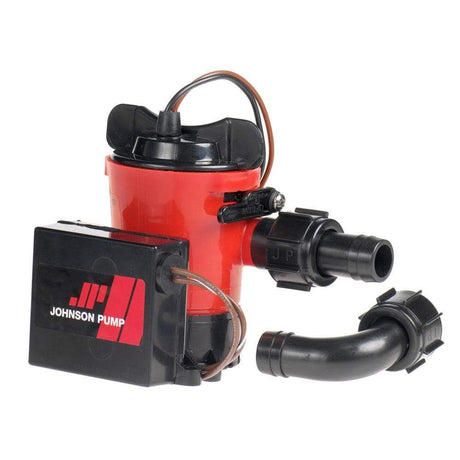

Download Literature Johnson Pump 07903-00 Bilge Pumps 1000 GPH Ultima Combo 12vPump with automatic operation equipped with the Ultima switch. Voltage 12 V DC. We have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps. The pumps will be delivered including both a straight and a 90-degree smooth elbow Dura-Port as well as a removable check valve.CE-ApprovedFeatures: Compact, all-in-one motor/impeller unit No tools are needed for maintenance Extremely energy efficient Water-cooled motor for long service intervals Meets the international standard, ISO 8849 marine Pump Body: Thermoplastic Shaft Seal: Lip Seal Shaft: Stainless steel (SS2343) Voltage: 12 V DC Capacity 3 ft (0.9 m) head (13.6 V) 50 l/min - 800 GPH Capacity straight (13.6 V): 63 l/min - 1000 GPH Amperage: 3.2 A Fuse Size: 5 A Connection: 3/4" Max height 112 mm - 4.4" Weight 0.4 kg - 14.4 oz. Normalized SKU: 0790300UPC Code: 729321079037 Johnson Pump 07903-00 Literature Download   Owners Manual

Johnson Pump 05503-00 Bilge Pumps500 GPH Cartridge Combo Series 12VCombines the line of cartridge bilge pumps with automatic operation. Equipped with a non-clogging electronic float switch.CE-ApprovedFeatures: Compact, all-in-one motor/impeller unit No tools needed for maintenance Extremely energy efficient Water-cooled motor for long service intervals Meets the international standard, ISO 8849 marine Pump Body: Thermoplastic Shaft Seal: Lip seal Shaft: Stainless steel (SS2343) Voltage: 12 V DC Capacity 3 ft (0.9 m) head (13.6 V): 33 l/min - 525 GPH Capacity straight (13.6 V): 40 l/min - 630 GPH Amperage: 2.5 A Fuse Size: 5 A Connection: 3/4" Normalized SKU: 0550300UPC Code: 729321055031

  Download LiteratureJohnson Pump 02274-001 Bilge PumpsAutomatic Submersible Bilge Pump - Ultima Switch02274-001 Heavy-Duty, high-performance pump Exceeds the tough demands of commercial and recreational duty Liquid Cooled 16-Pole motor with double ball bearings Lip Seal design construction Prewired with automatic float switch(with Manual Over-ride Operation) Optional and removable check valve included 1-1/8" & 1-1/4" hose adapters included 3 year warranty Specifications:Gallons Per Hour = 2200 Gallons Per Minute = NONE Operation = Automatic Outlet Size = NONE Power - Max Continuous (Amps) = NONE Volts = 12Normalized SKU: 02274001UPC Code: 729321916486Johnson Pump 02274-001 Literature Download  Owners Manual

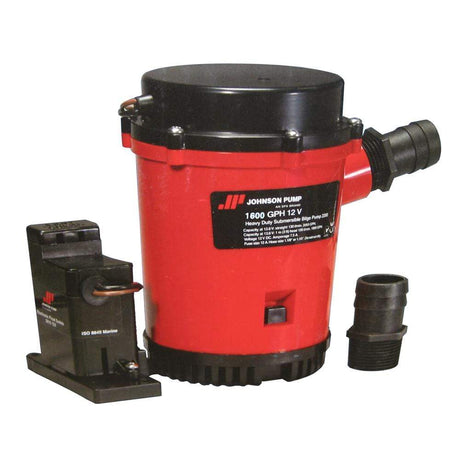

Johnson Pump 01604-00 Bilge PumpsAutomatic Submersible Bilge Pump - Electromagnetic Switch01604-00 Heavy-Duty, high-performance pump Exceeds the tough demands of commercial and recreational duty Liquid Cooled 12-Pole motor with double ball bearings Lip Seal design construction Prewired with automatic float switch(with Manual Over-ride Operation) Optional and removable check valve included 1-1/8" & 1-1/4" hose adapters included 3 year warranty Specifications:Gallons Per Hour = 1600 Gallons Per Minute = NONE Operation = Automatic Outlet Size = NONE Power - Max Continuous (Amps) = NONE Volts = 12Normalized SKU: 0160400UPC Code: 729321916431

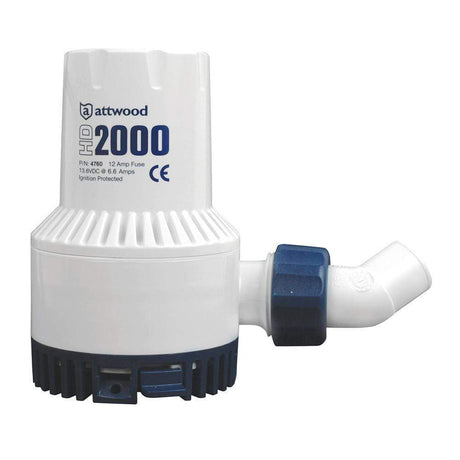

  Download LiteratureAttwood Marine 4760-4 Bilge PumpsHeavy-Duty Blige Pumps integrate the highest quality bearings, brushes, alloys and magnets designed to withstand extreme usage cycles. Pump all employs an exclusive shaft and motor compartment, reducing wear and significantly extending pump life. Advanced resin compositions incorporated in exterior to resist chemicals such as engine oil, aggressive detergents and hose plasticizers. Attwood?s Heavy Duty bilge has unsurpassed durability and efficiency in a compact design to ensure electrical energy is converted to the pump rather than excess heat. Attwood's highest capacity pump! Ball-bearing design provides for cooler motor operation and longer life, Delivers over 2000 GPH at open flow while drawing less than 7-amps. 3-Year Warranty Model No. Rated Voltage Wire / Connector Part # HD2000 12-Volt, CE rated 36" wire 4760-4 Normalized SKU: 47604UPC Code: 022697476043Attwood Marine 4760-4 Literature Download  Quick Reference Guide  Product Brochure

  Download LiteratureRule 56D-24 Bilge PumpsRule 4000Non-Automatic Bilge PumpDesigned for the toughest applications, the 4000 gph (15140 lph) pump optimizes Rule's exclusive design features to produce the highest capacity available for a pump its size. 2" (51mm) discharge outlet. Voltage: 24V DC Amp Draw: 6.9amp Fuse Size: 15amp Height: 7-3/4" 196.8mm Width: 4-7/8" 124mm Weight: 5-8lbs 2.5 kg WARNING: This product can expose you to chemicals including FORMALDEHYDE (GAS) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Rule 4000 GPH Bilge Pump #56D-24Normalized SKU: 56D24UPC Code: 042237085207Rule 56D-24 Literature Download  Owners Manual

  Download LiteratureJohnson Pump 32-47260-003 Bilge PumpsUltima Bilge PumpUltimaBilge Pumps are the latest addition to the Johnson Pump brand lineup. Integration of the Ultima "field effect" sensing technology into the bilge pump body creates a sleek, reliable and compact unit with integrated switch ready to install and run for years and years of unerring service. Available in 600-800-1000-1250 GPH versions. Voltage 12 V DC. For UltimaBilge 600 GPH-1000 GPH, we have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps. These pumps will be delivered including both a straight and a 90 degree smooth elbow Dura-Port. All version are delivered with a removable check valve.The Ultima Bilge pumps may be manually operated via the Johnson Pump bilgecontrol panel.CE-ApprovedFeatures: Compact, all-in-one unit Integrated Ultima Switch sensing right into the pump body No Mercury Removable clip on basket design Removable impeller cover allows for easy clean out 3-wire device can be run in auto or manual override mode No tools needed for maintenance Extremely energy efficient Water-cooled motor for long service intervals Pump Body: ABS Shaft Seal: Lip Seal Shaft: Stainless steel (SS2343) Voltage: 12 V DC Capacity 3 ft (0.9 m) head (13.6 V): 44 l/min - 700 GPH Capacity straight (13.6 V): 64 l/min - 1000 GPH Amperage: 3.2 A Fuse Size: 5 A Connection: 3/4" Length:142 mm - 6" Width:82 mm - 3.2" Height:105 mm - 4.1" Weight:0.66 kg - 23.3 oz. Bilge Pump: Automatic Bilge PumpSpecifications:Power - Max Continuous (Amps) = NONE Volts = 12 Operation = NONE Outlet Size = NONE Gallons Per Hour = 1000 Gallons Per Minute = NONEJohnson Pumps-Mayfair Ultima Bilge 1000 Pump 32-47260-003Normalized SKU: 3247260003UPC Code: 729321472609Johnson Pump 32-47260-003 Literature Download  Owners Manual

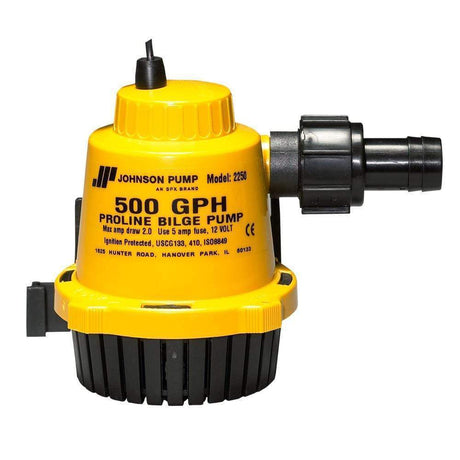

Johnson Pump 22502 Bilge PumpsProline Bilge Pump500 GPH w/DuraPortsCapacity 3' (0.9M) head (13.6V):33 L/M - 525 GPH Capacity Straight (13.6V): 40 L/M - 630 GPHAmperage:2.5AFuze Size:5AConnection:3/4" Bilge Pump: Non-Automatic Bilge PumpJohnson Pumps-Mayfair 500 GPH Bilge Pump 22502Normalized SKU: 22502UPC Code: 729321225021

T-H Marine PMP-BLGA8-DP Bilge PumpsHYDRA™ Automatic Bilge Pump - 800 GPH - 12VThe T-H Marine HYDRA™ Automatic Bilge Pump is engineered for reliable, high-performance water removal with long-term durability built in. Backed by 4,000 hours of testing, HYDRA delivers dependable operation through its advanced anti-airlock design, ensuring reliable restarts even when air is present in the line. A precision-balanced motor with a 316 stainless steel motor shaft reduces vibration, noise, and corrosion for smooth, long-lasting performance in harsh marine environments.Designed for simplified service and OEM-friendly installation, HYDRA features a removable nozzle for quick maintenance without disconnecting hoses and a positive-lock strainer base that matches most standard mounting patterns. The integrated Sure-Start™ float switch and programmed start delay prevent false starts and extend pump life, while the external test knob allows fast manual operation checks. Available in 800 GPH and 1100 GPH models and meeting all major ABYC, ISO, and U.S. Coast Guard standards, HYDRA is built for confidence on every outing.Features: FLOW RATE: 800 GPH AMP DRAW: Approx. 4A FUSE SIZE: 5 AMP ANTI-AIRLOCK DESIGN: Engineered to restart reliably, even with air in the line. 316 STAINLESS STEEL MOTOR SHAFT: Corrosion-resistant for long-term durability. PRECISION BALANCED MOTOR: Runs smoother with reduced vibration and noise. REMOVABLE NOZZLE: Allows quick service without disconnecting the hose. STATOR VANE TECHNOLOGY: Optimizes flow efficiency and performance. POSITIVE-LOCK STRAINER BASE: Mounting pattern matches most manufacturers. SURE-START FLOAT SWITCH: Corrosion-proof design for a reliable start every time. EXTERNAL TEST KNOB: Allows for quick manual testing. INCLUDES: Straight & 90º Outlet, Backflow Restrictor, and Flat Seal. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: PMPBLGA8DPUPC Code: 733572258301

T-H Marine PMP-BLGA11-DP Bilge PumpsHYDRA™ Automatic Bilge Pump - 1100 GPH - 12VThe T-H Marine HYDRA™ Automatic Bilge Pump is engineered for reliable, high-performance water removal with long-term durability built in. Backed by 4,000 hours of testing, HYDRA delivers dependable operation through its advanced anti-airlock design, ensuring reliable restarts even when air is present in the line. A precision-balanced motor with a 316 stainless steel motor shaft reduces vibration, noise, and corrosion for smooth, long-lasting performance in harsh marine environments.Designed for simplified service and OEM-friendly installation, HYDRA features a removable nozzle for quick maintenance without disconnecting hoses and a positive-lock strainer base that matches most standard mounting patterns. The integrated Sure-Start™ float switch and programmed start delay prevent false starts and extend pump life, while the external test knob allows fast manual operation checks. Available in 800 GPH and 1100 GPH models and meeting all major ABYC, ISO, and U.S. Coast Guard standards, HYDRA is built for confidence on every outing.Features: FLOW RATE: 1100 GPH AMP DRAW: Approx. 5A FUSE SIZE: 7.5 AMP ANTI-AIRLOCK DESIGN: Engineered to restart reliably, even with air in the line. 316 STAINLESS STEEL MOTOR SHAFT: Corrosion-resistant for long-term durability. PRECISION BALANCED MOTOR: Runs smoother with reduced vibration and noise. REMOVABLE NOZZLE: Allows quick service without disconnecting the hose. STATOR VANE TECHNOLOGY: Optimizes flow efficiency and performance. POSITIVE-LOCK STRAINER BASE: Mounting pattern matches most manufacturers. SURE-START FLOAT SWITCH: Corrosion-proof design for a reliable start every time. EXTERNAL TEST KNOB: Allows for quick manual testing. INCLUDES: Straight & 90º Outlet, Backflow Restrictor, and Flat Seal. Normalized SKU: PMPBLGA11DPUPC Code: 733572258349

Whale BP2084B Bilge PumpsGulper IC Waste Pump - 24VWhale BP2084B Gulper IC Electric Grey Water Pump 19LPM, 24V for use with the Whale Grey IC and Gulley IC system.Features: Whale Gulper Technology Powerful multi-purpose wastewater pump For use in the Whale Grey IC and Gulley IC systems Free flow valves - no filter required, no clogging, no cleaning Up to 19 liters/minute Large single diaphragm Easy to mount, quick installation, and secure hold on uneven surfaces The head can be rotated 360 degrees and adapts to any mounting situation Simply adjust the head with only one screw Easy maintenance with the EZ clamp ring Can run dry and pump an air/water mixture Rotatable pump head performance complies with ISO15083 Normalized SKU: BP2084BUPC Code: 766478952134

T-H Marine PMP-BLG8-DP Bilge Pumps The T-H Marine Standard Bilge Pump delivers a reliable 800 GPH pumping capacity to keep your bilge clear of water and your boat safe on the water. A properly functioning bilge pump is one of the most critical safety components on any vessel — when water intrusion occurs from rain, spray, or a minor leak, this pump evacuates it quickly and efficiently before it can accumulate to dangerous levels or cause damage to your boat's interior and electrical systems. Built by T-H Marine to withstand the demands of continuous marine use, this pump features corrosion-resistant construction that holds up in both fresh and saltwater environments. The 800 GPH flow rate makes it well-suited for small to mid-size boats where dependable water removal is essential without the bulk or power draw of a higher-capacity unit. The compact design fits easily into tight bilge compartments, and the straightforward wiring and plumbing connections make installation accessible for most boat owners. Whether you're replacing a worn-out pump, adding redundancy to your bilge system, or outfitting a new build, the #PMP-BLG8-DP delivers the consistent, no-fuss performance you need when it matters most. Don't wait for a problem to discover your bilge pump isn't up to the task — this T-H Marine unit gives you the peace of mind that comes from knowing your boat is protected every time you leave the dock. Normalized SKU: PMPBLG8DPUPC Code: 733572258295

T-H Marine PMP-BLG6-DP Bilge Pumps The T-H Marine Standard Bilge Pump delivers a dependable 600 GPH pumping capacity to keep your bilge dry and your boat protected on every outing. A reliable bilge pump is a fundamental safety component on any vessel — when water finds its way in from rain, spray, or a slow leak, this pump clears it out quickly before it can accumulate and create a hazard or cause damage to your boat's hull, flooring, and electrical systems. Engineered by T-H Marine for real-world marine conditions, this pump features corrosion-resistant construction that performs reliably in both fresh and saltwater environments season after season. The 600 GPH flow rate is ideally suited for smaller boats and tenders where a compact, efficient pump is the right tool for the job — providing meaningful water removal capacity without unnecessary power draw on your battery system. The low-profile design fits neatly into tight bilge spaces, and straightforward wiring and plumbing connections make installation simple for most boat owners. Whether you're replacing an aging pump, adding a backup to your bilge system, or equipping a new build, the #PMP-BLG6-DP is a smart, cost-effective choice that delivers T-H Marine's proven reliability where you need it most. Keep this pump running and maintained, and you'll have one less thing to worry about every time you head out on the water. Normalized SKU: PMPBLG6DPUPC Code: 733572258240
