Download LiteratureBattery Tender 022-1008-DL-WH Battery ChargersWaveCharge® Pro 3-Bank 12V, 30A Battery ChargerThis 3-bank on-board marine battery charger is the ideal solution for all marine battery charging needs. With its rugged construction and advanced features, this charger is designed to keep batteries in peak condition, ensuring reliable performance and extended battery life.3 CHARGING STATIONSCharge up to three 12-volt batteries at 10 AMPs simultaneously; automatically switches from full charge mode to float charge mode for optimal long-term battery healthEXTEND BATTERY LIFECompatible with all 12V lead-acid, flooded, AGM, and gel cell batteries and lithium batteries; a complete 4-step charging program works the battery with overcharging or discharging    INCLUDES12V 30 AMP 3 bank battery charger, two two-in-one alligator clip and ring terminal harness combo cables, mounting hardware, a two-year manufacturer limited warranty, and lifetime customer support    PROTECTEDRated IP67 weather-resistant and shock- and vibration-resistant, with safety features including spark-proof and reverse charging protection   LONG-TERM STORAGEBattery Tender battery chargers are completely automatic and may be left connected to both AC power and the batteries being charged for long periodsFeatures: 12 ft. total reach Mounting hardware is included Specifications: Size: 12.59" x 8.11" x 4.05" Weight: 7.01 lbs. Output Current: 10A per bank Input Voltage: 120V AC Input Cord Length: 6 ft. DC Output Cord Length: 6 ft. Accessory Cable Length: 6 ft. Normalized SKU: 0221008DLWHUPC Code: 734357221084Battery Tender 022-1008-DL-WH Literature Download Owners Manual

Download LiteratureBattery Tender 022-1007-DL-WH Battery ChargersWaveCharge® Pro 2-Bank, 12V, 20A Battery ChargerThis 2-bank onboard marine battery charger is the ideal solution for all marine battery charging needs. With its rugged construction and advanced features, this charger is designed to keep batteries in peak condition, ensuring reliable performance and extended battery life.2 CHARGING STATIONSCharge up to two 12-volt batteries at 10 AMPs simultaneously; automatically switch from full charge mode to float charge mode for optimal long-term battery healthEXTEND BATTERY LIFECompatible with all 12V lead-acid, flooded, AGM, and gel cell batteries and lithium batteries; a complete 4-step charging program works the battery with overcharging or discharging    INCLUDES12V 20 AMP 2 bank battery charger, two two-in-one alligator clip and ring terminal harness combo cables, mounting hardware, a two-year manufacturer limited warranty, and lifetime customer support    PROTECTEDRated IP67 weather-resistant and shock- and vibration-resistant, with safety features including spark-proof and reverse charging protection   LONG-TERM STORAGEBattery Tender battery chargers are completely automatic and may be left connected to both AC power and the batteries being charged for long periodsFeatures: 12 ft. total reach Mounting hardware is included. Specifications: Size: 12.59" x 5.94" x 4.05" Weight: 5.18 lbs Output Current: 10A per bank Input Voltage: 120V AC Input Cord Length: 6 ft. DC Output Cord Length: 6 ft. Accessory Cable Length: 6 ft. Normalized SKU: 0221007DLWHUPC Code: 734357221077Battery Tender 022-1007-DL-WH Literature Download Owners Manual

Download LiteratureBattery Tender 022-0337-DL-WH Battery Chargers12V, 8/2A Selectable Battery Charger & MaintainerImprove the battery life of your automobile or power sport with the Battery Tender® 8 Amp / 2 Amp Selectable Battery Charger and Maintainer! Unlike typical trickle chargers that can overcharge a battery and cause damage when connected for too long, this innovative charger and maintainer provides a full charge before automatically switching to float mode to keep your battery optimally charged.Fully SelectableWith the push of a button, quickly switch charging options to customize the charge to the needs of your battery. This state-of-the-art charger and maintainer allows you to choose between 8 amp or 2 amp charging to your lead-acid, AGM, or Lithium (LiFePO4) battery, combining the capabilities of multiple chargers in one compact, garage-friendly design. The LED display indicates which voltage the charger is set to, so you can always ensure a proper charge.High PoweredModern vehicles come standard with more electronics than ever, making it crucial for your battery application to meet the demands of today's vehicles. Packed with up to 8 amps to quickly recharge and maintain your battery, our device is equipped with a Microcontroller with Infinite Sequential Monitoring (ISM) that functions as its brain to ensure the proper level of power is sent to the battery to keep it operating at peak performance. Normalized SKU: 0220337DLWHUPC Code: 734357233711Battery Tender 022-0337-DL-WH Literature Download Owners Manual

Download LiteratureBattery Tender 022-0258-DL-WH Battery Chargers12V/24V, 5/2.5A Weather Resistant Battery ChargerQuickly re-charge and maintain your battery with The Battery Tender® 5 Amp charger. Fully automatic and easy to use. With a 4-Step Fully Automatic Charging (Initialization, Bulk, Absorption, and Float Sequence), this charger switches to a float or maintenance voltage after the battery has reached 100%.Perfect for all lead-acid, flooded, or sealed maintenance-free batteries (AGM and Gel cells), which are versatile for a variety of applications. It is completely safe and includes a 72-hour timer to prevent further damage to marginal batteries.Features: This 5 AMP industrial charger is constructed with a heavy-duty cast aluminum casing that is shock and vibration resistant Easy to install  Weather-resistant IP67 Rating Selectable for AGM, Flooded, GEL, or Lithium (LifePO4) batteries Integrated mounting capabilities Heavy-duty cast aluminum casing Shock and vibration resistant 2-year warranty Specifications:Output: 12V @ 5 AMP and 24V @ 2.5 AMP Normalized SKU: 0220258DLWHUPC Code: 734357225815Battery Tender 022-0258-DL-WH Literature Download Owners Manual

Download LiteratureBattery Tender 022-0229-DL-WH Battery Chargers12V, 10/6/2A Selectable Chemistry Battery Charger with WiFiBattery Tender® 12 Volt, 10 AMP/6 AMP/2 AMP Selectable Chemistry Battery Charger and Maintainer with WiFi delivers the power you need. It features a 6 AMP and 2 AMP power selection and comes with a built-in 10 AMP power supply to ensure you have continuous power while the battery is disconnected.Built-in wireless technology allows you to monitor your battery from your smartphone with the touch of a button and stay up-to-date on your vehicle's power levels. Its vibration-resistant mechanism allows it to endure the most extreme work conditions.Select your battery and voltage type easily for your vehicle types, such as trucks, SUVs, cars, motorcycles, and up to large motorhomes or industrial tractors. Equipped with high-intensity LED work lights and a mounting hook, so you can work efficiently. Comes with an industry-leading three-year warranty included for extra peace of mind.Features: The retractable utility hook provides the option to hang the battery charger from the vehicle hood and makes your life easier when working on the engine bay Get the most out of your battery charger by downloading the Deltran Connected App to monitor your vehicle's battery on your smartphone DC Output Cord Length: 6 ft, 16 AWG  Size (L X W X H) (inch): 2.5" X 5" X 10"  Weight: 2.35 lbs. (charger only) Includes:Hardwired alligator clipsSpecifications: Input: 120V, 50/60Hz  Output: 12V @ 10 AMP, 6 AMP, 2 AMP / 12V  - 10 AMP Power Supply  AC Power Cord Length: 6 ft, 18 AWG Normalized SKU: 0220229DLWHUPC Code: 734357222906Battery Tender 022-0229-DL-WH Literature Download Owners Manual

Download LiteratureDual Pro ES0800-36V003 Battery ChargersHF Eagle ES800 Series 36V Single Lithium ChargerFor Marine, Golf, Aerial, Emergency Services, Floor Scrubbers, and more. Applications: Marine: Connect to our PROView Link app to choose the right algorithm for your Lithium, AGM, or Lead Acid batteries and more.  Golf & LSV: Pair our portable charger with our 7.5 ft. interchangeable connector cables. We offer options for most major cart manufacturers. Our PVL app allows you to choose the algorithm for your battery(s) chemistry. Aerial Equipment: Our chargers work with most Scissor and Boom Lifts, as well as various carts and burden carriers' manufacturers. Emergency Services: First Responders & Warning Systems depend on our chargers to keep their batteries charged and conditioned for use when needed. Floor Scrubbers: Rugged and Waterproof to work in any Janitorial/Industrial environment. Your Equipment: The Eagle Series HF (ES800) is the perfect choice for any application requiring a Powerful, Durable, Waterproof Charger with Advanced Data Monitoring & Logging capabilities, with selectable algorithms all accessible via our free-to-download PROView Link App. Features: Portable and Onboard Options Output: 800W - 24VDC @ 33.3A, 36VDC @ 22.48VDC, & 48VDC @ 16.7A AC Universal Input (85-270 VAC 50/60HZ) CAN Capable PROView Link App Enabled to receive over-the-air updates and more Dimensions: L10" x W7.15" x H4" Weight: 11 LBS Developed to be interleaved for higher output requirements US Designed and Assembled Normalized SKU: ES080036V003UPC Code: 738562003459Dual Pro ES0800-36V003 Literature Download Quick Reference Guide

Download LiteratureDual Pro ES0800-24V003 Battery ChargersHF Eagle ES800 Series 24V Single Lithium ChargerFor Marine, Golf, Aerial, Emergency Services, Floor Scrubbers, and more. Applications: Marine: Connect to our PROView Link app to choose the right algorithm for your Lithium, AGM, or Lead Acid batteries and more.  Golf & LSV: Pair our portable charger with our 7.5 ft. interchangeable connector cables. We offer options for most major cart manufacturers. Our PVL app allows you to choose the algorithm for your battery(s) chemistry. Aerial Equipment: Our chargers work with most Scissor and Boom Lifts, as well as various carts and burden carriers' manufacturers. Emergency Services: First Responders & Warning Systems depend on our chargers to keep their batteries charged and conditioned for use when needed. Floor Scrubbers: Rugged and Waterproof to work in any Janitorial/Industrial environment. Your Equipment: The Eagle Series HF (ES800) is the perfect choice for any application requiring a Powerful, Durable, Waterproof Charger with Advanced Data Monitoring & Logging capabilities, with selectable algorithms all accessible via our free-to-download PROView Link App. Features: Portable and Onboard Options Output: 800W - 24VDC @ 33.3A, 36VDC @ 22.48VDC, & 48VDC @ 16.7A AC Universal Input (85-270 VAC 50/60HZ) CAN Capable PROView Link App Enabled to receive over-the-air updates and more Dimensions: L10" x W7.15" x H4" Weight: 11 LBS Developed to be interleaved for higher output requirements US Designed and Assembled This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: ES080024V003UPC Code: 738562003329Dual Pro ES0800-24V003 Literature Download Quick Reference Guide

Download LiteratureVictron Energy ORI121217050 Battery ChargersOrion XS 12/12-50A DC-DC Battery ChargerThe Orion XS, engineered from the ground up, redefines DC-DC battery-to-battery charging. Ideal for dual battery systems charged by an intelligent alternator.This device not only ensures top-tier performance but also guarantees the safety of your system.Stay in charge with configurable input and output currents and rest assured that your Orion XS will run at full capacity up to 40°C. The 98,5% efficient aluminum circuit board technology means less heat, without the need for fans.As an integral part of your Victron system, the Orion XS offers full (remote) monitoring and control capabilities, giving you complete command of your device and system.Parallel to increasing output currentAn unlimited number of Orion XS devices can be connected in parallel, for easy output current scaling to meet system requirements.Smart alternator compatibilityWith its built-in engine running detection, the Orion XS guarantees the charger only draws power when the engine is running. It also helps retrieve a proper charge current from intelligent alternators as found in Euro 5 & Euro 6 engines.Adaptive charge algorithmThe Orion XS features customizable and preset charging algorithms for lithium and lead-acid batteries, ensuring optimal recharging, for both shallow and deep discharges.Complete electronic protectionThe Orion XS comes equipped with comprehensive electronic protection against overload, short circuits, and excessive temperatures. It will automatically reduce the output power when the maximum product temperature is reached.Low-temperature shutdown & under voltage protectionTo prevent damage to lithium batteries, the charger will turn off automatically at low temperatures and when the input voltage drops below a user-configurable lockout value, protecting the starter battery from deep discharge.Dust & waterproofThe Orion XS is designed to withstand dust and water pollution and has an IP65 classification.Safely combine any alternator with any batteryWhen the engine is off, the Orion XS isolates the service battery, so no power is drawn from the starter battery. Turn the engine on.Smart has never looked so simpleWith multiple automated safety and efficiency features, the Orion XS is truly a smart addition to any vehicle or marine system with dual batteries. That doesn’t mean that it should be a complicated one. We made sure integrating and controlling are as simple as can be.Features: Fully configurable Efficient cooling Engine running detection Works with VictronConnect Intelligent charge algorithms Remote monitoring optional Specifications:5 Year WarrantyApplications: Professional Vehicles - As the world market leader in power supplies for ambulances, our decades of know-how translate into robust, professional systems for on the road. Marine - Coming from the world of marine power systems, customer feedback, and innovation has led us to offer the most complete range of onboard energy solutions. Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: ORI121217050UPC Code: 8719076068501Victron Energy ORI121217050 Literature Download Quick Reference Guide

Download LiteratureSentry SFR2460/3X Battery ChargersMarine Battery Charger 115/230V Input 24VDC - 60A - 3-BankSentry SFR Ferroresonant series marine battery chargers are in an elite class, setting the standard for dependable battery chargers. Sentry chargers are designed to operate for decades in the harsh marine environment. They are completely field serviceable and come with a 2-year parts and labor warranty.Features: Available in 12vdc, 24vdc and 32vdc models Completely charge the battery and turn off to prevent overcharging Ignition protected to allow engine room installations Charging outputs for Lead-Acid, Optional AGM, Gel, and Lead Calcium This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: SFR2460/3XUPC Code: 850046155932Sentry SFR2460/3X Literature Download Quick Reference Guide Owners Manual Product Brochure

Download LiteratureSentry SFR2440/3X Battery ChargersMarine Battery Charger 115/230V Input 24VDC - 40A - 3-BankSentry SFR Ferroresonant series marine battery chargers are in an elite class, setting the standard for dependable battery chargers. Sentry chargers are designed to operate for decades in the harsh marine environment. They are completely field serviceable and come with a 2-year parts and labor warranty.Features: Available in 12vdc, 24vdc and 32vdc models Completely charge the battery and turn off to prevent overcharging Ignition protected to allow engine room installations Charging outputs for Lead-Acid, Optional AGM, Gel, and Lead Calcium This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: SFR2440/3XUPC Code: 850046155925Sentry SFR2440/3X Literature Download Quick Reference Guide Owners Manual Product Brochure

Download LiteratureSentry SFR1260/3X Battery ChargersMarine Battery Charger 115/230V Input 12VDC - 60A - 3-BankSentry SFR Ferroresonant series marine battery chargers are in an elite class, setting the standard for dependable battery chargers. Sentry chargers are designed to operate for decades in the harsh marine environment. They are completely field serviceable and come with a 2-year parts and labor warranty.Features: Available in 12vdc, 24vdc and 32vdc models Completely charge the battery and turn off to prevent overcharging Ignition protected to allow engine room installations Charging outputs for Lead-Acid, Optional AGM, Gel, and Lead Calcium This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: SFR1260/3XUPC Code: 850046155918Sentry SFR1260/3X Literature Download Quick Reference Guide Owners Manual Product Brochure

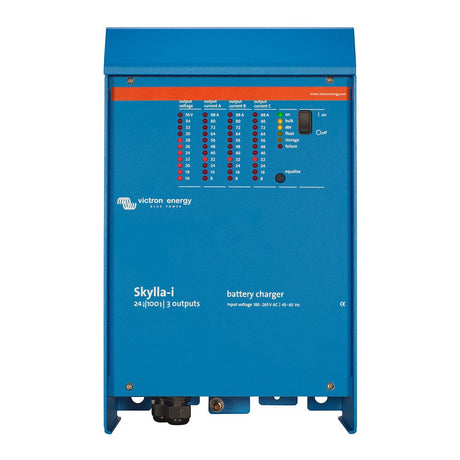

Victron Energy SKI024100002 Battery ChargersSkylla-i Battery Charger 24/100 (3) 230V Battery ChargerThe Skylla-i (3) features 3 isolated outputs. All outputs can supply the full rated output current.Features: Rugged - Aluminium epoxy powder-coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity, and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions. Flexible - Next to a CAN bus (NMEA2000) interface, a rotary switch, DIP switches and potentiometers are available to adapt the charge algorithm to a particular battery and its conditions of use. Please refer to the manual for a complete overview of the possibilities.  Synchronized parallel operation - Several chargers can be synchronized with the CAN bus interface. This is achieved by simply interconnecting the chargers with RJ45 UTP cables. Note: Two output and three output chargers cannot be paralleled with each other. Please see the manual for details. The right amount of charge for a lead-acid battery: variable absorption time - When only shallow discharges occur the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged. Preventing damage due to excessive gassing: BatterySafe mode - If to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the Skylla-i will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached. Less maintenance and aging when the battery is not in use: Storage mode - The storage mode kicks in whenever the battery has not been subjected to discharge for 24 hours. In the storage mode float voltage is reduced to 2.2V/cell (26.4V for 24V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘refresh’ the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure. To increase battery life: temperature compensation - Every Skylla-i comes with a battery temperature sensor. When connected, charge voltage will automatically decrease with increasing battery temperature. This feature is especially recommended for sealed lead-acid batteries and/or when important fluctuations in battery temperature are expected. Battery voltage sense - To compensate for voltage loss due to cable resistance, the Skylla-i is provided with a voltage sense facility so that the battery always receives the correct charge voltage. Suitable for AC and DC supply (AC-DC and DC-DC operation) - The chargers also accept a DC supply. Use as a power supply - As a result of the perfectly stabilized output voltage, the Skylla-i can be used as a power supply if batteries or large buffer capacitors are not available. Li-Ion (LiFePO4) ready - Simple charger on-off control can be implemented by connecting a relay or open collector optocoupler output from a Li-Ion BMS to the remote control port of the charger. Alternatively, complete control of voltage and current can be achieved by connecting to the galvanically isolated CAN bus port. Specifications: Input voltage (VAC): 230V Input voltage range (VAC): 185-265V Input voltage range (VDC): 180-350V Maximum AC input current @ 180 VAC: 20A Frequency (Hz): 45-65Hz Charge voltage 'absorption' (VDC): 28.8V Charge voltage 'float' (VDC): 27.6V Charge voltage ‘storage’ (VDC): 26.4V Charge current (A): 3 x 100A (max total output: 100A) Charge algorithm: 7-stage adaptive Battery capacity: 500-1000Ah Charge algorithm (LiFePO4): 3 stages, with on-off control or CAN bus control Temperature sensor: Yes Power supply mode: Yes Remote on-off port: Yes (can be connected to a Li-Ion BMS) VE.Can communication port: Two RJ45 connectors, NMEA2000 protocol, galvanically isolated. Integrated 12V CAN-bus power supply, 30V DC maximum Synchronized parallel operation: Yes, with VE.Can Forced cooling: Yes Protection: Battery reverse polarity (fuse) / Output short circuit / Over temperature Operating temp. range: -20 to 60°C (Full output current up to 40°C) Material & Colour: aluminium (blue RAL 5012) Battery connection: M8 bolts 230 VAC-connection: screw-clamp 10mm² (AWG 7) Protection category: IP21 Weight: 16 lbs. (7 kg) Dimensions (hxwxd): 405 x 250 x 150 in (16.0 x 9.9 x 5.9mm) Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: SKI024100002UPC Code: 8719076026259

ProMariner 23247 Battery ChargersProMariner ProIsoCharge150 Zero Volt Loss Isolator 1 Alternator 3 BatteriesModel: 23247 ProMar Digital Performance Zero Volt Loss Isolation and Charging All digital design delivers active battery status and automatic engine battery health priority while digitally distributing the full output of your engine’s alternators. Intelligent Isolation and Charging Software Control ProIsoCharge’s intelligent software control provides priority charging to a battery bank that is under load (i.e house bank or power inverter bank) by taking fully charged batteries off line and priority charging discharged battery banks, while insuring the health of the engine batteries. Real Time LED Status Indicators,/b> Highly visible LEDs to indicate alternator power is present and battery bank charging status. Fault LEDs include: high and low alternator output, over-voltage protection and high voltage conditions that may be present on any one of the battery banks connected (that are also connected to other charging sources gen set combi etc). Ignition Controlled Distributed On Demand™ battery bank management will only activate with ignition power on. Advance Regulator Ready Advance regulator remote sense connection provided for precision alternator algorithm control for alternators equipped with an advanced regulator. Easy Installation Modular design for easy install. Includes all terminal stud insulator boots and protective snap on safety cover. Built-in Safety Ignition protected and waterproof to IP66 ProIsoCharge delivers digitally controlled alternator output distribution while protecting the health of engine start batteries, isolating and charging up to 3 other independent battery banks off of a single alternator (model specific). For dual engine applications, ProIsoCharge offers an exclusive 2 alternator input model with up to 4 battery banks. Save space and time by eliminating traditional diode based isolators and ancillary voltage sensitive relays or solenoids, isolating and charging multiple battery banks simultaneously. Eliminate typical alternator voltage loss of up to .6 VDC that is commonly associated with traditional diode based isolators. Intelligent zero volt loss isolation insures fully charged batteries and faster charge times. Installed with the ProNauticPSeries, a boat owner can enjoy the full benefit of shore power and on the water charging. Designed to provide more time on the water enjoying what you like most... Boating.Specifications System Voltage 24vDC Alternator Input 1 Battery output 3 Dimensions 8.875"(l) x 5.875"(w) x 3.125"(h) Max DC Amps 150 Normalized SKU: 23247UPC Code: 031669232471

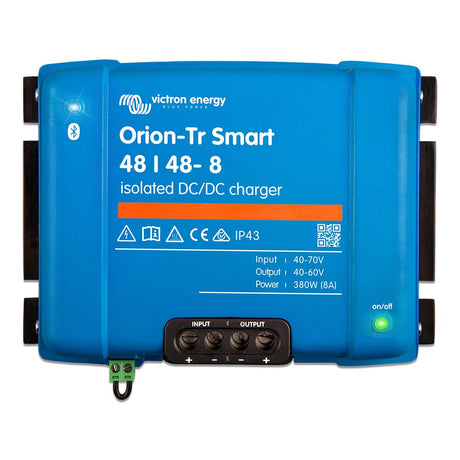

Download LiteratureVictron Energy ORI484838120 Battery ChargersOrion-Tr Smart 48/48-8A (380W) Isolated DC-DC Charger The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism.The Orion-Tr Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.Suitable for high temperatures up to 55°C with a full rated output up to 40°C.Bluetooth Smart enabled Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available. Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the Device list page without the need to connect to the product. Fully programmable Battery charge algorithm (configurable) or fixed output. Smart alternator compatibility: engine running detection mechanism. Adaptive 3-stage charge algorithm: bulk – absorption – float For lead acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged. For lithium batteries absorption time is fixed, default 2 hours. Alternatively, a fixed output voltage can be chosen. Suitable for use in vehicles with a smart alternator (Euro 5 and Euro 6 engines)The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery.Remote on/offA remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel.High temperature protectedThe output current will reduce at high ambient temperatures.IP43 protectionWhen installed with the screw terminals oriented downward.Screw terminalsNo special tools are needed for installation.Input fuse (not replaceable)Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: ORI484838120UPC Code: 8719076065609Victron Energy ORI484838120 Literature Download Quick Reference Guide

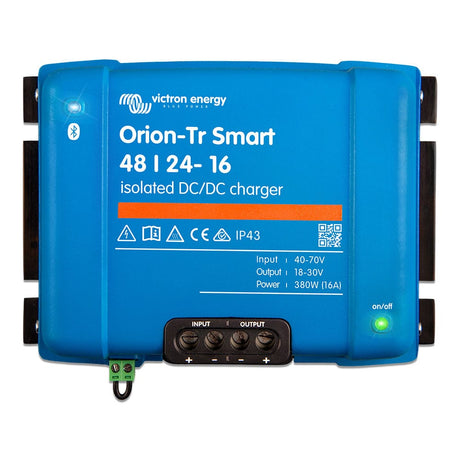

Download LiteratureVictron Energy ORI482438120 Battery ChargersOrion-Tr Smart 48/24-16A (380W) Isolated DC-DC Charger The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism.The Orion-Tr Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.Suitable for high temperatures up to 55°C with a full rated output up to 40°C.Bluetooth Smart enabled Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available. Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the Device list page without the need to connect to the product. Fully programmable Battery charge algorithm (configurable) or fixed output. Smart alternator compatibility: engine running detection mechanism. Adaptive 3-stage charge algorithm: bulk – absorption – float For lead acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged. For lithium batteries absorption time is fixed, default 2 hours. Alternatively, a fixed output voltage can be chosen. Suitable for use in vehicles with a smart alternator (Euro 5 and Euro 6 engines)The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery.Remote on/offA remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel.High temperature protectedThe output current will reduce at high ambient temperatures.IP43 protectionWhen installed with the screw terminals oriented downward.Screw terminalsNo special tools are needed for installation.Input fuse (not replaceable)Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: ORI482438120UPC Code: 8719076065593Victron Energy ORI482438120 Literature Download Quick Reference Guide

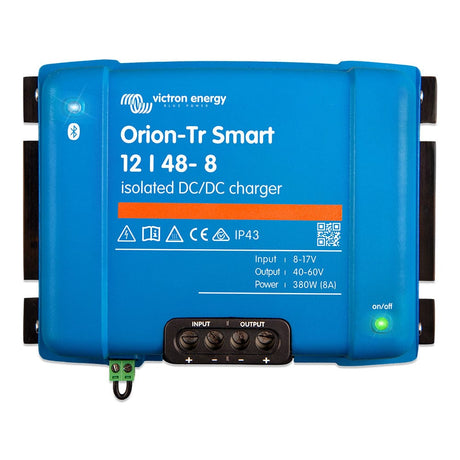

Download Literature Victron Energy ORI124838120 Battery Chargers Orion-Tr Smart 12/48-8A (380W) Isolated DC-DC Charger  The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth. For use in dual battery systems in vehicles or on boats, where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch, and has an engine running detection mechanism. The Orion-Tr Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W, and unlimited multiple units can be connected in parallel to increase output power. Suitable for high temperatures up to 55°C with a full rated output up to 40°C. Bluetooth Smart enabled Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available. Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the Device list page without the need to connect to the product. Fully programmable Battery charge algorithm (configurable) or fixed output. Smart alternator compatibility: engine running detection mechanism. Adaptive 3-stage charge algorithm: bulk – absorption – float For lead acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged. For lithium batteries absorption time is fixed, default 2 hours. Alternatively, a fixed output voltage can be chosen. Suitable for use in vehicles with a smart alternator (Euro 5 and Euro 6 engines) The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery. Remote on/off A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example). All models are short-circuit proof and can be paralleled to increase output current An unlimited number of units can be connected in parallel. High temperature protected The output current will reduce at high ambient temperatures. IP43 protection When installed with the screw terminals oriented downward. Screw terminals No special tools are needed for installation. Input fuse (not replaceable) Please contact your dealer for any returns, repairs, or support issues related to this product. Normalized SKU: ORI124838120UPC Code: 8719076065654 Victron Energy ORI124838120 Literature Download Quick Reference Guide
