Victron Energy SDTG2400302 Battery Chargers

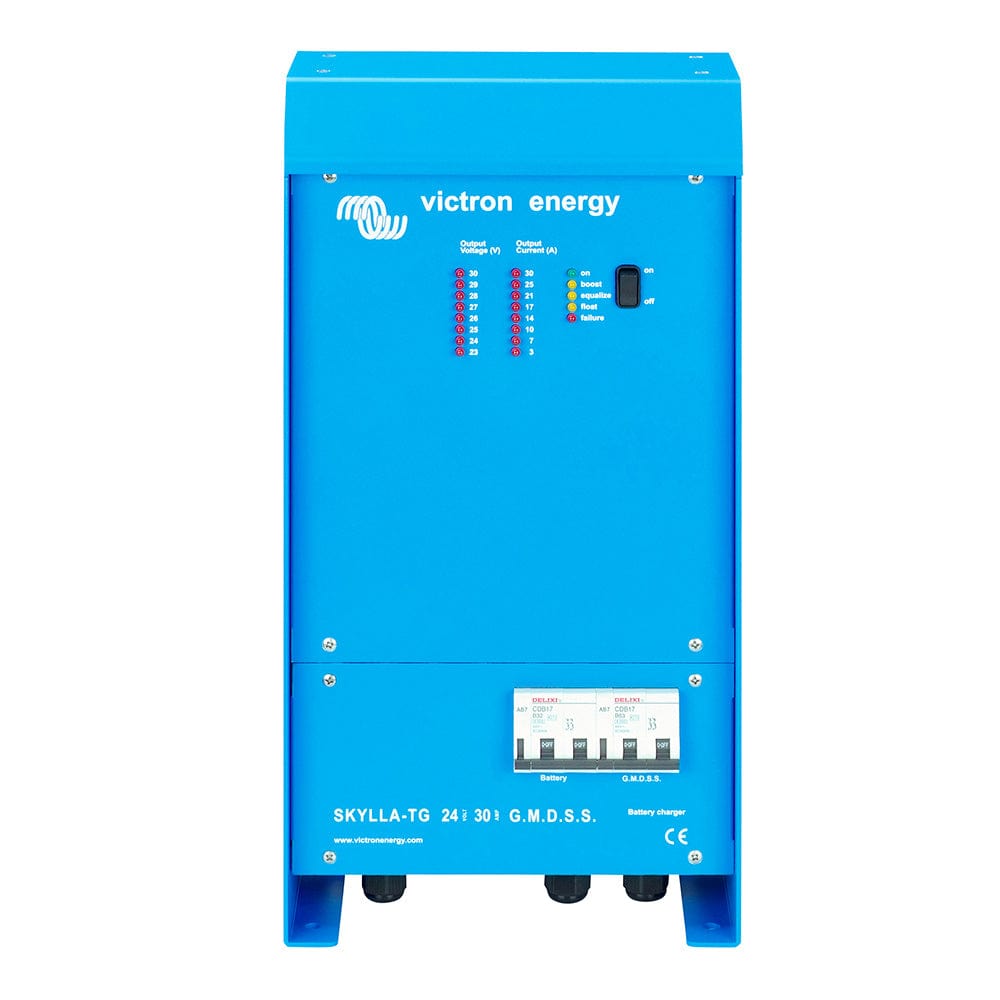

Skylla-TG Charger - 24/30 GMDSS

This Victron Skylla-TG 24/30 Charger has been designed to provide all required monitoring and alarm data. Both the battery and the GMDSS system are connected directly to the charger. Data and alarms are displayed on a digital panel (VE.Net GMDSS panel, to be ordered separately). A standard eight-wire UTP cable connects the charger to the panel.

GMDSS

The Global Maritime Distress & Safety System (GMDSS) was developed by the International Maritime Organisation (IMO) to improve maritime distress and safety communications.

Power Supply

The Skylla TG has proven itself to be an excellent battery charger and power supply for GMDSS applications. However, when using a standard Skylla charger, additional equipment is needed to perform the monitoring and alarm functions required for GMDSS.

Installation Made Easy: The Skylla GMDSS

The Victron Skylla GMDSS Charger has been designed to provide all required monitoring and alarm data. Both the battery and the GMDSS system are connected directly to the charger. Data and alarms are displayed on a digital panel (VE.Net GMDSS panel, to be ordered separately). A standard eight-wire UTP cable connects the charger to the panel.  Skylla TG 24 30 GMDSS

No Adjustments Needed

The whole system is ‘click and go’: the panels are pre-programmed for GMDSS functionality. A simple, intuitive menu allows changing of settings if required.

Battery Time To Go

The Skylla GMDSS charger has a built-in battery controller. The capacity of the battery is fully monitored, so the panel can even indicate the ’time to go’ in case of a power supply blackout.

Perfect Charger for Any Type of Battery

Charge voltage can be precisely adjusted to suit any VRLA or flooded battery system.

Specifications:

  • Input Voltage (V AC): 120 / 230
  • Input Voltage Range (V AC): 90-265
  • Frequency (Hz): 45-65
  • Power Factor: 1
  • Charge Voltage ‘Absorption’ (V DC): 28,5
  • Charge Voltage 'Float' (V DC): 26,5
  • Charge Current (A): 30 (limited to 22 A at 110 V AC)
  • Charge Characteristic: IUoUo (three-step)
  • Temperature Sensor: Yes
  • Can Be Used as Power Supply: Yes
  • Forced Cooling: Yes
  • Protection: a, b, c, d
  • Operating Temp. Range: -40 to +50 degrees C (-40 – 122 degrees F)
  • Humidity (non-condensing): Max 95%

Enclosure Specifications:

  • Material & Color: Aluminium (blue RAL 5012)
  • Battery-Connection: Two 1,5 m Cables
  • GMDSS connection One 1,5 m cable (+ to be taken directly from the battery)
  • 230 V AC-Connection: Three wire 2,5 mm² (AWG 6); Cable Length: 2 m
  • Protection Category: IP 21
  • Weight kg (lbs.): 6 (13)
  • Dimensions H x W x D in mm (H x W x D in inches): 485 x 250 x147 (19.1 x 9.9 x 5.8)

Accessories:

  • VE.Net GMDSS panel: To be ordered separately
  • UTP-cable: To be ordered separately

Standards

  • Safety: EN 60335-1, EN 60335-2-29
  • Emission Immunity:  EN 55014-1, EN 61000-3-2
  • Immunity: EN 55014-2, EN 61000-3-3
  • Maritime Nav. & Radiocomm: IEC 60945
  • Protection Key: a) Output short circuit; b) Battery reverse polarity detection; c) Battery voltage too high; d) Temperature too high IEC 60945 Remote panel GMDSS; 2) Up to 40 degrees C (100 degrees F) ambient
Please contact your dealer for any returns, repairs or support issues related to this product.
Normalized SKU: SDTG2400302
UPC Code: 8719076025726

Victron Energy SDTG2400302 Literature Download

Quick Reference Guide
Owners Manual
